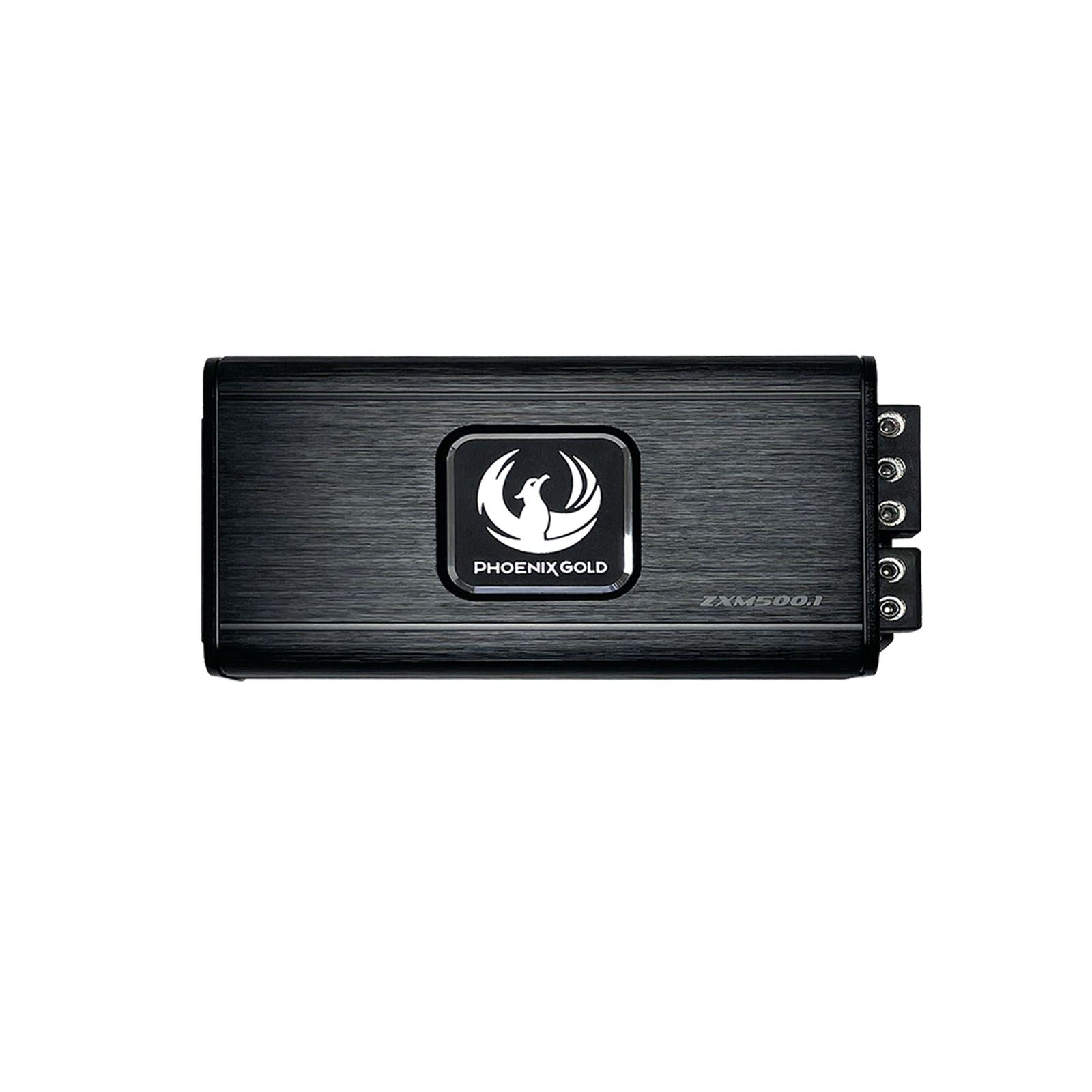

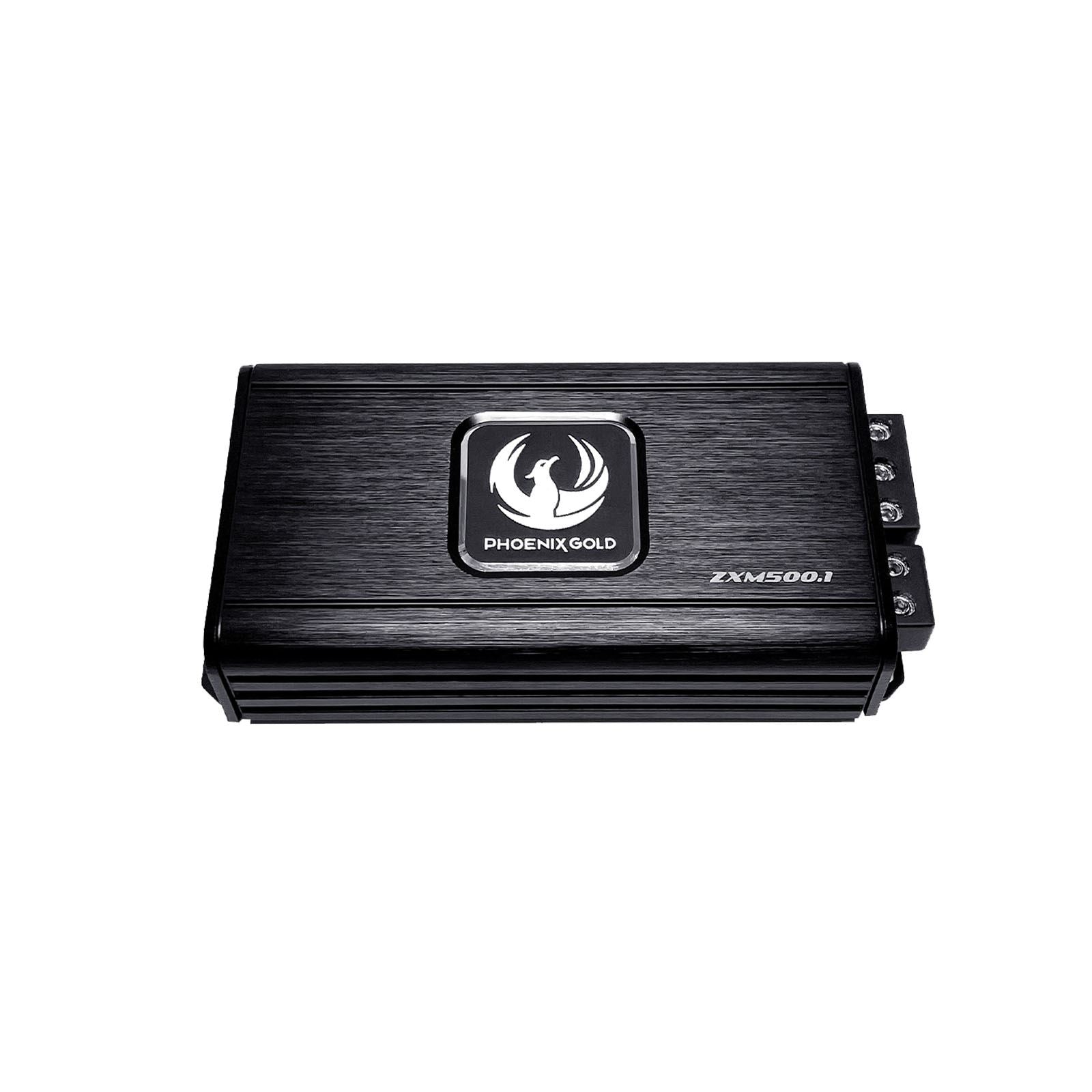

PHOENIX GOLD ZXM500.1 Class-D Mono Mini Amplifier
The ZXM500.1 is an impressive Class-D Mono Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.1 is a 1 channel amplifier with 500W RMS into 1 Ohm. The power output in 2 Ohm is 360W RMS and in 4 Ohm is 230W RMS. This means it can be loaded between 4 1 Ohm with lots of power.

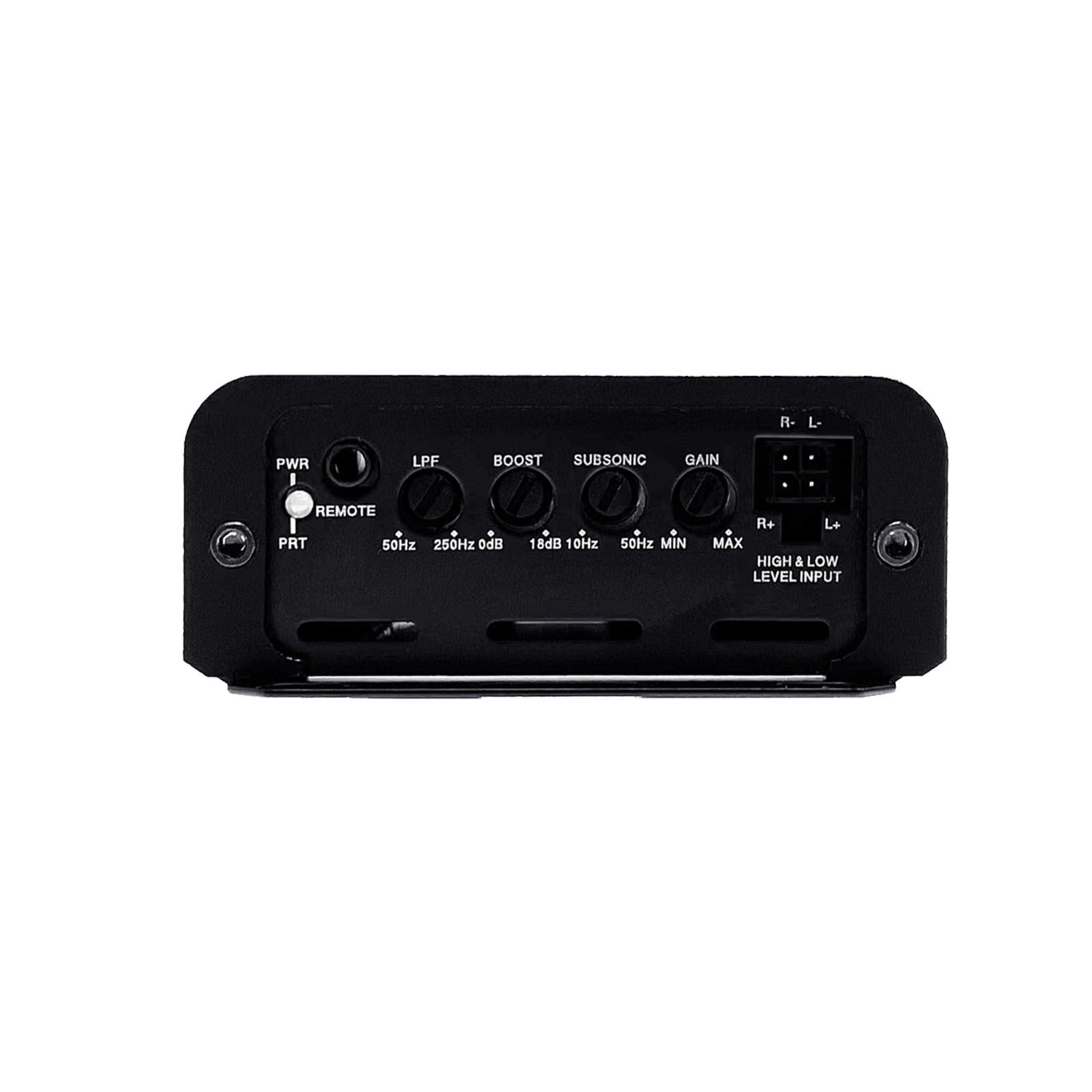

The ZXM500.1 has 24dB Low pass filter and also an adjustable Subsonic filter. This amazing amplifier also has a bass boost function and comes with a 5M remote gain controller to adjust the sub level. The ZXM500.1 amp can handle both RCA and High level input on the same terminals and the smart made supplied connectors make it easy to connect. A high level of engineering has gone into making these amps with low EMI emissions to not interfere with the advanced electronics or FM signal.
Key Features
- Massive Power & Performance
- Full Class-D technology offers efficiency & performance
- Short circuit/thermal and high/low voltage protection
- Excellent signal-to-noise ratio and FM noise rejection

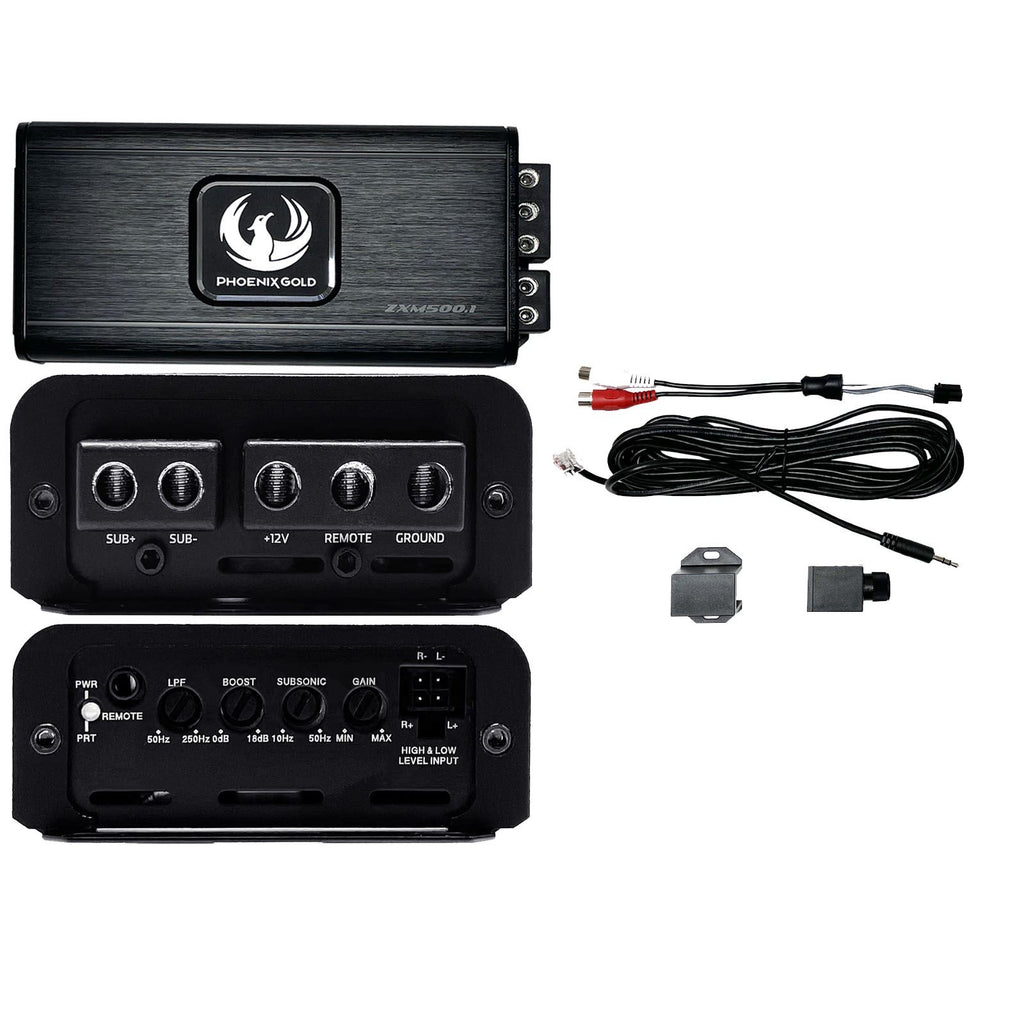

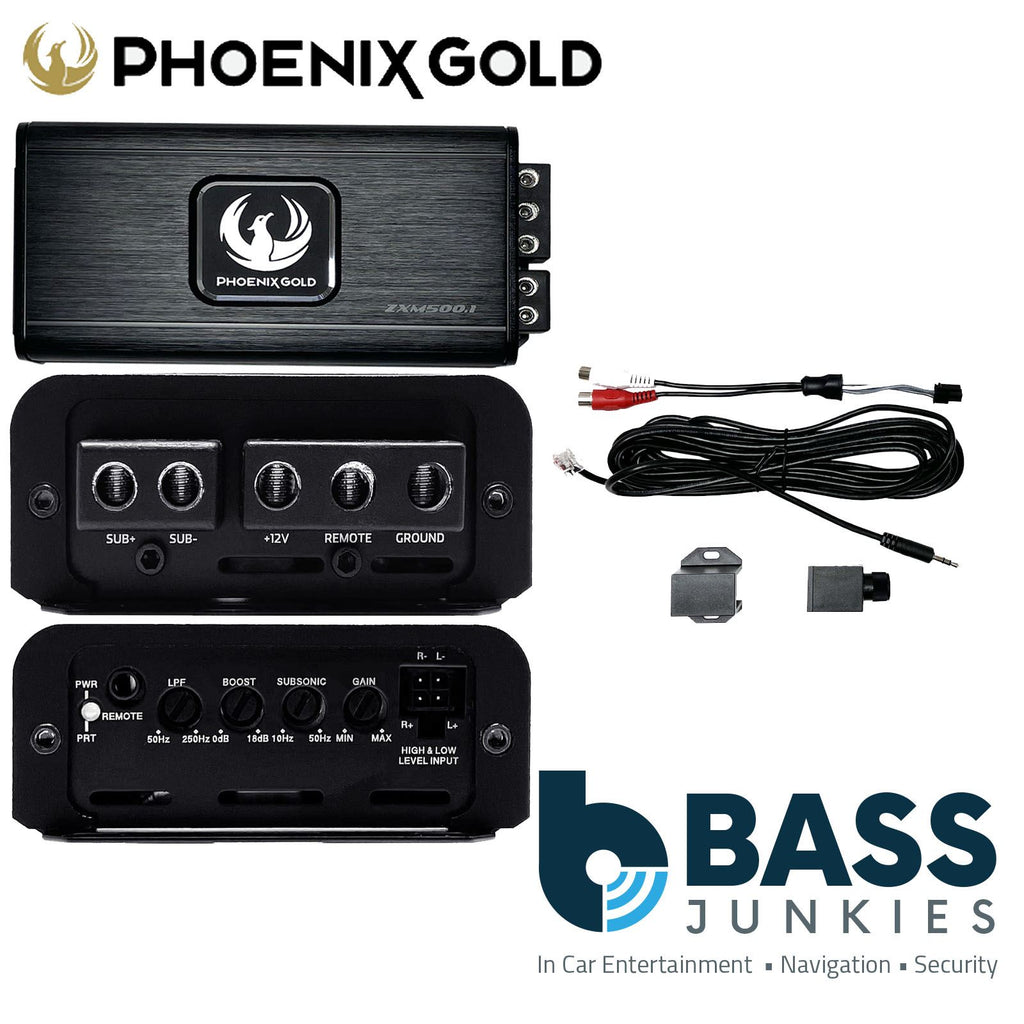

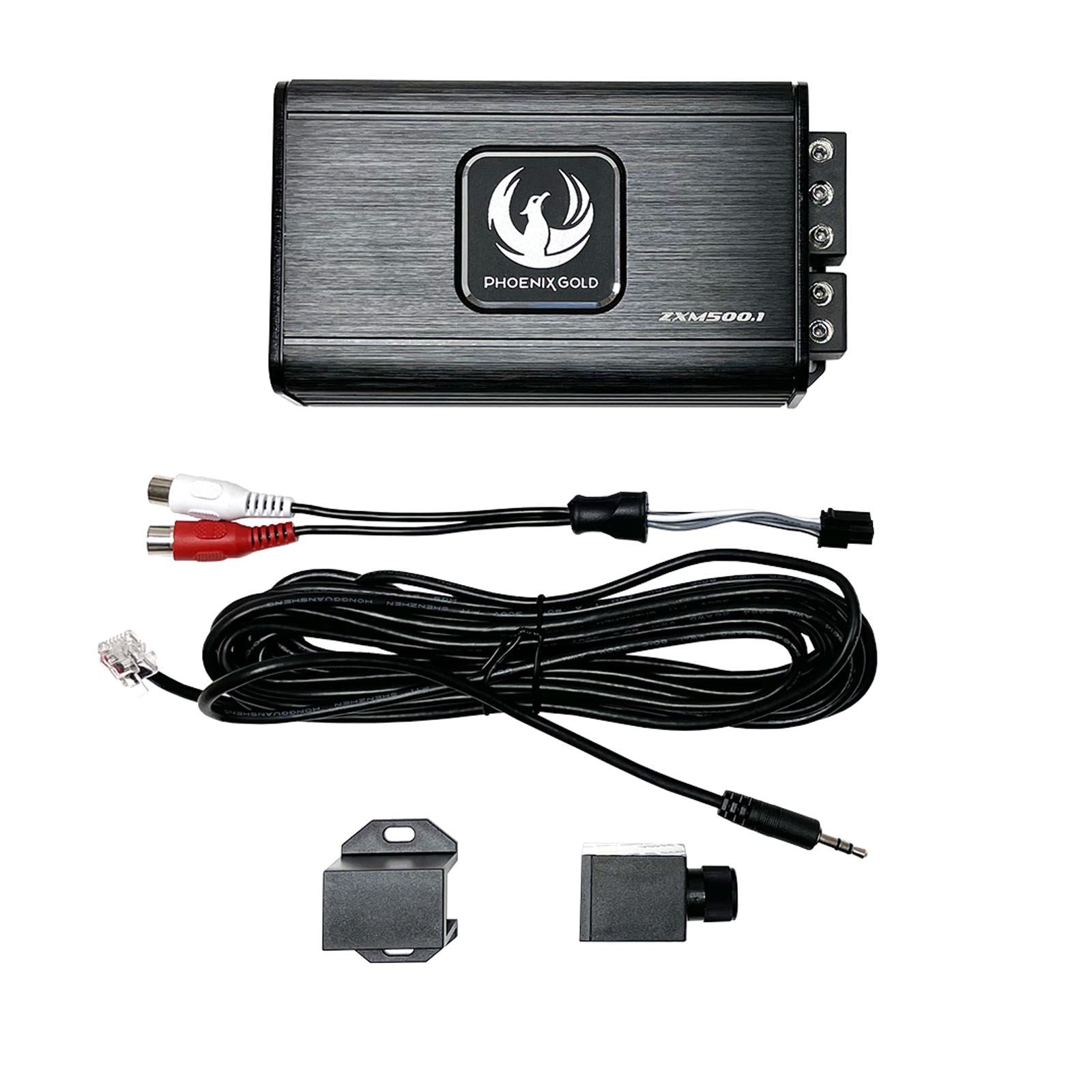

- Remote gain controller included (ZXM500.1)
- Built-in protection LED light status indicator
- Surface mount component technology
- Ultra small size for easy installation
- Autostart on high-level input
- Full adjustable HP & LP filter
Specifications
- Class-D Mono Mini Amplifier
- Power (MAX) 1000W
- Power Ratings (RMS)
- 500W x 1 @ 1Ohm
- 360W x 1 @ 2Ohm
- 230W x 1 @ 4Ohm
- Frequency Response: 20Hz - 500Hz
- Signal to Noise Ratio: >90dB
- Total Harmonic Distortion: <0.3%
- Low Pass Filter: 40Hz - 250Hz (24dB/Oct)
- Subsonic: 10Hz - 50Hz (24dB/Oct)
- Bass Boost: 0 - 18dB @ 45Hz
- High Level Input Auto Turn-On
- Remote Control Included
- Dimensions (L x W x H) 165 x 83.1 x 34.8mm
