3 Channel Car Amplifiers for Speakers and Subs

3 channel car amplifiers in 2026: one chassis, one full system

A 3 channel car amplifier combines a stereo pair of full range channels with a dedicated mono subwoofer channel in a single housing. It is the most space efficient way to run front speakers and a sub from one amplifier, which is why it suits hatchbacks, vans and any build where boot space is at a premium. One power feed, one earth and one remote wire replace the loom that two separate amplifiers would need.

How the channels are divided

Channels one and two are usually rated in the region of 60 to 100 watts RMS each and feed the front component or coaxial speakers. Channel three is a bridged mono section producing anywhere from 200 to 500 watts RMS into a two ohm or four ohm subwoofer. Crossovers are independent, so the front pair runs on a high pass filter while the subwoofer channel runs on a low pass, which is exactly how a two amplifier system would be configured.

Matching an amplifier to your speakers and sub

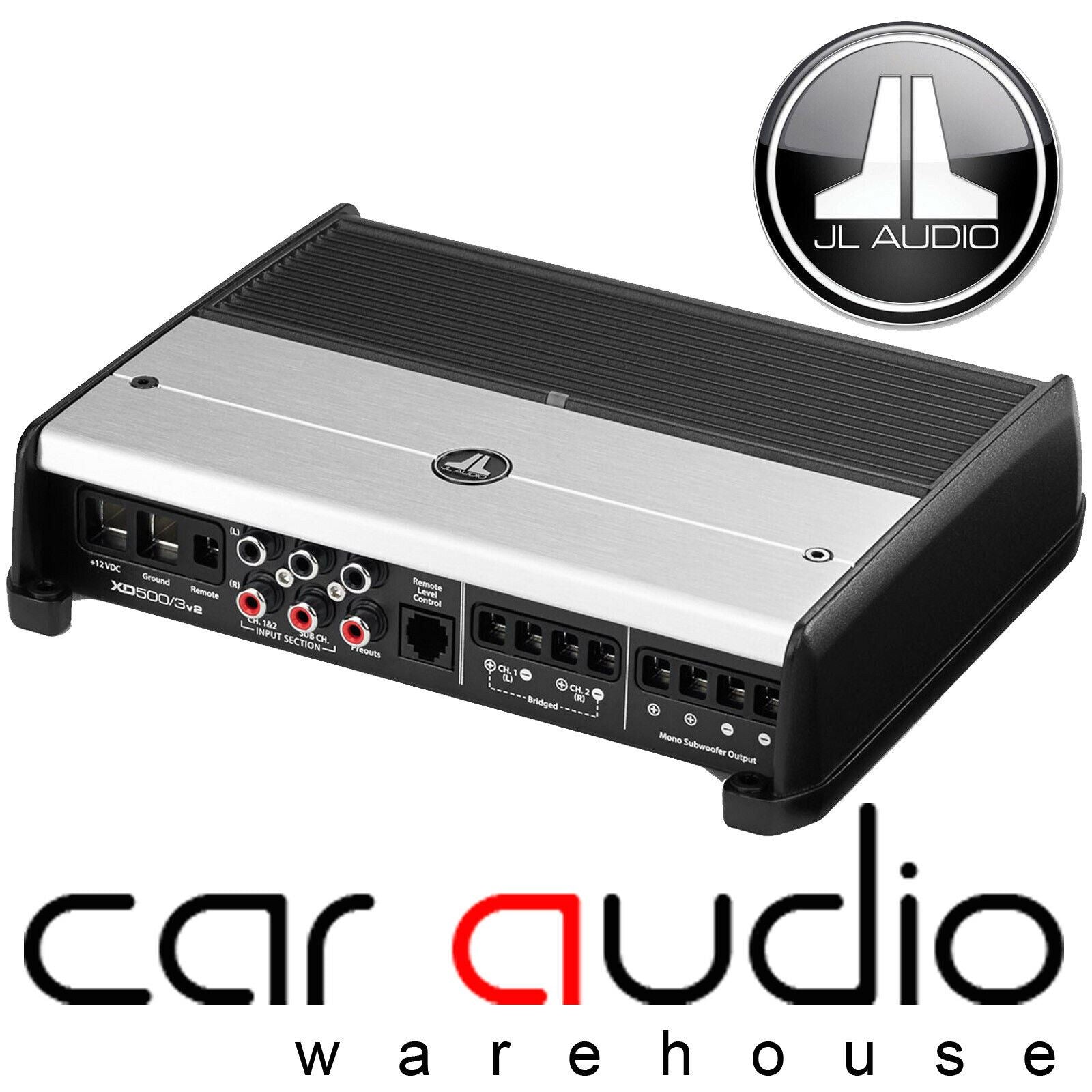

• Check the subwoofer impedance. The JL Audio XD500/3V2 delivers its full mono output into a specific load, so a dual voice coil sub must be wired to match.
• Aim for RMS parity. Feeding a 300 watt RMS subwoofer with a 250 to 350 watt channel is ideal. Large mismatches in either direction cause damage.

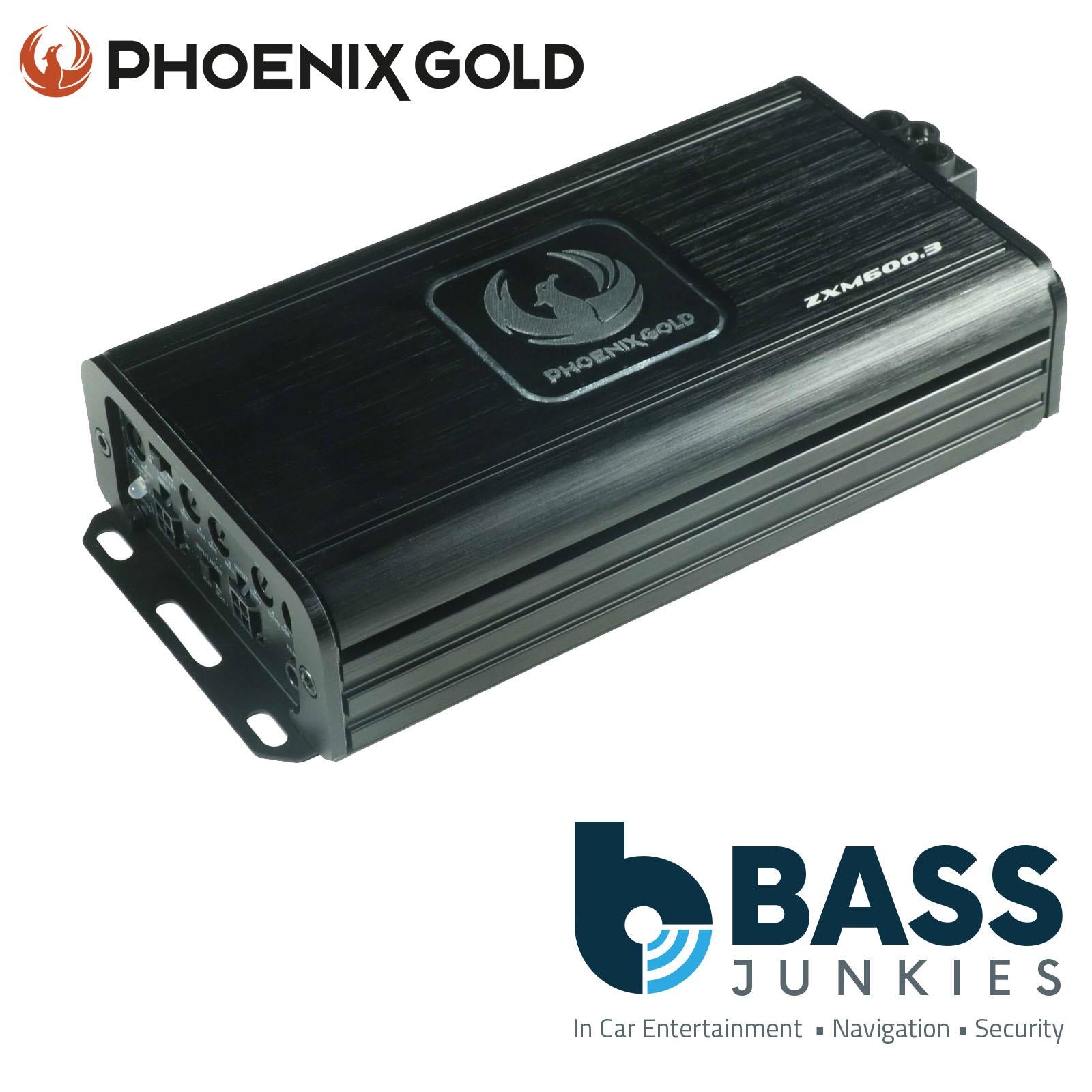

• Class D means less heat. The Phoenix Gold ZXM600.3 and Fusion PF-8003D both use Class D topology, so they run cool in a confined boot.
• Mind the footprint. Mini chassis amplifiers fit under a seat, which keeps the boot completely usable.
• Look at the crossover range. A wide adjustable low pass lets you blend the sub properly with small door speakers.

Why a 3 channel beats a 4 channel for many builds

A four channel amplifier bridged for a subwoofer leaves only one stereo pair, and bridging often halves the impedance the amp sees. A purpose built 3 channel design gives you a mono section engineered for low impedance from the outset, with better damping factor and cleaner bass control. If you also want rear speakers, a 5 channel amplifier is the logical step up rather than compromising a 4 channel.

Brand quality at a glance

• JL Audio. Class leading engineering and conservative power ratings. The XDv2 range is the benchmark for compact multi channel amps.
• Phoenix Gold. The ZX series offers genuine mini chassis dimensions with strong real world output.
• Fusion. High wattage Class D designs at accessible prices, with good marine crossover.
• Alpine. Neat, efficient amplifiers that pair naturally with Alpine head units and speakers.
• Rockford Fosgate. Punch series multi channel amps known for durability under hard use.

Compatibility and fitting

An amplifier install usually happens alongside a head unit change, and the same vehicle specific parts apply. All of them are stocked in fitting accessories.

• Fascia adapter. A vehicle specific panel that fills the gap left by the factory unit so a single or double DIN head unit sits flush in the dash.
• ISO wiring harness. Plugs into the car loom on one side and the standard ISO block on the other, so no factory wiring has to be cut.
• Steering wheel control adapter. Keeps your volume, track and phone buttons working after the original stereo is removed.
• Aerial adapter. Converts the factory aerial plug to the standard DIN connector and supplies the phantom power some cars require.

Wiring and setup

Size the power cable for the combined output of all three channels, not the subwoofer channel alone. A 4 AWG amp wiring kit covers most 3 channel amplifiers comfortably. Set the front channel high pass around 80Hz and the subwoofer low pass close to the same figure so there is no gap or overlap. Adding a bass controller lets you trim the mono channel from the driving seat.
