3.5" 9cm Car Speakers

A buyer's guide to 3.5 inch car speakers in 2026

The 3.5 inch size, quoted as 9cm or 87mm depending on the brand, exists because manufacturers needed a small driver for dash tops, A pillars and narrow door cards. Factory units in these positions are usually the cheapest speakers in the car, so replacing them is one of the most noticeable upgrades per pound you can make. This guide covers what to look for and how to get the best from the size.

What a 3.5 inch driver does well

A small cone moves quickly, which means excellent clarity on vocals, strings and detail in the upper midrange. It will not produce meaningful bass, and it is not supposed to. Used as a dash or pillar pair alongside larger door speakers, a good 3.5 inch driver lifts the soundstage up onto the windscreen and makes the whole system sound taller and more open.

Coaxial two way explained

A coaxial speaker mounts the tweeter in the centre of the mid cone, so both drivers share a single axis and a single mounting hole. For a 3.5 inch fitment this is almost always the right choice, because there is no space for separate tweeter pods and no crossover box to hide. The internal passive crossover is already matched, so the pair works correctly straight out of the box.

Power handling and amplification

• Read the RMS figure. Ratings on this page run from around 80 watts up to 550 watts peak, but continuous RMS is the number that reflects real capability.
• Head unit power is usually enough. Most factory and aftermarket stereos deliver 18 to 22 watts RMS per channel, which drives a sensitive 3.5 inch pair well.
• Sensitivity matters more than watts. A driver rated above 88dB will play noticeably louder from the same stereo than a less sensitive alternative.
• Amplify for the best result. A small four channel amplifier gives cleaner detail at volume and stops the head unit clipping on peaks.

Fitting and mounting depth

• Check mounting depth first. Dash pods are shallow, so confirm the depth behind the grille before ordering a driver with a deep magnet.
• Use the factory aperture where possible. Most 3.5 inch drivers share a common bolt pattern, but adapter rings are available where they do not.
• Seal the mounting face. A foam gasket stops air leaking around the frame, which tightens the midrange and reduces rattle.
• Observe polarity. Wiring one side out of phase will hollow out the vocals, so keep positive to positive on both speakers.

Brand quality at a glance

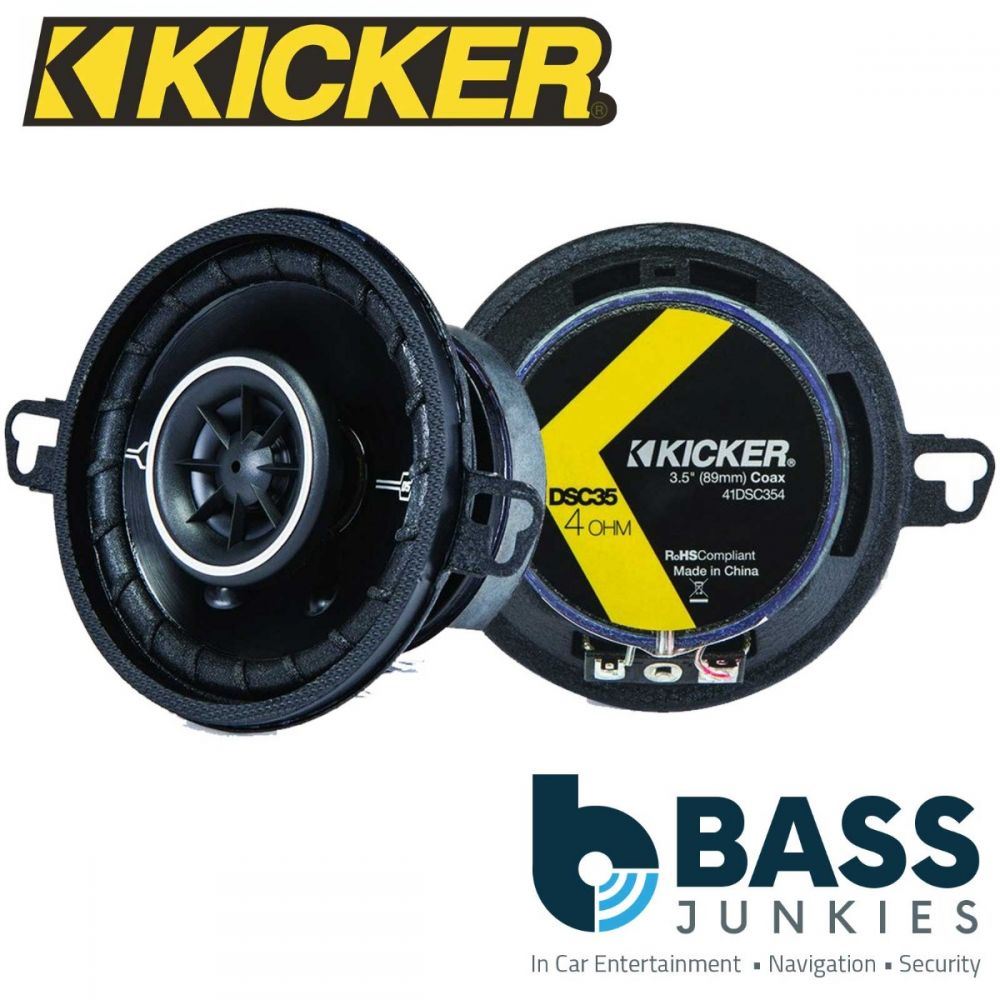

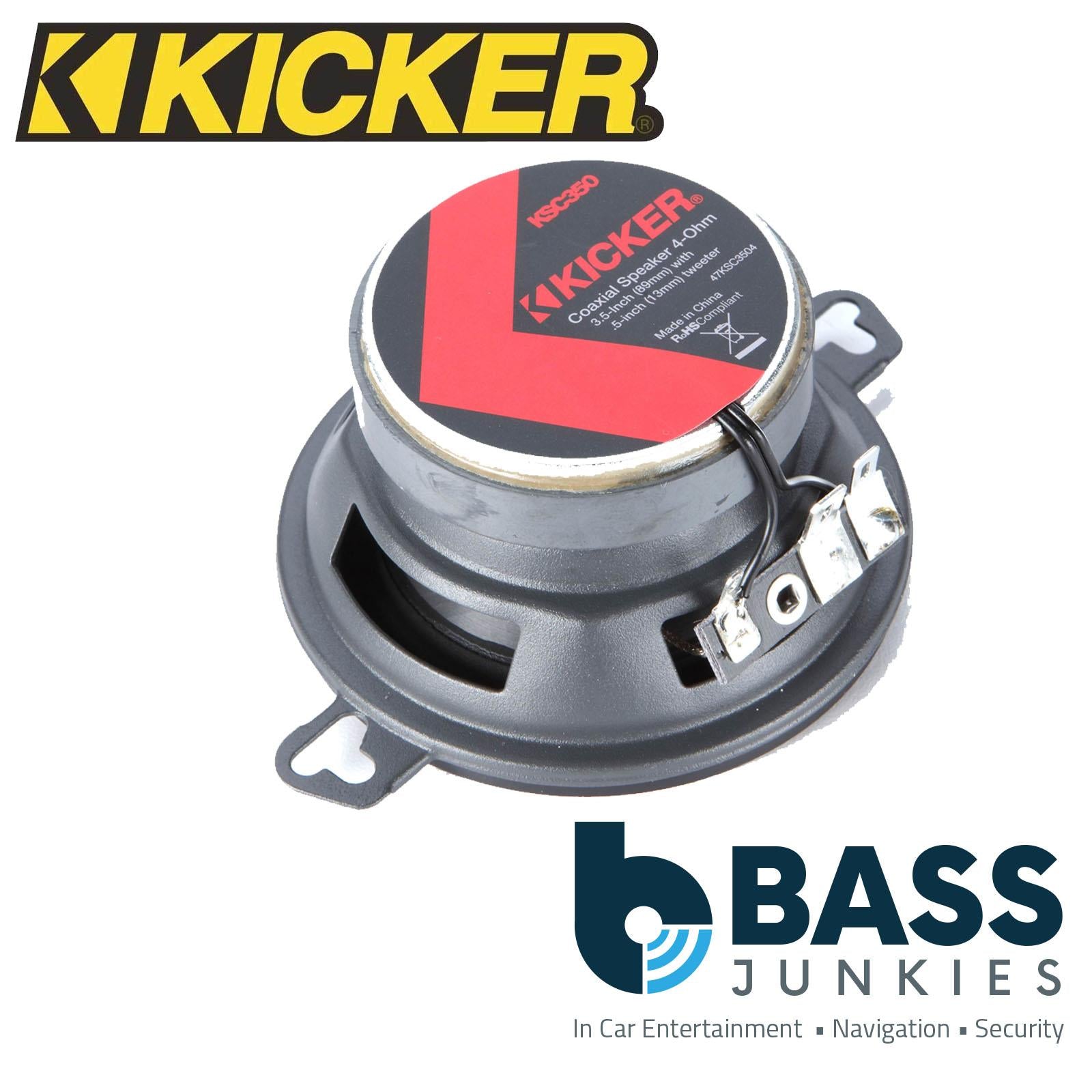

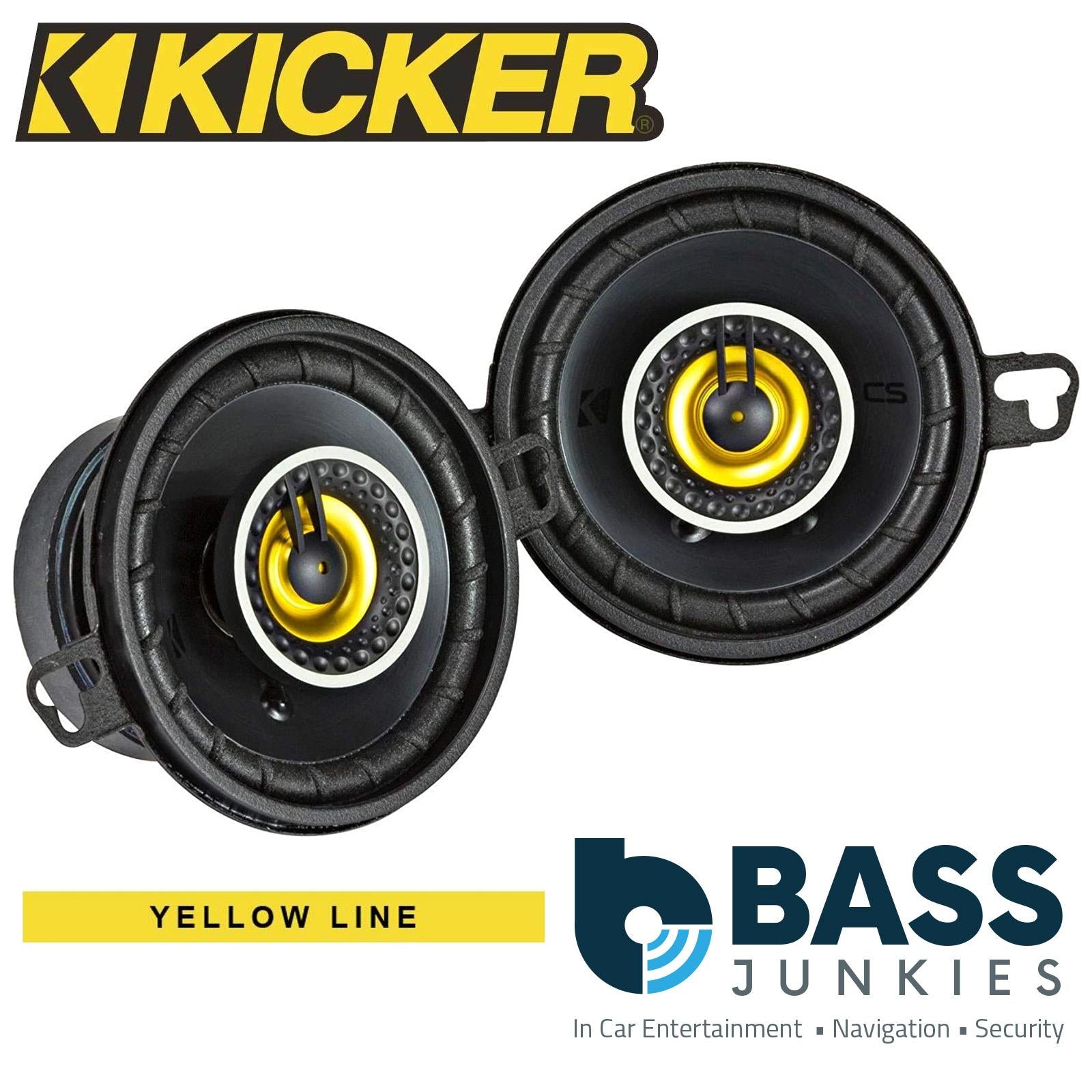

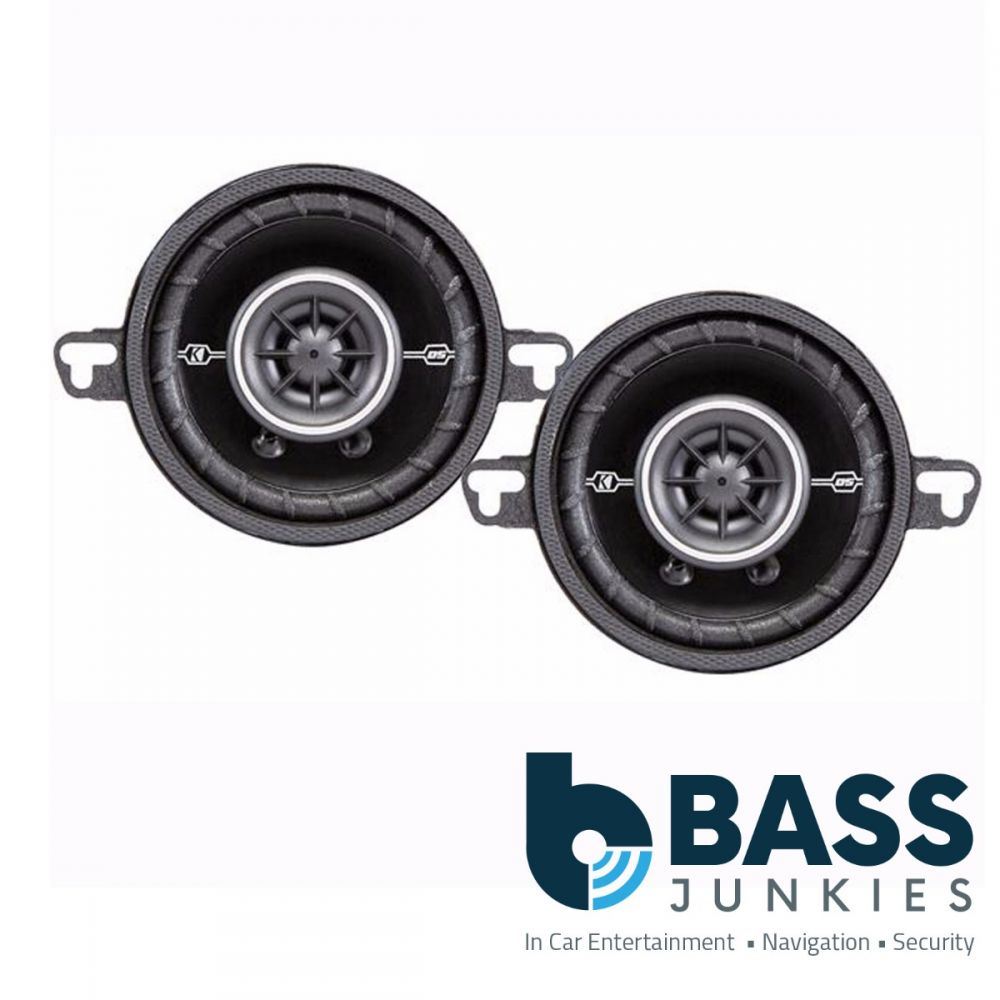

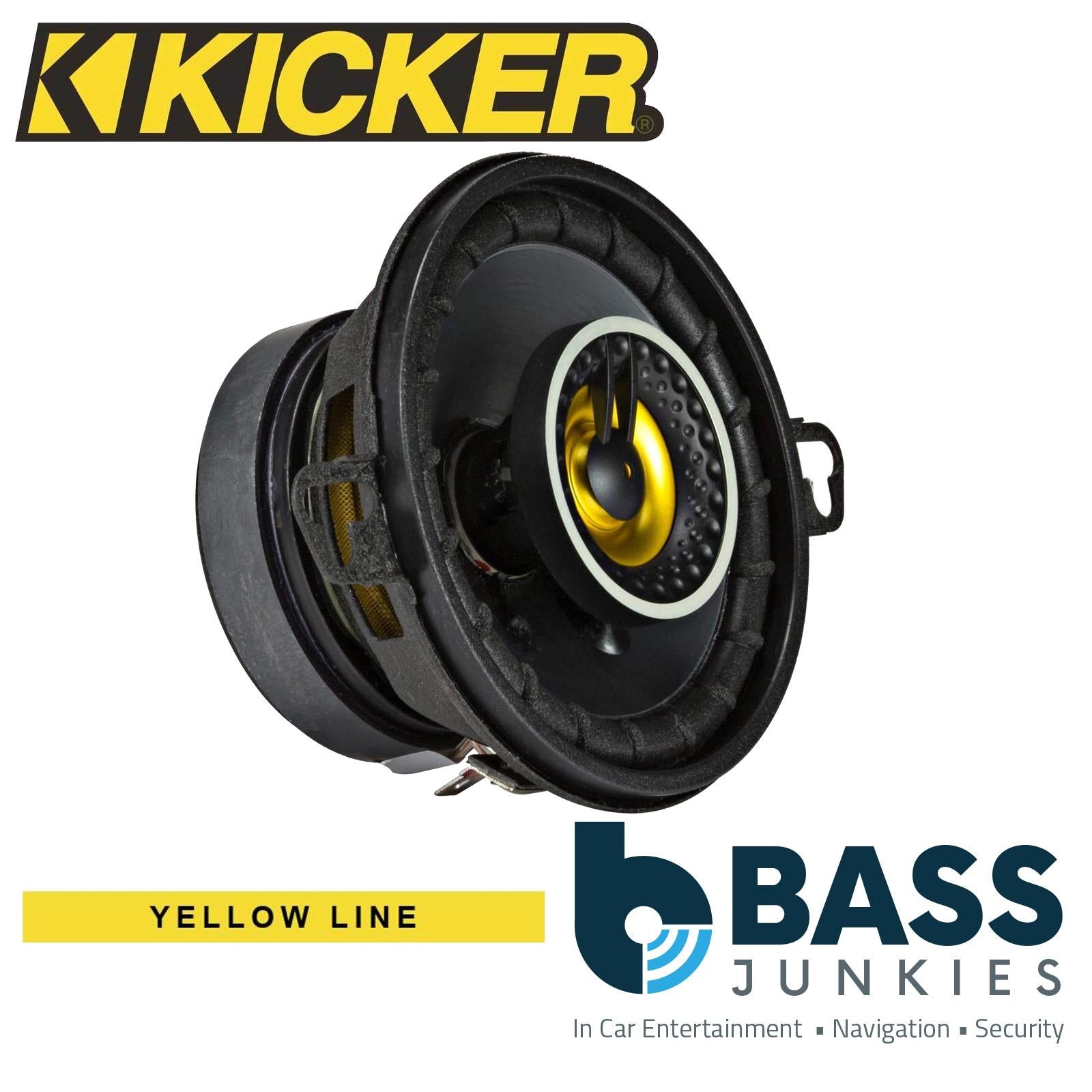

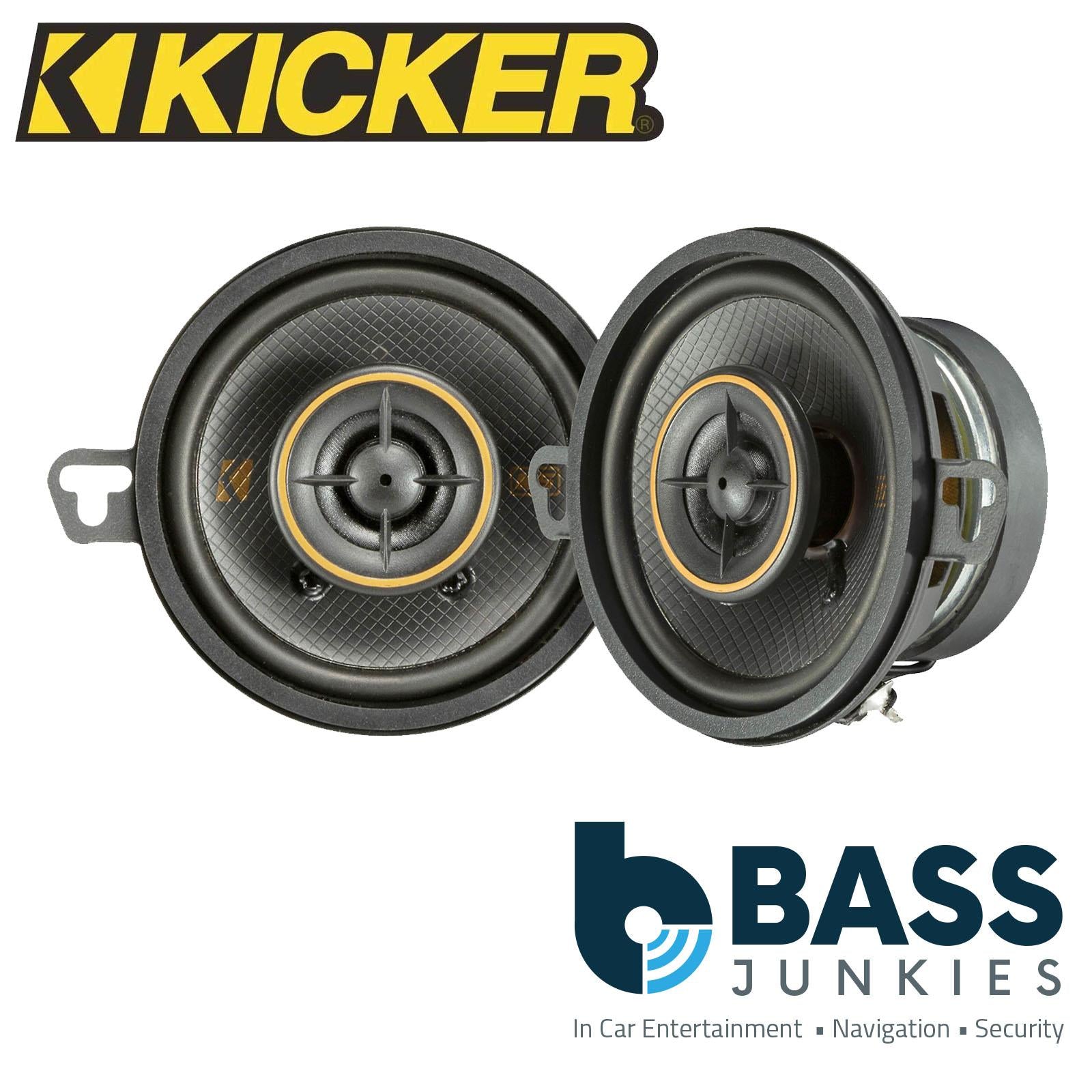

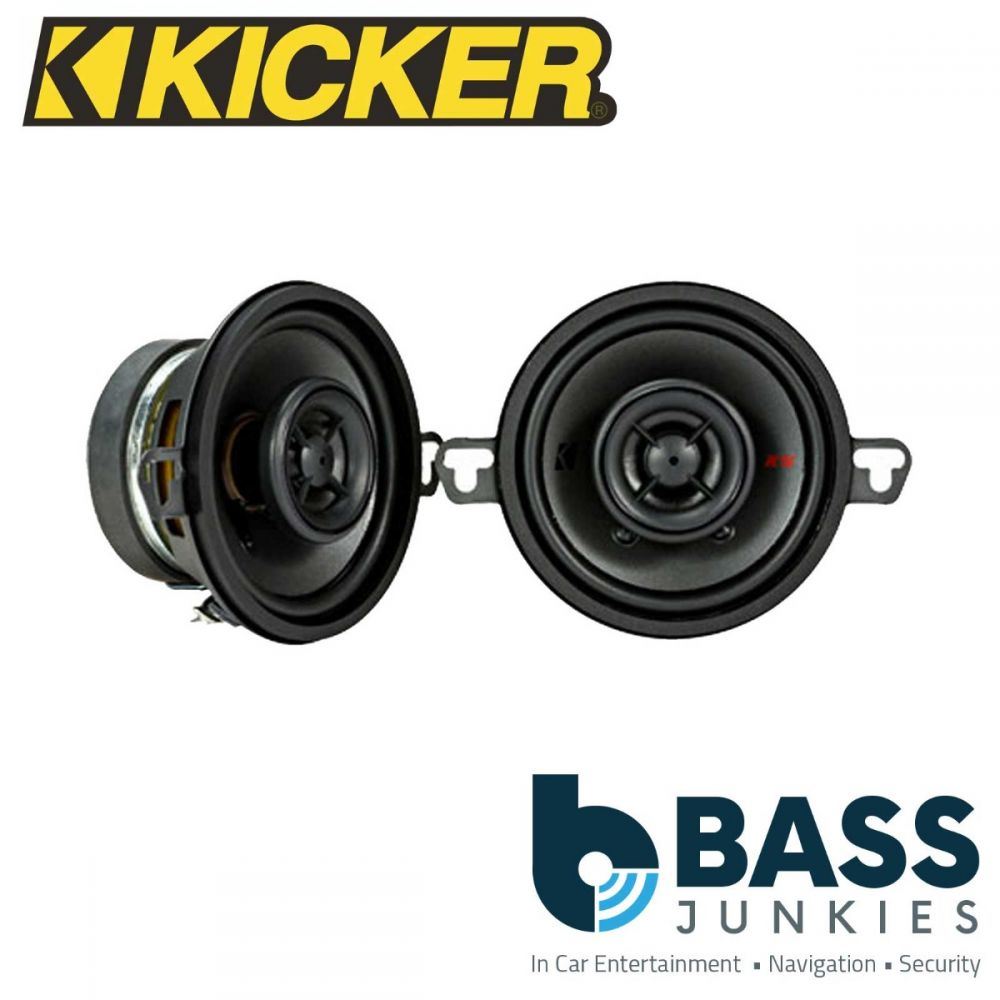

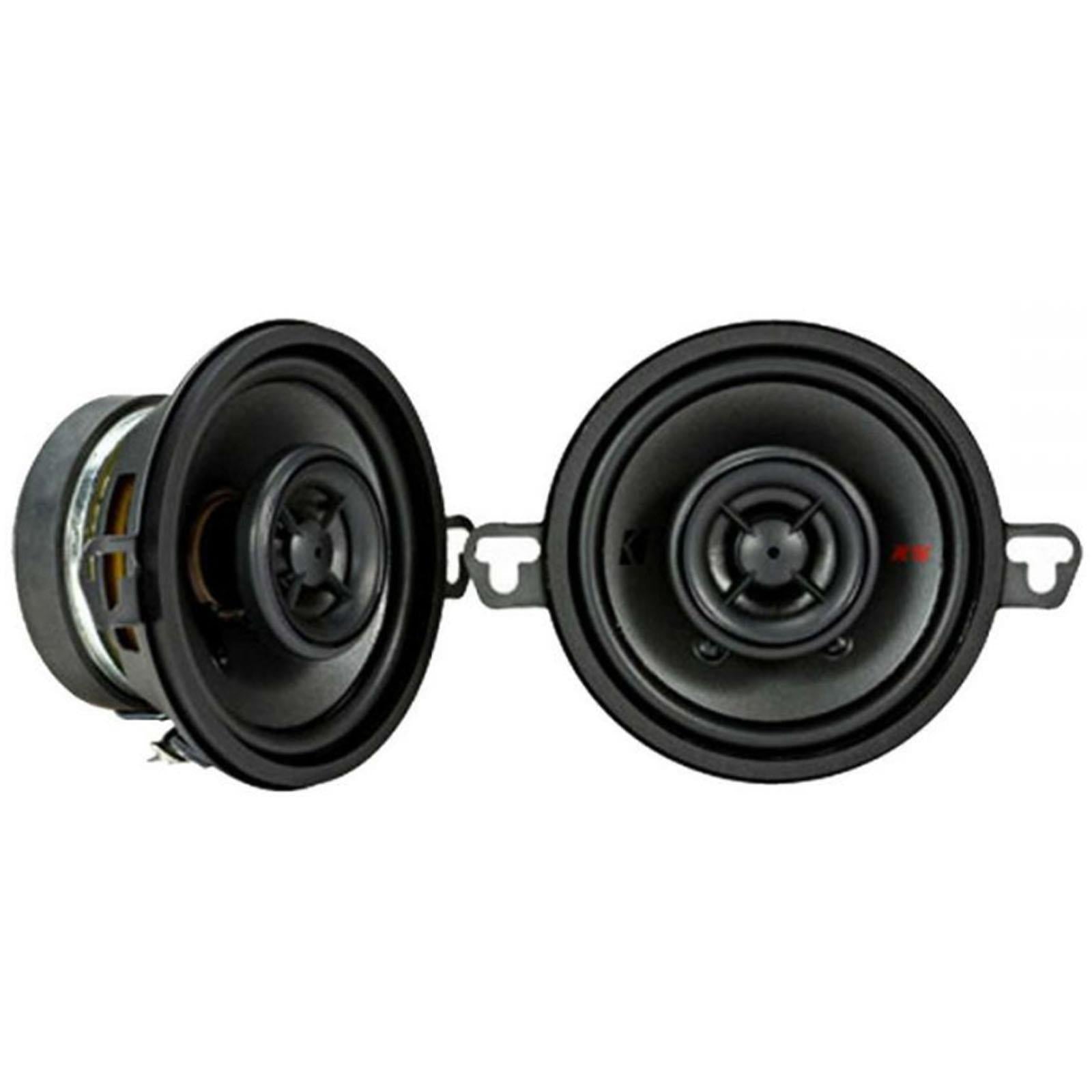

• Kicker. The broadest range here across KSC, DSC and CS Series, all designed as direct factory replacements.

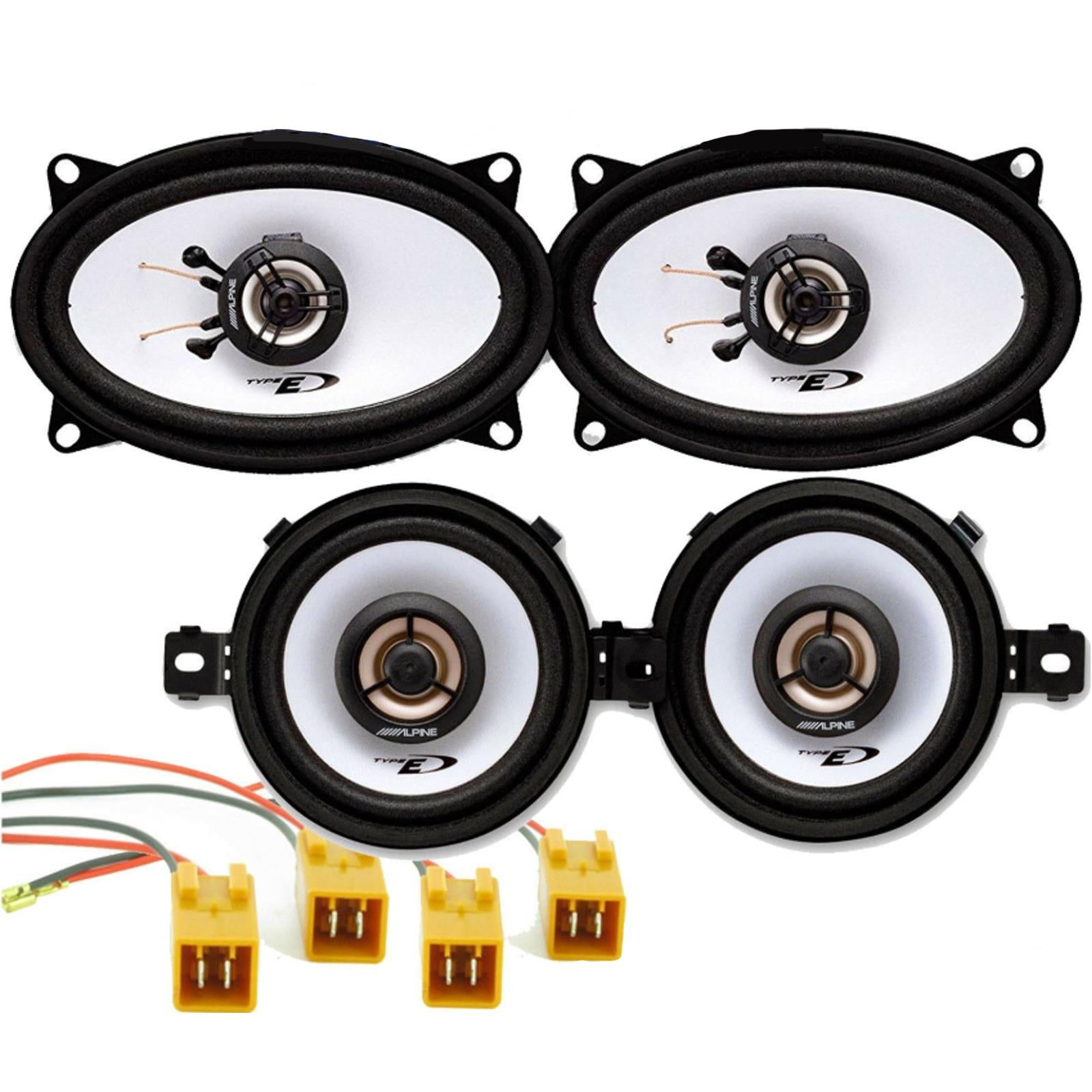

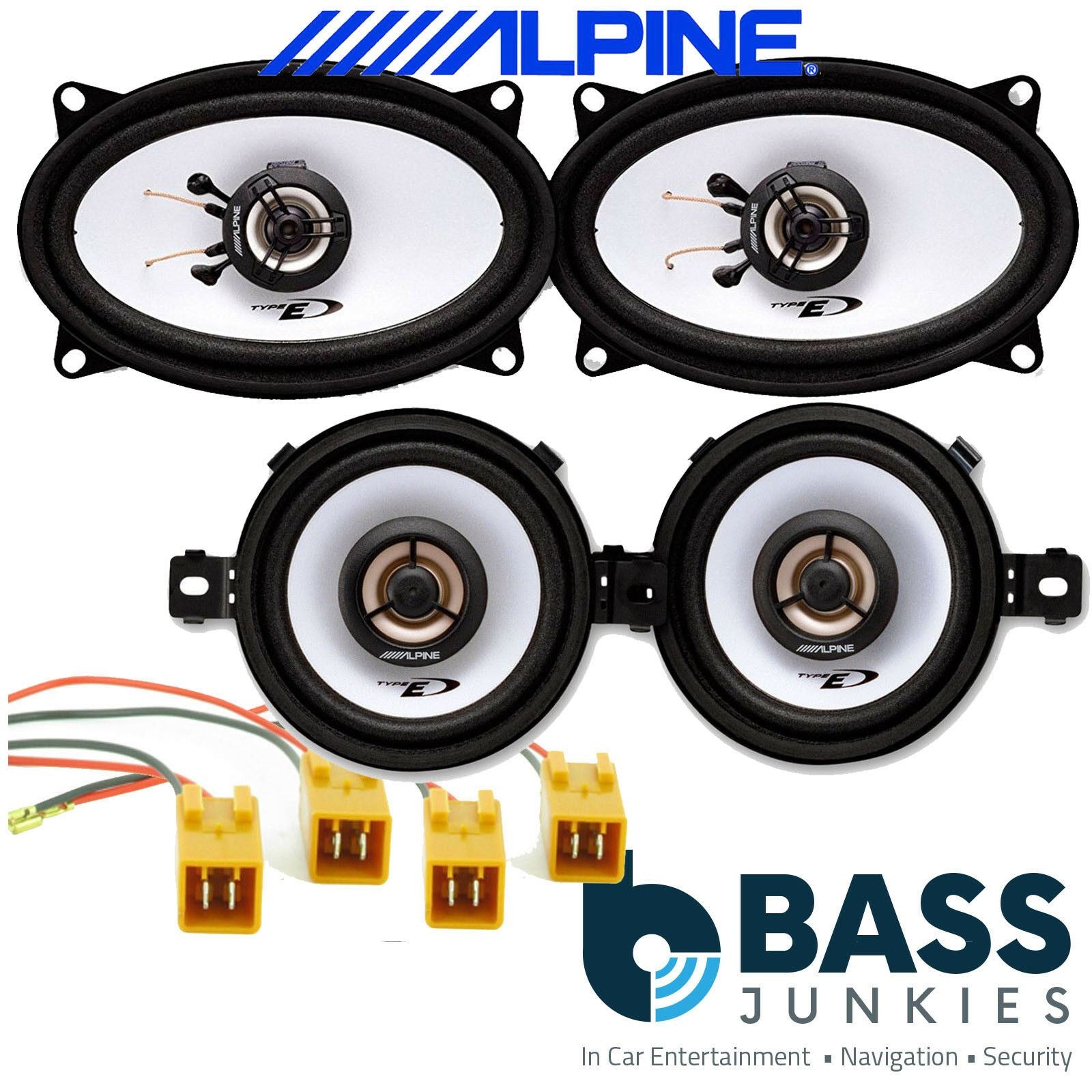

• Alpine. SXE Series coaxials offering balanced, neutral sound and reliable build quality for daily driven cars.
• MTX. TR Series drivers with high peak power handling and a lively, forward presentation.

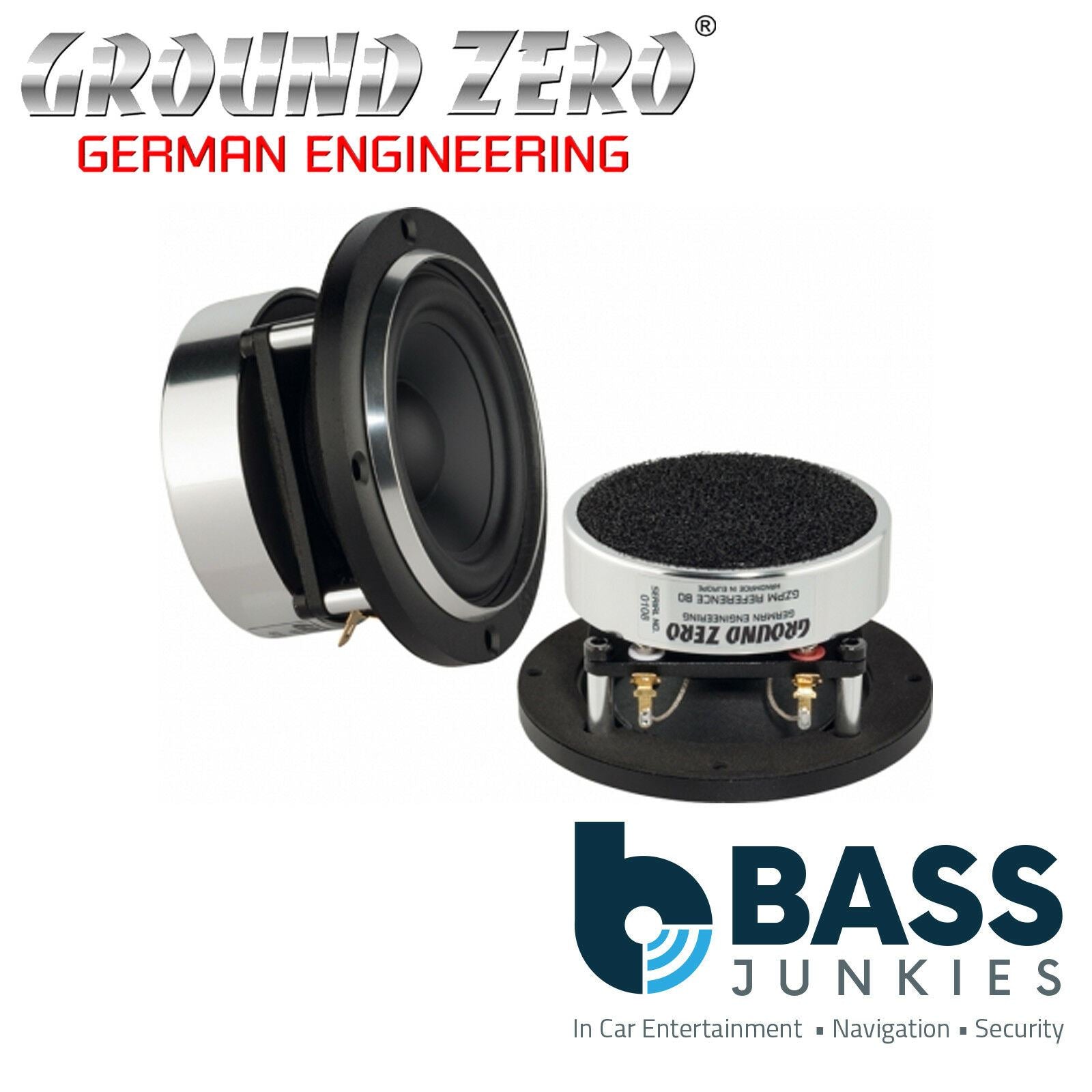

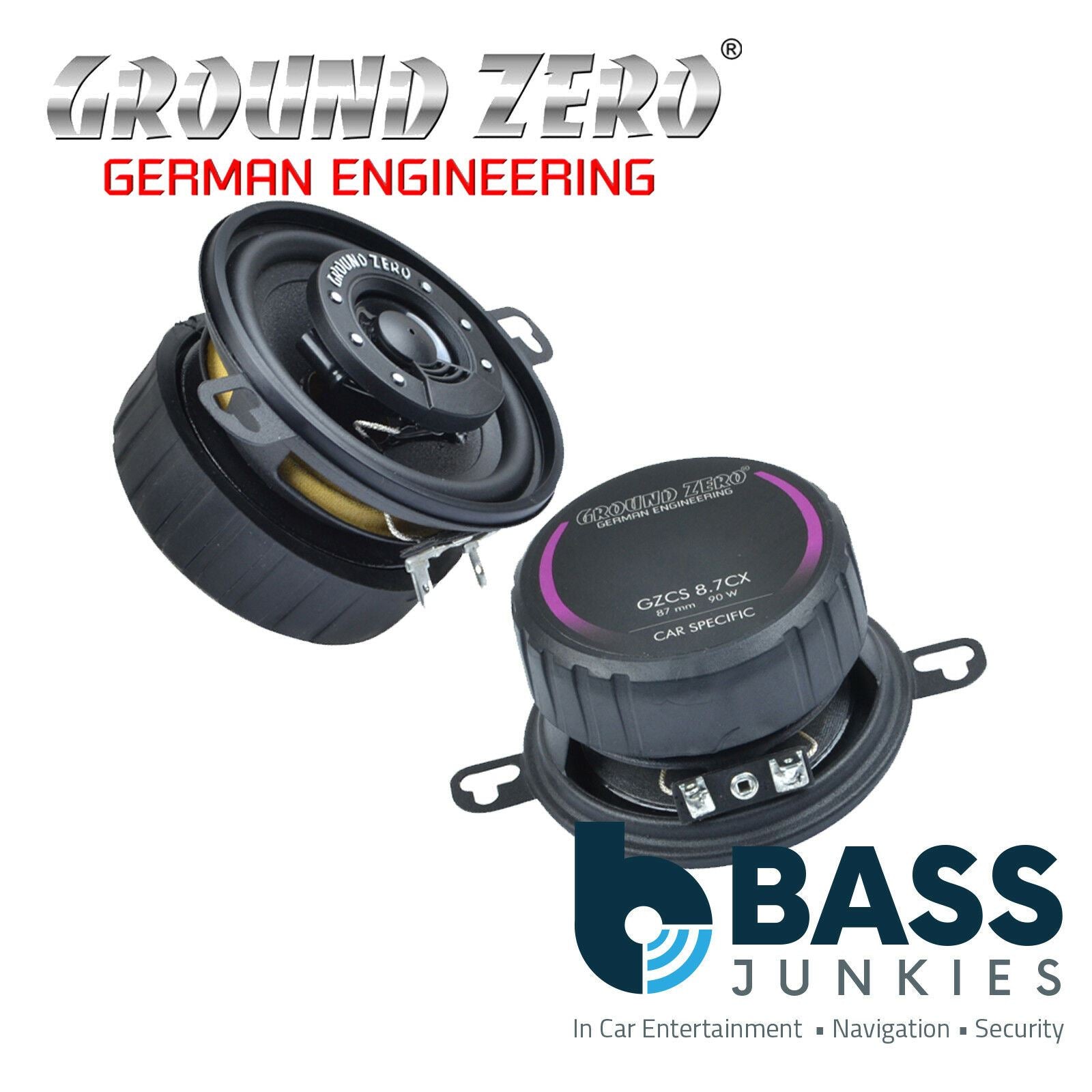

• Ground Zero. German engineered GZCS coaxials with clean detail and tidy, well finished baskets.

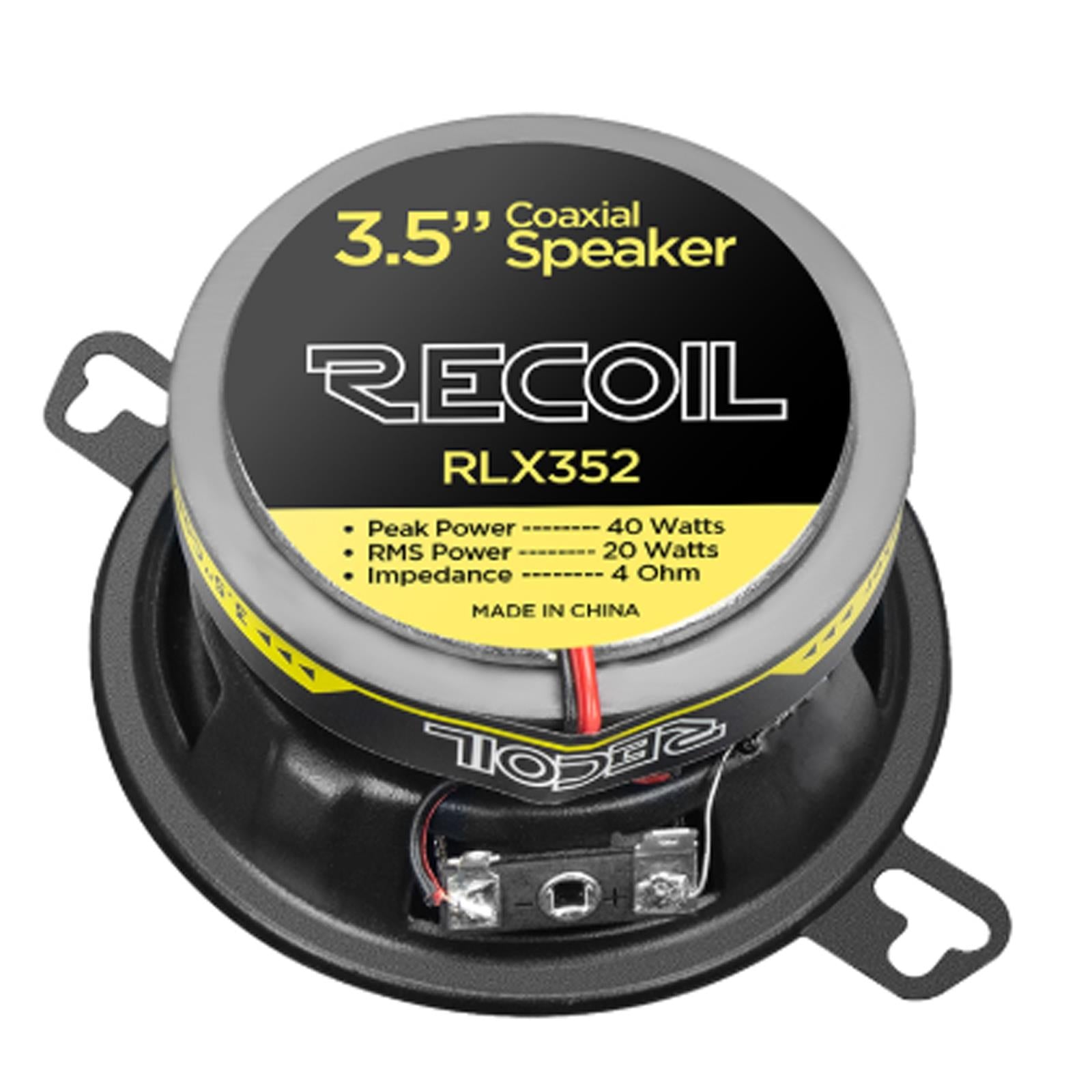

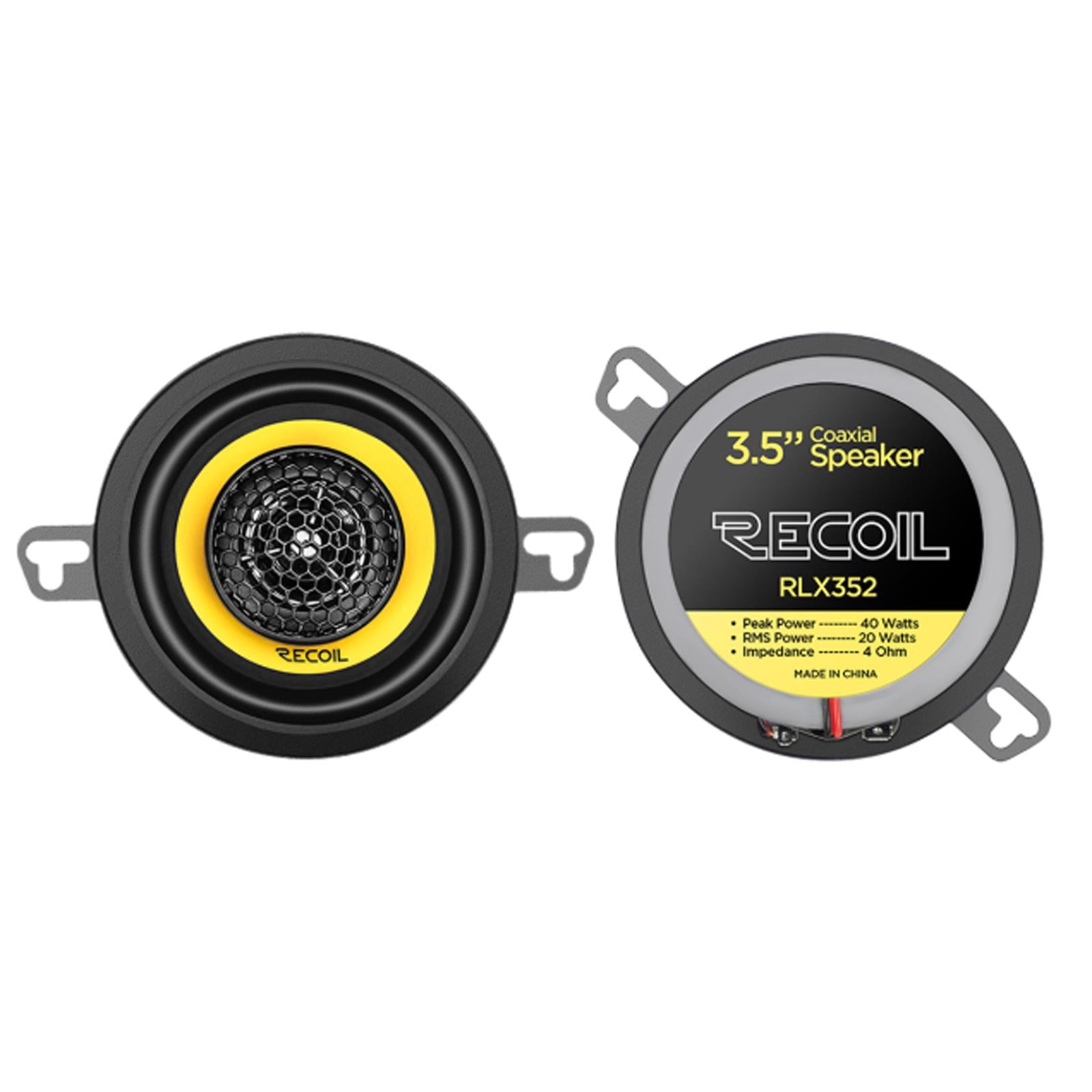

• Recoil. Level 3 Series speakers that give a straightforward step up from factory units at a sensible price.

Compatibility and fitting

• Fascia adapter. Lets a new head unit sit flush in the factory dashboard aperture when you upgrade the source at the same time.
• ISO harness. Connects a replacement stereo to the original vehicle loom without cutting factory wiring.
• Steering wheel control adapter. Retains wheel mounted volume, track and source controls after a head unit change.
• Aerial adapter. Keeps DAB and FM reception working with the factory antenna and powered aerial supply.
• Speaker adapter rings. Bridge the gap where a vehicle uses a non standard 3.5 inch bolt pattern or a raised mounting face.

Building a complete system around them

A 3.5 inch pair works best as part of a plan rather than on its own. Pair them with upgraded front door speakers at 6.5 inch or 17cm, add a compact subwoofer for the bottom two octaves, and the dash drivers will handle the detail they were designed for. If your car has a factory amplifier, a line output converter or a digital signal processor will give you the flat signal these speakers need.

Why buy from Bass Junkies

Bass Junkies has been supplying and fitting car speakers since 1995, so we can tell you which 3.5 inch driver actually clears the dash pod in your car rather than guessing from a specification sheet. Stock is held at our Wolverhampton workshop, where our fitters can install and set up the whole system. If you are unsure of the size or depth in your vehicle, call 01902 863 005 and we will check it for you.
