Bass Tubes and Tube Subwoofer Enclosures

How to choose a car bass tube in 2026

A bass tube is a subwoofer mounted in a cylindrical enclosure rather than a square box. The shape is not styling. A tube braces itself against internal pressure far better than flat panels do, so you get tight, controlled bass from a smaller volume. For most drivers a tube is the sensible first subwoofer because it fits in a boot corner, straps down in minutes and does not eat the whole load space.

Why a tube instead of a boxed subwoofer

Boxed subwoofers still win on outright output if you have the space and budget for a separate amplifier rack. A tube wins on packaging. It sits along the side of a boot or behind a van seat and the cylindrical wall resists the panel flexing that would otherwise smear the bass. In a hatchback that is often the difference between a subwoofer that gets used and one that gets removed.

Active versus passive tubes

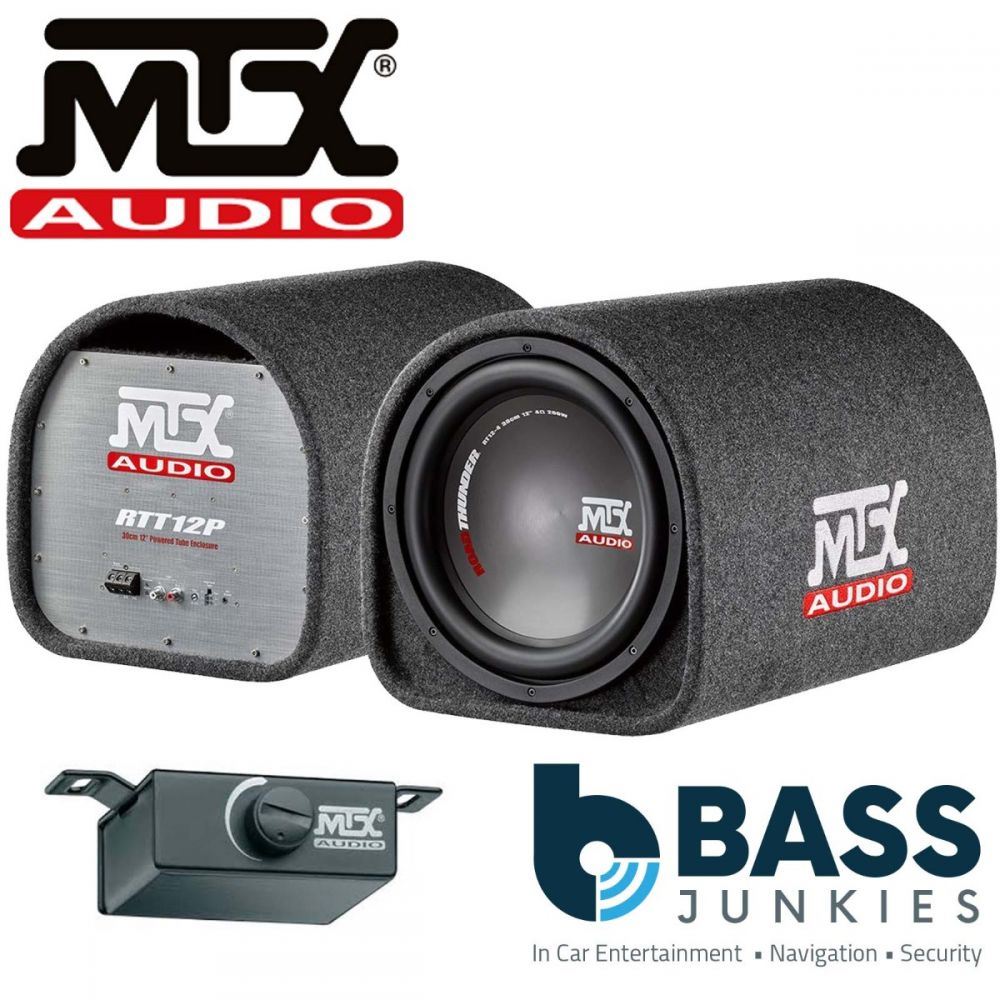

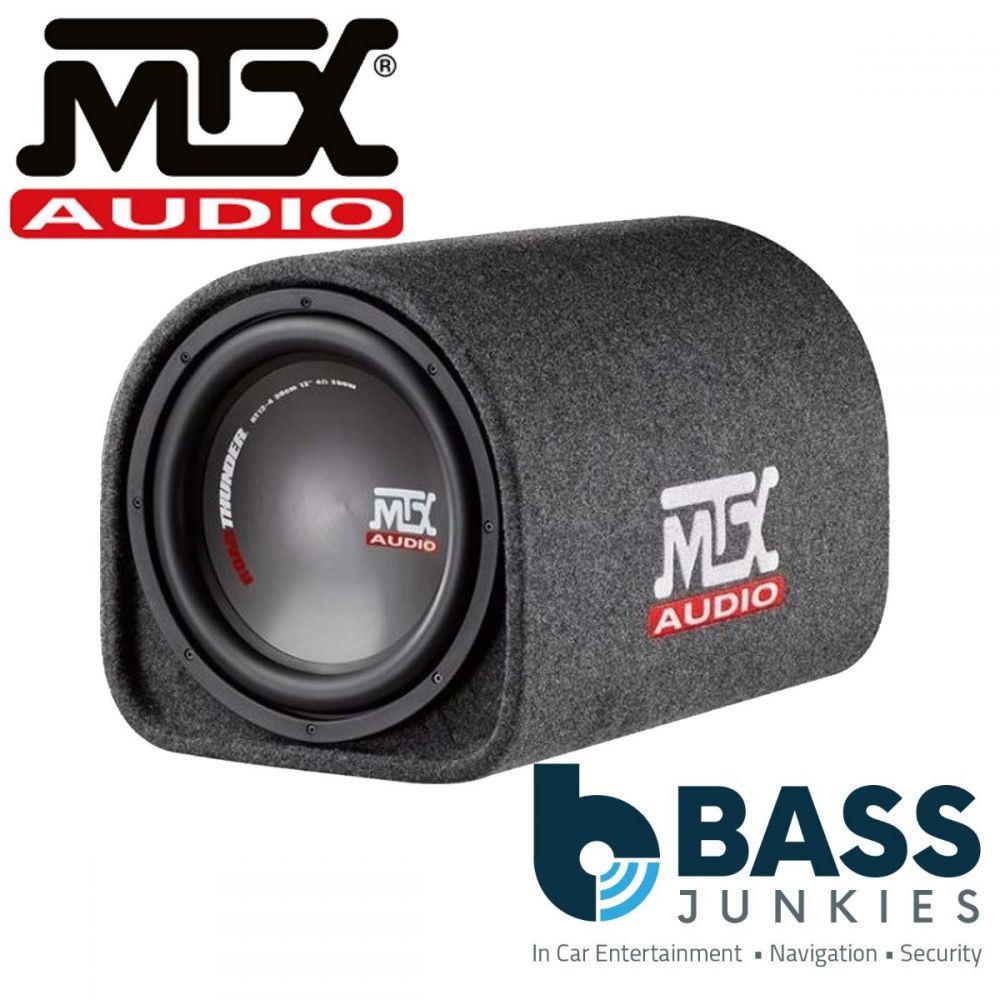

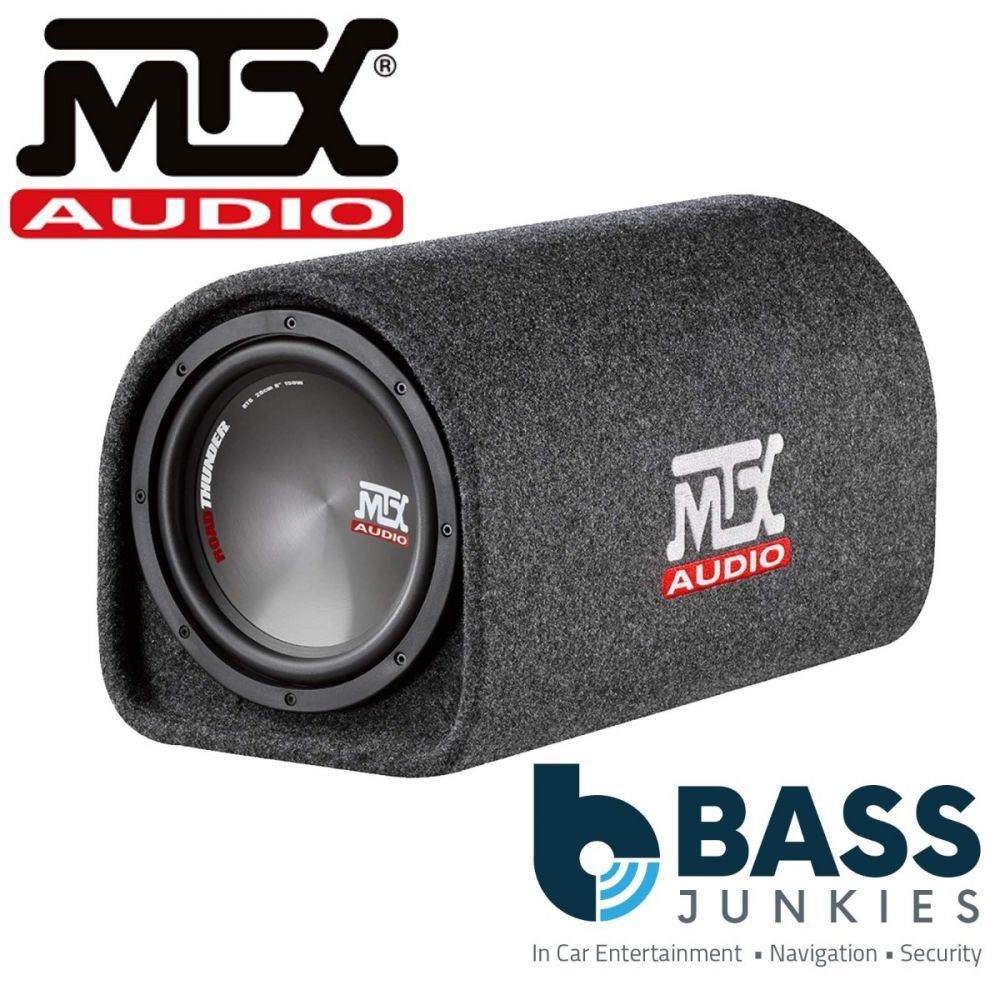

Active tubes have the amplifier built into the end cap. The MTX RT12P, the MTX RTP8P and the Pioneer TS-WX210A are all active, so you run power, earth and a signal lead and you are finished. Passive tubes such as the Kicker CWTB series need a separate amplifier, which costs more and takes longer to install but gives you far more headroom and control. If this is your first subwoofer, go active.

Choosing 8 inch, 10 inch or 12 inch

Cone size sets the character of the bass more than the volume of it:

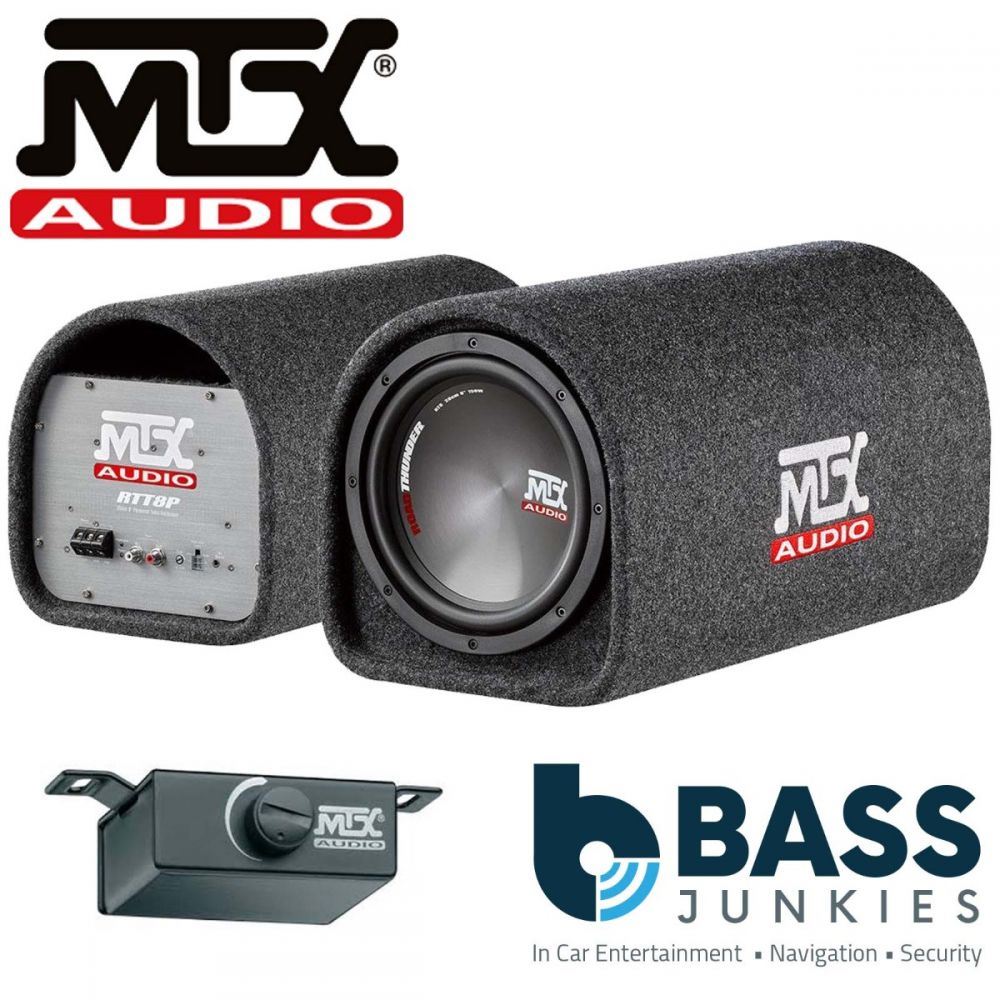

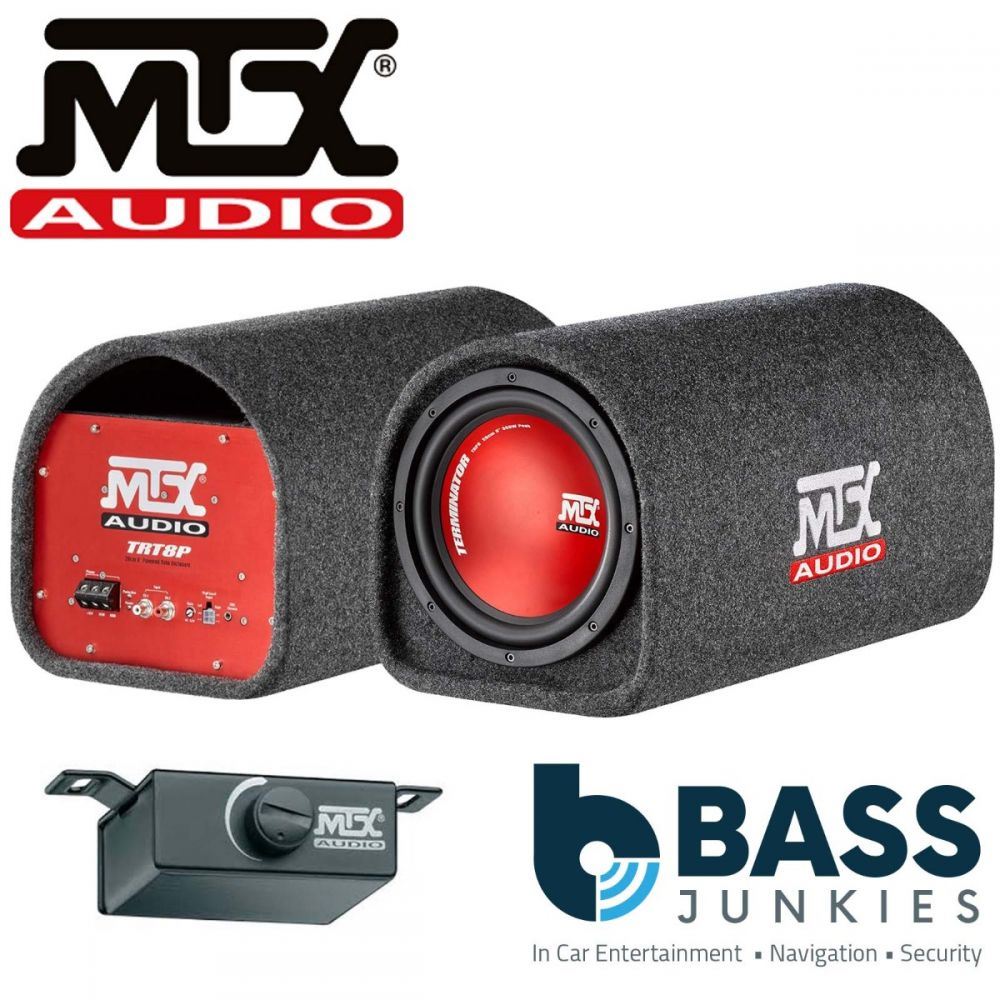

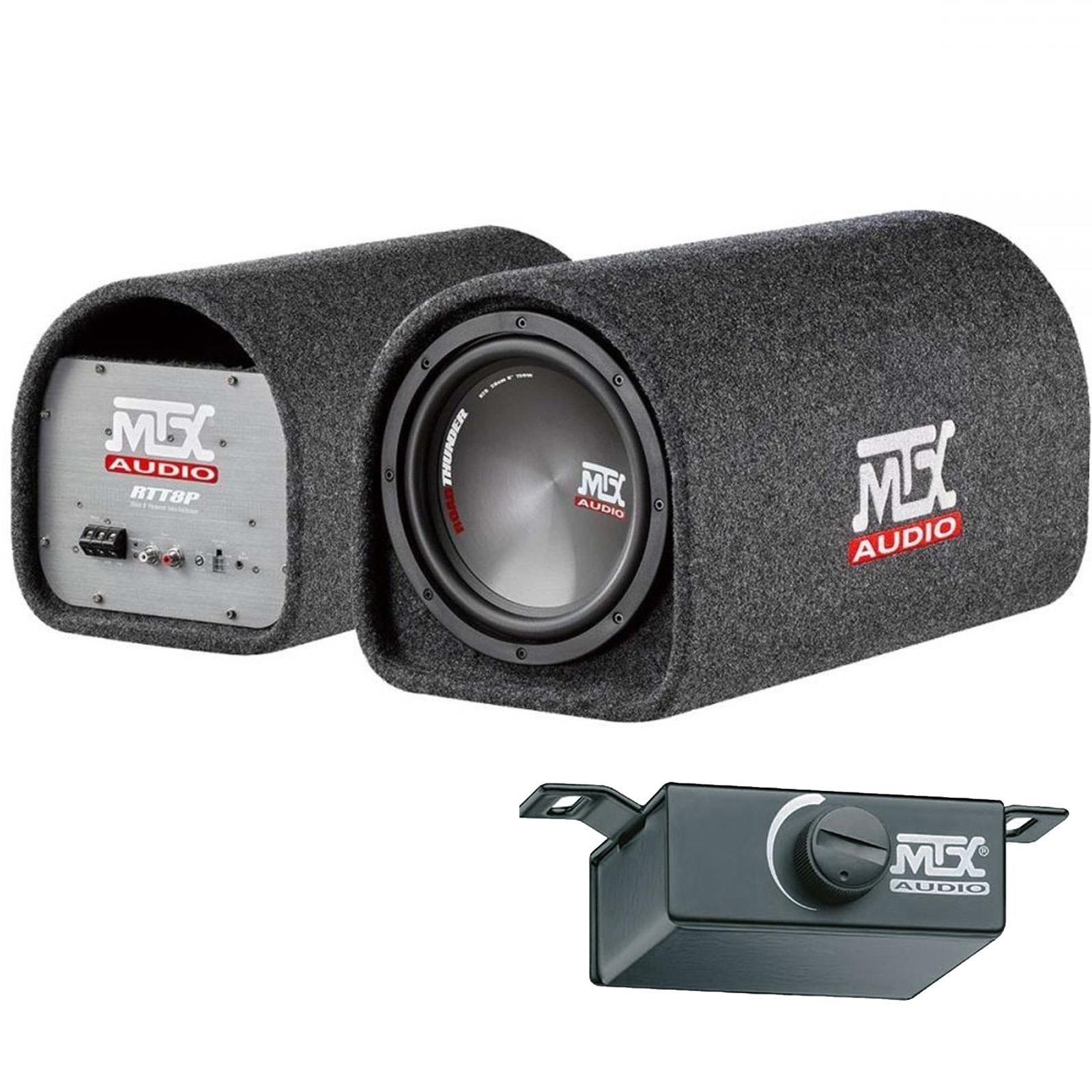

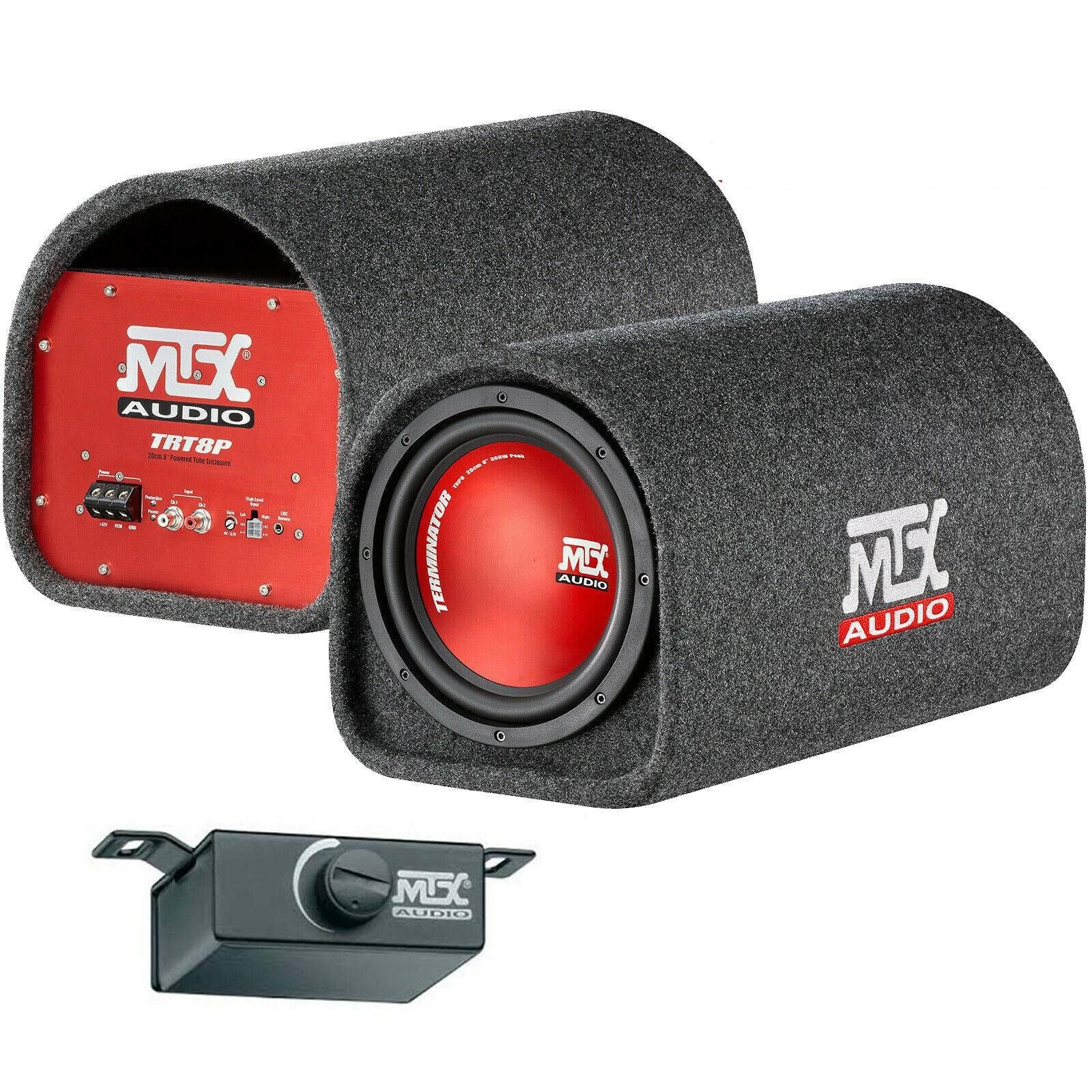

• 8 inch. Fast and musical, ideal for rock, indie and vans where space is tight. The MTX TRT8P and RT8PT sit here at 360 watts.
• 10 inch. The balanced choice. Enough depth for most music without dominating the cabin, as with the Kicker 46CWTB104 at 800 watts.

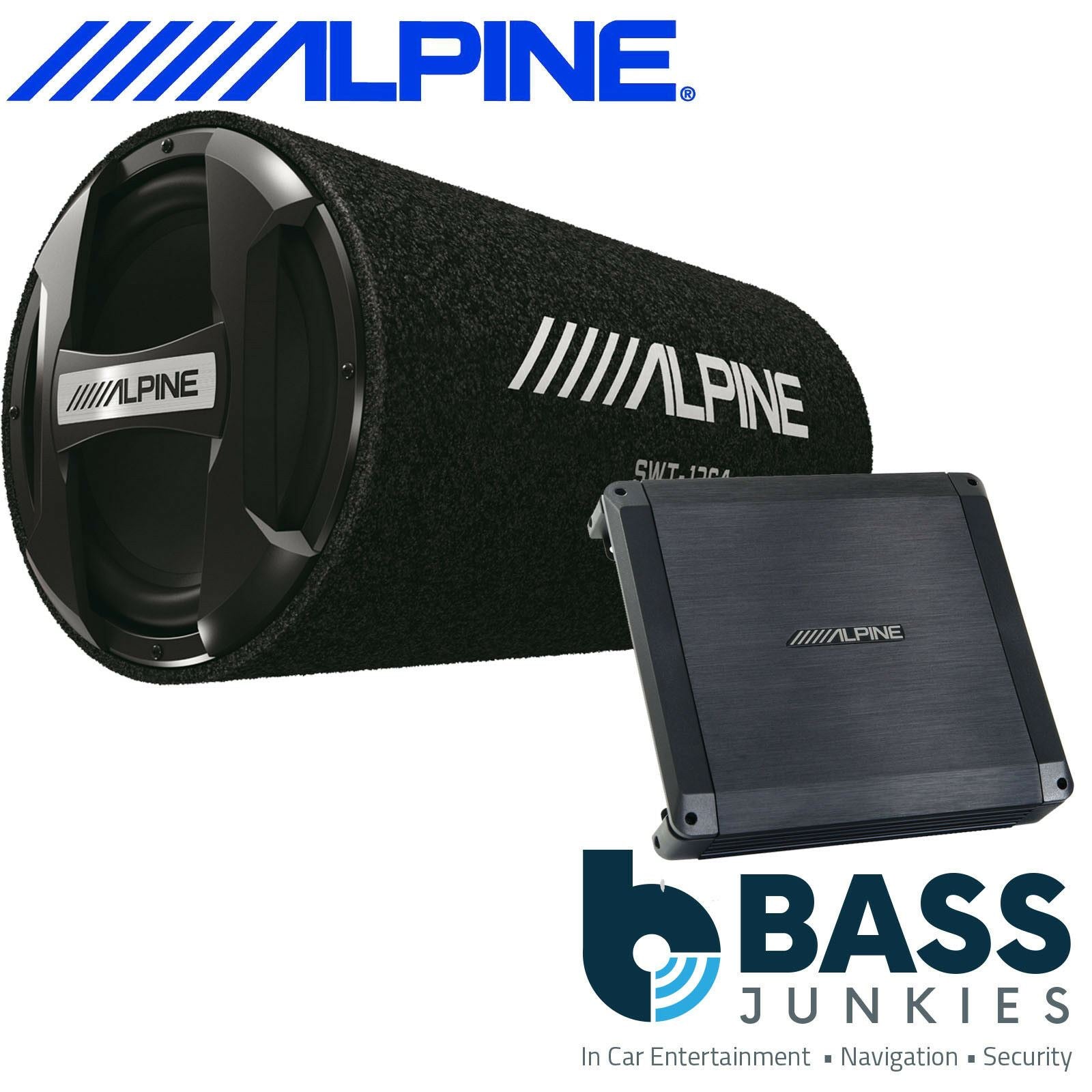

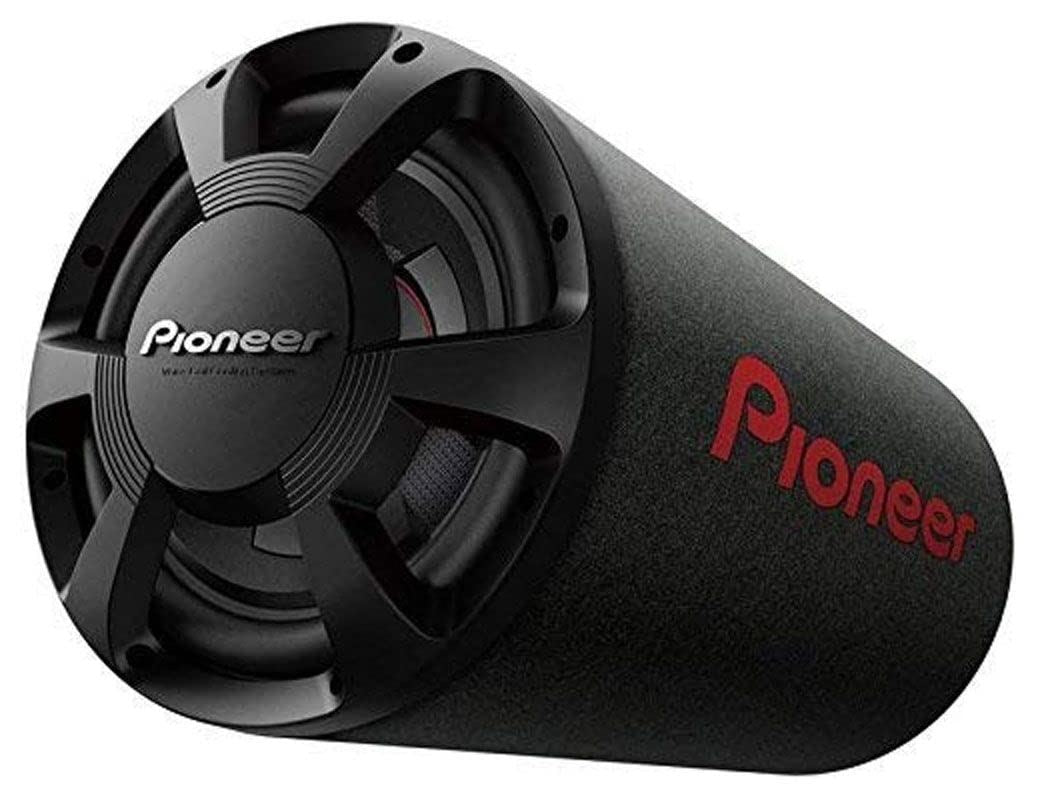

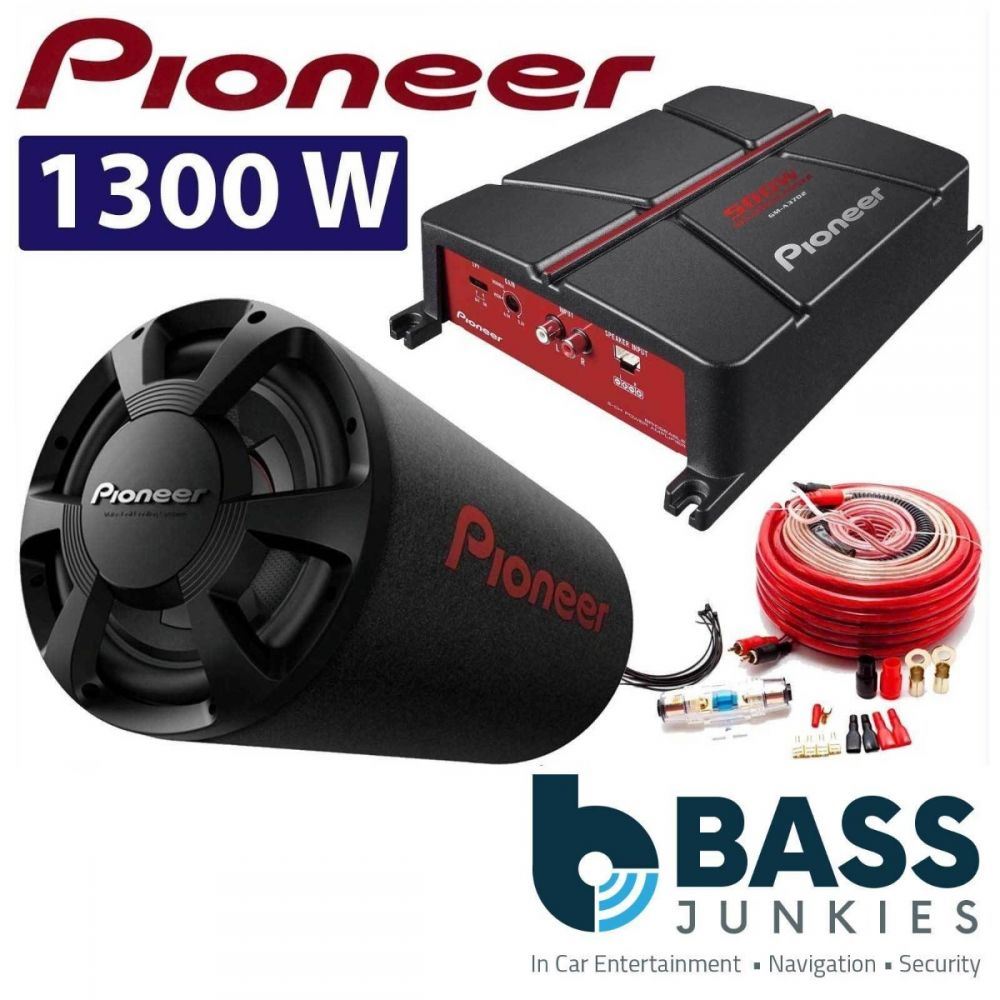

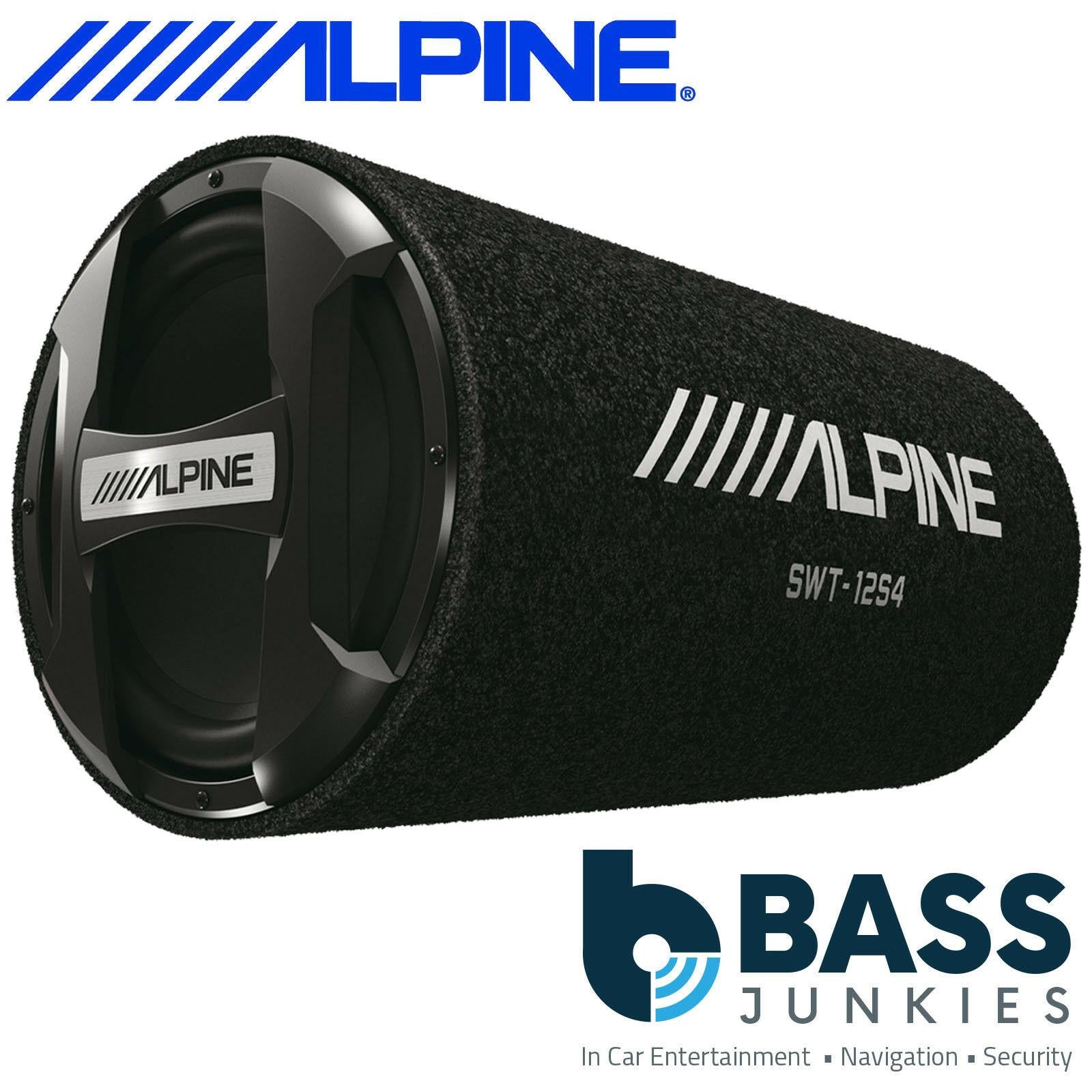

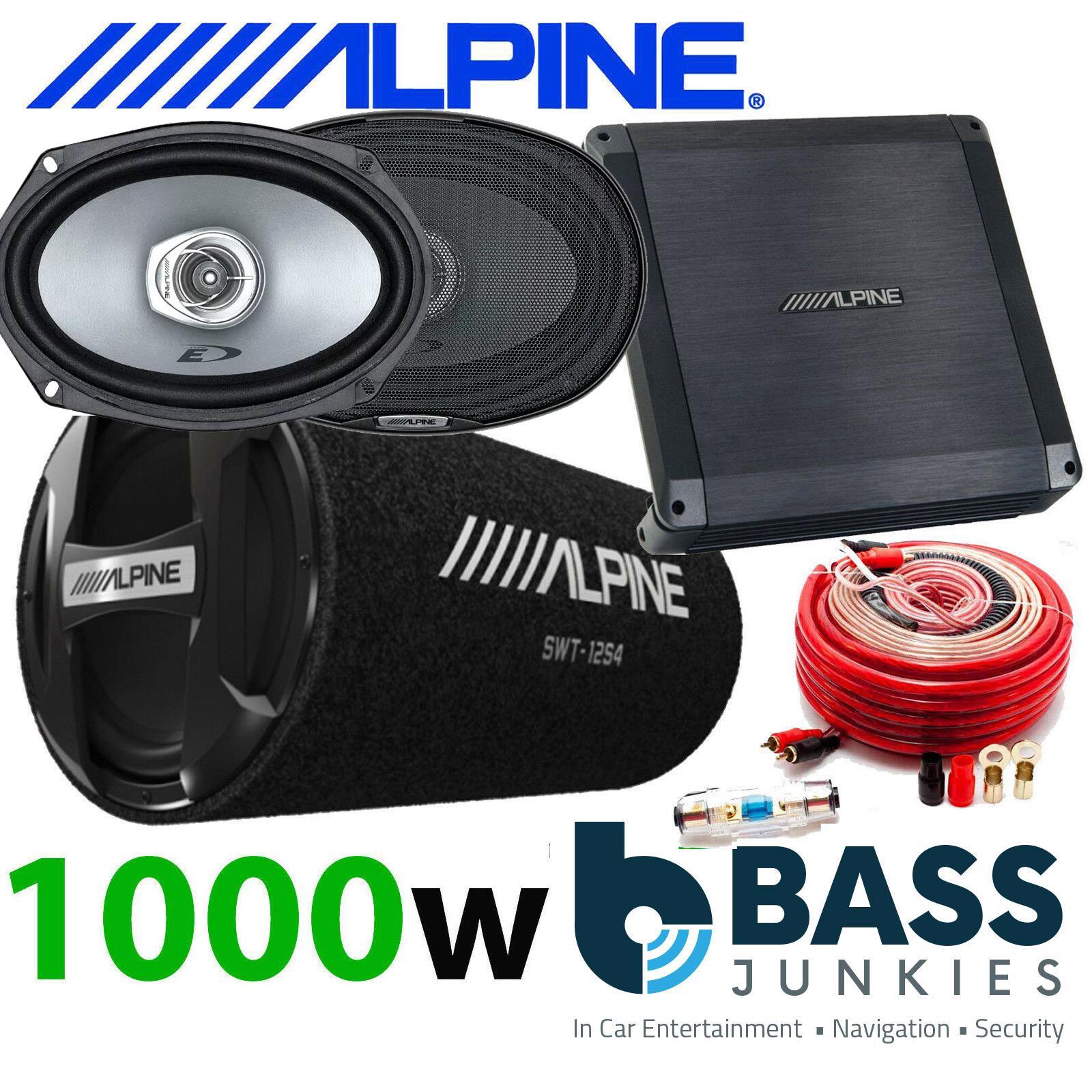

• 12 inch. Serious low end extension for dance, drum and bass and hip hop. The Alpine 1000 watt packages and the Pioneer TS-WX306T live here.

Power handling and amplifier matching

Ignore peak wattage on the box and work to RMS figures. A passive tube rated at 400 watts RMS wants an amplifier delivering roughly 400 watts RMS at the tube's impedance, which is why the Kicker range is offered in both 2 ohm and 4 ohm versions. Underpowering a subwoofer damages voice coils more often than overpowering does, because a clipped signal from a small amplifier sends the coil a distorted waveform it cannot dissipate.

Mounting, boot space and vehicle type

Strap the tube down properly. An unrestrained 12 inch tube is a heavy projectile in an accident and will draw an MOT advisory on load security in a commercial vehicle. Weatherproof models such as the Kicker CWTB range suit pickups, jeeps and any open load area.

Brand quality at a glance

• MTX. The Road Thunder and Terminator ranges are the benchmark for active tubes, with sensible built in amplification and bass control.
• Kicker. Weatherproof CompRT based tubes in 2 ohm and 4 ohm variants, built for marine, pickup and off road use.

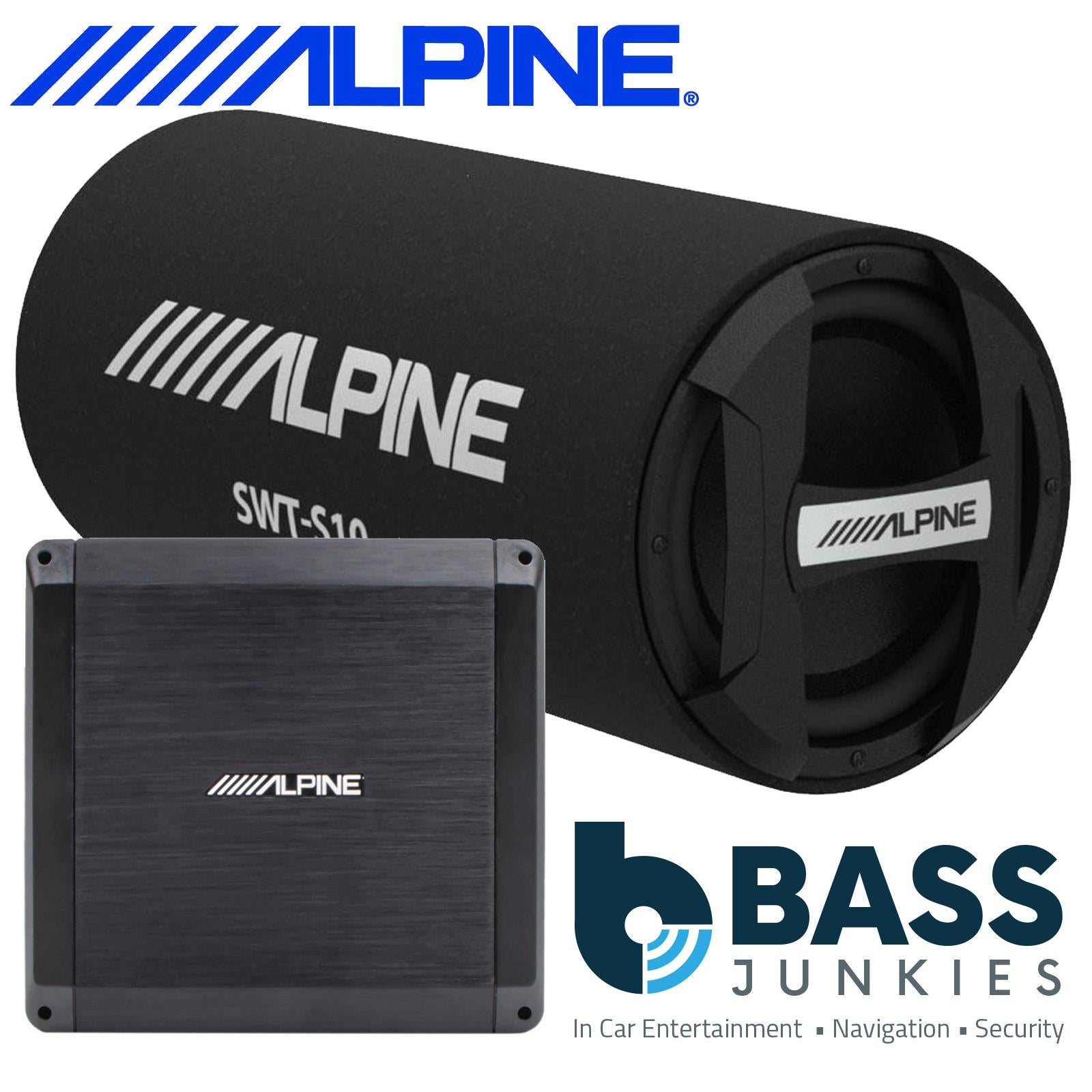

• Alpine. Complete tube, amplifier and wiring kit packages that take the guesswork out of a first install.

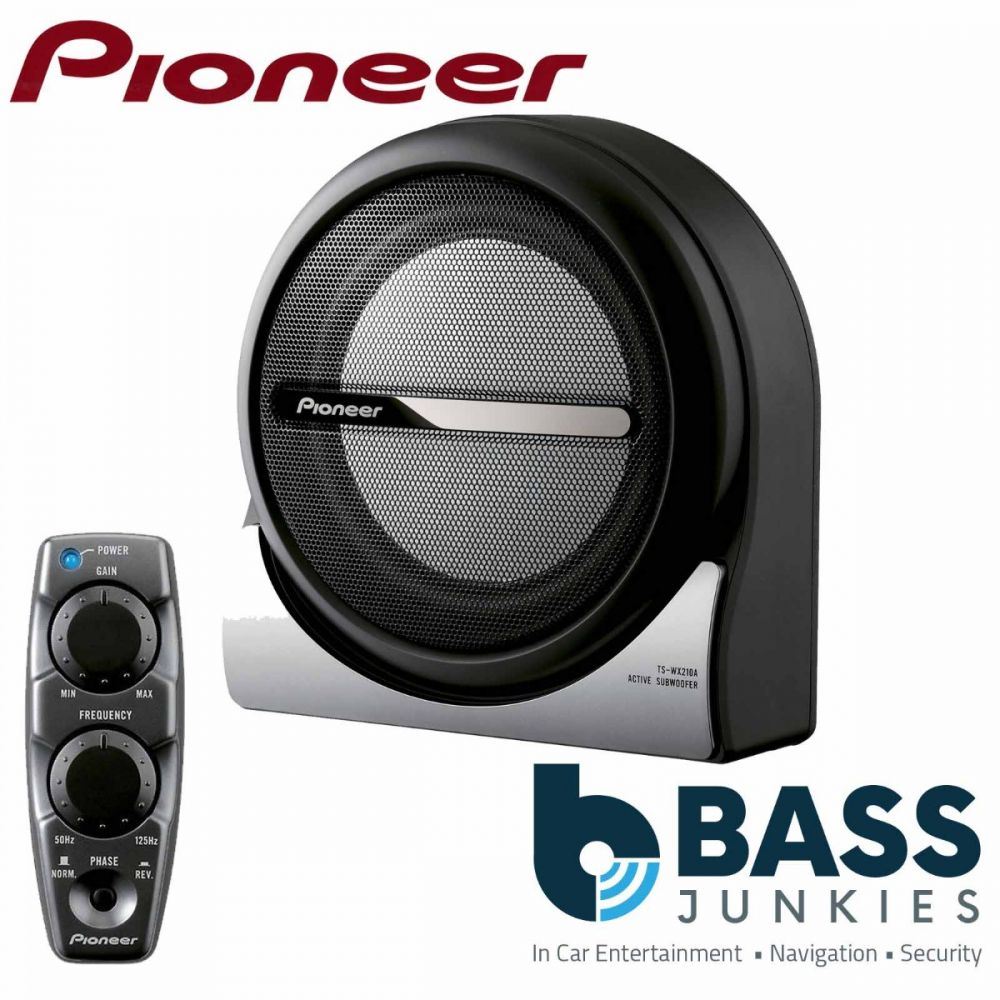

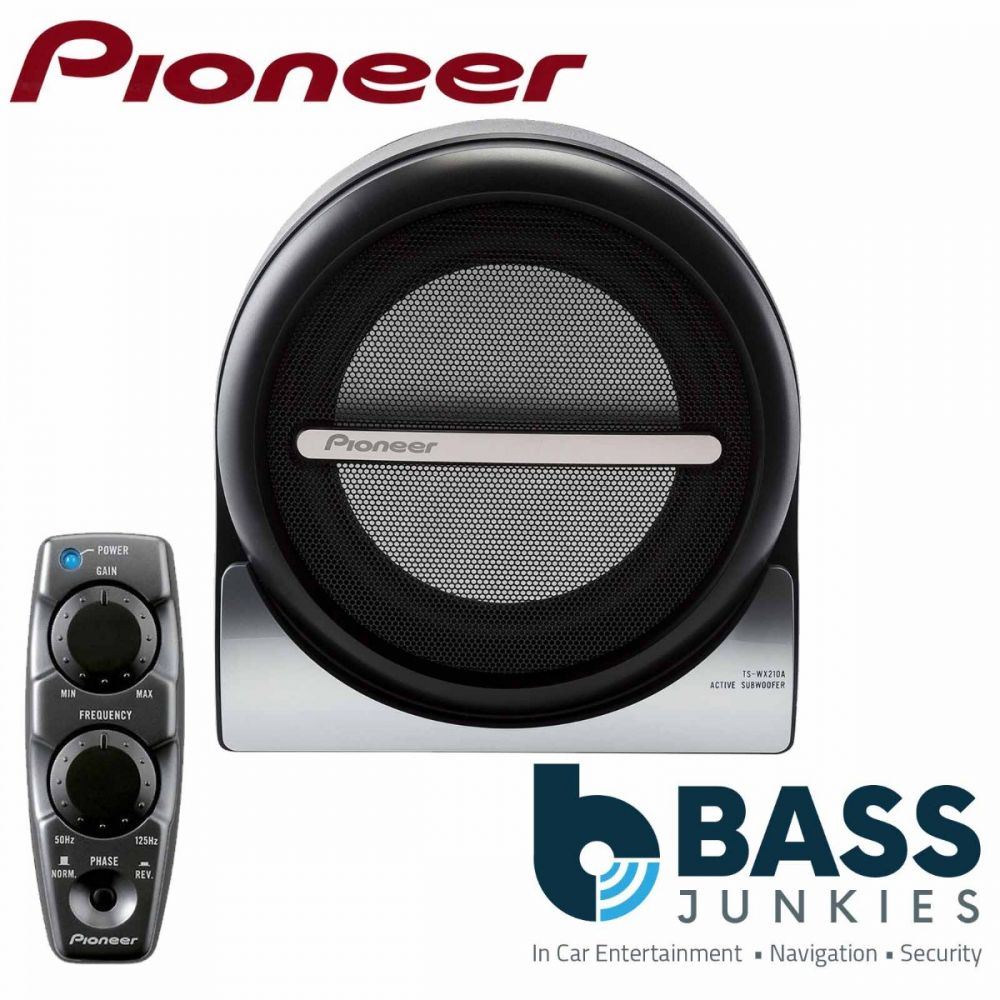

• Pioneer. Compact amplified tubes such as the TS-WX210A that suit vans and cars with very limited boot space.
• Gas. Loud, well priced ported enclosures for buyers chasing maximum output per pound.

Compatibility and fitting

A subwoofer needs a clean signal from the head unit. If your factory stereo has no preouts, plan for a head unit upgrade at the same time, which brings in the usual supporting parts:

• Fascia adapter panel. This fills the gap around the new unit so it sits flush with your dashboard and looks factory fitted.
• ISO wiring harness. A vehicle specific loom that plugs into your existing connector, so no factory wiring is cut.
• Steering wheel control adapter. Retains your volume, track and phone buttons on the wheel rather than losing them.
• Aerial adapter. Converts your car aerial plug to the standard DIN or Fakra fitting the new unit expects, and supplies phantom power where needed.

You will also need an amplifier wiring kit rated for the current draw, run down the opposite side of the car from your signal cables to avoid alternator whine.
