5 and 6 Channel Car Amplifiers

Choosing a 5 or 6 channel car amplifier in 2026

A five or six channel amplifier is the tidiest way to power a complete system from one chassis. One amplifier drives front speakers, rear speakers and a subwoofer, which means a single power feed, a single earth and far less space consumed under a seat or in the boot. For most UK cars this is the sensible choice over running two or three separate amplifiers. This guide covers how to specify one properly.

Five channel or six channel: which suits your build

A five channel amplifier gives four full range channels plus a dedicated subwoofer channel. That covers a conventional front and rear speaker layout with a sub, and it is the right answer for the majority of installs. A six channel amplifier gives you the extra pair needed for an active front stage, where tweeters and midranges are driven separately and the crossover is handled electronically rather than passively. Choose six channels if you intend to run active, or if you need front, rear and centre plus a sub.

Power ratings that actually mean something

Compare RMS power at 4 ohms with all channels driven, not peak or maximum figures. A 600 watt rated amplifier producing 75 watts RMS across four channels plus 300 watts to the sub is a genuinely capable unit for standard sized speakers. Also check the certified operating voltage of the rating, since figures quoted at 14.4 volts will not be met on a car sitting at 12.6 volts with the engine off.

Amplifiers with integrated DSP

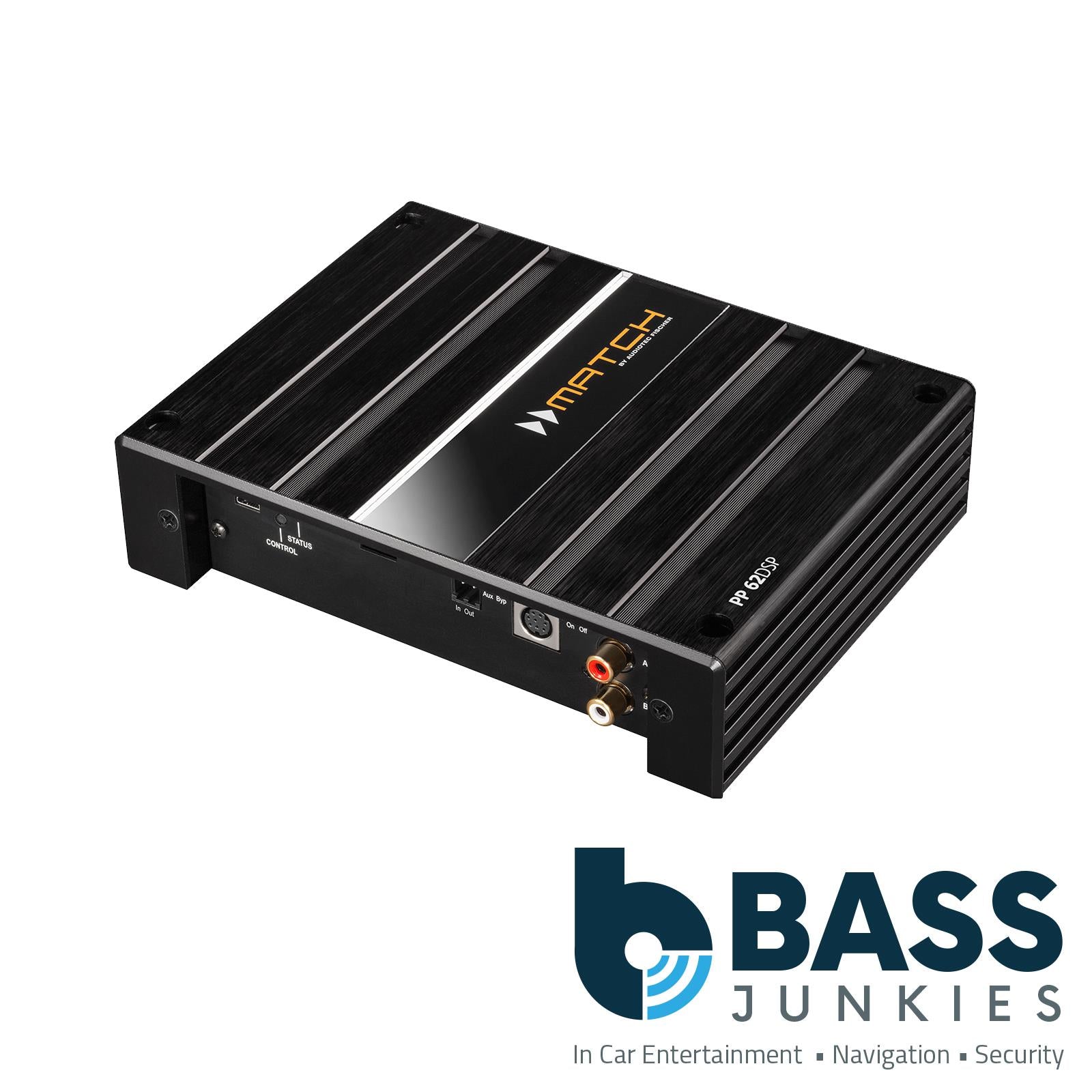

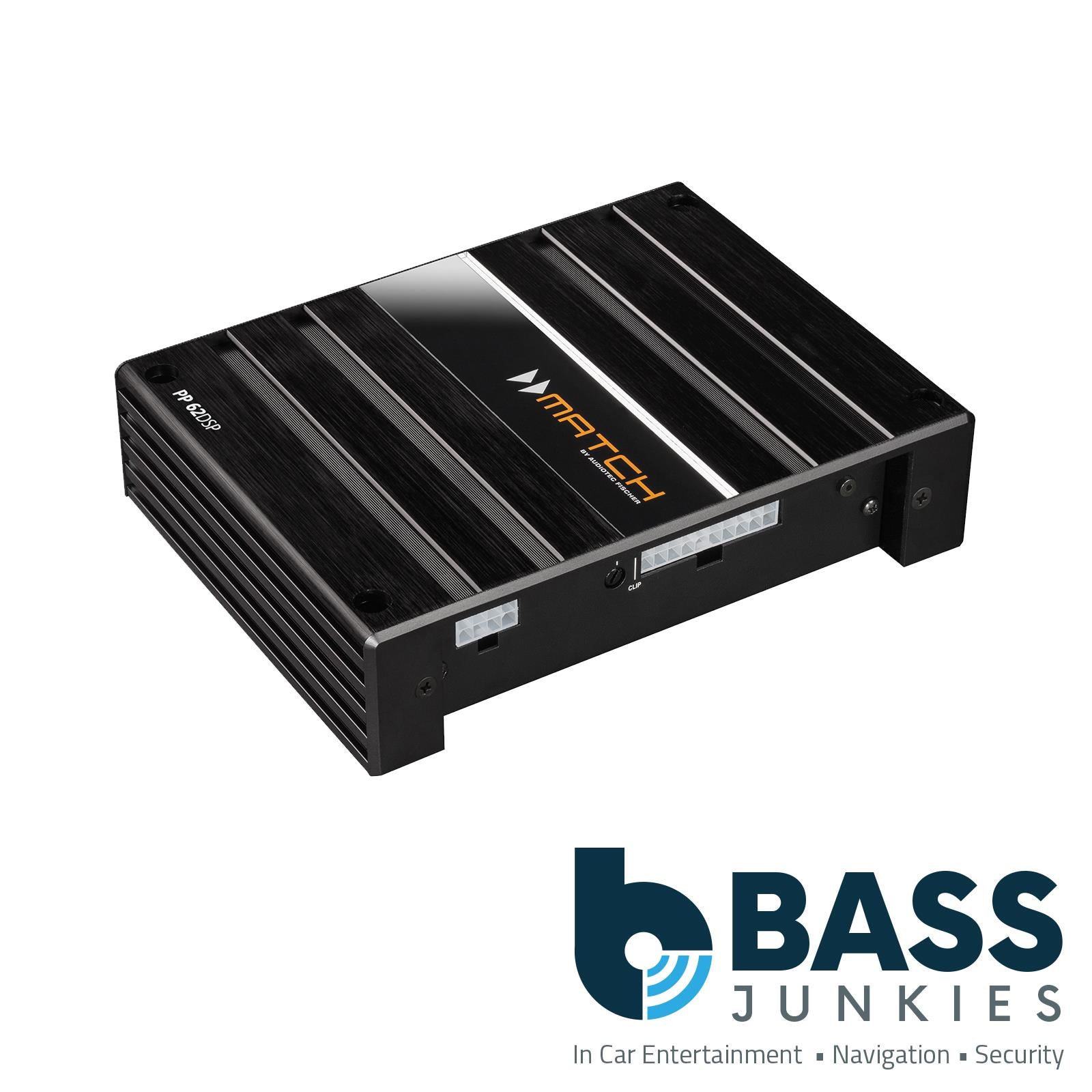

Units such as the Match PP 62DSP, JL Audio FIX-86 and VX600/6i combine amplification with digital signal processing. This matters most when keeping a factory head unit, because a DSP can undo the equalisation and time alignment the manufacturer baked into the original system, then rebuild it correctly for your speakers. If you are retaining the standard stereo in a modern car, an amplifier with integrated DSP is close to essential rather than optional.

What to specify before ordering

• RMS power per channel. Match to the continuous rating of your speakers rather than their peak figure.
• Input type. Confirm whether you need high level speaker inputs for a factory head unit or RCA pre-outs.
• Crossover flexibility. Independent high pass and low pass filters per channel pair prevent compromise between front and rear.
• Physical dimensions. Measure the under seat or boot floor space including clearance for cable entry.
• Fuse rating. The onboard fuse total dictates the minimum wiring gauge and the main fuse at the battery.

Brand quality at a glance

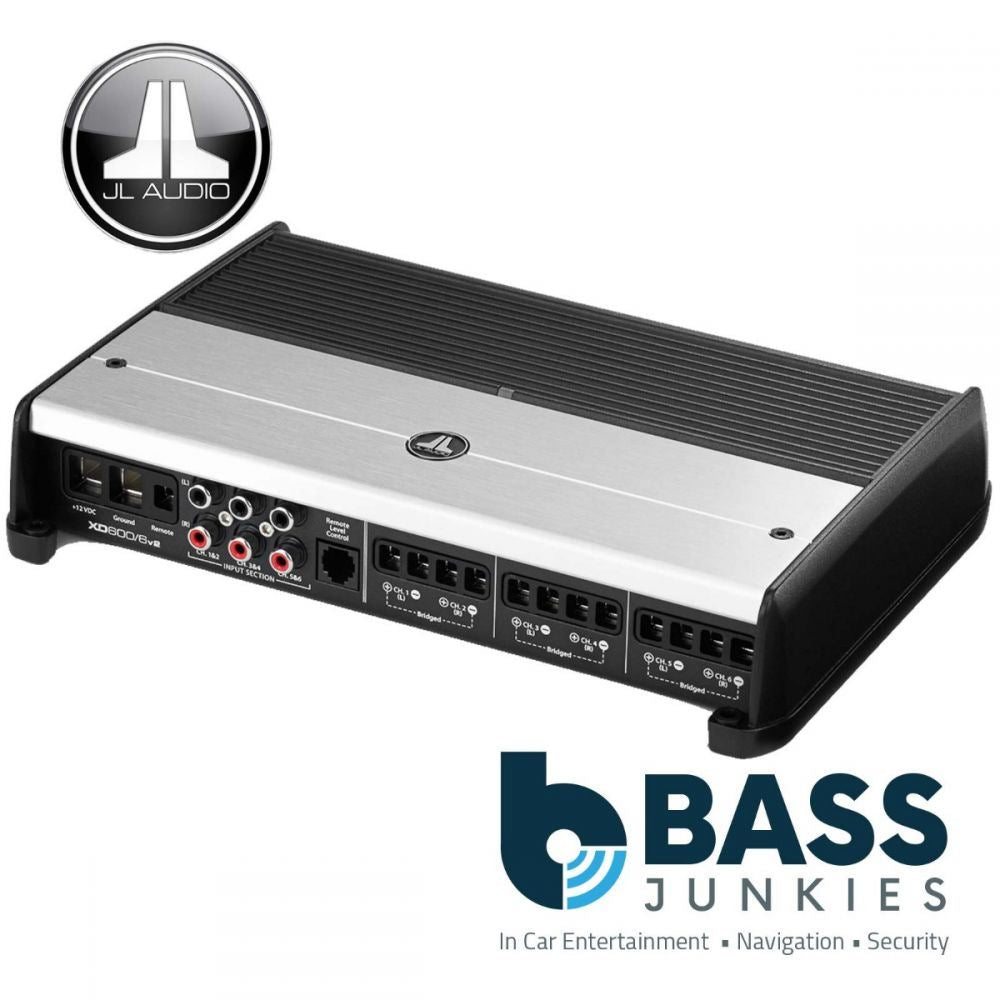

• JL Audio. The XD and VX ranges are compact, honest on power ratings and highly reliable in daily use.
• Match. Plug and play amplifiers with integrated DSP, designed for factory system upgrades on European cars.

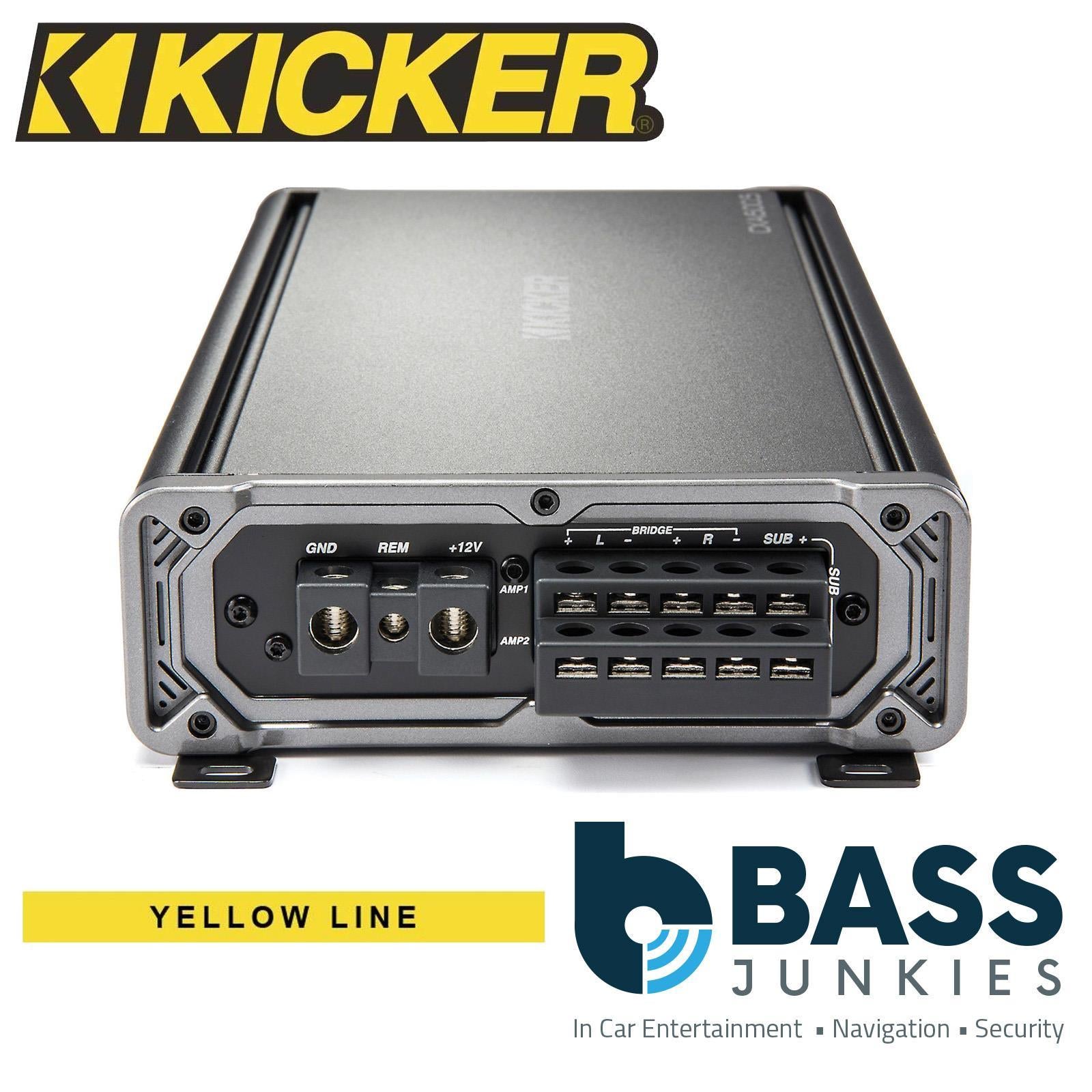

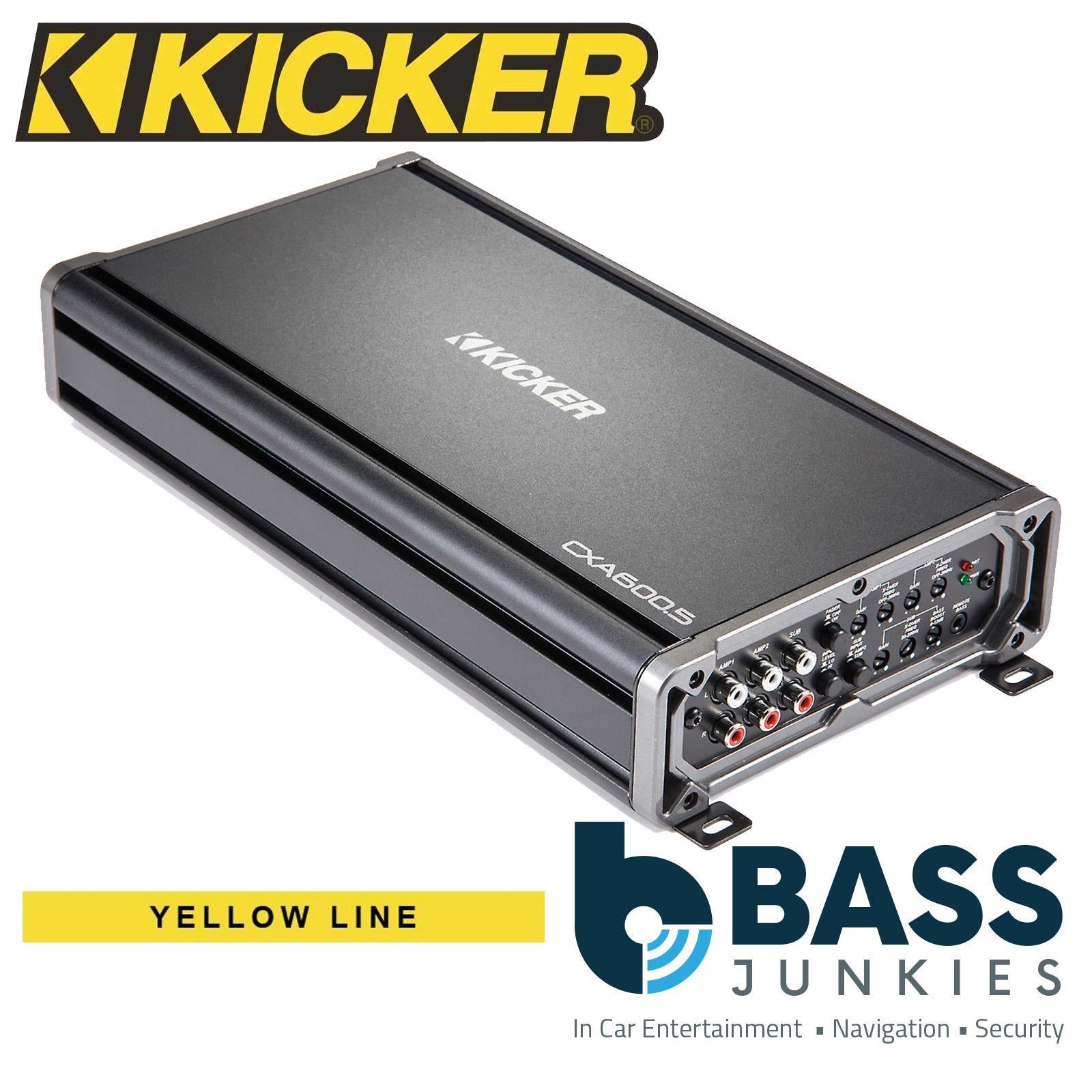

• Kicker. The CX series delivers strong value with solid protection circuitry and simple setup.
• Phoenix Gold. The SX2 series offers high channel count power at a competitive price point.

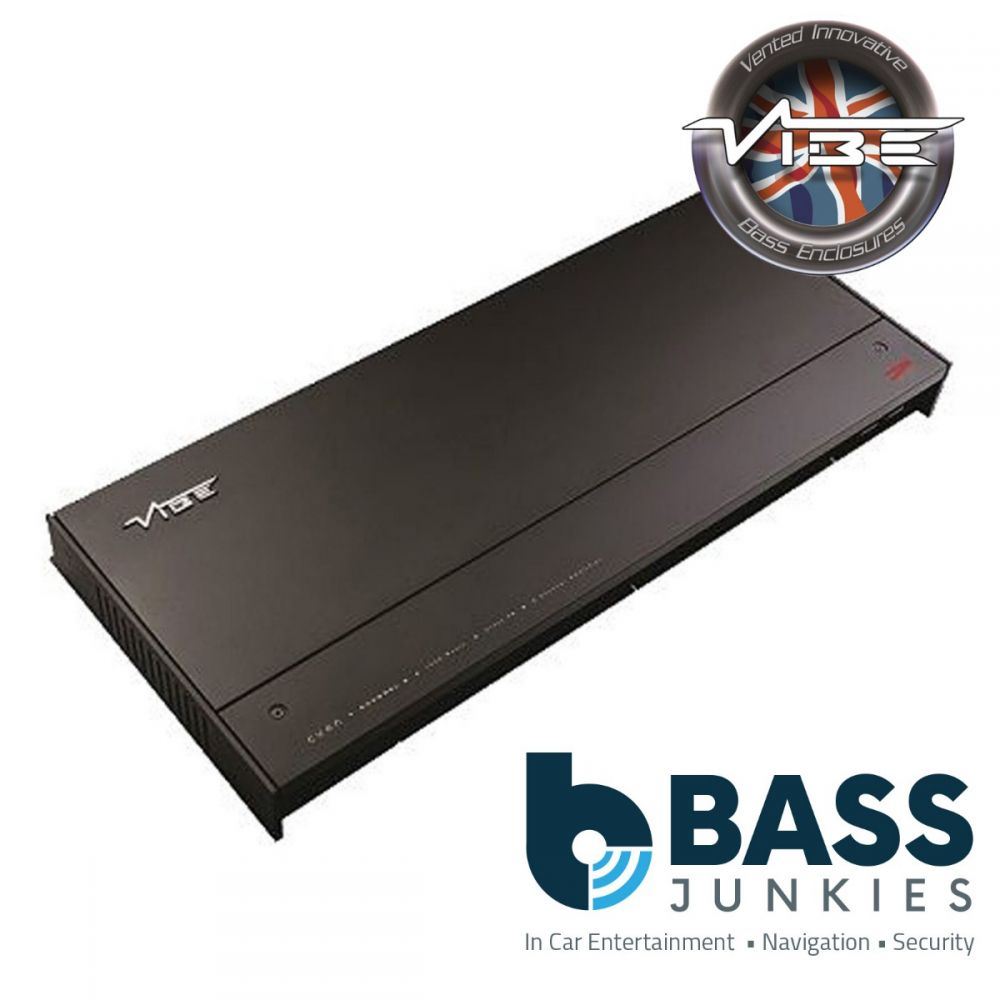

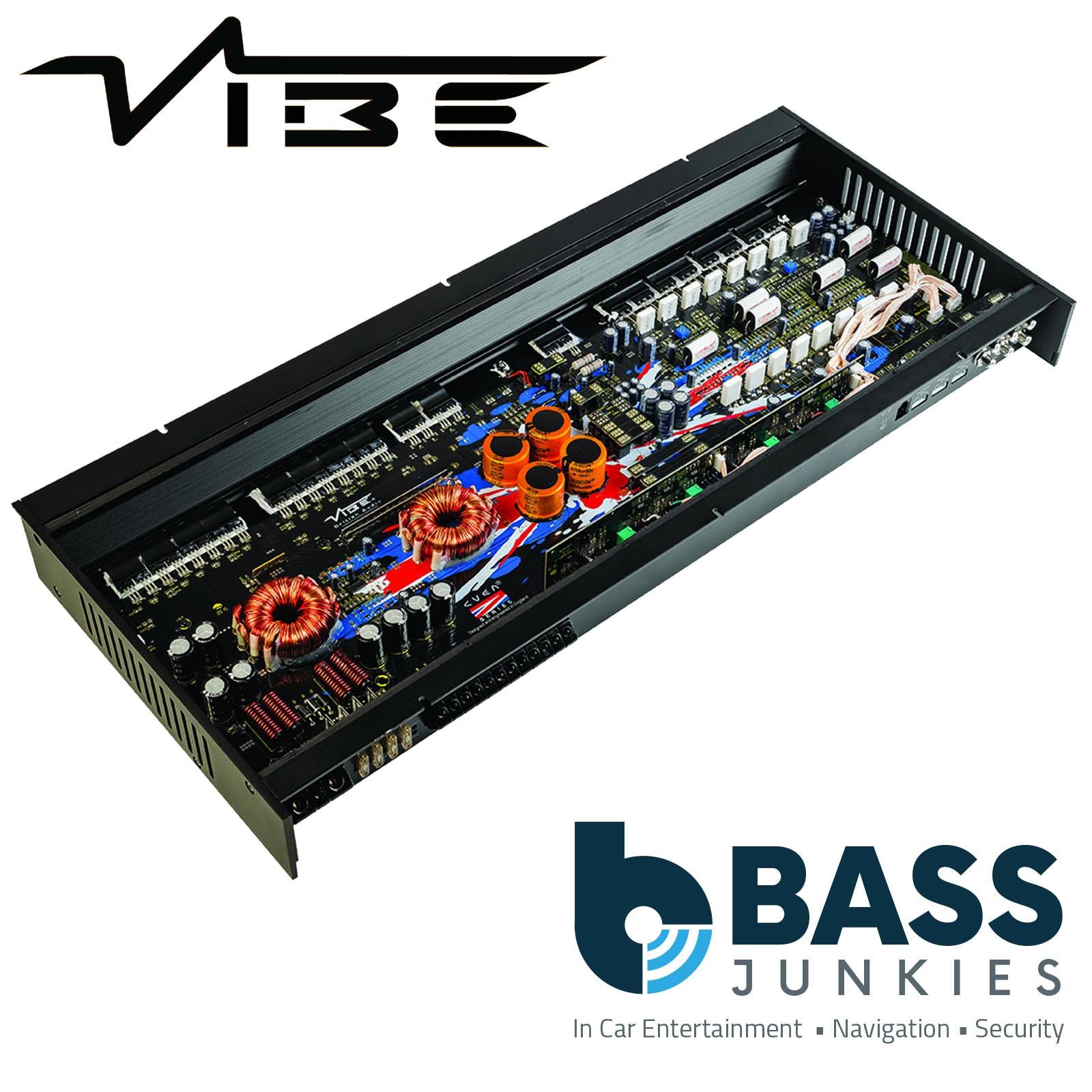

• Vibe. Accessible multi channel amplification for first system builds and budget conscious upgrades.

Compatibility and fitting

Getting the electrical and mechanical side right is what separates a tidy install from a rattling one. These are the four parts most UK installs need alongside the main product.

• Fascia adapter. Fills the gap around the head unit or trim so the finished job looks factory rather than aftermarket.
• ISO harness. Converts the vehicle loom to a standard ISO plug so no factory wiring is cut, protecting resale value.
• Steering wheel control adapter. Keeps volume, track and phone buttons on the wheel working after the upgrade.
• Aerial adapter. Matches the car aerial plug to the new unit and supplies phantom power where the vehicle needs it.

Setting gains and crossovers correctly

Set every gain to minimum before first power up. Play a test tone at around three quarters of the head unit maximum volume, then raise each gain until distortion is just audible and back off slightly. High pass the front and rear channels at roughly 80Hz so the door speakers are not asked to produce deep bass, and low pass the subwoofer channel at the same point. If the amplifier includes DSP, complete this basic setup before adding time alignment or equalisation.

Why buy from Bass Junkies

Bass Junkies has been fitting and supplying car audio since 1995, and everything listed here is stocked and tested by the same team that installs it. Our Wolverhampton workshop handles vehicle specific fitment questions every day, so if you are unsure what suits your car, call 01902 863 005 and speak to an installer rather than a call centre. Orders placed before the daily cut off ship the same working day, and technical support does not stop once the parcel leaves us.
