Car Amp Ground Loop Isolators UK

Ground loop isolators that fix the buzz behind the music

A ground loop is a small voltage difference between two earth points in the car. That tiny voltage flows along the RCA shield, drags engine and alternator noise into the amplifier input, and you hear it as a whine that rises with engine speed. A ground loop isolator is a passive inline transformer that breaks the earth path while passing the audio signal, removing the noise without affecting tone.

Vibe CLGLI-V7 and similar inline filters

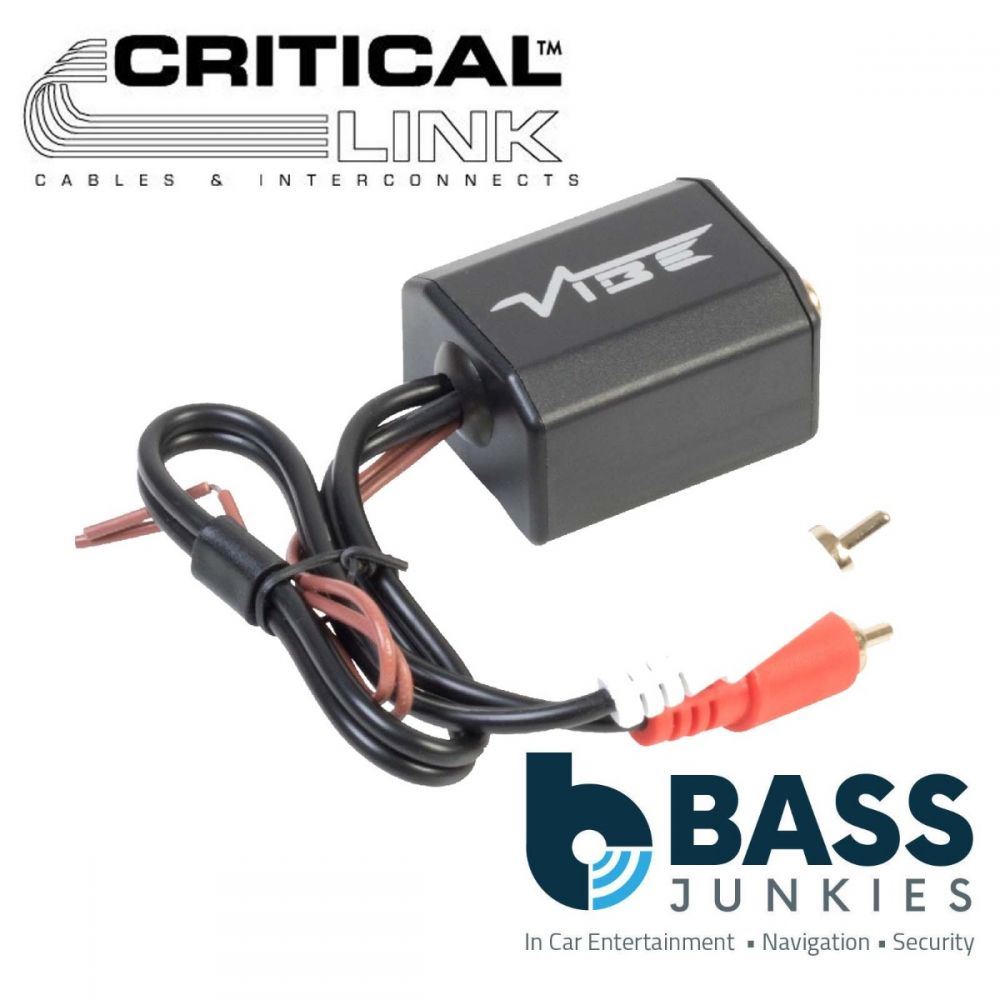

The Vibe Critical Link CLGLI-V7 is a popular pick because it accepts standard stereo RCA, has a low insertion loss, and fits in the boot loom alongside the amplifier inputs. There are no batteries, no software, no installer settings. Plug the head unit pre-outs into the input side, run the amplifier RCAs from the output side, and the noise vanishes on the next start-up.

When to fit a ground loop isolator

Fit an isolator when you hear a clean whine that follows engine speed, when amplifier inputs are taken from a factory head unit through a high-level converter, or when an aftermarket head unit and amplifier are bonded to different chassis earths. If the noise stays the same with the engine off, the source is usually the amplifier itself rather than a ground loop.

Brand quality at a glance

• Vibe. The Critical Link CLGLI-V7 is the UK best seller for inline RCA ground loop isolation.
• Connects2. Robust inline isolators sold alongside its high-level converter range.
• FOUR Connect. Premium isolators with shielded housings for show car and SPL installs.
• Stinger. Heavy-duty isolators with screw terminals for high-current installs.
• Audison. High-end isolation in the bit and Prima DSP range where the install needs measurement-grade noise floor.
• AudioControl. Studio-grade line isolation paired with summing and level matching.

Compatibility and fitting

• Fascia adapter. Not part of an isolator install on its own, only relevant if the head unit is being upgraded at the same time.
• ISO wiring harness. Used alongside high-level converters where factory amplified speaker outputs feed the amplifier.
• Steering wheel control adapter. Unrelated to the noise issue itself but often needed when an aftermarket head unit replaces the factory one.
• Aerial adapter. Only required when a new head unit is fitted as part of a wider system rebuild.

Other steps to remove amplifier noise

Before reaching for an isolator, check the obvious causes. The amplifier earth should be bolted to bare metal within 30cm of the unit, with the paint and underseal sanded back to clean steel and the bolt loaded with a star washer. RCA leads should run down the opposite side of the car from the power cable, never bundled together with it, and any spare length should be looped tidily rather than coiled into a noise antenna. Power cables should have an inline fuse within 30cm of the battery. If the whine remains after those checks, the isolator finishes the job cleanly.

How long fitting takes

Most isolators fit in 10 to 20 minutes. Unplug the RCAs from the amplifier, insert the isolator in line, and test. There is no calibration step, no DIP switches to set and no level matching to dial in. The amplifier gain and crossover settings stay where they were, the head unit volume range stays the same, and a single quick engine start at idle and 2000 rpm confirms the noise has gone before the boot trim refits.

Why buy from Bass Junkies

Bass Junkies has supplied UK car audio since 1995 and stocks the Vibe Critical Link isolator at our Wolverhampton workshop for next working day UK delivery. Ring 01902 863 005 with the symptoms and we will tell you whether an isolator, a better earth or a new high-level converter will fix the issue.
