Alpine X903D-ID 2014 Onwards Iveco Daily Motorhome 9" DAB Sat Nav Carplay Android Touchscreen

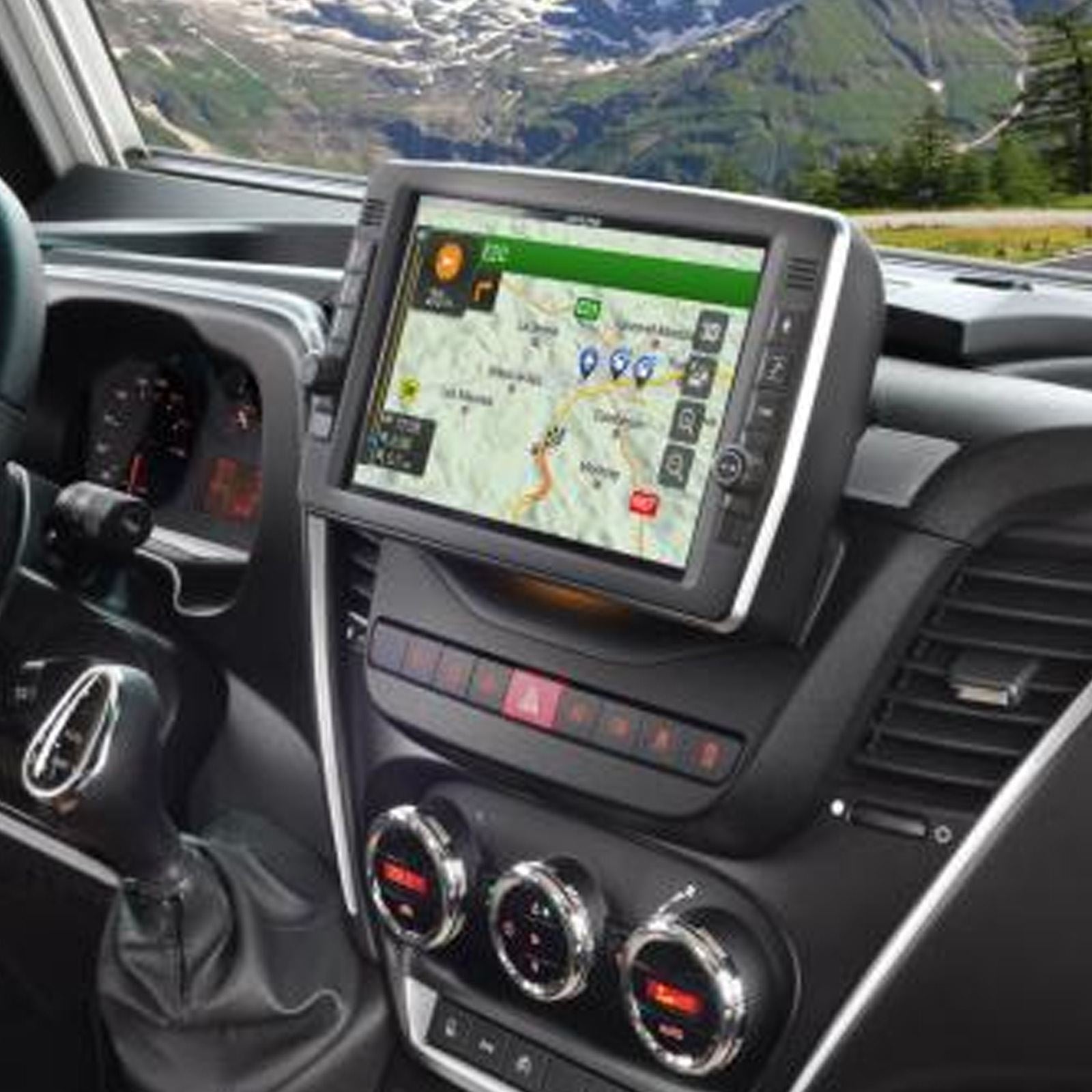

Alpine introduces the 3rd generation motorhome Alpine Style system for the Iveco Daily (model year 2014 and newer). The X903D-ID features a huge 9-inch touch-screen that is installed off-set from the dashboard to be perfectly reached from the drivers seat. This makes it very easy to see and control navigation maps and other functions.

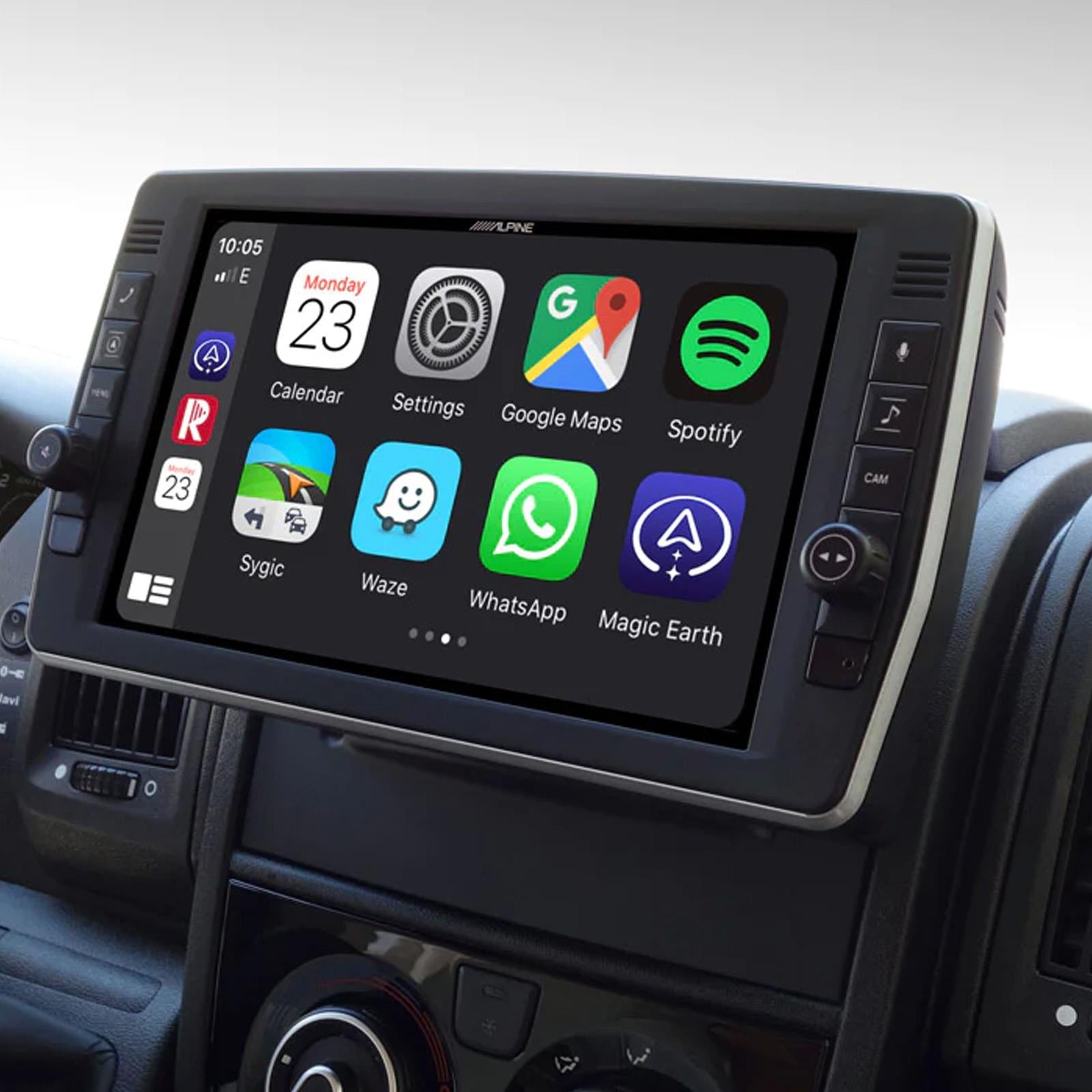

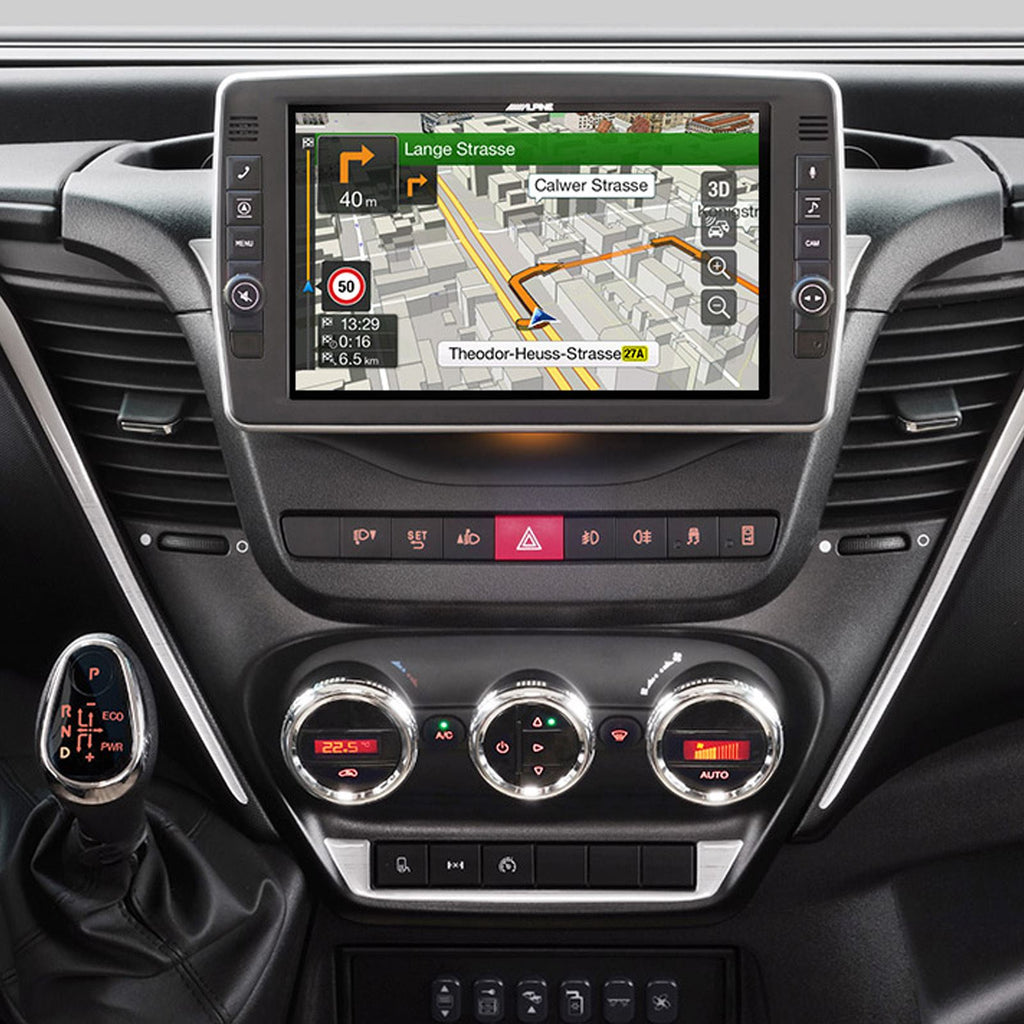

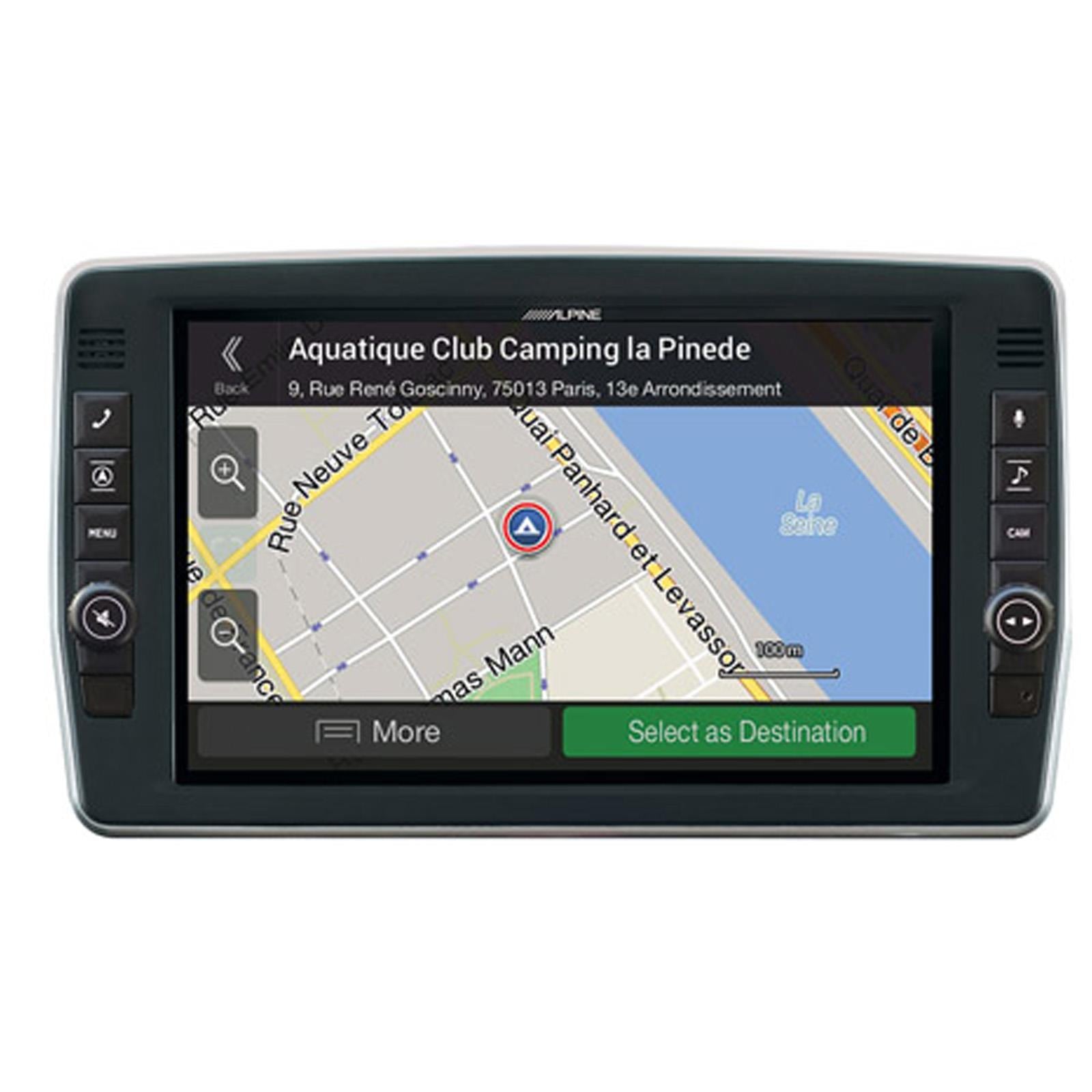

The X903D-ID features the iGo Primo NextGen integrated navigation system with TomTom maps pre-installed for 48 countries with 3 years free-of-charge map updates. You can now chose from 3 different motorhome profiles (sizes: S / M / L) or manually input the measurements and weight of your motorhome. This means only suitable routes for your specific motorhome will be proposed. You can also easily install additional camper databases for your camping needs. The X903D-ID also includes Apple CarPlay and Android Auto compatibility.
Designed for Iveco Daily
The X903D-ID is exclusively designed for Iveco Daily VI / VII Euro 5 Euro 6 (Van, Minibus, Pickup truck model year 2014 and newer). It is compatible for vehicles with radio-BT, radio-DAB or radio preparation. Installation is simple and does not require any modification of your dashboard.
FEATURES
- Tuner
- Memory Presets: Preset Stations (FM: 12 / MW: 6 / LW: 6)
- Memory: Auto Memory
- Seek Mode: Local / DX Selection
- RDS
- RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
- DAB Tuner
- DAB+ Tuner Built-in
- DAB+/DMB Supported
- DAB+ Slideshow Service
- DLS (Dynamic Label Service)
- DAB Service Following
- RDS Fallback (where available)
- Service Preset: 18 Preset Memory
- Auto Ensemble/Service Memory
- Service Search Function
- PTY Search Function
- Alphabet Search Function
- Antenna Power Supply Selection
SPECIFICATIONS
- Screen
- Screen Size: 9 inch Capacitive WVGA
- LCD Type: Transparent Type TN LCD
- Operation System: TFT Active Matrix
- Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
- Illumination System: White LED Backlighting
- Effective Number of Picture Elements: 99.99%
- Colour System: NTSC, PAL
- Max Power Output Ratings
- Max Power Output: 4 x 50 W
- FM Tuner
- Tuning Range: 87.5 - 108.0 MHz
- Mono Usable Sensitivity: 8.1 dBf (0.7 V / 75 ohms)
- 50dB Quieting Sensitivity: 12 dBf (1.1 V / 75 ohms)
- Alternate Channel Selectivity: 80 dB
- Signal-to-Noise Ratio: 65 dB
- Stereo Separation: 35 dB
- Capture Ratio: 2 dB
- MW Tuner
- Tuning Range: 531 - 1,602 kHz
- Usable Sensitivity (IEC Standard): 25.1 V / 28 dBf
- LW Tuner
- Tuning Range: 153 - 281 kHz
- Usable Sensitivity (IEC Standard): 31.6 V / 30 dBf
