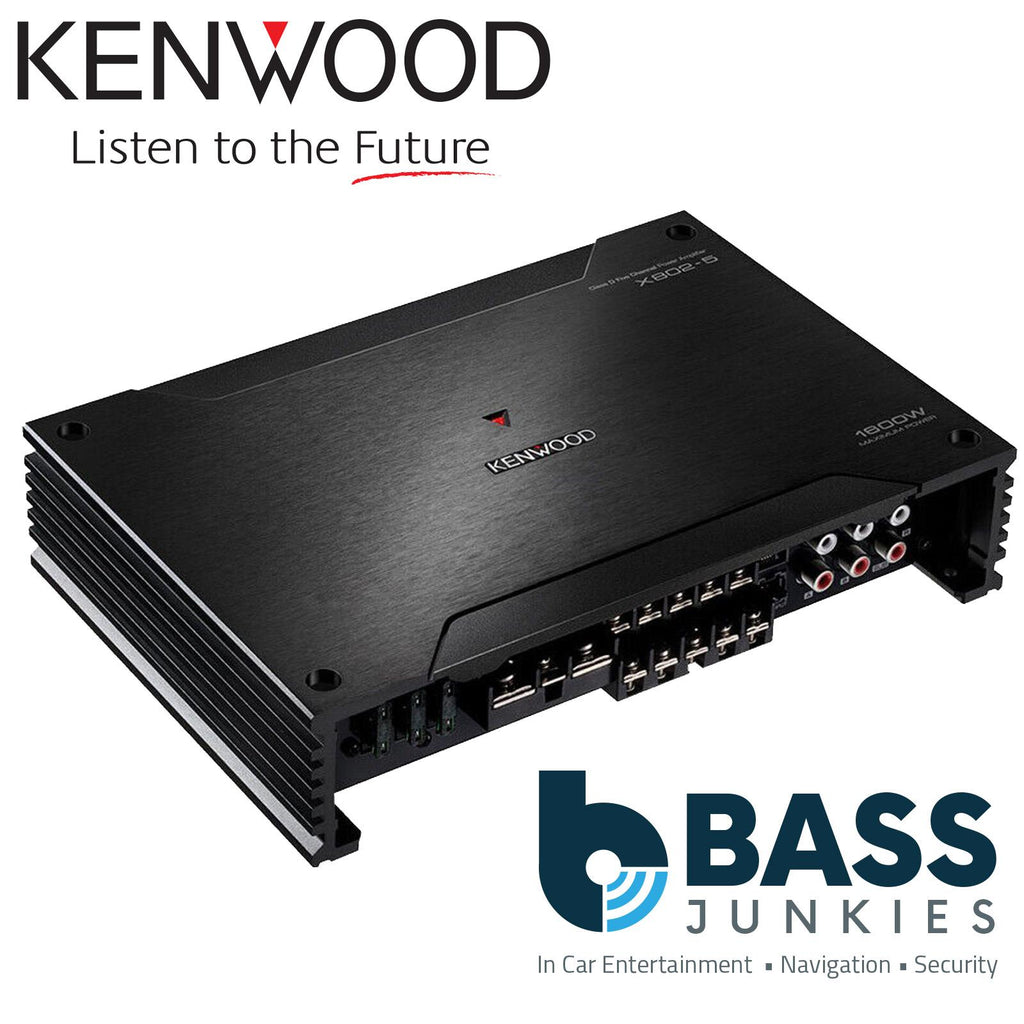

Kenwood X802-5 - X-Series Class D 5-Channel Power Car Amplifier 1800W

Key Features

• D-class digital power amplifier
• Variable high & low pass filter
• Speaker Level Input
• Signal sensing Turn-on
• 2 ohms load capability
• CEA-2006 compliant
• Hi-Res Audio compliant

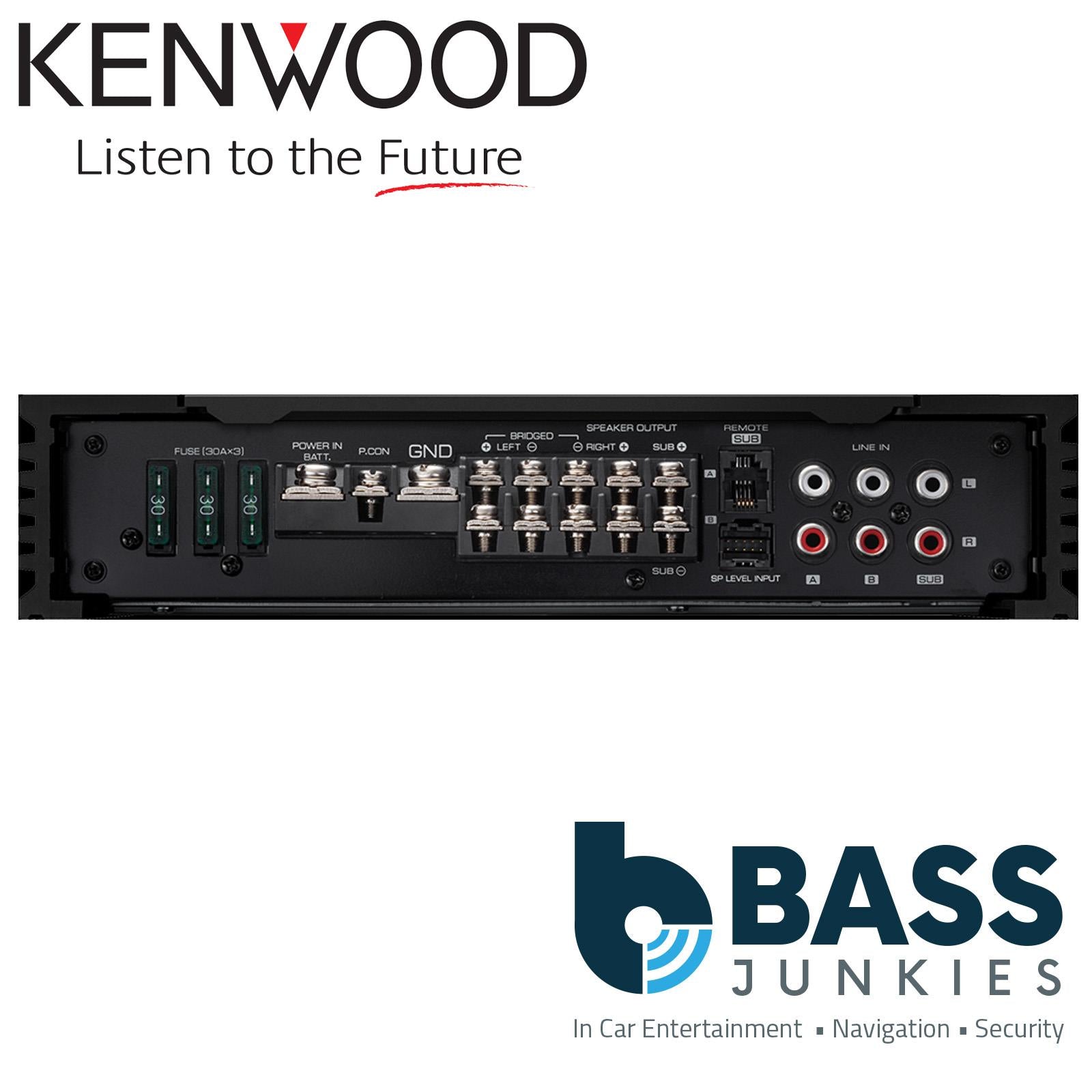

• One side terminals for smart installation
• Screw-type terminals

Amplifier Features

• Class D Amplifier
• Full Range Digital Amplifier
• Load Capability 2Ω Stable
• Rated power output (4Ω) n50W x 4 (4Ω)
• Rated Subwoofer power output (4Ω) 300W x 1
• Rated power output 75W x 4 (2Ω)
• Rated Subwoofer power output (2Ω) 500W x 1
• Bridged power output (4Ω) 150W x 2
• CEA-2006 Compliant
• Low-pass Filter
• High-pass Fliter
• Switched Mode Power supply, with Power MOS-FET
• Signal Sensing Turn-on
• Speaker level Input
• Single Side Terminals  Y
• Chassis Extruded aluminum het sink design
• Removable Coverplate

Amplifier-Specifications

• Rated power output (4Ω, 14,4V) 50W x 4 (20Hz ~ 20000Hz, 1%THD)
• Rated subwoofer power output (4Ω, 14,4V) 300 W (20Hz - 200Hz, 1% THD)
• Rated power output (2Ω, 14,4V) 75W x 4 (1000Hz, 1%THD)
• Rated subwoofer power output (2Ω, 14,4V) 500W (100Hz, 1% THD)
• Rated power output (CEA-2006) 50Watts RMS x 4 at 4 ohms and 1% THD
• Rated subwoofer power output (CEA-2006)  300W
• Low-pass Filter n50~200Hz (-24dB/oct)
• High-pass Fliter 50~200Hz (12dB/oct)
• Bass Boost Circuit 40Hz, 18dB (B-Channel)
• RCA Input Sensitivity  0.2 ~ 5V
• Speaker Level Input Sensitivity 4 ~ 12V
• Input Impedance 10kΩ
• Signal to Noise Ratio 100dB
• Signal to noise ratio (CEA-2006)
• 80dBa (Reference: 1 Watt into 4 Ohms)
• Frequency response (+0dB, -1dB) 20Hz ~ 50000Hz
• Freq. resp. (+0dB, -3dB) (SUB) 20Hz ~ 200Hz
• Operating voltage 14.4V (11V ～ 16V allowable)
• Maximum current consumption 42A
• Installation Size (WxHxD) 248 x 53 x 169 (mm)
• Weight 2.1kg
