Wavtech ART - Auto Remote Trigger 12 Volt Generator Turn-on Module
In some vehicles it can be difficult, or downright impossible to find a switched +12V source. In these instances, the ART is the solution.
It provides an easy way to generate a +12V trigger for audio systems or small electronic devices, such as dash cams or radar detectors

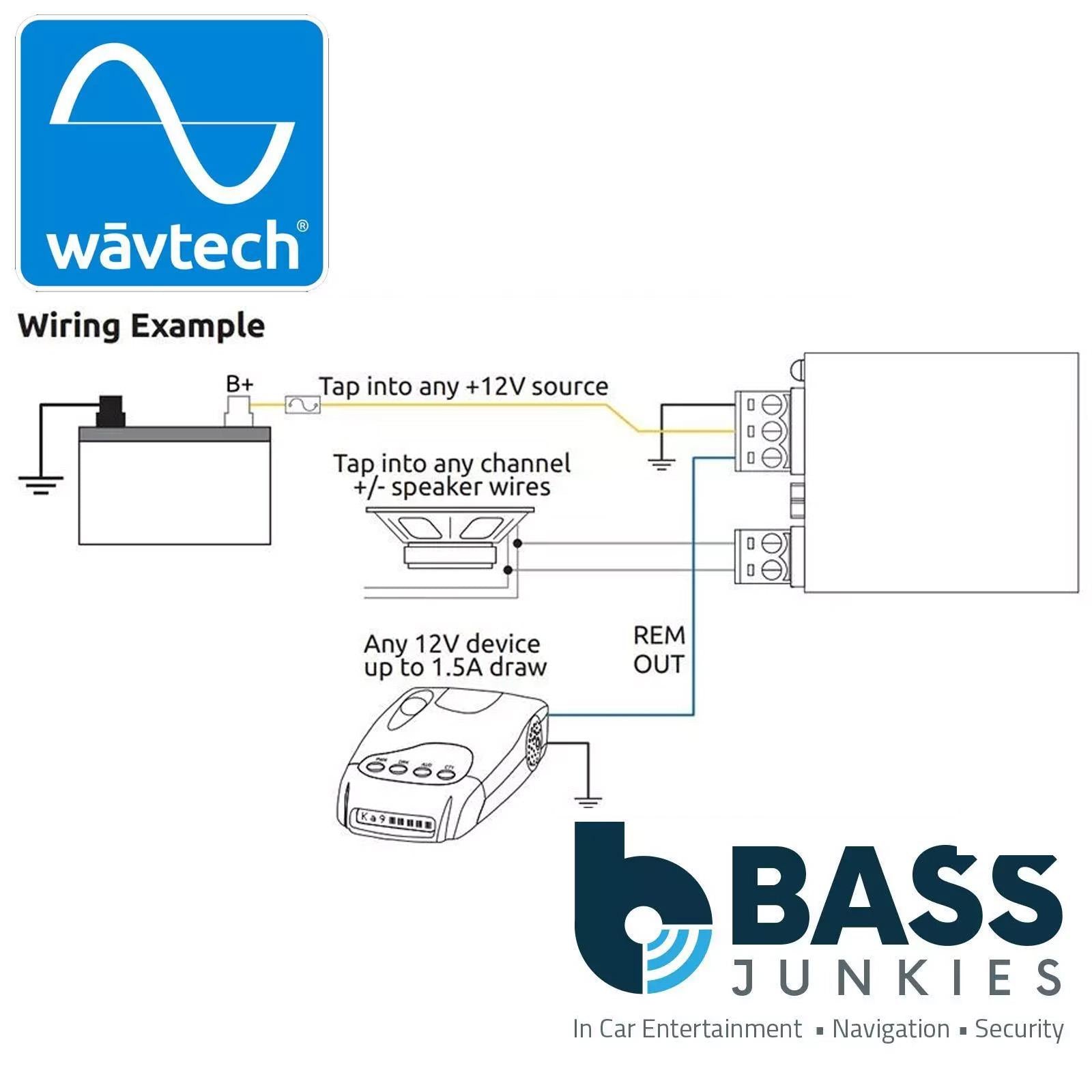

Installation is simple. All that is required is a +12V for Power, a Chassis Ground and connection to a single speaker. That’s it.
Consider the ART as huge time-saver for vehicles where a switched +12V wire is not available, or would take significant labor find and/or access one. The ART utilizes the exact same circuitry found in our best-in-class LOC's, the most reliable auto turn-on sensing system on the market. Simply connect to power and ground and tap into any easily accessible +/- speaker wires in the vehicle.
Features:
- +12V Output Generation
- Capable of Driving Multiple Relays Simultaneously
- 1.5A Continuous Output Current
- Independently Select DC Offset or Audio Detect, or Use Both Simultaneously
- Locking Detachable Terminals
- Compact Size
- Dimensions: 0.7” x 1.7” x 1.4” (18 x 44 x 36mm)
