When upgrading your audio system in a typical front, rear and subwoofer set-up, the link6 is the perfect tool for the job. Getting its input from your factory stereo's front and rear speaker leads, it can provide front, rear and subwoofer outputs for your aftermarket amplifier or amplifiers.
Some factory audio systems require summing when adding aftermarket amplifiers, because no full range signal is present. When this is necessary, the link6 combines the sum of the frequencies present, providing the full range signal your amplifiers need.
For added flexibility, the link6's multi-function remote provides four unique configurations, based on the specific application requirements of your system. It can work as a subwoofer level control for fine tuning the amount of bass in your system, or as a master volume control in more complex installations.
link6 Features:6-Channel Line Output Converter
6-Channel Summing Processor (6-in/6-Out)
Multi-Function Remote Level/Source Control Master Volume Control
AUX Volume Control
Independent CH5/6 Level
Source/Function Select
AUX 3.5mm Input
2/4/6ch Input Select (Direct, Copy or Sum)
2/3-Way Summing w/Retained Sub Level Control
Never Zero Ch5/6 Output with Front & Rear Input

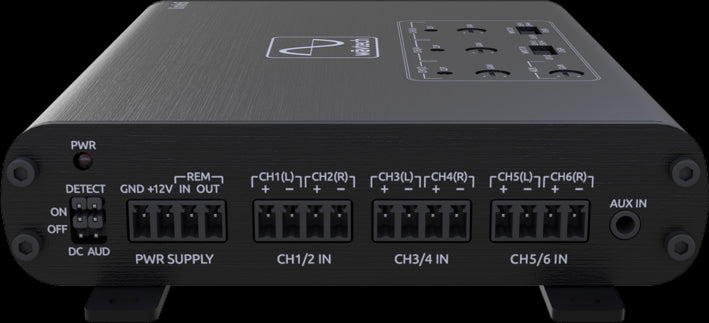

Differential Balanced Inputs
Low Impedance Outputs

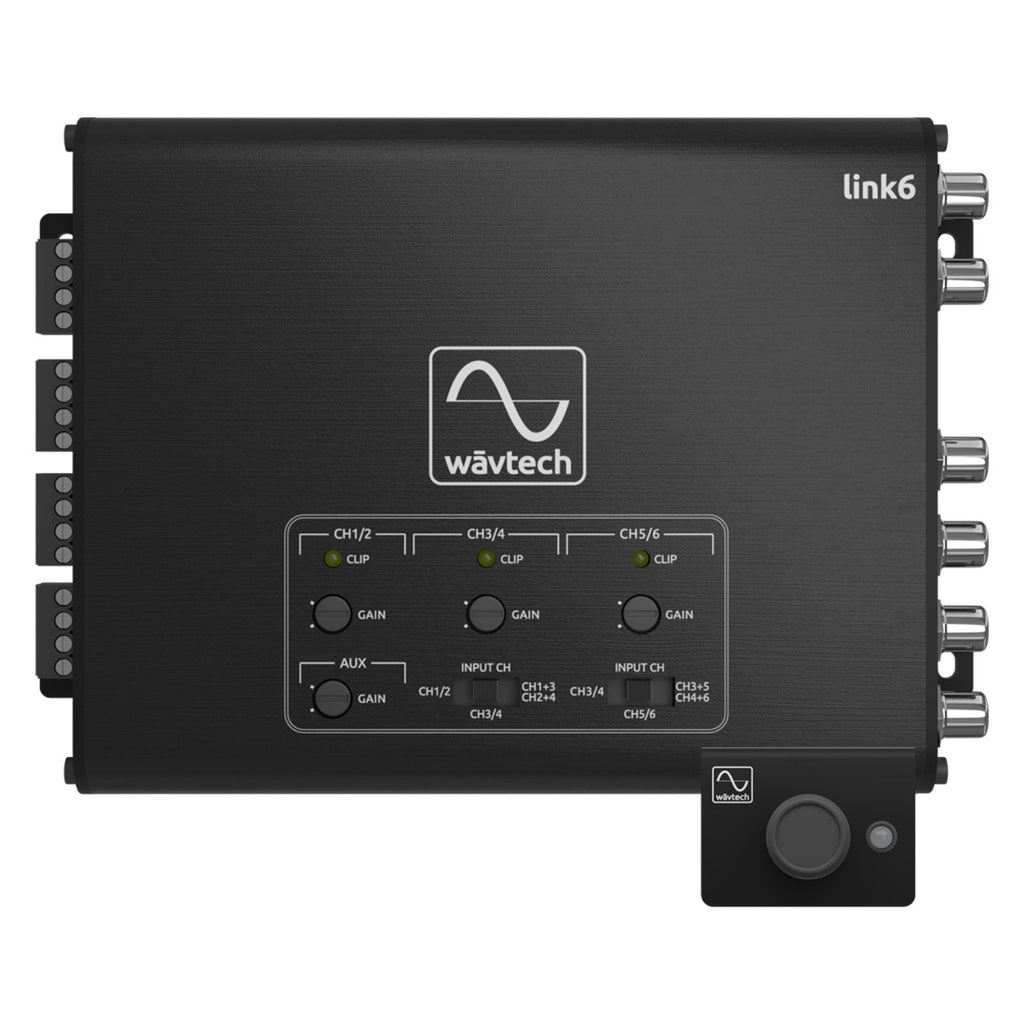

Variable Gain Adjustments w/Clip LEDs
Auto Turn-On via DC-Offset or Audio Signal Detect
Generated +12V Remote Output
OEM Load Detect Compatible
Locking Detachable Power/Speaker Terminals

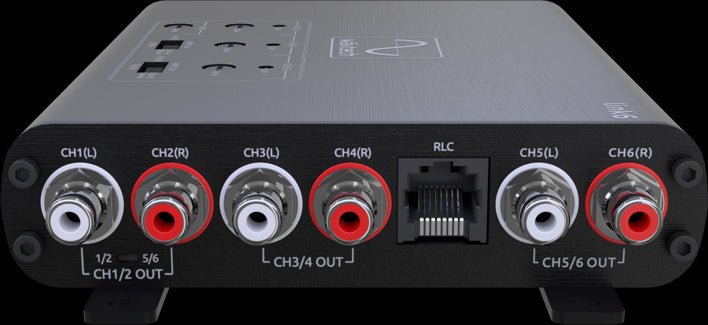

Professional Grade Panel Mount RCA's
Compact Aluminum Chassis w/Detachable Mounting Tabs
link6 SpecificationsOutput Voltage (Max): >10Vrms
Output Impedance: <50Ω
Input Sensitivity SPK: 2-20Vrms, 4-40Vrms
AUX: 0.5-5Vrms
Max Input Voltage (SPK): 40Vrms
Frequency Response: <10Hz to 100kHz
THD+N (SPK/AUX): <0.05% /<0.05%
S/N (SPK/AUX): >114dBA />113dBA
Turn-On Trigger: +12V, DC-offset & Audio Detect
Generated +12V Output: >500mA
Chassis Dimensions: 1.1"x4.7"x5.8" (29x120x148mm)
