VW Passat B6 2005 - 2010 Focal ELITE K2 6.5" 17cm 400 Watts Component Front Door Speakers Pair
FOR UK SUPPLY ONLY - WE DO NOT SHIP FOCAL PRODUCTS OUTSIDE OF THE UK.
The K2 Power Series is an ultra-compact solution with an impressive SPL of 90 dB (2.83 V/1 m) for such a small design.
It is composed of two speaker drivers with Kevlar® cones. The famous yellow cones of the K2 Power line are light, rigid and have excellent damping to provide dynamic sound with incredible definition. The centre of the cone is equipped with a phase plug for improved sound dispersion around the vehicle.
The high frequencies are faithfully reproduced by two 20 mm TKM tweeters. Composed of aramid fibres, these inverted dome tweeters have an exclusive “M”-shaped profile to control deformation and to reduce distortion. The new-generation tweeters feature very compact crossovers which are easy to install. Various accessories are supplied for assembling the tweeters, which can be installed in the factory locations, on tilting frames or flush-mounted.
The size of each component of this kit has been optimised to offer a very compact solution which can be adapted for all kinds of set-ups in all kinds of vehicles.
The kit is supplied with aluminium and mesh grilles.
Focal ES165K Specifications
- Diameter 6-1/2" (165mm) 17cm
- 400 Watts max Power (PAIR)
- Max power 200 Watts Per Speaker
- Nominal power 100 Watts RMS Per Speaker
- Voice coil diameter 1-1/4" (32mm)
- Voice coil height 0-9/16(15mm)
- Motor Magnet
- Tweeter TKM (“M” profile aramid fiber inverted dome)
- Cone Composite K2 Power “W” sandwich cone
- Surround Tuned Mass Damper (TMD)
- Separated crossover 6-12/12dB (3.5kHz)
- Tweeter adjustable level +3; 0; -3dB/oct
- Sensitivity (2.83V/1m) 90.8dB
- Frequency response 60Hz-22kHz
- Impedance 4Ohms
- Impedance Supplied grilles

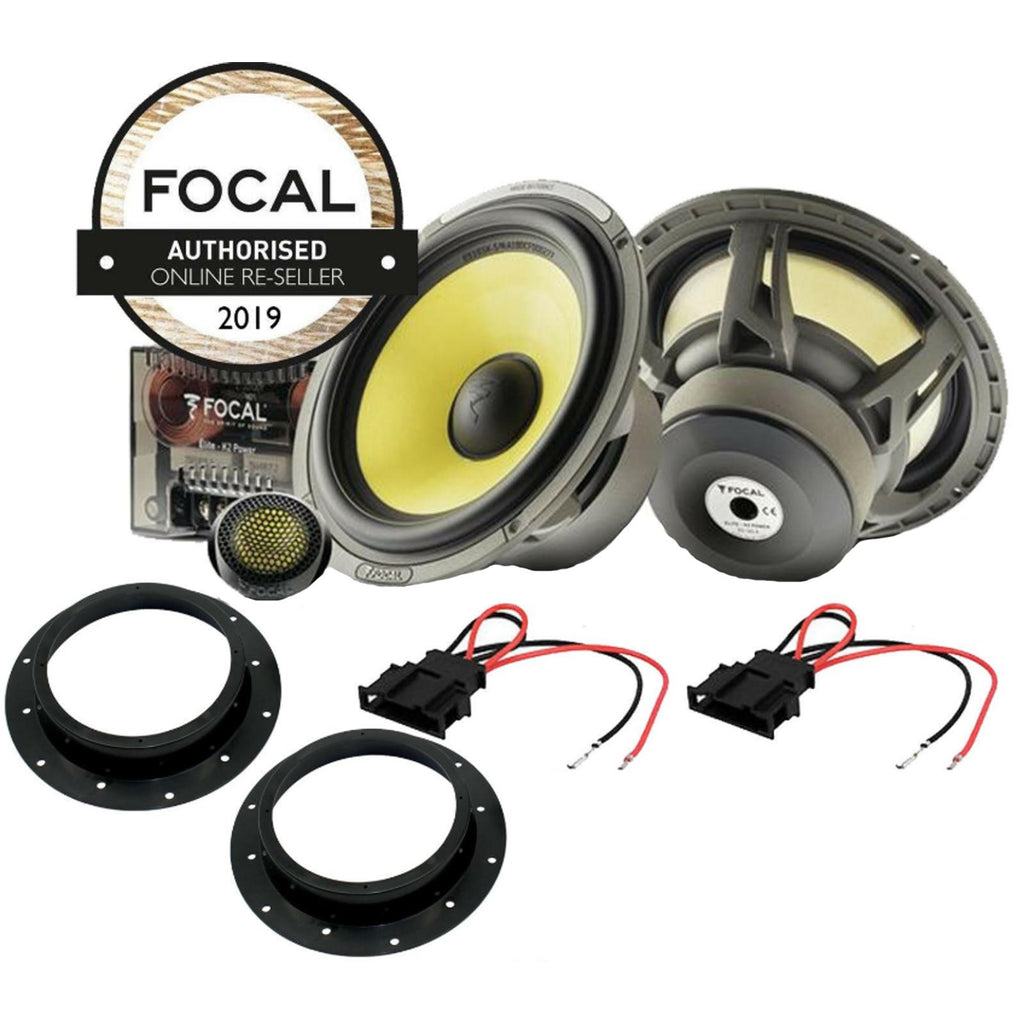

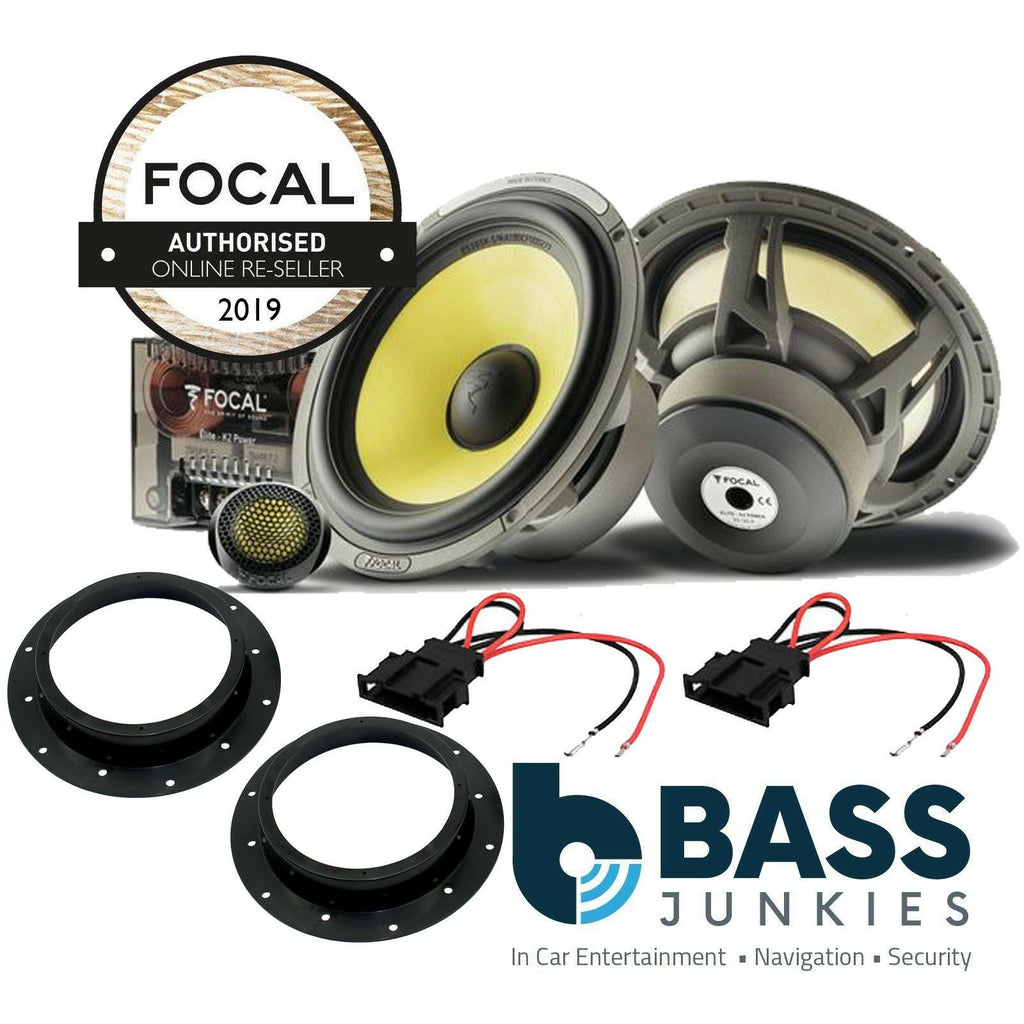

Kit Contains:
- Pair Of Elite Focal Component Speakers
- Pair Of Speaker Adaptors
- Pair Of Speaker Wiring Plugs
Installation tips:
- If you had to drill Pop rivets out of the factory speaker then you might have to drill new holes into the door skin to make the speaker brackets fit.
- We also recommend you use some sound deadening material when installing these speakers to give you the best possible sound experience, Please see below eBay item number to order the sound deadening material eBay item number: 272984153608
Speakers Sold as a Pair
