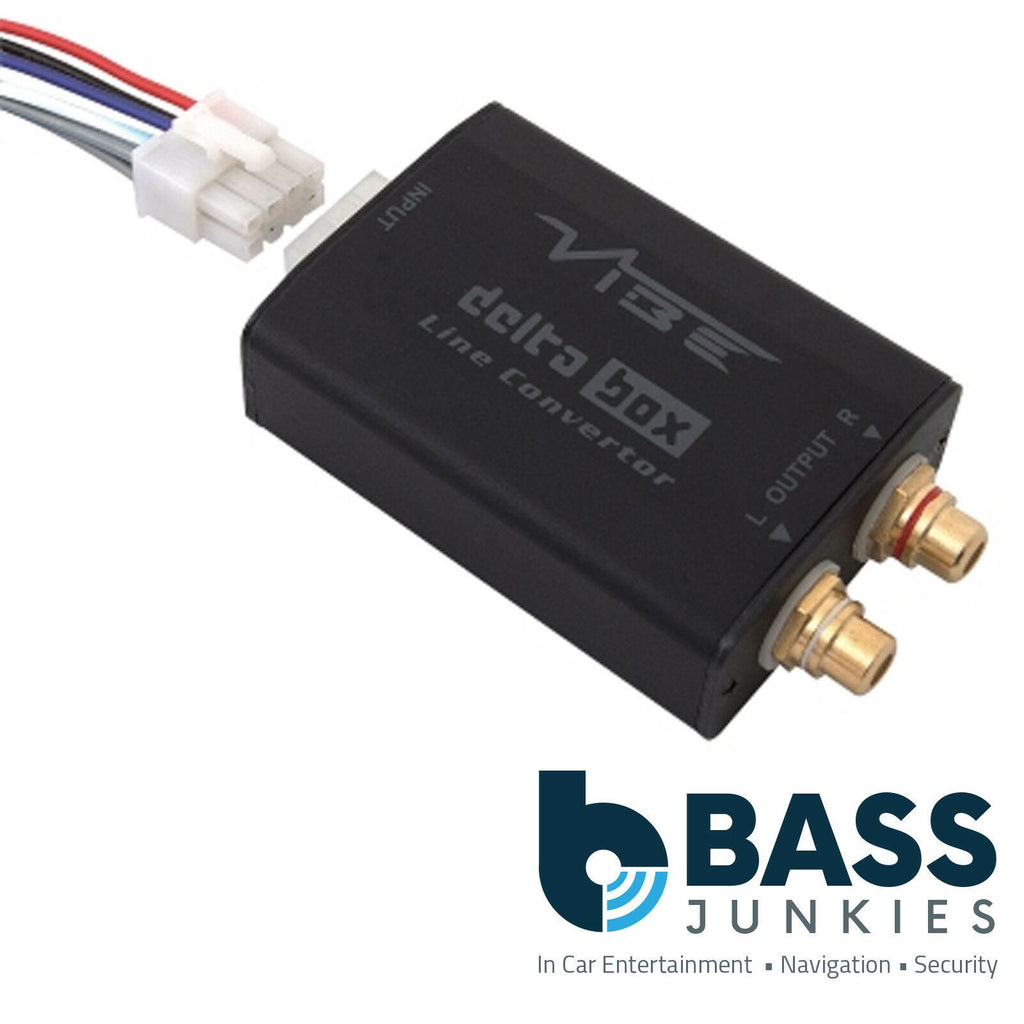

Vibe Delta Box Matrix Car Speaker Wire Hi to Low Level RCA Output Line Convertor
Line level converter / High-Low converter allows the user to run an RCA cable to an amplifier with a radio that only has speaker wire outputs. (Can not be reverse) Works with home and car stereo system.
Main Features
- Convert two high-level outputs (speaker) of a car radio in two low-level line outputs for an amplifier and also eliminates parasitic interference.
- Automatically generates a remote control of the amplifier power-on from the signal detection.
- Can be used in passive mode without 12V supply (In which case the remote output doesn’t work)
Features
- Separated grounds, less parasitic interference.
- The Vibe Delta Box can be wired in parallel to the speakers to add a subwoofer, or in place of the speakers to enable a fully-amplified system.
- Automatic remote output.
Wiring Instructions
- +12V DC- RED
- Ground- Black
- Remote output +12V DC-Blue
- Left Speaker Input+- White
- Left Speaker Input- -White/Black
- Right Speaker Input+- Grey
- Right Speaker Input- -Grey/Black
