Vauxhall Corsa D 2009 - 2014 Facelift Model Stereo Piano Black Double Din Fascia Steering Wheel Stalk Interface Adaptor & Complete Fitting Kit
This radio installation kit is designed to provide everything you need when fitting a replacement stereo. This handy package takes the guesswork out of your cable selection and is carefully configured to work with a wide range of vehicle and radio models.
This interface allows you to use your Steering Wheel Volume controls ( SWC) and Mobile Phone Button (MPB) if fitted when you replace your factory fitted radio to an aftermarket Pioneer, Kenwood, Sony, Clarion, Alpine or JVC or non branded new car stereo.
Please Note The steering wheel interface included in this kit connects to a compatible car stereo which MUST have either a 3.5mm jack input connection or a 3 wire input on the back of the new stereos wiring harness labelled for steering wheel controls. It is designed to work with branded and non branded stereos that have this option.
Please make sure your Stereo has either one of these features on the rear of your new unit before purchasing this part as if you dont have this then this kit will not work.

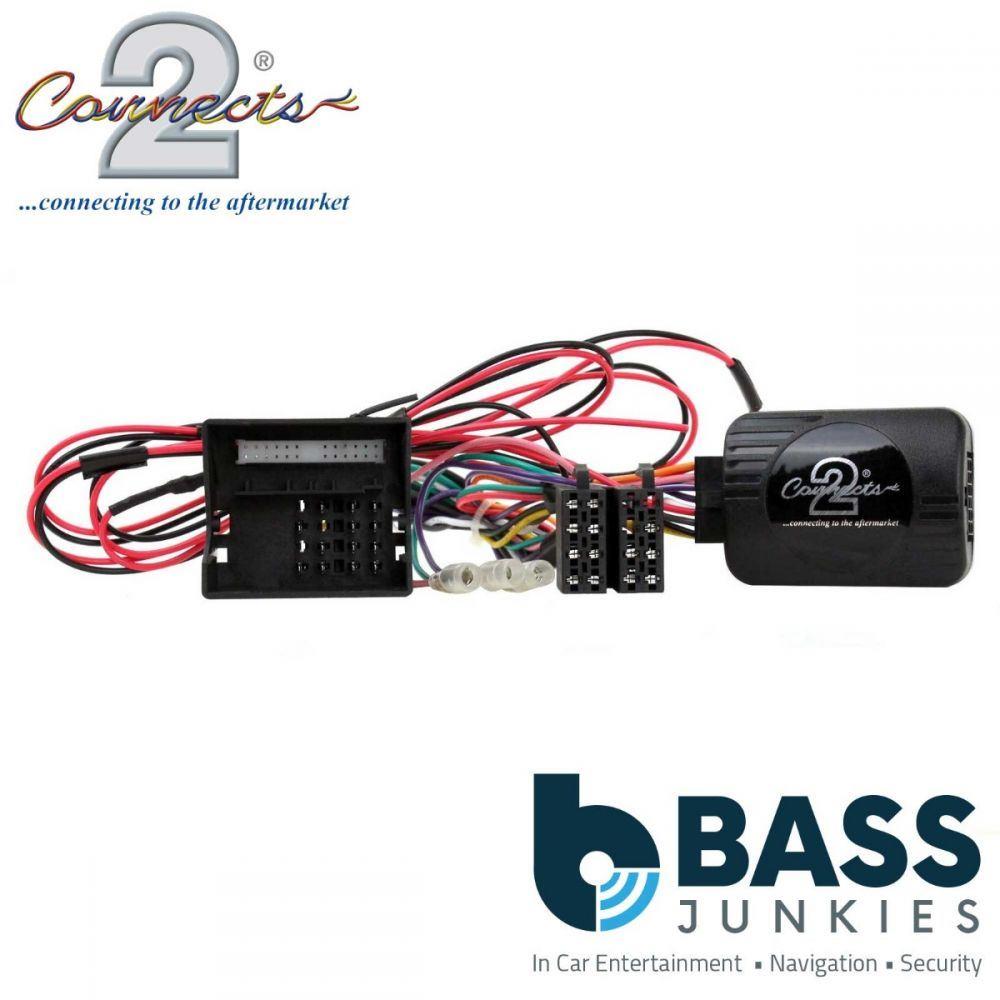

Steering Wheel Control (SWC) Key Features
Steering Wheel Control interfaces allow plug and play installation of an aftermarket head unit into a vehicle whilst maintaining use of the steering wheel controls.
Mobile Phone Buttons (MPB) Features
Mobile Phone Buttons Support feature allows you to use Phone Buttons on the Steering Wheel if already factory fitted with any compatible Aftermarket Bluetooth Head Unit you install.
Features
- Allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls
- Maintains the original features of the vehicle such as date, time and temperature display

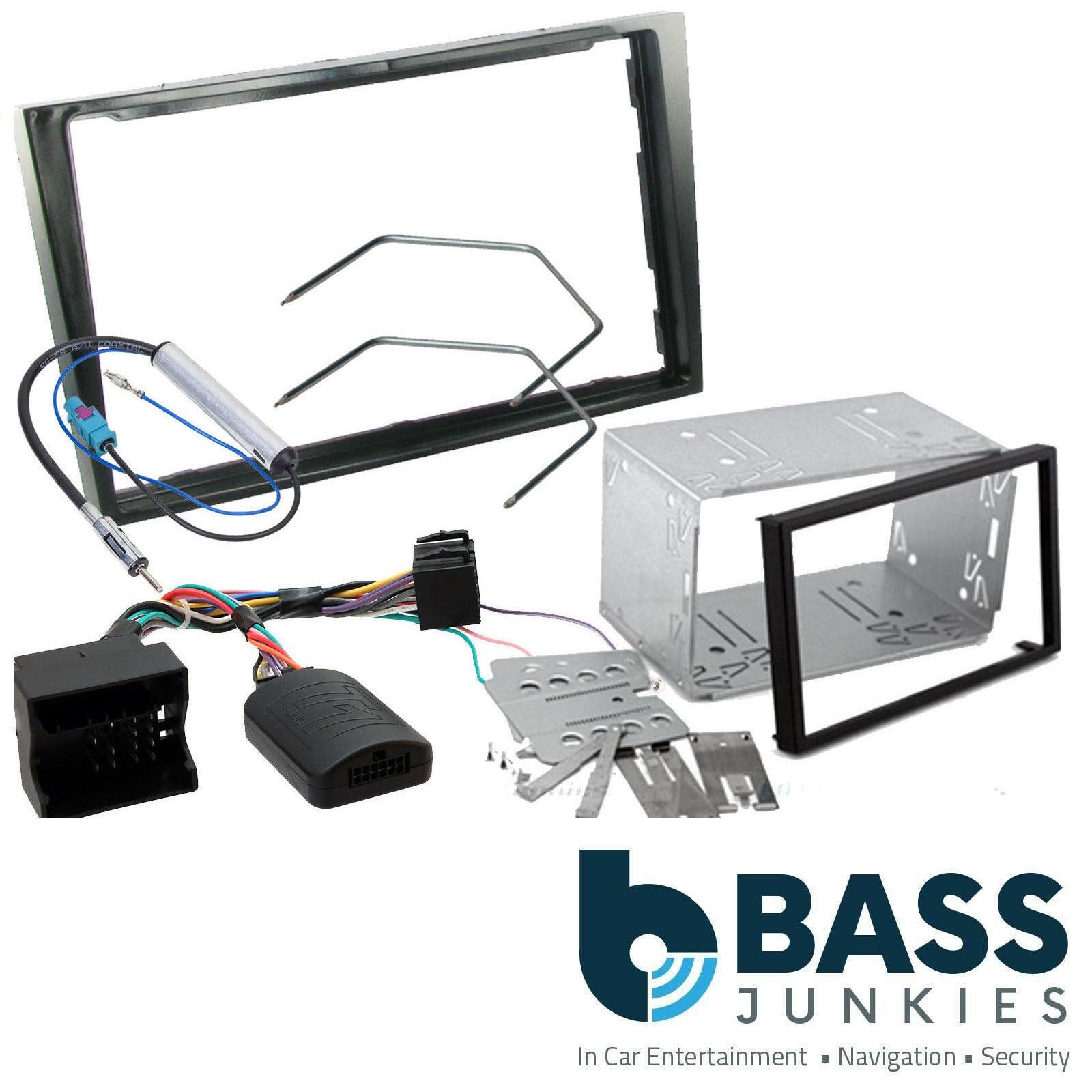

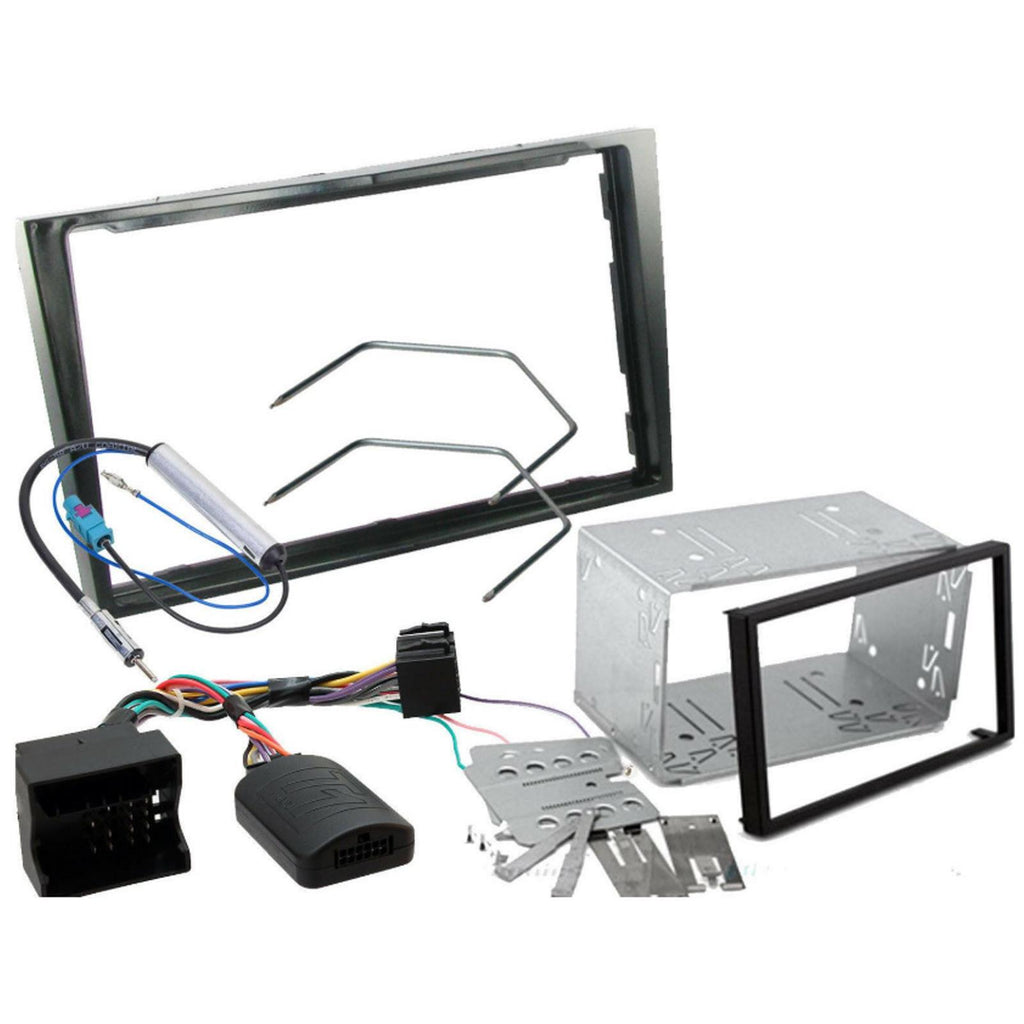

What’s included in the Kit
Compatible with the following factory fitted head units:
Please Note NOT suitable for CAR200 / 300 / 400 / CDR500 / CCR600 / CAR2003 / 2004 / CCR2006 / CDR2005 Models. You will need to buy a different kit from us.
Installation tips
You will need to connect the lose red wire of our SWC interface provided within this kit to an ignition point in the vehicle, connection can be made to an ignition point on the cigarette lighter in your vehicle or straight to a fuse box ignition point. Also the lose back wire on the interface will have to be connected to a separate earth point in the car. If you do not do this then the new radio will not power up
Please note every effort is made to get the parts listed within the listing correct to the best of our knowledge but we can not be responsible for vehicles on a change over year from the manufacturer
To ensure compatibility, we recommend that the parts pictured in our listing are compared to the actual connectors/parts in your vehicle before you make your purchase. If still unsure please contact us via the eBay email system so we can advise before you make your purchase.
About Us:
The Bass Junkies Car Audio team has been proudly serving car audio products since 1995. We are one of the biggest Internet resellers of brand named in car technology products to date. We have a large state of the art showroom based in the West Midlands and is the place to be for all your IN CAR gadget.
Please note: Technical, product and general customer services enquires are best handled via the eBay message system ONLY
Installation tip:

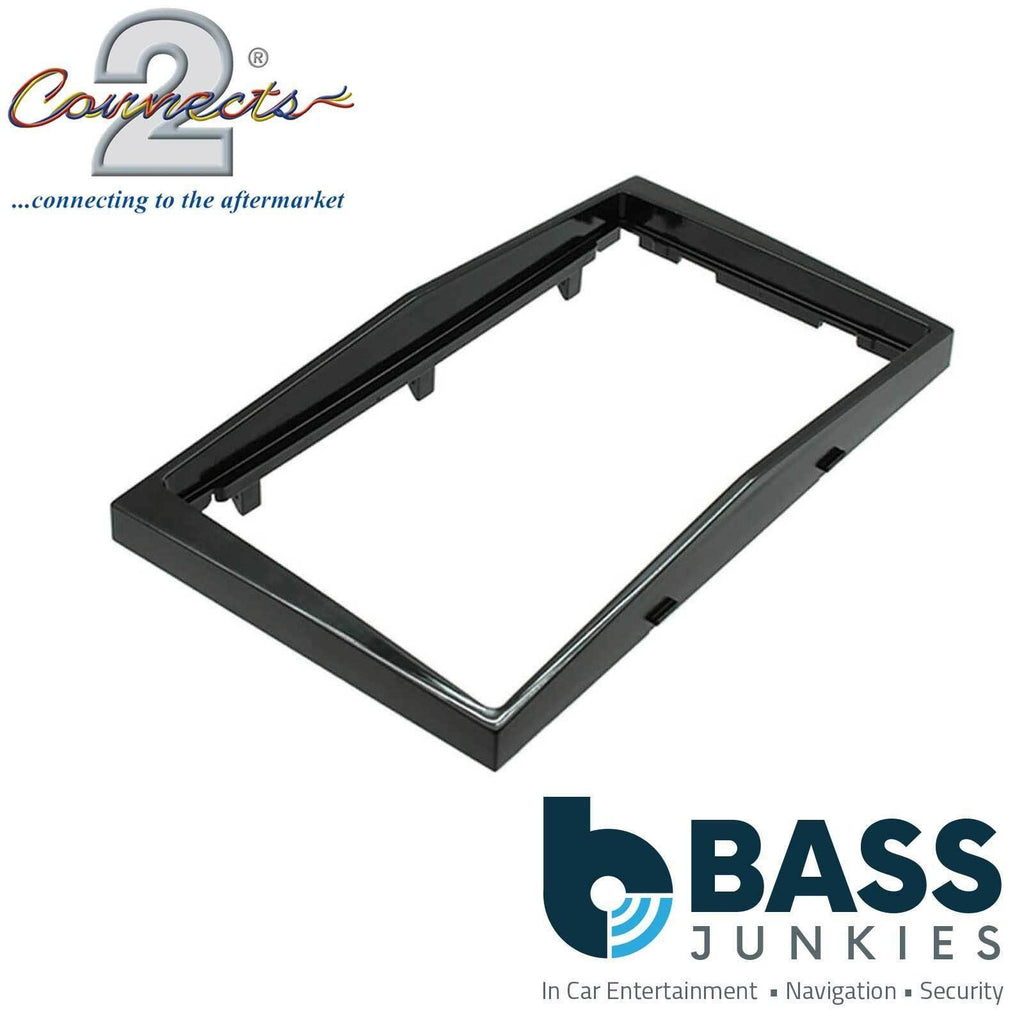

- This panel is designed to fit most Japanese branded double din units such as Kenwood, Pioneer, JVC, Sony, Alpine and Clarion
- If you are fitting a non-branded unit from china with brands such as Erisin, EONON Pumpkin and Xtron, there is a VERY high possibility YOU will have to modify, cut and trim this panel to suit the stereo and accommodate it in your dash.
- These panels are designed based on Japanese stereo's which are a uniformed standard size, stereos from china can be different sizes and we cannot guarantee the stereo will fit without modification and we can not be held responsible.

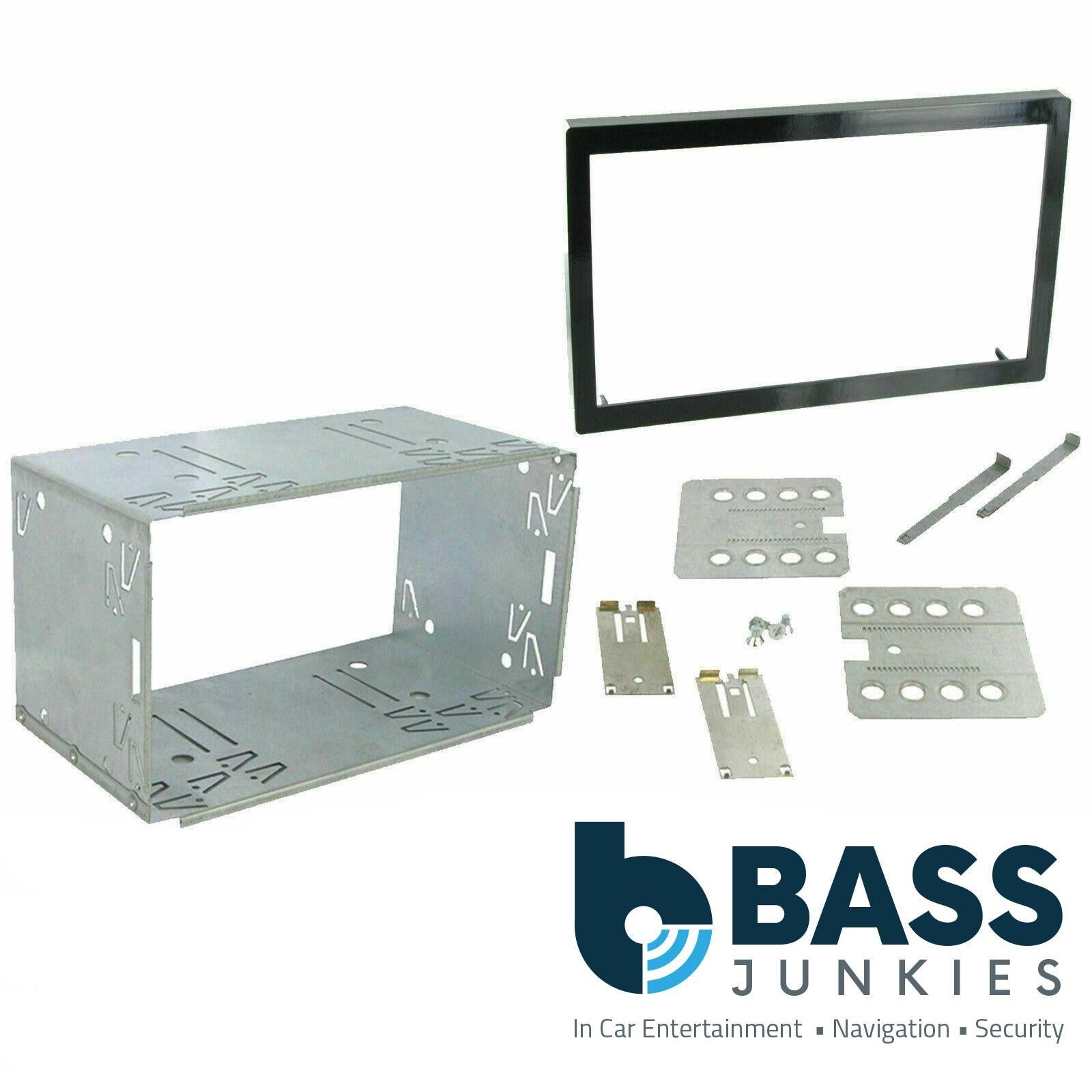

- If the panel is supplied with side brackets then the stereo cage is not used to fit the radio.
Installation tip:
- This panel is designed to fit most Japanese branded double din units such as Kenwood, Pioneer, JVC, Sony, Alpine and Clarion
- If you are fitting a non-branded unit from china with brands such as Erisin, EONON Pumpkin and Xtron, there is a VERY high possibility YOU will have to modify, cut and trim this panel to suit the stereo and accommodate it in your dash.
- These panels are designed based on Japanese stereo's which are a uniformed standard size, stereos from china can be different sizes and we cannot guarantee the stereo will fit without modification and we can not be held responsible.
- If the panel is supplied with side brackets then the stereo cage is not used to fit the radio.
Installation tip:
- This panel is designed to fit most Japanese branded double din units such as Kenwood, Pioneer, JVC, Sony, Alpine and Clarion
- If you are fitting a non-branded unit from china with brands such as Erisin, EONON Pumpkin and Xtron, there is a VERY high possibility YOU will have to modify, cut and trim this panel to suit the stereo and accommodate it in your dash.
- These panels are designed based on Japanese stereo's which are a uniformed standard size, stereos from china can be different sizes and we cannot guarantee the stereo will fit without modification and we can not be held responsible.
- If the panel is supplied with side brackets then the stereo cage is not used to fit the radio.
