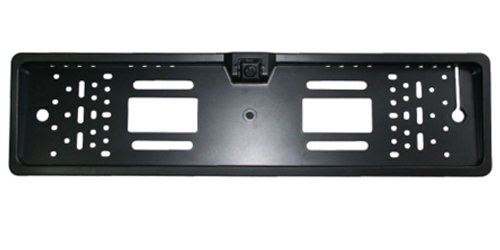

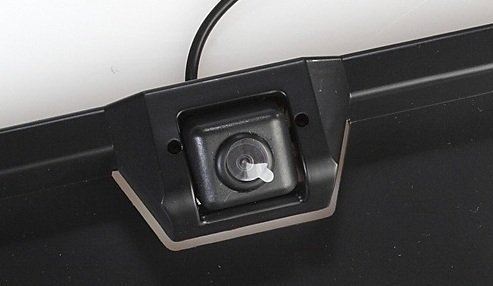

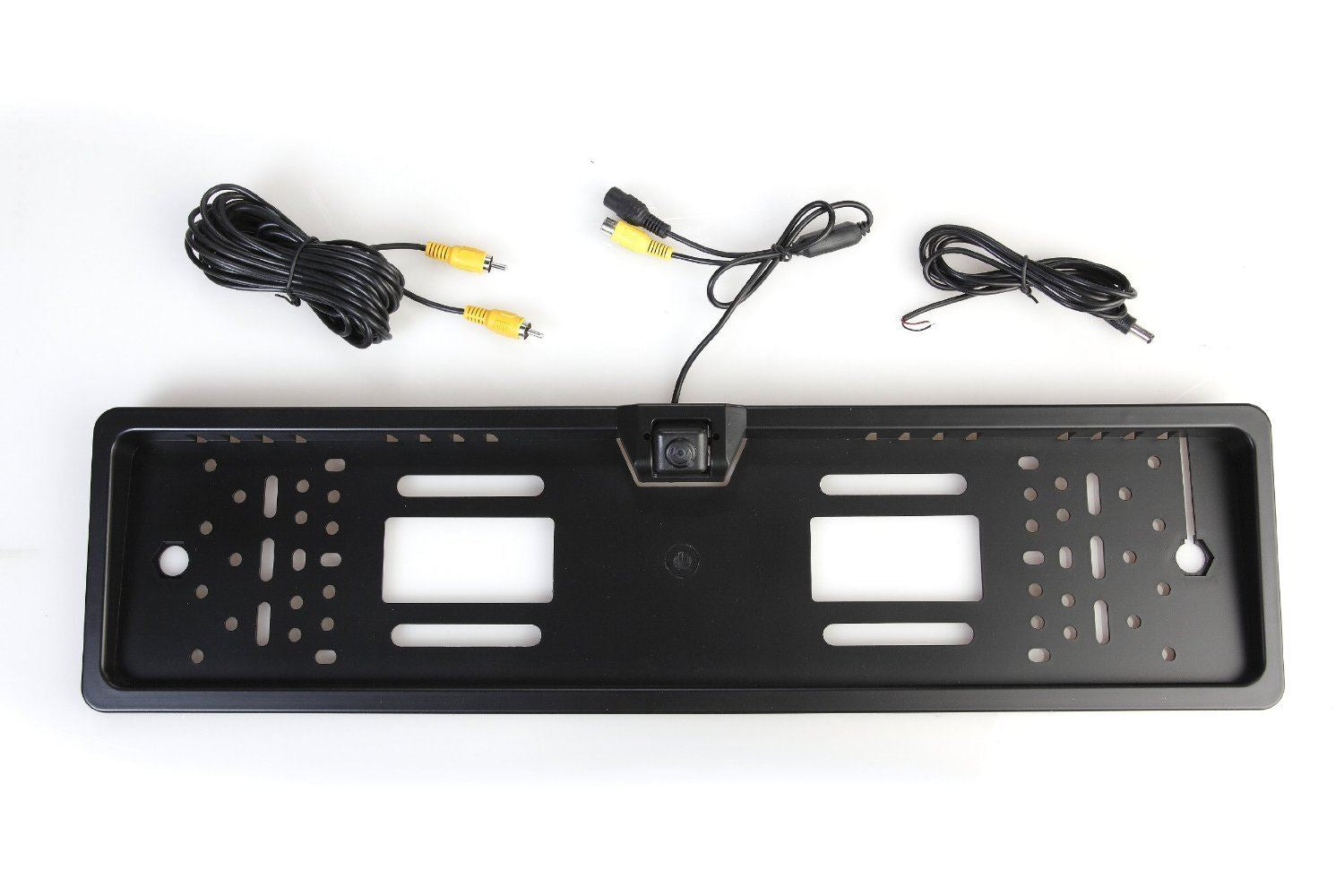

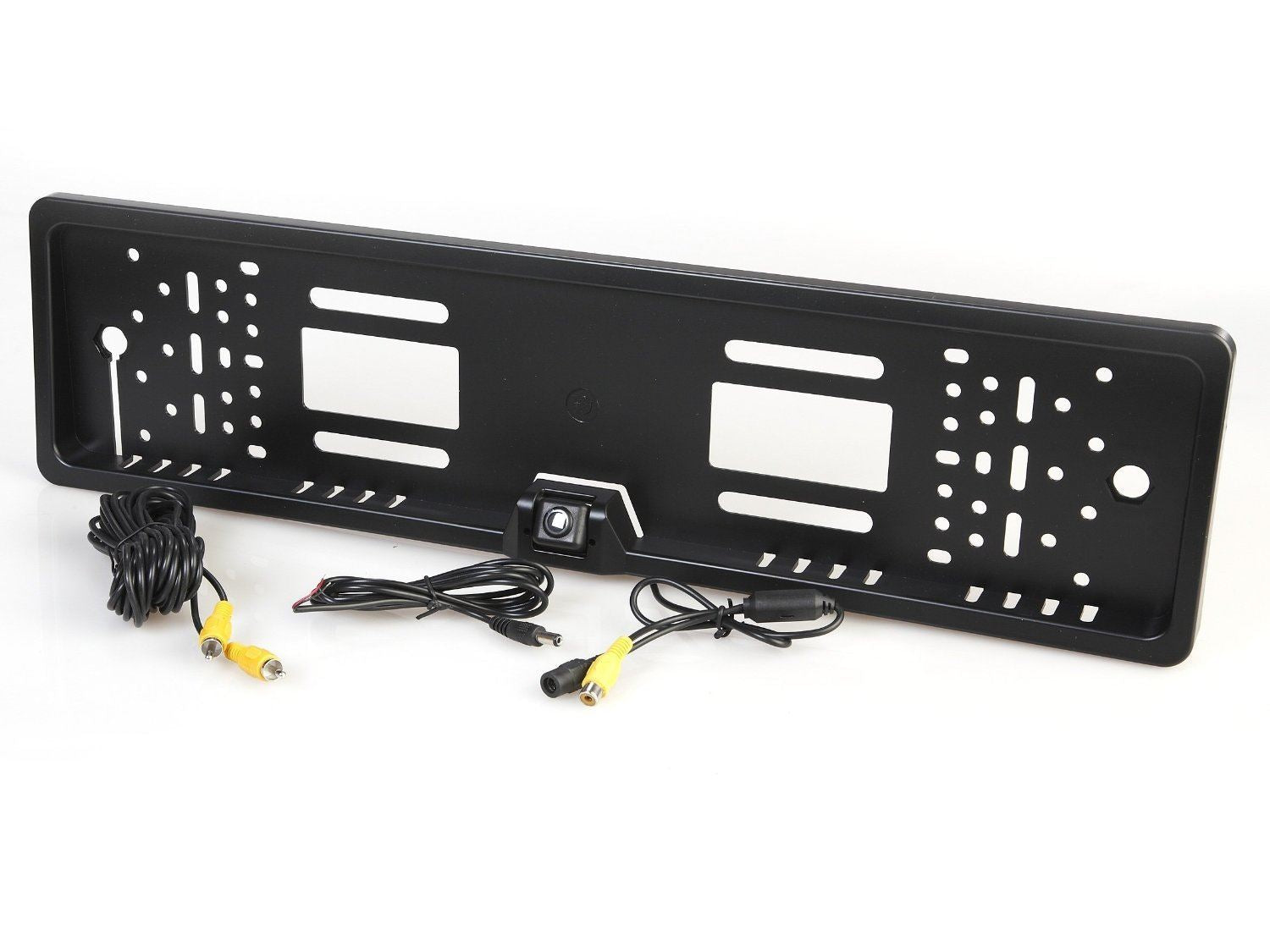

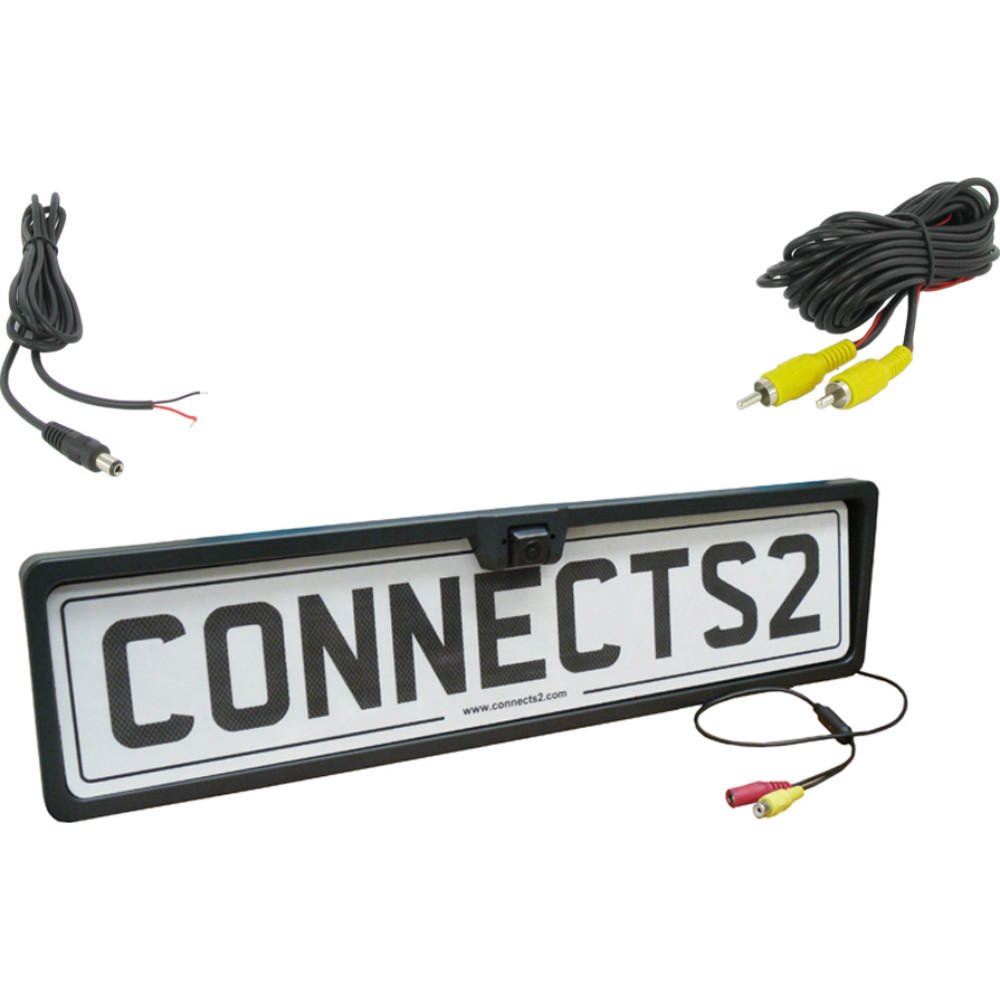

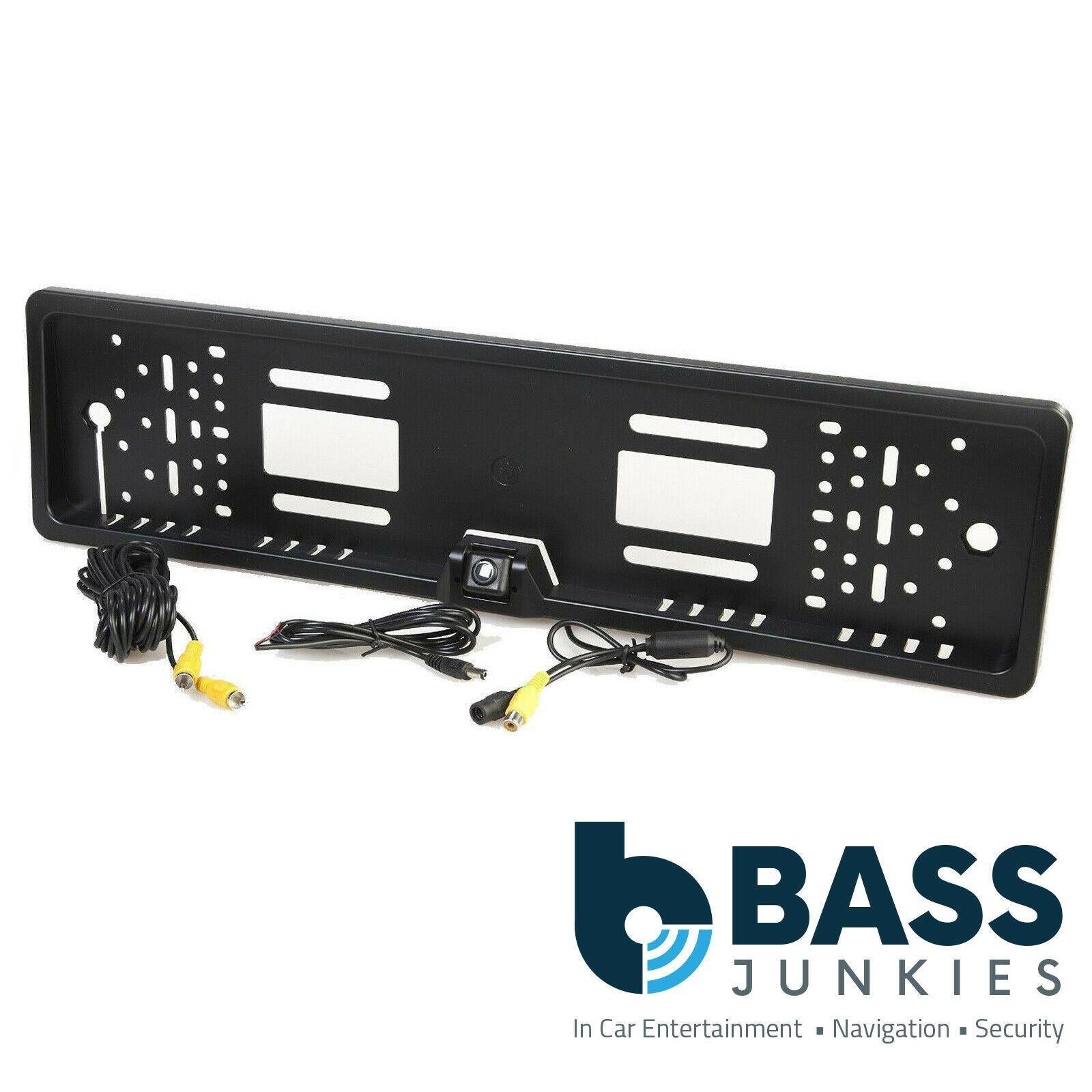

Connects2 CAM-NUMBERPLATE - Universal Number Plate Holder with 976 x 496pix Resolution HD CCD Rear View Camera
The CAM-NUMBERPLATE is a universal numberplate camera designed to fit all regular number plate dimensions (550mm x 140mm)
Featuring a powerful 1099 HD CCD sensor for enhanced performance in low light conditions the camera has a resolution of 976x496pix giving the driver a clear full colour display of the rear of the vehicle, assisting in reversing and parking manoeuvres.
The system has a weatherproof rating of IP68 meaning it will withstand all standard weather conditions with ease
Product Specifications:
- Image Sensor: 1099 HD CCD
- Resolution: 976 x 496
- TV Lines: 480
- Horizontal Angle: 170 Degrees
- Vertical Angle: 120 Degrees
- TV System: NTSC/PAL
- Lumen: 0.1 Lux
- Video Output: 1.0V p-p 75ohm
- Operating Voltage: 12V DC (Negative Ground)
- Current Consumption: 110mA @ 13.8V
- Waterproof Rating: IP68
- Operating Temperature: -20 Degrees C to +70 Degrees C
- Parking Lines: Yes
- Removable Lines: Yes
- Image Adjustment: Yes (Mirror/Normal)
- Enhanced Performance In Low Light: Yes
- Number Plate Surround Size: 550mm x 140mm
Vehicle Application:
