Stinger UN1810E-LR1 - Land Rover Defender 2007- 2016 10″ CarPlay Android DAB HDMI Car AV Screen

Features

• Apple CarPlay and Google Android Auto compatibility for enhanced connectivity.
• DAB+ Digital Radio tuner for a wide range of radio stations.
• High-resolution, 10-inch capacitive touchscreen with 16.7 million colours for a visually immersive experience.

• Modular design of the display and main tuner box for flexible installation in space-limited applications.
• Anti-glare and Anti-Reflection technology for optimal outdoor visibility.
• Customizable RGB illumination to match factory illumination or create your personalized display.
• Seamless access to smartphone music and navigation capabilities.
• AM/FM radio with PTY (Program Type) for easy channel selection.
• Built-in MicroSD card for convenient storage and playback of media files.
• 2 USB rear inputs with 1.5-Amp output for charging devices.
• HDMI input for connecting external devices.
• Hands-freeHands-free Bluetooth 4.2 A2DP with aptX for hands-free calling and high-quality music streaming.

Integration

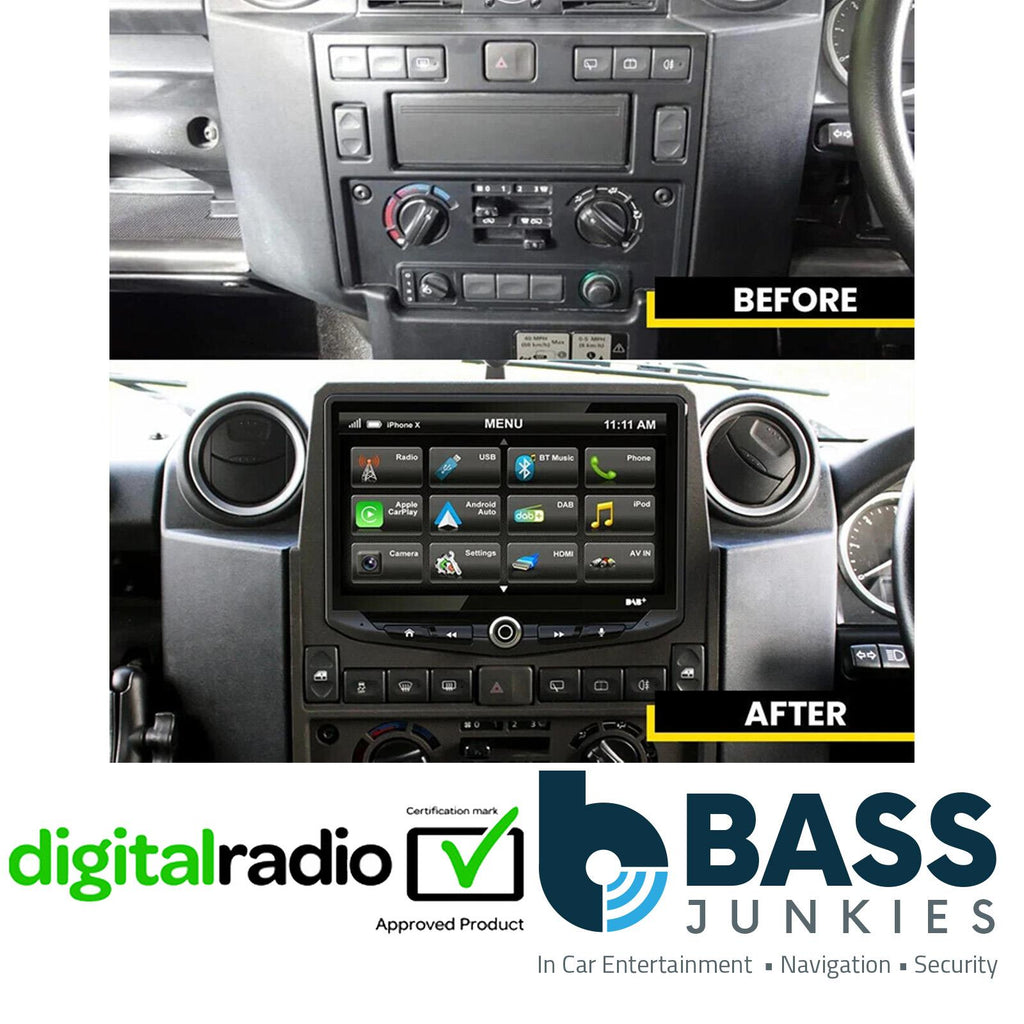

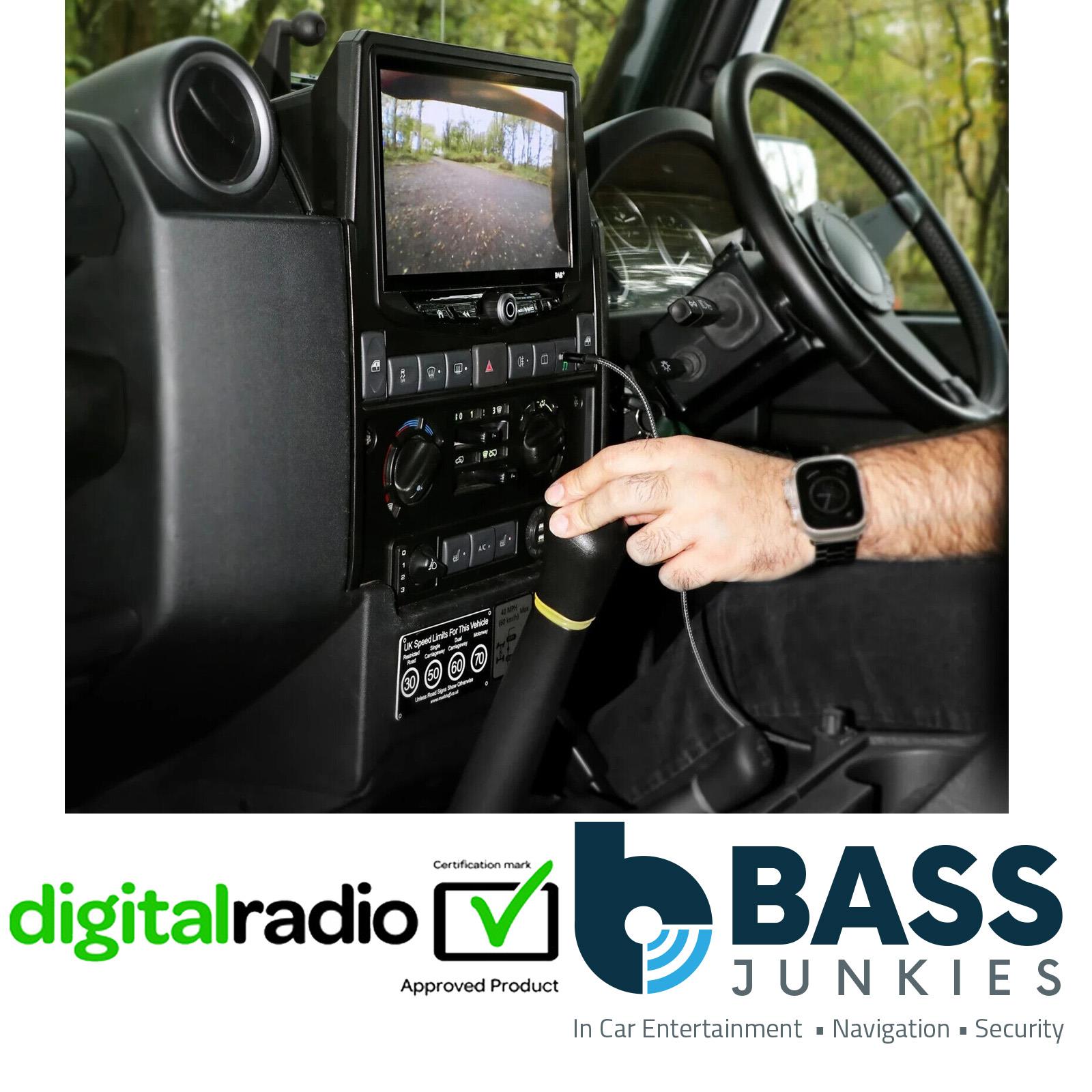

• The included dash kit and mounting ensure a seamless and factory-like installation, giving your vehicle's HEIGH10 display a professional and integrated look.
• The vehicle-specific harness establishes a direct and secure connection between your vehicle and the HEIGH10, ensuring compatibility and optimal performance.
• The interface offers enhanced control over your infotainment system, allowing you to manage camera triggers while showing advanced vehicle gauges easily

Retains

• Climate control functionality
• Dashboard button functionality

Features

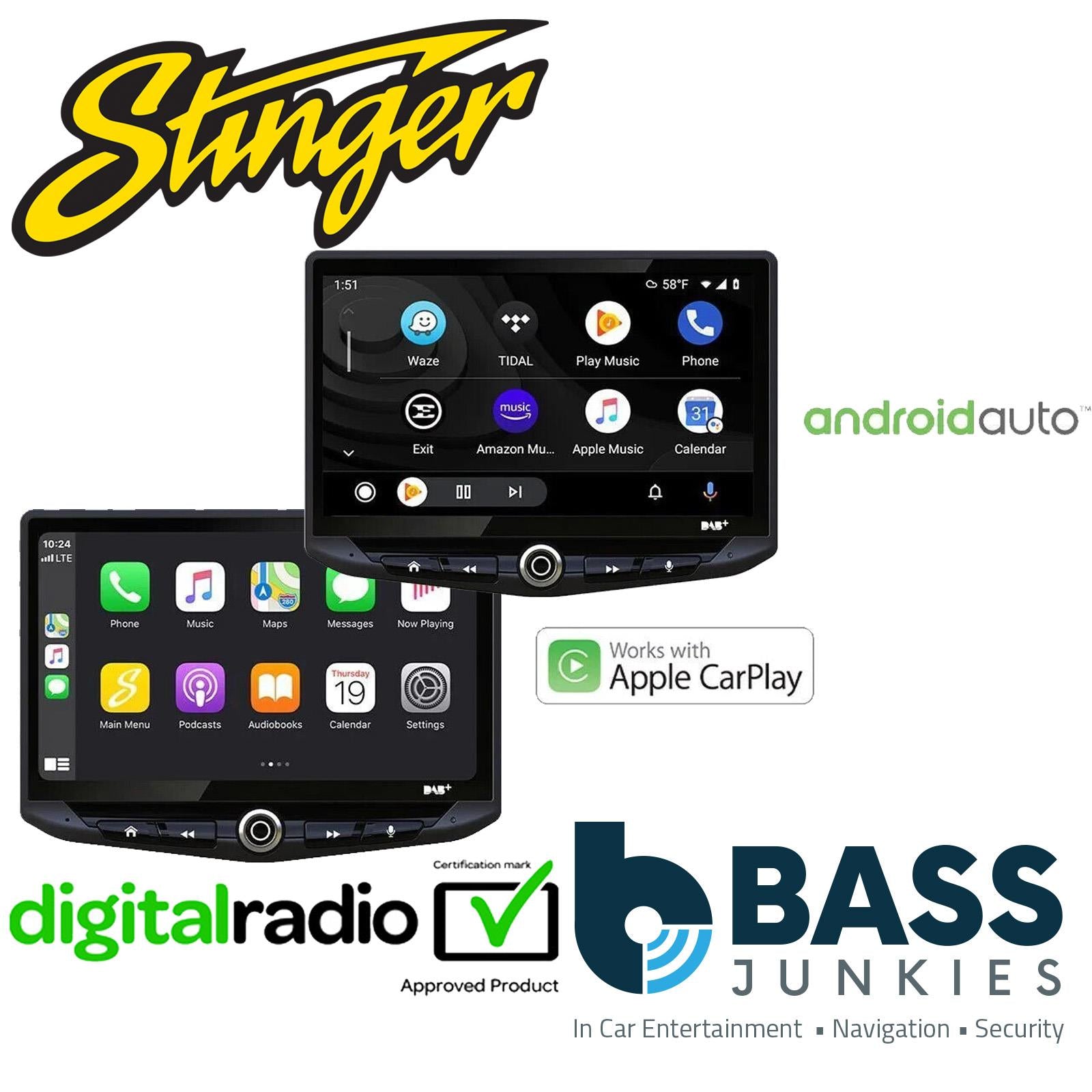

• Apple CarPlay and Google Android Auto

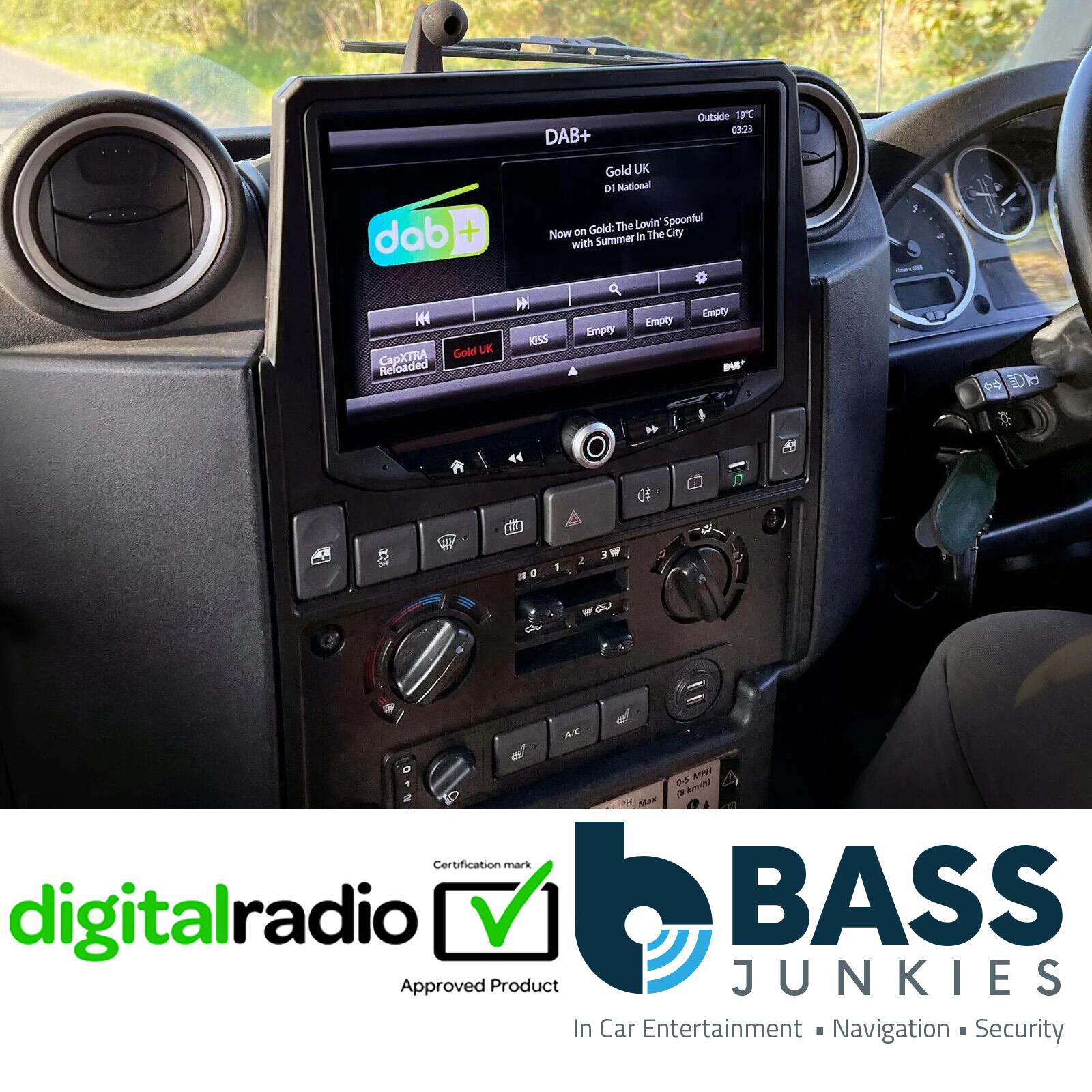

• DAB+ Digital Radio tuner
• Access to your smartphones music and navigation capabilities
• AM/FM radio with PTY
• Built-in MicroSD card
• 2 USB rear inputs, 1.5-Amp output, HDMI input
• Handsfree Bluetooth 4.2 A2DP with aptX™ for handsfree calling and music streaming

Specification

• Recording Resolution: 1024 x 600
• Screen Size: 10 inches
• Manufacturer’s Warranty – Parts: 1 year
• Operating Voltage: 9.0VDC to 18VDC
• Grounding system; Negative Ground
• Max current consumption: 10A fused

Audio

• Load impedance: 4Ω nominal / 2Ω allowable
• Continuous power output: 25W x 4ch/4Ω 20Hz to 20KHz, 1%THD at 14.4V
• Audio output level (max): 4.0V preout
• EQ: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/ 630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/ 10KHz/16KHz
• Gain: ±12dB (2dB/step)
• HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
• Slope: 6dB, 12dB, 18dB
• Subwoofer Preout LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
• Slope: 6dB, 12dB, 18dB
• Gain: -14dB to 7dB (1dB/step)
• Phase: 0 or 180
• Speaker level: ±9dB (1dB/step)
• Time Alignment: 0 to 133 step (inch/ms)

FM Tuner

• 87.9MHz to 107.9MHz
• Usable sensitive 0dB (mono S/N: 30dB)
• SNR: 65dB

AM Tuner

• 530KHz to 1710KHz
• Usable sensitive 0dB (mono S/N:20dB)
• SNR 58dB

USB

• USB 2.0
• Max current supply 1.5A
• USB Class: MSC (Mass Storage Class), and MTP (Media Transfer Protocol)
• File system: FAT32, NTFS

Bluetooth

• V4.2 dual
• 4dBm Class2
• 2.4GHz to 2.48GHz

Camera(s) Video Inputs

• NTSC OR PAL video formats

HDMI Input

• Supported HDMI Resolutions: 640*480p, 720*480p, 1280*720p, 1920*1080i, 1920*1080p

H10 Dimensions

• Radio Module: 178 mm x100 mm x 116 mm (W x H x D)
• Display: 247.2 mm x 180.6 mm x 48.5 mm (W x H x D)DISPLAY
• 10-inch Diagonal
• 16:9 aspect ratio
• 1024 x 600
• Pixels: 1,843,200
• Active area 222.72 (W) x 125.28 (H) mm
• Operating Temperature (C) -20° to 70°

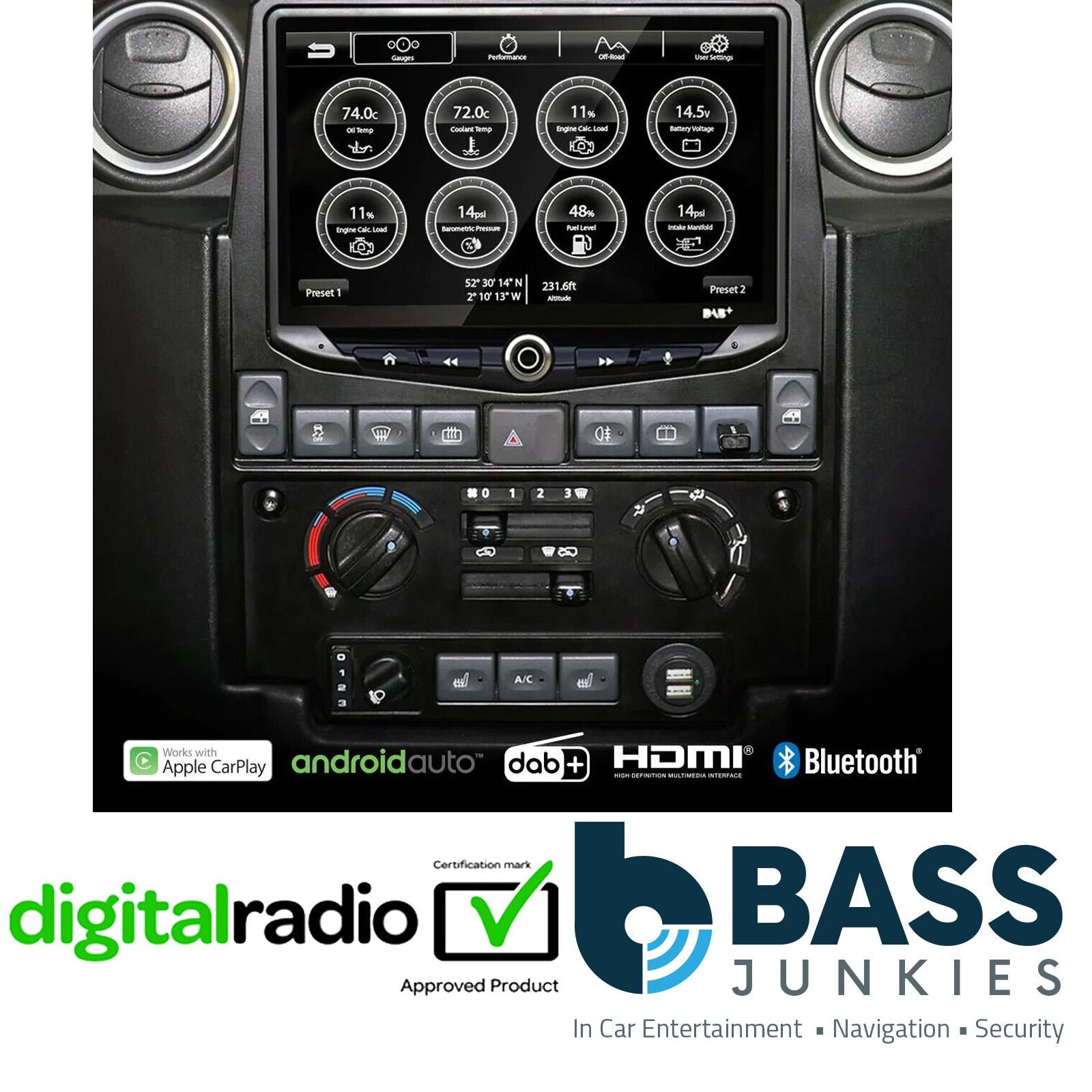

Vehicle Gauges

• Eight gauges on the screen
• Save two display presets
• Battery voltage
• Oil temperature
• Fuel level
• Coolant temperature... and many more

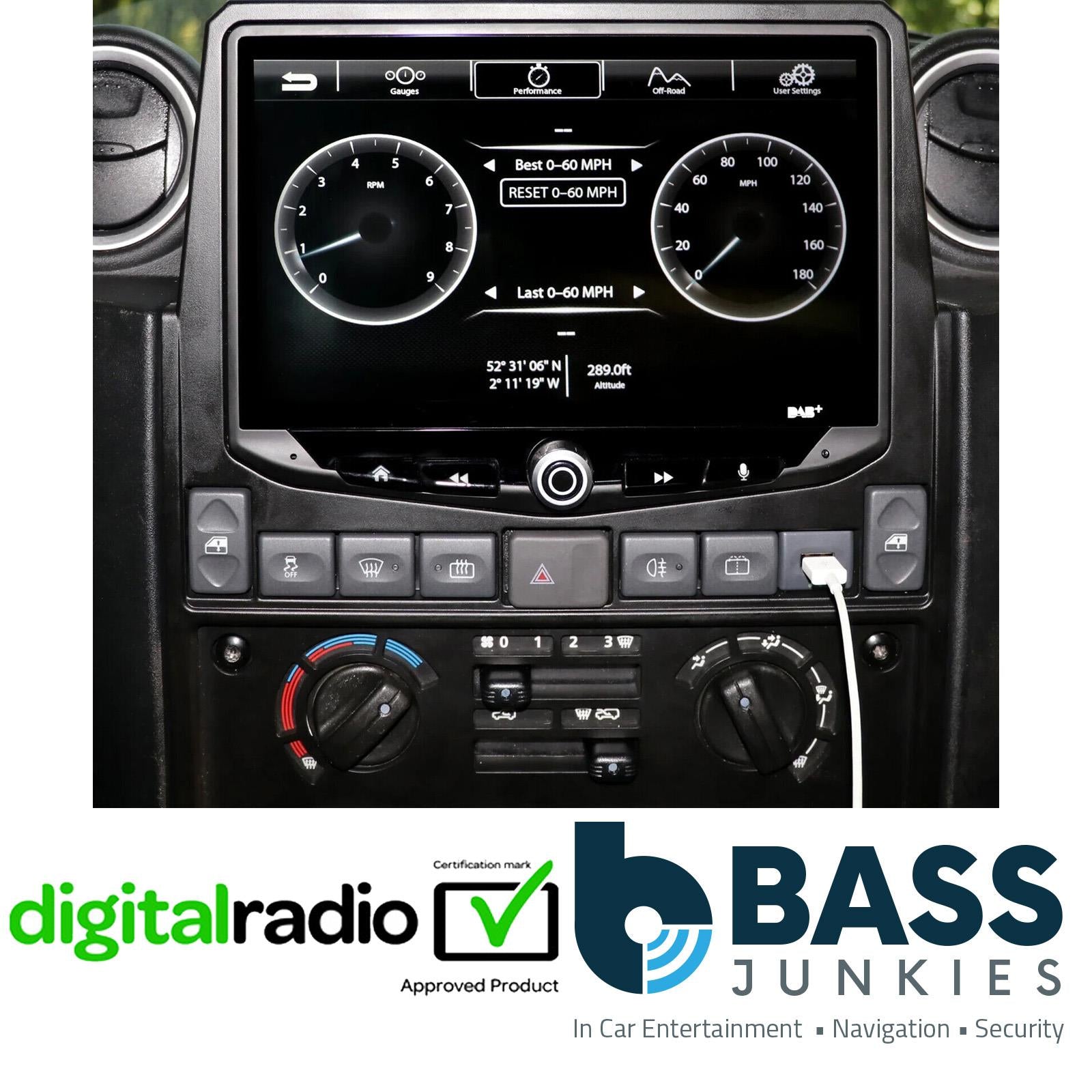

Vehicle Performance

• Speed
• RPM
• Current/best 0-60mph time
• Current/best 60-0mph brake distance
• Current/best 1/4-mile time

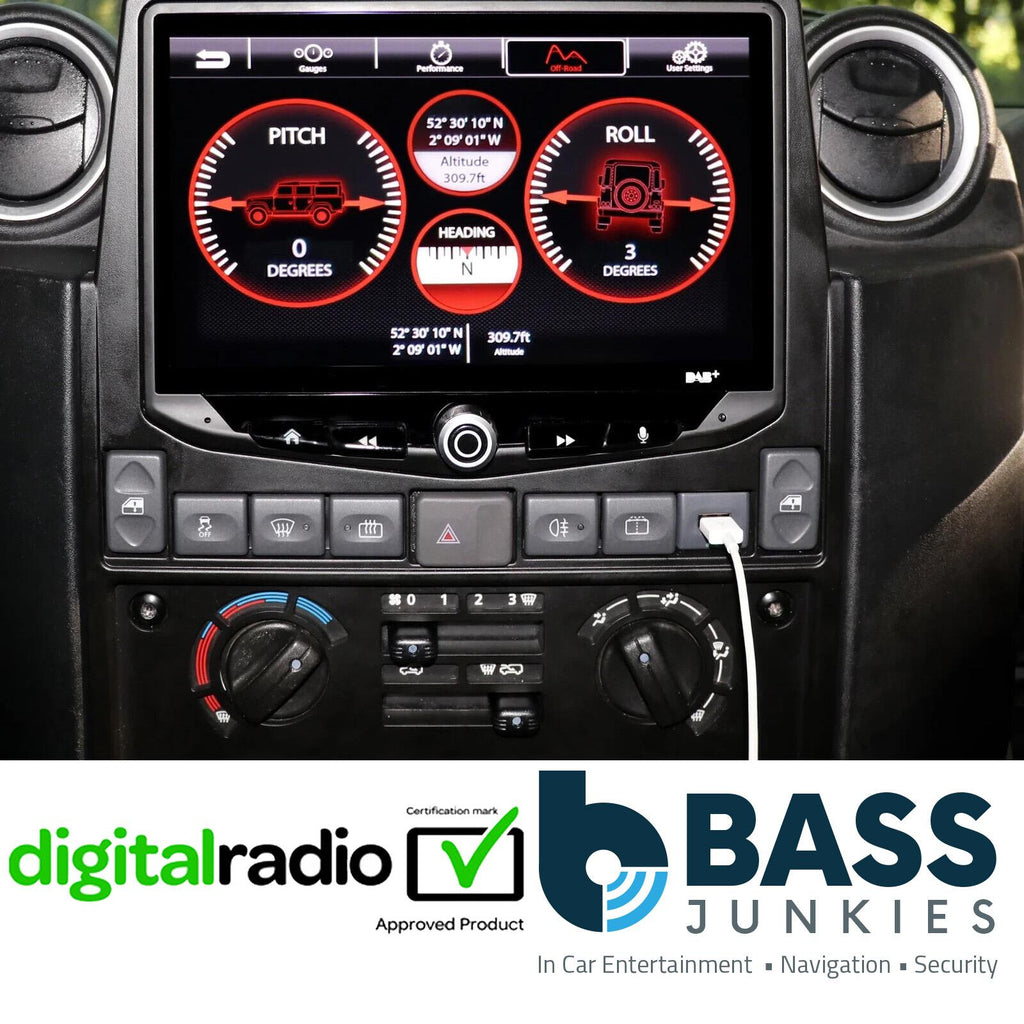

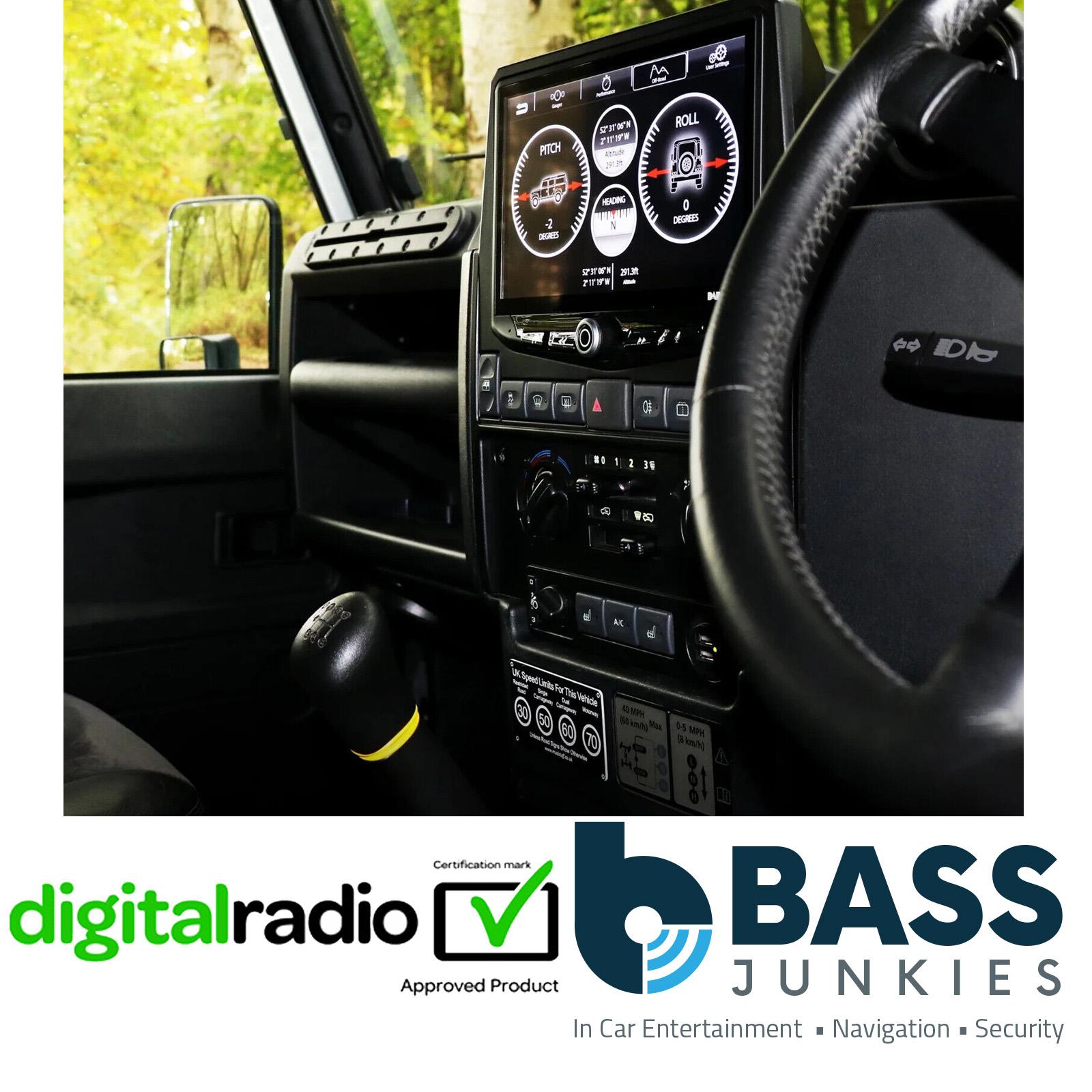

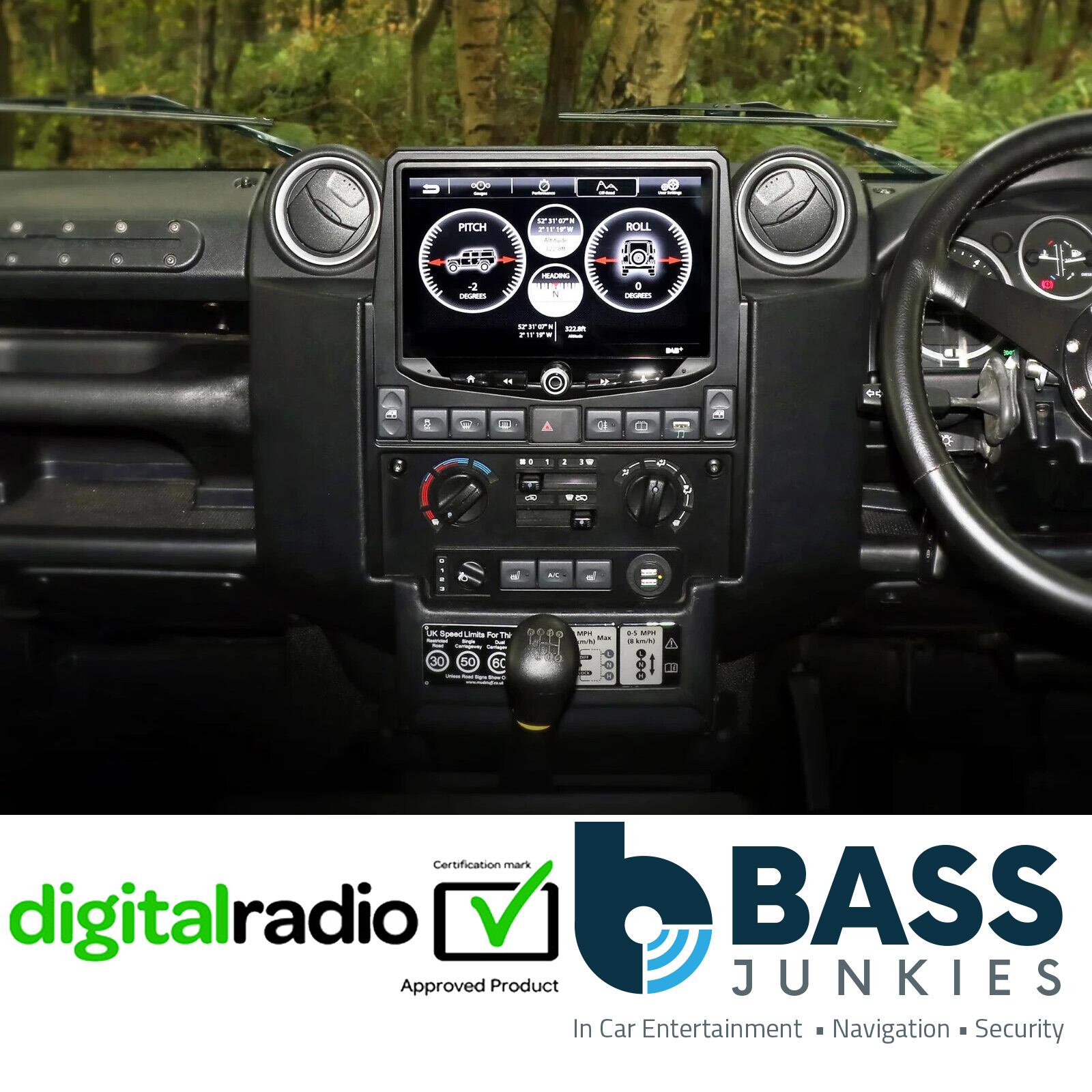

Vehicle Off-Road

• Pitch
• Roll
• GPS coordinates
• Compass
• Altitude

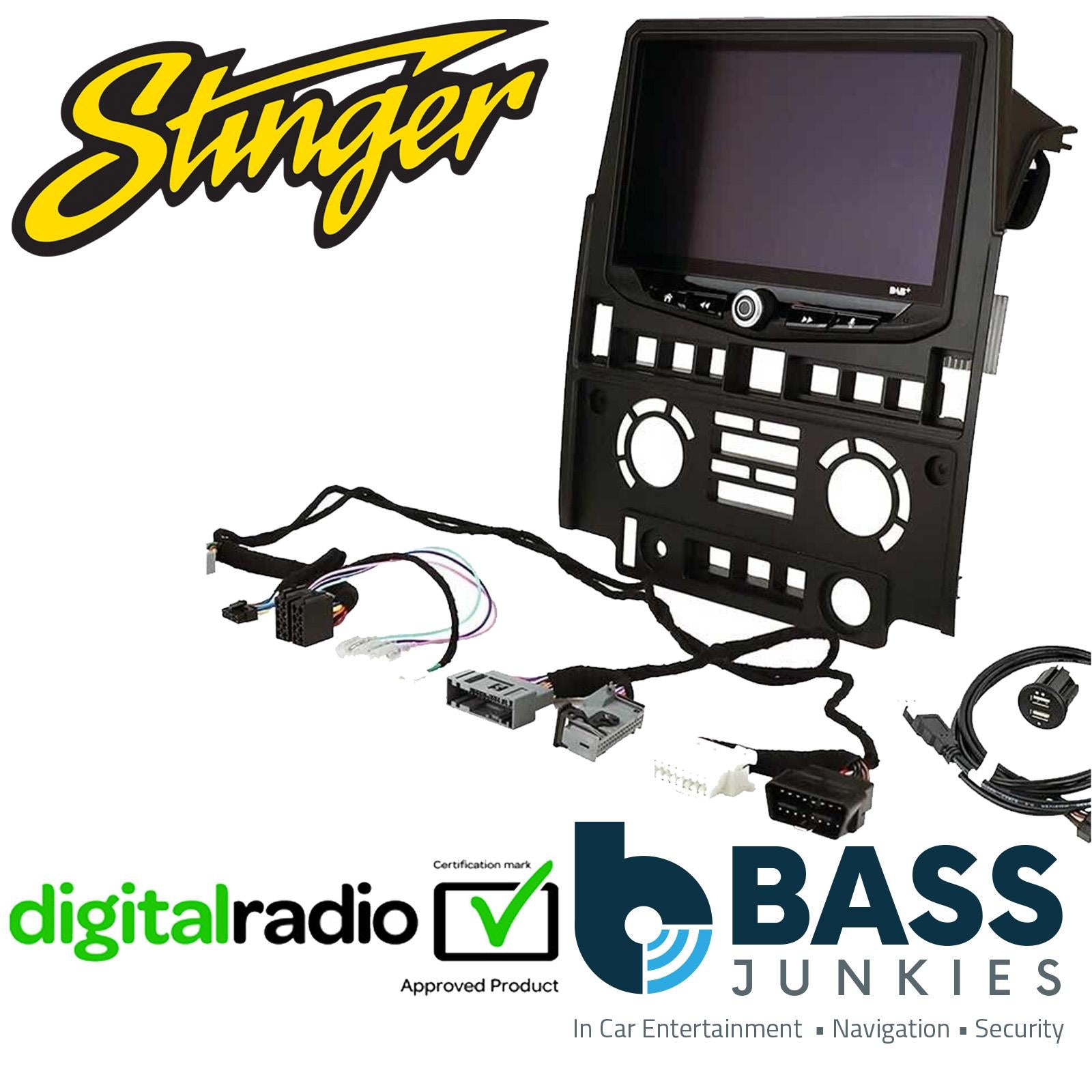

What's in the Box

• HEIGH10 10-inch touchscreen display/infotainment system
• Vehicle-matched radio mounting dash kit
• Complete the vehicle integration module
• Vehicle-specific plug-n-play harnessing
• AM/FM antenna adapter
• USB retention cable
• Stereo connection lead
