Pioneer TS-WX010A 160 Watts Active Compact Underseat Car Bass Subwoofer Sub
The Pioneer TS-WX010A Ultra-Compact active subwoofer is a direct result of over 80 years experience designing and manufacturing loudspeakers. Combining an incredibly small footprint & exceptionally low power consumption, the TS-WX010A is able to produce powerful and impactful bass. Designed not just for todays vehicles, the TS-WX010A is equipped for the future!
High Efficiency Powered Subwoofer
With it’s exceptionally high efficiency the TS-WX010A is perfectly suited to many of todays vehicles including EV (electric vehicles) and Hybrid (petrol/electric) vehicles where low weight, limited space and low power consumption are a high priority.
Small Footprint – High Power
The TS-WX010A features a 16.8cm x 7.9cm aluminum cone with urethane surround and high-powered magnetic circuit. The downward firing enclosures is built from a highly durable high-grade resin and the driver is powered by a built-in 160w (50w Nom) Class-D amplifier. In comparison, the TS-WX010A is 48% smaller than Pioneer’s next smallest active subwoofer.
Flexible Mounting Design
With an ultra-compact design the TS-WX010A is designed to be installed in the passenger side footwell allowing for it to integrate acoustically with the vehicles existing full range speakers. With both horizontal and vertical installation options the TS-WX010A can be mounted either near the underside of the dashboard or against the center console.

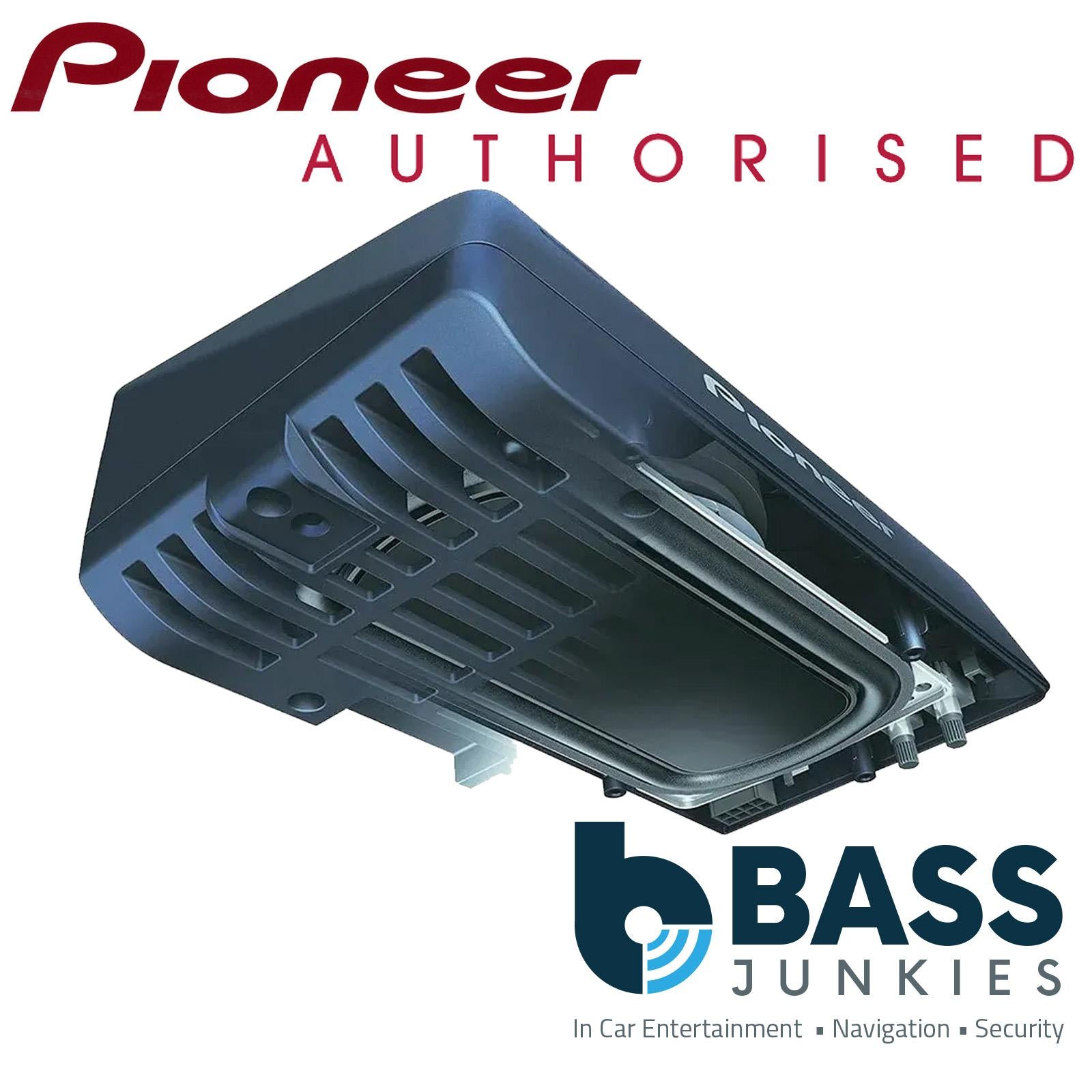

Down Firing Design
The TS-WX010A features a down-firing design with full grill to allow the combination of deep, powerful bass performance with a seamlessly integrated cosmetic design and physical durability.
Bass Sound Creator
With it’s unique design, the TS-WX010A is able to produce impactful bass with an extremely limited footprint. With the inclusion of both RCA and speaker level inputs this ultra-compact active subwoofer can be connected to both aftermarket and factory audio systems simply.
Specifications
- CarSoundFit App
- BASS SOUND CREATOR
- Size 17 cm x 8 cm
- Type Enclosed Sealed Active
- Maximum power 160 W
- Continuous power output 50 W
- Frequency response 20 Hz to 200 Hz
- Sensitivity 98 (Installed in foot space) dB

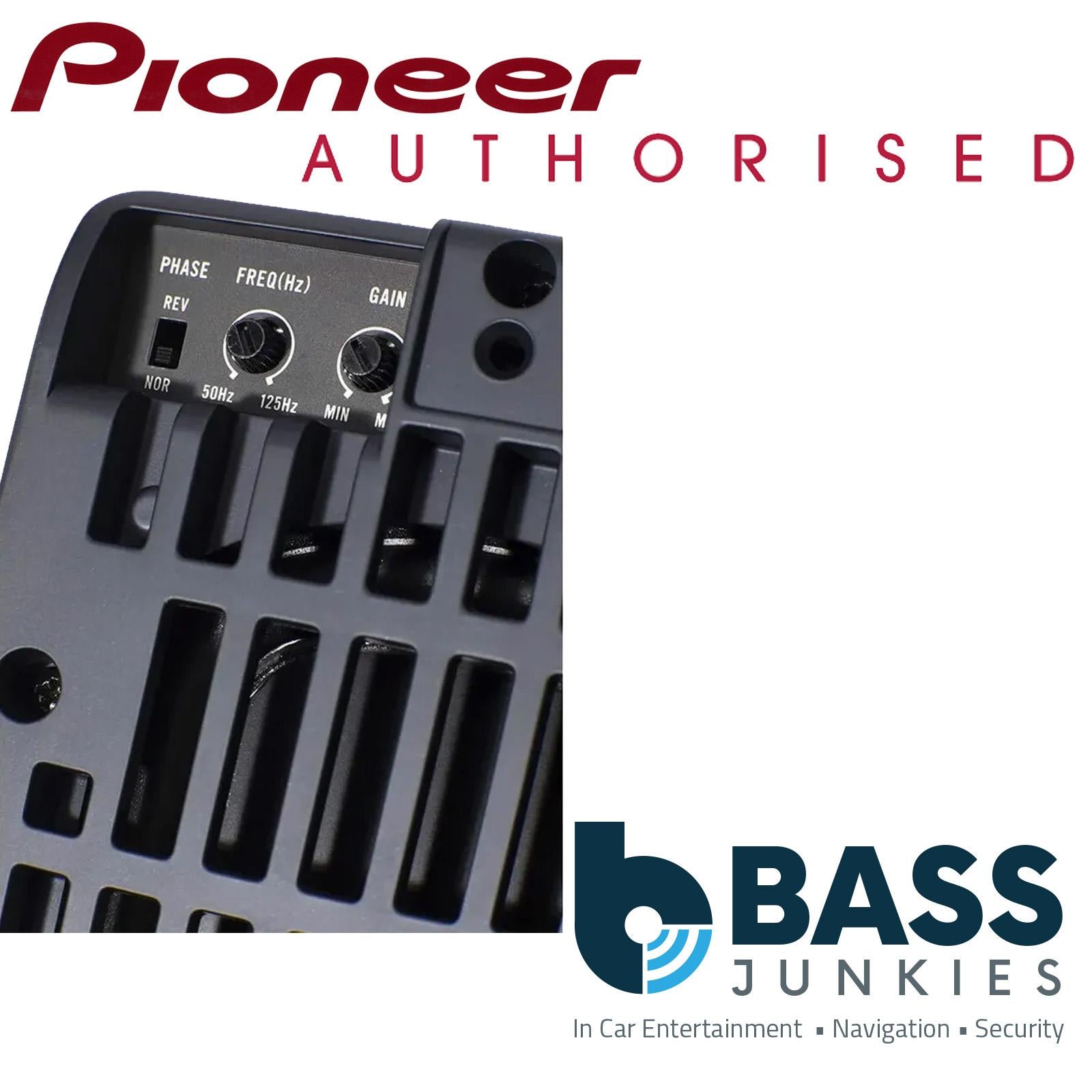

- Function Phase switch, Frequency control (50 Hz to 125 Hz), Gain control, Input Mode (High/Low)
