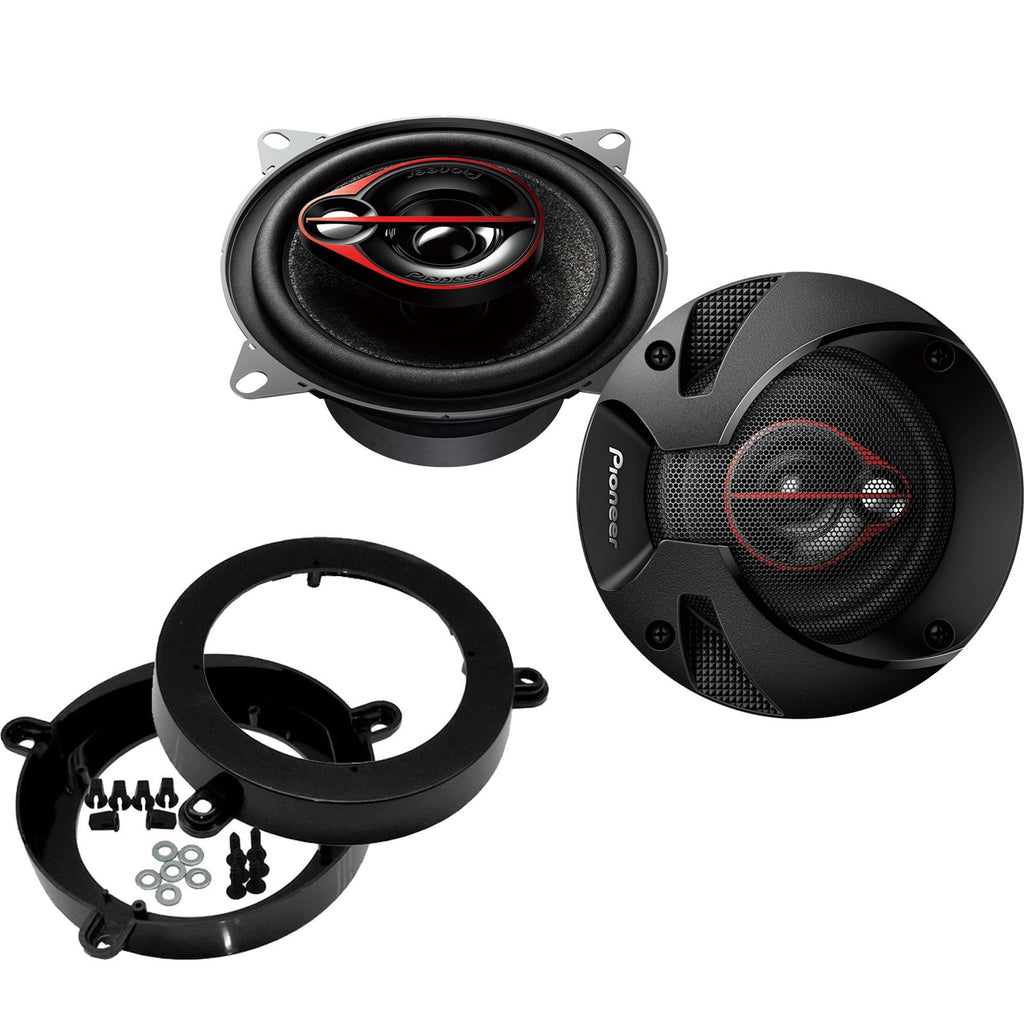

Pioneer TSR 3Way 420W Coaixal Speakers Supplied with Brackets to fit 4" Speakers to Mercedes C-Class (Rear Doors 120mm W203 Model. Also CLC Model 08-11) [2000-2007]

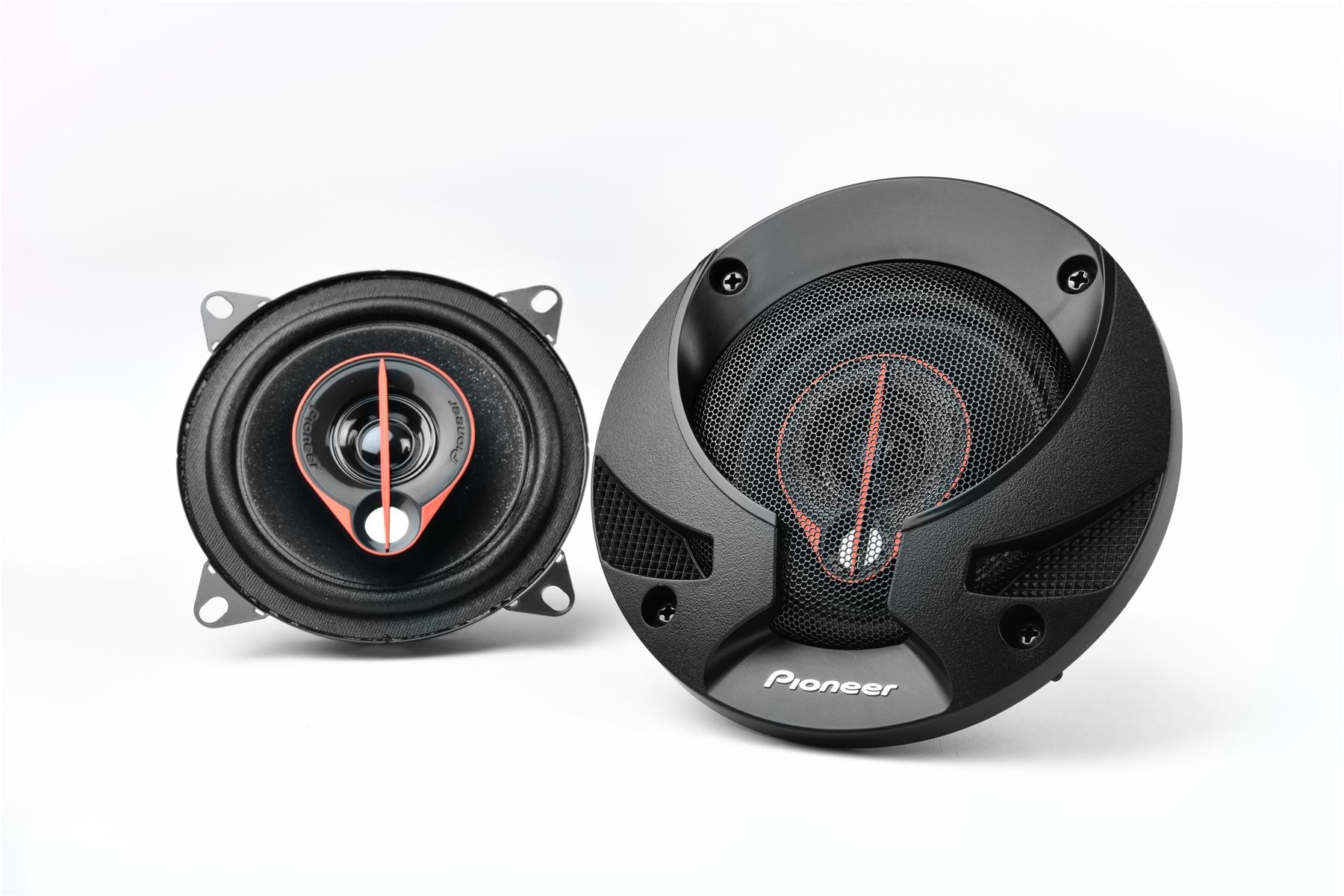

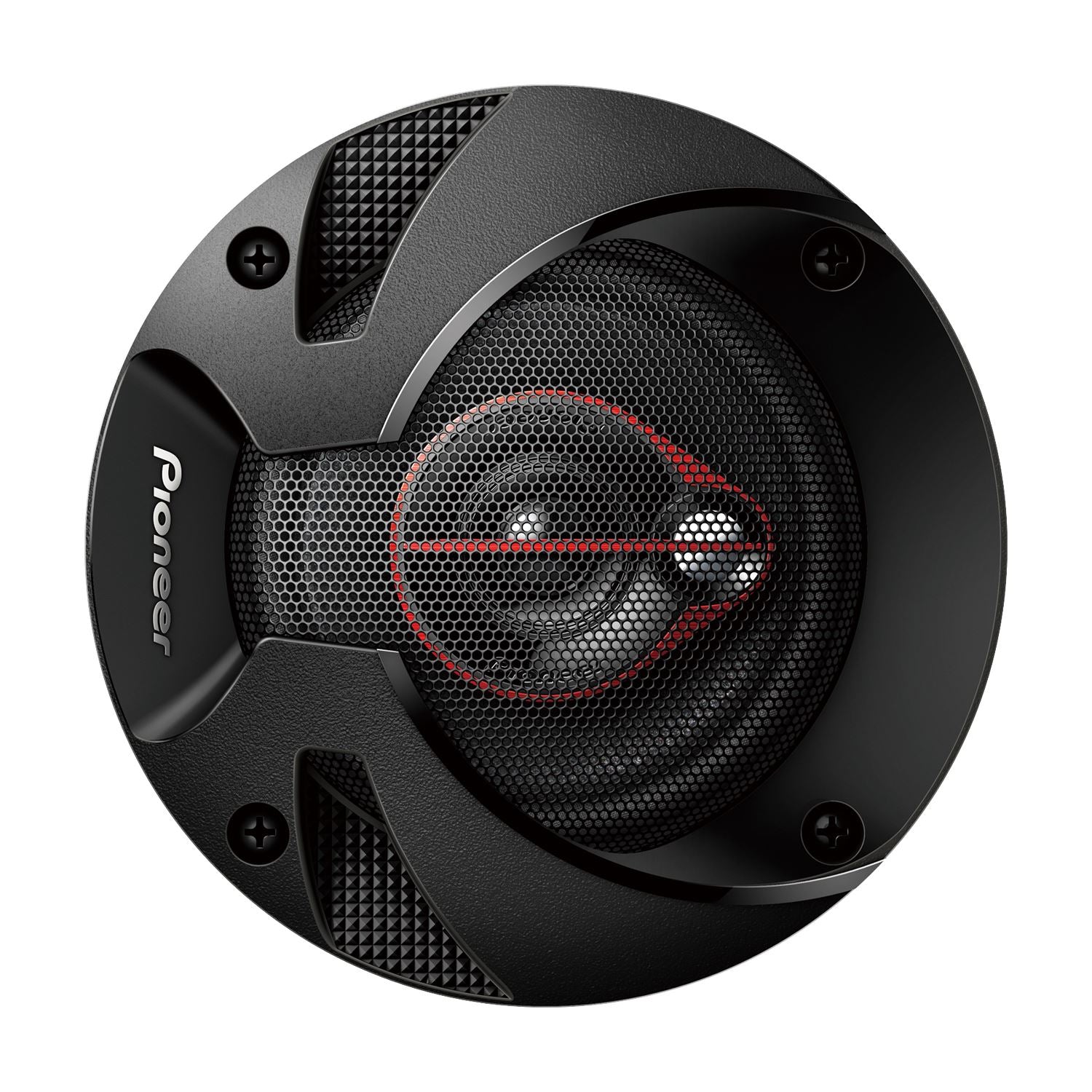

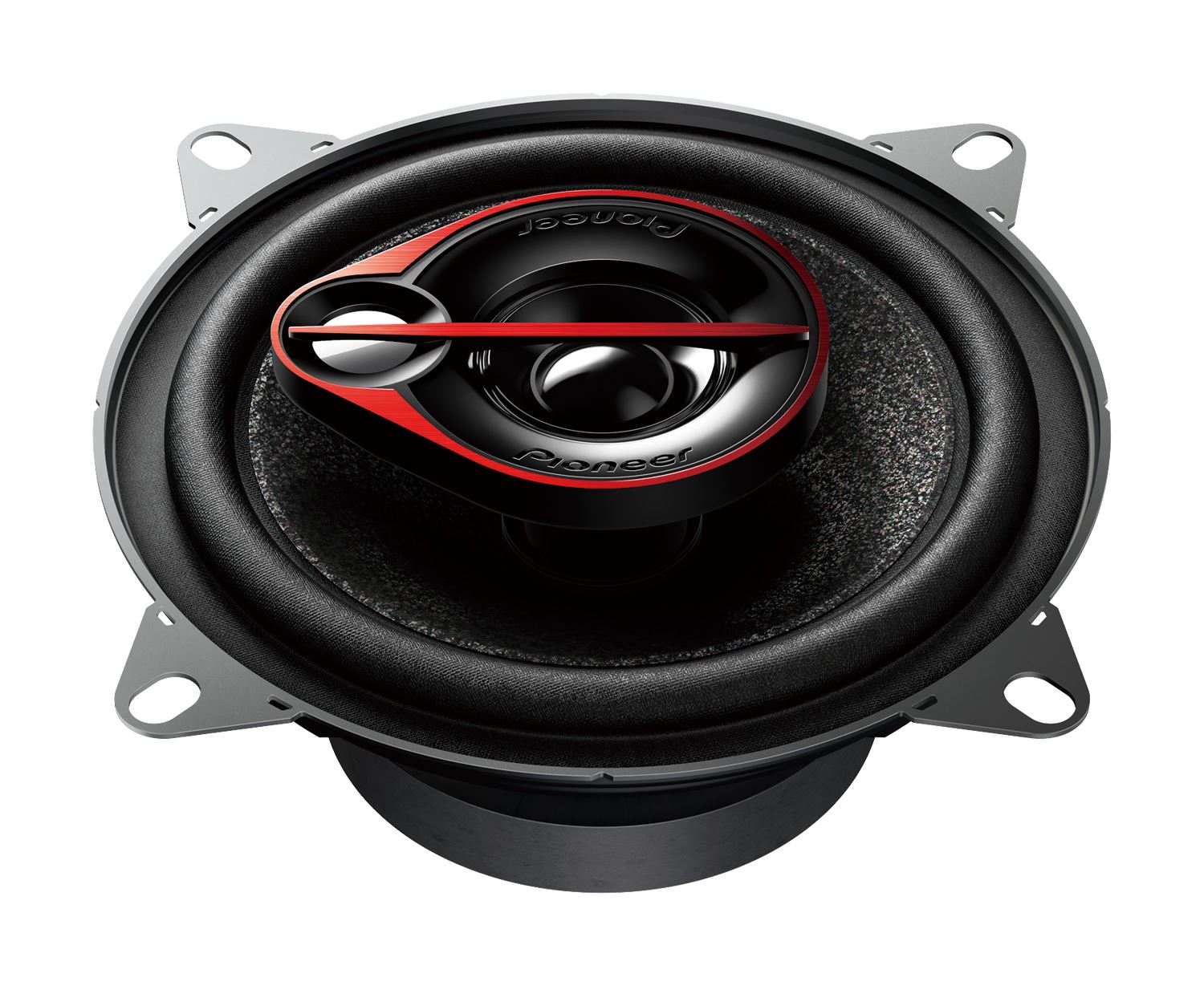

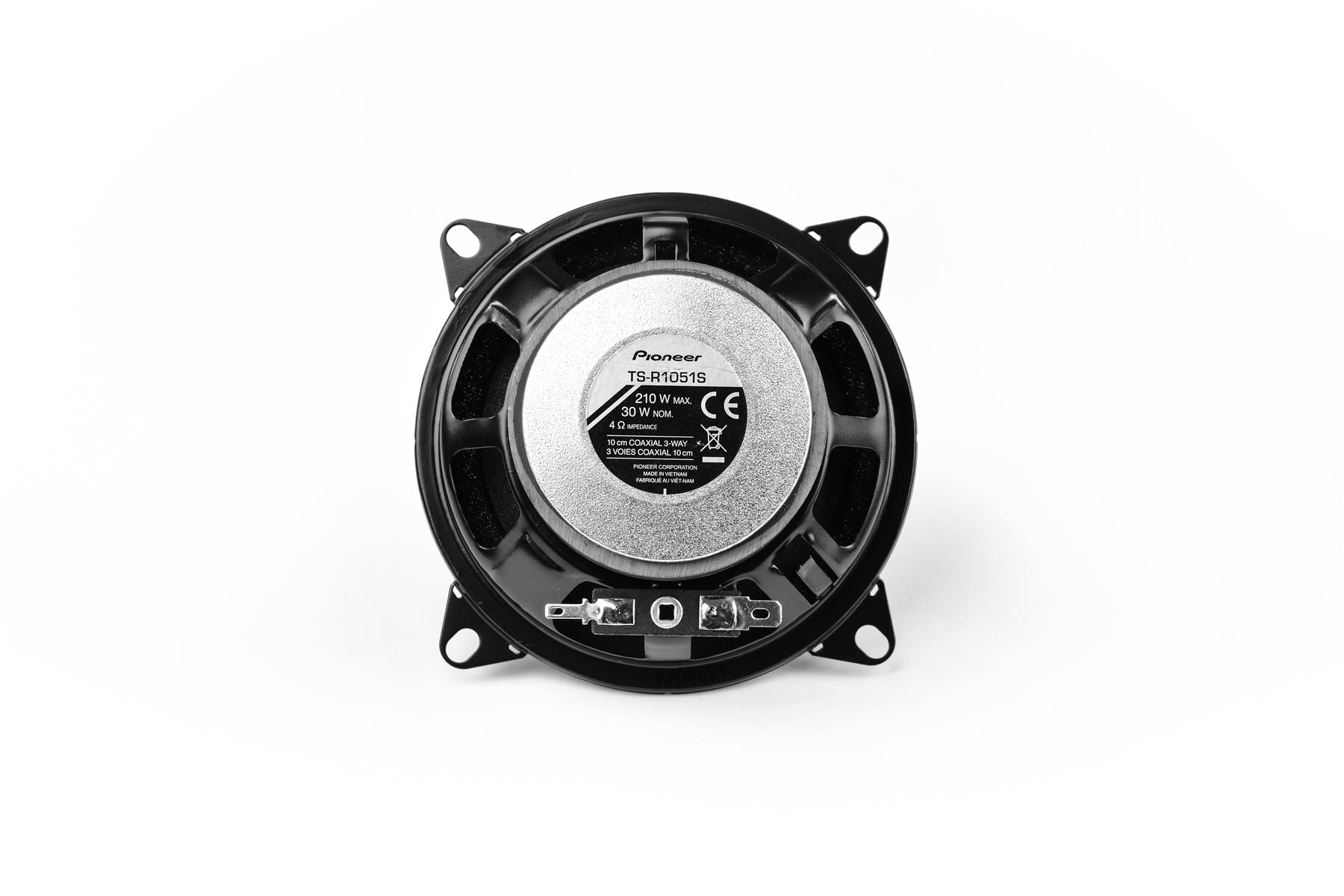

These Pionner TS-R1051S 4 inch (10cm) 3way Coaxial Speakers aimed at providing loud and clear output for any type of music, their sound quality results from a multilayer mica matrix woofer cone which ensures punching bass and improved midrange frequency response.
You�ll enjoy a sound that is more accurate, with a full-bodied bass. Coaxial speakers or full range speakers as they are also known as offer higher quality sound than their dual cone counterparts. The tweet at the helm of the cone allows higher end frequencies (high notes) to be distributed out. This also does not require a separate crossover to fit them.
Low to Medium Power speakers allow up to 30W RMS to each speaker and 210W peak power. Which is about the average for a 10cm speaker. These speakers can be run on your headunit or via a separate amplifier.
Item Specifics
- Frequency response 34 - 27,000
- Weight 0.35 kg
- Sensitivity 88 dB
- Cut-out Hole 106 mm
- Lowest resonance frequency 88 Hz
- Mounting Depth 43 mm
- Power Per Pair
Maximum Watts: 420
RMS Watts: 60
- Power Per Speaker
Maximum Watts: 210
RMS Watts: 30
- Frequency response 34 - 27,000
- Weight 0.35 kg
- Sensitivity 88 dB
- Cut-out Hole 106 mm
- Lowest resonance frequency 88 Hz
- Mounting Depth 43 mm
- Maximum power 210 W
- MMM Cone
- Woofer material IMPP Composite Cone
- Midrange size 30 mm
- Midrange material PET
- Tweeter size 10 mm
- Tweeter material PET
- Voice Coil type Copper
- Voice Coil bobbin type KAPTON
- Coaxial Speakers
- Magnets Y35
- Size 10 cm
- 3 way
- Impedance 4 Ω

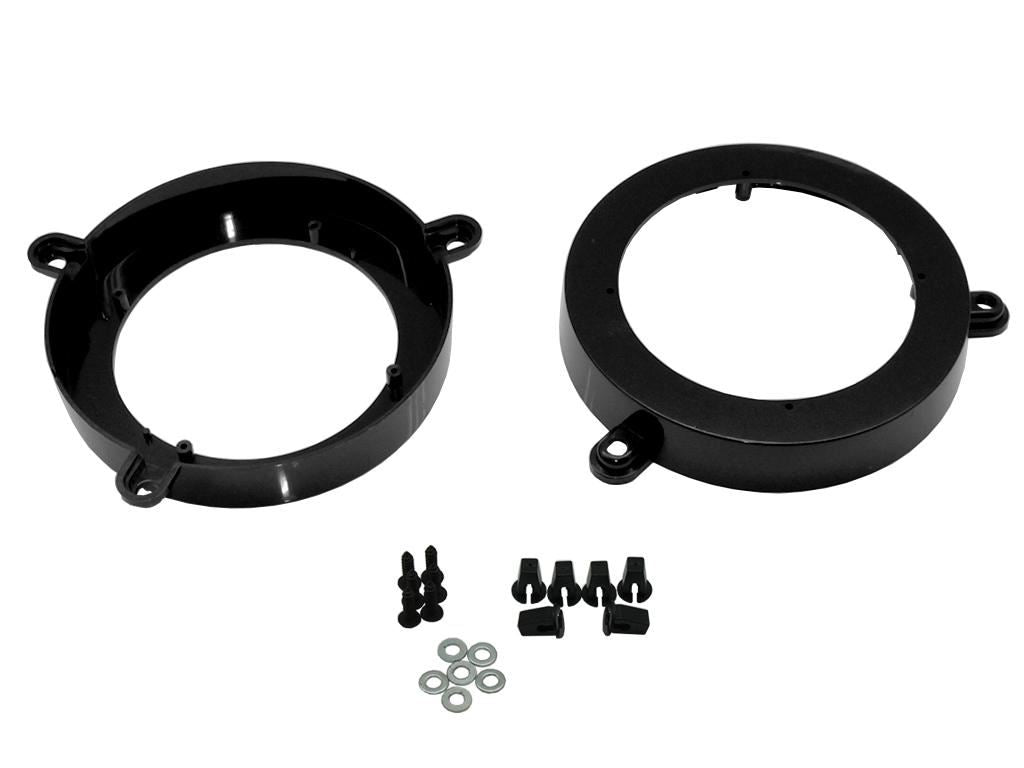

Mercedes Speaker Adapter
Item SpecificsAllows the installation of standard size aftermarket speakers when replacing the OEM speakers
This will fit the following vehicles:- Mercedes C-Class 2000-2007 [Rear Doors 120mm W203 Model. Also CLC Model 08-11]
Please Note: Please make sure that is the correct Speaker Adaptor for your car by firstly checking to see if your make, model and year of car is listed in the vehicle breakdown above. Secondly by checking to see if the shape of bracket in the picture listed is the same as you have in your vehicle.
Note: Sold As A Pair. (Wire adapters maybe required in addition to these brackets)
