Stinger IF209E 9" Wireless Apple CarPlay & Android Auto Multimedia Head Unit
Upgrade your vehicle with the all-new Stinger IF209E, a premium 9-inch QLED multimedia receiver designed to bring modern connectivity, entertainment and navigation to your dashboard.
Powered by Android 13, the IF209E combines a stunning HD touchscreen, wireless smartphone integration, built-in 4G capability and advanced audio processing to create the ultimate in-car experience.

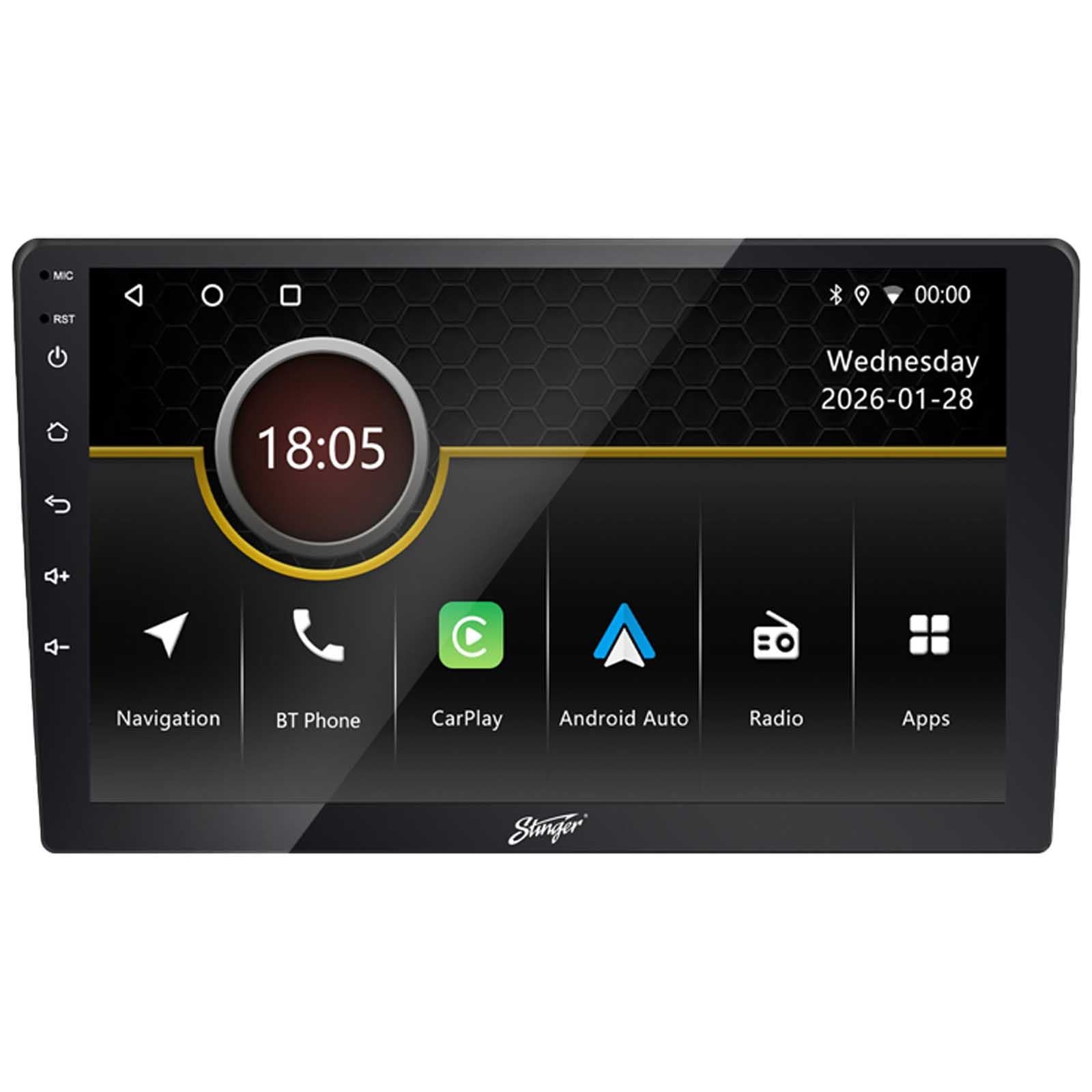

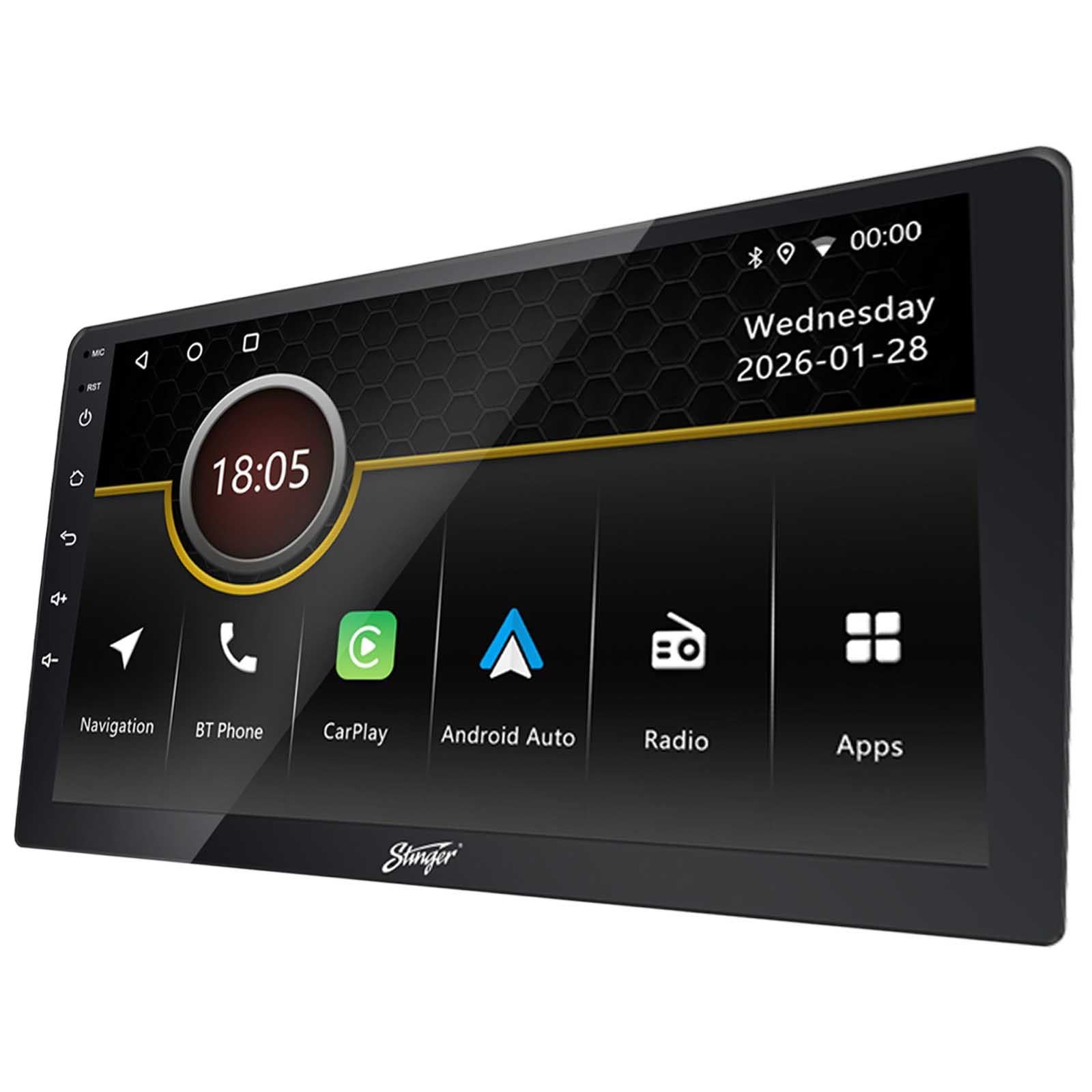

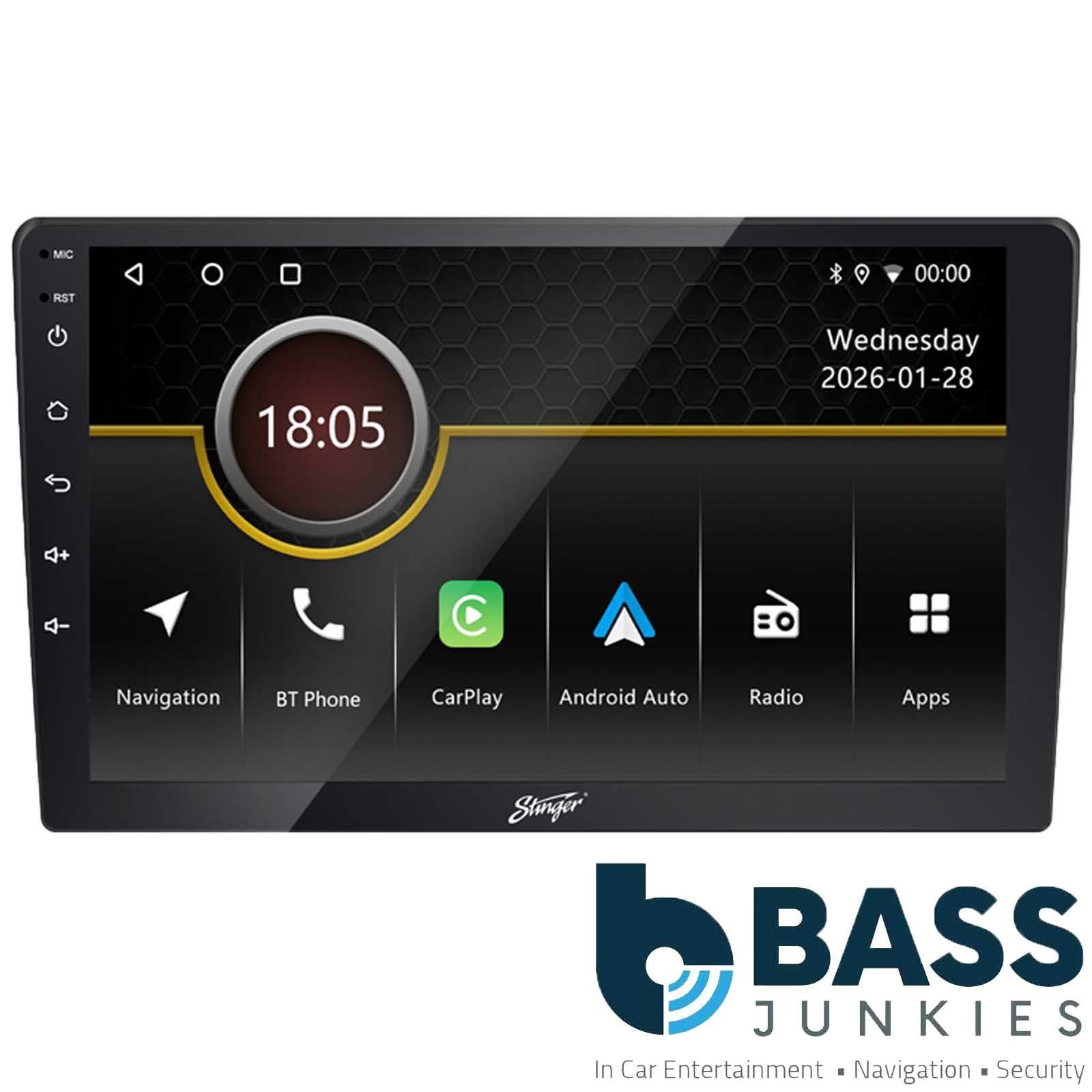

9" QLED HD Display:
Featuring a vibrant 9-inch QLED touchscreen with a sharp 720 x 1280 HD resolution, the IF209E delivers crisp visuals, vibrant colours and smooth operation for everyday driving.
Whether you're navigating, streaming music or using your favourite apps, the large display provides an intuitive and modern user experience.
Wireless Apple CarPlay & Android Auto:
Stay connected without cables. The IF209E supports both wired and wireless Apple CarPlay® and wired and wireless Android Auto™, giving you instant access to:
- Navigation Apps
- Spotify & Music Streaming
- Hands-Free Calling
- Messages & Notifications
- Siri & Google Assistant Voice Control
- Your Favourite Smartphone Apps
Built-In Android 13 Platform:
Unlike traditional head units, the IF209E features a full Android 13 operating system with independent tablet functionality.
With built-in 4G capability and Google Play Store access, you can download compatible apps directly to the unit and enjoy online content without relying entirely on your smartphone.
- Google Play Store Access
- App Downloads
- Video Streaming
- Music Streaming
- Navigation Applications
-
Independent Tablet Mode
Advanced Audio Performance:
Designed with sound quality in mind, the IF209E offers extensive audio tuning capabilities for both factory and aftermarket systems.

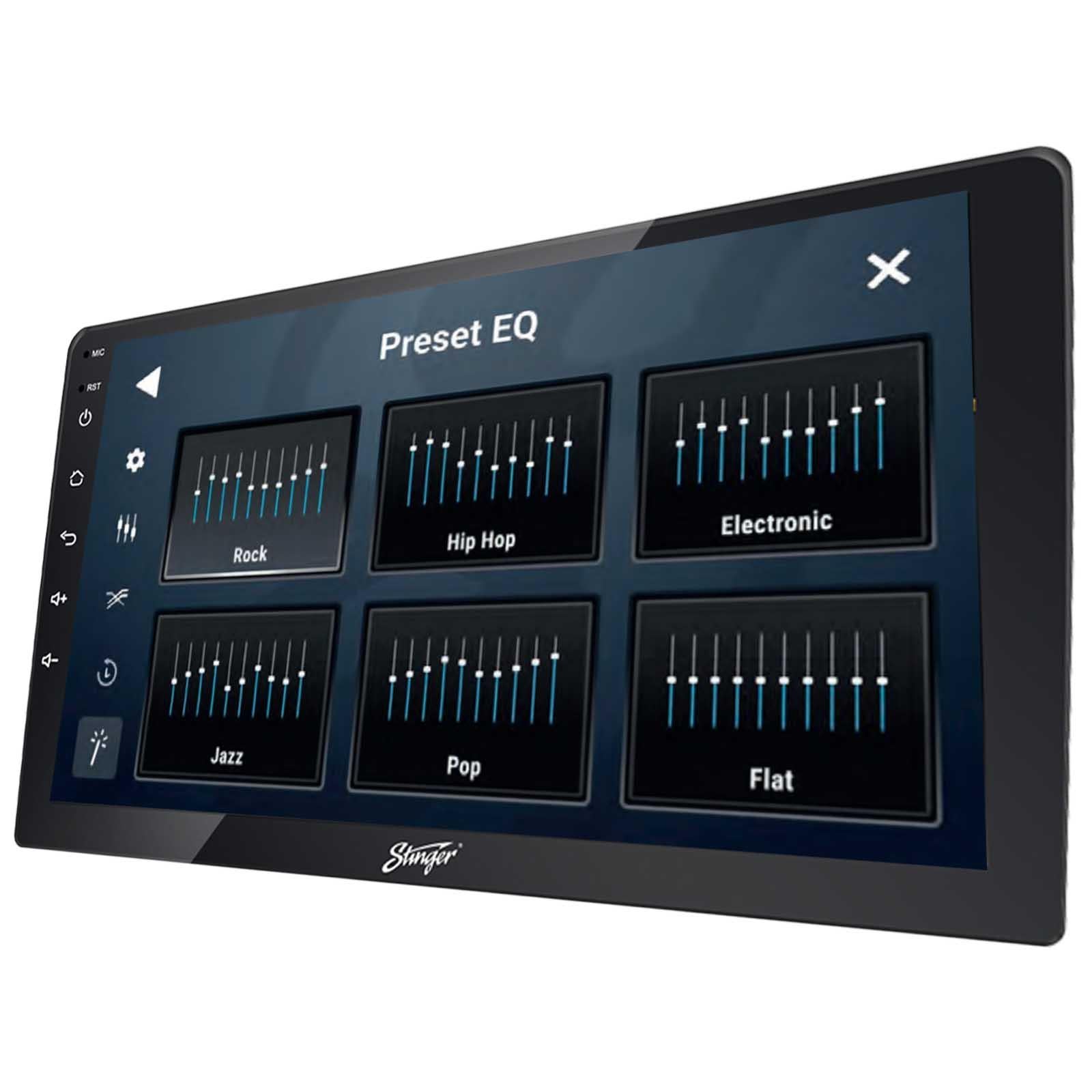

- 32-Band Graphic EQ
- Advanced DSP Integration Support
- AudioControl App Compatibility
- Phoenix Gold DSP App Compatibility
- Front RCA Outputs
- Rear RCA Outputs
- Dedicated Mono Subwoofer Output
- External Amplifier Support
- Bluetooth Audio Streaming
Navigation & Connectivity:
- GPS Navigation
- GLONASS Satellite Support
- Galileo Satellite Support
- BeiDou Satellite Support
- Bluetooth 5.0
- Dual Band WiFi
- Optional 4G Mobile Connectivity
- 3 x USB 2.0 Ports
Vehicle Integration:
The IF209E has been developed to work seamlessly with the Connects2 CTK9 vehicle-specific fitting kit range, providing an OEM-style installation while retaining key vehicle functions where supported.
- Steering Wheel Control Support
- Reverse Camera Input
- Up To 2 Camera Inputs
- CAN Bus Compatibility (Vehicle Dependent)
- Parking Brake Signal Support
- External Amplifier Compatibility
⚠ IMPORTANT DAB INFORMATION ⚠
DAB DIGITAL RADIO IS NOT BUILT INTO THE IF209E.
DAB FUNCTIONALITY REQUIRES THE OPTIONAL CONNECTS2 CT9DAB USB DAB MODULE, SOLD SEPARATELY.
The DAB application is pre-installed on the unit, however a compatible CT9DAB interface must be purchased and installed for DAB radio reception.
Technical Specifications:
- Display: 9" QLED Touchscreen
- Resolution: 720 x 1280 HD
- Operating System: Android 13
- Processor: Quad-Core ARM
- Memory: 4GB RAM
- Storage: 64GB eMMC
- Bluetooth: Version 5.0
- WiFi: Dual Band 2.4GHz / 5GHz
- USB: 3 x USB 2.0
- Camera Inputs: Up To 2
- Audio Outputs: Front / Rear / Subwoofer RCA
- Operating Voltage: 9V - 16.5V
- Operating Temperature: -20°C to +70°C
- Main Chassis Size: 165mm x 65mm
What's Included?
- Stinger IF209E Multimedia Receiver
- Main Wiring Harness
- GPS Antenna
- Installation Documentation
Why Choose the IF209E?
- ✔ Large 9" QLED Touchscreen Display
- ✔ Wireless Apple CarPlay®
- ✔ Wireless Android Auto™
- ✔ Android 13 Operating System
- ✔ Built-In 4G Independent Tablet Mode
- ✔ Google Play Store Support
- ✔ Dual Band WiFi (2.4GHz & 5GHz)
- ✔ Bluetooth 5.0 Connectivity
- ✔ GPS Navigation Support
- ✔ 32-Band Graphic Equaliser
- ✔ Front, Rear & Subwoofer RCA Outputs
- ✔ Steering Wheel Control Compatibility
- ✔ Reverse Camera Compatibility
- ✔ OEM Style Installation When Used With CTK9 Kits
Transform your dashboard with modern connectivity, wireless smartphone integration and powerful multimedia performance with the Stinger IF209E.
