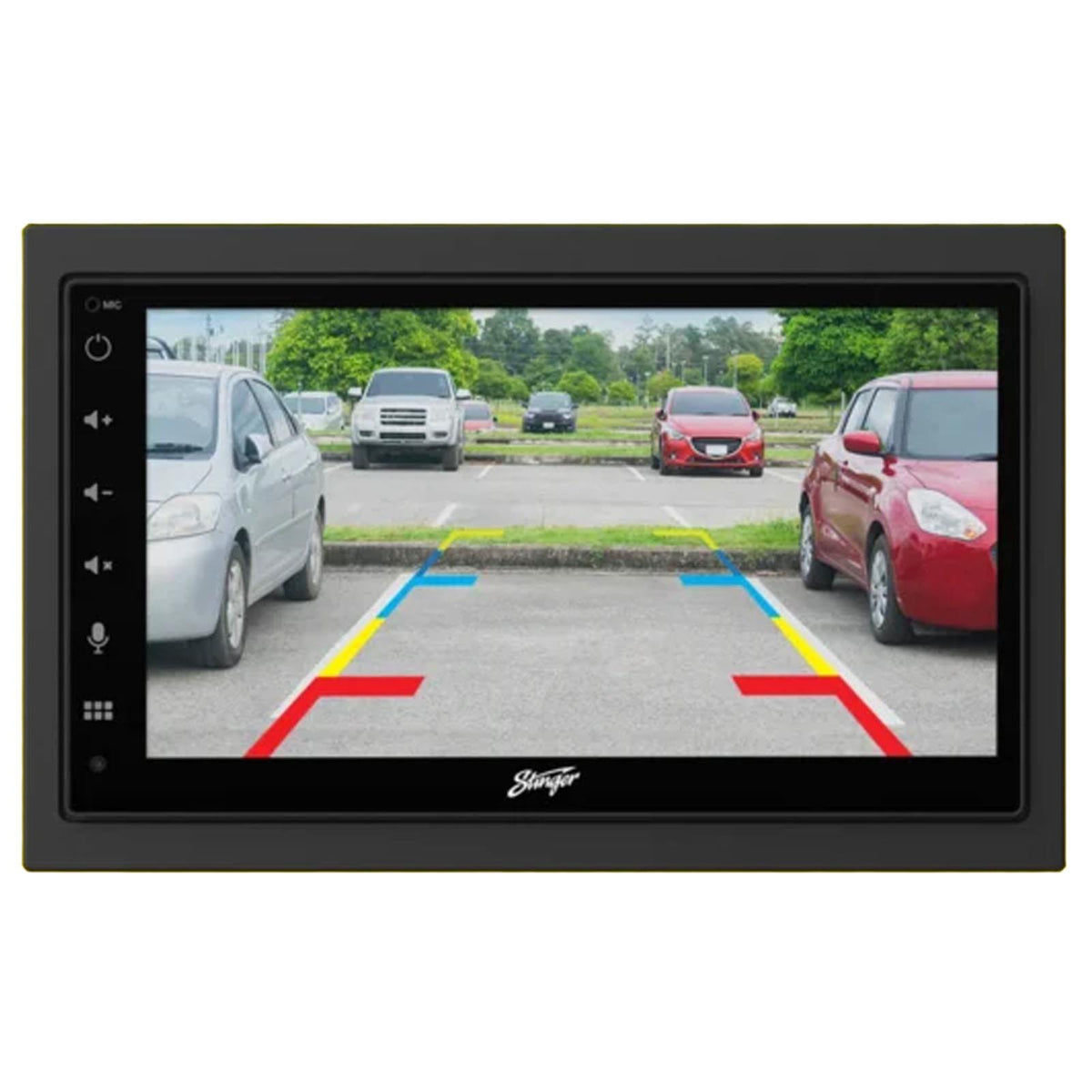

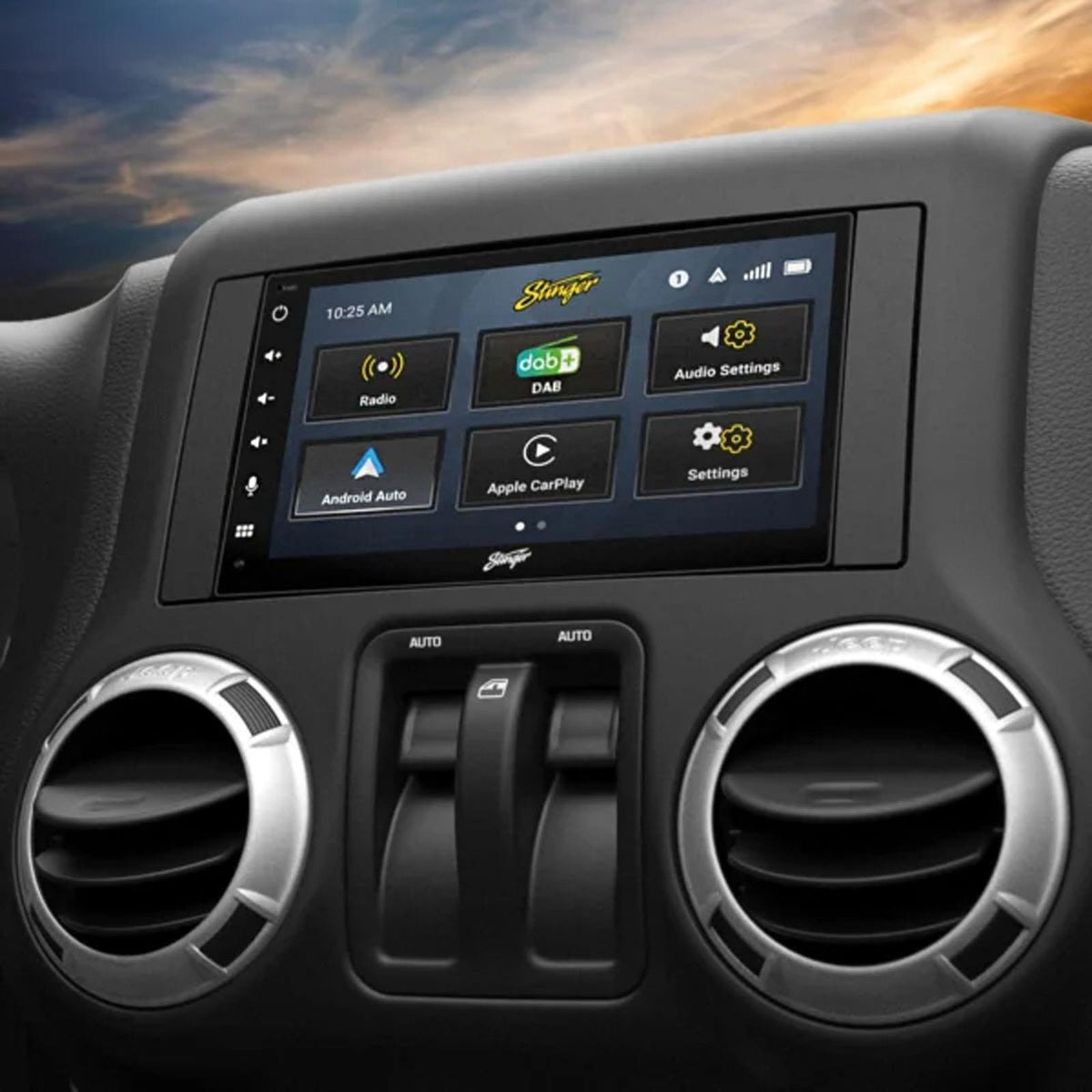

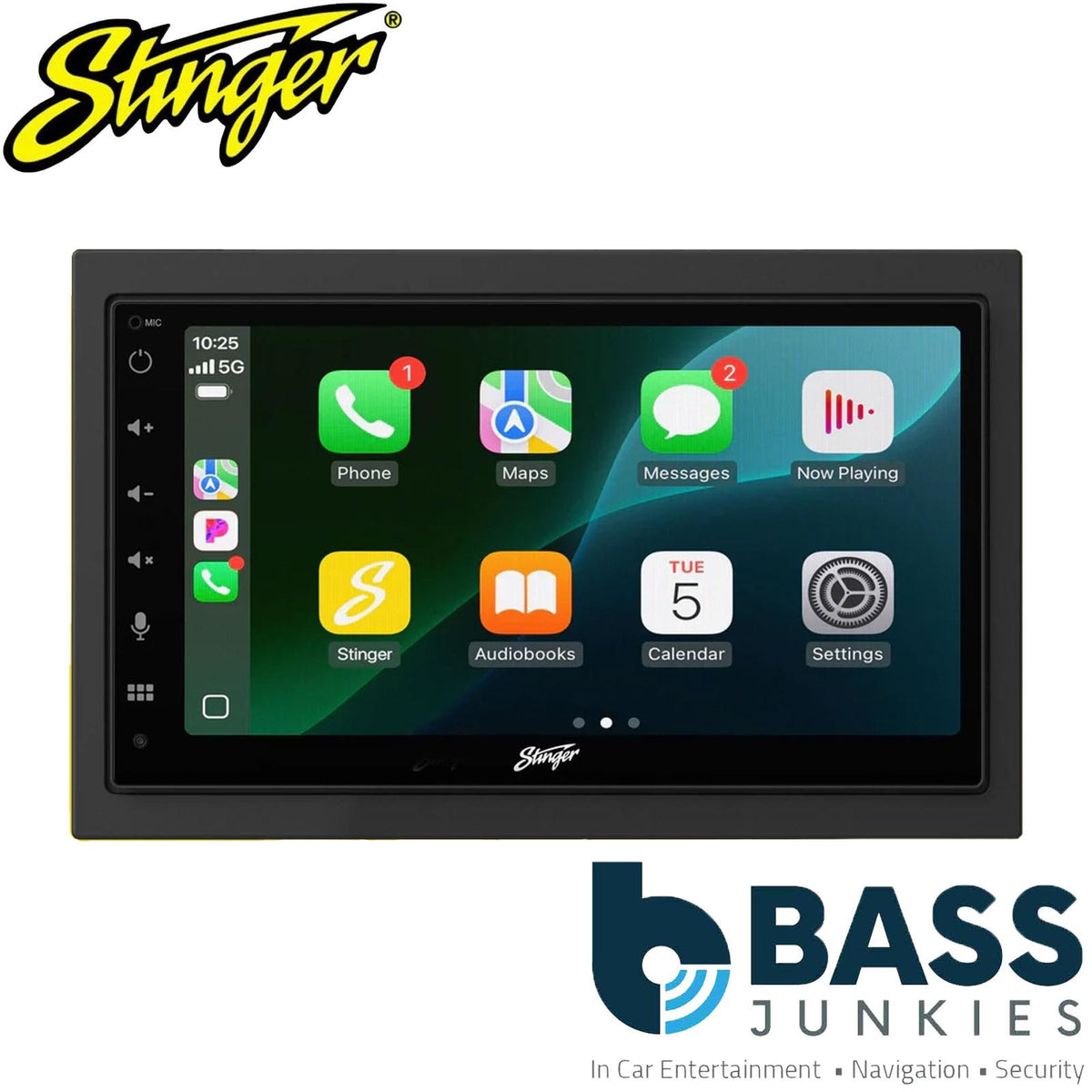

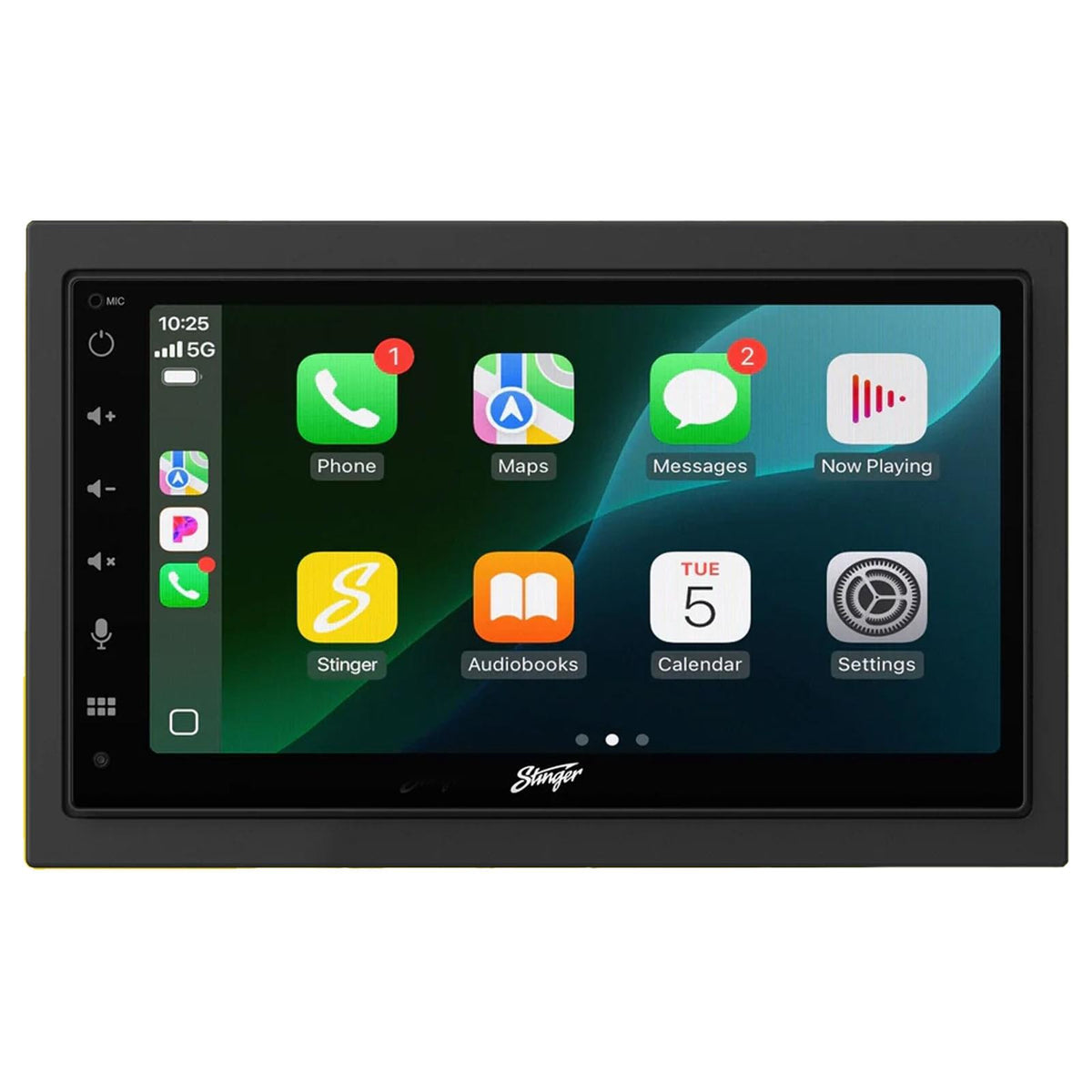

Stinger IE268E 6.8" Touchscreen Apple CarPlay Android Auto BT DAB Car Stereo

• Operating Voltage: 10.5VDC to 16VDC

• Grounding system: Negative Ground

• Max current consumption: 15A fused

• Radio Module: 178 mm x 87.8 mm x 100 mm (W x H x D)

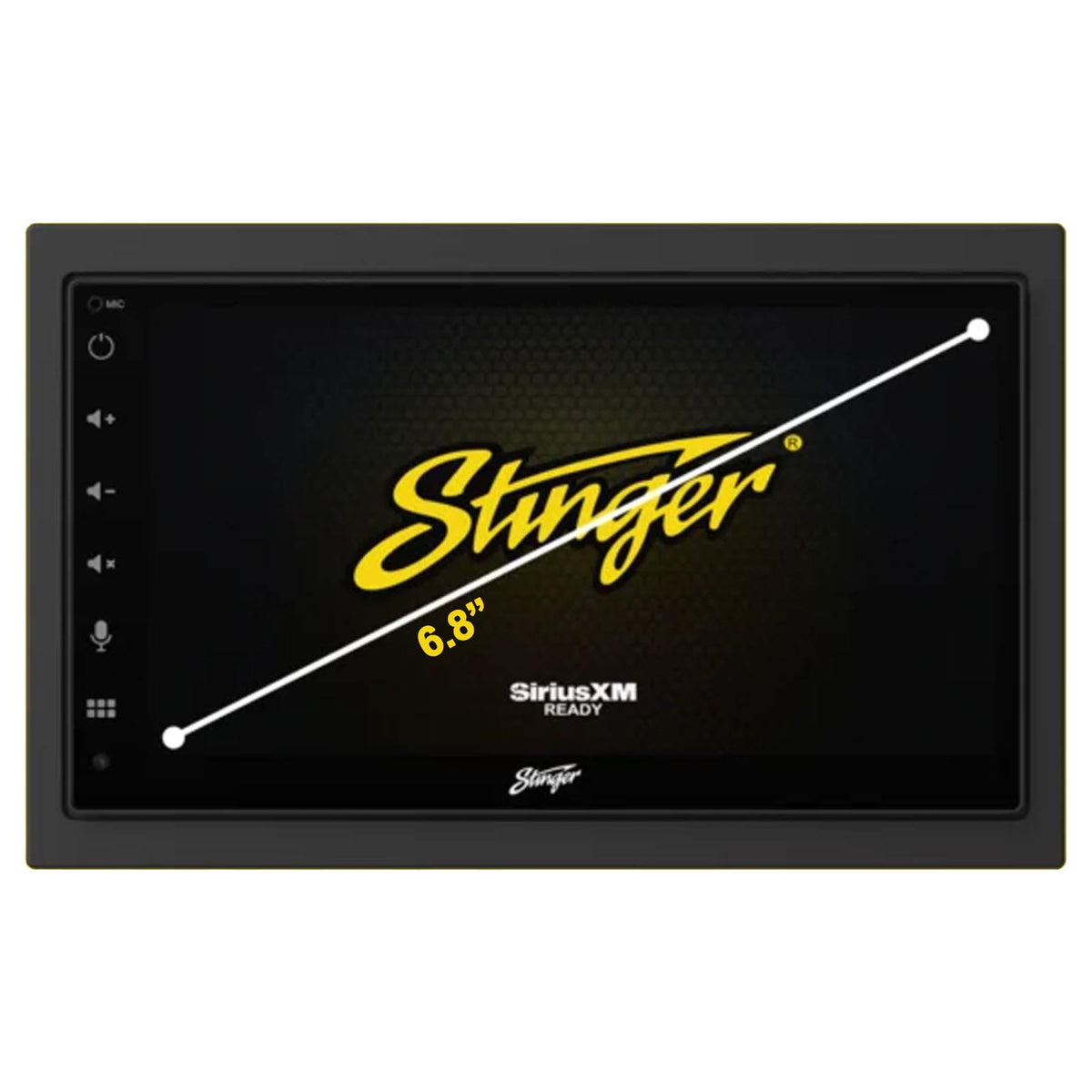

• Display: 160.7 mm x 90.8 mm (W x H) 6.8-inch Diagonal 16:9 aspect ratio 1024 x 600

• Pixels: 1,024,000

• Active Area: 151.76 (W) x 79.8 (H) mm

• Operating Temperature (C): -20° to 70°

• Load impedance: 4Ω nominal / 2Ω allowable

• Power output: 18W x 4ch / 4Ω 20Hz to 20KHz, 1%THD at 14.4V 26 W x 4ch / 4Ω 1 kHz, 10%THD at 14.4 V 4 x 45 W / 4 Ω max

• Speaker level adjustment: 0-40 steps

• Audio Preamp Output level: 3 Vrms typical

• Audio Preamp 6 Channels: Front Left, Front Right, Rear Left, Rear Right, Subwoofer Left, Subwoofer Right.

• Equalizer: (13-band) 63Hz/100Hz/160Hz/250Hz/400Hz/630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/10KHz/16Kz Gain: ±6dB (0.5dB/step)

• Crossover level: 10 steps

• Front HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz/500Hz/1kHz/3.5kHz/5kHz/bypass

• Front Slope: 6dB, 12dB, 18dB

• Front Level: 0-12,1db/step

• Rear HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz/500Hz/1kHz/3.5kHz/5kHz/bypass

• Rear Slope: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz

• Rear level: 0-12,1db/step

• Subwoofer Pre-lineout: 3Vrms typical,

• Subwoofer LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz/bypass,

• Subwoofer Slope: 6dB, 12dB, 18dB

• Subwoofer level: 0-15, 1db/Step

• Phase: 0 or 180

• Time Alignment for 6 channels: 0 to 133 steps for inches and 0-99 steps for 9.9ms/133inches

• User Preset EQ: Rock, Hip-Hop, Electronics, Jazz, Pop, Flat.

• Source Gain: default 0db, -10 to 10 adjustable, 0.35db/Step.

• Volume Settings: Main Volume, Phone Volume, Navigation Volume, Voice Volume, Ringtone Volume adjustable separately.

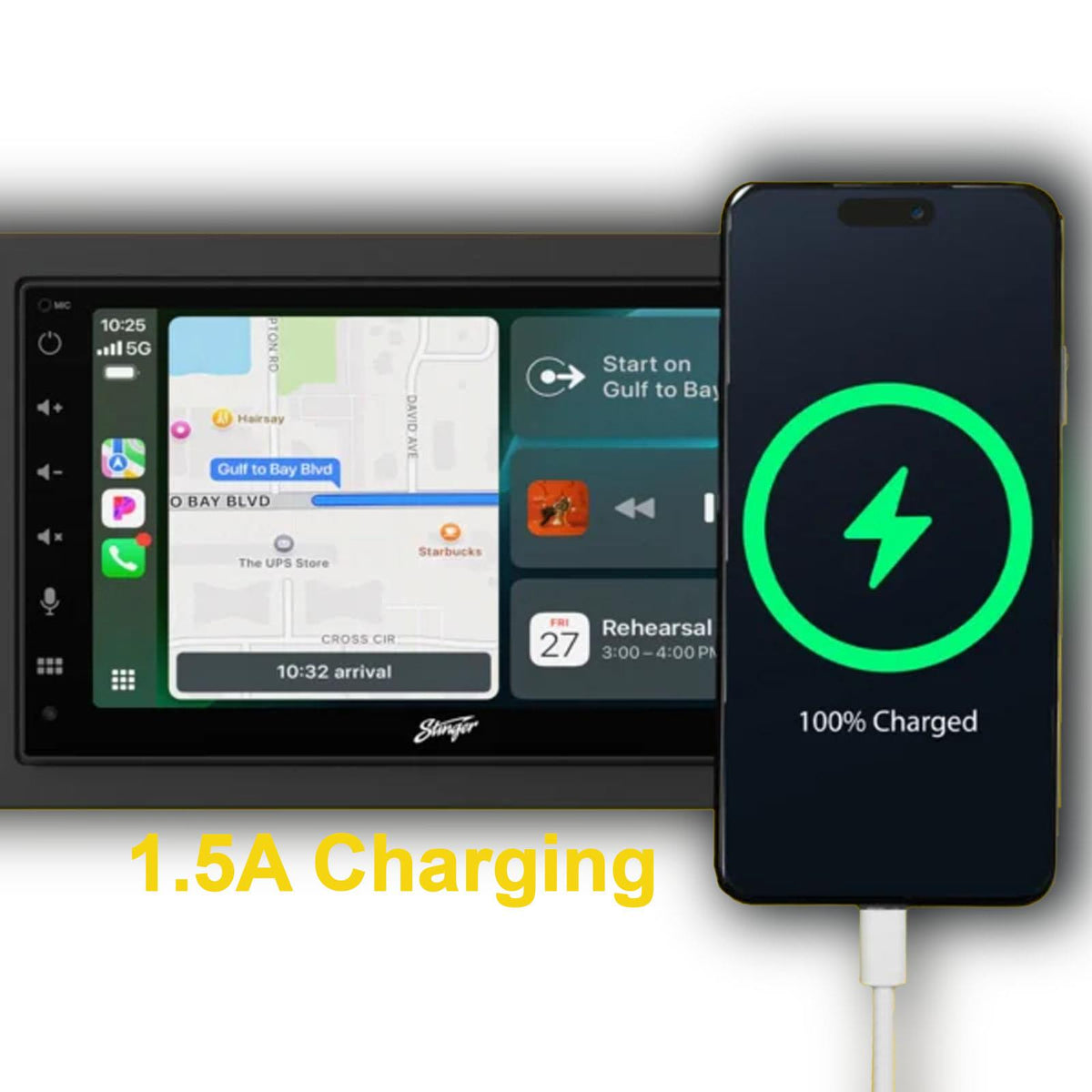

• USB 2.0ax current supply 1.5A

• Max storage size: 128GB

• USB Class: A

• Supports: Video/Audio/Image Media Playback, Charging, and Firmware Update

• USB 3.0 (one) Max current supply 3A

• Max storage size: 128GB

• USB Class: C MSC (Mass Storage Class), MTP (Media Transfer Protocol)

• File system: FAT32, NTFS

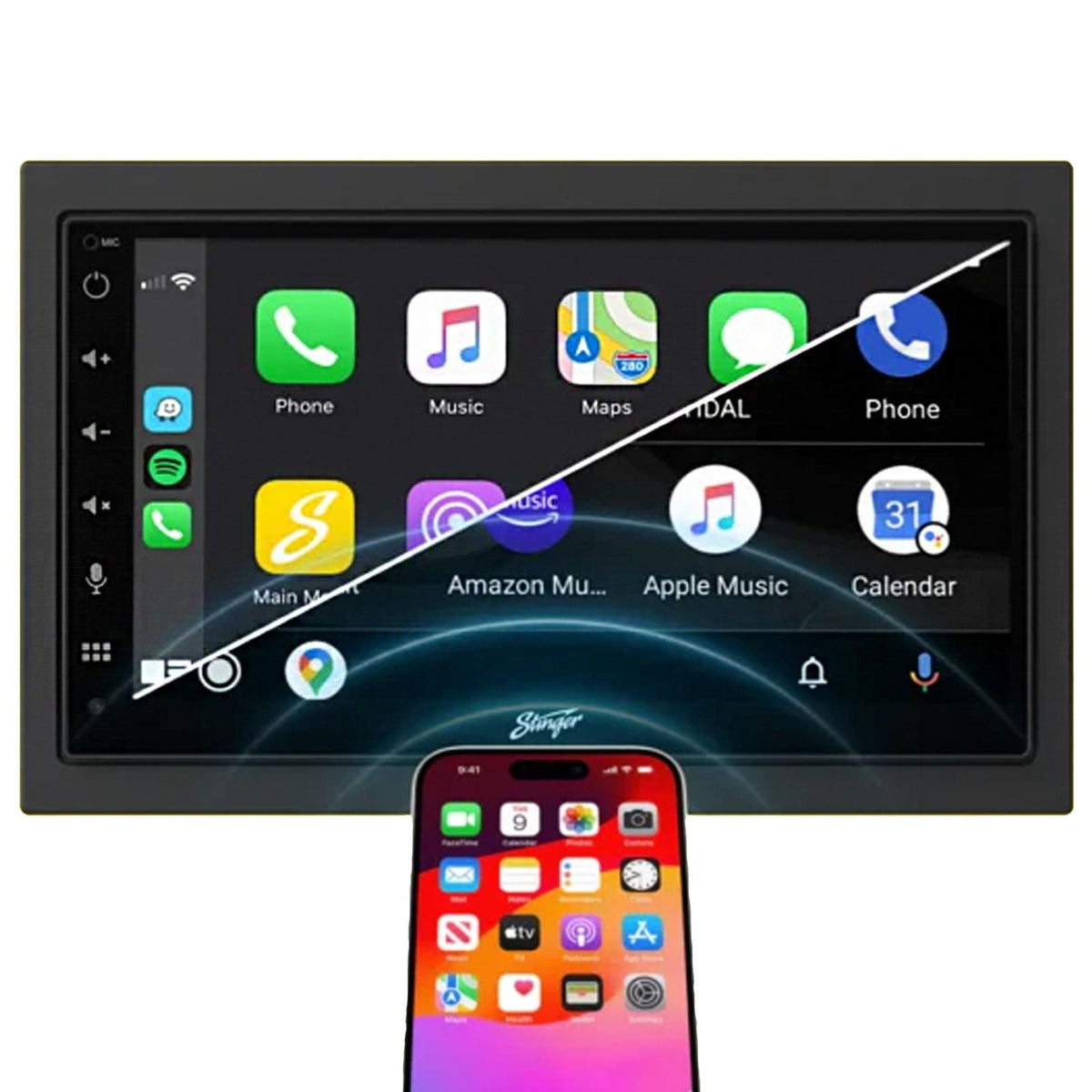

• Supports: Apple CarPlay, Android Auto, Video/Audio/Image Media Playback, Charging, and Firmware Update

• V5.1 dual

• 4dBm Class2

• 2.4GHz to 2.48GHz

• Support IEEE 802.11a/b/g/n/ac

• Support 802.11ac 1×1, Wave-2 compliant with MU-MIMO STA mode

• Complete 802.11n MIMO solution for 2.4GHz and 5Ghz band

• FM radio with RDS function

• 87.9MHz to 107.9MHz

• Usable sensitive 3dBuV (mono S/N: 30dB)

• SNR: 65dB

• 530KHz to 1710KHz

• Usable sensitive 25dBuV (mono S/N: 20dB)

• SNR: 58dB

DAB+

• DAB+ Digital Radio

• Auto Tune, Pre-set buttons

• NTSC, PAL, AHD PAL 25Hz & AHD NTSC 30Hz

• Support Mirror Camera Image On/OFF

• FLAC / WAV/MP3/

• AAC/M4A—license

• OGG/APE

• MP4/AVI H264.avi/

• AVI XVID-MPEG-3.avi/

• AVI 1024×768.avi/

• AVI 1920×1080.avi/

• MPG-MPEG-1 .mpg/

• Mov/FLV/Vob/Mkv

• JPG/PNG/BMP

• File Format: JPG / PNG

• Resolution: 1024 x 600

• Your IE268E head unit utilises a Liquid Crystal Display (LCD) panel to display clear, crisp images in a variety of lighting conditions.

• Your IE268E unit is optimised to provide the highest quality image in a variety of use cases, but you should be aware that specific contrast ratios and backgrounds can cause temporary image retention.

• When customising your background, avoid images that include high contrast static patterns; these images can cause temporary image retention in LCD panels through repeated use.

• Retained images should vanish within 10-40 minutes of regular operation. If you see from your custom background, we strongly suggest you choose another option, or use one of the included IE268E background options
