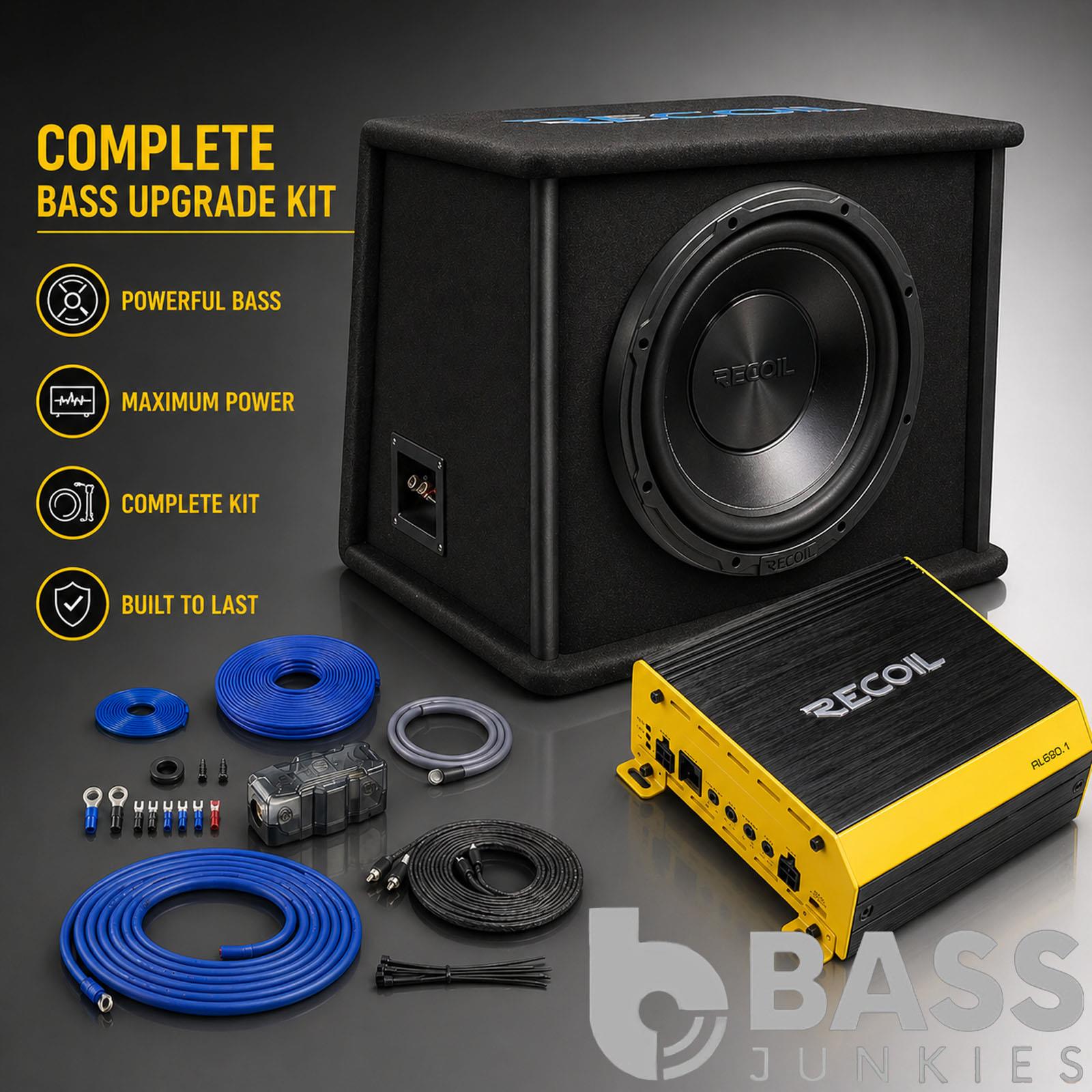

Recoil RS12 Kit - 12" 500W Subwoofer + RL680.1 680W Monoblock Amplifier Amp Kit
Upgrade your car audio system with this complete bass package, combining a powerful subwoofer enclosure, compact monoblock amplifier, and full wiring kit. Everything is matched for performance, making installation straightforward and delivering strong, clean bass.

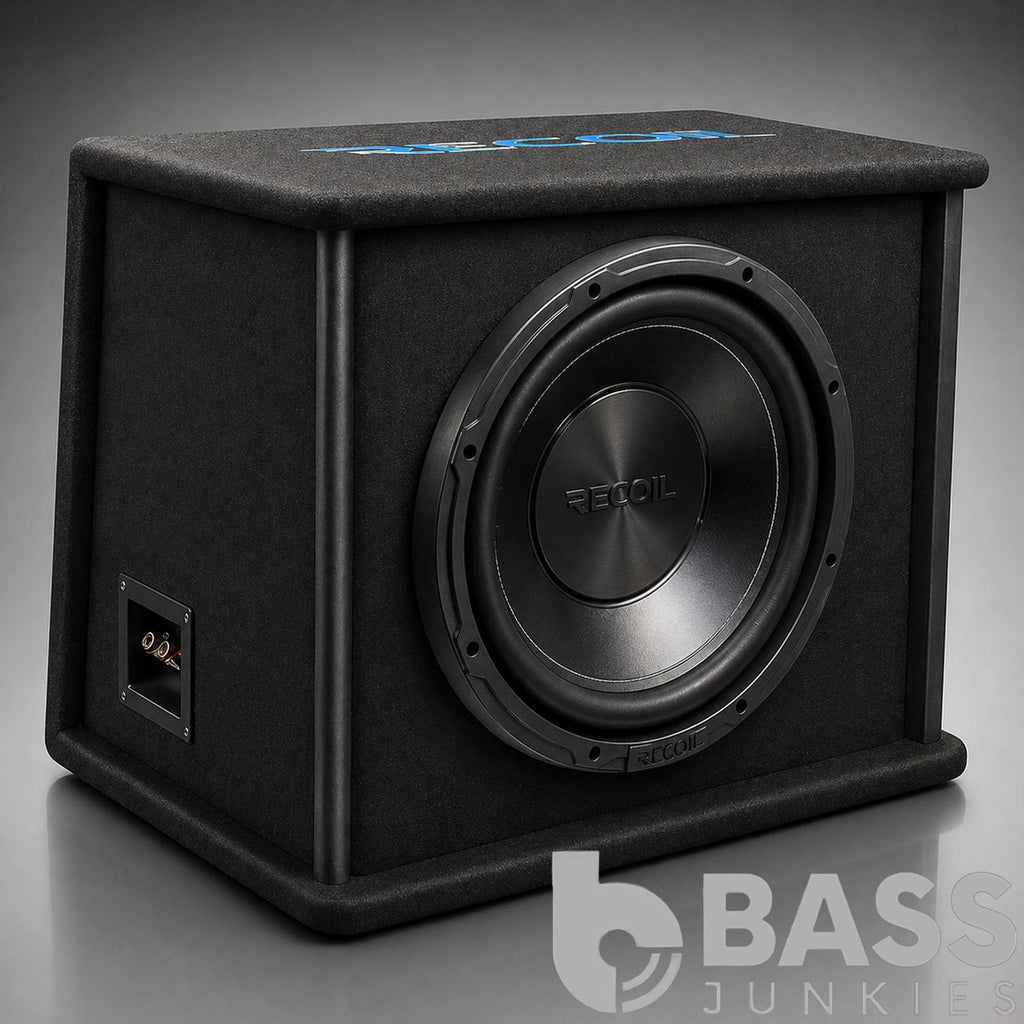

Subwoofer Enclosure – Recoil RS12 (12" Loaded Bass Box)
- 12" preloaded vented subwoofer enclosure
- 600W peak / 300W RMS power
- 1-ohm impedance (pre-wired internally)
- Tuned port design for deep, accurate bass
- Built from thick MDF with black carpet finish
- Angled enclosure for flexible vehicle fitment
- High-temp 2" 4-layer aluminum voice coil
- Dimensions: 22.2" x 22.1" x 19.3"
- Weight: 30.4 lbs
Recoil Audio engineered the RS12 as a complete matched enclosure and subwoofer system, removing guesswork and ensuring optimal performance.
This loaded enclosure features the RW12D2 12-inch subwoofer (600W max), specifically tuned to the box for maximum bass output and sound accuracy.
The dual 2-ohm subwoofer is internally wired to 1-ohm, delivering efficient power handling and strong output. Built for durability, the enclosure uses high-strength MDF construction with a black carpet finish.
The 2" 4-layer aluminum voice coil is designed for heat management and long-term performance, with high-temperature adhesive for reliability under heavy load.

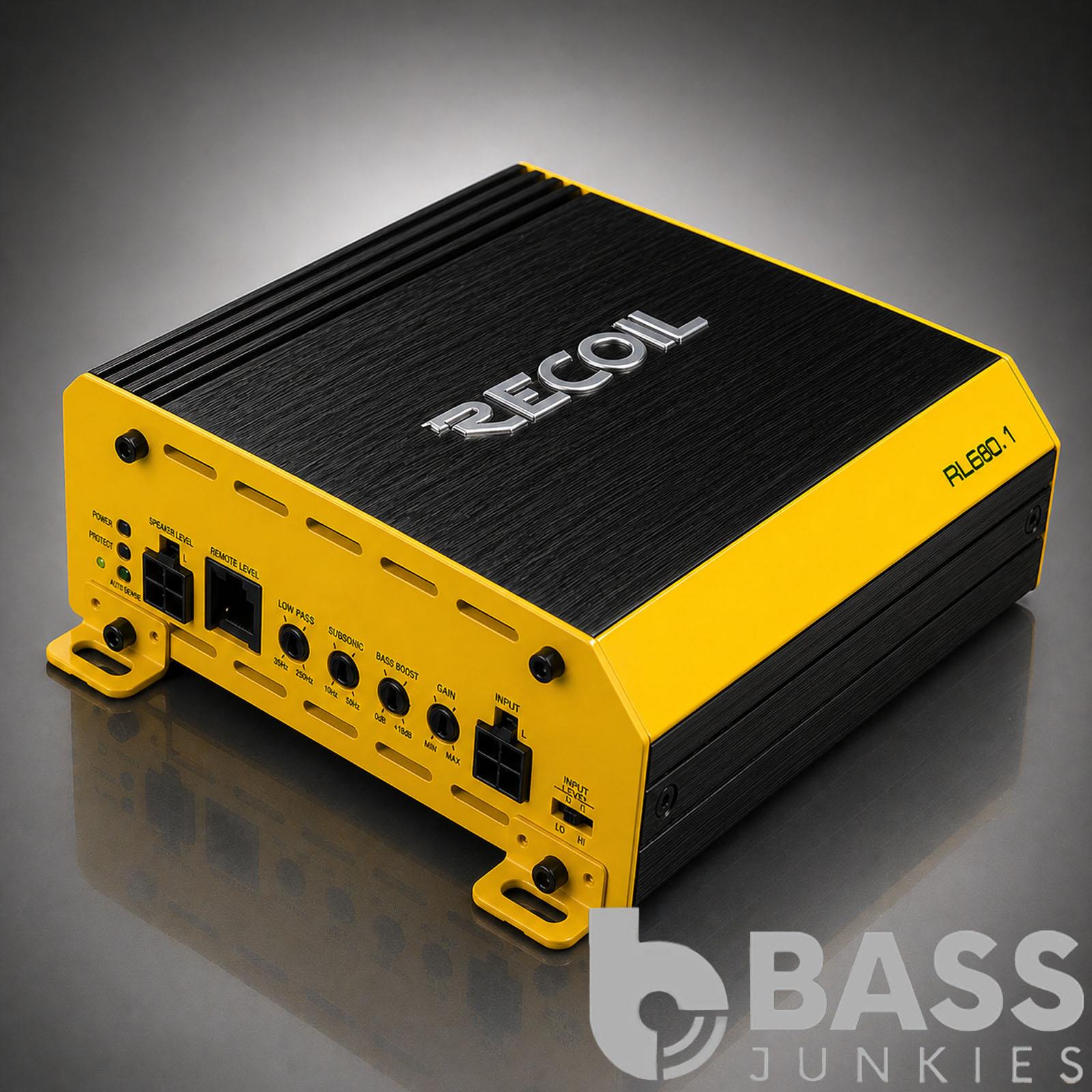

Amplifier – Recoil RL680.1 Monoblock
- 680W RMS @ 1 Ohm
- 500W RMS @ 2 Ohm
- 260W RMS @ 4 Ohm
- Compact size: 4.13" x 4.92" x 2"
- Frequency response: 10Hz–300Hz
- Signal-to-noise ratio: 94dB
- Bass boost: 0–12dB
- Subsonic filter: 10Hz–35Hz
- Low-pass filter: 50Hz–300Hz
- Remote bass control included
- 4-way protection: Thermal, Voltage, Speaker, DC
Built for efficient power delivery and reliability, ideal for driving the included subwoofer.

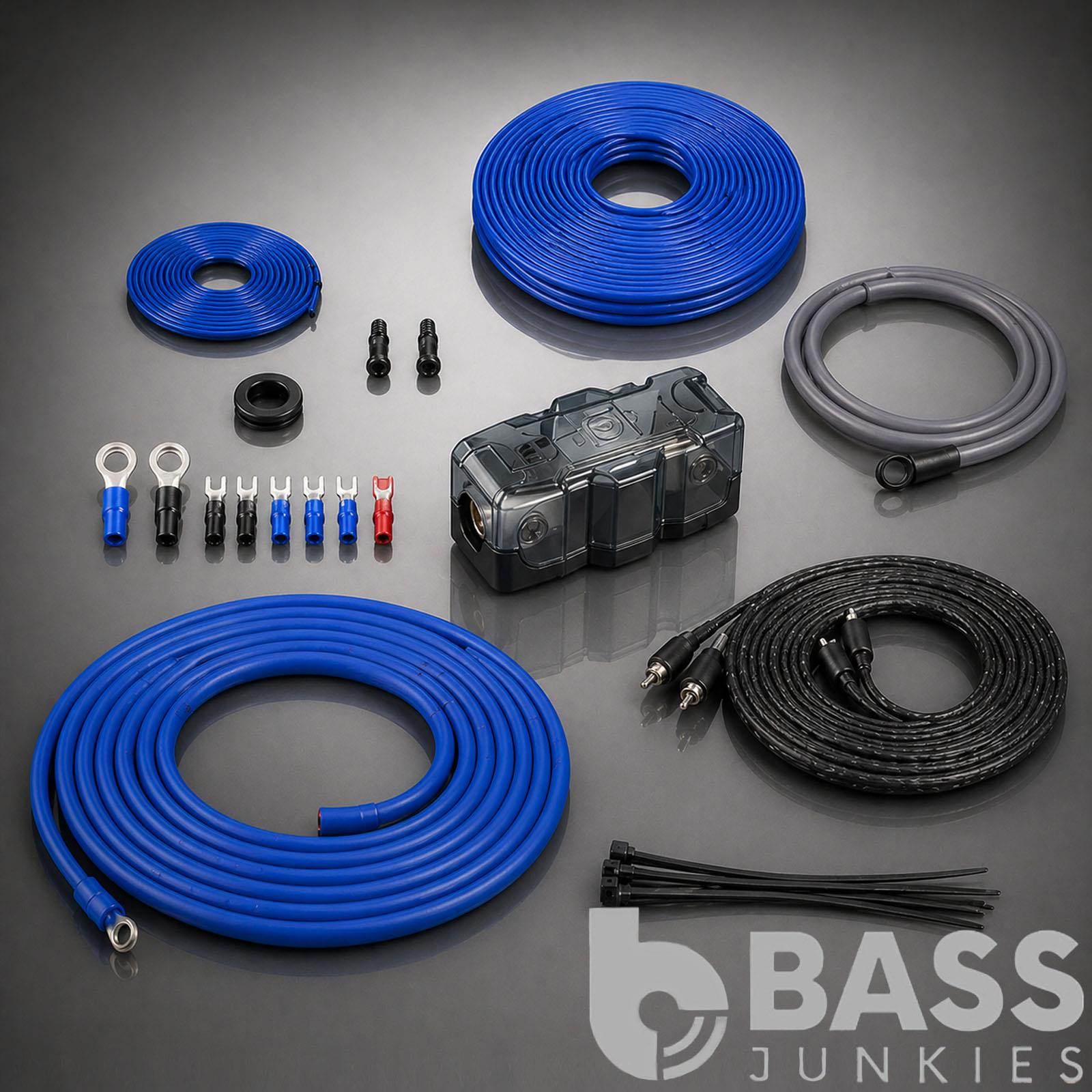

Wiring Kit – PRO-FOUR (Complete Wiring Kit)
- 4 AWG power cable (blue)
- Ground cable
- 2-channel RCA cable
- Inline fuse holder
- Ring terminals & connectors
- Rubber grommet
- Mounting screws
- Cable ties
- Copper-clad aluminium (CCA) wiring
- Flexible and easy to install
- Supports up to 800W systems
