Recoil RL680.1 - Compact 680 Watts @ 1 Ohm Monoblock Car Stereo Amplifier Amp
The Recoil L-3 series amplifiers are designed with one function in mind, performance. These amplifiers are a cost-effective solution for anyone needing to up their car audio game. Available in a 4-channel and mono version, L-3 will get you cranking it up without breaking the bank
Specifications
- 4 Way Protection Circuit:Thermal, Voltage, Speaker, DC

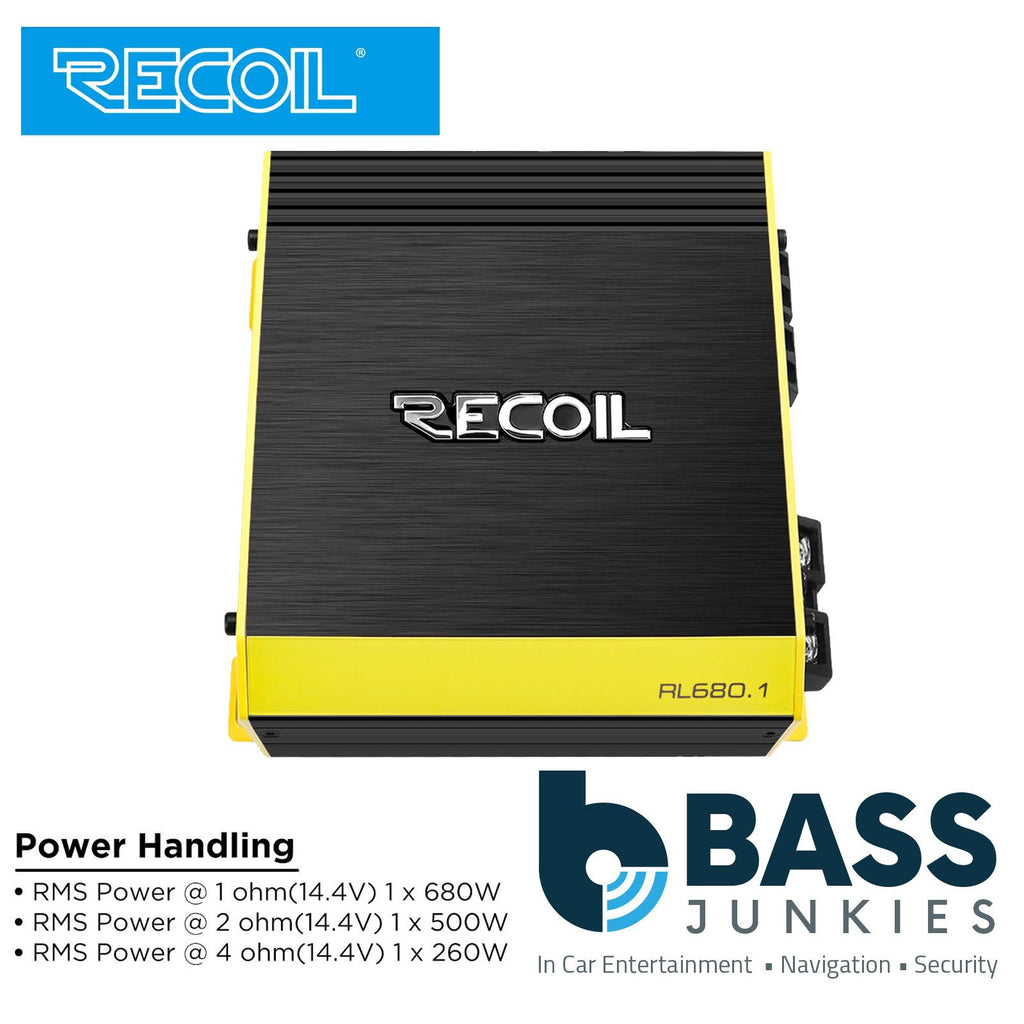

- Power @1Ohm (14.4V):680W x 1
- Power @2Ohm (14.4V):500W x 1
- Power @4Ohm (14.4V):260W x 1
- Power (Bridged) @4Ohm (14.4V):N/A
- Power (Bridged) @2Ohm (14.4V):N/A
- Operating Voltage:9V-16V
- Idling Current (Power On):690mA
- Frequency Response:10Hz-300Hz
- Signal to Noise Ratio (SNR):94dB
- THD+N (@1W):0.23%
- Input Sensitivity(Low Level):220mV-12V
- Input Sensitivity(High Level):N/A
- Bass Boost:0-12dB
- Subsonic Filter:10Hz-35Hz
- Crossover LPF:50Hz-300Hz
- Crossover HPF:N/A
- Bass Remote:Yes
- Clip Indication:1%
- Fuse Rating:40A

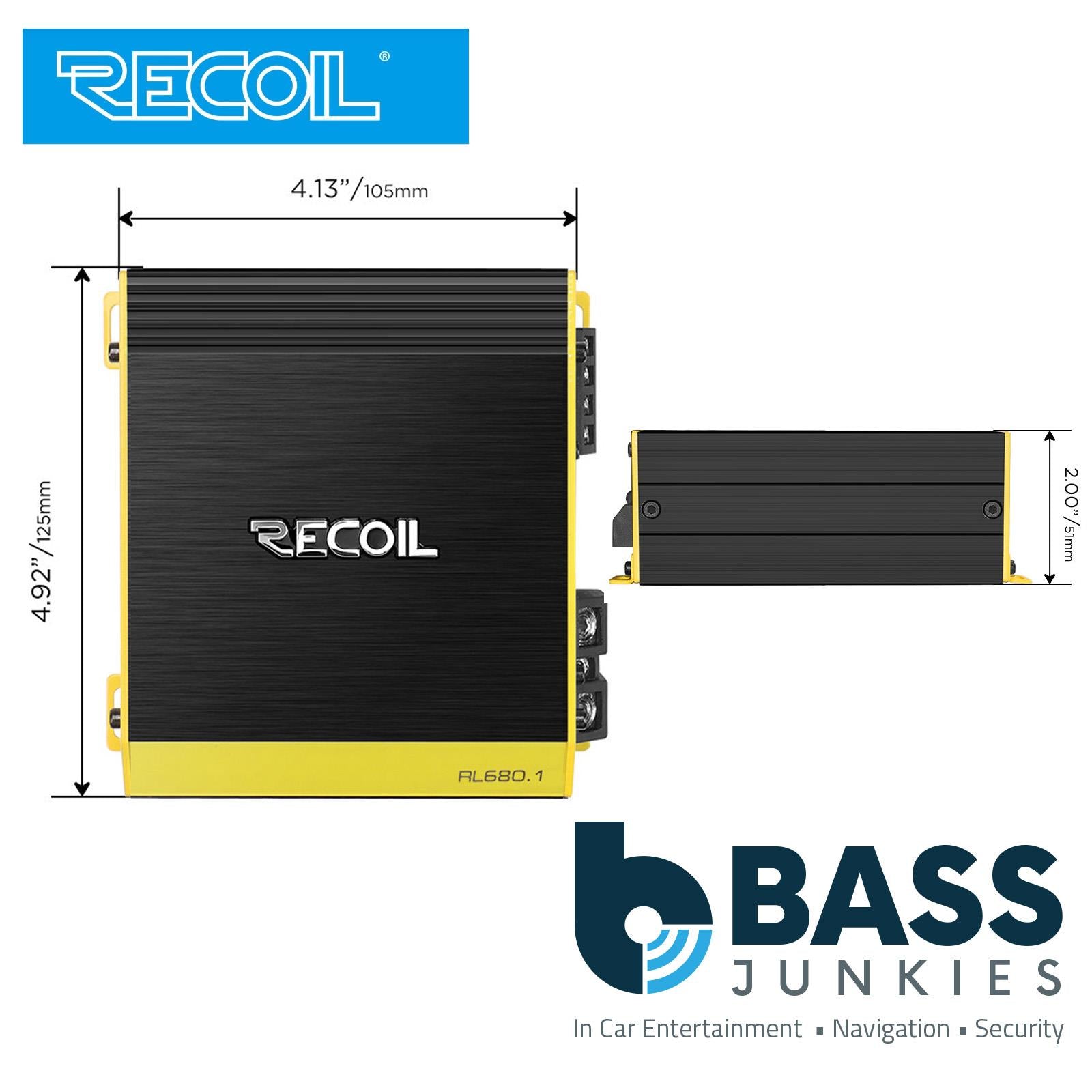

Dimensions:
- 4.13″x4.92″x2″
- (105mmx125mmx51mm)
