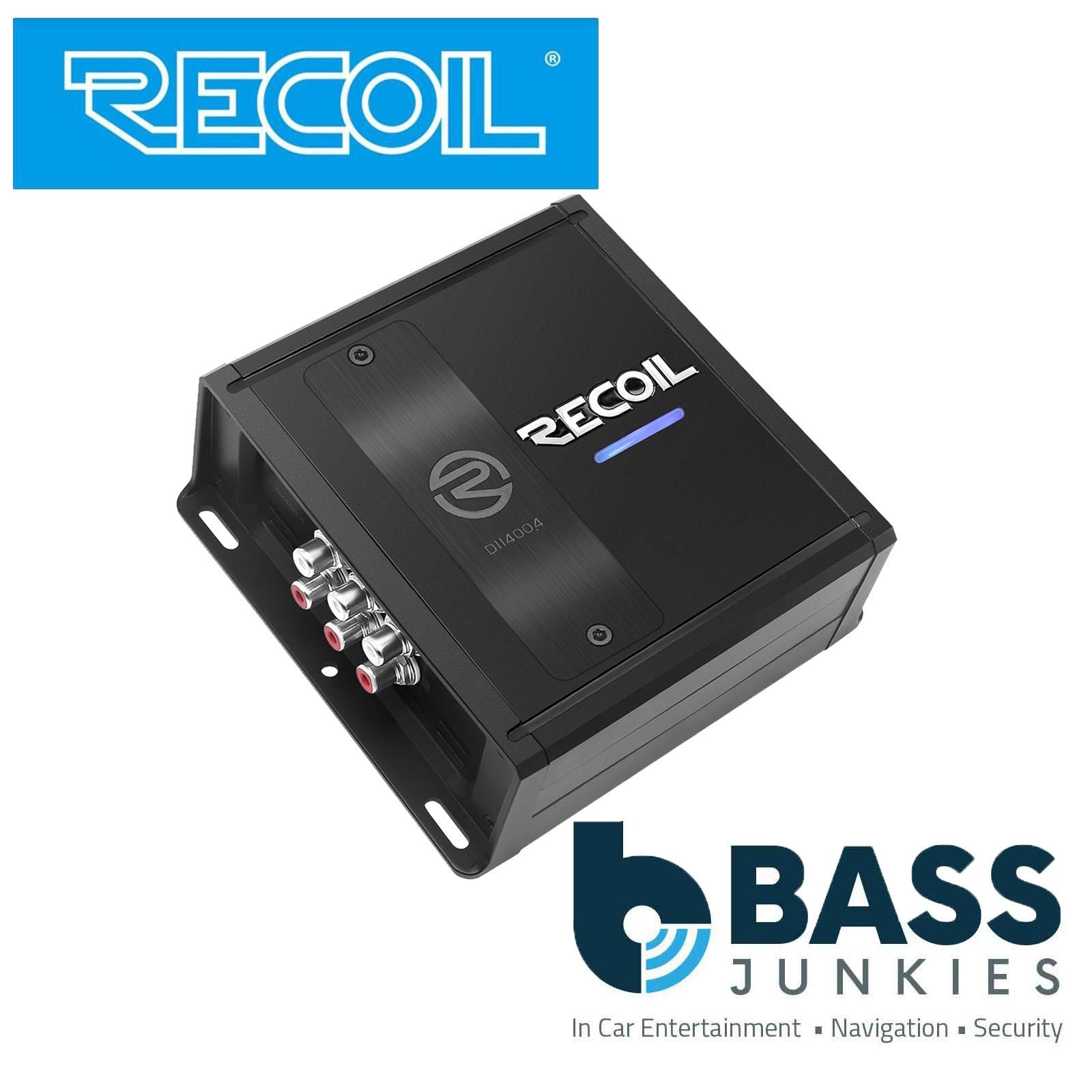

Recoil DII400.4 - 800 Watts 4-Channel 2-4 Ohm Stable Class-D Car Amp Amplifier
The Recoil DII400.4 is an impressive Class-D 4 Channel car amplifier, delivering a robust 800 watts of power. It features an efficient design that is capable of producing 100 watts per channel at 2 ohms, making it suitable for a variety of car audio systems. This amplifier is equipped with a MOSFET power supply for enhanced performance and stability
Don’t let Recoil DII series amp’s modern styling and small size fool you though, Utilizing the latest Class-D technologies, the ultra-compact DII series amplifiers are engineered to deliver loads of audio output power, with incredible efficiency. For your convenience, the DII amps’ controls can be found on top of the amplifier, beneath a protective cover.
Class D 4-Channel Amplifier, 800 Watts Max Power, RMS 100 Watts x 4@2 Ohm; RMS 60 Watts x 4@4Ohm; RMS (Bridged): 200 Watts x 2@4Ohm
Features:

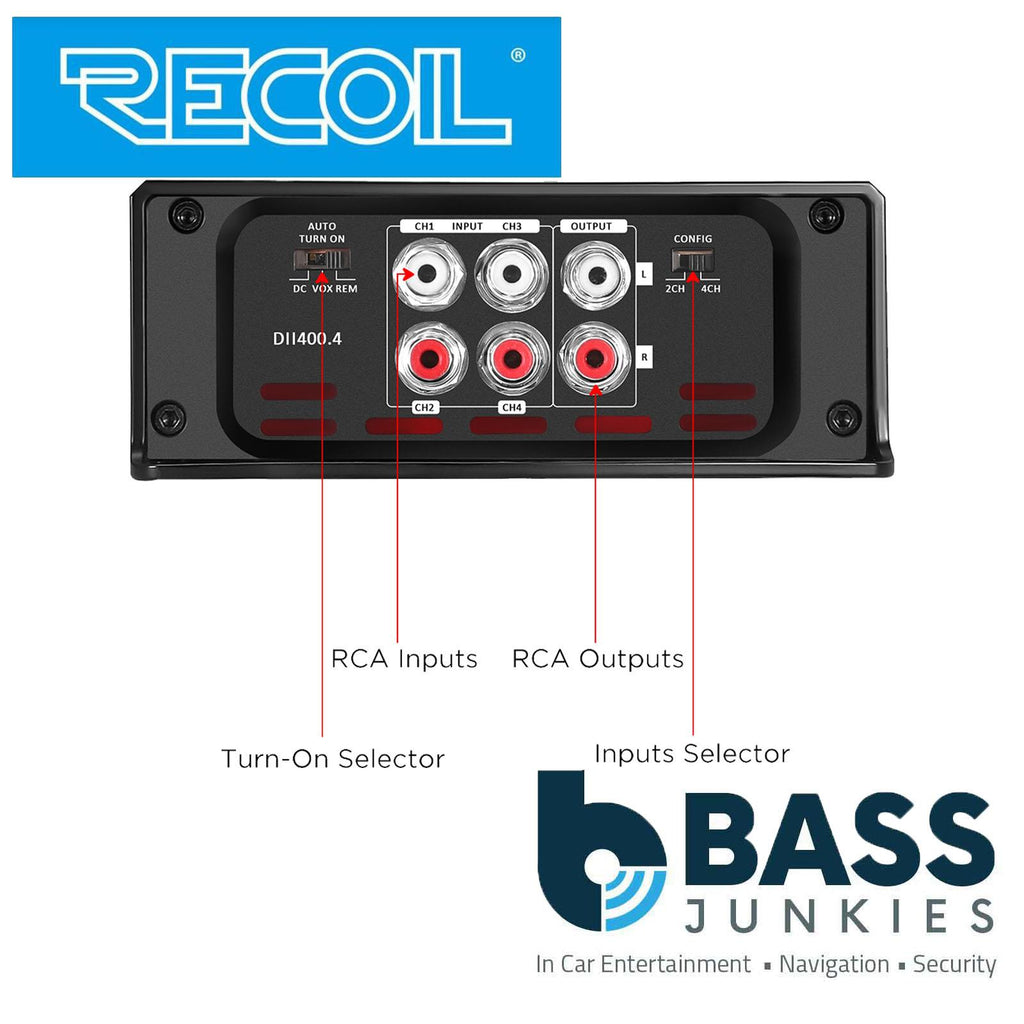

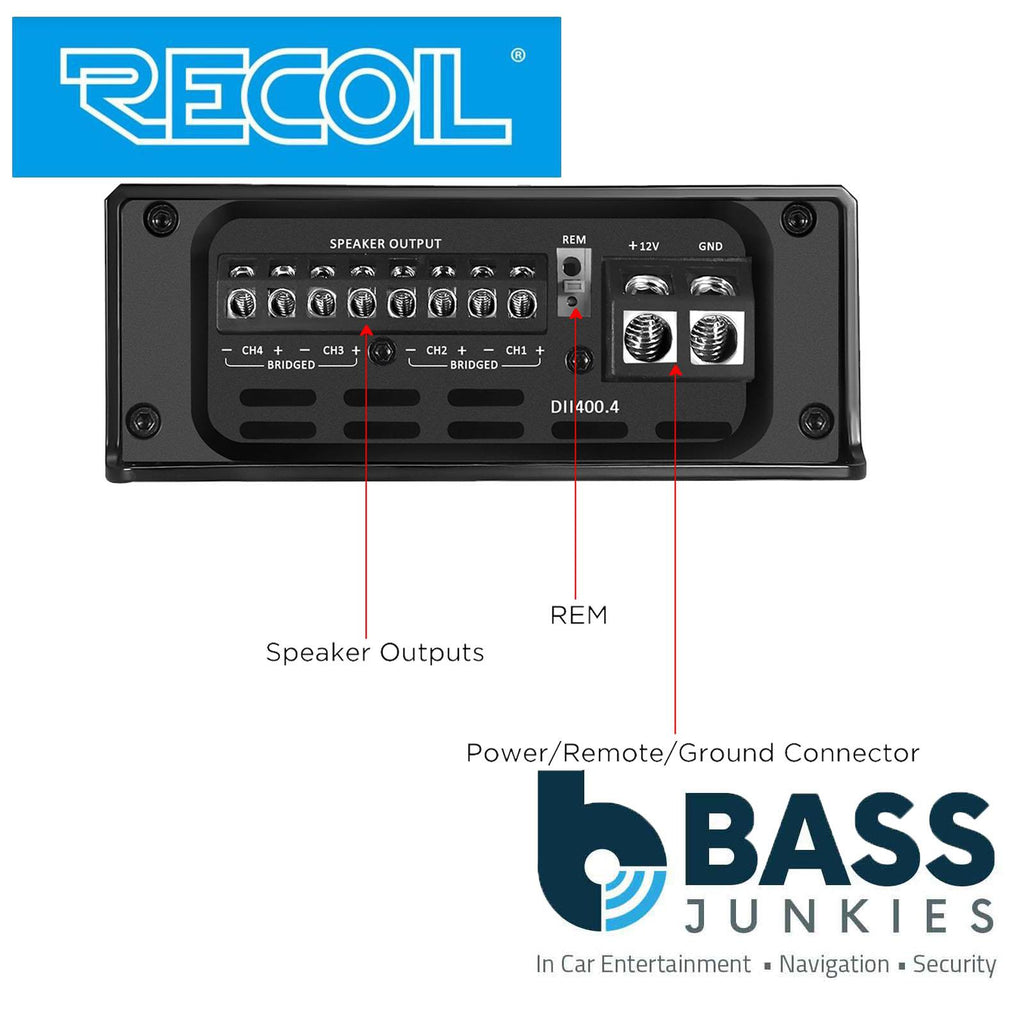

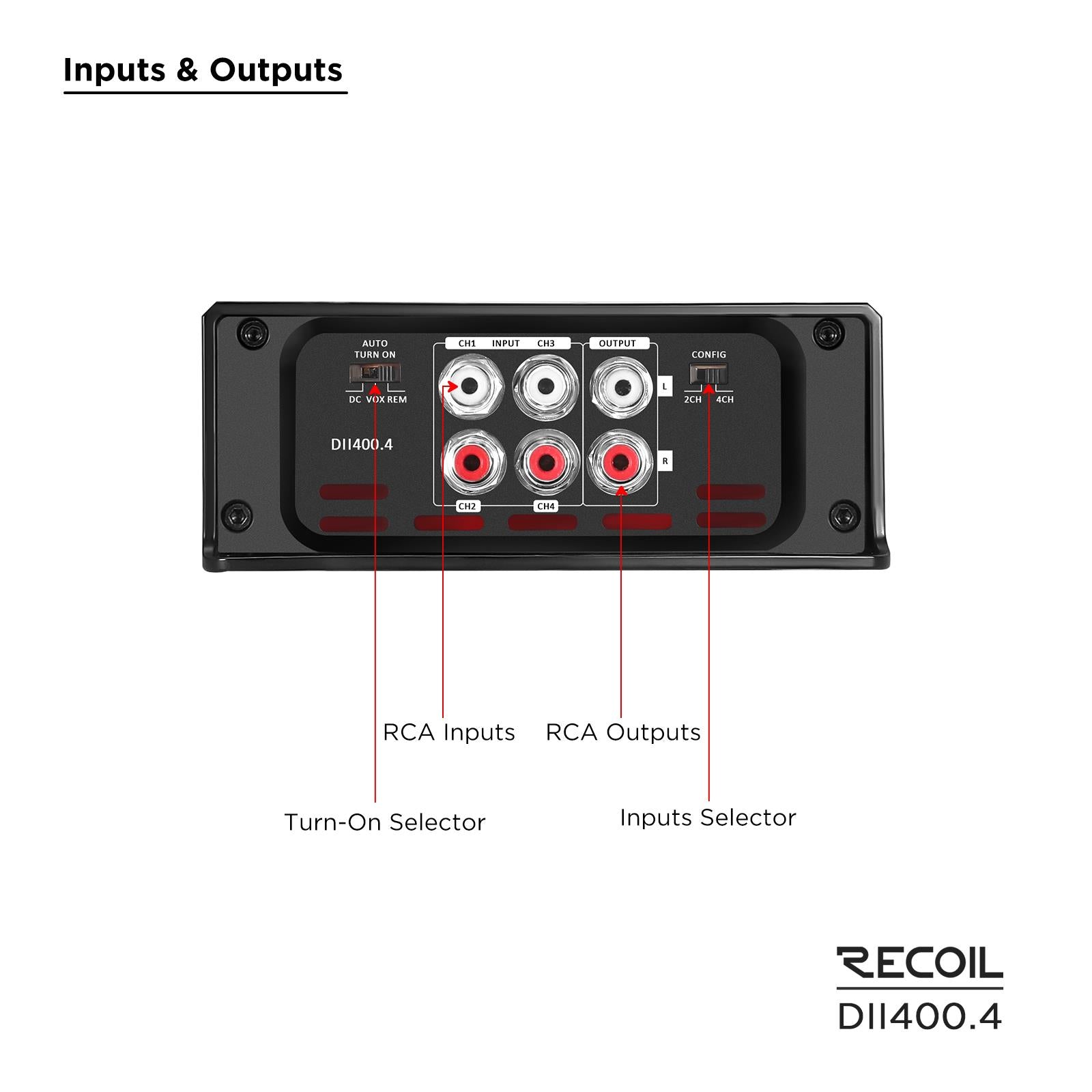

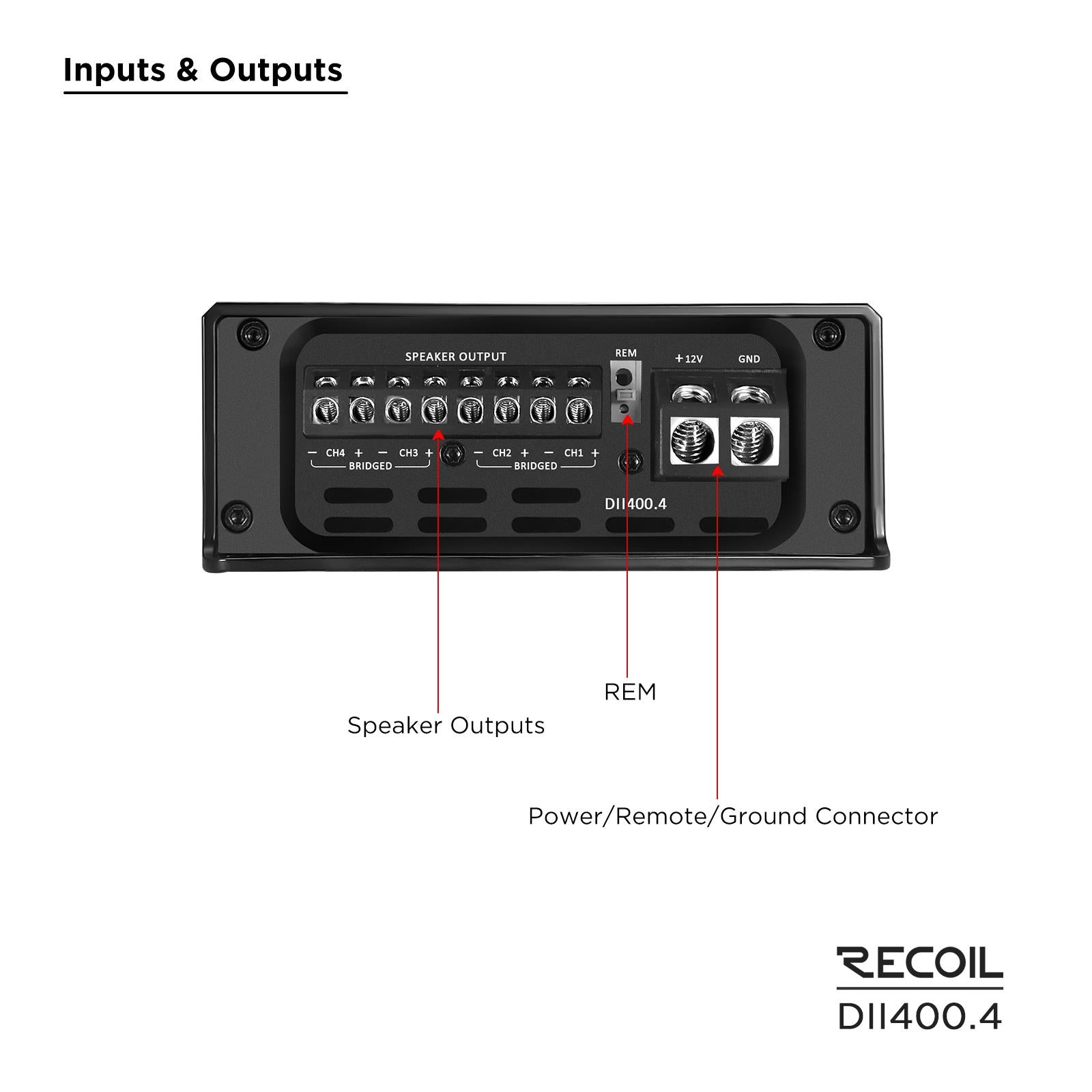

RCA level and speaker level inputs / Turn-on mode selection (REM, VOX, DC) / RCA pass-through outputs / Thermal, voltage, speaker, short circuit protection

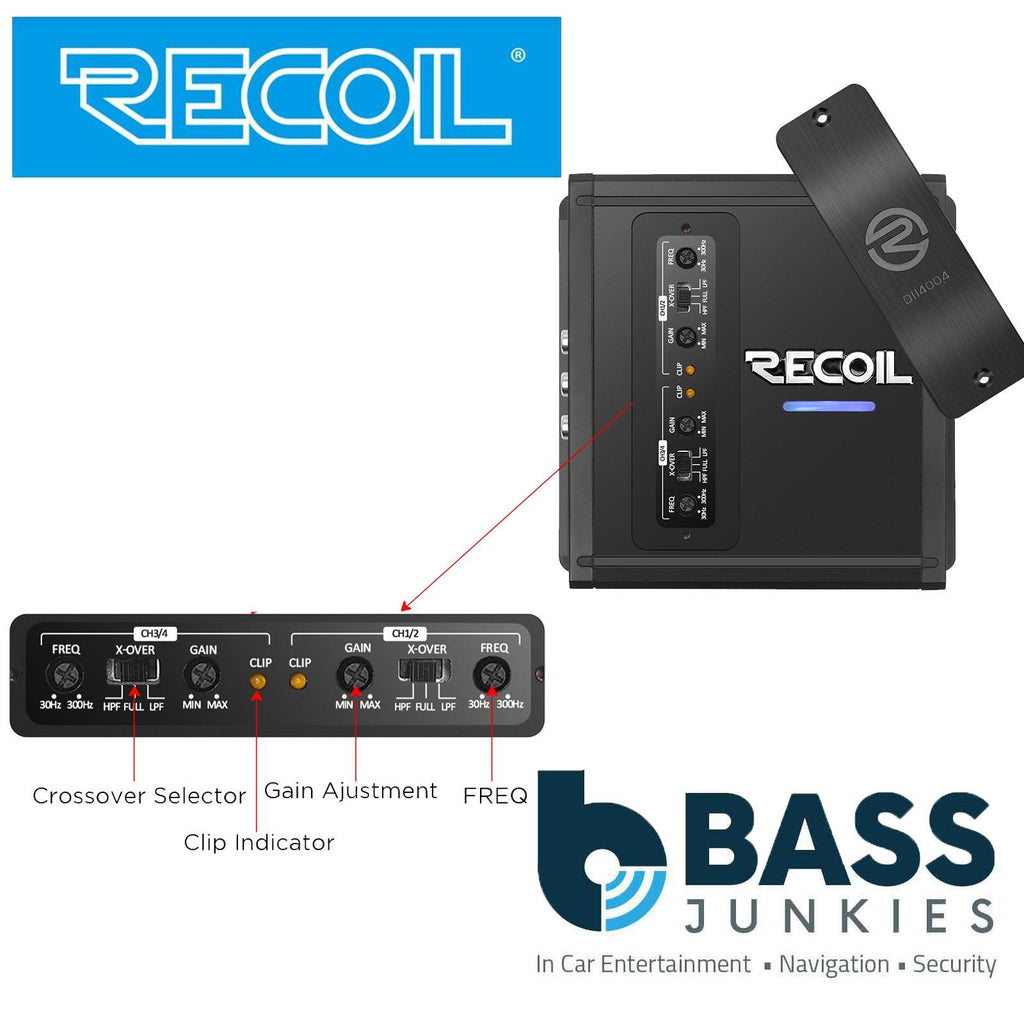

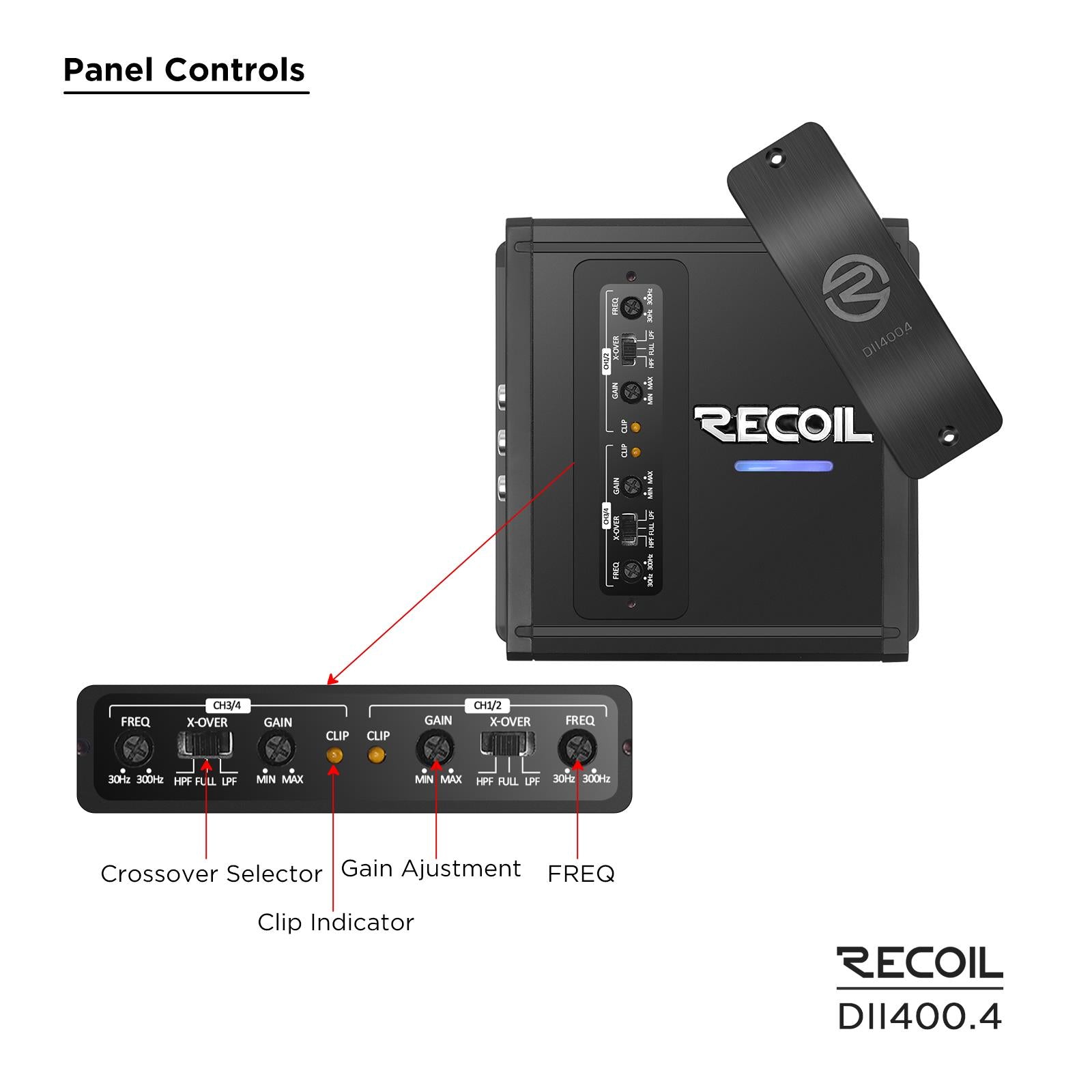

Top mounted clip LED indicator and control panel for easy access, such as the gain, LPF, HPF, crossover, bass boost etc.
DII series amps are designed with conformal coated circuit board protects against dust and water. They can be used for powersports, marine, golfcart and bike applications.
Highly efficient heatsinks keep the amplifier cool with a sophisticated new look
Compact and lightweight design, allowing for easier installation in tight spaces.
Low and high-pass filters, enabling users to tailor the sound output for optimal performance.
Bridgeable channels, which allow flexibility in setup for powering subwoofers or enhancing speaker output.
Durable construction, designed to withstand the rigors of automotive environments.
This amplifier is ideal for anyone looking to enhance their vehicle's audio experience with clear, powerful sound
Specifications:
- RMS power @ 4 ohm (14.4V): 4 x 60W
- RMS power @ 2 ohm (14.4V): 4 x 100W
- RMS power @ 1ohm (14.4V): N/A
- RMS power @ 4 ohm mono (14.4V): 2 x 200W
- Frequency Response: 10Hz-24KHz
- Signal to Noise: 85dB
- Efficiency @ 4 ohm: 78%
- Input Sensitivity: 0.2V-12V
- High Pass Filter: 3OHz -300Hz
- Low Pass Filter: 3OHz-300Hz
- Fuse Rating (ATC): 40A

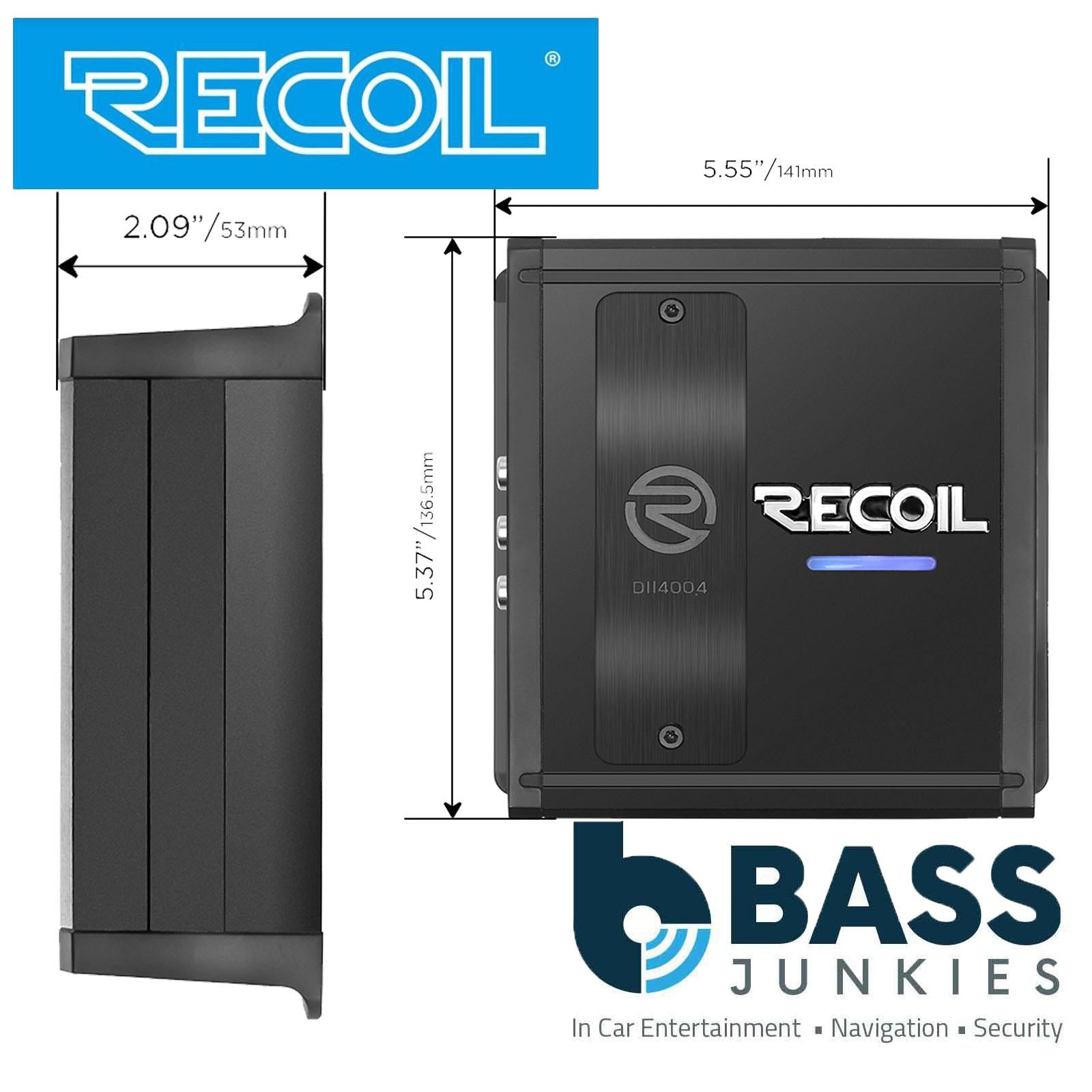

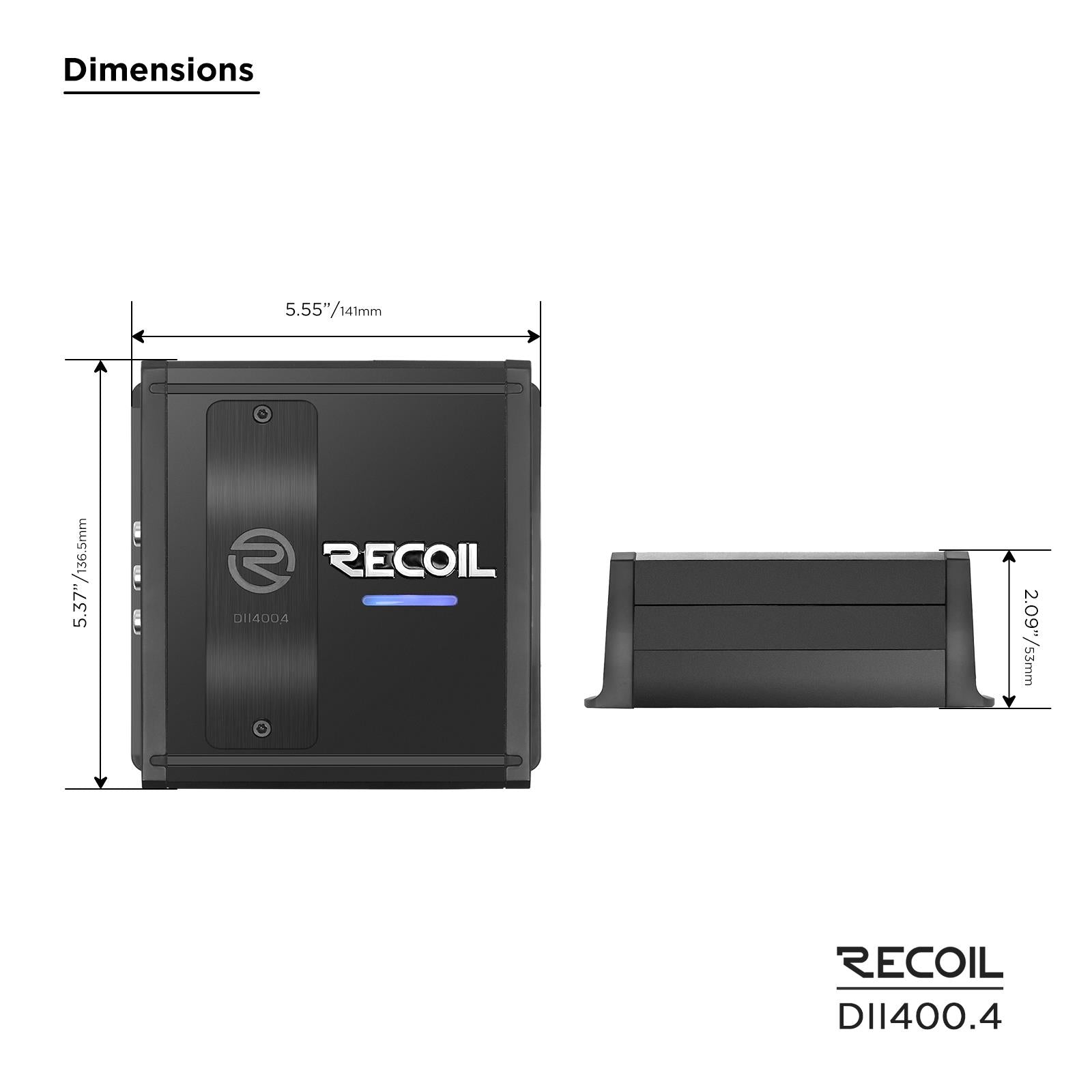

- Dimensions (mm): 5.55″ x 5.37″ x 2.09″(141mm x 136.5mm x 53mm)
