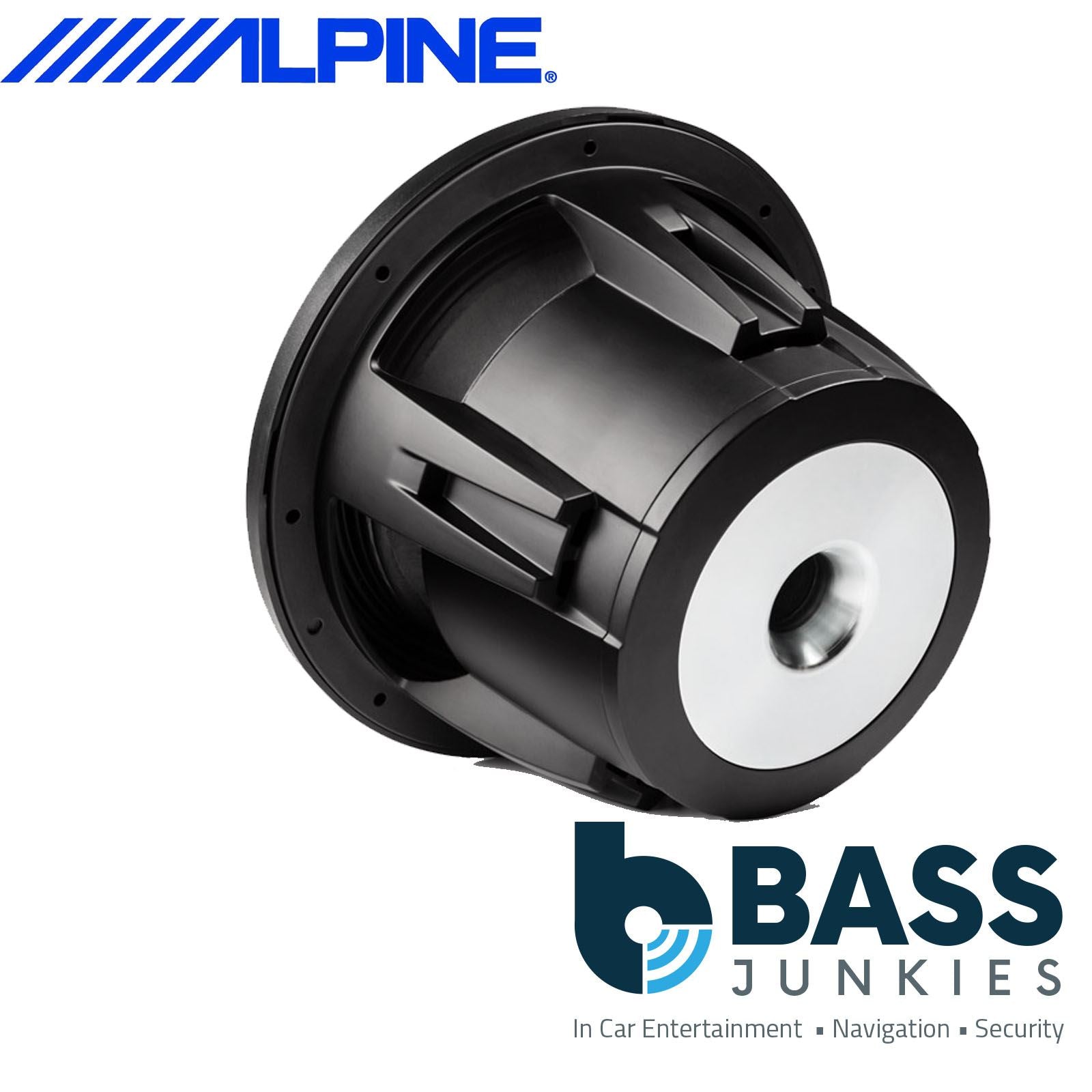

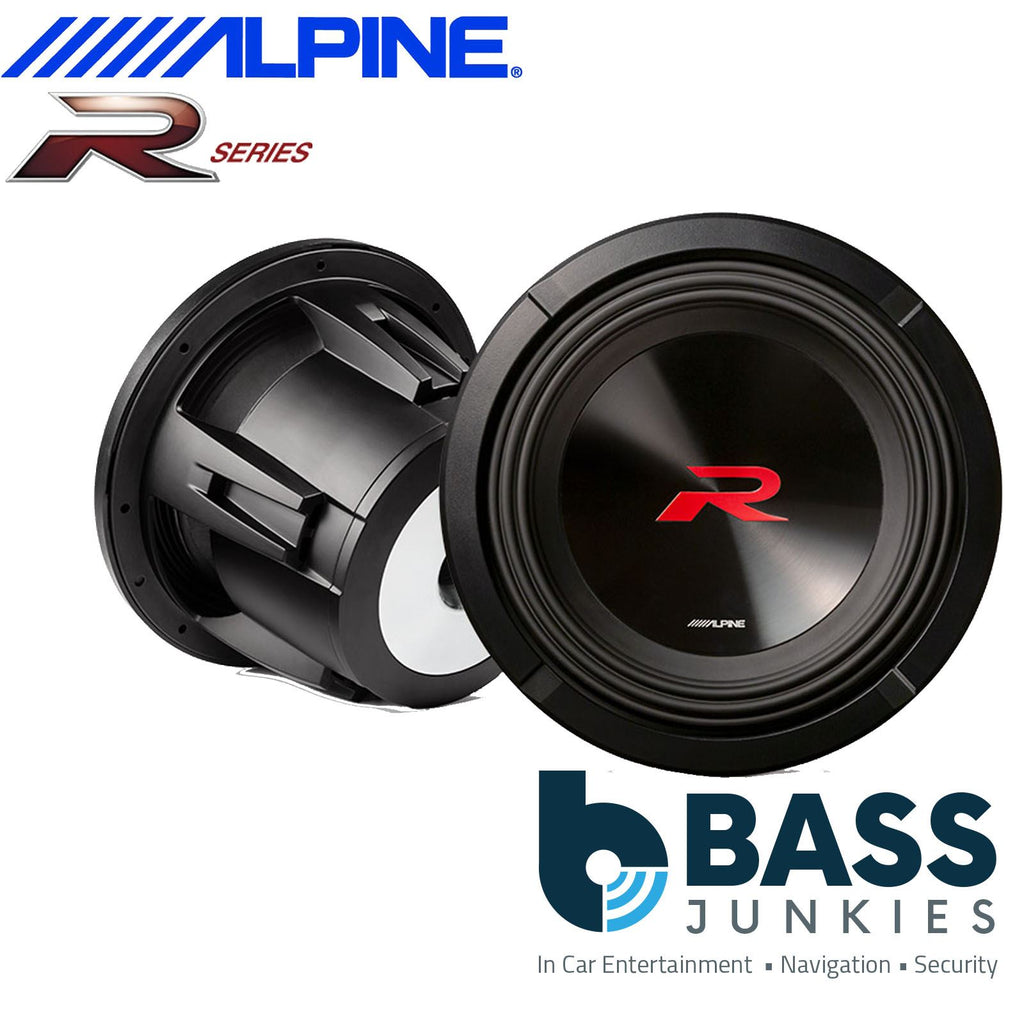

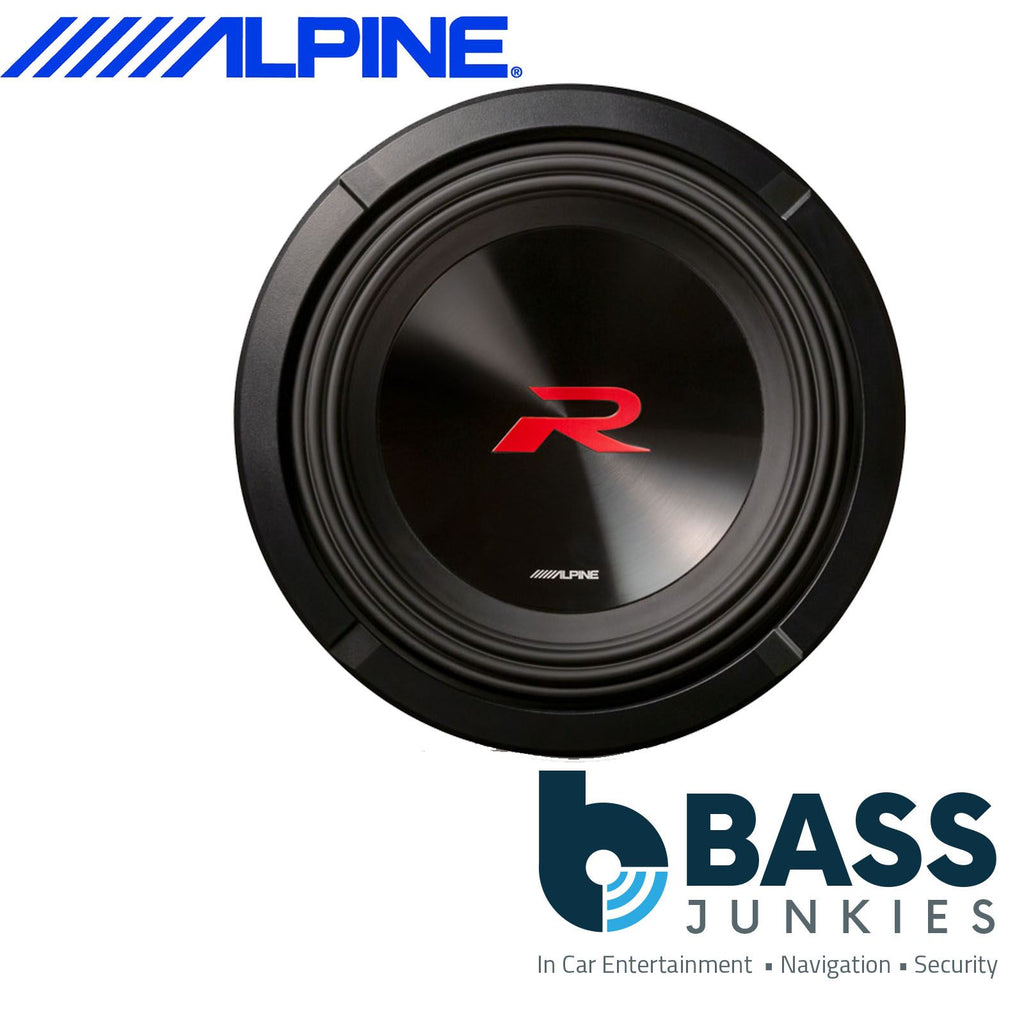

Alpine R2-W10D2 - 2250 Watts 10" inch 25cm 750 W @ 2 Ohm Car Sub Subwoofer
The new 2022 R-Series subwoofers are here-drawing from decades of Subwoofer engineering experience. They deliver deep, clean, accurate bass and feature Alpines HAMR Surround for maximum cone excursion, delivering tons of bass output. the new ceramic dust cap is very light weight and rigid, keeping distortion an absolute minimum. The new, enlarged motor structure ensures better overall woofer control for a clean, strong bass response.
The New 2022 R-Series Subwoofers
The next generation of sound performance is here with the 2nd-Gen R-Series Subwoofers featuring a larger motor structure for more accurate and authoritative bass.
New Motor Structure
The 2nd-Gen R-Series Subwoofers now feature larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control from the subwoofer cone compared to the previous generation. An integrated Faraday ring minimizes distortion for cleaner bass output. A Kevlar-treated cone ensures durability in the subwoofer for reliable performance, even at high volumes.
Next-Gen Sound Performance
Since the Type R platform, Alpines R-Series sound system family has been known for its incredible output and reliable performance. Now Alpine introduces the next-generation of sound performance with the 2nd-Gen R-Series Subwoofers with even more bass output. Since the Type R platform, Alpines R-Series sound system family has been known for its incredible output and reliable performance. Now Alpine introduces the next-generation of sound performance with the 2nd-Gen R-Series Subwoofers with even more bass output.
Additional Reliability
A new polypropylene/ceramic composite dust cap ensures rigidity while also providing incredible internal damping (vibration absorption) to smooth out the bass response and reproduce tight bass. This premium, unique material also has higher heat reliability that ensures non-stop bass performance.
Flexible Application
The 2nd-Gen R-Series Subwoofers contain a Dual Voice Coil (DVC) with easy configuration jumpers that allow for flexible applications. A new EZ-Change twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for additional protection to the cone.
Increased Accuracy
These subwoofers feature Alpines High Amplitude Multi-Roll (HAMR) Surround technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool. This technology allows for 20mm of total cone excursion and motion that creates incredible accuracy from the subwoofer.
Sizes & Variations

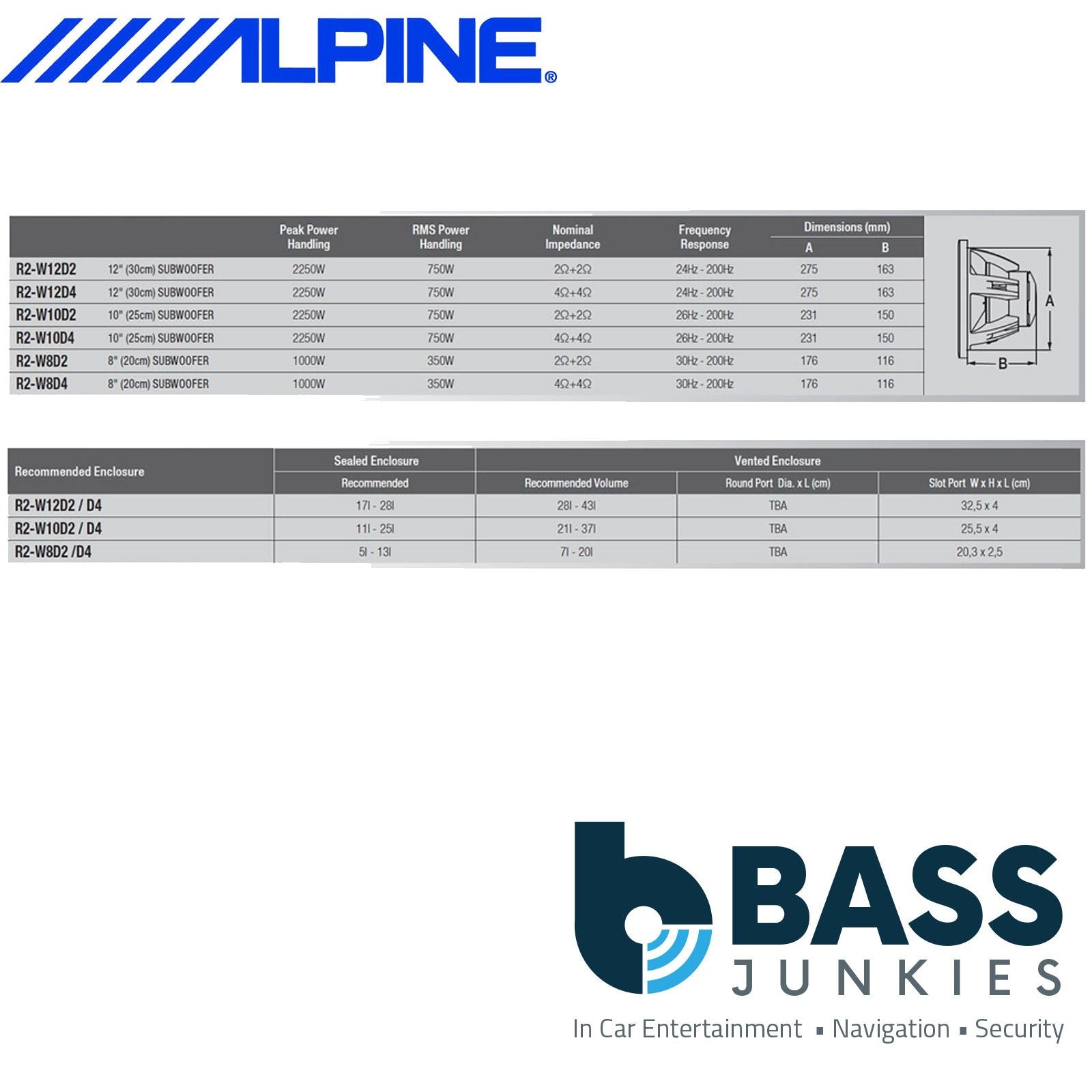

The new R-Series subwoofers are available in 12 inch, 10 inch and 8 inch size configurations and come in dual 2? and dual 4? impedances.
Features
- Dual Voice Coil (DVC) Subwoofers with Configuration Jumpers
- Polypropylene/Ceramic Composite Dust Cap
- Kevlar Reinforced Pulp Cone High-Performance subwoofers
- Twist-Lock Grille Mount System
- High-Amplitude Multi-Roll (H.A.M.R.)?Surround
- Large Double-Stacked Magnets
Specifications
- 750W RMS
- 2250W Peak Power Handling
- Frequency Response: 26Hz-200Hz
- Sensitivity (1W/1m): 82.4dB
- Nominal Impedance: 2? + 2?
- Voice Coil: 65mm?
- X-Max:20mm
- Magnet Weight: 123oz

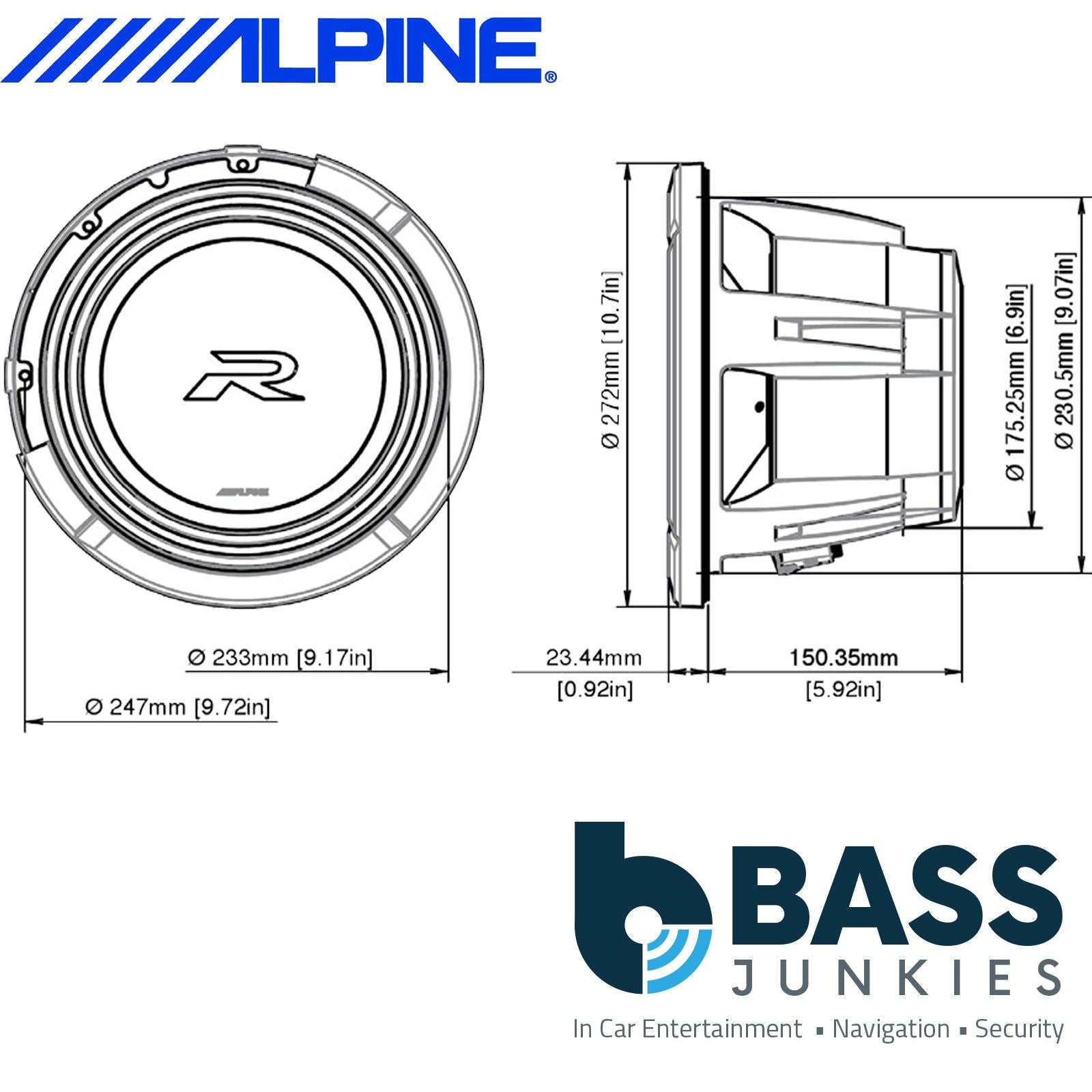

- Mounting Depth: 6 inch (152mm)
- Cutout Size: 9-1/16 inch (231mm)

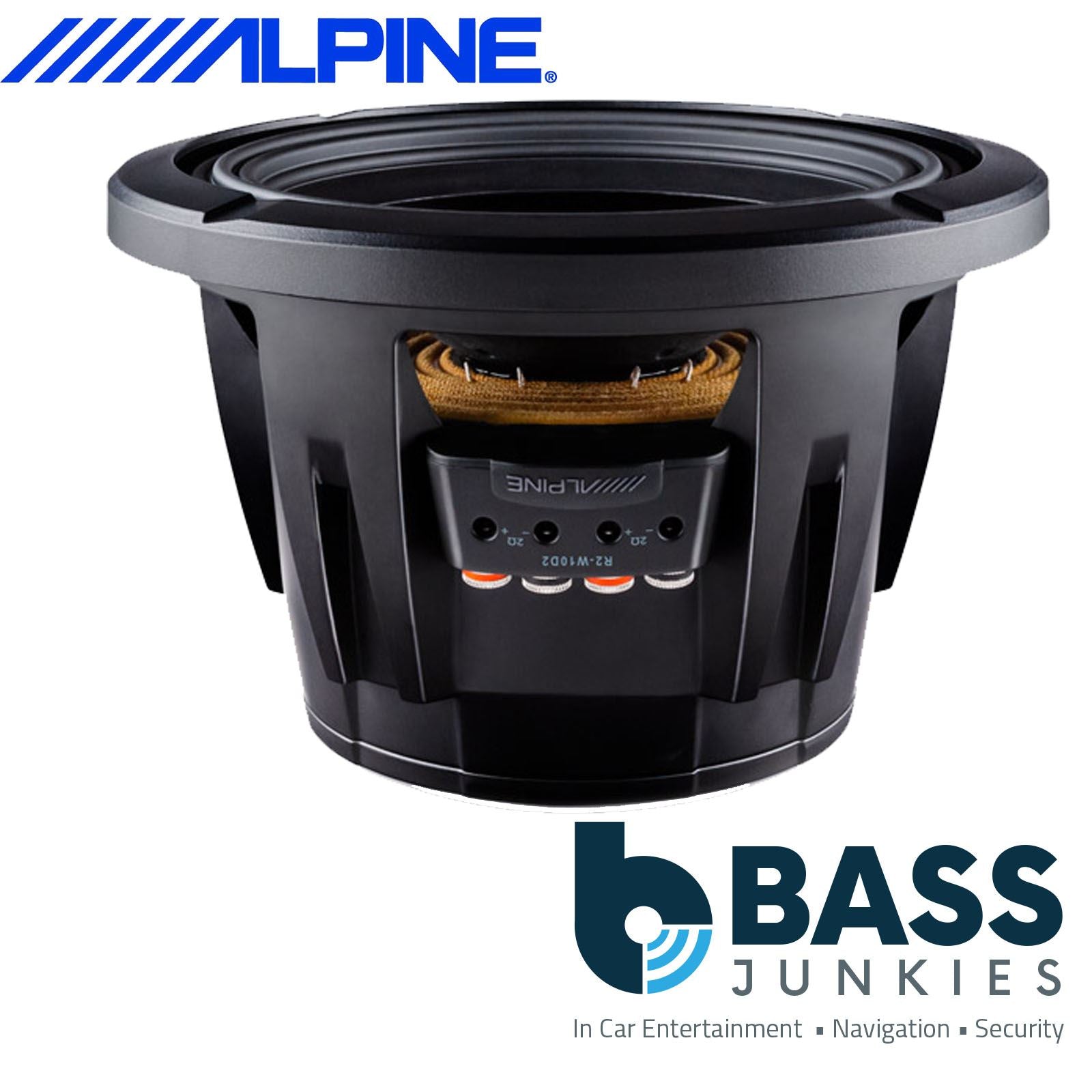

- Push-Type Speaker Terminals (Up to 8AWG Wire Size)
- CTA-2031 Compliant
What is in the Box
- 10 inch R2-Series DVC Subwoofer with Cosmetic Trim Ring
- 2 Jumper Wires for DVC Configuration
- Owners Manual
Disclaimer
If unsure of the part that you require for your vehicle then please message us before you make your purchase as we cannot be responsible for returns and postage costs.
