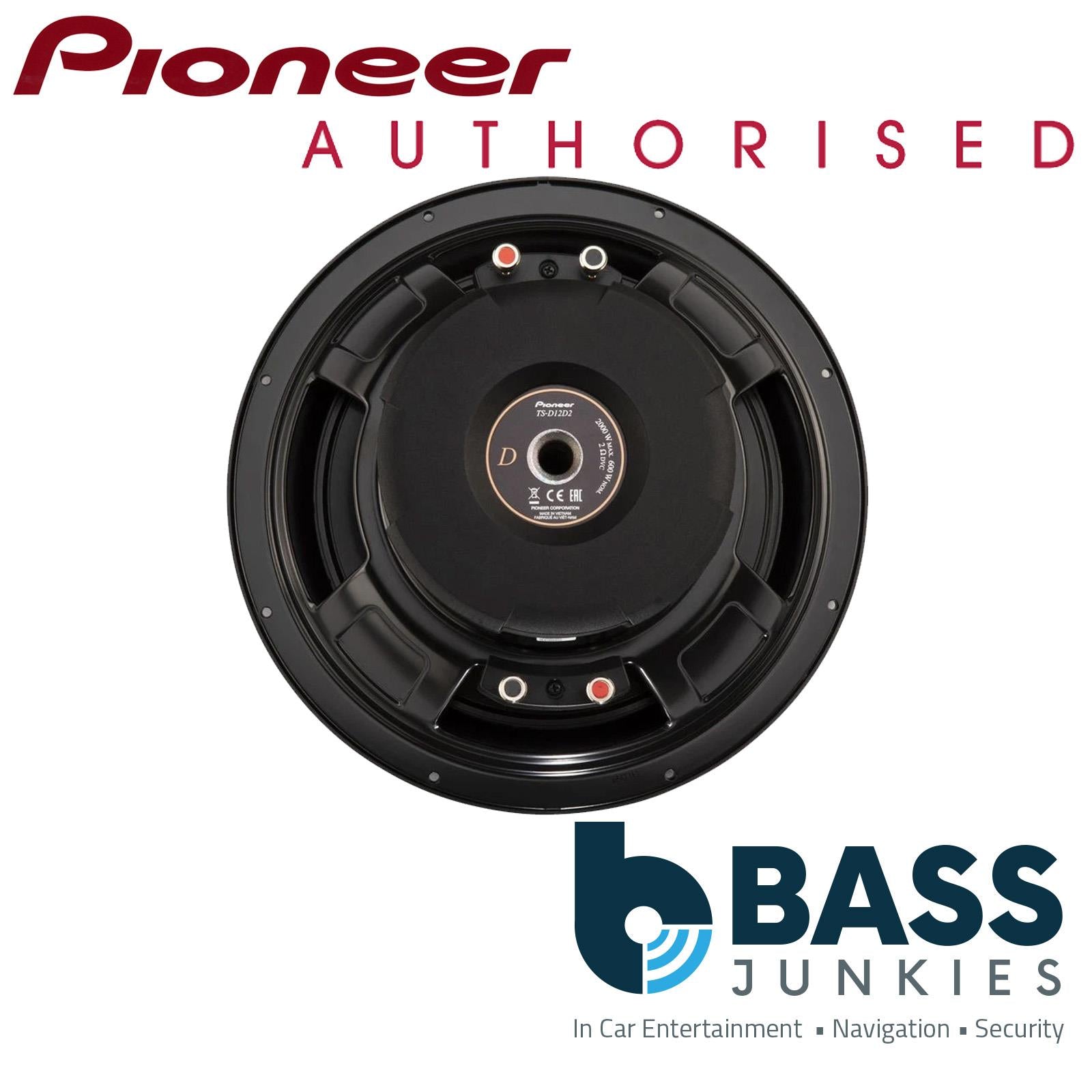

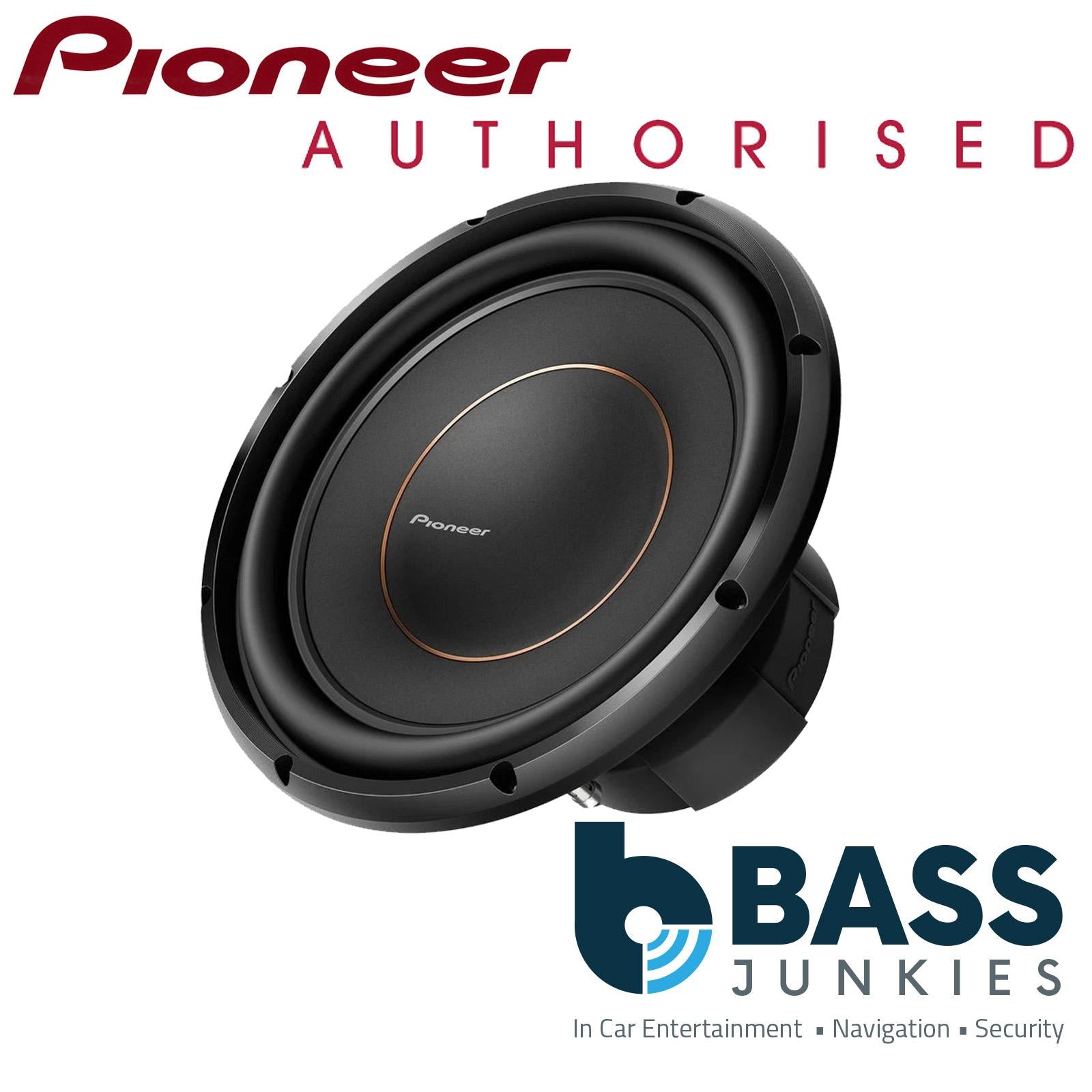

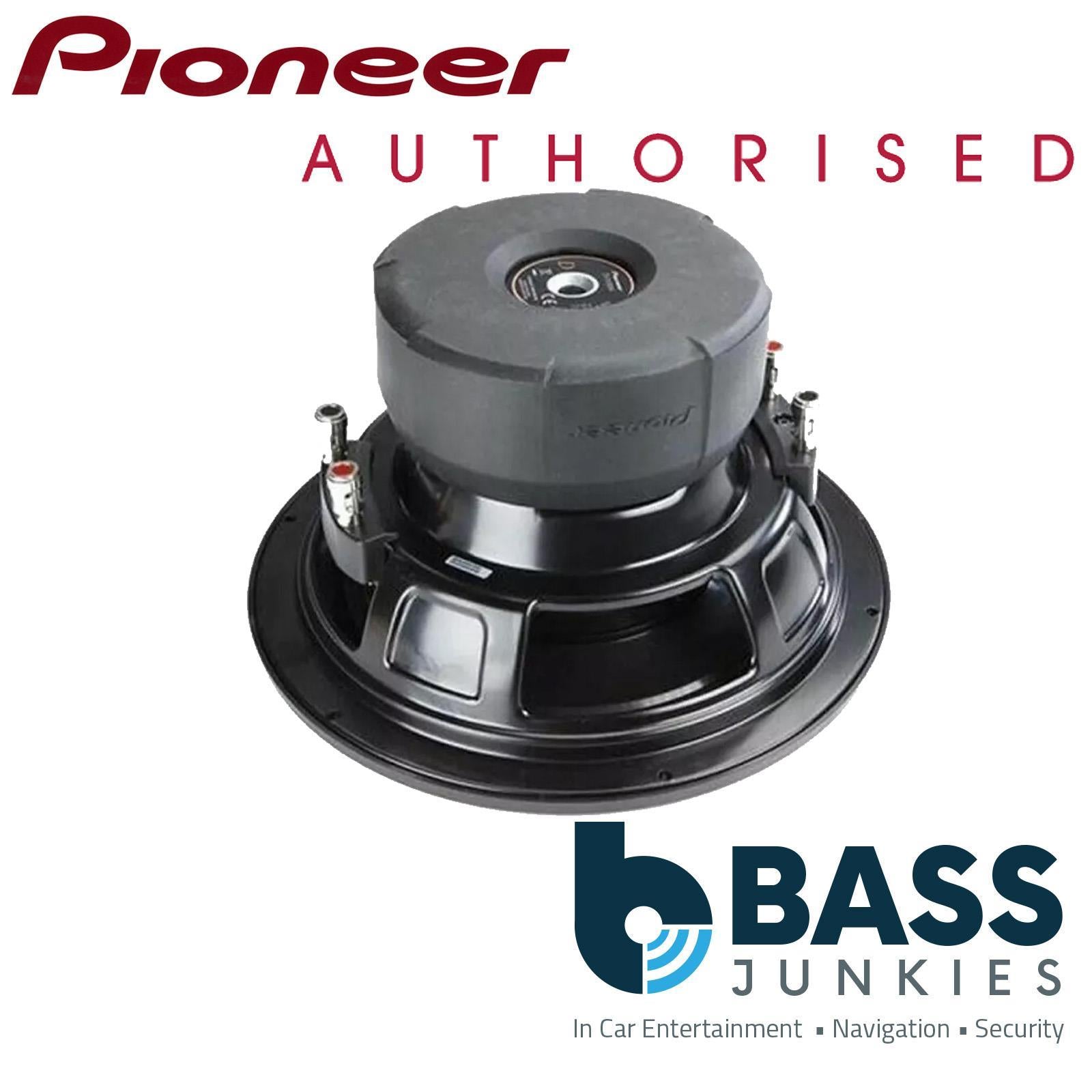

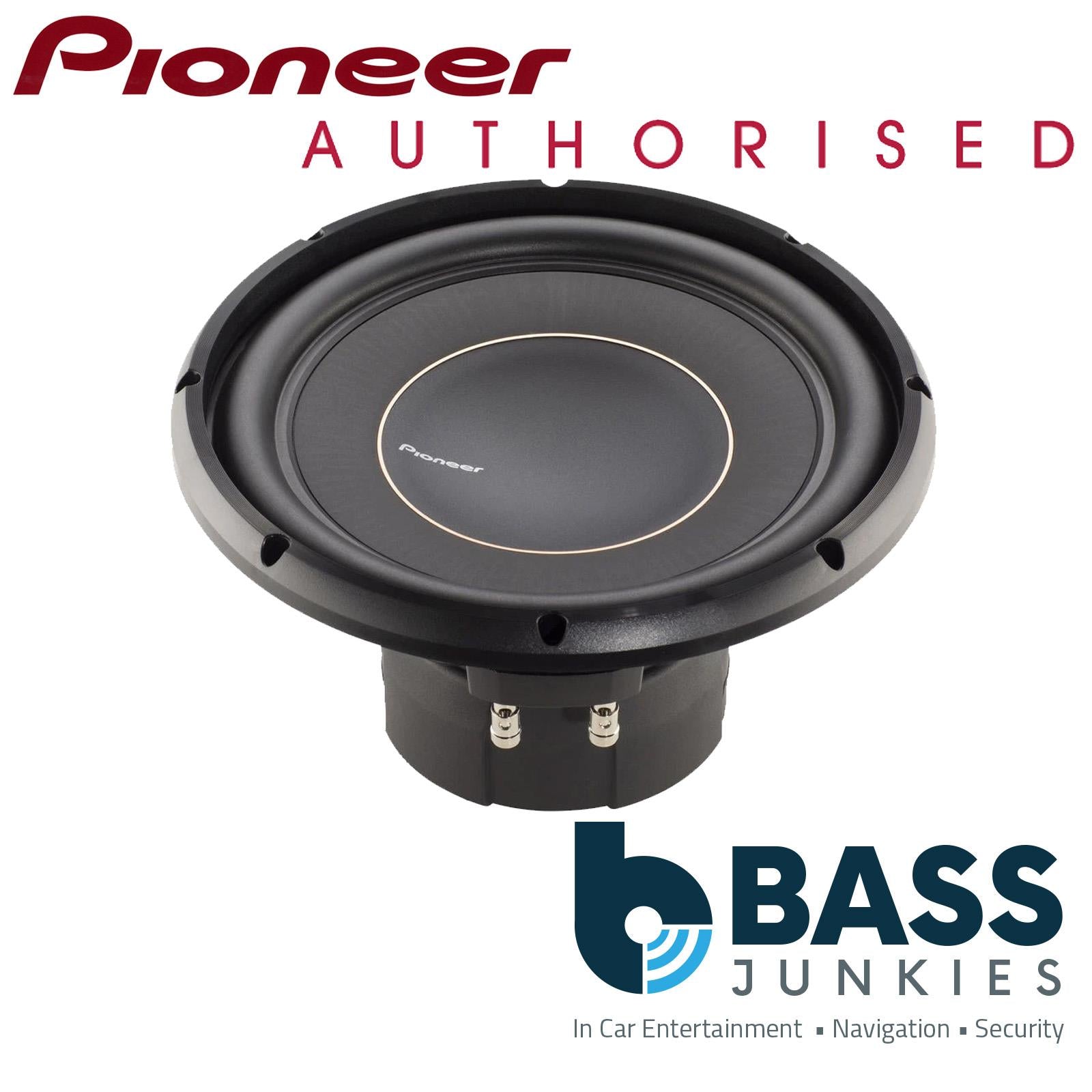

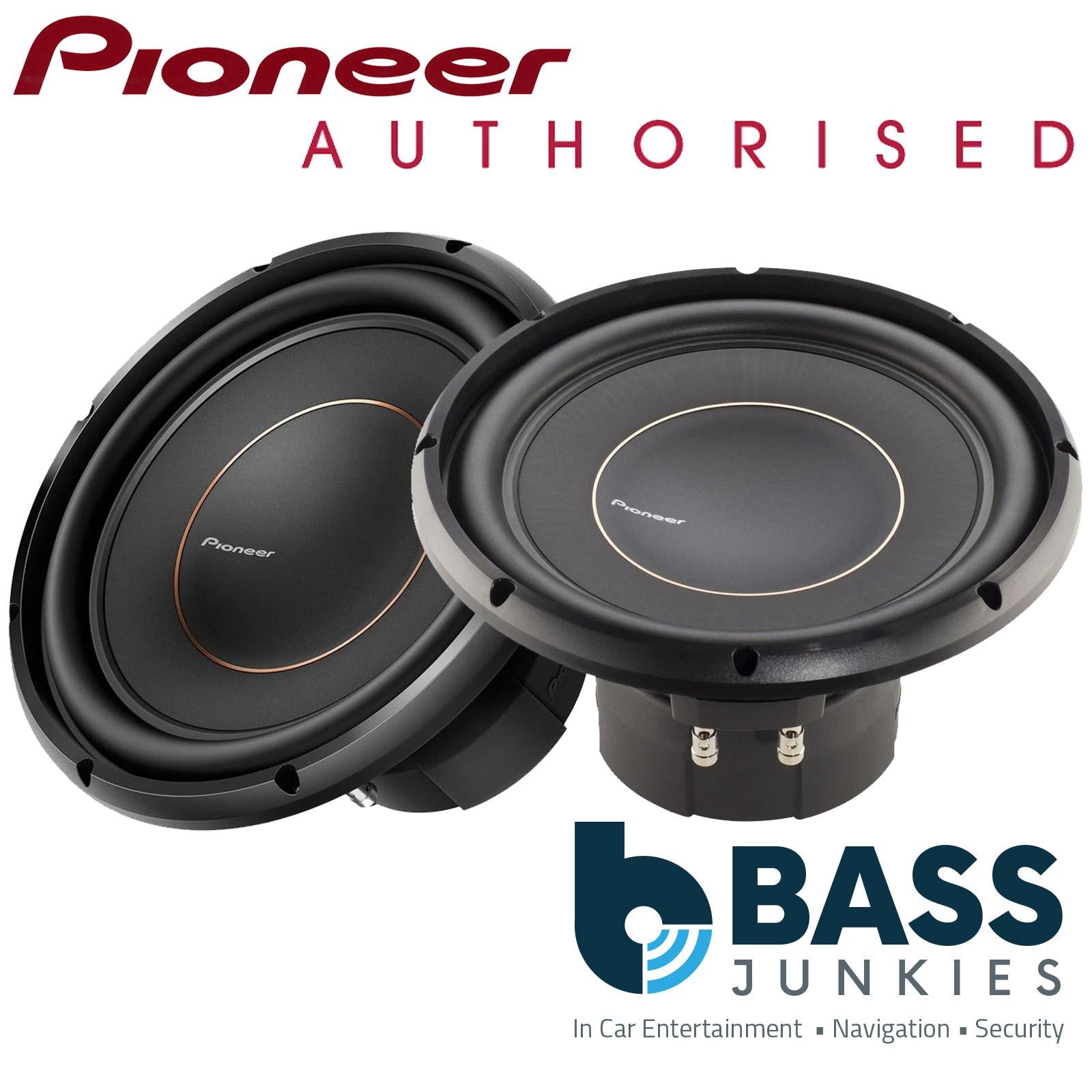

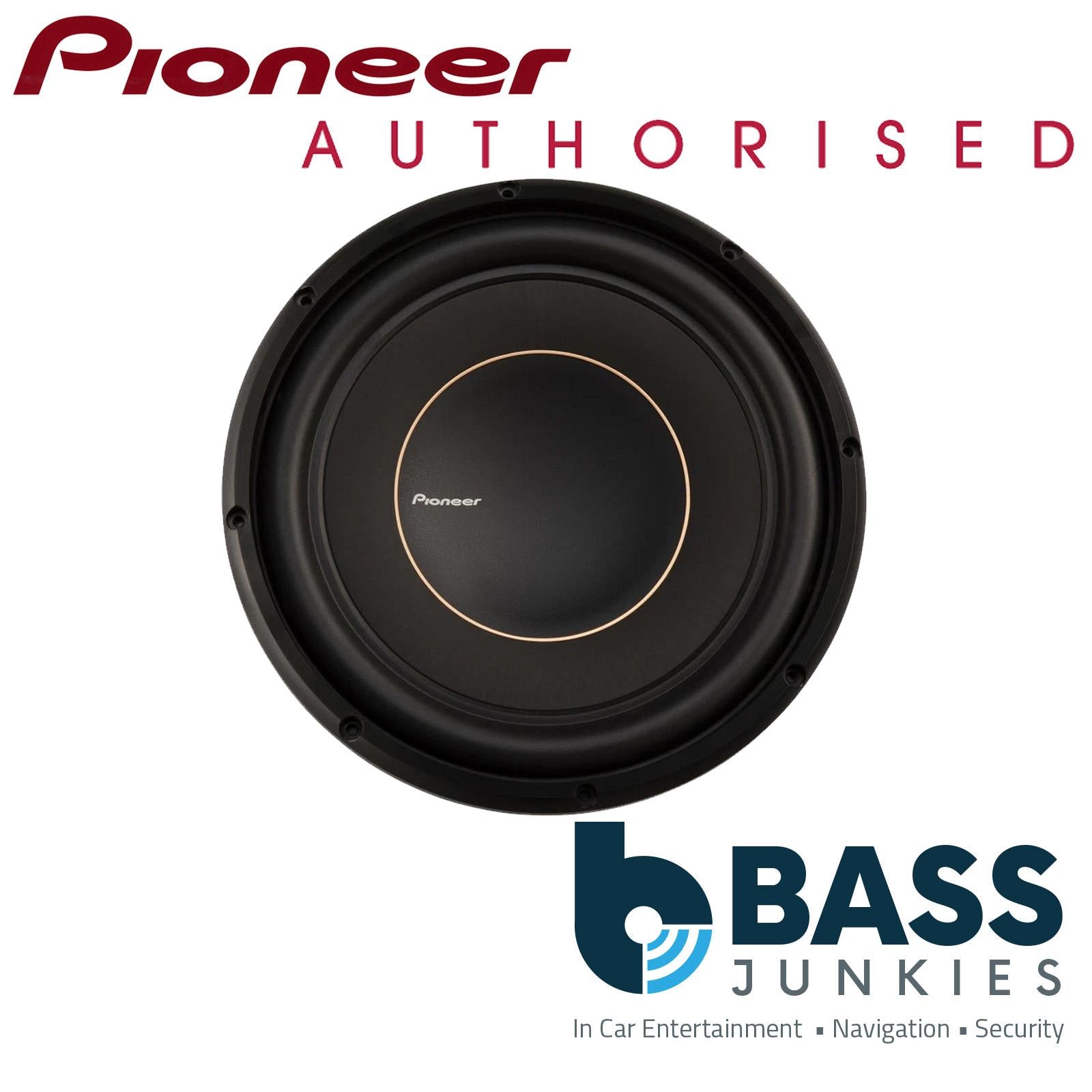

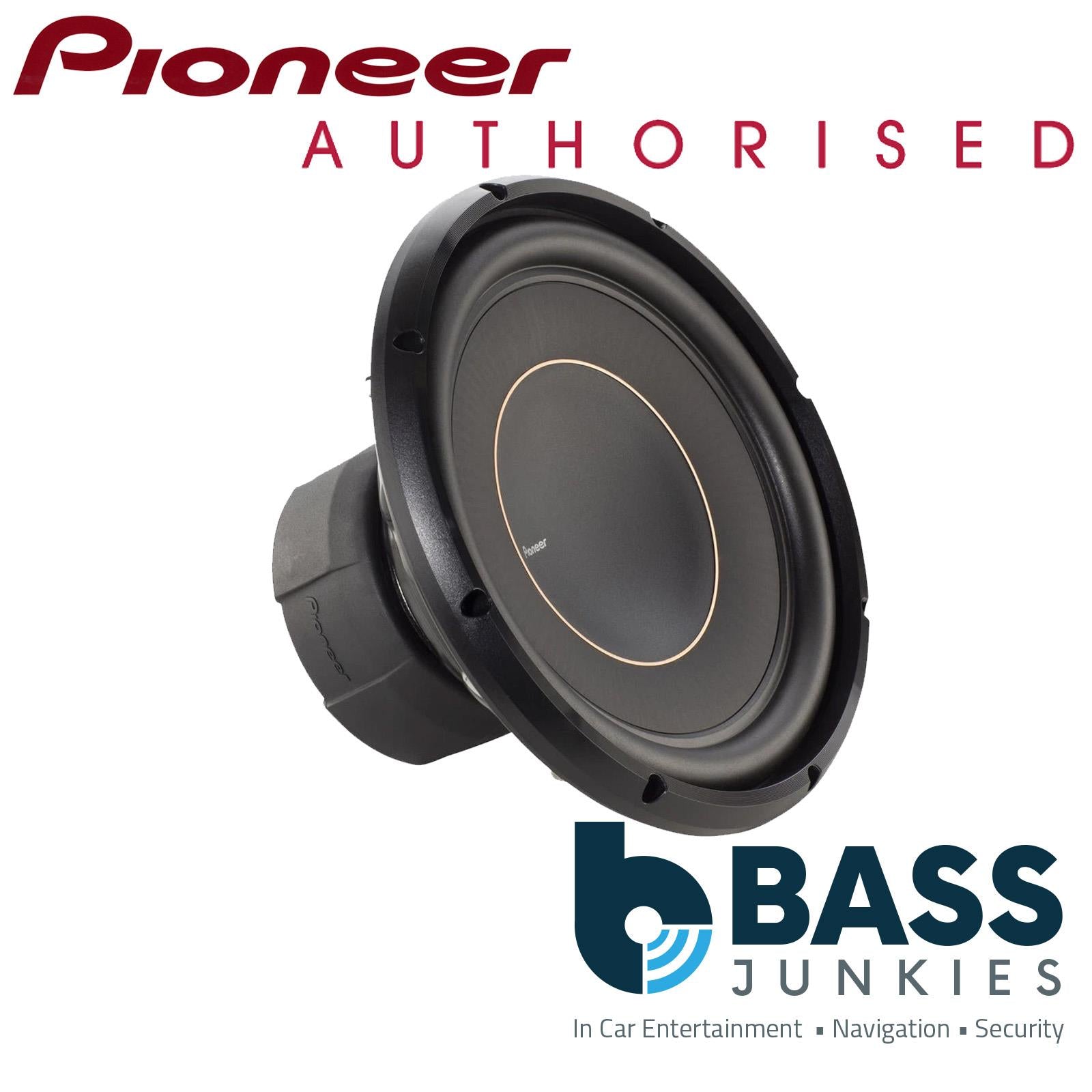

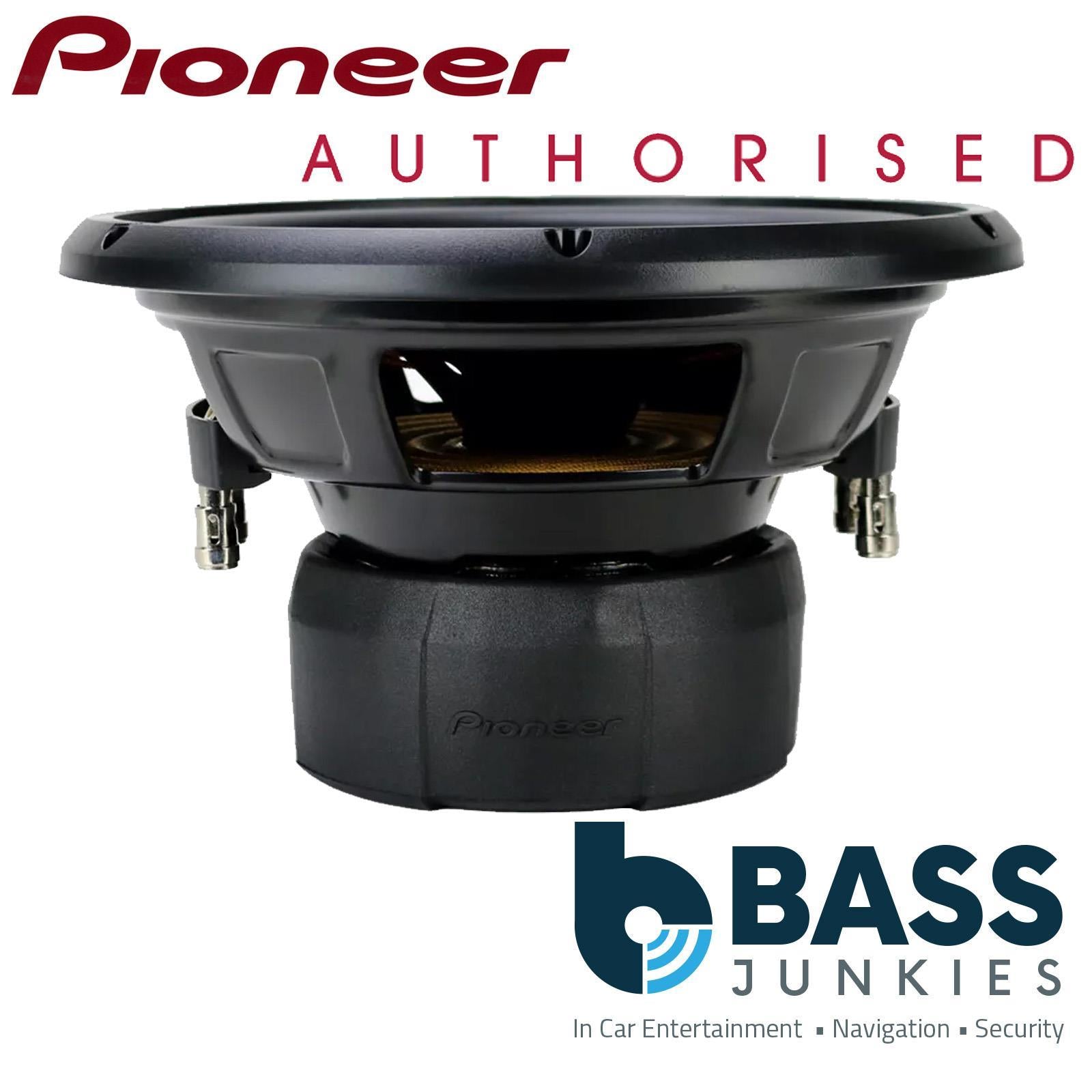

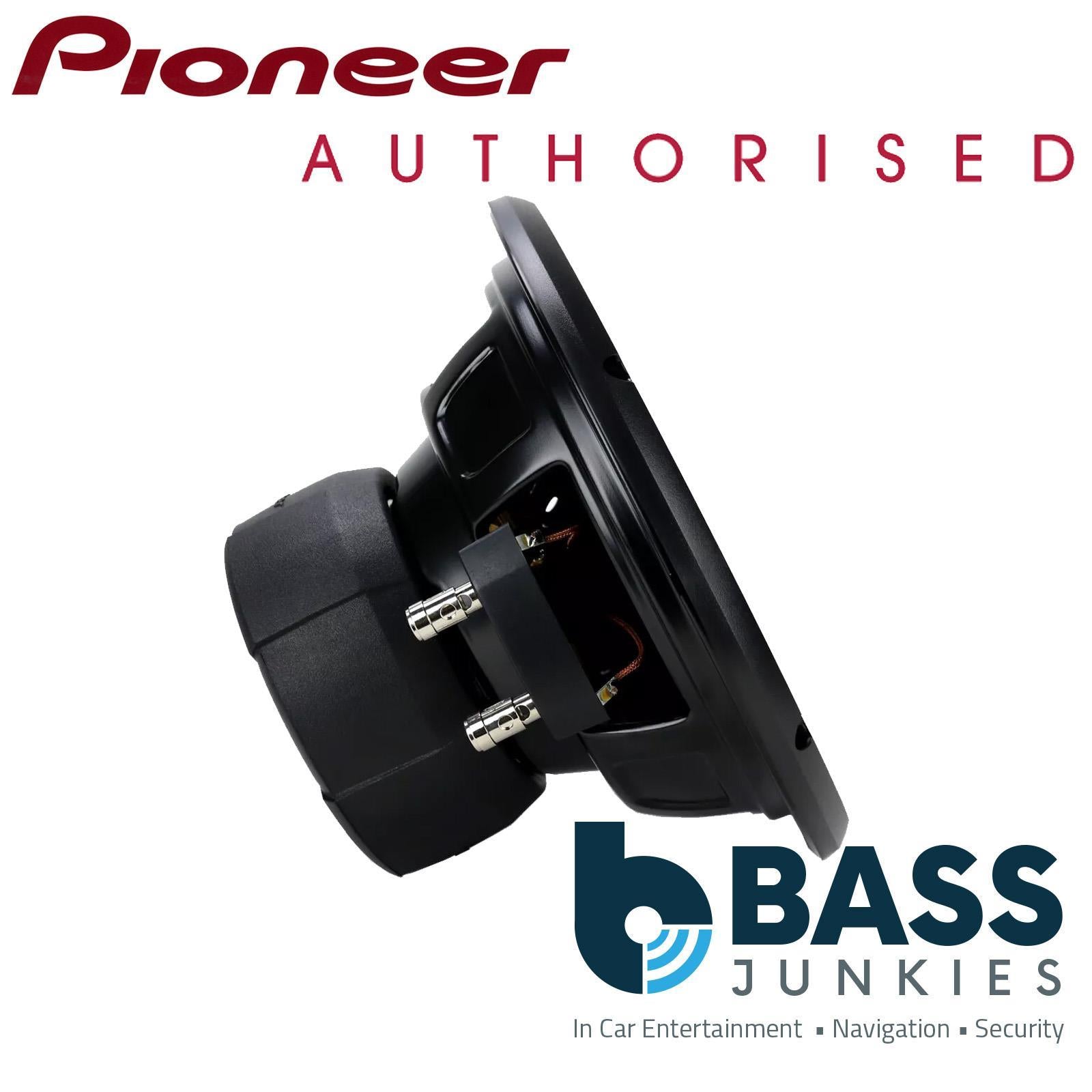

Pioneer TS-D12D2 - 2000 Watts 12" 30cm Dual 2 Ohm D-Series Car Sub Subwoofer (Single Sub Supplied)
The Pioneer TS-D12D2 is engineered for serious bass setups. Built with dual 2-ohm voice coils, it outputs 600 W RMS and can handle peaks of up to 2000 Watts, making it ideal for powerful mono amplifiers or bridged speaker configurations. Whether you’re driving a sealed box for tight, punchy low end or a vented enclosure for booming bass, this sub delivers responsive low frequencies down to 20 Hz.
Build & Design
Durability and performance go hand in hand in this design. The subwoofer uses an IMPP™ cone reinforced with aramid fibre for improved rigidity, reduced distortion, and long-term reliability even at high excursion. The cone is paired with a tough butyl rubber surround that supports movement and helps damp unwanted resonances. With efficient dual-2Ω voice coils, you get more wiring flexibility depending on your amp and setup.
Enclosure & Installation Notes
To get the best out of the TS-D12D2, you’ll want to pair it with the right box. The recommended internal volume is about 28.3 litres (≈ 1.0 ft³) for both sealed and ported enclosures. The mounting depth is approximately 157 mm (≈ 6.2″), with a cut-out diameter of ~281 mm. Note: speaker grille is not included. For optimal performance, use an amplifier capable of delivering stable power, especially when wiring to low impedance loads.
Key Product Features
- Frequency response: 20 Hz - 4700 Hz
- Impedance: 4 Ω Dual Voice Coil (DVC)
- Maximum input power: 2000 Watts
- Nominal input power: 600 Watts
- Sensitivity: 76 dB
- Series: D-Series
- Diameter Size: 30 cm
- Dimensions: 318 mm x 176 mm
- IMPP™ Composite Cone
- Magnets: Ferrite
- Woofer material: Aramid Fiber Interlaced Injection Molded PolyPropylene (IMPP™) Cone
- Cut-out Hole: 281 mm
- Mounting Depth: 157 mm
- Recommended Enclosure (ft³/litre): 1 / 28.3
- Speaker Grill: Not Included
- Weight: 5.32 kg
