Phoenix Gold ZXMPVW1 500W 4 Channel Plug & Play Car Amplifier Kit for Volkswagen, Audi and Seat
Upgrade your factory audio system with the Phoenix Gold ZXMPVW1 Plug & Play Power Up Kit. Designed for selected Volkswagen, Audi and Seat vehicles with the Basic Sound System, this kit includes a ZXM500.4 compact 4-channel amplifier and a ZXMISOT2 2.2-metre ISO-T harness.
The amplifier takes the high-level audio signal from the original system and amplifies it before sending it to your speakers, providing additional power and headroom while retaining the factory radio and dashboard appearance.
Efficient Class-D technology delivers substantial output from a compact enclosure measuring just 165 x 83.1 x 34.8mm. Adjustable high-pass and low-pass filters allow the output to be tailored to the connected speakers, while automatic turn-on through the high-level input supports factory audio integration.
Also included is a compatible vehicle-specific T-harness, selected to suit the vehicle application. This works alongside the supplied ISO harness to connect the amplifier to the compatible factory audio system.
ZXMPVW1 Kit Features:
- Designed for selected Volkswagen, Audi and Seat vehicles with the Basic Sound System
- Retains the original vehicle radio
- Plug-and-play integration for compatible factory connections
- Compact amplifier suitable for discreet installation
- Includes a 2.2-metre ISO-T wiring harness
- 500 watts combined RMS output at 2 ohms

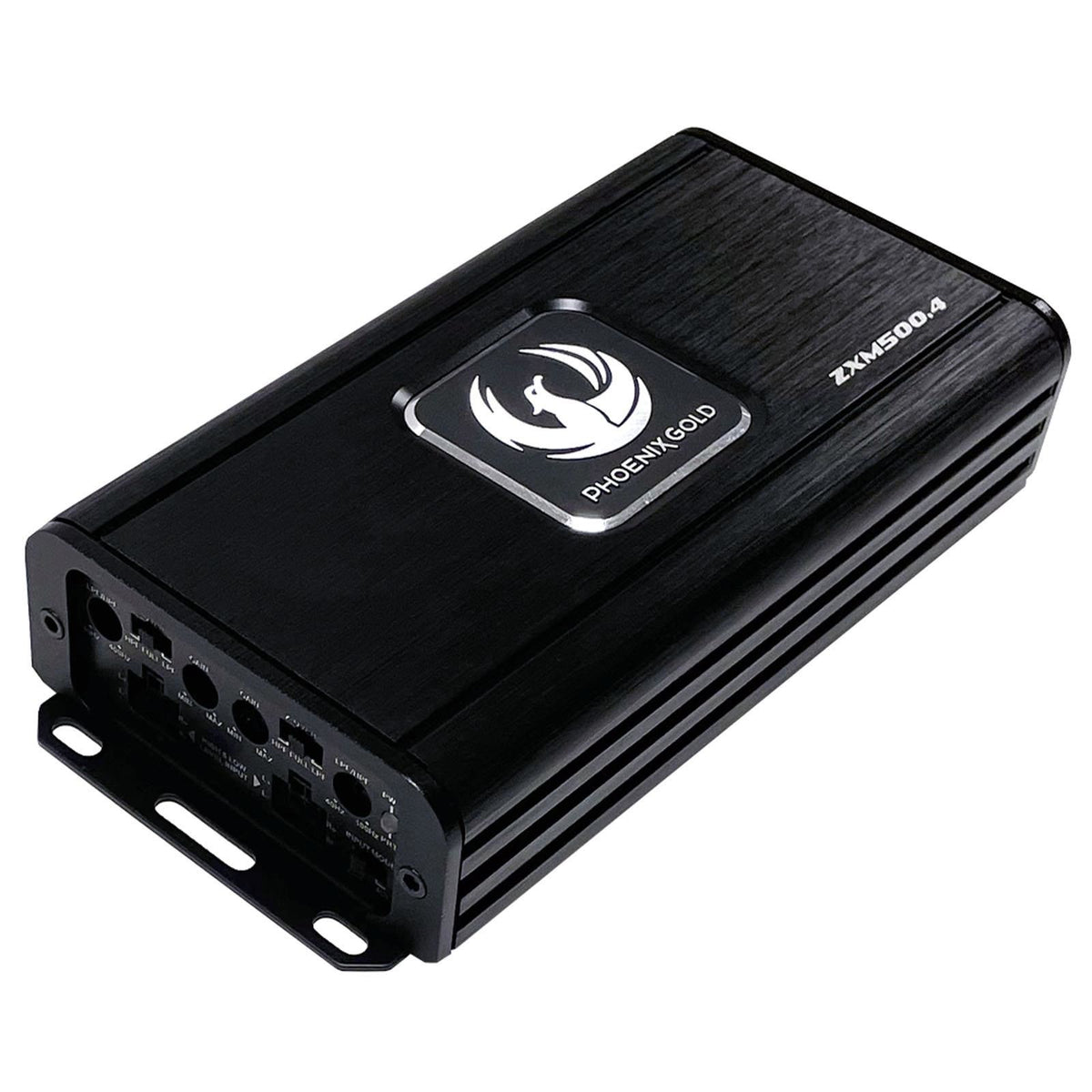

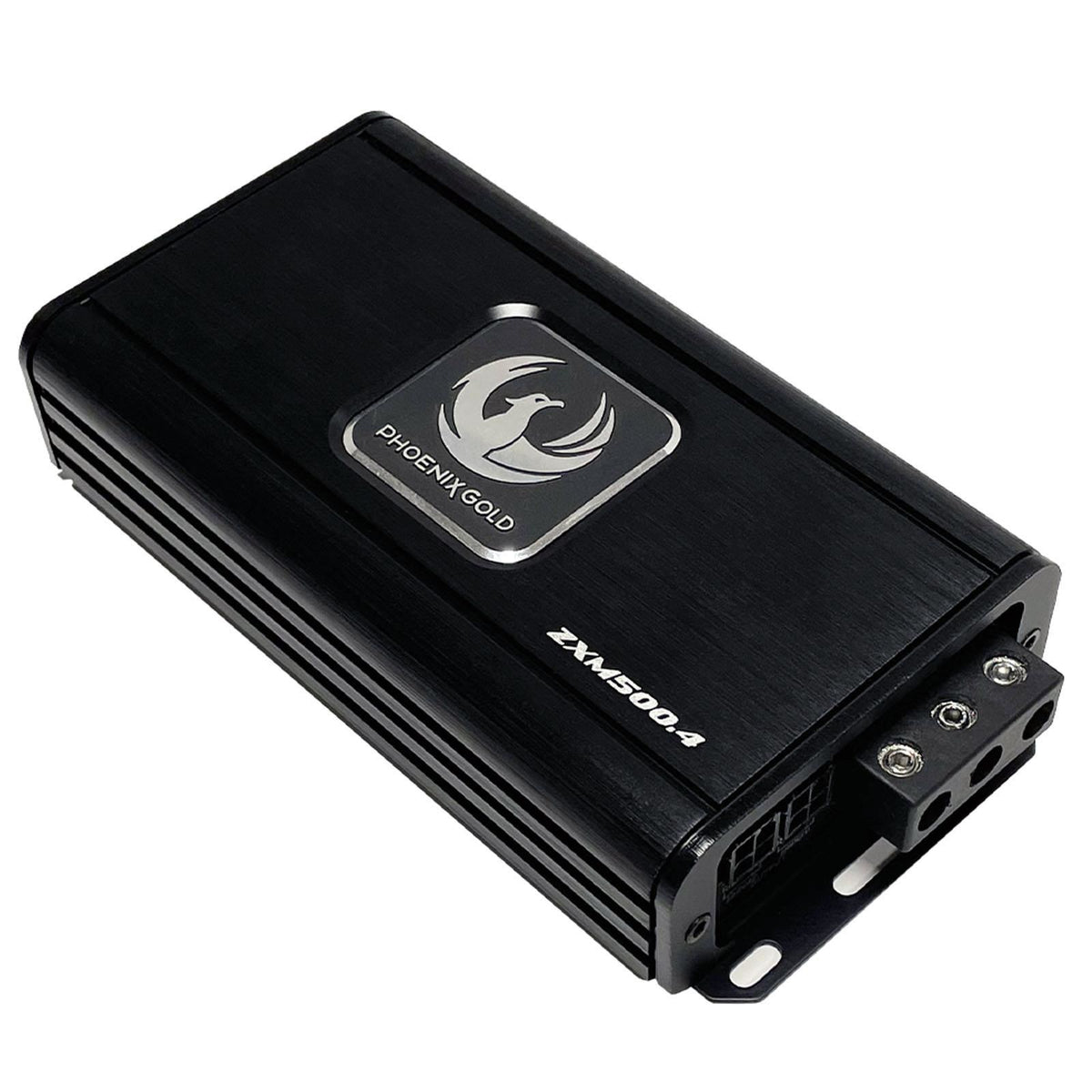

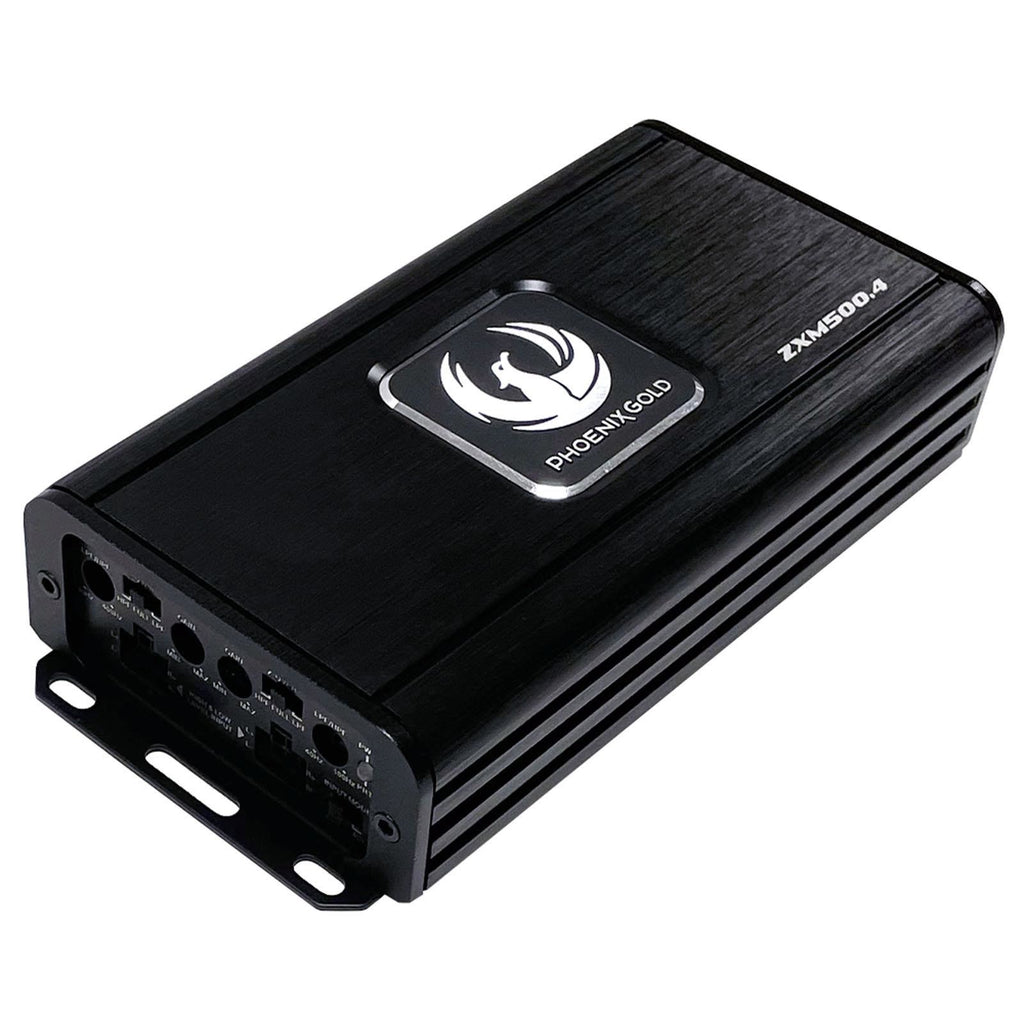

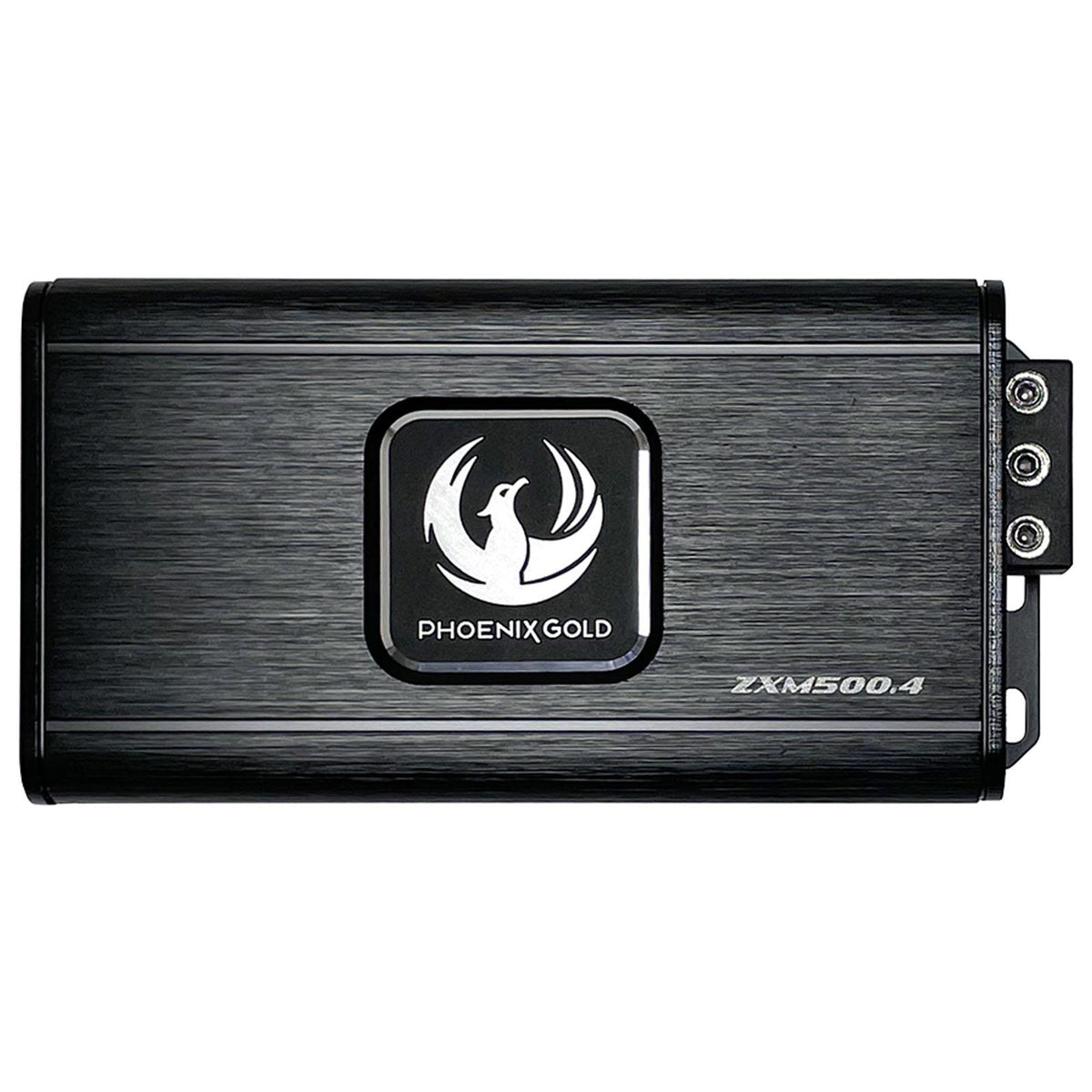

ZXM500.4 Amplifier Features:
- 4-channel Class-D mini amplifier
- High-level and low-level inputs
- Selectable 2-channel or 4-channel input operation
- Automatic turn-on with high-level input
- Adjustable high-pass and low-pass filters
- Short-circuit, thermal and high/low voltage protection
- Protection status LED indicator
- Surface-mount component technology
- Low EMI design to minimise interference with vehicle electronics and FM reception
Amplifier Specifications:
- Maximum power: 1000 watts
- RMS output at 2 ohms: 4 x 125 watts
- RMS output at 4 ohms: 4 x 80 watts
- Bridged RMS output at 4 ohms: 2 x 250 watts
- Frequency response: 20Hz–20kHz
- Signal-to-noise ratio: Greater than 90dB
- Total harmonic distortion: Less than 0.3%
- Low-pass filter: 40Hz–400Hz, 12dB/octave
- High-pass filter: 40Hz–400Hz, 12dB/octave
- Dimensions: 165 x 83.1 x 34.8mm (L x W x H)

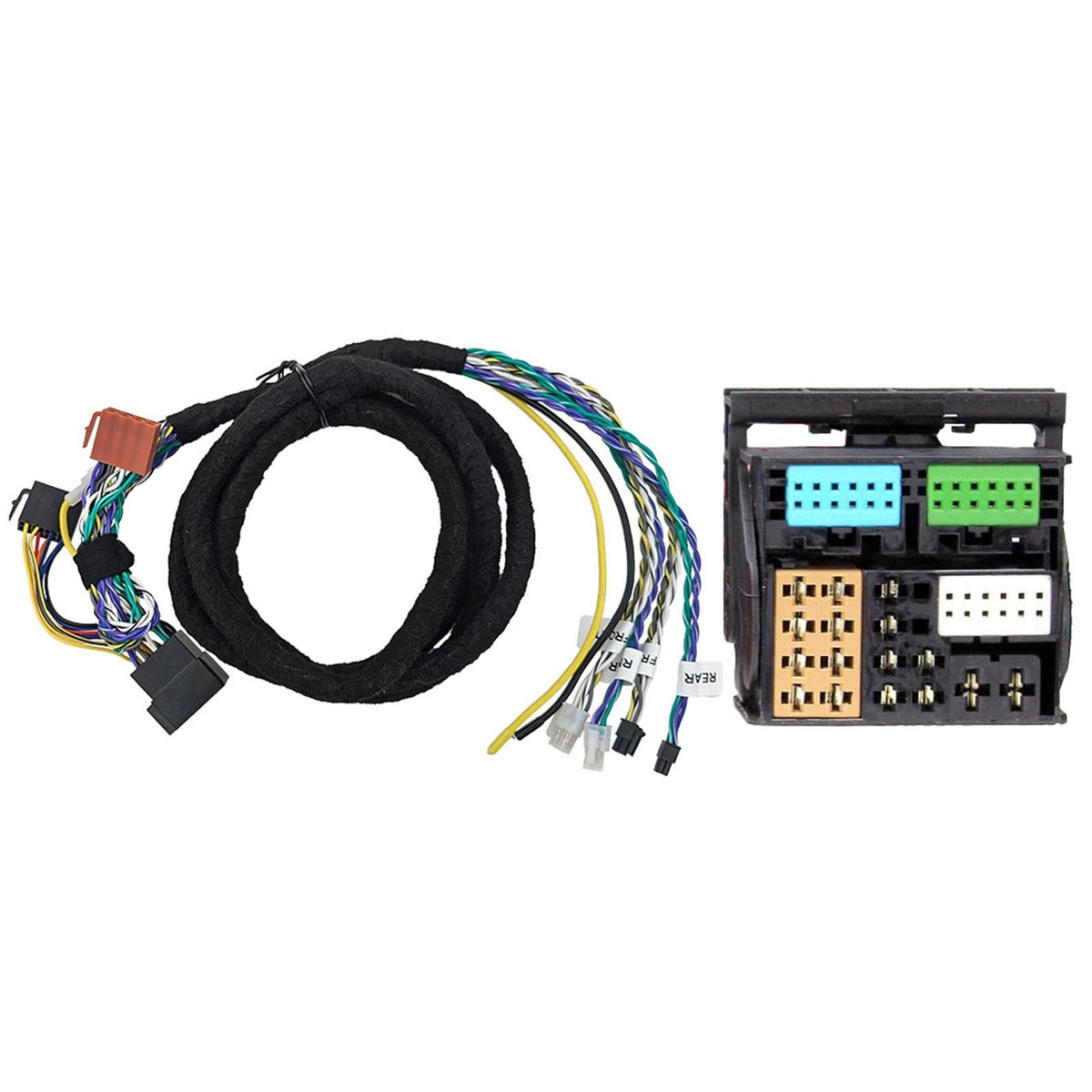

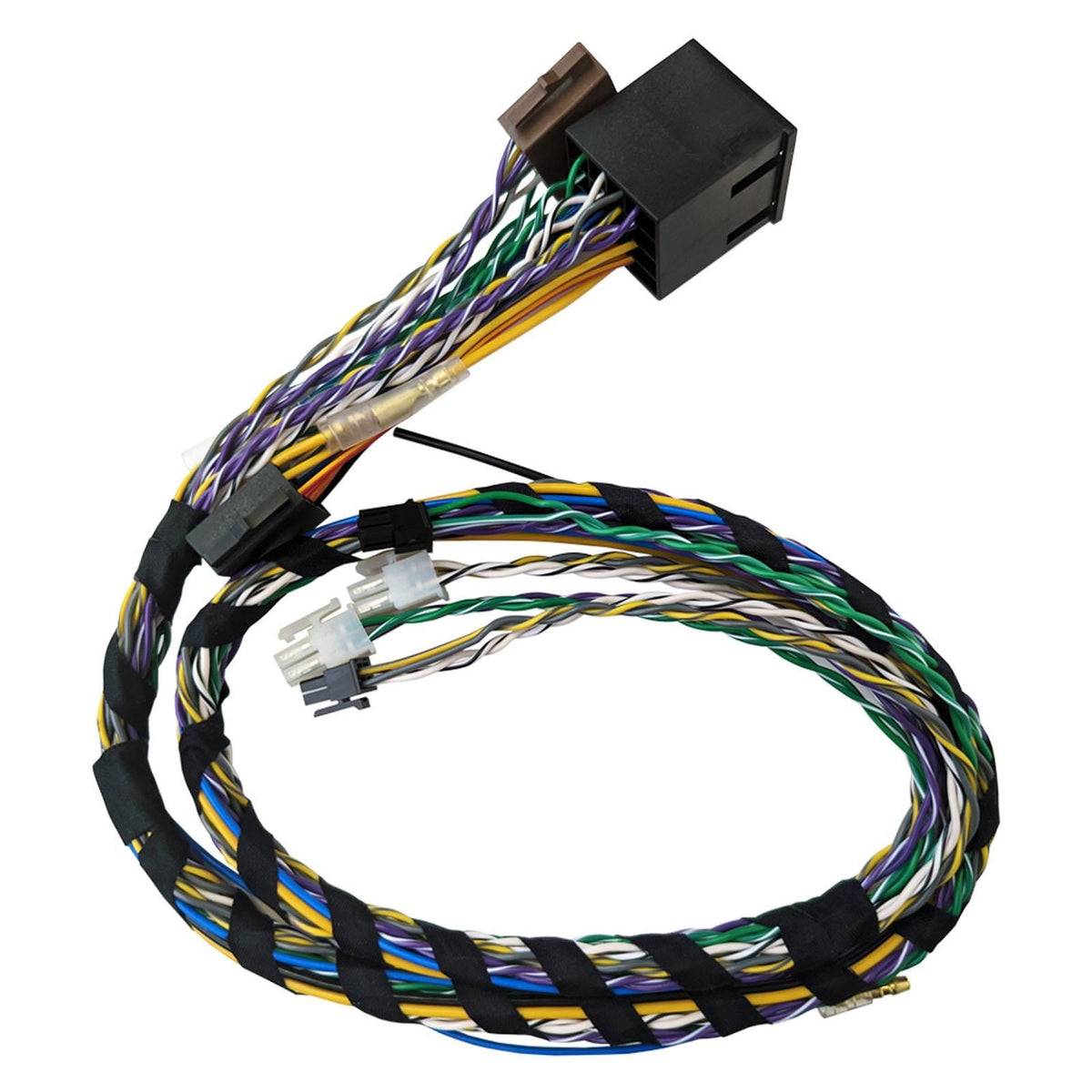

ZXMISOT2 Harness Features:
- 2.2-metre / 220cm ISO-T harness
- Designed for the Phoenix Gold ZXM500.4 amplifier
- Routes high-level signals to the amplifier and amplified audio to the speakers
- Supports plug-and-play installation in compatible applications
Vehicle Compatibility – Basic Sound System Only:
Audi:
- A1 8X: 2010–2018
- A1 GB: 2018 onwards
- A3 8V: 2012–2020
- A3 8Y: 2020 onwards
- A4 8K: 2008–2015
- A4 8W: 2016 onwards
- A5 8T/8F: 2007–2016
- A5 F5: 2017 onwards
- A6 C7/4G: 2011–2018
- A6 C8/4K: 2018 onwards
- A7 4K8: 2018 onwards
- Q2 GA: 2016–2023
- Q3 8U: 2011–2018
- Q3 F3: 2018 onwards
- Q5 8R: 2008–2017
- Q5 80A/FY: 2017 onwards
Seat:
- Alhambra II Facelift: 2016–2020
- Arona KJ7: 2017 onwards
- Ateca KH7: 2016 onwards
- Ibiza 6F: 2017 onwards
- Leon 5F: 2012–2020
- Leon KL1/KL8: 2020 onwards
- Toledo KG: 2012–2019
Volkswagen:
- Amarok I Facelift: 2017–2022
- Amarok II: 2022 onwards
- Arteon 3H7: 2017 onwards
- Beetle A5 Facelift: 2016–2019
- Caddy III 2nd Facelift: 2015–2020
- Caddy IV: 2020 onwards
- Crafter II: 2017 onwards
- Golf VII: 2012–2020
- Golf VIII: 2020 onwards
- Golf Sportsvan: 2014–2020
- ID.3: 2019 onwards
- ID.4: 2020 onwards
- Jetta VI: 2010–2018
- Jetta: 2018 onwards
- Passat B8: 2014–2020
- Passat B8 Facelift: 2020 onwards
- Polo V 6C: 2014–2017
- Polo VI: 2017 onwards
- Scirocco III Facelift: 2014–2017
- Sharan II Facelift: 2016–2022
- T-Roc: 2017 onwards
- Transporter T6: 2015–2019
- Transporter T6.1: 2019 onwards
- Tiguan I Facelift: 2012–2015
- Tiguan II: 2016 onwards
- Tiguan Allspace: 2017 onwards
- Touareg II: 2010–2018
- Touareg III: 2018 onwards
- Touran II: 2015 onwards
- UP!: 2016 onwards

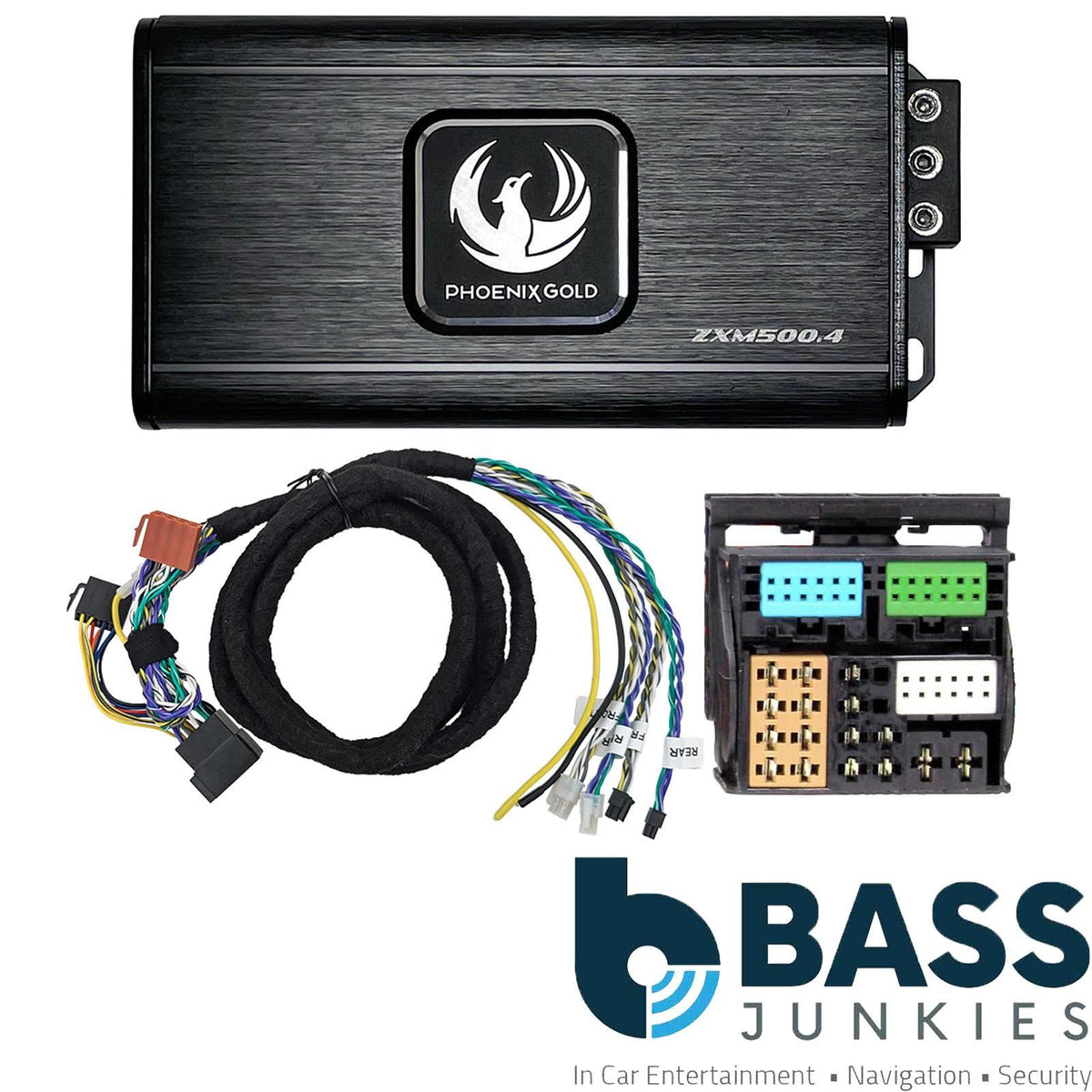

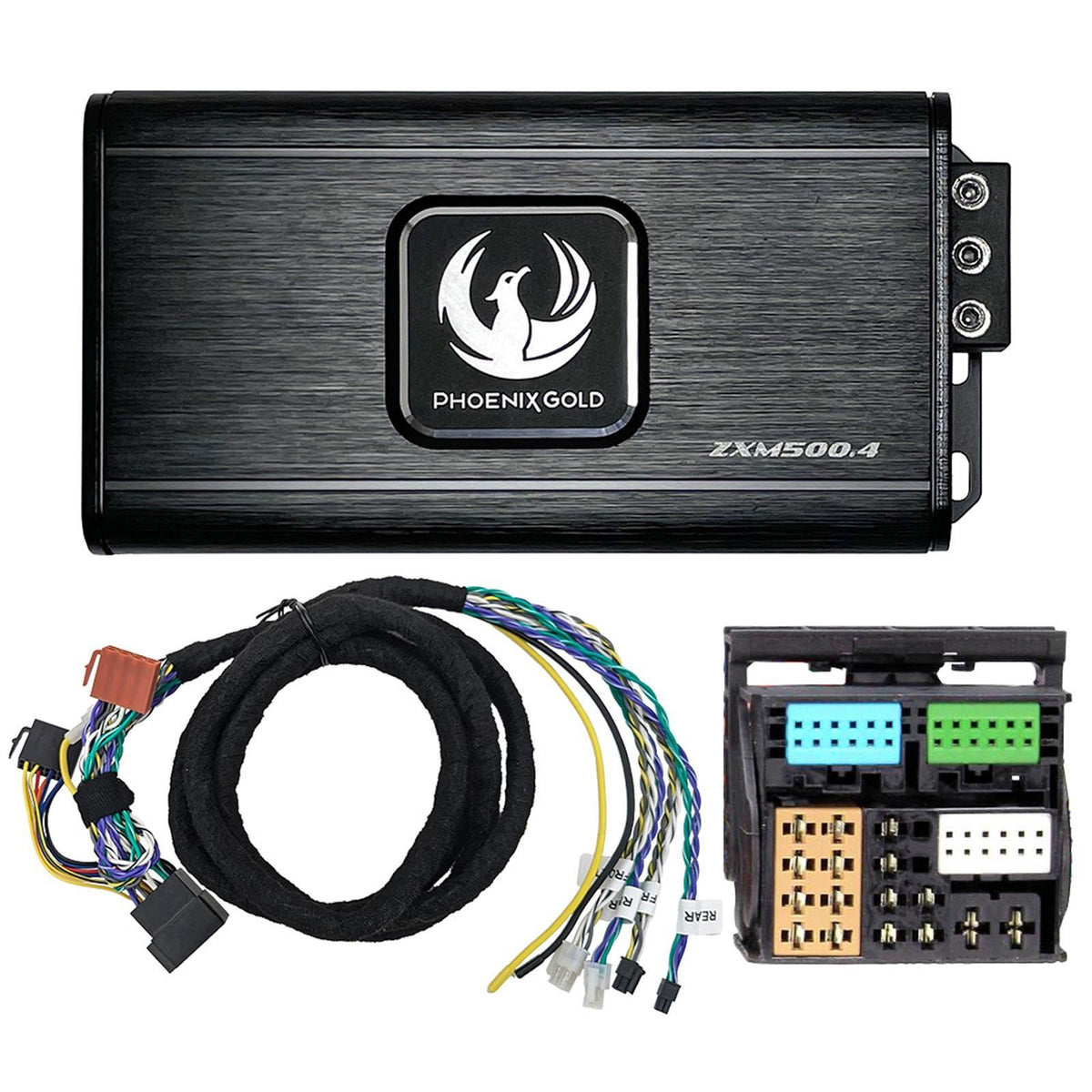

Package Contents:
- 1 x Phoenix Gold ZXM500.4 4-channel amplifier
- 1 x Phoenix Gold ZXMISOT2 2.2-metre ISO-T harness
- 1 x Compatible vehicle-specific T-harness
Important Fitment Information: Suitable only for the listed applications equipped with the Basic Sound System. Vehicle model and year alone do not confirm compatibility; please check the factory audio specification and connections before purchasing. Open-ended year ranges follow the supplied application list and do not guarantee compatibility with later production changes. Professional installation is recommended.
