Phoenix Gold ZXMPV3 500W 4 Channel Plug & Play Car Amplifier Kit for Volvo
Upgrade your Volvo's audio system while retaining the original radio with the Phoenix Gold ZXMPV3 amplifier package. Designed for selected Volvo vehicles without an OEM amplifier, this package includes a Phoenix Gold ZXM500.4 compact 4-channel amplifier, a ZDC-ISOX2 2.2-metre ISO-T harness and a vehicle-specific wiring harness matched to the application.
The amplifier takes the high-level audio signal from the factory radio and amplifies it before sending it to your speakers, providing additional power and headroom. Compatible plug-and-play wiring allows integration with the original audio system while retaining the factory radio and dashboard appearance.
Efficient Class-D technology delivers substantial output from a compact amplifier measuring just 165 x 83.1 x 34.8mm. Adjustable high-pass and low-pass filters allow the output to be tailored to your speakers, while high-level input automatic turn-on supports integration with the original stereo.
Key Features:
- Designed for selected Volvo vehicles without an OEM amplifier
- Retains the original vehicle radio
- Compact 4-channel Class-D amplifier
- 500 watts combined RMS output at 2 ohms
- High-level and low-level inputs
- Selectable 2-channel or 4-channel input operation
- Automatic turn-on through the high-level input
- Adjustable high-pass and low-pass filters
- Short-circuit, thermal and high/low voltage protection
- Protection status LED indicator
- Low EMI design to minimise interference with vehicle electronics and FM reception
Amplifier Specifications:

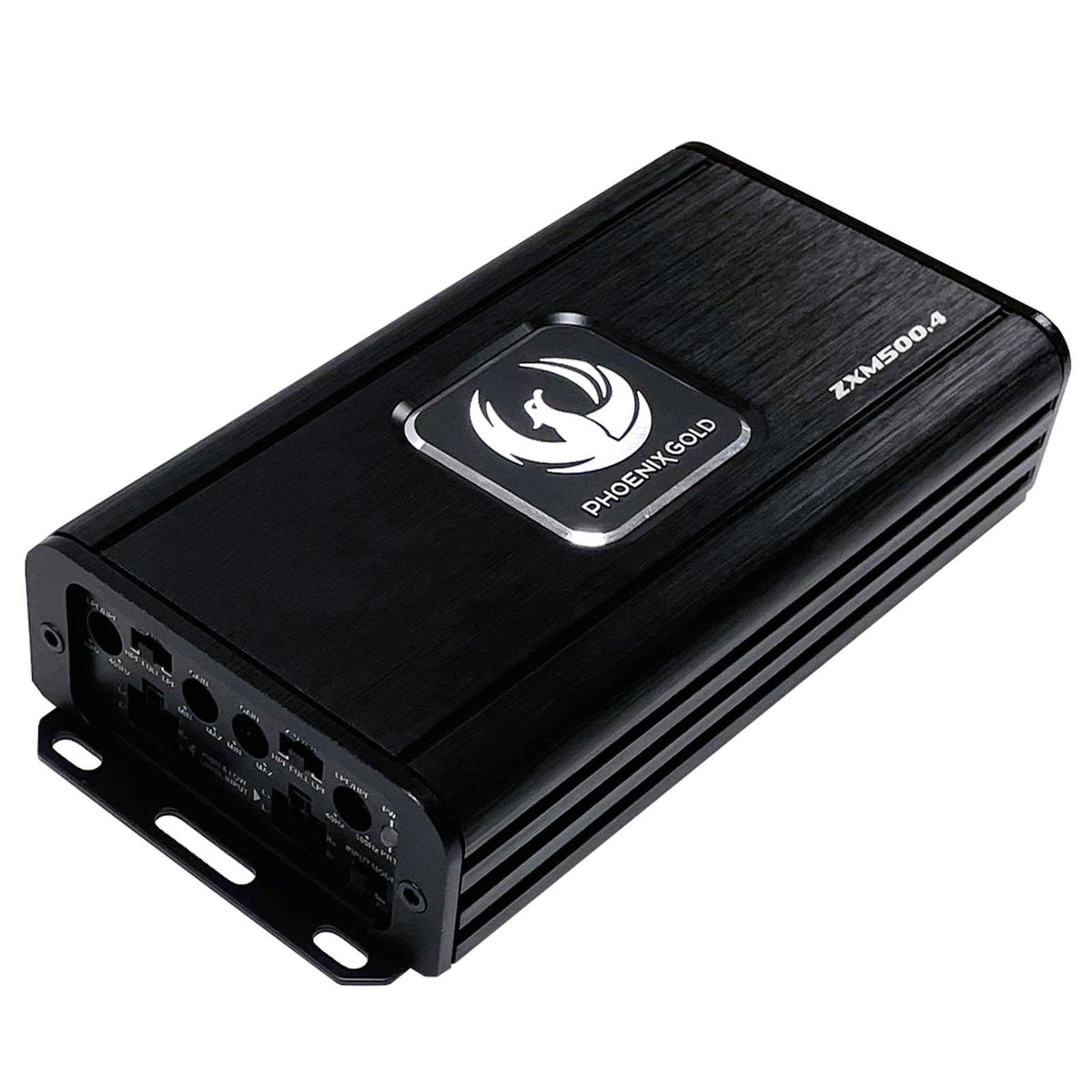

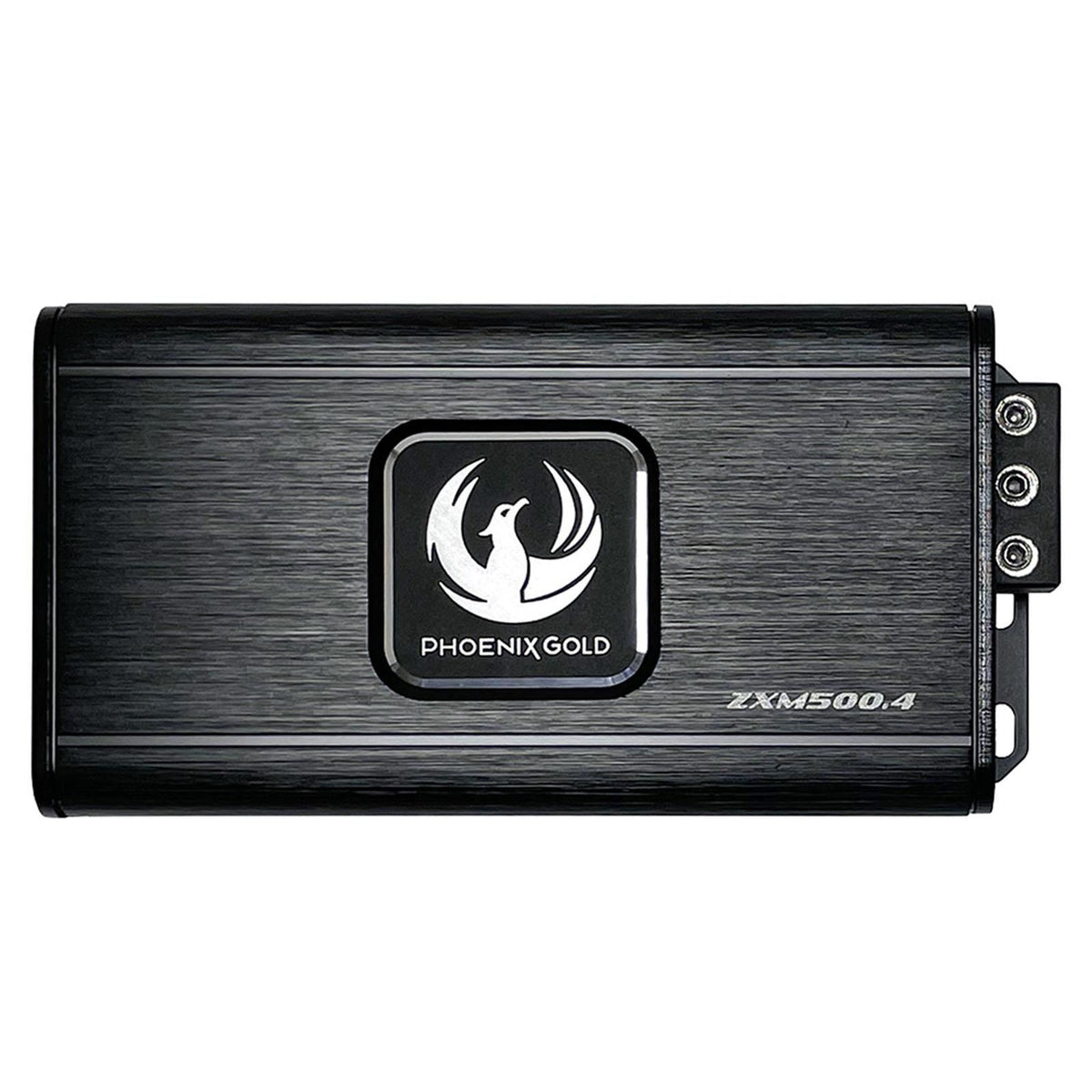

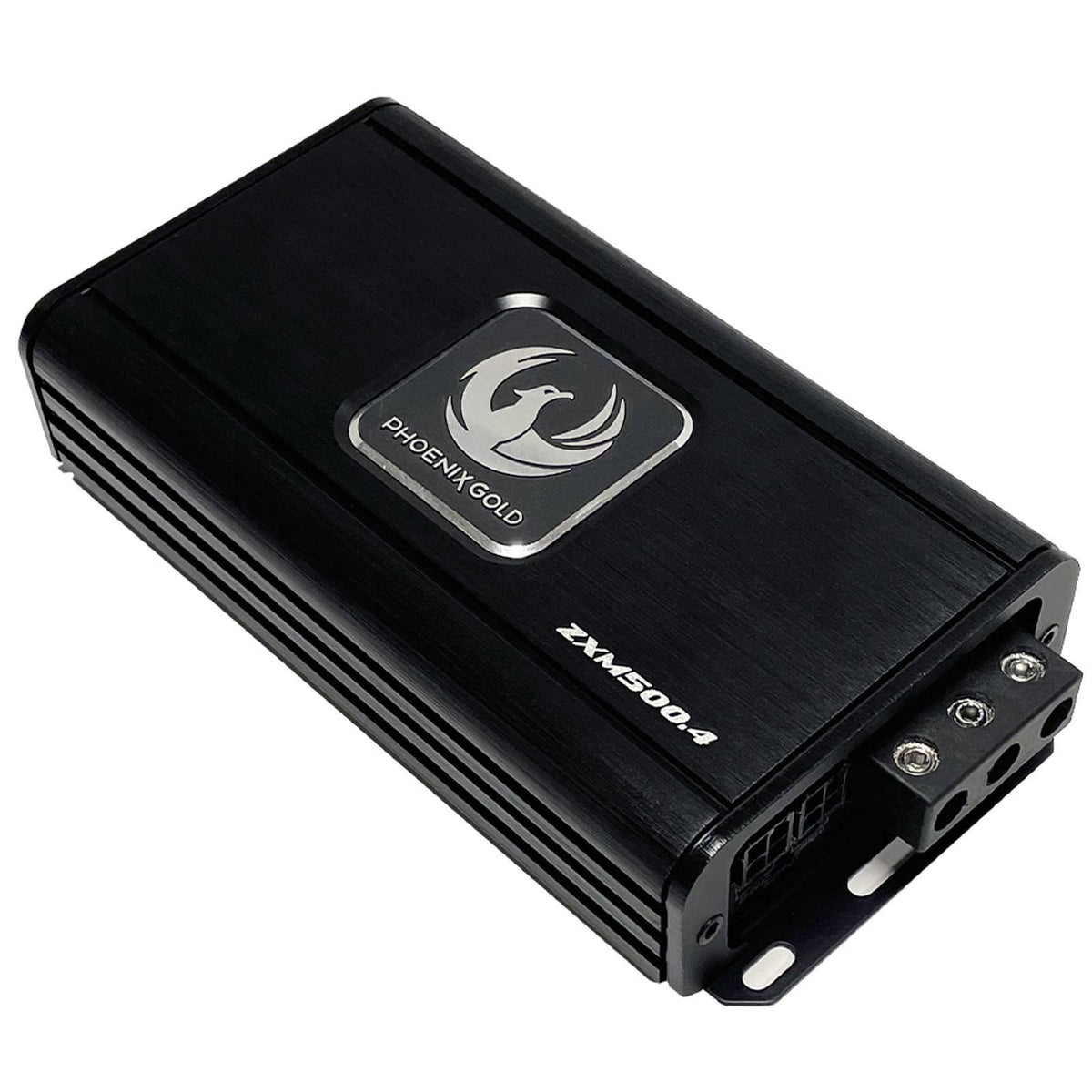

- Model: Phoenix Gold ZXM500.4
- Amplifier type: 4-channel Class-D
- Maximum power: 1000 watts
- RMS output at 2 ohms: 4 x 125 watts
- RMS output at 4 ohms: 4 x 80 watts
- Bridged RMS output at 4 ohms: 2 x 250 watts
- Frequency response: 20Hz–20kHz
- Signal-to-noise ratio: Greater than 90dB
- Total harmonic distortion: Less than 0.3%
- Low-pass filter: 40Hz–400Hz, 12dB/octave
- High-pass filter: 40Hz–400Hz, 12dB/octave
- Dimensions: 165 x 83.1 x 34.8mm (L x W x H)

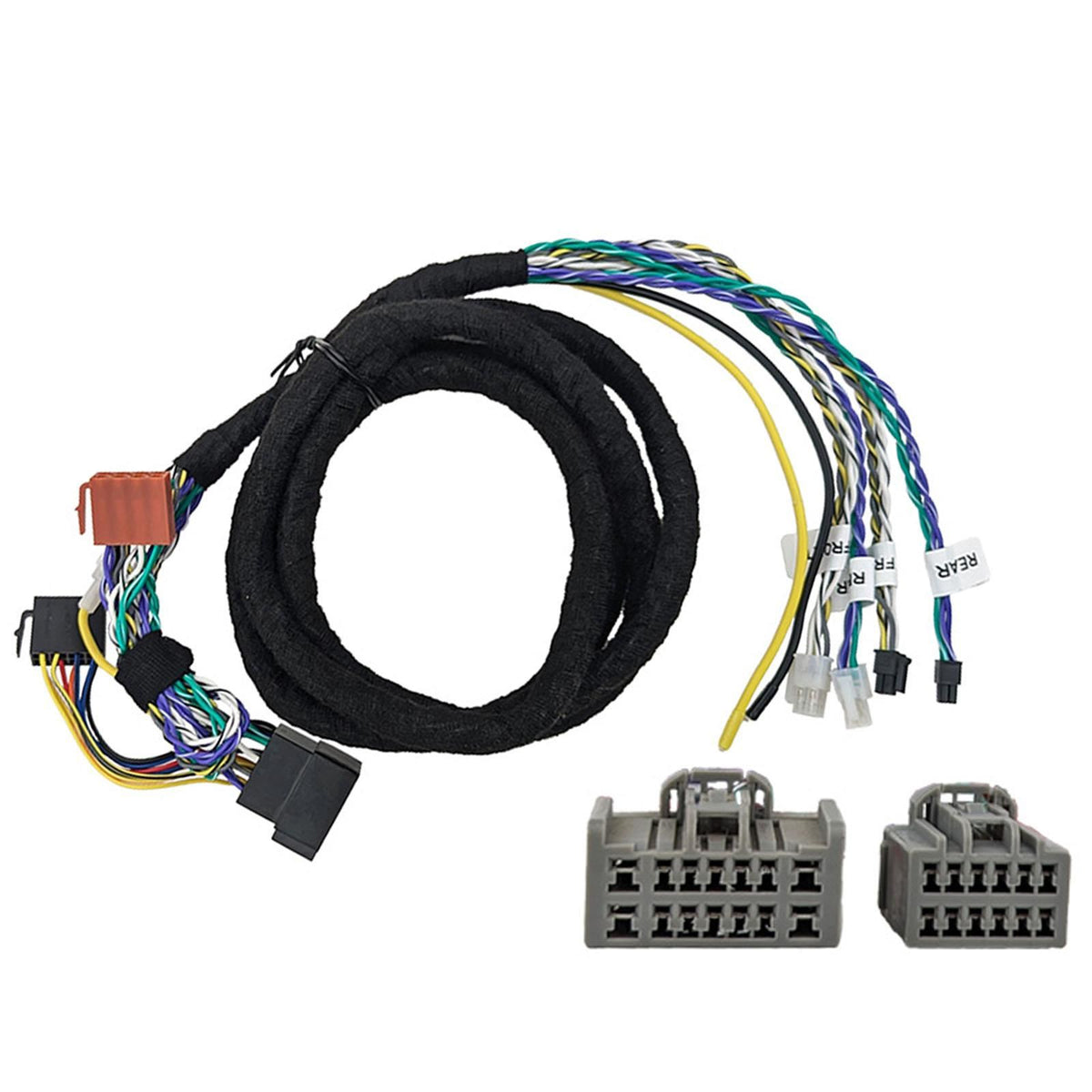

Wiring Harness Features:
- Phoenix Gold ZDC-ISOX2 ISO-T harness
- Harness length: 2.2 metres / 220cm
- Designed for connection to the ZXM500.4 amplifier
- Vehicle-specific adapter harness supplied according to the application
- Plug-and-play integration where the factory connectors and audio system are compatible
Vehicle Compatibility – Without OEM Amplifier Only:
- Volvo C30: 2006–2013
- Volvo C70 II: 2006–2013
- Volvo S40 II: 2004–2012
- Volvo S60 II: 2011–2018
- Volvo S80 II: 2006–2016
- Volvo V40: 2012–2019
- Volvo V50: 2004–2012
- Volvo V60 I: 2010–2017
- Volvo V70 III: 2008–2016
- Volvo XC60 I: 2009–2017
- Volvo XC70 III: 2008–2017
- Volvo XC90 I Facelift: 2007–2014

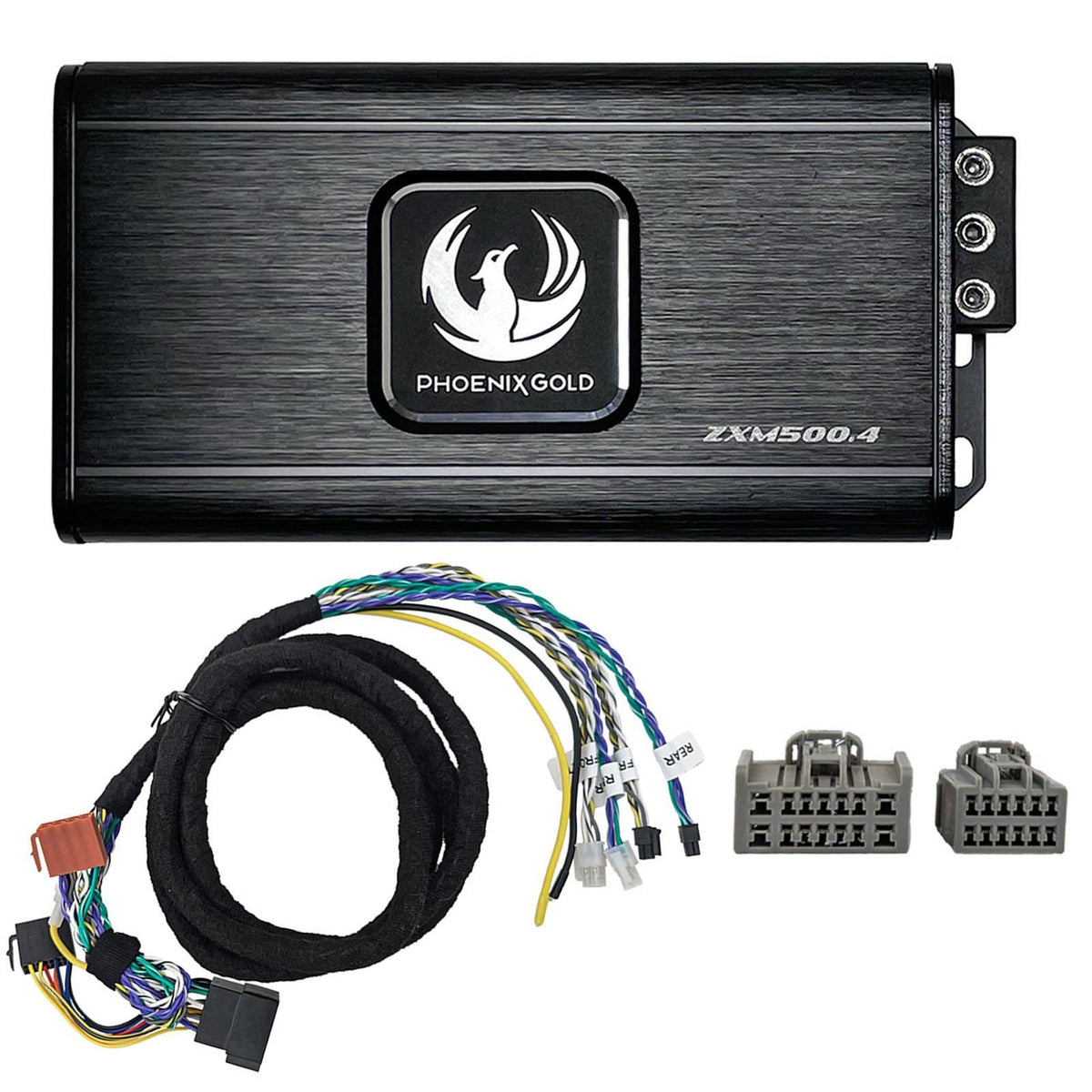

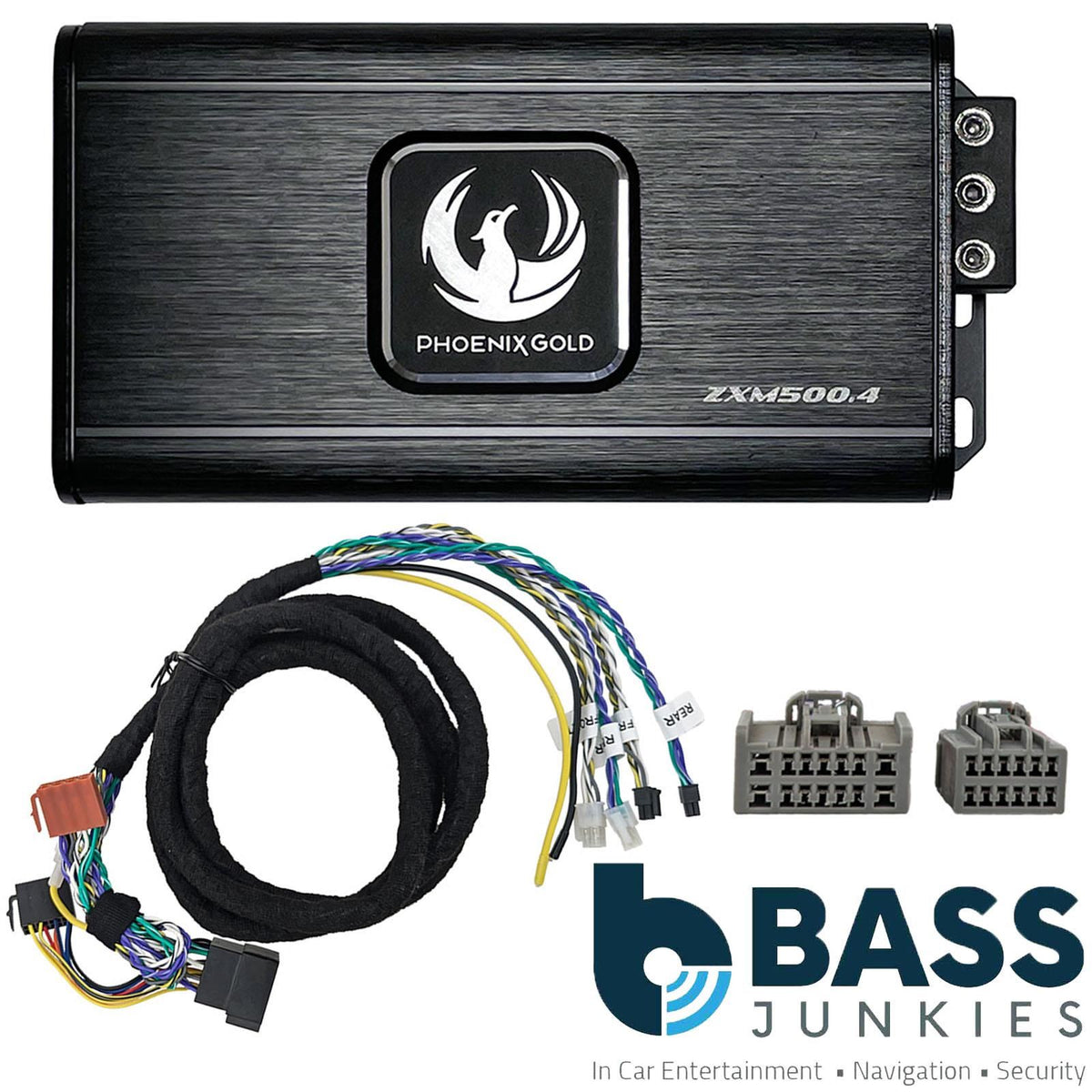

Package Contents:
- 1 x Phoenix Gold ZXM500.4 4-channel amplifier
- 1 x Phoenix Gold ZDC-ISOX2 2.2-metre ISO-T harness
- 1 x Vehicle-specific wiring adapter harness
Important Fitment Information: This package is intended for vehicles without an OEM amplifier. Vehicle model and year alone do not confirm compatibility; the factory audio system and connectors must also match. Please contact us before purchasing if you are unsure. Professional installation is recommended.
