Phoenix Gold ZXMPV1 500W 4 Channel Plug & Play Car Amplifier Kit for Volvo
Upgrade your Volvo's factory audio with the Phoenix Gold ZXMPV1 Plug & Play Power Up Kit. Designed for selected Volvo vehicles equipped with the High Performance Sound System, the kit includes a ZXM500.4 compact 4-channel amplifier and a ZXMISOT2 2.2-metre ISO-T harness.
The amplifier takes the high-level audio signal from the original system and amplifies it before sending it to your speakers, providing additional power and headroom while retaining the factory radio and dashboard appearance.
The compact Class-D amplifier offers efficient operation and flexible installation options. Adjustable high-pass and low-pass filters allow the output to be tailored to the connected speakers, while automatic turn-on through the high-level input supports integration with the factory audio system.
ZXMPV1 Kit Features:
- Designed for selected Volvo models with the High Performance Sound System
- Retains the original vehicle radio
- Plug-and-play integration for compatible factory connections
- Compact amplifier suitable for discreet installation
- Includes a 2.2-metre ISO-T wiring harness
- 500 watts combined RMS output at 2 ohms
ZXM500.4 Amplifier Features:

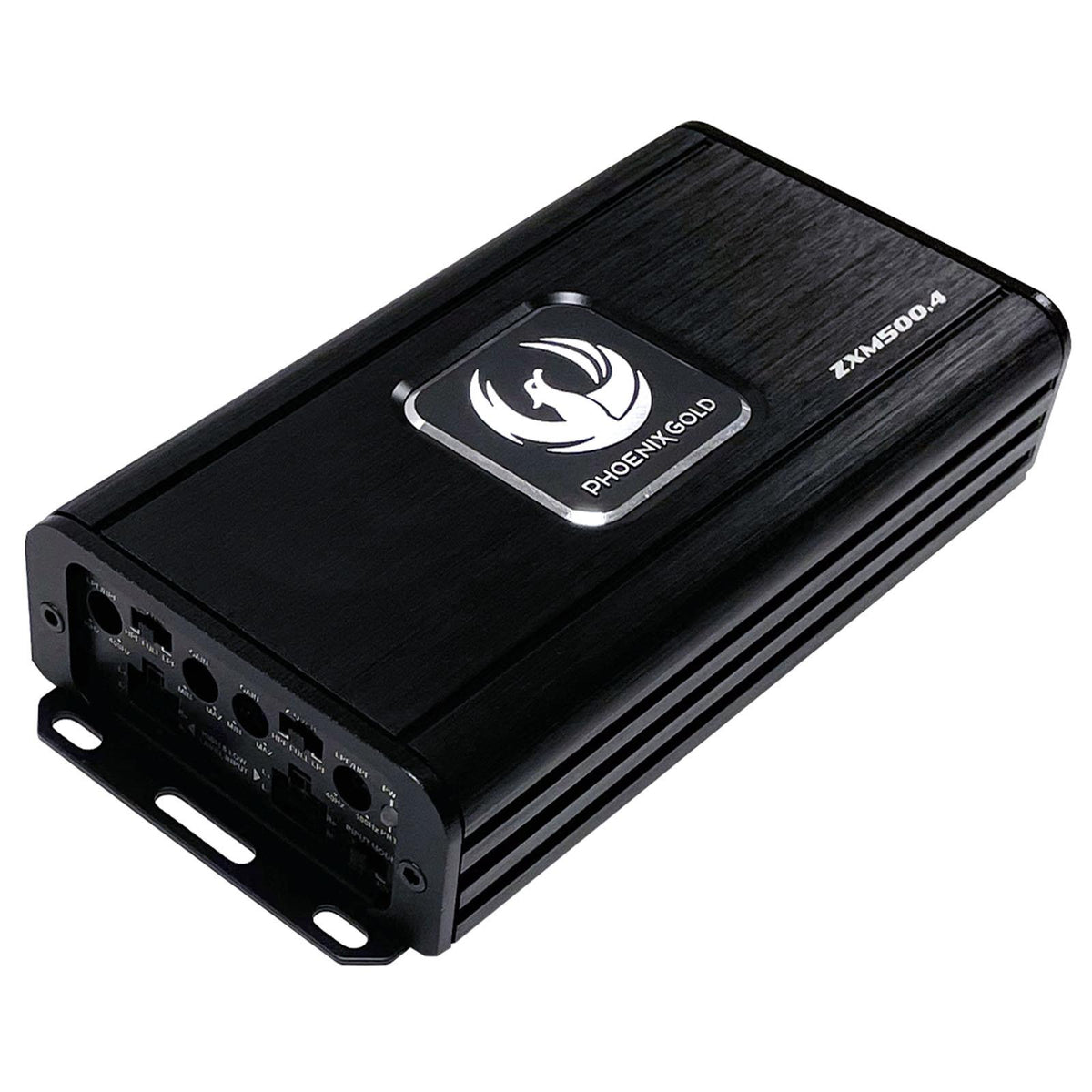

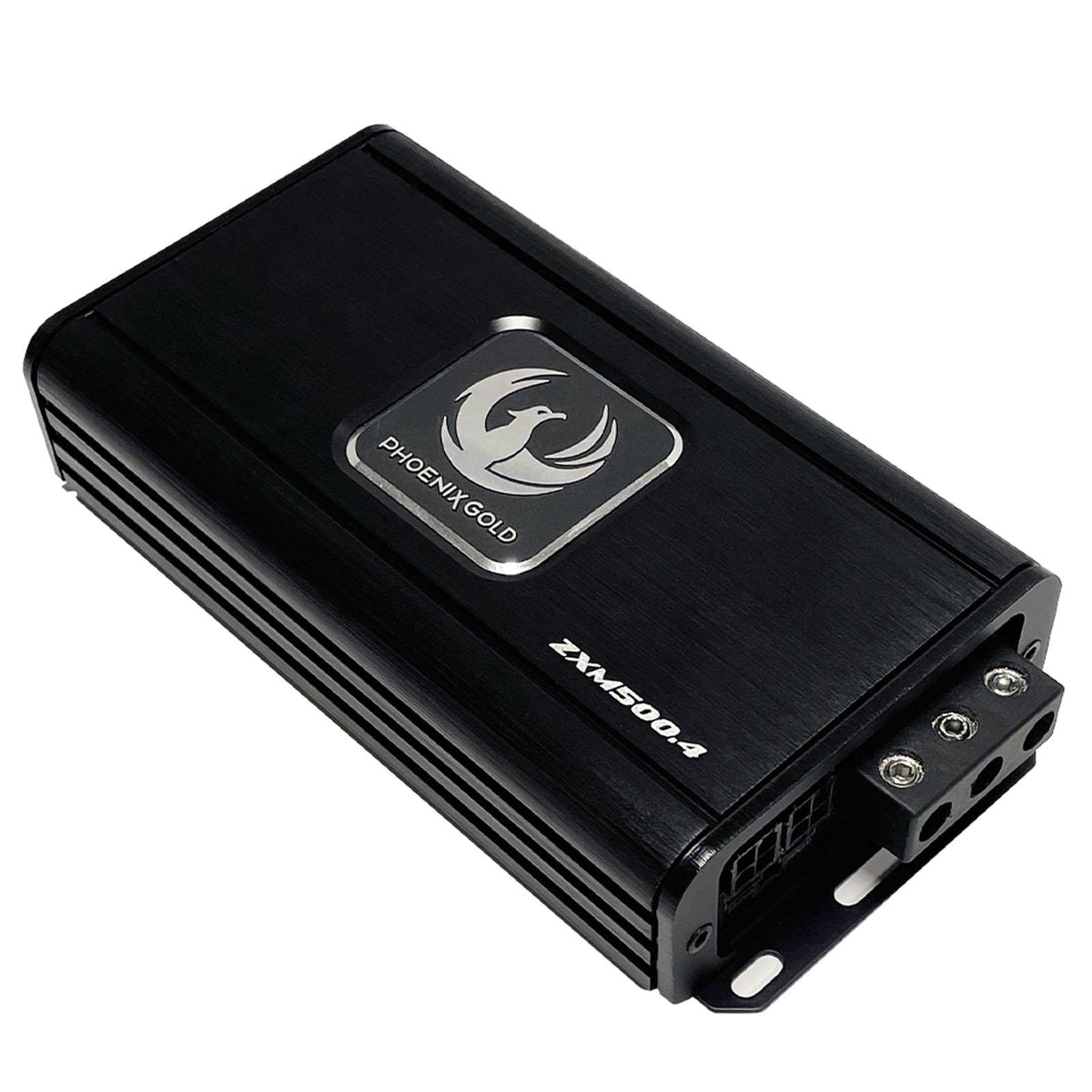

- 4-channel Class-D mini amplifier
- High-level and low-level inputs
- Selectable 2-channel or 4-channel input operation
- Automatic turn-on with high-level input
- Adjustable high-pass and low-pass filters
- Short-circuit, thermal and high/low voltage protection
- Protection status LED indicator
- Surface-mount component technology
- Low EMI design to minimise interference with vehicle electronics and FM reception
Amplifier Specifications:
- Maximum power: 1000 watts
- RMS output at 2 ohms: 4 x 125 watts
- RMS output at 4 ohms: 4 x 80 watts
- Bridged RMS output at 4 ohms: 2 x 250 watts
- Frequency response: 20Hz–20kHz
- Signal-to-noise ratio: Greater than 90dB
- Total harmonic distortion: Less than 0.3%
- Low-pass filter: 40Hz–400Hz, 12dB/octave
- High-pass filter: 40Hz–400Hz, 12dB/octave
- Dimensions: 165 x 83.1 x 34.8mm (L x W x H)

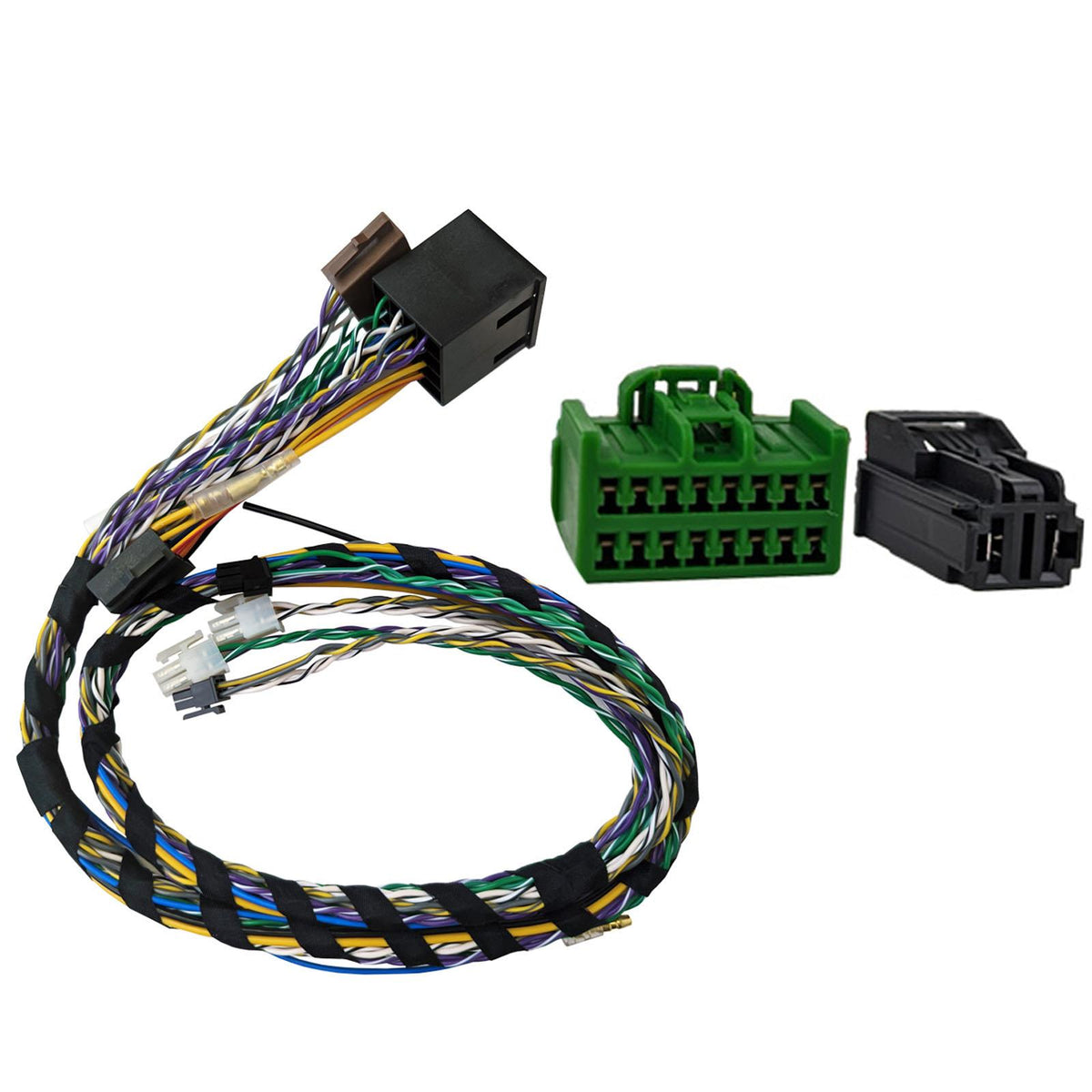

ZXMISOT2 Harness Features:
- 2.2-metre / 220cm ISO-T harness
- Designed for use with the Phoenix Gold ZXM500.4 amplifier
- Routes high-level audio signals to the amplifier and amplified output to the speakers
- Supports plug-and-play installation in compatible applications
Vehicle Compatibility – High Performance Sound System Only:
- Volvo S60: 2019 onwards
- Volvo S90: 2017 onwards
- Volvo V60: 2019 onwards
- Volvo V90: 2017 onwards
- Volvo XC60: 2018 onwards
- Volvo XC90: 2016 onwards

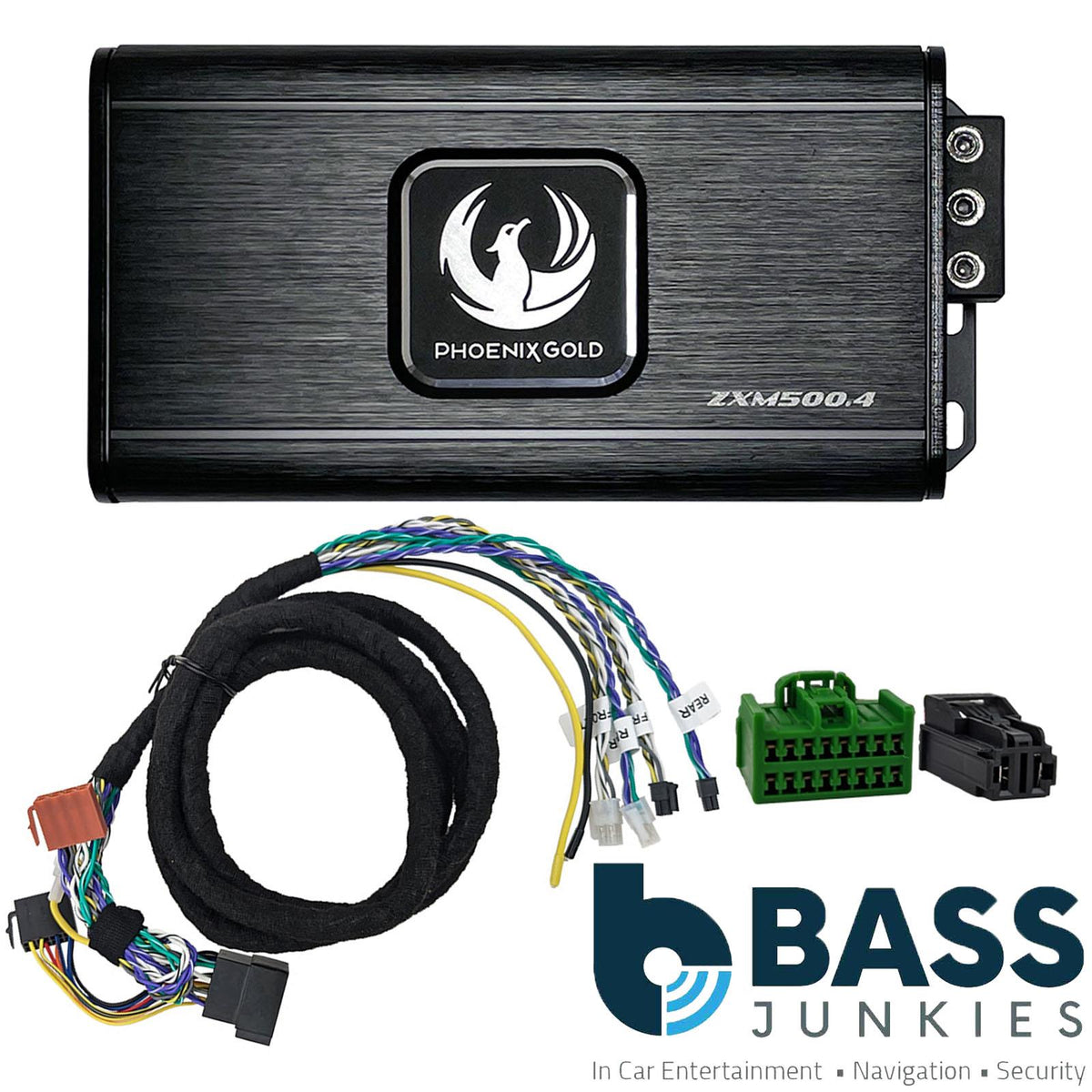

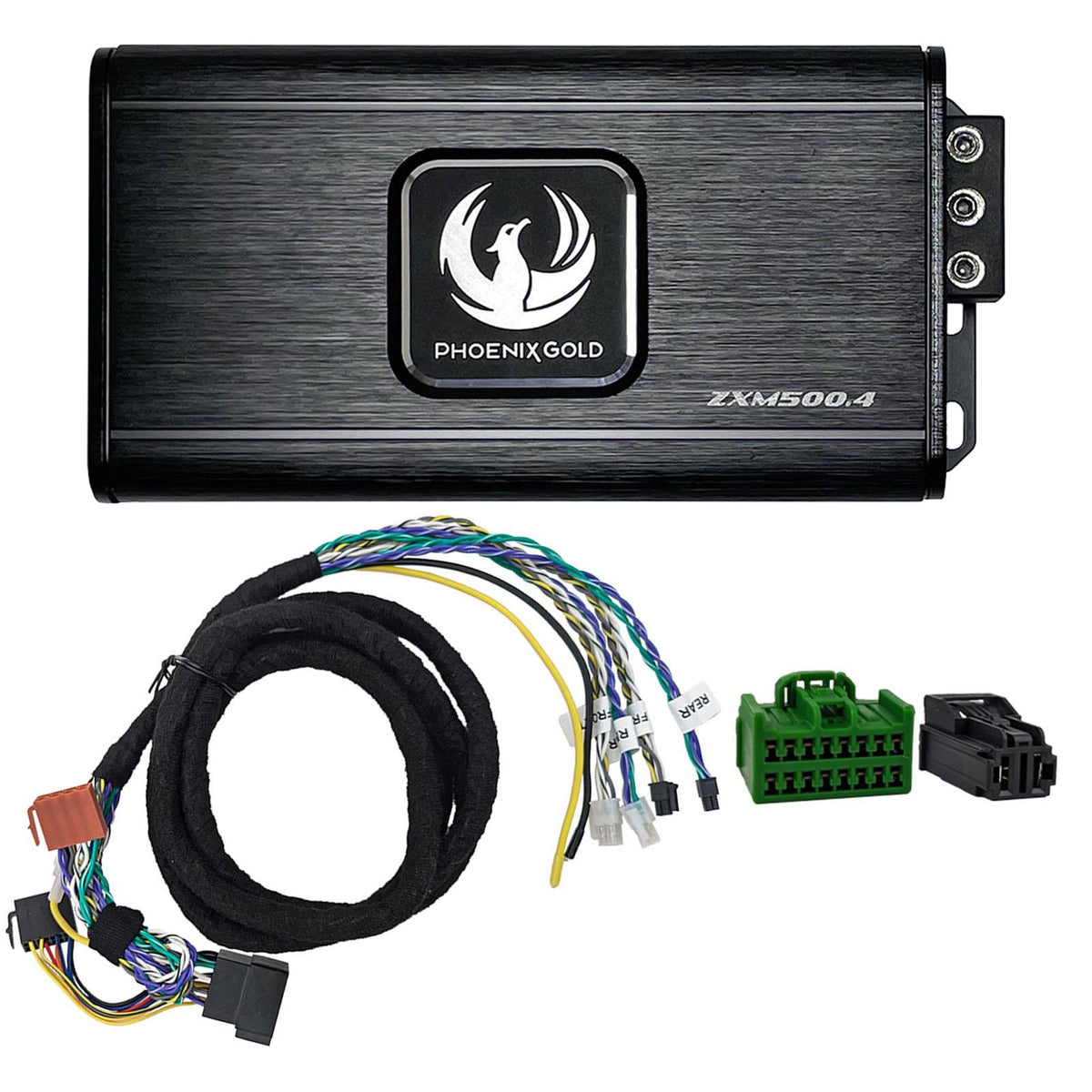

Package Contents:
- 1 x Phoenix Gold ZXM500.4 4-channel amplifier
- 1 x Phoenix Gold ZXMISOT2 2.2-metre ISO-T harness
Important Fitment Information: Suitable only for the listed applications equipped with the High Performance Sound System. Compatibility is not confirmed by vehicle model and year alone. Please check the factory audio specification and connections before purchasing. Open-ended year ranges follow the manufacturer's application list and do not guarantee compatibility with later production changes. Professional installation is recommended.
