Phoenix Gold ZXMPT2 500 Watts 4 Channel Plug & Play Car Amplifier Upgrade Kit for Toyota
Upgrade your Toyota’s factory audio system with the Phoenix Gold ZXMPT2 Plug & Play Power Up Kit. Designed for the listed Toyota vehicles with a basic sound system, this package combines a compact ZXM500.4 Class-D amplifier, a ZDC-ISOX2 2.2-metre ISO-T harness and a ZDT-TOY2 vehicle-specific T-harness.
The supplied harnesses connect the amplifier to the compatible factory audio system while retaining the original stereo. High-level audio signals pass through the four-channel amplifier before being sent to the speakers, providing additional power and headroom for improved output, control and musical dynamics.

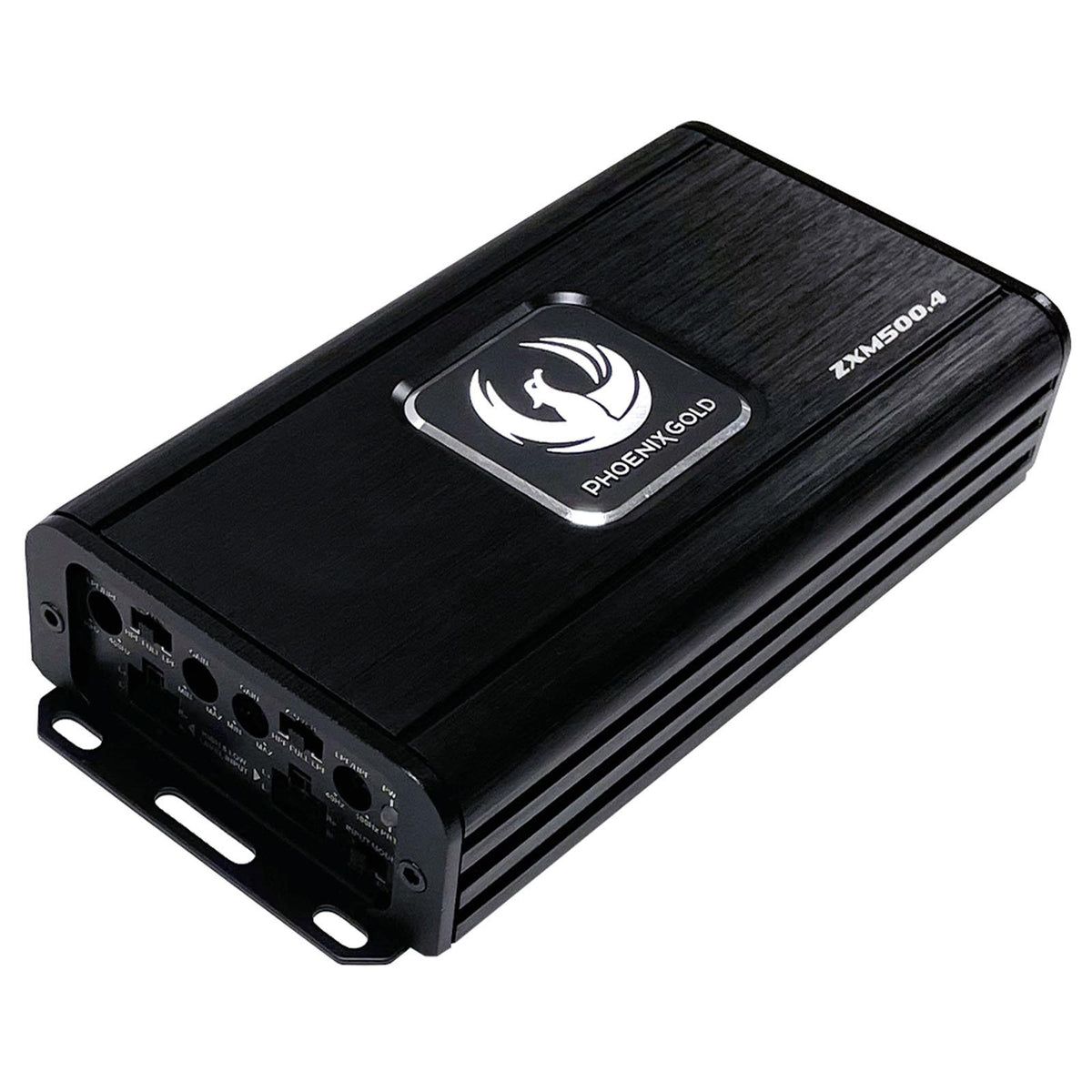

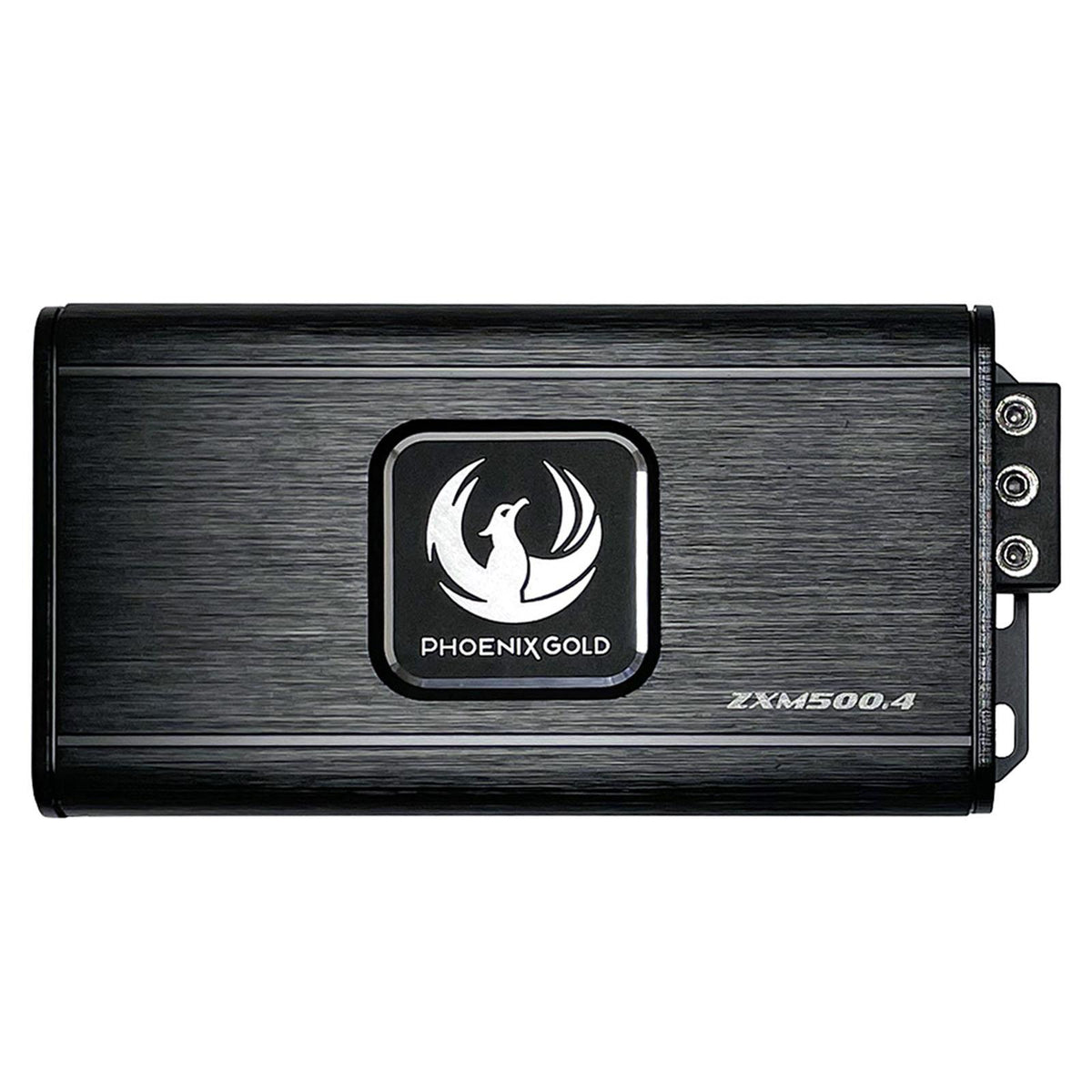

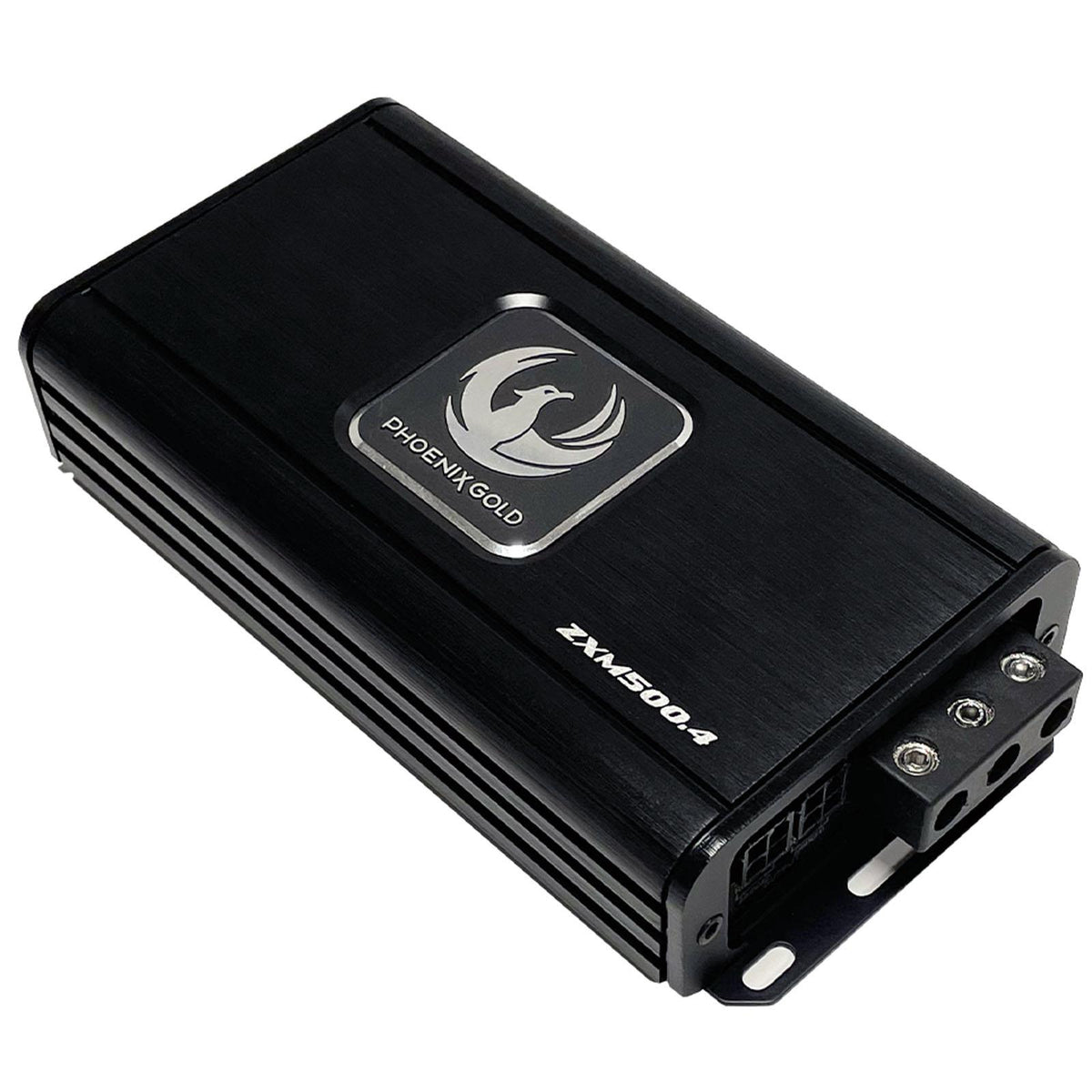

The ZXM500.4 delivers 4 x 80 Watts RMS at 4 ohms or 4 x 125 Watts RMS at 2 ohms, giving a combined output of up to 500 Watts RMS depending on the connected speaker load. Its compact dimensions allow discreet installation where suitable space is available, while efficient Class-D technology helps minimise heat generation.
ZXMPT2 Power Up Kit Features:
- Designed for selected Toyota vehicles with a basic sound system
- Retains the compatible original factory stereo
- Includes the Phoenix Gold ZXM500.4 four-channel amplifier
- Supplied with the Phoenix Gold ZDC-ISOX2 2.2-metre ISO-T harness
- Includes the Phoenix Gold ZDT-TOY2 vehicle-specific T-harness
- Plug-and-play connections for compatible vehicle applications
- Compact amplifier design for discreet installation
- Additional amplifier power for improved speaker output and control
ZXM500.4 Amplifier Features:
- Efficient Class-D amplification
- Four-channel operation with bridging capability
- High-level and low-level audio inputs
- Selectable two-channel or four-channel input operation
- Automatic turn-on when using the high-level input
- Adjustable high-pass and low-pass filters
- Short-circuit, thermal and high/low-voltage protection
- Built-in protection status LED
- Surface-mount component technology
- Low-EMI design to help minimise interference with vehicle electronics and radio reception
ZXM500.4 Amplifier Specifications:
- Amplifier type: Class-D four-channel mini amplifier
- Maximum power: 1000 Watts
- RMS output at 2 ohms: 4 x 125 Watts
- Combined RMS output at 2 ohms: 500 Watts
- RMS output at 4 ohms: 4 x 80 Watts
- Combined RMS output at 4 ohms: 320 Watts
- Bridged RMS output at 4 ohms: 2 x 250 Watts
- Frequency response: 20Hz–20kHz
- Signal-to-noise ratio: Greater than 90dB
- Total harmonic distortion: Less than 0.3%
- Low-pass filter: 40Hz–400Hz, 12dB/octave
- High-pass filter: 40Hz–400Hz, 12dB/octave
- Dimensions (L x W x H): 165 x 83.1 x 34.8mm

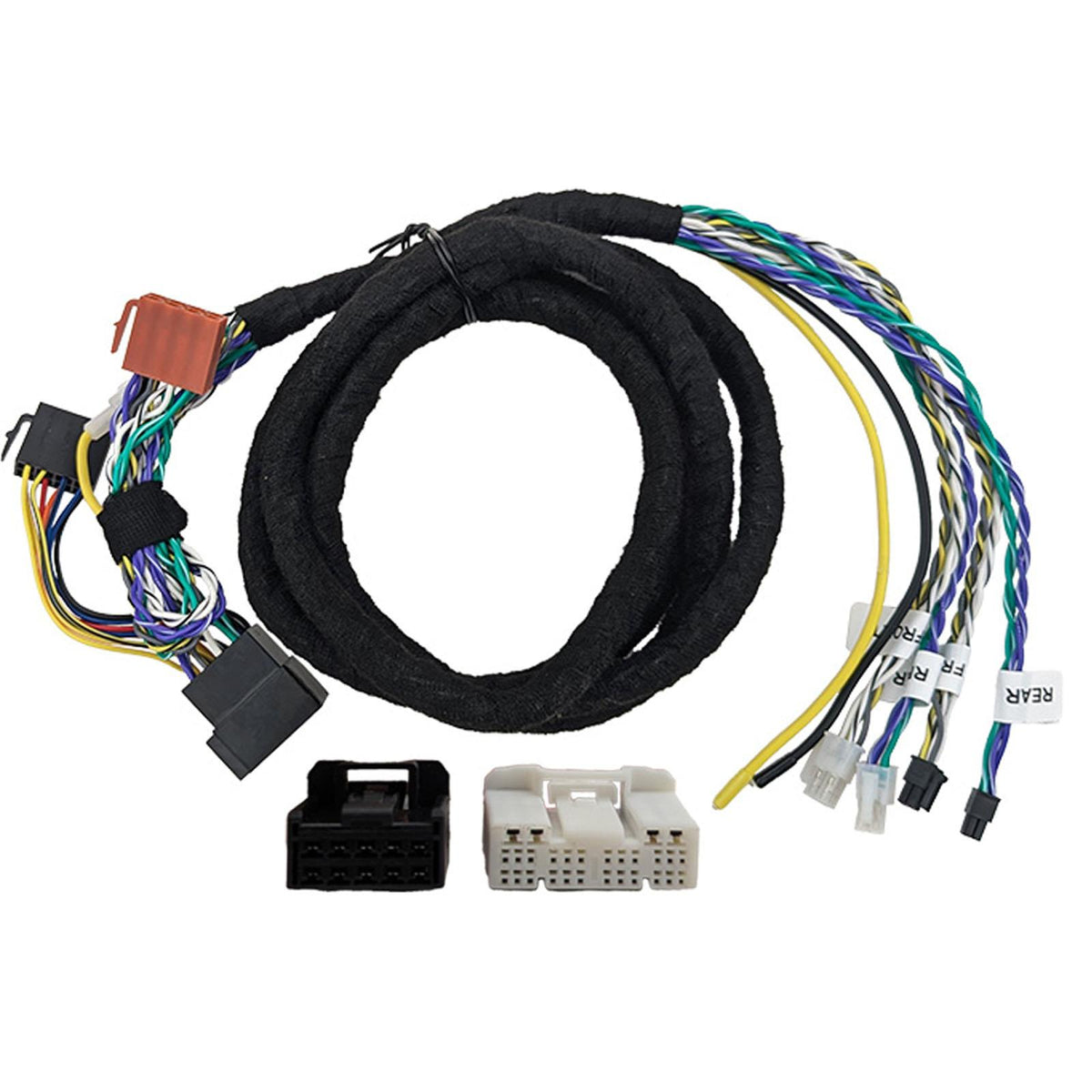

ZDC-ISOX2 ISO-T Harness Features:
- Phoenix Gold ZDC-ISOX2 amplifier connection harness
- Length: 2.2 metres / 220cm
- Connects the compatible amplifier to the vehicle-specific T-harness
- Carries the required power, audio signal and speaker connections for the compatible installation
ZDT-TOY2 T-Harness Features:
- Phoenix Gold ZDT-TOY2 vehicle-specific T-harness
- Selected for the Toyota vehicle applications listed below
- Connects to the compatible original factory audio wiring
- Works alongside the supplied ZDC-ISOX2 harness and ZXM500.4 amplifier
- Allows the original stereo to be retained
Vehicle Compatibility – Basic Sound System Only:
- Toyota Aygo II Facelift: 2018–2022
- Toyota C-HR Facelift: 2019 onwards
- Toyota Camry XV70: 2017 onwards
- Toyota Corolla XII: 2018 onwards
- Toyota GT86 I Facelift: 2016–2021
- Toyota GT86 II: 2022 onwards
- Toyota Prius IV Facelift: 2018–2021
- Toyota Prius V: 2022 onwards
- Toyota RAV4 V: 2019 onwards
- Toyota Tacoma III Facelift: 2020 onwards
- Toyota Yaris XP210/AC100: 2020 onwards
- Toyota Yaris GR: 2020 onwards

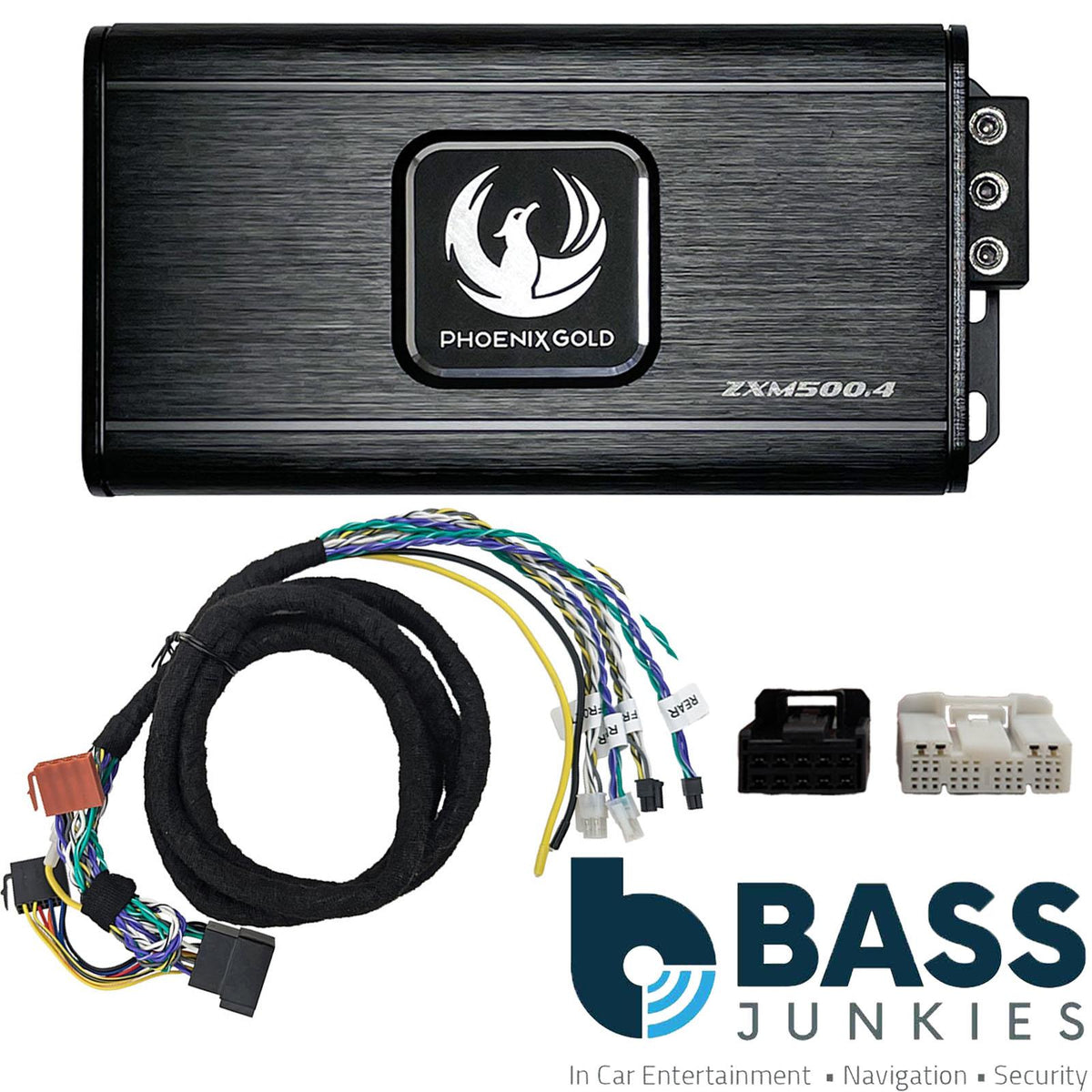

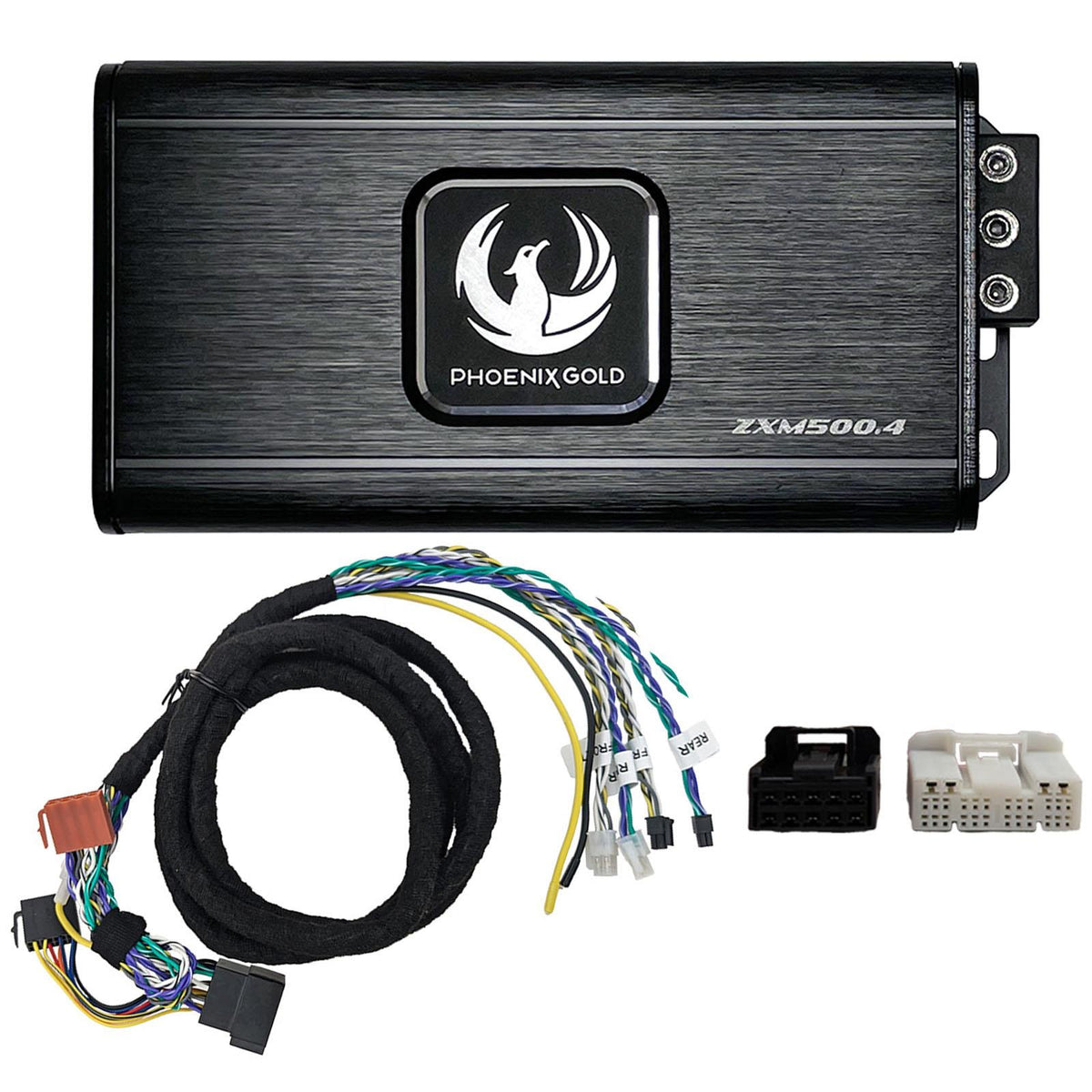

Package Contents:
- 1 x Phoenix Gold ZXM500.4 four-channel amplifier
- 1 x Phoenix Gold ZDC-ISOX2 2.2-metre ISO-T harness
- 1 x Phoenix Gold ZDT-TOY2 vehicle-specific T-harness
Important: Suitable for the listed vehicles with a basic sound system only. Please confirm the factory audio system and connector compatibility before purchasing. Open-ended year ranges do not guarantee compatibility with every later model or specification. Professional installation is recommended.
