Phoenix Gold ZXMPSZ1 500 Watts 4 Channel Plug & Play Car Amplifier Kit for Suzuki

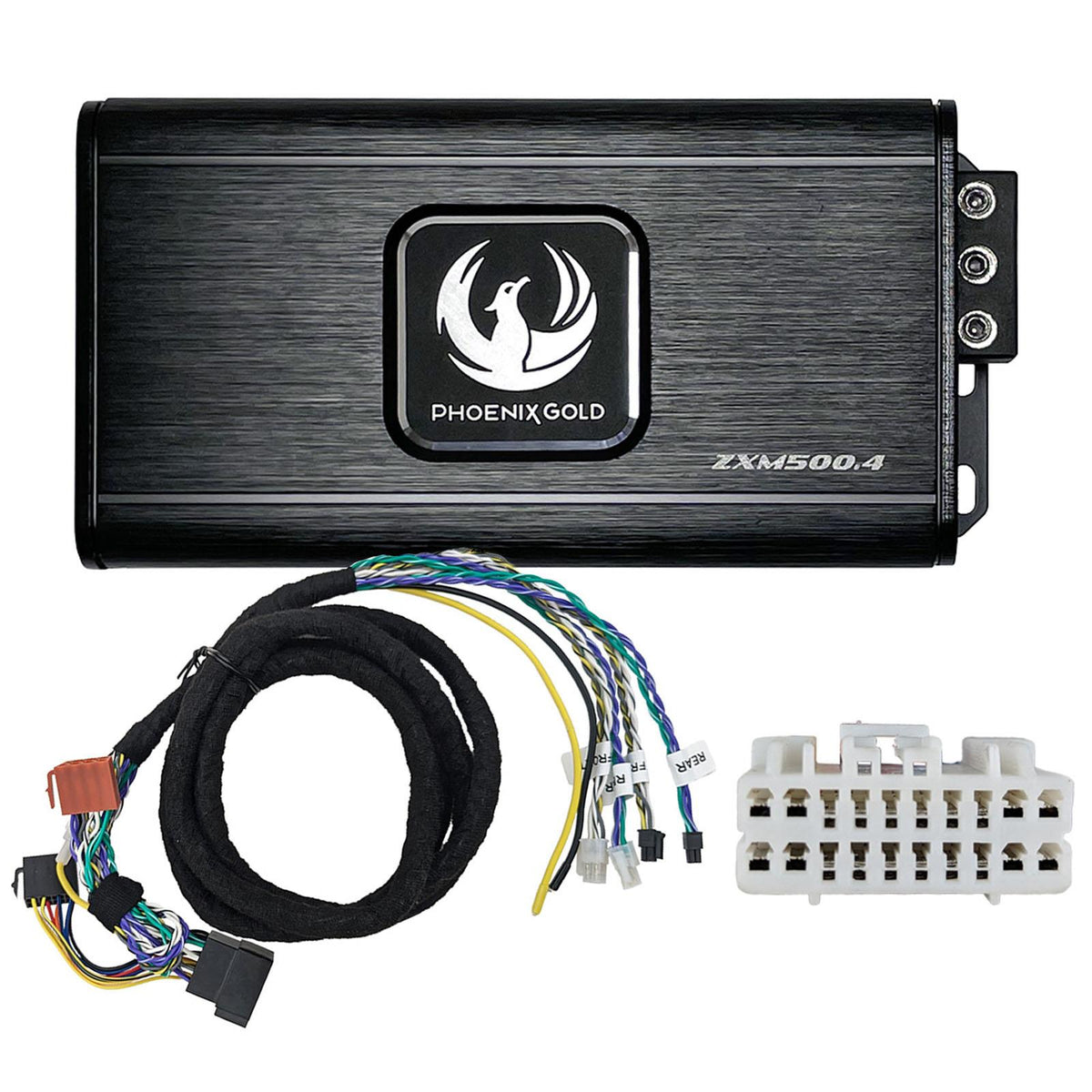

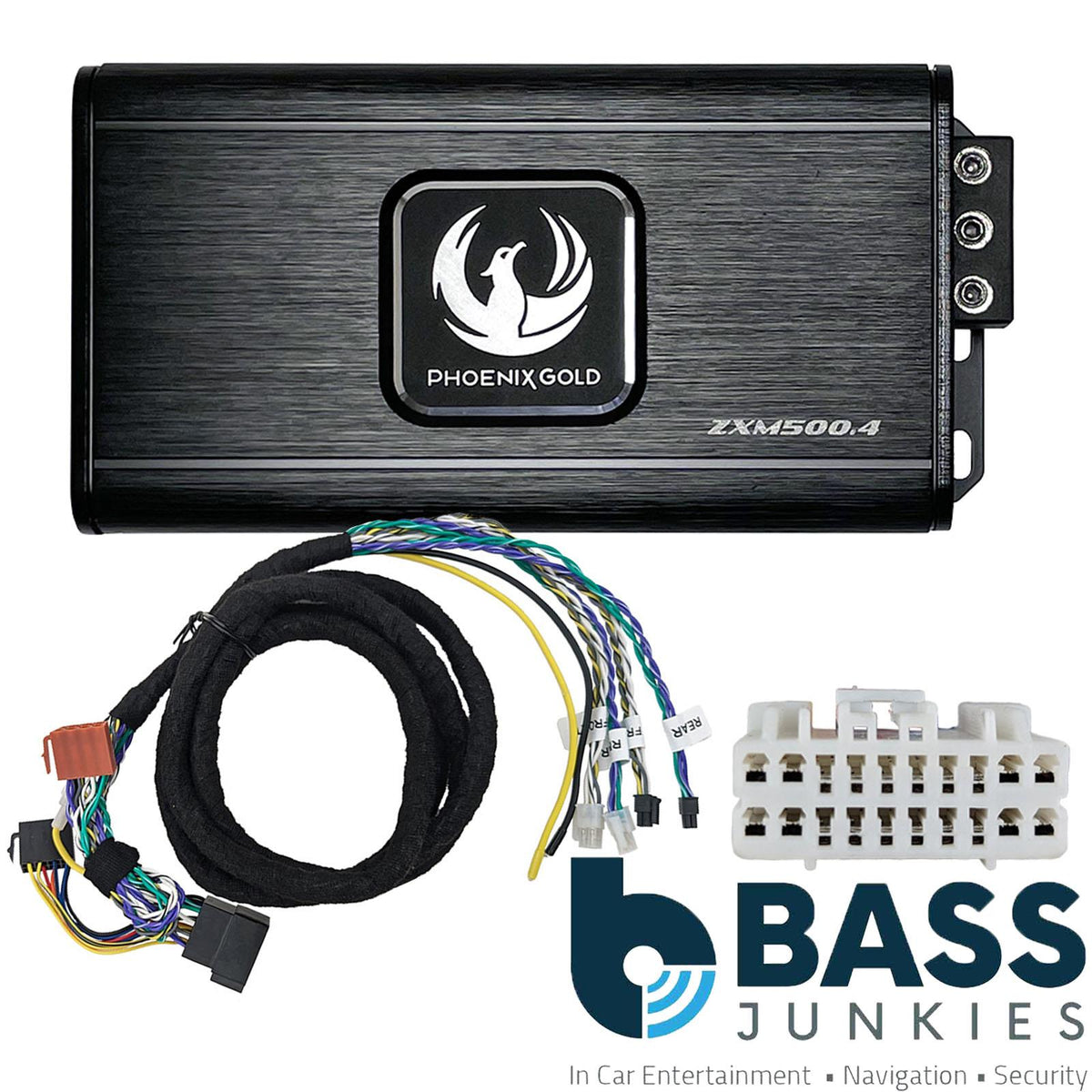

Upgrade your compatible Suzuki’s factory audio system with the Phoenix Gold ZXMPSZ1 Power Up Kit. This package combines the compact ZXM500.4 four-channel amplifier, a ZDC-ISOX2 2.2-metre ISO-T harness and a compatible vehicle-specific T-harness, allowing the original stereo to be retained.
The amplifier takes high-level audio signals from the compatible factory system and supplies additional power to the speakers, providing greater headroom for improved output, control and musical dynamics. Efficient Class-D technology and compact dimensions make it suitable for discreet installation where space allows.
Key Features:
- Designed for compatible Suzuki factory audio systems
- Retains the compatible original stereo
- Compact Class-D four-channel amplifier
- High-level and low-level audio inputs
- Selectable two-channel or four-channel input operation
- Automatic turn-on using the high-level input
- Adjustable high-pass and low-pass filters
- Short-circuit, thermal and high/low-voltage protection
- Protection status LED and surface-mount component technology
- Low-EMI design to help minimise electrical interference
Amplifier Specifications:
- Maximum power: 1000 Watts
- RMS output at 2 ohms: 4 x 125 Watts / 500 Watts combined
- RMS output at 4 ohms: 4 x 80 Watts / 320 Watts combined
- Bridged RMS output at 4 ohms: 2 x 250 Watts
- Frequency response: 20Hz–20kHz
- Signal-to-noise ratio: Greater than 90dB
- Total harmonic distortion: Less than 0.3%
- High-pass and low-pass filters: 40Hz–400Hz, 12dB/octave
- Dimensions (L x W x H): 165 x 83.1 x 34.8mm
Package Contents:
- 1 x Phoenix Gold ZXM500.4 four-channel amplifier
- 1 x Phoenix Gold ZDC-ISOX2 2.2-metre ISO-T harness
- 1 x Compatible vehicle-specific T-harness
Vehicle Compatibility:
This kit is intended for selected Suzuki vehicles and is not a universal fit. Contact us with your vehicle model, year and factory audio system details so we can confirm compatibility and the required T-harness before purchasing.
Professional installation is recommended.
