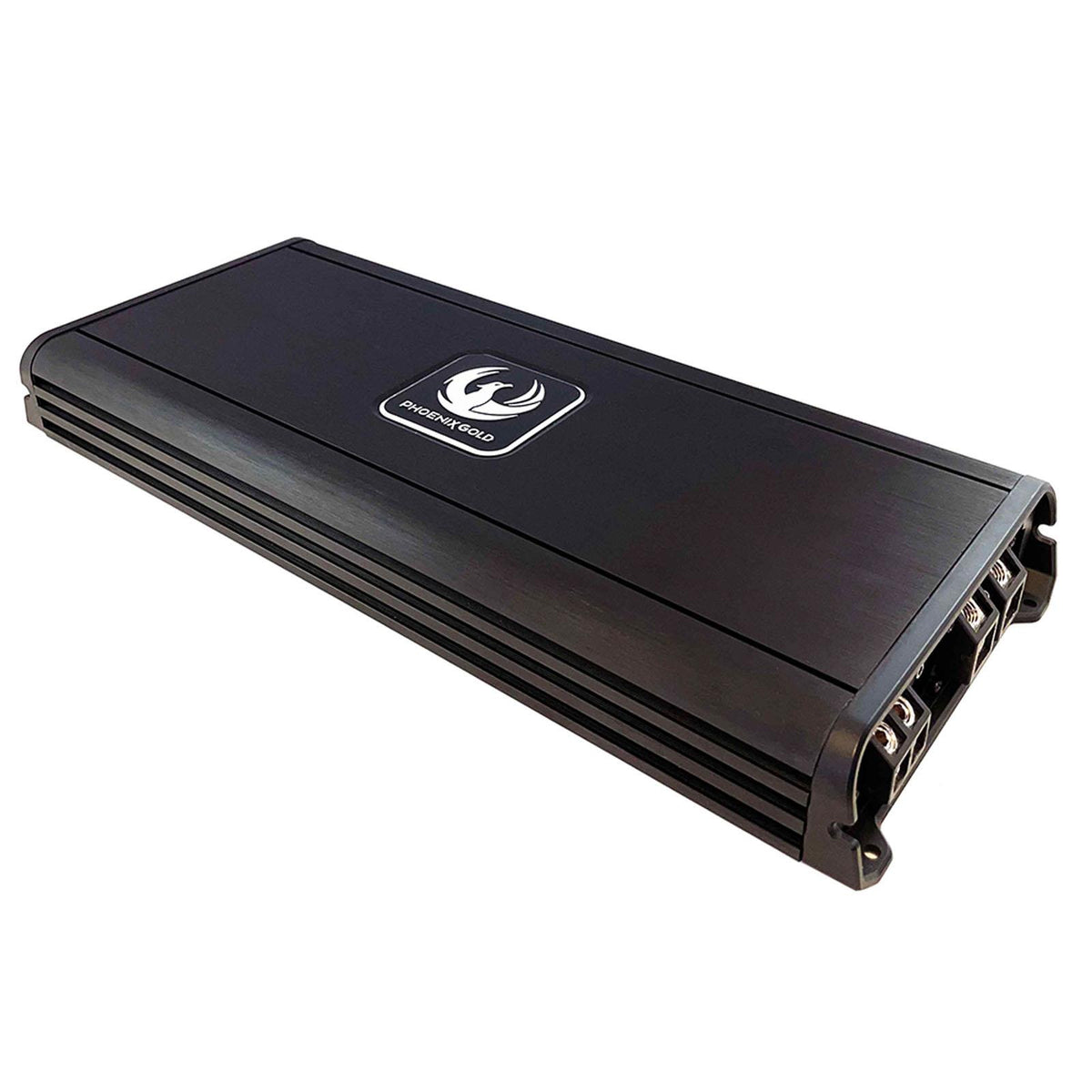

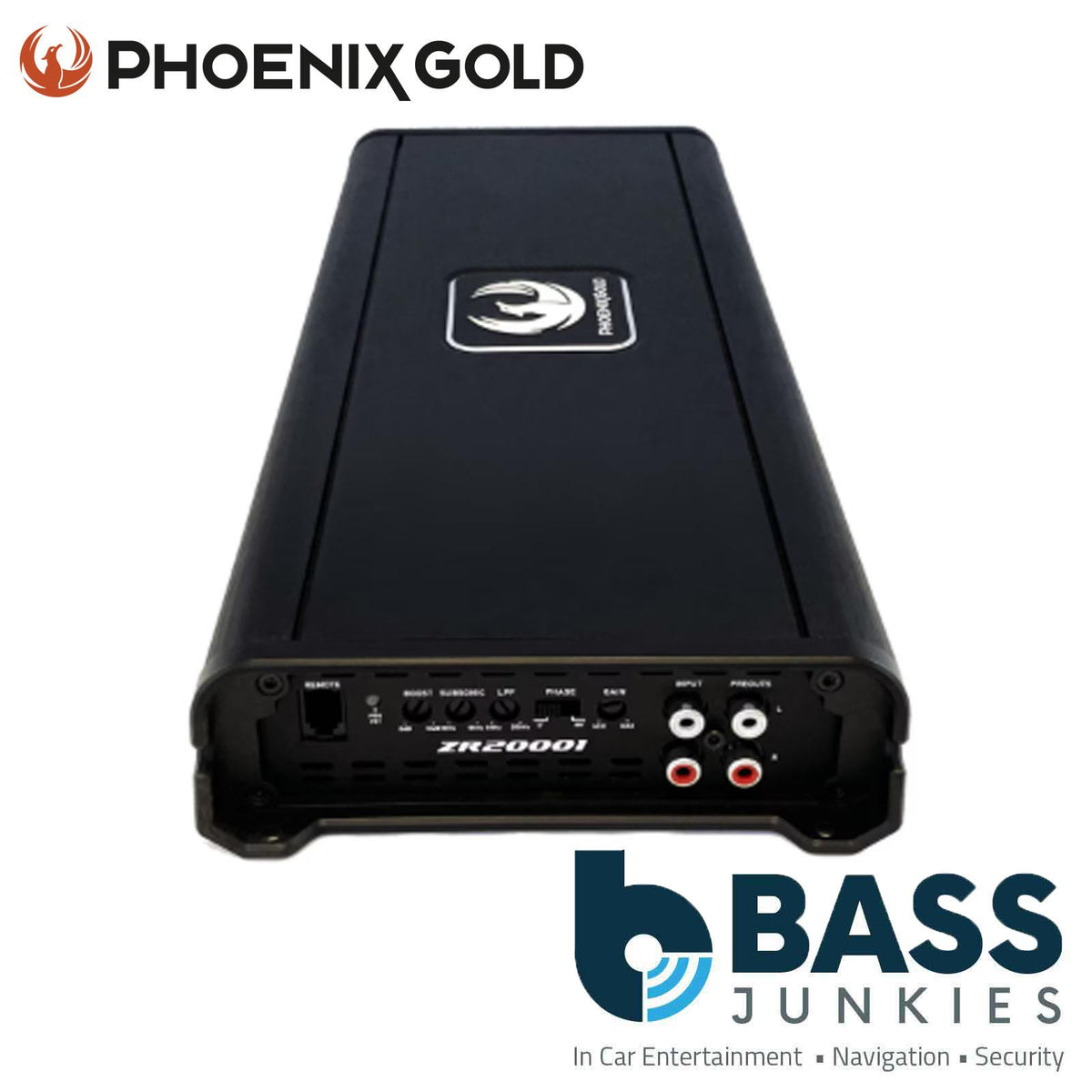

Phoenix Gold ZR20001 2000W MAX Amplifier 1x2000” RMS 1 Ohm
The ZR20001 is a powerful 2000W Monoblock Class-D Amplifier with a sleek tasteful design suitable for a wide variety of high power installs. Featuring our high-quality signature gold design circuit board, the ZR20001 uses its high grade connection terminal to ensure a clean crisp power delivery to all your components.
The ZR series of amplifiers carry the most precious of the Phoenix Gold DNA. With both massive power and control, these amps will keep you smiling all day and all night! The ZR amps use the latest generation class D chipset and we have put a lot of energy into making these amps last for a long time and to keep the party going all night! All of the ZR amplifiers will deliver more than we promise, this is very rare nowadays. We have used the latest Class-D chipset to make the ZR amplifiers deliver the maximum power whilst maintaining absolute control. These amplifiers are tuned to sound as perfect as possible using the Class D technology. The amplifiers come with full function filters with an extended range of 50-5kHz from the ZR6004 which makes it ideal to use for active filtering of a front-end system. The ZR series has a high-level input with remote start function and a differential input design to avoid any unwanted noise on the input signal. They also come packed with short thermal overload protection circuits to make sure nothing bad happens to the amp. These amps come with massive power and yes they will deliver more than we promise!
Technical
ZR Amplifiers small size amplifiers with Class D Design
REAL POWER amplifier designed with the latest Class-D technology
Full function filters
Low and High level input
Autostart on High Level input
Balanced differential input design
High grade terminals
High grade aluminium chassis
Fan less design
ZR6004 Unique HP & LP function 12dB filter from 50-5kHz to accommodate Active filter for Midrange and Tweeter
Pair with Aftermarket HU and get bandpass-filter for active front system
Mono amps subsonic filter
Remote gain controller made clever
Short, Thermal, Overload Protection circuits
- 2000W Monoblock Class-D Amplifier
- Power Ratings (RMS)
- 2000W x 1 @ 1Ohm
- 1200W x 1 @ 2Ohm
- 700W x 1 @ 4Ohm Class-D Technology
- Frequency Response 20Hz – 400Hz
- Signal to Noise Ratio >96dB
- High & Low Pass Crossover 24dB per octave Crossover Range 50Hz – 250Hz
- Subsonic Crossover Range 10Hz – 55Hz
- Bass Boost @ 45Hz 0 to +18db
- Phase Control 0-180
- Low Level Input Range 0.2V to 10V
- High Level Input Range 1V to 30V
CASE HEIGHT (CM): 8
CASE LENGTH (CM): 43
CASE WIDTH (CM): 23.5
CASE VOLUME (CM): 4.68
NET WEIGHT (KG): 3.2
GROSS WEIGHT (KG): 3.6
