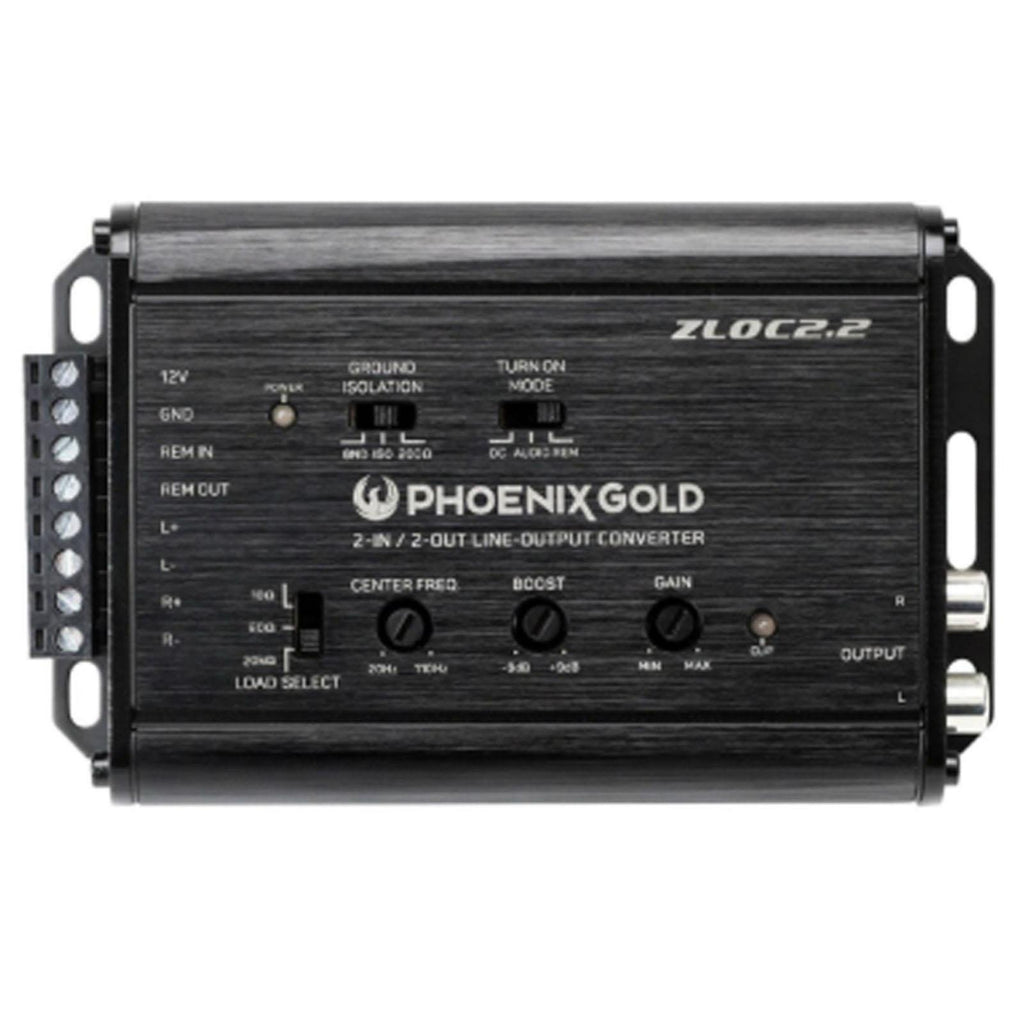

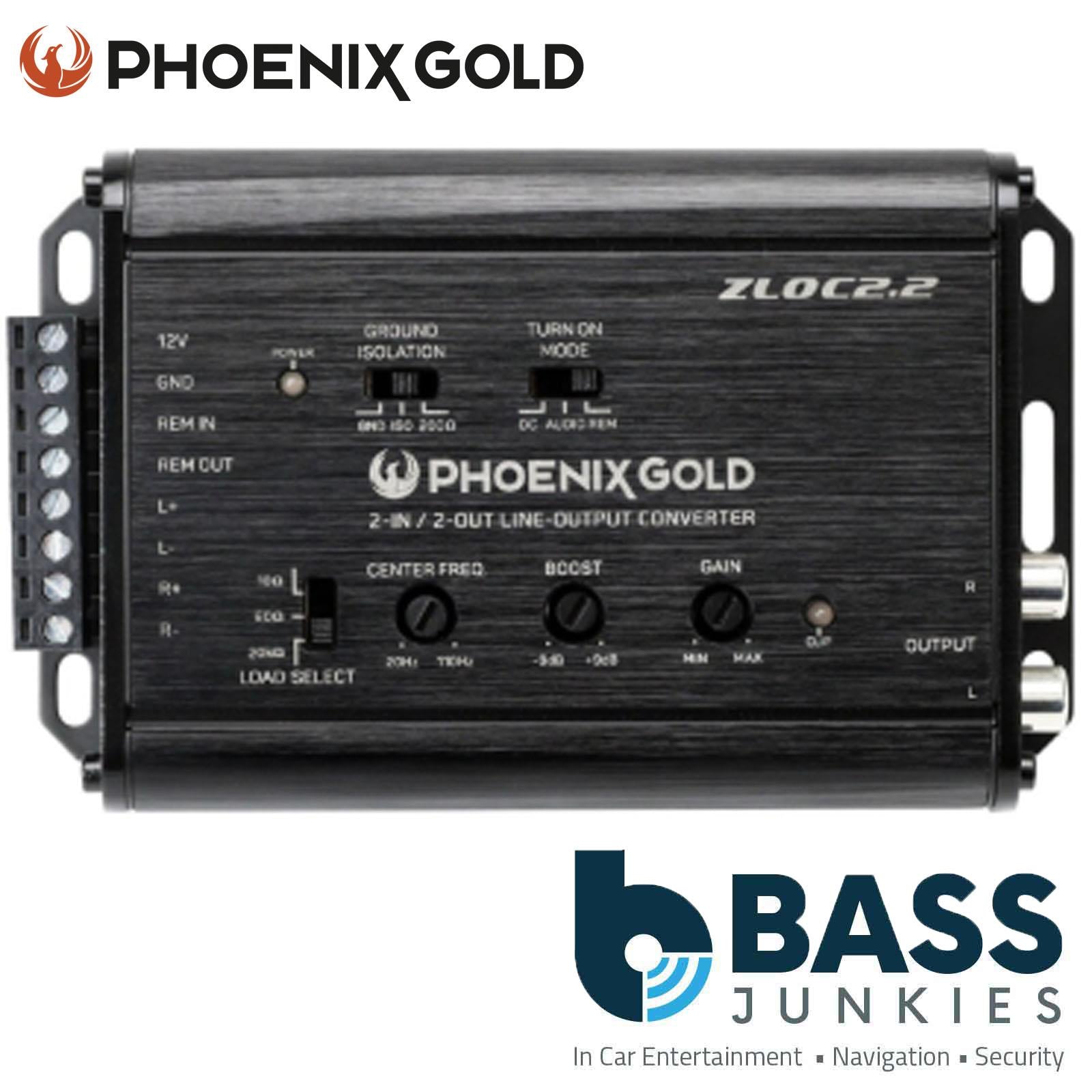

Phoenix Gold ZLOC2.2 - 2 Channel and 4 Channel Active Line Output Converter
The ZLOC2.2 is the essential solution for enhancing your vehicle’s audio system. While many vehicles now come with integrated amplifiers, the original OEM system often falls short of performance. Replacing the entire audio system can be costly and sometimes not feasible. That’s where our ZLOC converters step in. Not only do they reduce distortion, but they also allow for seamless integration of aftermarket audio components into your OEM system. Gone are the days of being unable to upgrade your head unit – our ZLOC converters cleverly bypass OEM resistance, all while eliminating unwanted system noise. Upgrade your audio experience today with our advanced OEM integration solution.

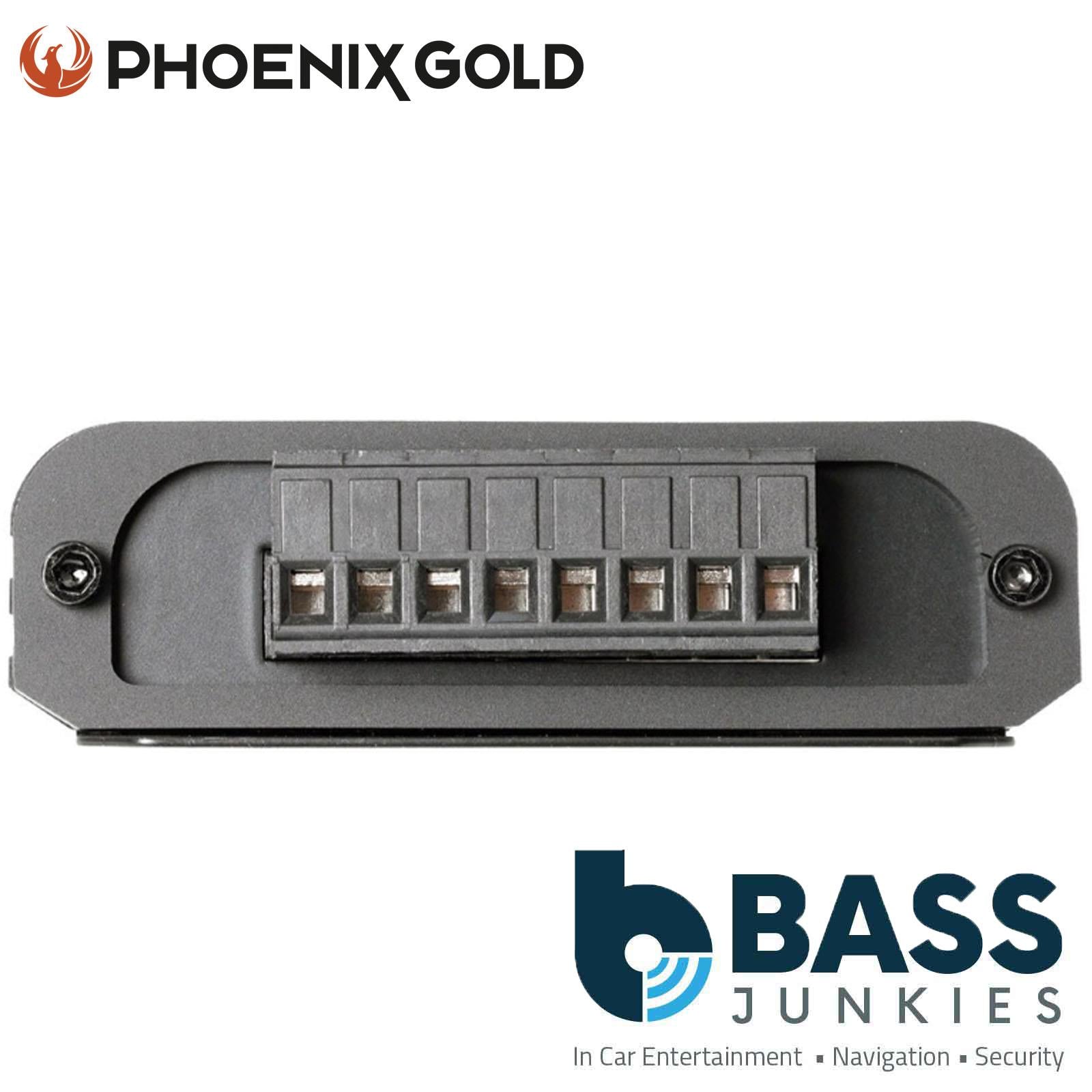

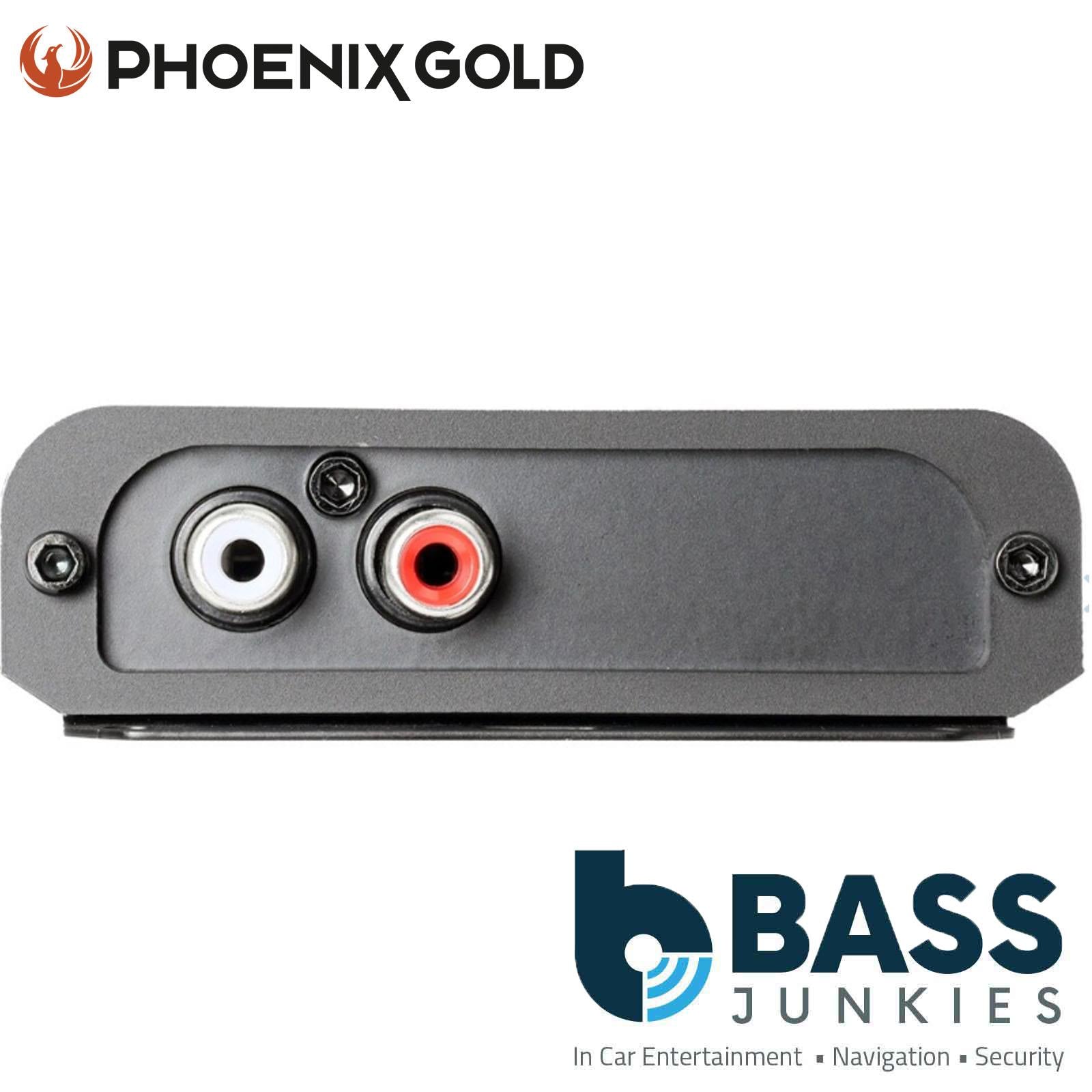

The ZLOC2.2 has two high-level inputs that take the speaker signal from the OEM head unit or amplifier and convert it to a low-level output. This allows you to add an external amplifier to install an aftermarket subwoofer and add more power or more speakers.
The ZLOC2.2 has a built-in CLIP indicator that flashes when it senses input or output signal distortion. This lets you easily see when the input signal distorts and enables you to adjust the output signal without clipping for a distortion-free signal.
Specifications
Speaker Input 2CH
Outputs 4CH
REM In Yes
REM Out Yes
Load Select 10-Ohm / 60-Ohm / 20K-Ohm
Ground Isolation GND/ISO/200-Ohm
Gain Yes,X1
Clipping Yes,X1
Center Frequency 20Hz-110Hz
Bass Level -9 ~ +9dB
Turn On Mode REM/DC/AUDIO
Input Mode N/A
Remote None
Dimensions(LxWxH)mm 130.6x82x24.8mm
Chassis Body Aluminum
Operating Voltage 8 to 32V
Input Sensitivity 0.5 to 32V
Operating Voltage 8 to 32V
Output Voltage Max. 7.5V @ 14.4V
Max 40V as Input Must be 20K-ohm load
Signal to Noise >100dB @6.4V output
Input Impedance 10-Ohm / 60-Ohm / 20K-Ohm
Frequency Response 10-30kHz
THD+N <0.01%
Output Impedance < 120-ohm
Max Current Draw 120 - 150 mA
Turn-On Trigger, DC 3 to 7V
Gain -28 to 0dB

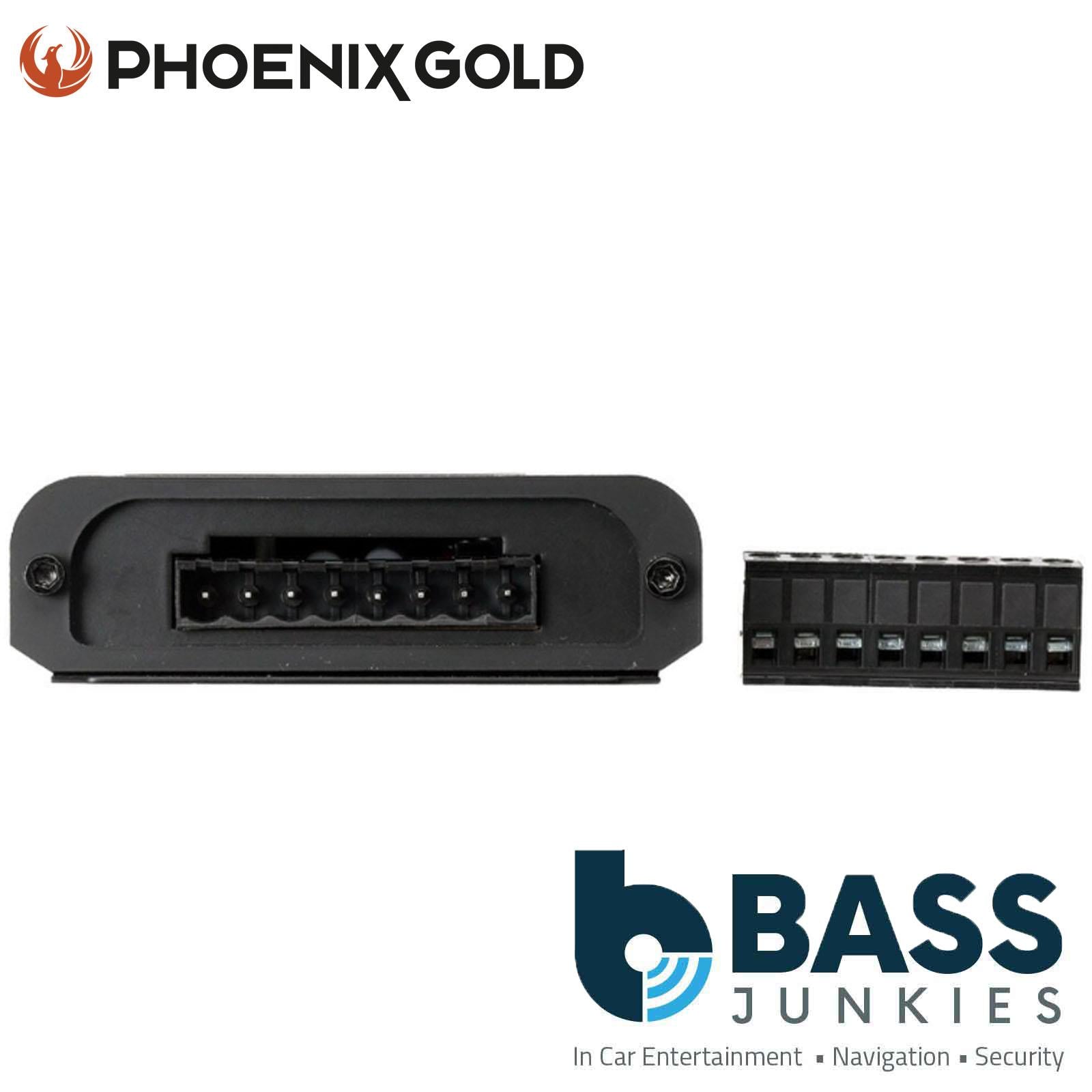

Terminal Gauge Quick Connect /16# AWG
CASE HEIGHT (CM): 5
CASE LENGTH (CM): 15
CASE WIDTH (CM): 12
CASE VOLUME (CM): 0.52
NET WEIGHT (KG): 0.3
GROSS WEIGHT (KG): 0.3
