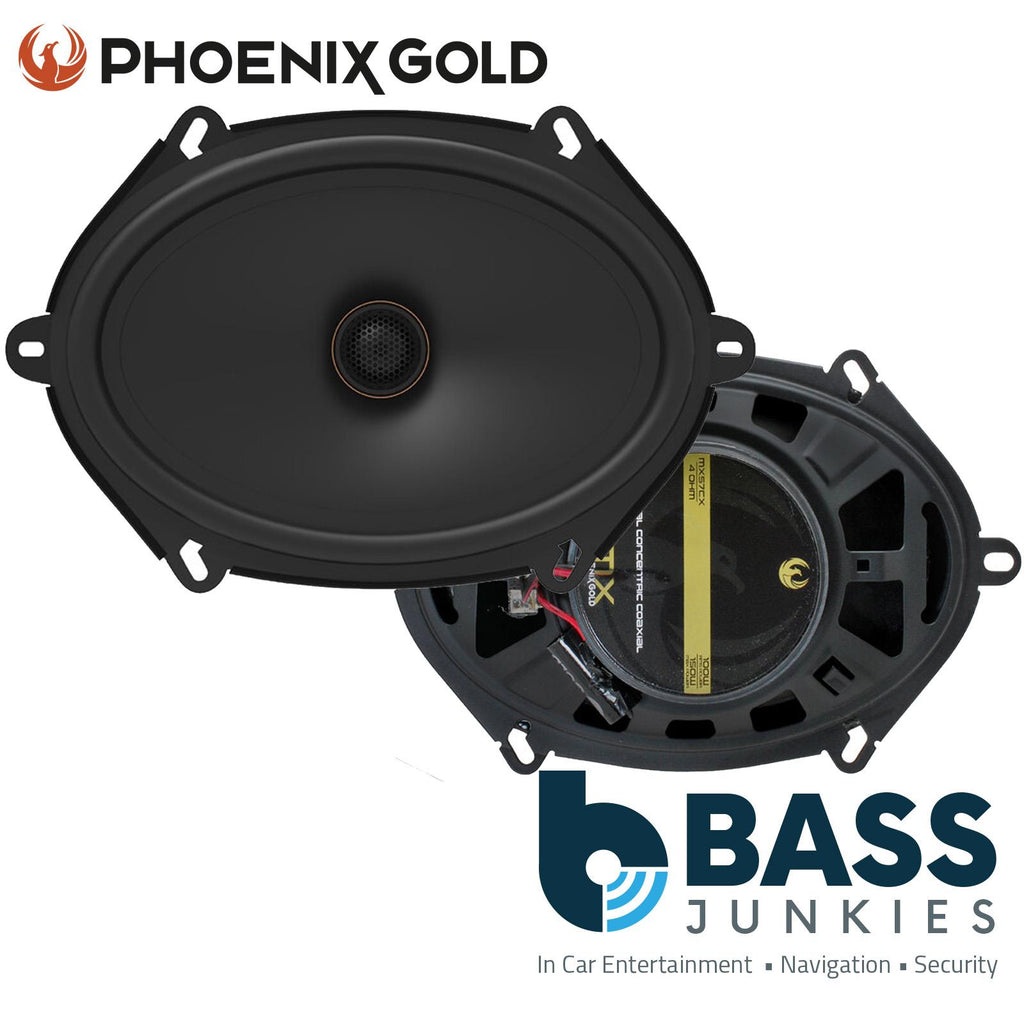

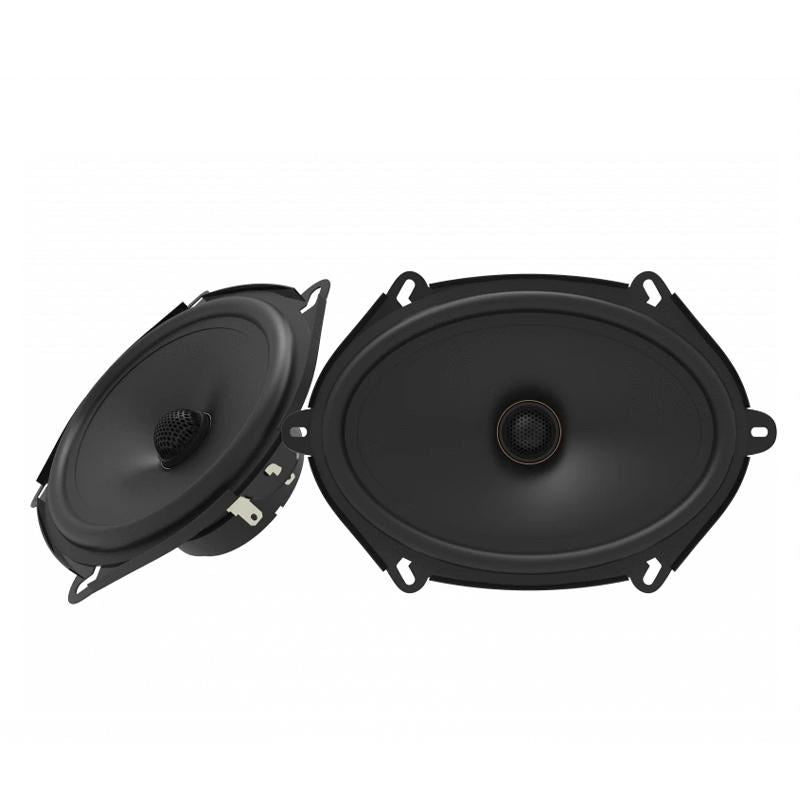

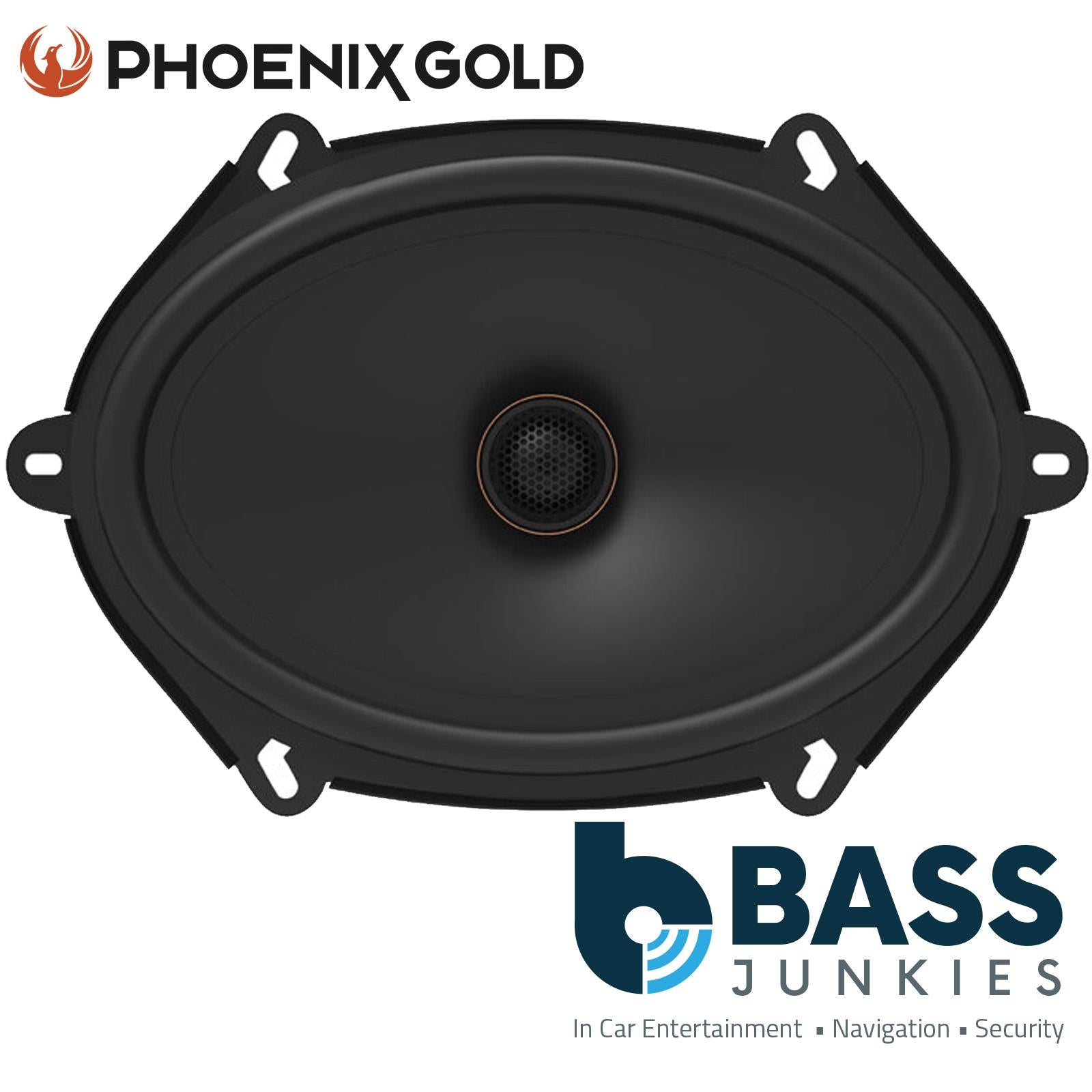

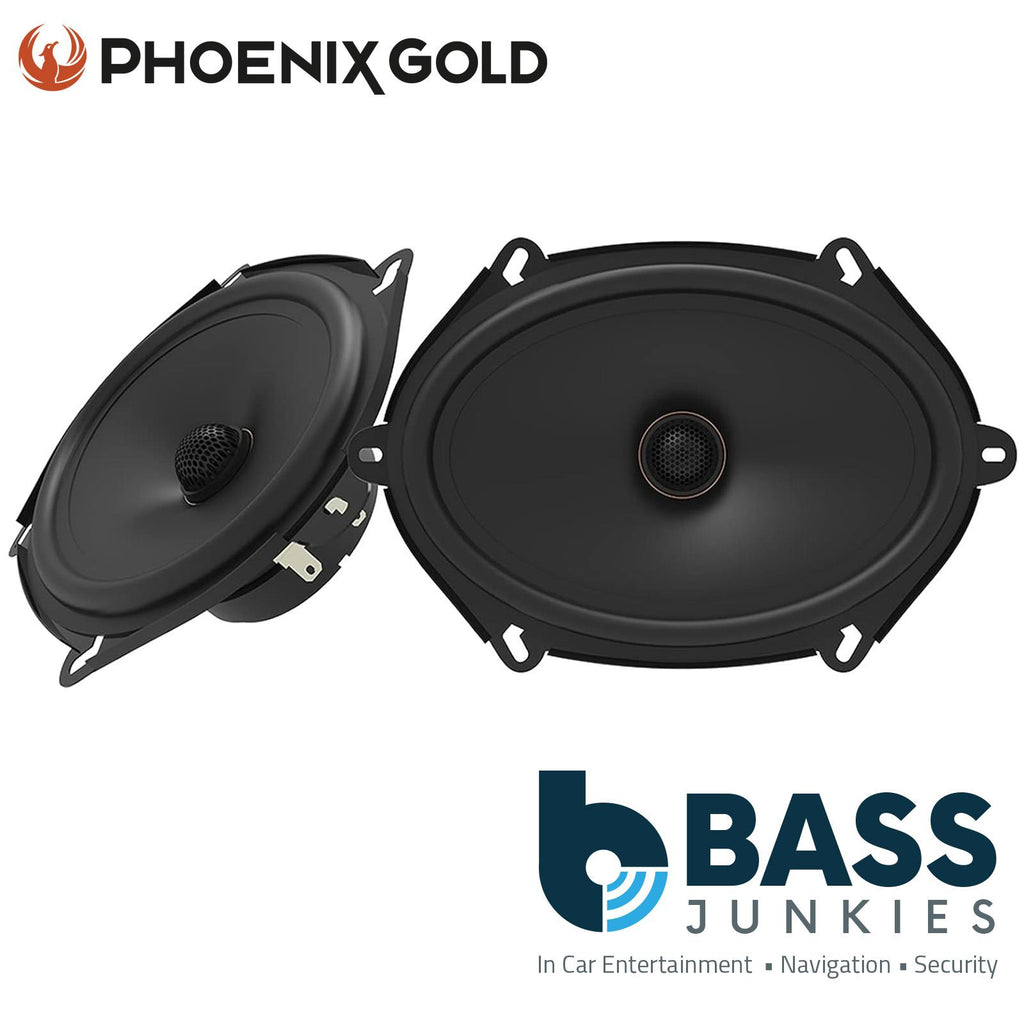

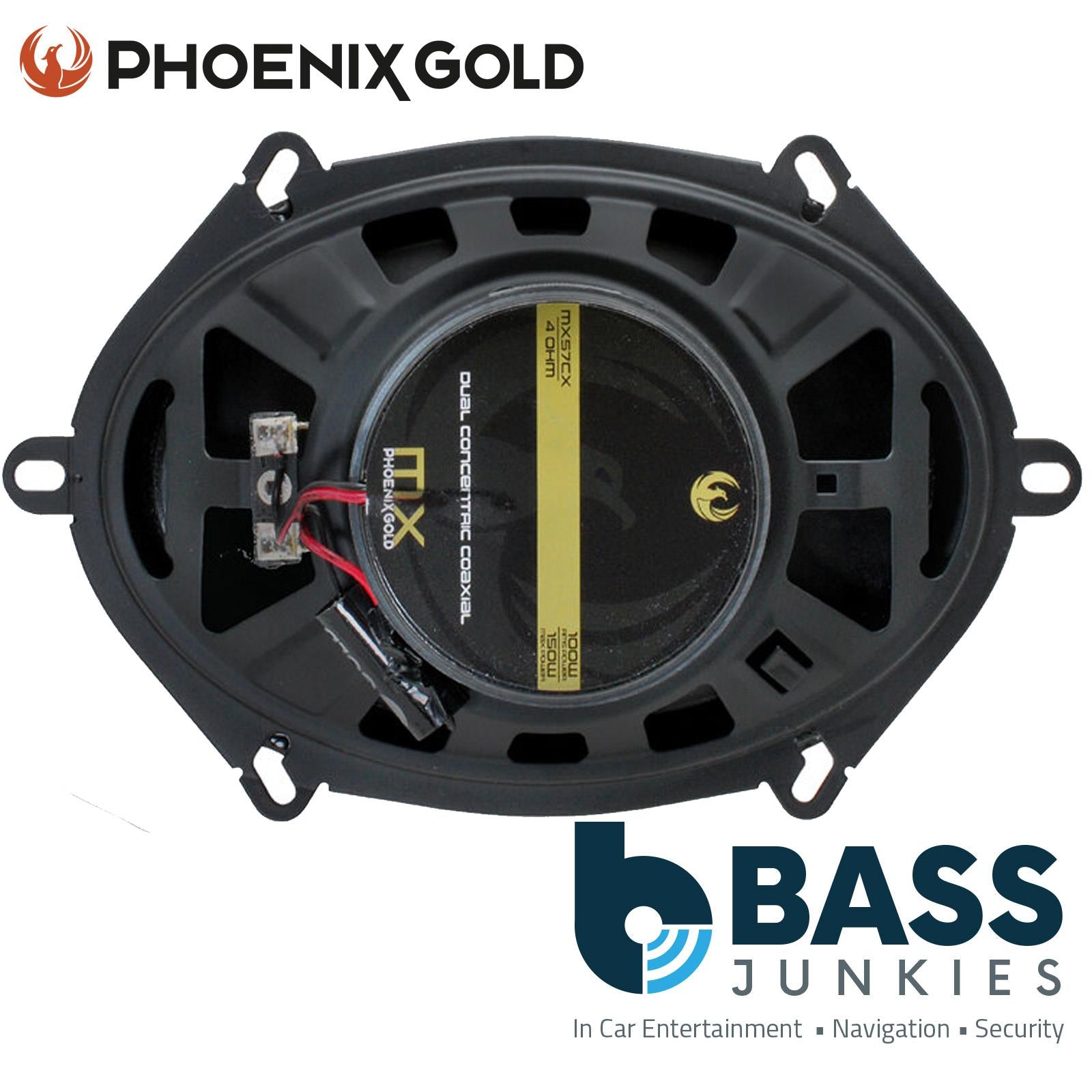

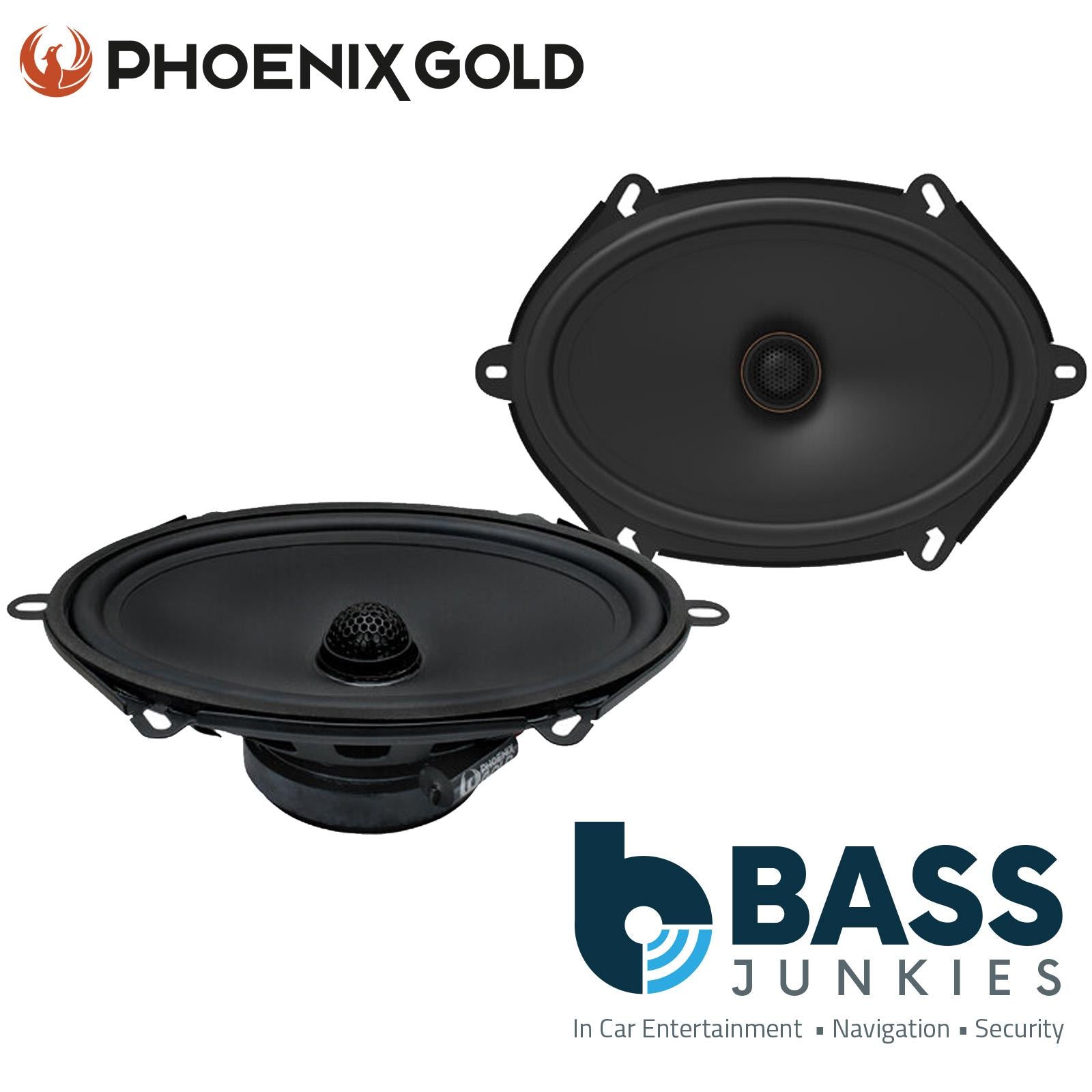

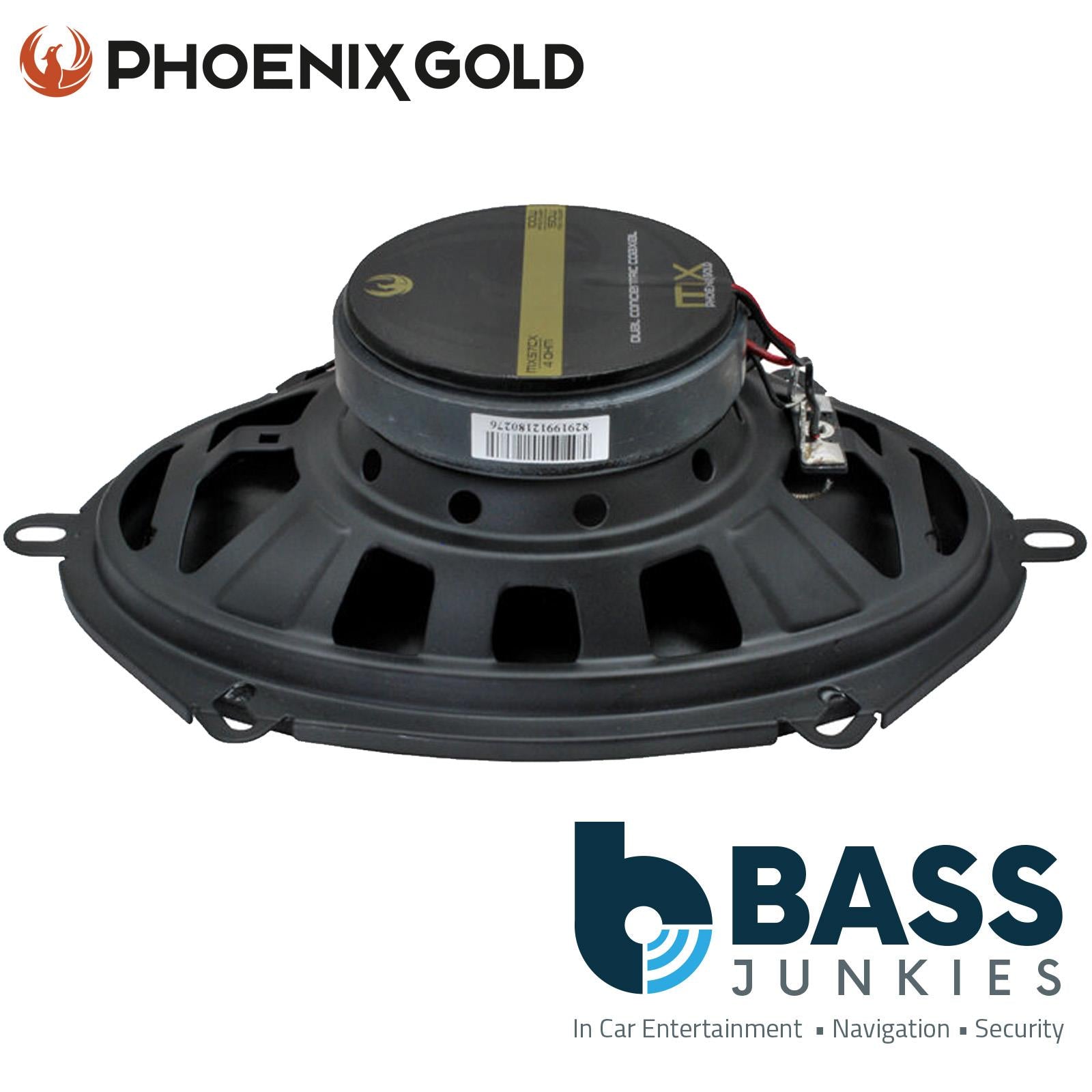

Phoenix Gold MX Series MX57CX 5x7" Inch 300 Watts a Pair Coaxial Car Door Speakers
MX Series of Full Range Speakers feature a Dual Concentric Coaxial Design which allows the sound of each driver to emanate from a single point, eliminating frequency interference and phase issues. Corona Lens allows For better off axis listening by producing a uniform and articulate sound field in all directions, resulting in correct phase and improved time alignment. These Features are combined to create an engrossing listening experience with detail, impact and tonality unrivaled from any other speakers in or even double MX’s price point. The MX drivers will be an easy drop-in replacement with an excellent increase in performance and sound quality.
FEATURES
Shallow Mount- Allows for easy installation behind factory panels
Dual Concentric Design- Provides excellent off-axis response as the woofer and tweeter share a common center thus focusing the sound of both drivers in a uniform field of sound resulting in premium sound quality from stock locations
Polypropylene Carbon Impregnated Cone- Strong yet lightweight material for crisp, accurate mid and low notes
High-Temperature Voice Coil- Our proprietary Torriform Technology provides superior current distribution while effectively dissipating heat
Phoeniroll Surround Technology- A Phoenix Gold Standard that supports smooth linear movement for optimal accuracy
Silk Dome Tweeter- delivers rich, warm treble with remarkable
clarity and definition
Specifications
- Power Handling (RMS) 100 Watts each Speaker
- Peak Power Handling 150 Watts each Speaker
- 300 Watts a Pair
- Frequency Response 67hz-20khz
- 2 Way Coaxial
- Impedance 4ohm
- FS 67hz
- Vas 10.90Lrt
- Xmax 10mm
- Qts 1.278
- Sensitivity (1W/M) 90dB
- Cone Material PP cone
- Surround Material rubber surround
- Tweeter Size (mm) 19mm
- Tweeter Material silk
- Magnet diameter φ80x12mm
- Magnet Weight 226g"
Dimesions
- Overall Diameter (Dimensions) 5.51x8.66in / 140x220mm
- Cutout Diameter 4.96 x 7.16in / 126 x 182mm

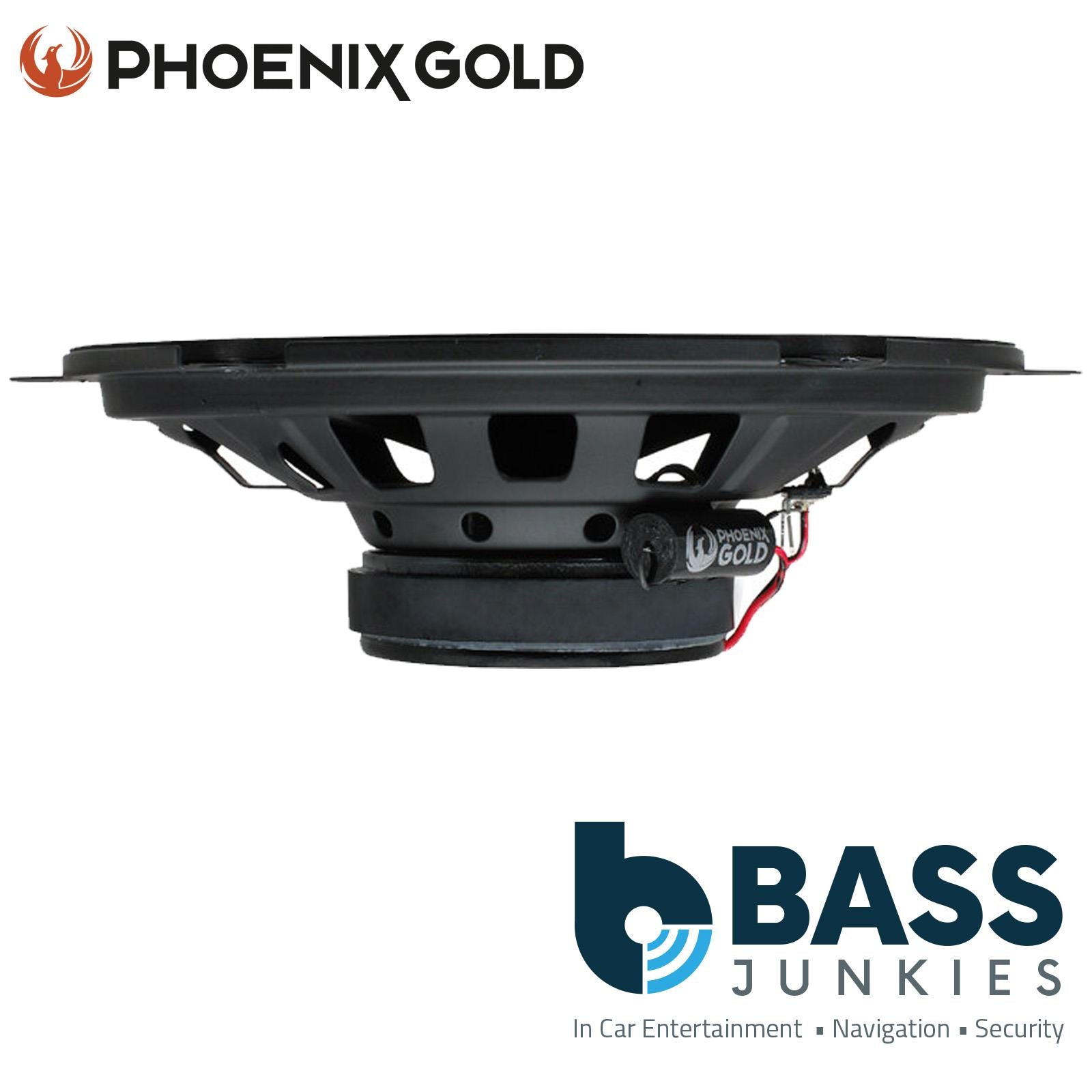

- Mounting Depth 2.20in / 56mm
- Net Weight 715g
