Phoenix Gold GX12D4 12" Subwoofer, Z3001i Amplifier, Sealed Box & Wiring Kit Package
Upgrade your car audio system with this complete Phoenix Gold bass package. The kit combines the powerful GX12D4 12-inch dual voice coil subwoofer with the Phoenix Gold Z3001i monoblock amplifier, a single 12-inch sealed MDF enclosure and a Connects2 PRO-EIGHT 8AWG amplifier wiring kit.
The GX12D4 can be wired in parallel to create a 2-ohm load, allowing it to work correctly with the Z3001i amplifier. At 2 ohms, the amplifier supplies 300 watts RMS to the subwoofer for strong, controlled bass performance.

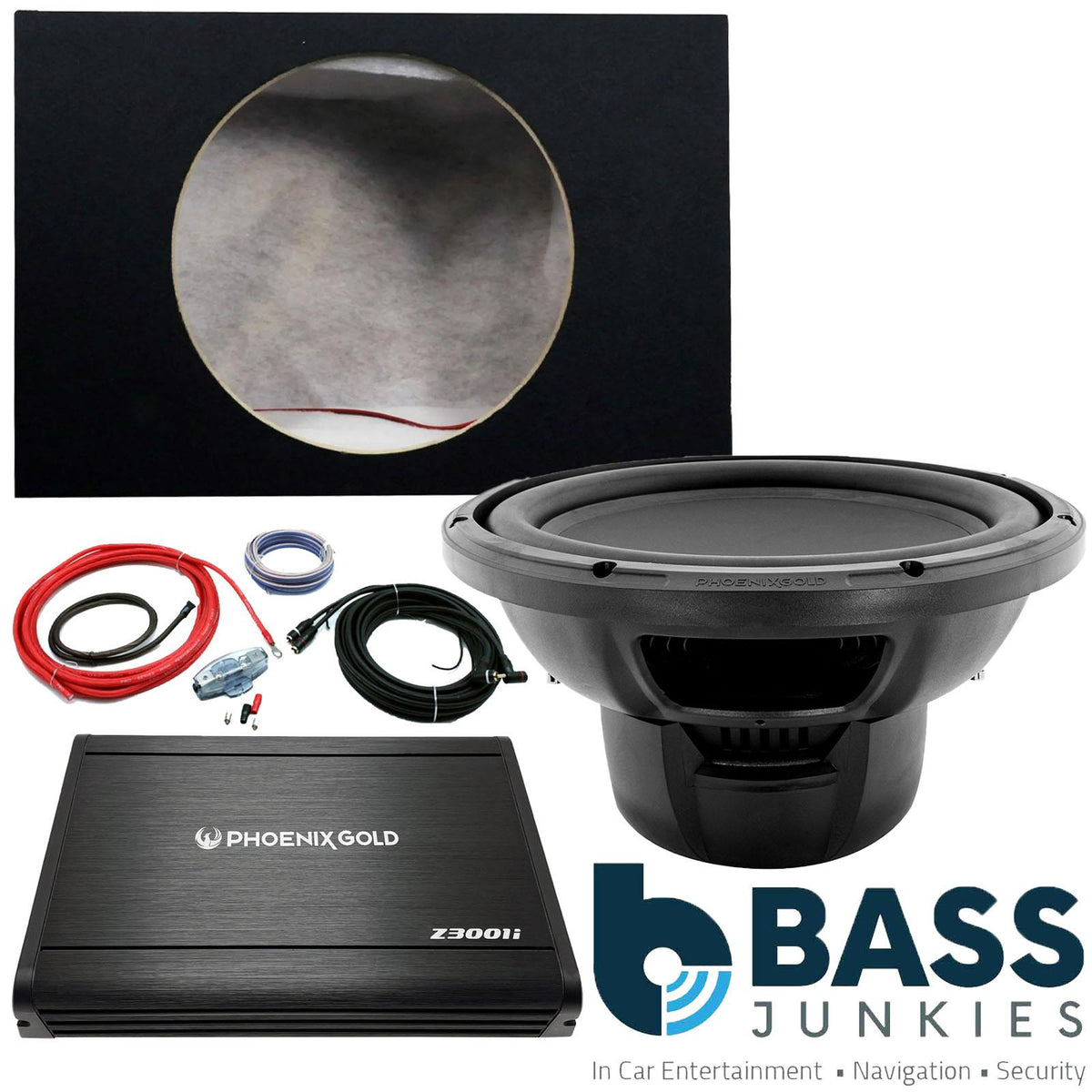

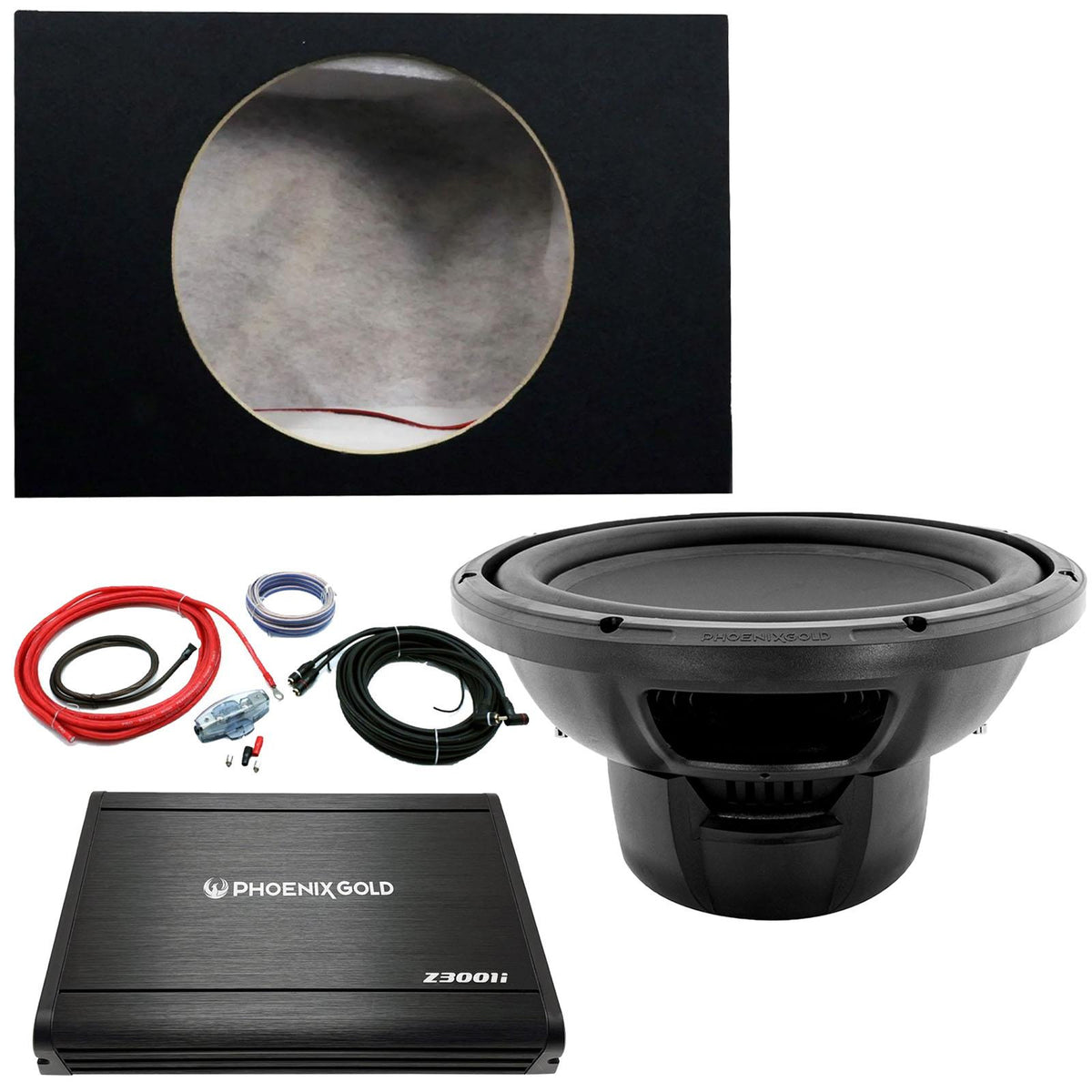

Package Includes
- 1 x Phoenix Gold GX12D4 12" dual 4-ohm subwoofer
- 1 x Phoenix Gold Z3001i monoblock amplifier
- 1 x 12SUBSB single 12" sealed MDF subwoofer enclosure
- 1 x Connects2 PRO-EIGHT 8AWG amplifier wiring kit

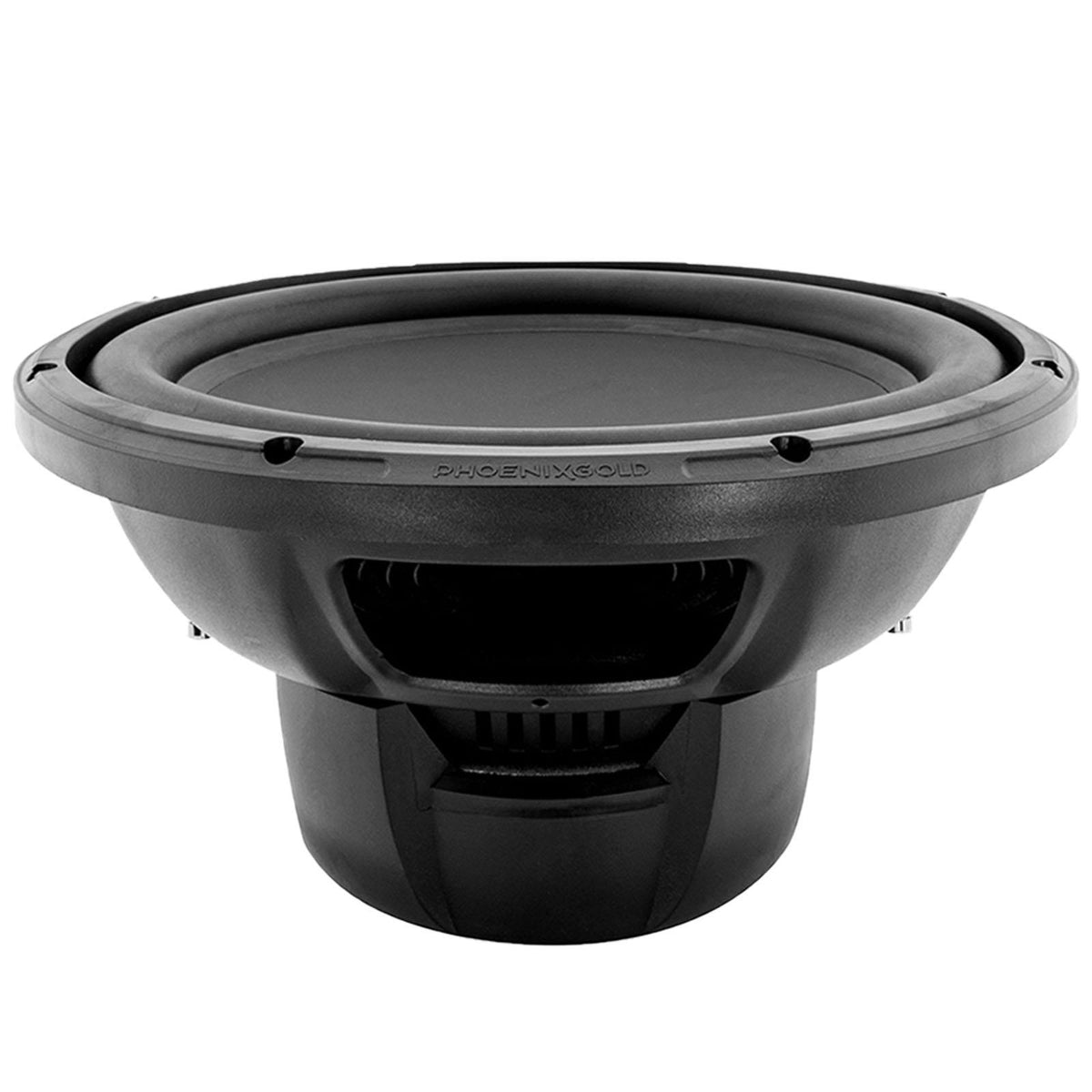

Phoenix Gold GX12D4 12" Subwoofer
The Phoenix Gold GX12D4 is a high-performance 12-inch subwoofer designed to produce powerful, accurate low-frequency sound. Its dual 4-ohm voice coils provide flexible wiring options, while its reinforced cone, long-throw suspension and vented motor structure help maintain reliable performance at higher output levels.
- Subwoofer size: 12" / 30cm
- Voice coil configuration: Dual 4 ohm
- Nominal power handling: 400 watts
- Peak power handling: 800 watts
- Frequency response: 30Hz–500Hz
- Sensitivity: 87.72dB
- Voice coil diameter: 2.5" / 63.5mm
- Linear excursion: 9mm
- Overall diameter: 317.5mm
- Cut-out diameter: 285.75mm
- Mounting depth: 159mm
- Removable gasket compatible with the Phoenix Gold G112 grille
GX12D4 Subwoofer Features
- Dual-cone construction increases cone rigidity and helps reduce distortion
- Magnetic FEA high-efficiency motor design
- Vented motor improves heat dissipation and reduces motor compression
- Linear Surround Technology supports increased cone excursion
- Black-anodised voice-coil former assists with thermal management
- CFL voice-coil and MLB collar technologies improve structural strength
- Double-looped and sleeved lead wires improve flexibility and durability
- Push-type terminals with short-circuit prevention

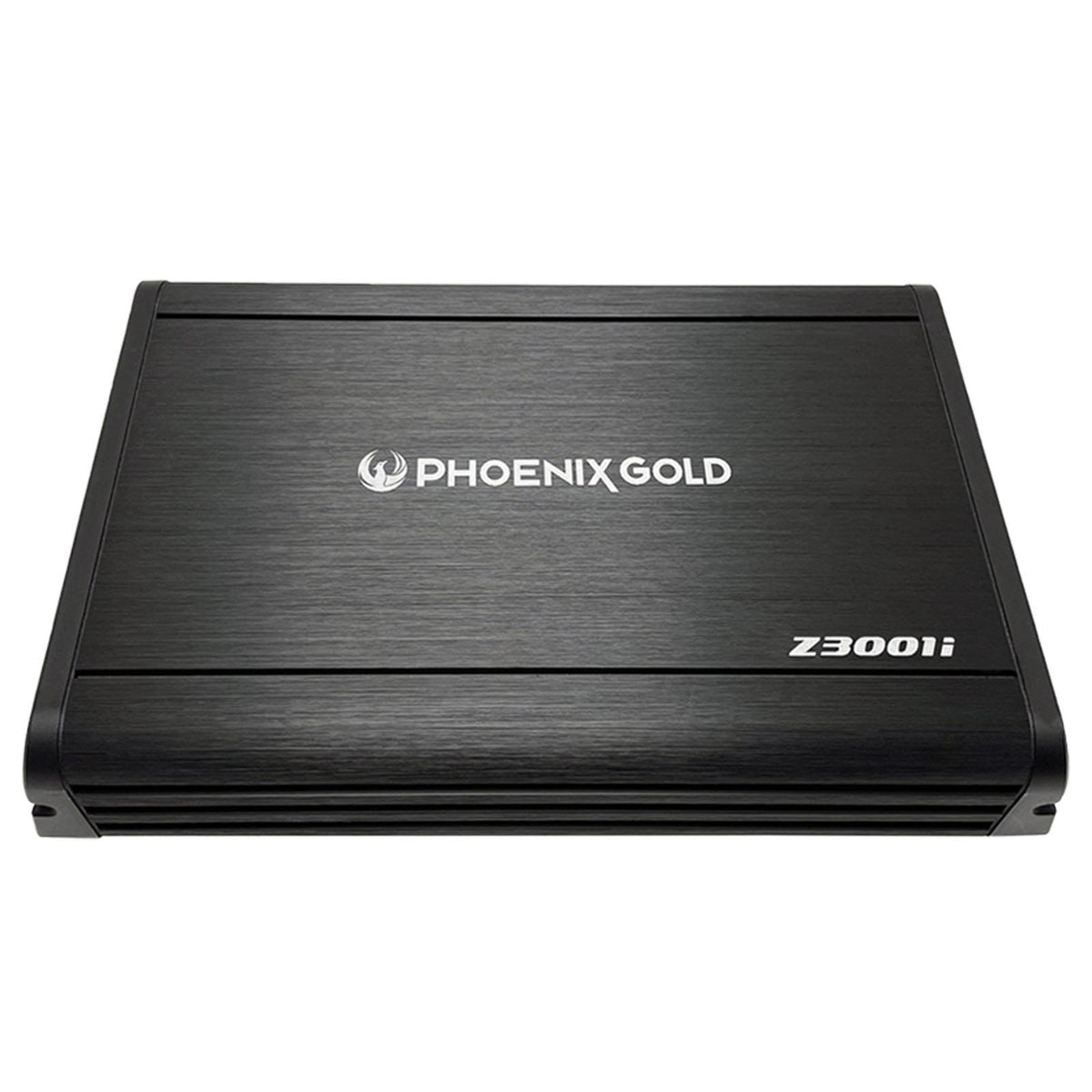

Phoenix Gold Z3001i Monoblock Amplifier
The Z3001i is a compact Class A/B monoblock amplifier developed specifically for bass applications. It includes high-level input capability, automatic signal sensing and an integrated cooling fan, making it suitable for use with both original factory radios and aftermarket head units.
- Amplifier type: Class A/B monoblock
- Channels: 1
- Power output at 2 ohms: 300 watts RMS x 1
- Power output at 4 ohms: 205 watts RMS x 1
- Minimum load impedance: 2 ohms
- Frequency response: 20Hz–250Hz
- Low-pass filter: 50Hz–250Hz at 12dB per octave
- Subsonic filter: 10Hz–55Hz at 12dB per octave
- Bass boost at 45Hz: 0 to +18dB
- Input sensitivity: 0.25V–9.5V
- High-level input through RCA connections
- Automatic signal-sensing turn-on
- Integrated temperature-controlled cooling fan
- Included remote bass controller
- 40A amplifier fuse
- Dimensions: 254 x 160 x 48mm
- Weight: 1.66kg

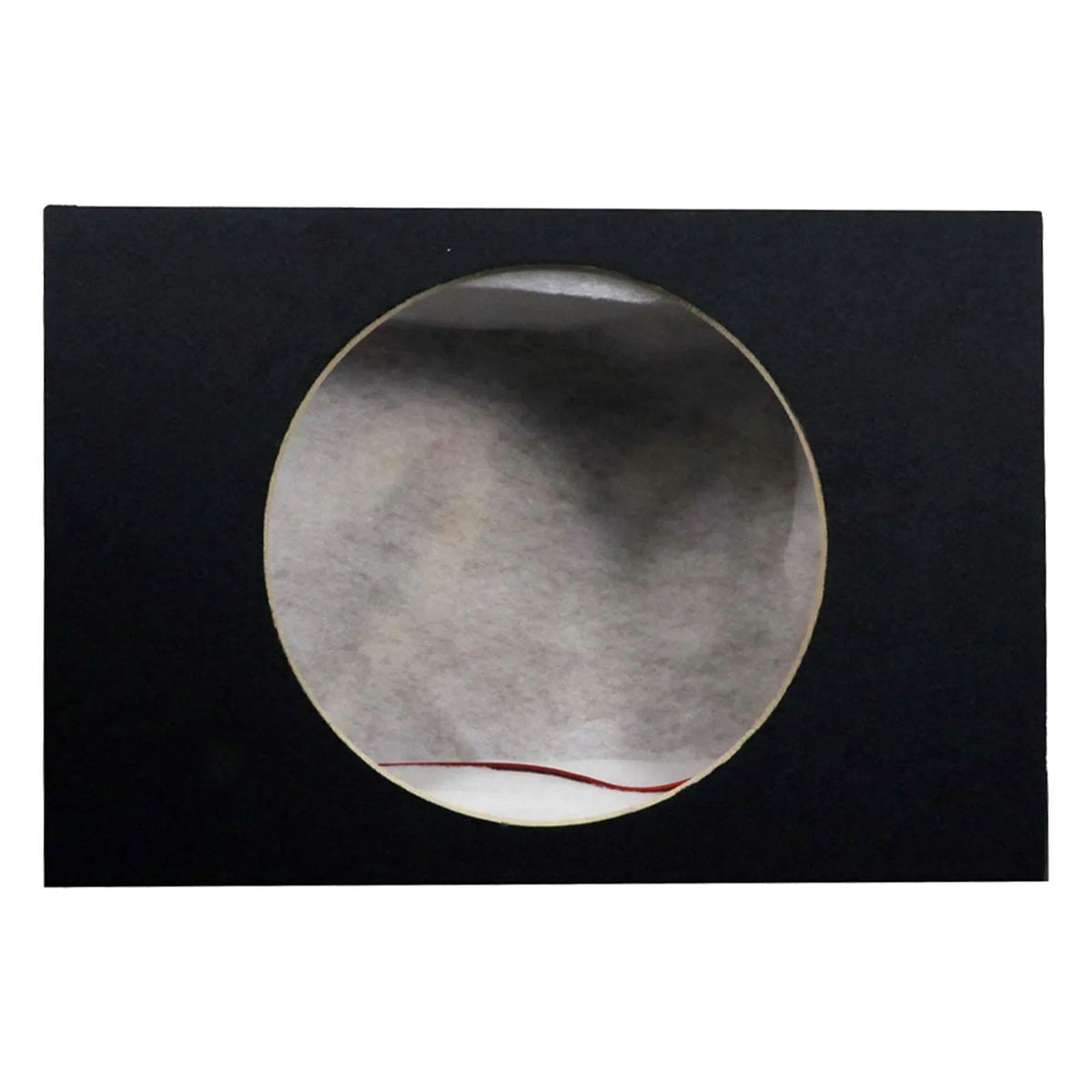

12SUBSB Single 12" Sealed Enclosure
The included enclosure is constructed from MDF and finished in black acoustic carpet. Its sealed design provides controlled bass response while protecting and securely housing the subwoofer. The enclosure also includes internal sound-absorbing foam and speaker cable.
This is a separate universal 12-inch enclosure supplied as part of the package. It has not been specifically designed or acoustically tuned exclusively for the GX12D4 subwoofer.
- Suitable for a single 12-inch subwoofer
- Sealed enclosure design
- Durable MDF construction
- Black acoustic carpet finish
- Integrated sound-absorbing foam
- Includes two 45cm lengths of 16AWG pure-copper speaker cable
- Product dimensions: 56 x 32 x 36cm
- Carton dimensions: 58 x 34 x 38cm

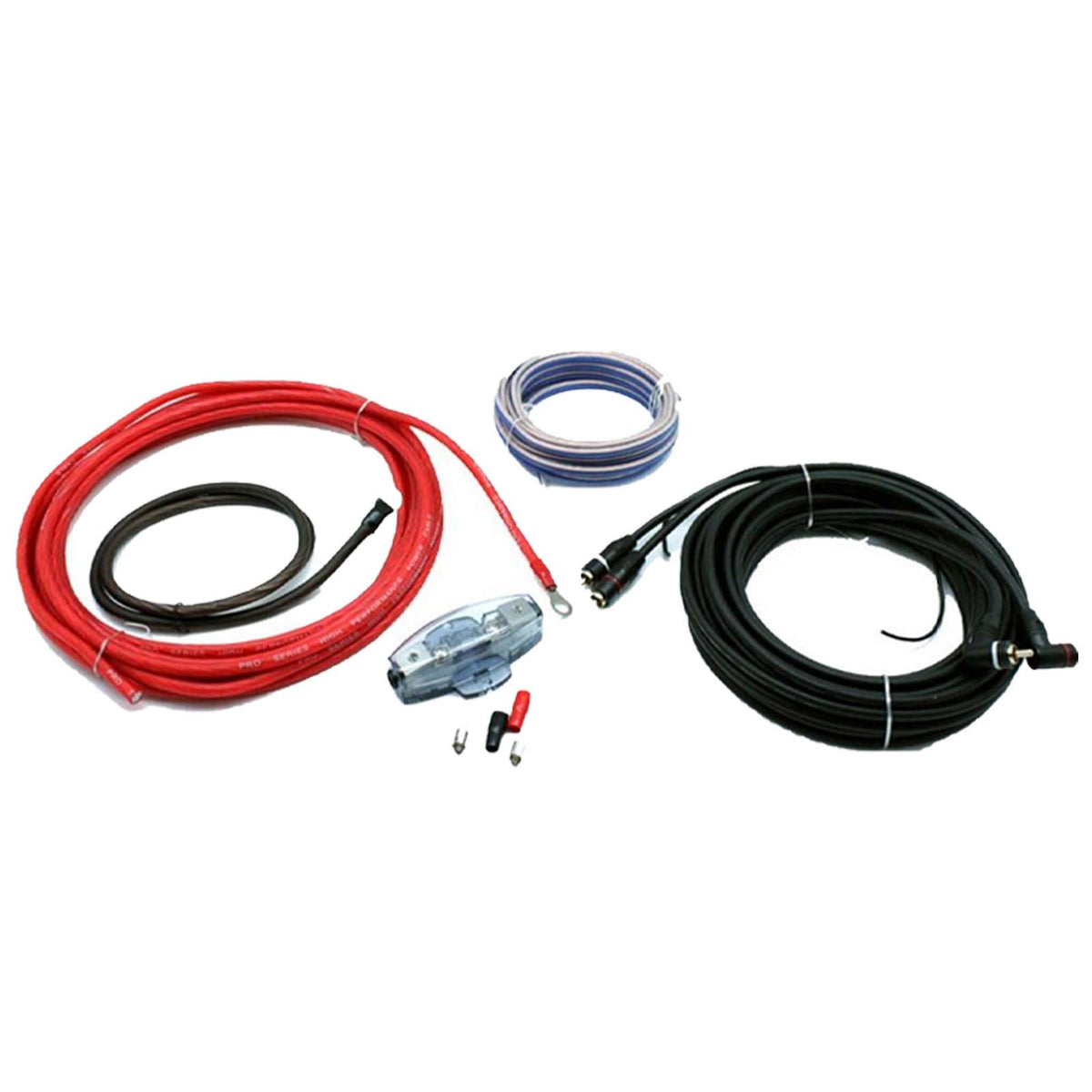

Connects2 PRO-EIGHT 8AWG Amplifier Wiring Kit
The PRO-EIGHT kit contains the main power, ground, signal and speaker cables required to connect the amplifier and subwoofer system inside the vehicle.
- 8AWG amplifier installation kit
- Rated up to 720 watts
- 5.2m red power cable with fitted ring terminal
- 0.8m black ground cable with fitted ring terminal
- 5m blue and white 1.5mm speaker cable
- 5m RCA cable with integrated remote wire
- Gold-plated RCA connectors with straight and angled ends
- Waterproof nickel-plated Mini-ANL fuse holder
- 60A Mini-ANL fuse
- Two fork terminals
System Configuration
The GX12D4 has two 4-ohm voice coils. For use with the included Z3001i amplifier, the voice coils should be connected in parallel to present a final 2-ohm load. This allows the amplifier to produce 300 watts RMS.
Correct amplifier gain, crossover and subsonic-filter settings are essential for reliable operation. Professional installation is recommended.
