Phoenix Gold ZXMPV2 500 Watts 4 Channel Plug & Play Car Amplifier Upgrade Kit for Volvo

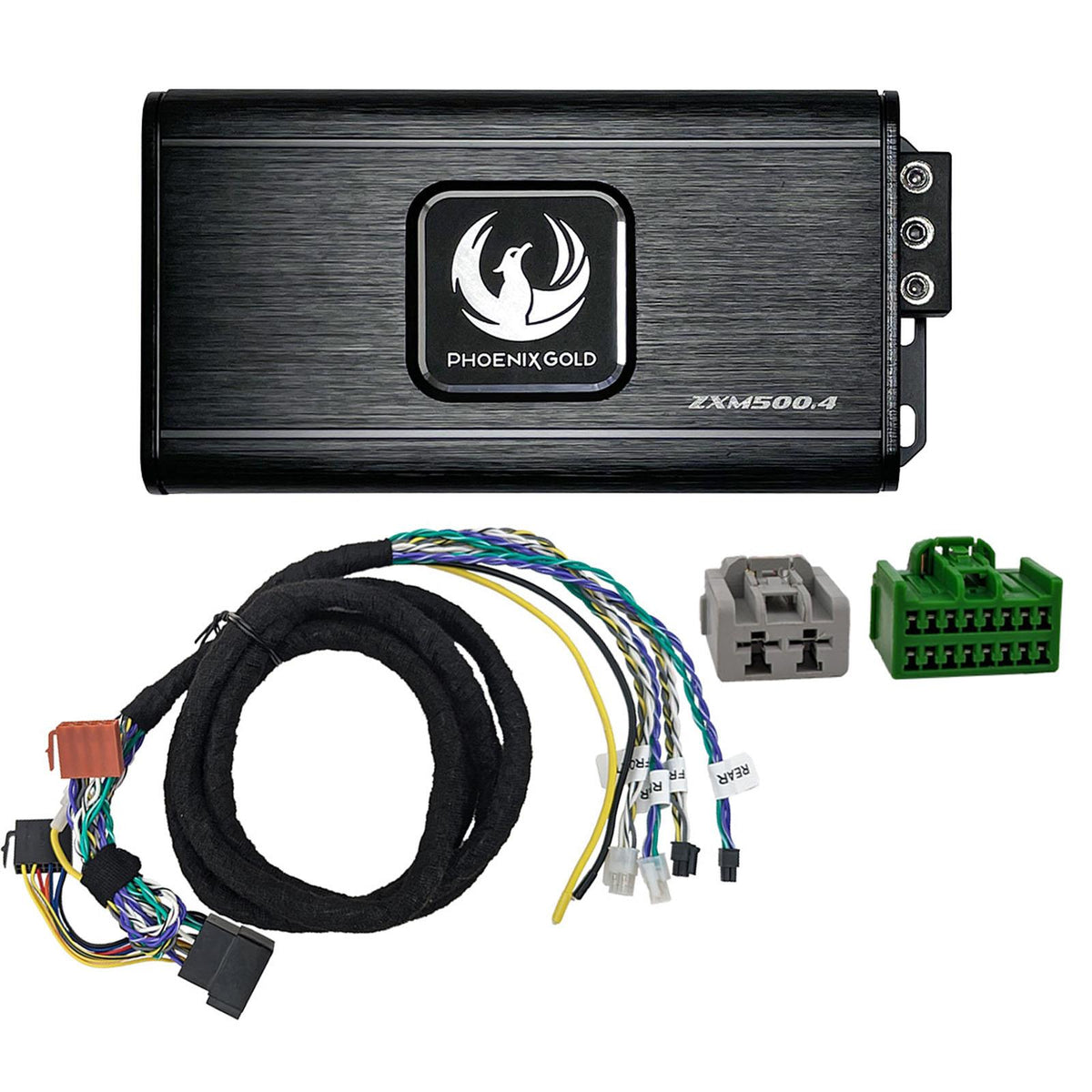

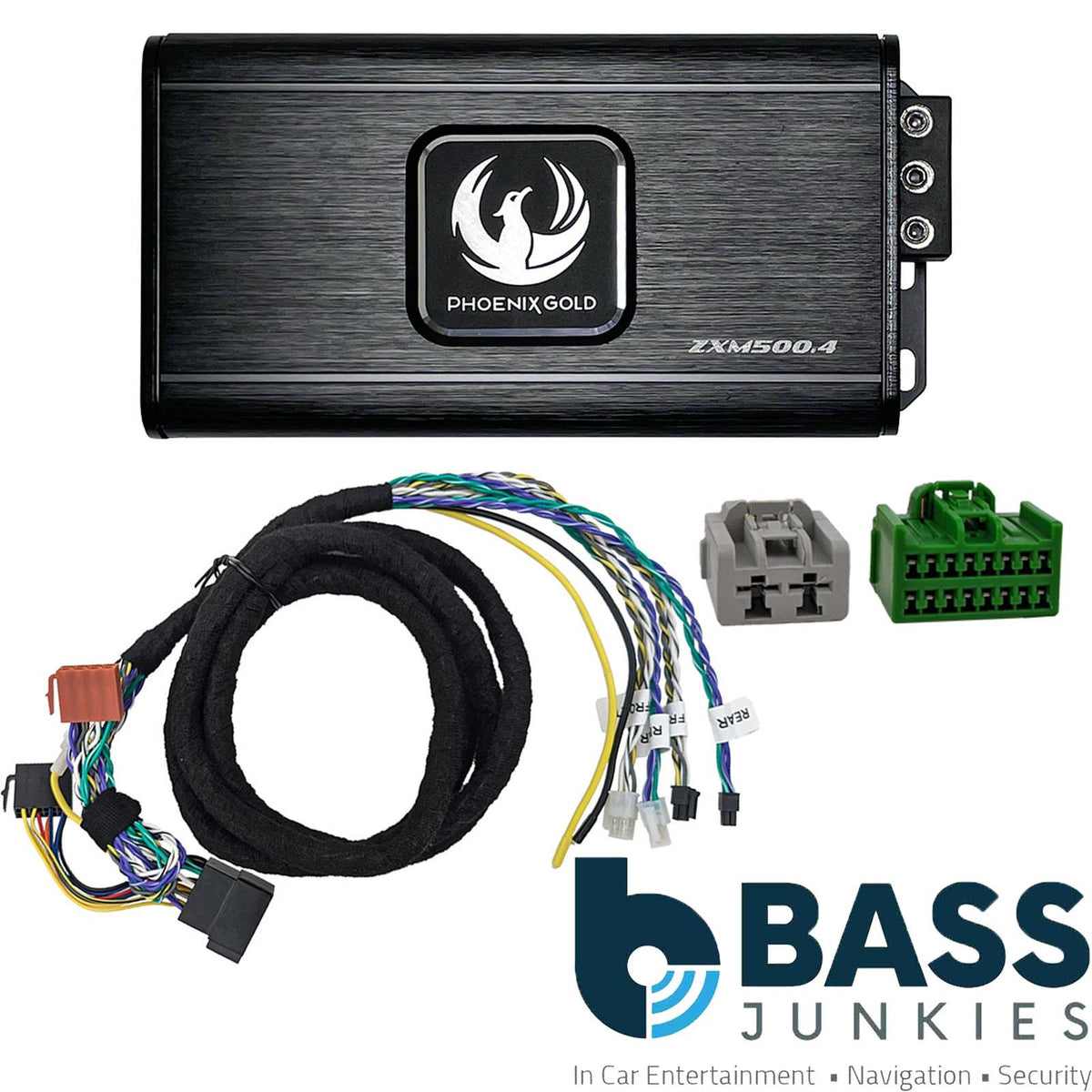

Upgrade your Volvo’s factory audio system with the Phoenix Gold ZXMPV2 Plug & Play Power Up Kit. Designed for selected Volvo vehicles fitted with an OEM amplifier, this package combines a compact ZXM500.4 Class-D amplifier, a ZXMISOT2 2.2-metre ISO-T harness and a compatible vehicle-specific T-harness.
The system takes high-level audio signals from the compatible factory audio system and passes them through the four-channel amplifier before supplying the speakers. This provides additional power and headroom for improved output, control and musical dynamics while retaining the original stereo.
The amplifier’s compact dimensions allow discreet installation where suitable space is available. Efficient Class-D technology helps minimise heat generation, while built-in protection monitors thermal conditions, short circuits and high or low voltage.
ZXMPV2 Power Up Kit Features:
- Designed for selected Volvo vehicles with an OEM amplifier
- Retains the compatible original factory stereo
- Compact four-channel amplifier for discreet installation
- Supplied with a 2.2-metre ISO-T harness
- Compatible vehicle-specific T-harness included
- Plug-and-play connections for compatible vehicle applications
- Additional amplifier power for improved speaker output and control
ZXM500.4 Amplifier Features:
- Efficient Class-D amplification
- Four-channel operation with bridging capability
- High-level and low-level audio inputs
- Selectable two-channel or four-channel input operation
- Automatic turn-on when using the high-level input
- Adjustable high-pass and low-pass filters
- Short-circuit, thermal and high/low-voltage protection
- Built-in protection status LED
- Surface-mount component technology
- Low-EMI design to help minimise interference with vehicle electronics and radio reception

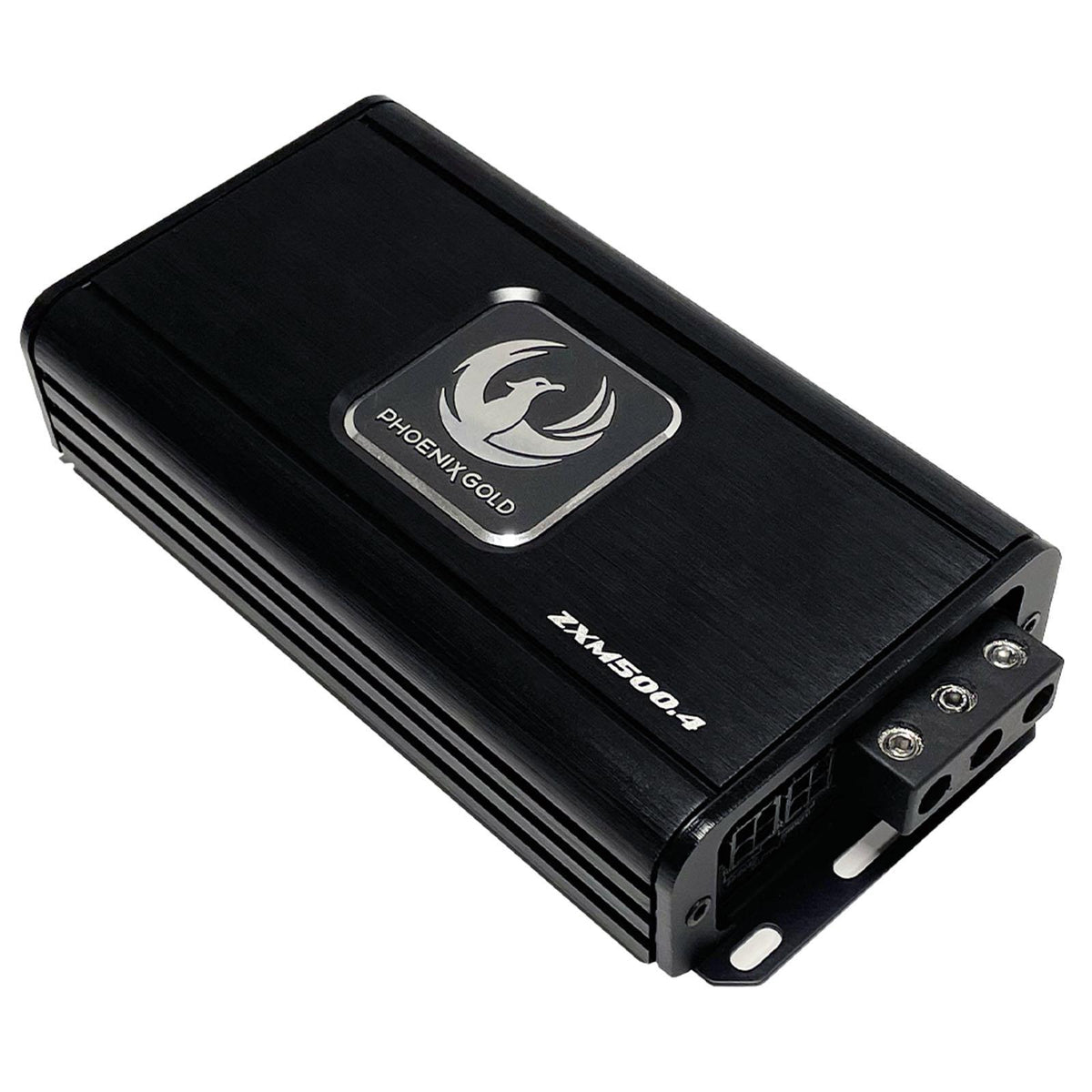

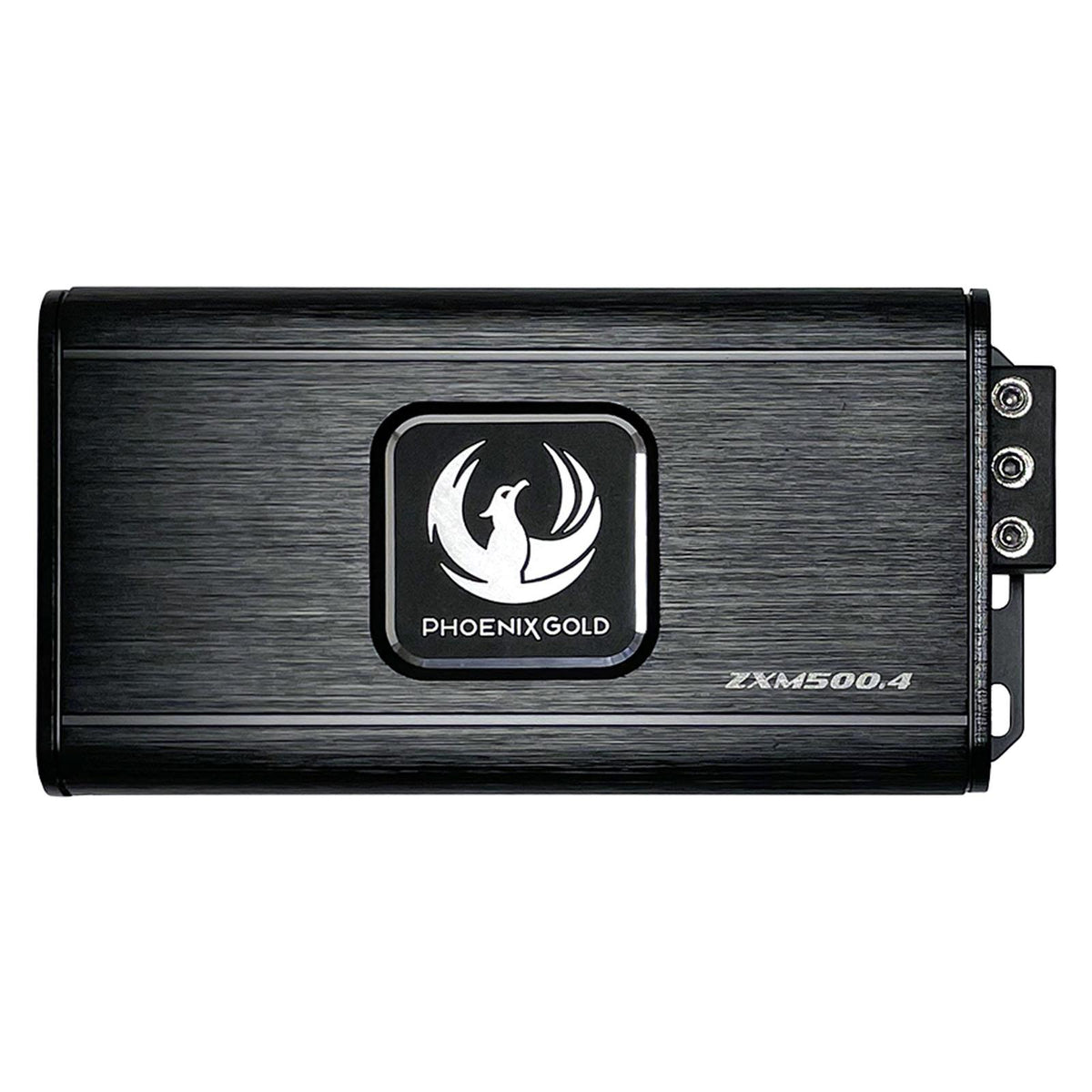

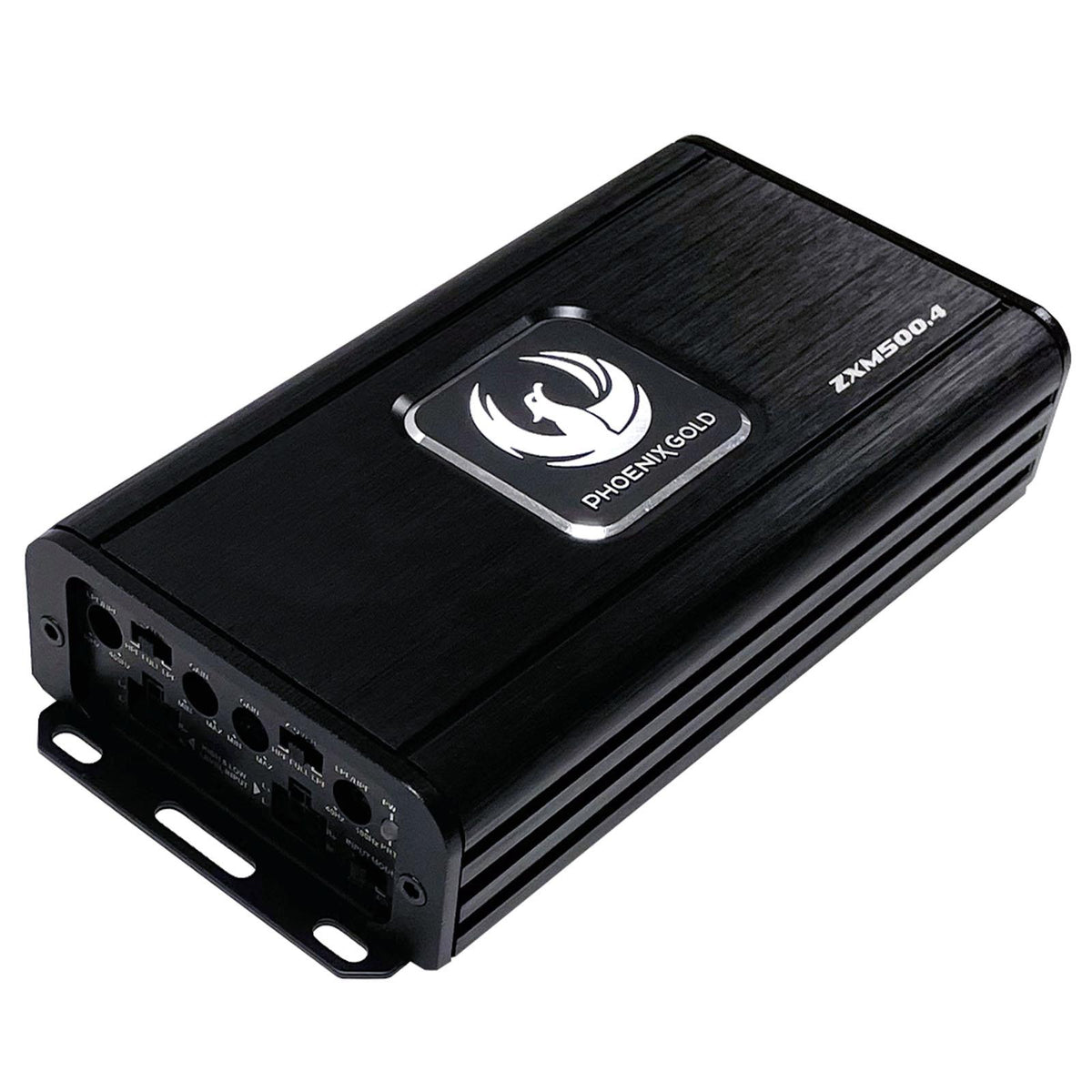

ZXM500.4 Amplifier Specifications:
- Amplifier type: Class-D four-channel mini amplifier
- Maximum power: 1000 Watts
- RMS output at 2 ohms: 4 x 125 Watts
- Combined RMS output at 2 ohms: 500 Watts
- RMS output at 4 ohms: 4 x 80 Watts
- Combined RMS output at 4 ohms: 320 Watts
- Bridged RMS output at 4 ohms: 2 x 250 Watts
- Frequency response: 20Hz–20kHz
- Signal-to-noise ratio: Greater than 90dB
- Total harmonic distortion: Less than 0.3%
- Low-pass filter: 40Hz–400Hz, 12dB/octave
- High-pass filter: 40Hz–400Hz, 12dB/octave
- Dimensions (L x W x H): 165 x 83.1 x 34.8mm
Included Wiring:

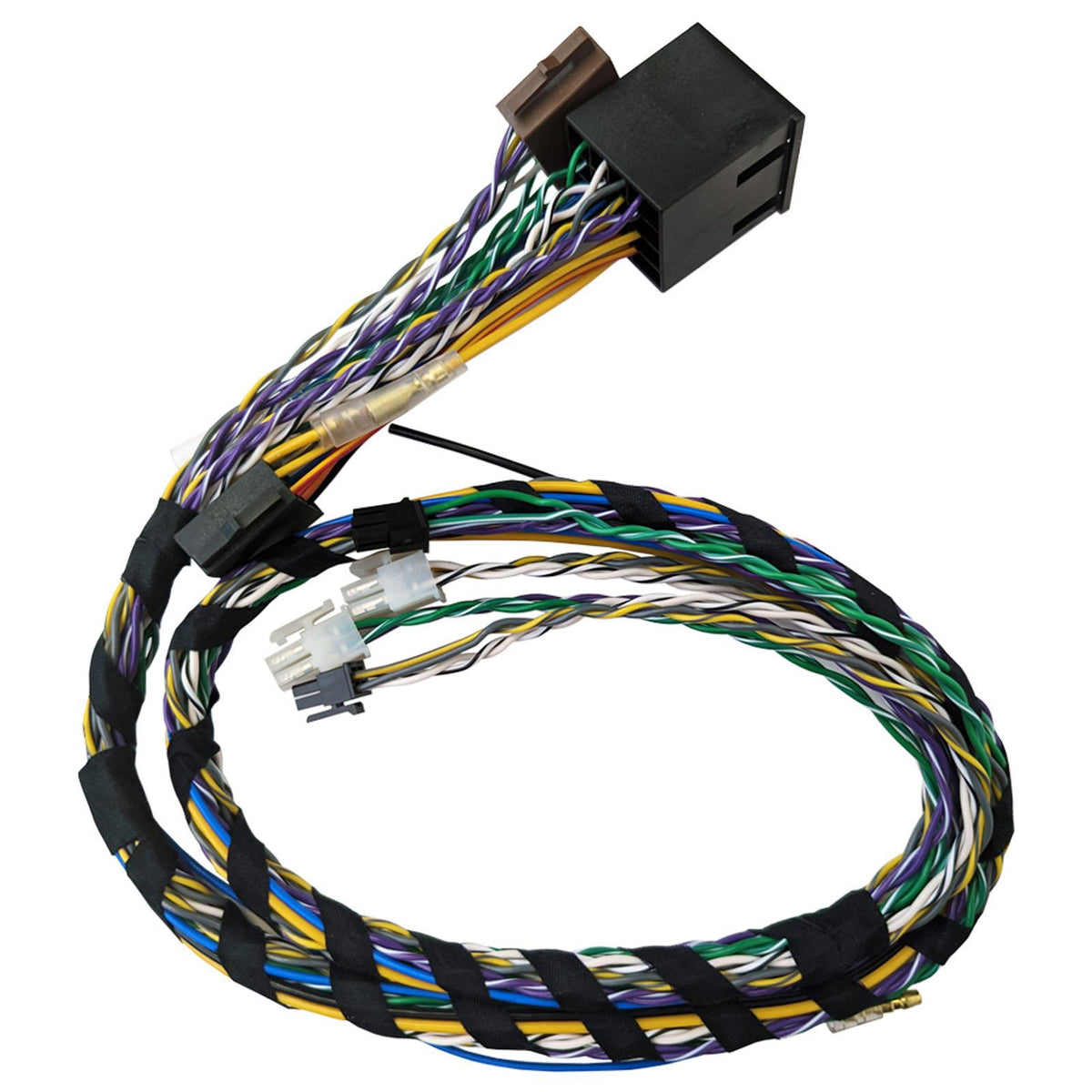

- ZXMISOT2 ISO-T harness measuring 2.2 metres / 220cm

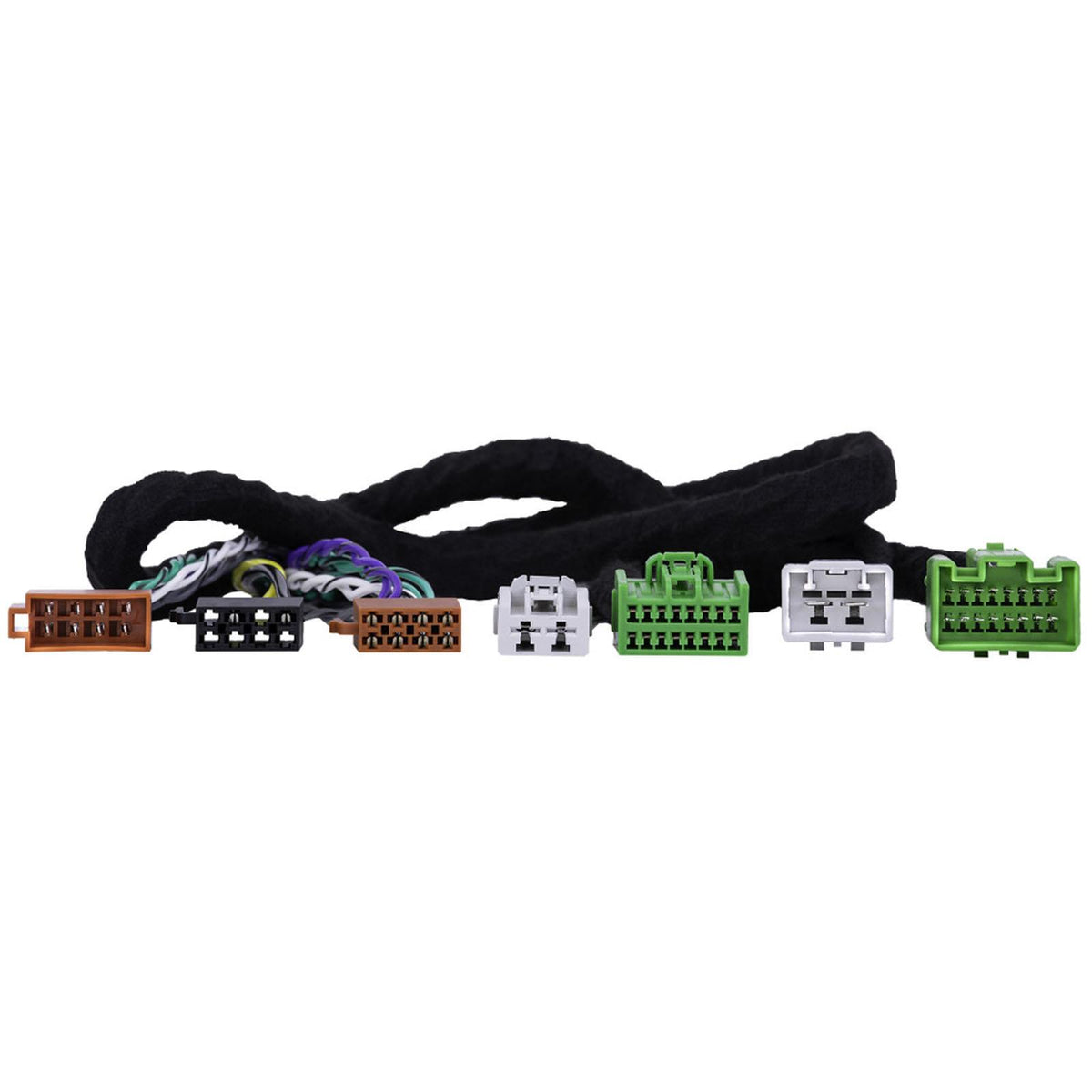

- Compatible vehicle-specific T-harness included
- Vehicle-specific harness selected to suit the listed application and compatible factory connections
Vehicle Compatibility – With OEM Amplifier Only:
- Volvo C30: 2006–2013
- Volvo C70 II: 2006–2013
- Volvo S40 II: 2004–2012
- Volvo S60 II: 2011–2018
- Volvo S80 II: 2006–2016
- Volvo V40: 2012–2019
- Volvo V50: 2004–2012
- Volvo V60 I: 2010–2017
- Volvo V70 III: 2008–2016
- Volvo XC60 I: 2009–2017
- Volvo XC70 III: 2008–2017
- Volvo XC90 I Facelift: 2007–2014
Package Contents:
- 1 x Phoenix Gold ZXM500.4 four-channel amplifier
- 1 x Phoenix Gold ZXMISOT2 2.2-metre ISO-T harness
- 1 x Compatible vehicle-specific T-harness
Important: This kit is intended for the listed Volvo vehicles fitted with an OEM amplifier. Please confirm the original audio system and connector compatibility before purchasing. Not suitable for vehicles without an OEM amplifier. Professional installation is recommended.
