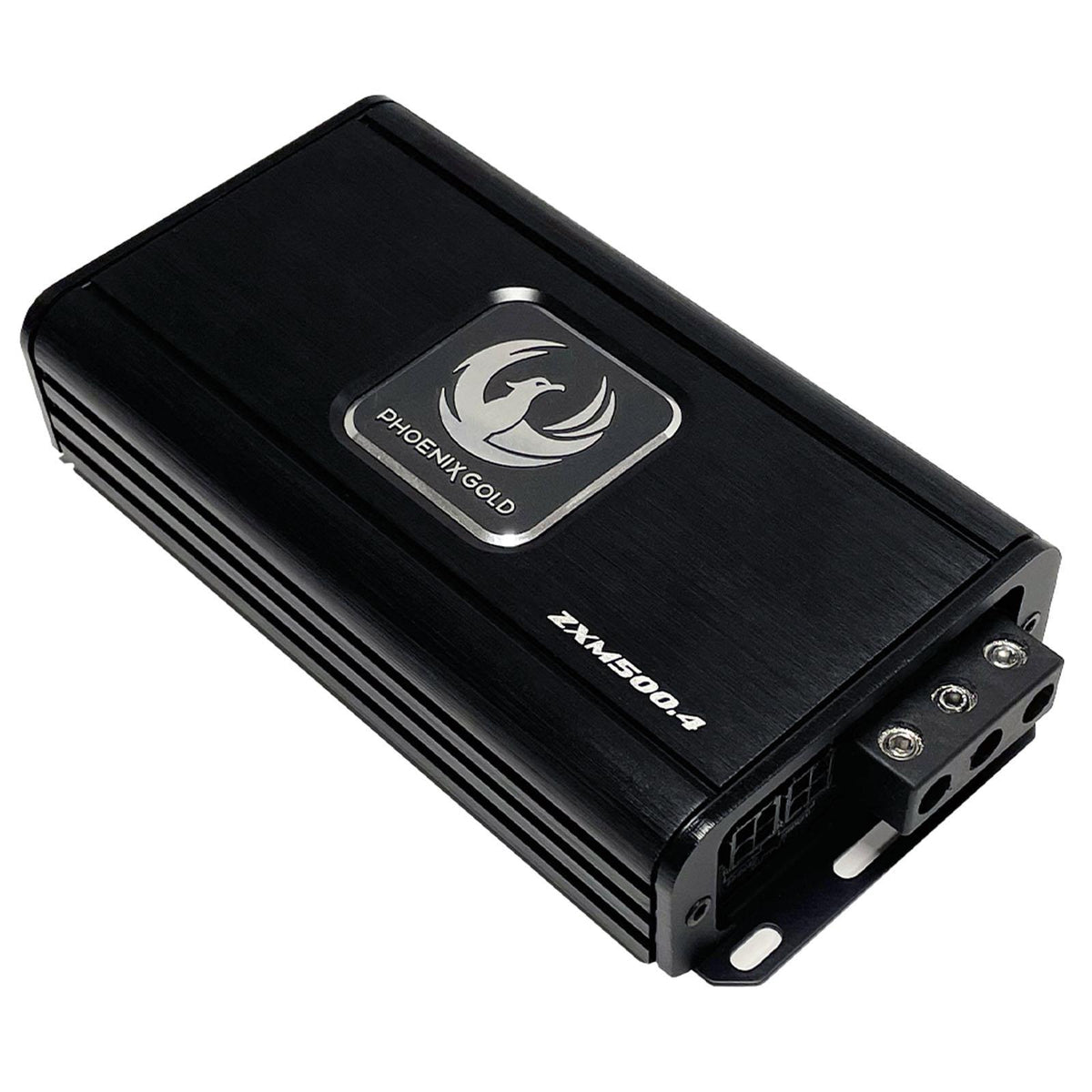

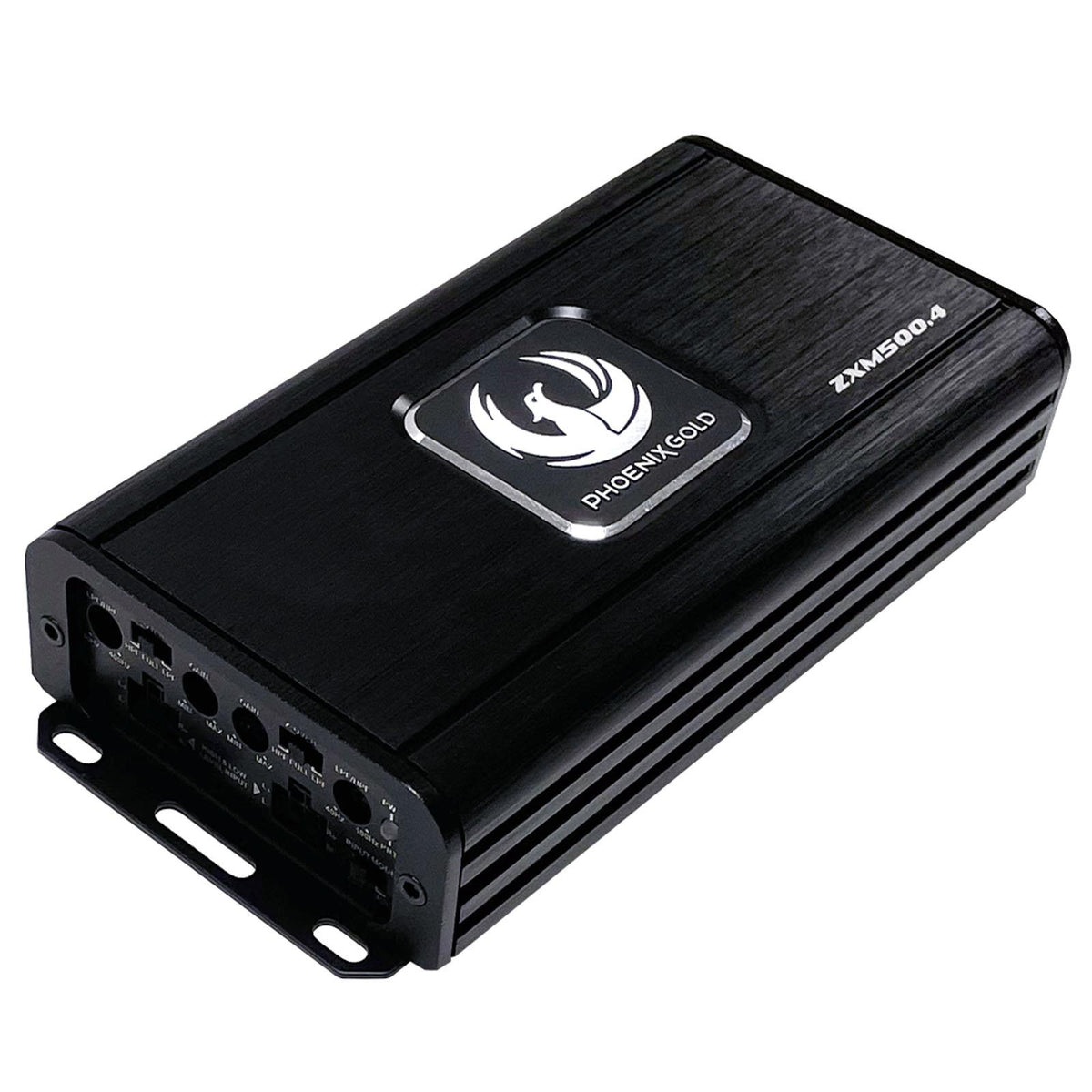

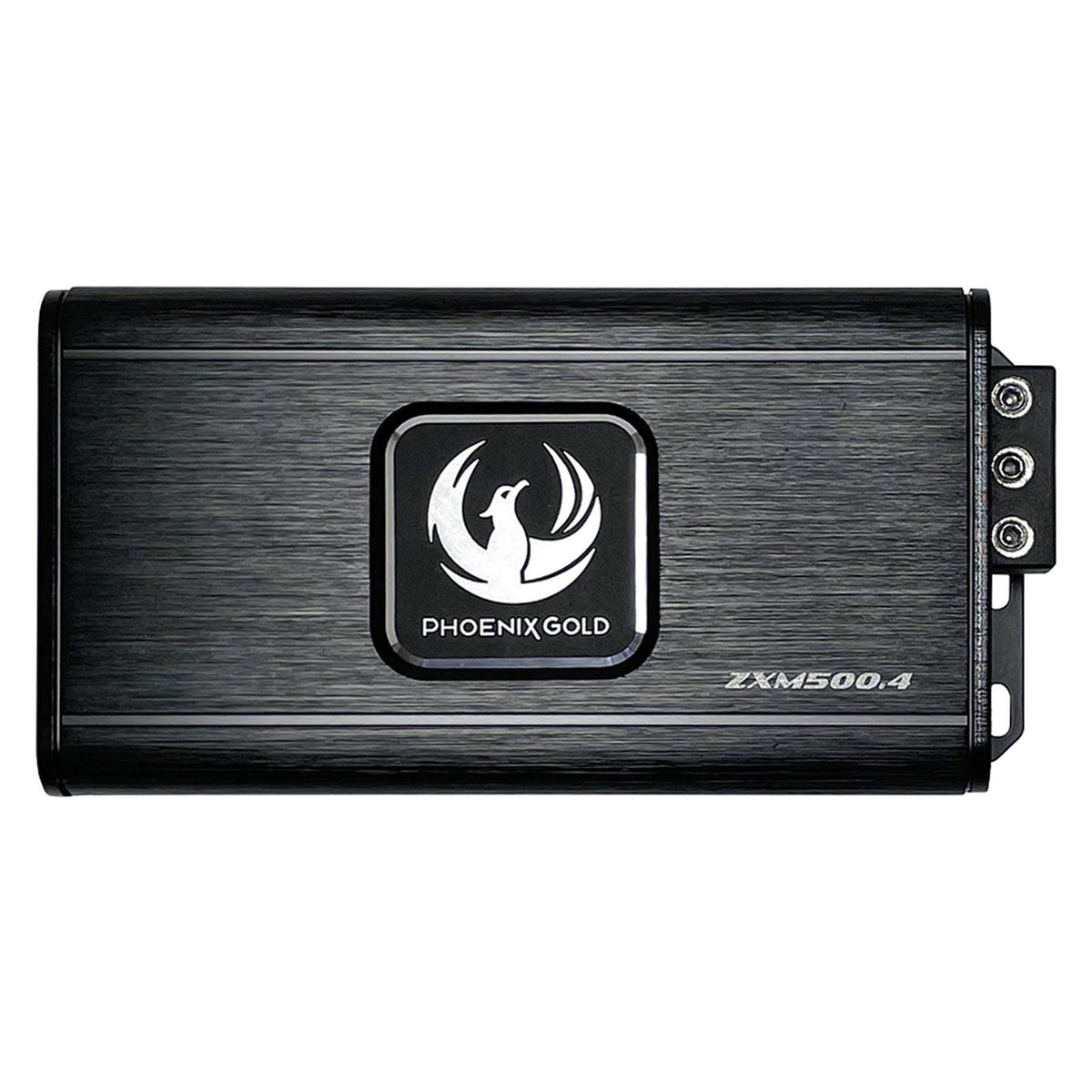

Phoenix Gold ZXMPT1 500 Watts 4 Channel Plug & Play Car Amplifier Kit for Toyota
Upgrade your compatible Toyota’s basic sound system while retaining the original stereo. This package includes the compact Phoenix Gold ZXM500.4 amplifier, ZDC-ISOX2 2.2-metre ISO-T harness and a compatible vehicle-specific T-harness.
The four-channel Class-D amplifier provides additional power and headroom for improved speaker output, control and dynamics. The supplied harnesses connect it to the compatible factory audio wiring for a plug-and-play installation.
Key Features:
- Retains the compatible factory stereo
- Compact Class-D amplifier for discreet installation
- High-level and low-level inputs with selectable two-channel or four-channel input operation
- Automatic turn-on using the high-level input
- Adjustable high-pass and low-pass filters
- Short-circuit, thermal and high/low-voltage protection
- Protection status LED and surface-mount component technology
- Low-EMI design to help minimise electrical interference
Amplifier Specifications:
- Maximum power: 1000 Watts
- RMS output at 2 ohms: 4 x 125 Watts / 500 Watts combined
- RMS output at 4 ohms: 4 x 80 Watts / 320 Watts combined
- Bridged RMS output at 4 ohms: 2 x 250 Watts
- Frequency response: 20Hz–20kHz
- Signal-to-noise ratio: Greater than 90dB
- Total harmonic distortion: Less than 0.3%
- High-pass and low-pass filters: 40Hz–400Hz, 12dB/octave
- Dimensions (L x W x H): 165 x 83.1 x 34.8mm
Vehicle Compatibility – Basic Sound System Only:
- Toyota 4-Runner IV: 2002–2009
- Toyota 4-Runner V: 2009 onwards
- Toyota Auris I: 2006–2012
- Toyota Auris II: 2012–2018
- Toyota Auris III: 2018–2019
- Toyota Avensis II: 2003–2009
- Toyota Avensis III: 2009–2018
- Toyota Aygo I: 2005–2014
- Toyota Aygo II: 2014–2018
- Toyota C-HR: 2016–2018
- Toyota Camry XV30: 2001–2006
- Toyota Camry XV40: 2006–2013
- Toyota Camry XV50: 2011–2019
- Toyota Corolla IX: 2001–2006
- Toyota Corolla X: 2006–2012
- Toyota Corolla XI: 2012–2018
- Toyota Corolla Verso II: 2004–2009
- Toyota GT86 I: 2012–2016
- Toyota FJ Cruiser: 2006–2015
- Toyota Fortuner I: 2004–2015
- Toyota Fortuner II: 2015–2019
- Toyota Hilux VII: 2004–2015
- Toyota Hilux VIII: 2015–2020
- Toyota Highlander I: 2001–2007
- Toyota Highlander II: 2008–2013
- Toyota Highlander III: 2014–2019
- Toyota iQ: 2008–2015
- Toyota Land Cruiser J100: 1998–2007
- Toyota Land Cruiser J200: 2008–2021
- Toyota Mirai JPD10: 2015–2020
- Toyota Previa XR10/XR20: 1990–2000
- Toyota Previa XR30/XR40: 2000–2005
- Toyota Previa XR50: 2006–2019
- Toyota Prius NHW11: 2000–2003
- Toyota Prius XW20: 2004–2009
- Toyota Prius XW30: 2009–2015
- Toyota Prius XW50: 2016–2018
- Toyota Prius+: 2012–2021
- Toyota RAV4 XA20: 2000–2005
- Toyota RAV4 XA30: 2005–2012
- Toyota RAV4 XA40: 2013–2018
- Toyota Sienna XL10: 1997–2003
- Toyota Sienna XL20: 2004–2010
- Toyota Sienna XL30: 2011–2017
- Toyota Tacoma I: 1995–2004
- Toyota Tacoma II: 2005–2015
- Toyota Tacoma III: 2016–2020
- Toyota Tundra XK30/XK40: 2000–2006
- Toyota Tundra XK50: 2007–2013
- Toyota Tundra XK50 Facelift: 2014–2021
- Toyota Urban Cruiser XP110: 2007–2014
- Toyota Yaris XP10/XP20: 1999–2005
- Toyota Yaris XP90: 2005–2011
- Toyota Yaris XP130/XP150: 2011–2020

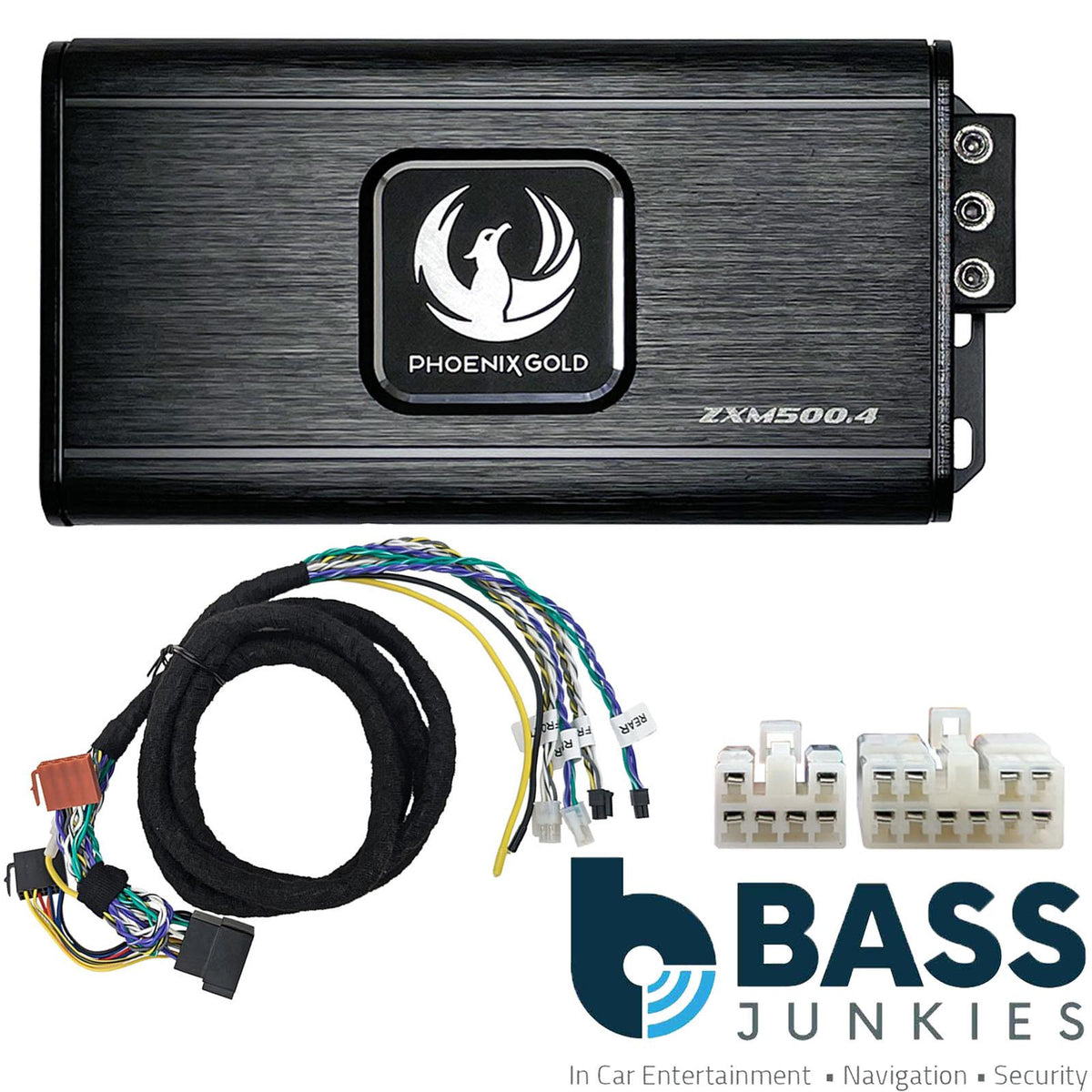

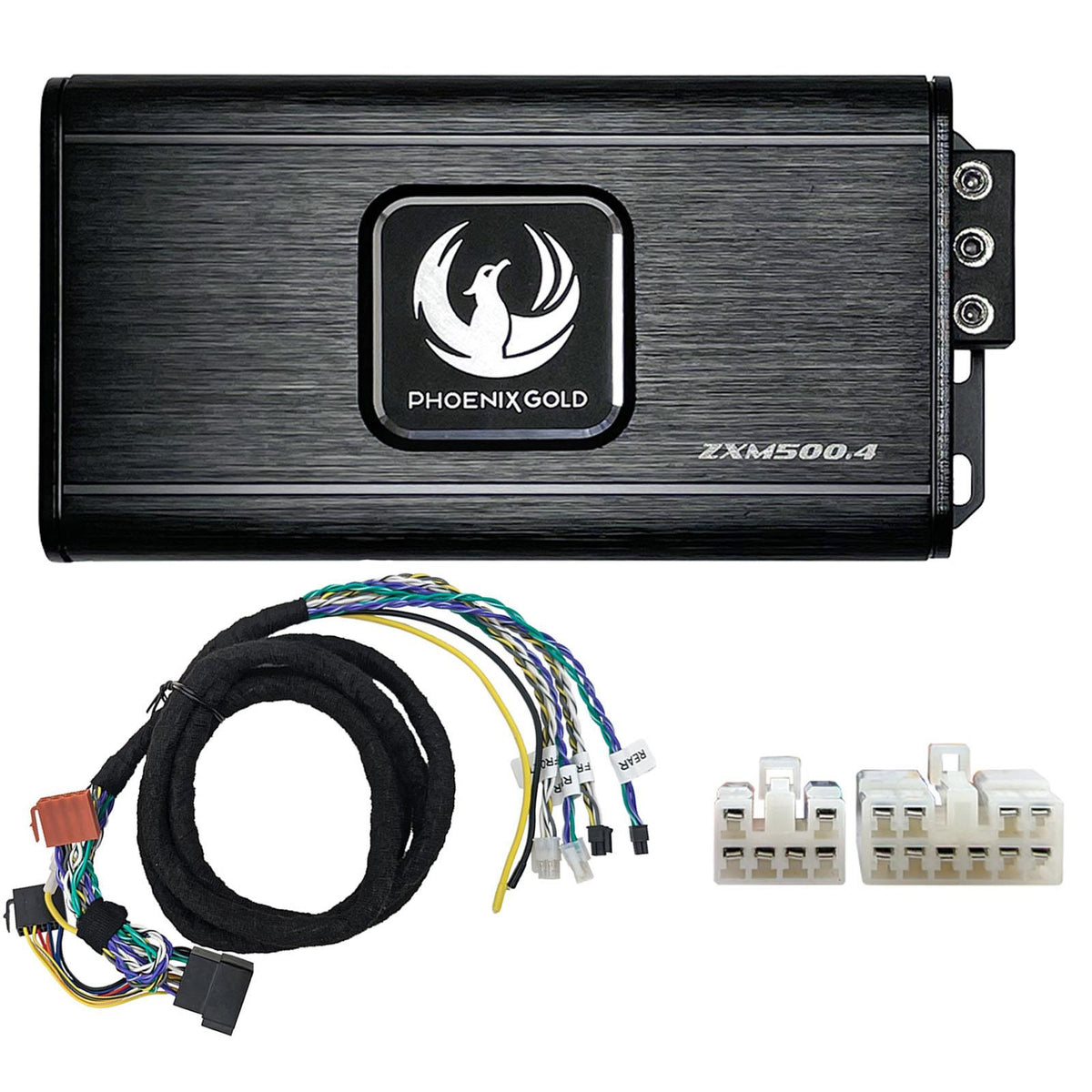

Package Contents:
- 1 x Phoenix Gold ZXM500.4 four-channel amplifier
- 1 x Phoenix Gold ZDC-ISOX2 2.2-metre ISO-T harness
- 1 x Compatible vehicle-specific T-harness
Check the factory audio system and connectors before purchasing. Suitable for basic sound systems only. Open-ended years remain subject to compatibility. Professional installation is recommended.
