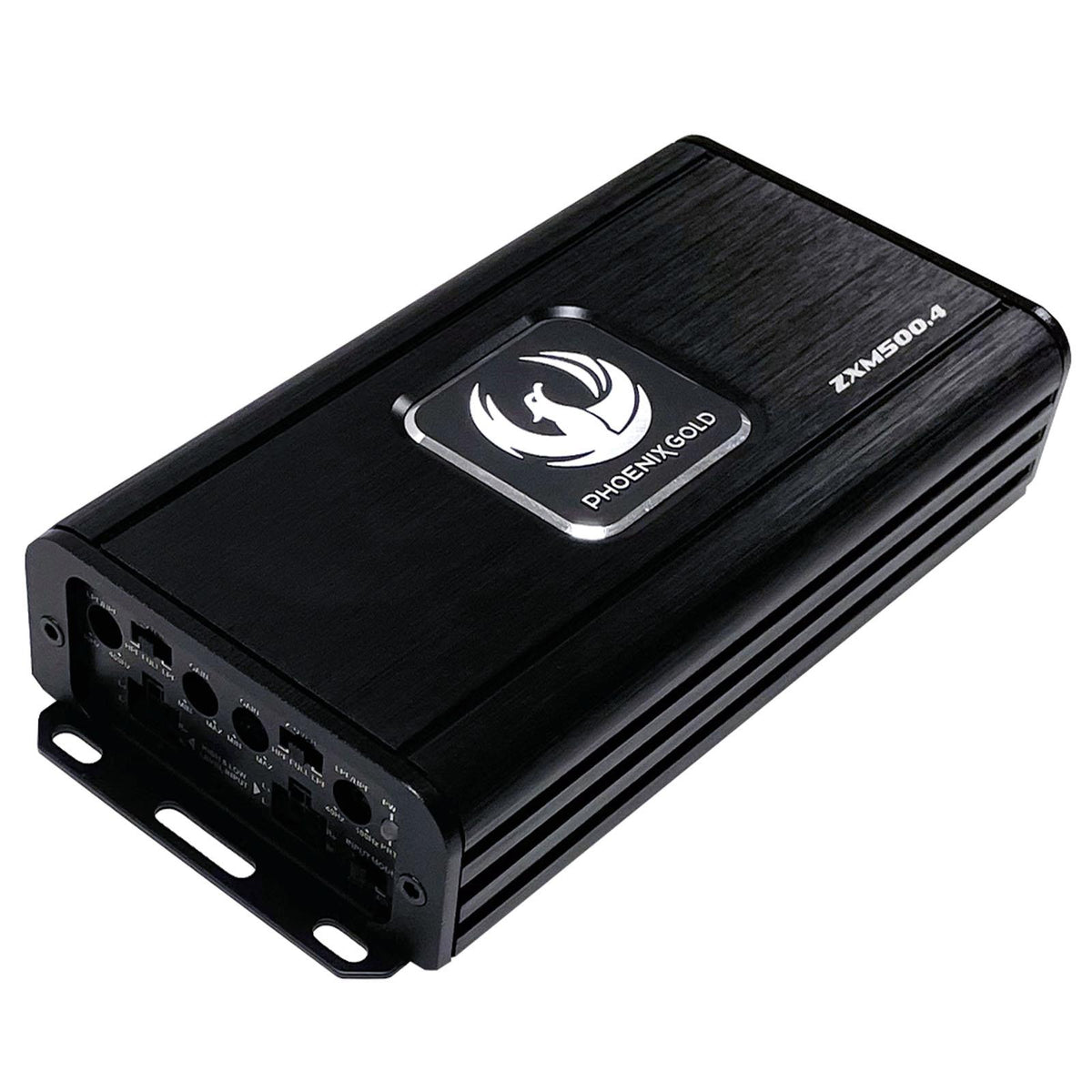

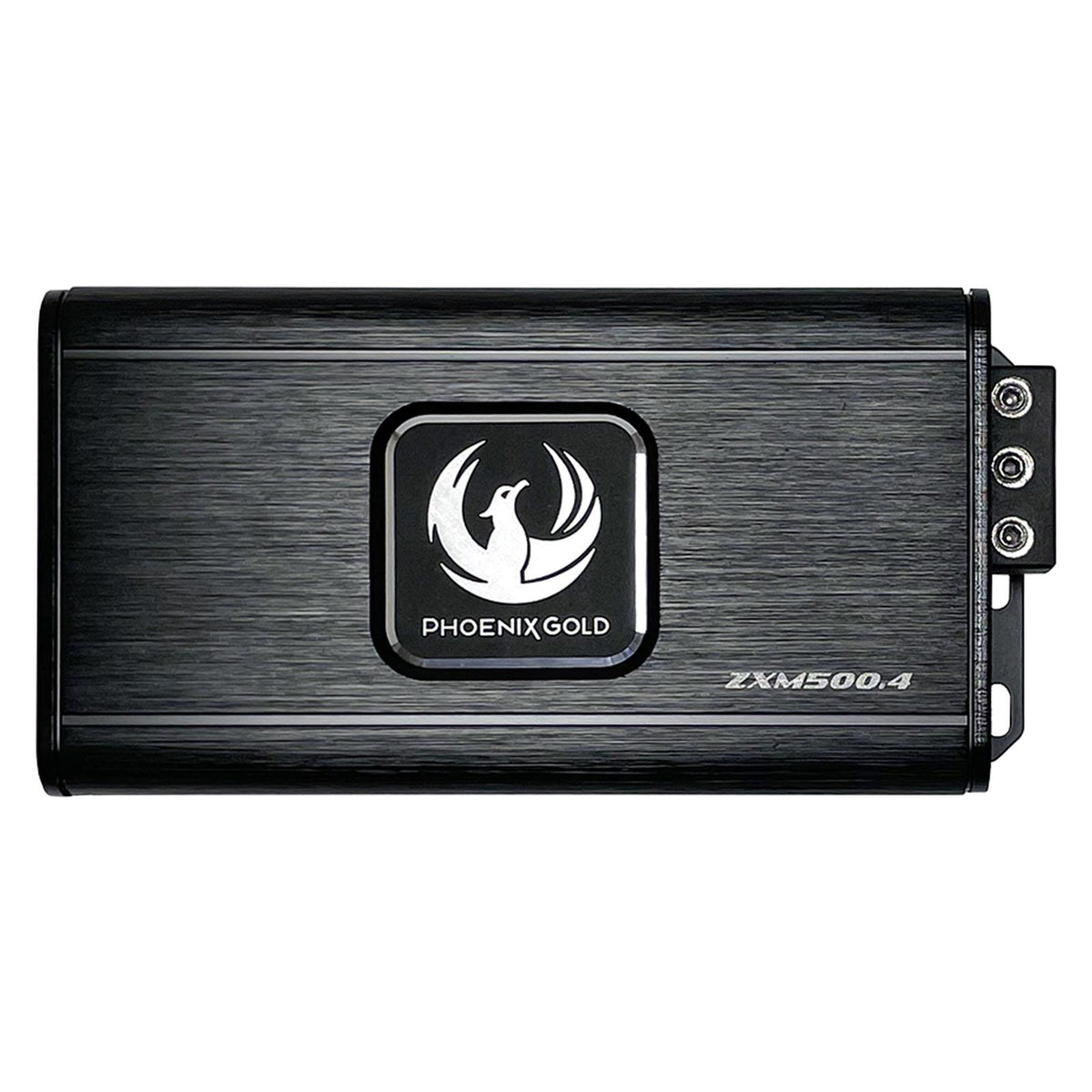

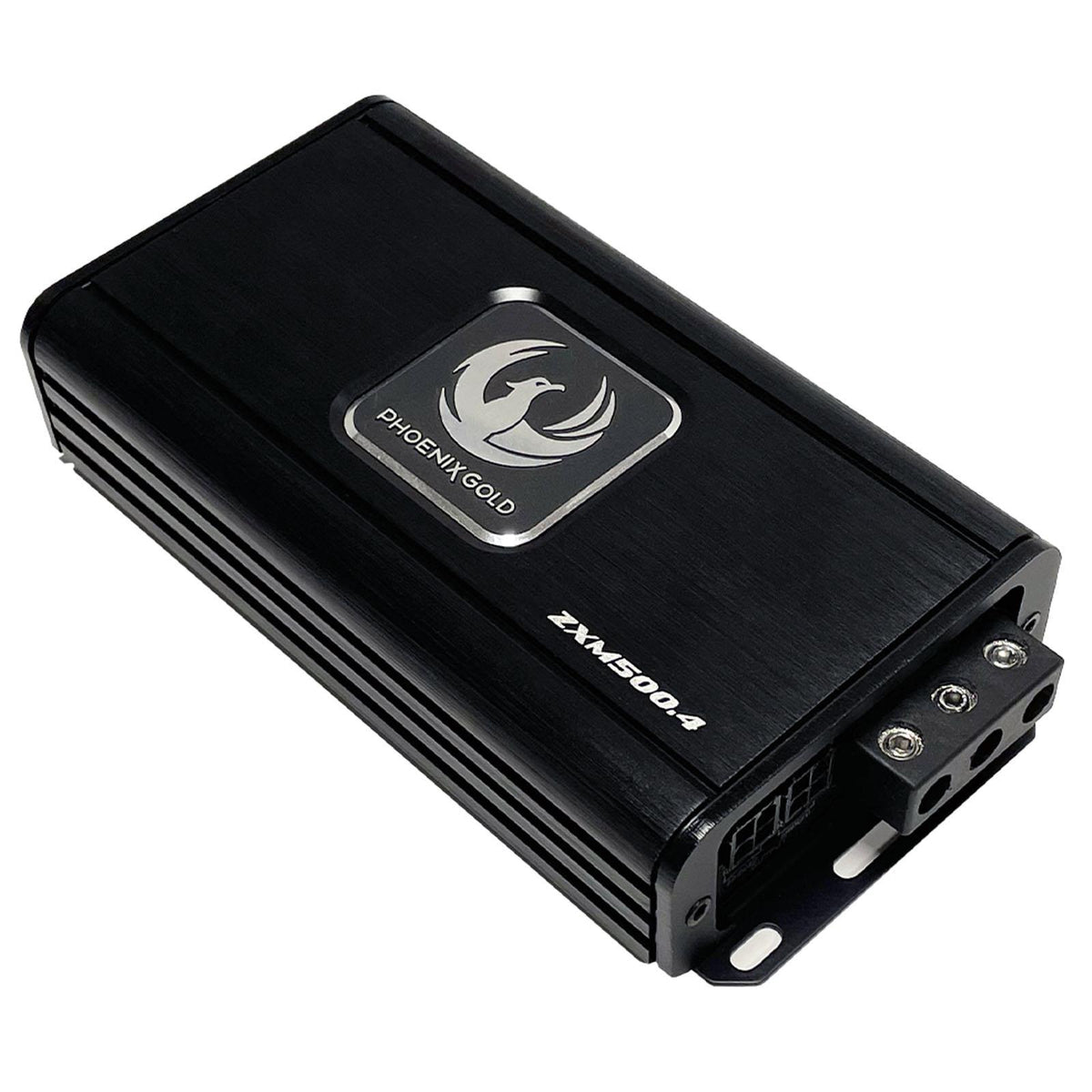

Phoenix Gold ZXMPN1 500 Watts 4 Channel Plug & Play Car Amplifier Kit for Nissan

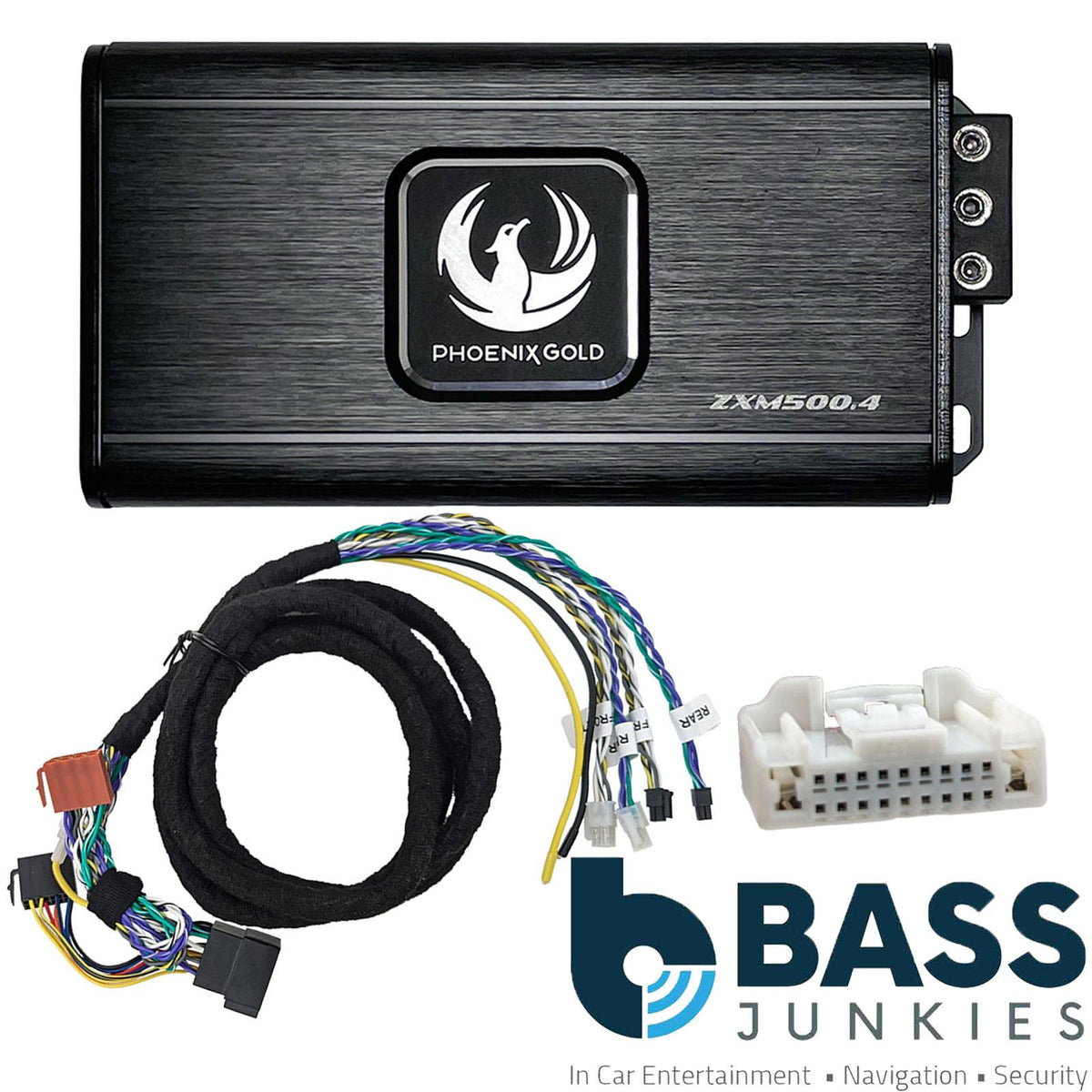

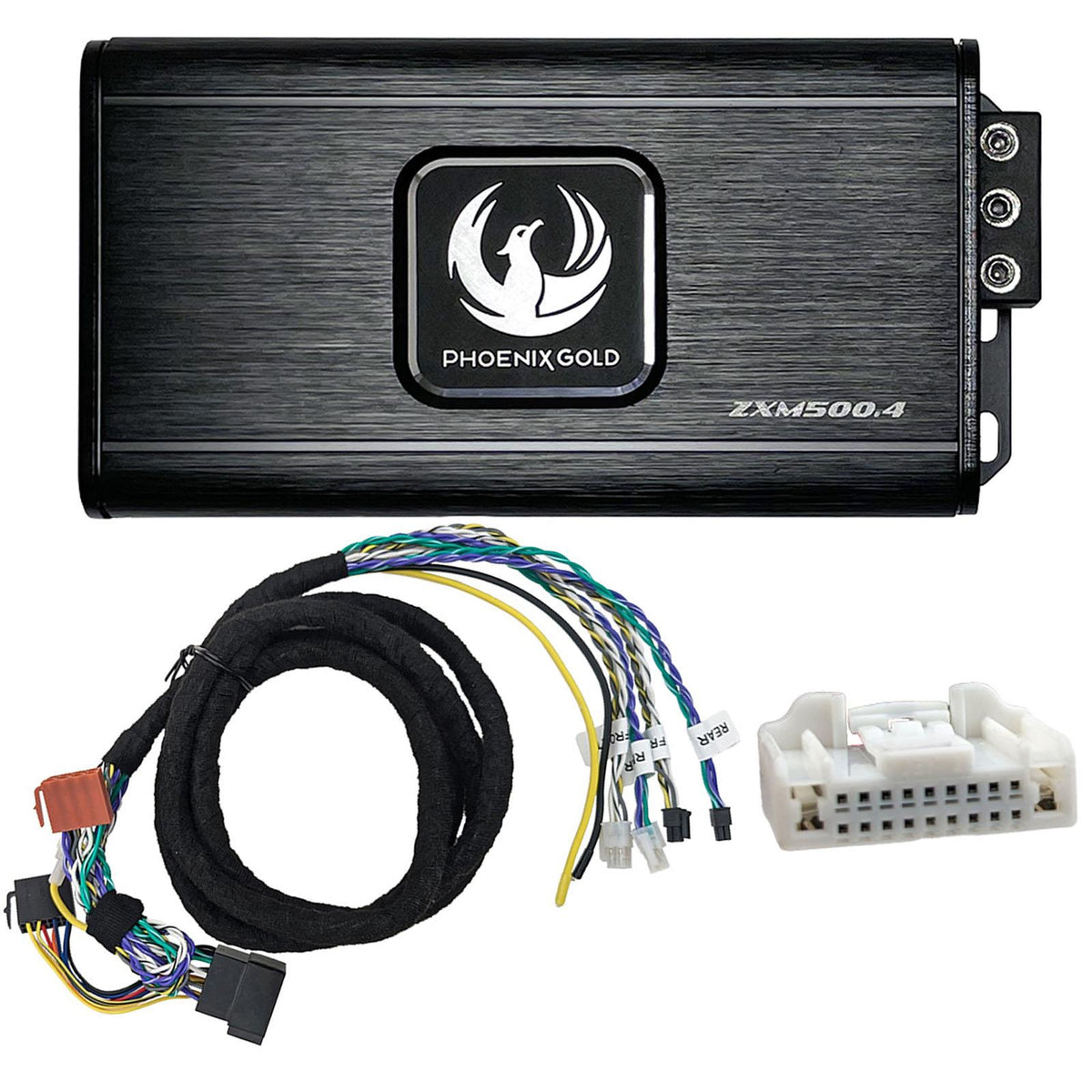

Upgrade your compatible Nissan’s basic sound system while retaining the original stereo. This package includes the compact Phoenix Gold ZXM500.4 amplifier, ZDC-ISOX2 2.2-metre ISO-T harness and a compatible vehicle-specific T-harness.
The four-channel Class-D amplifier provides additional power and headroom for improved speaker output, control and dynamics. The supplied harnesses connect it to the compatible factory audio wiring for a plug-and-play installation.
Key Features:
- Retains the compatible factory stereo
- Compact Class-D amplifier for discreet installation
- High-level and low-level inputs with selectable two-channel or four-channel input operation
- Automatic turn-on using the high-level input
- Adjustable high-pass and low-pass filters
- Short-circuit, thermal and high/low-voltage protection
- Protection status LED and surface-mount component technology
- Low-EMI design to help minimise electrical interference
Amplifier Specifications:
- Maximum power: 1000 Watts
- RMS output at 2 ohms: 4 x 125 Watts / 500 Watts combined
- RMS output at 4 ohms: 4 x 80 Watts / 320 Watts combined
- Bridged RMS output at 4 ohms: 2 x 250 Watts
- Frequency response: 20Hz–20kHz
- Signal-to-noise ratio: Greater than 90dB
- Total harmonic distortion: Less than 0.3%
- High-pass and low-pass filters: 40Hz–400Hz, 12dB/octave
- Dimensions (L x W x H): 165 x 83.1 x 34.8mm
Vehicle Compatibility – Basic Sound System Only:
- Nissan Altima L32: 2006–2013
- Nissan Altima L33: 2012–2020
- Nissan Cube Z12: 2008–2019
- Nissan GTR R35: 2007 onwards
- Nissan Juke F15: 2010–2019
- Nissan Juke F16: 2019 onwards
- Nissan Leaf ZE0/AZE0: 2010–2017
- Nissan Leaf ZE1: 2017 onwards
- Nissan Maxima A35: 2008–2014
- Nissan Maxima A36: 2015–2023
- Nissan Micra K13: 2010–2016
- Nissan Micra K14: 2016 onwards
- Nissan Murano Z51: 2007–2014
- Nissan Murano Z52: 2014 onwards
- Nissan Navara D40: 2004–2015
- Nissan Navara D23: 2015 onwards
- Nissan Note E11: 2004–2012
- Nissan Note E12: 2013–2020
- Nissan Note E13: 2020 onwards
- Nissan NV200 M20: 2009 onwards
- Nissan Pathfinder R51: 2004–2012
- Nissan Pathfinder R52: 2012–2020
- Nissan Pathfinder R53: 2021 onwards
- Nissan Patrol Y62: 2010 onwards
- Nissan Qashqai J10: 2006–2013
- Nissan Qashqai J11: 2013–2021
- Nissan Qashqai J12: 2021 onwards
- Nissan Quest RE52: 2011–2017
- Nissan Sentra B16: 2007–2012
- Nissan Sentra B17: 2012–2019
- Nissan Sentra B18: 2019 onwards
- Nissan Serena C25: 2005–2010
- Nissan Serena C26: 2010–2016
- Nissan Serena C27: 2016–2022
- Nissan Serena C28: 2022 onwards
- Nissan Skyline V36/J50: 2006–2008
- Nissan Teana J32: 2008–2013
- Nissan Tiida C11: 2004–2011
- Nissan Tiida C12: 2011–2016
- Nissan Tiida C13: 2015 onwards
- Nissan Titan A60: 2003–2015
- Nissan Titan A61: 2016 onwards
- Nissan Wingroad: 2008 onwards
- Nissan X-Trail T31: 2007–2013
- Nissan X-Trail T32: 2013–2021
- Nissan X-Trail T33: 2022 onwards
- Nissan Xterra N50: 2005–2015
Package Contents:
- 1 x Phoenix Gold ZXM500.4 four-channel amplifier
- 1 x Phoenix Gold ZDC-ISOX2 2.2-metre ISO-T harness
- 1 x Compatible vehicle-specific T-harness
Check the factory audio system and connectors before purchasing. Suitable for basic sound systems only. Open-ended years remain subject to compatibility. Professional installation is recommended.
