Phoenix Gold ZXMPI1 500 Watts 4 Channel Plug & Play Car Amplifier Kit for Isuzu & Honda

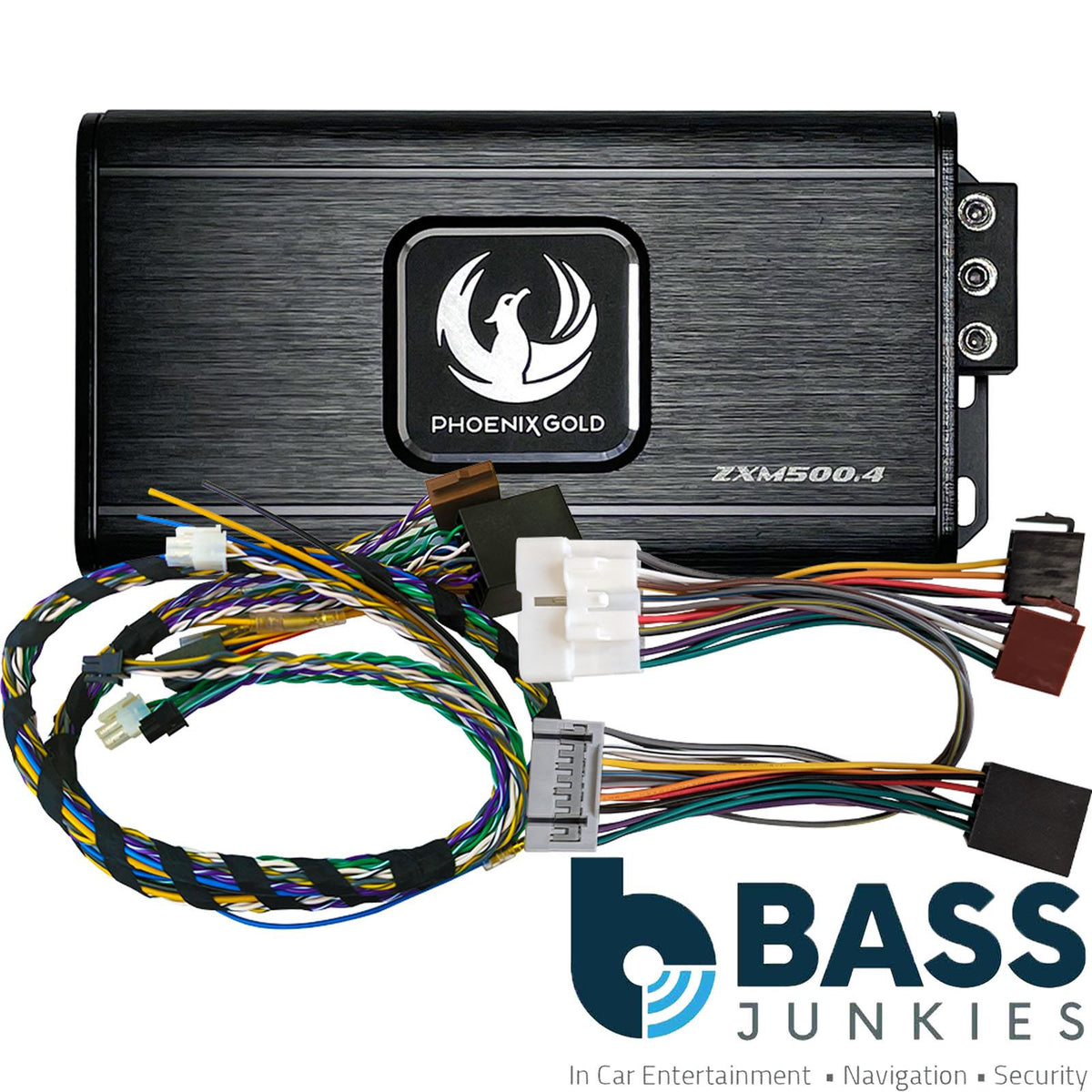

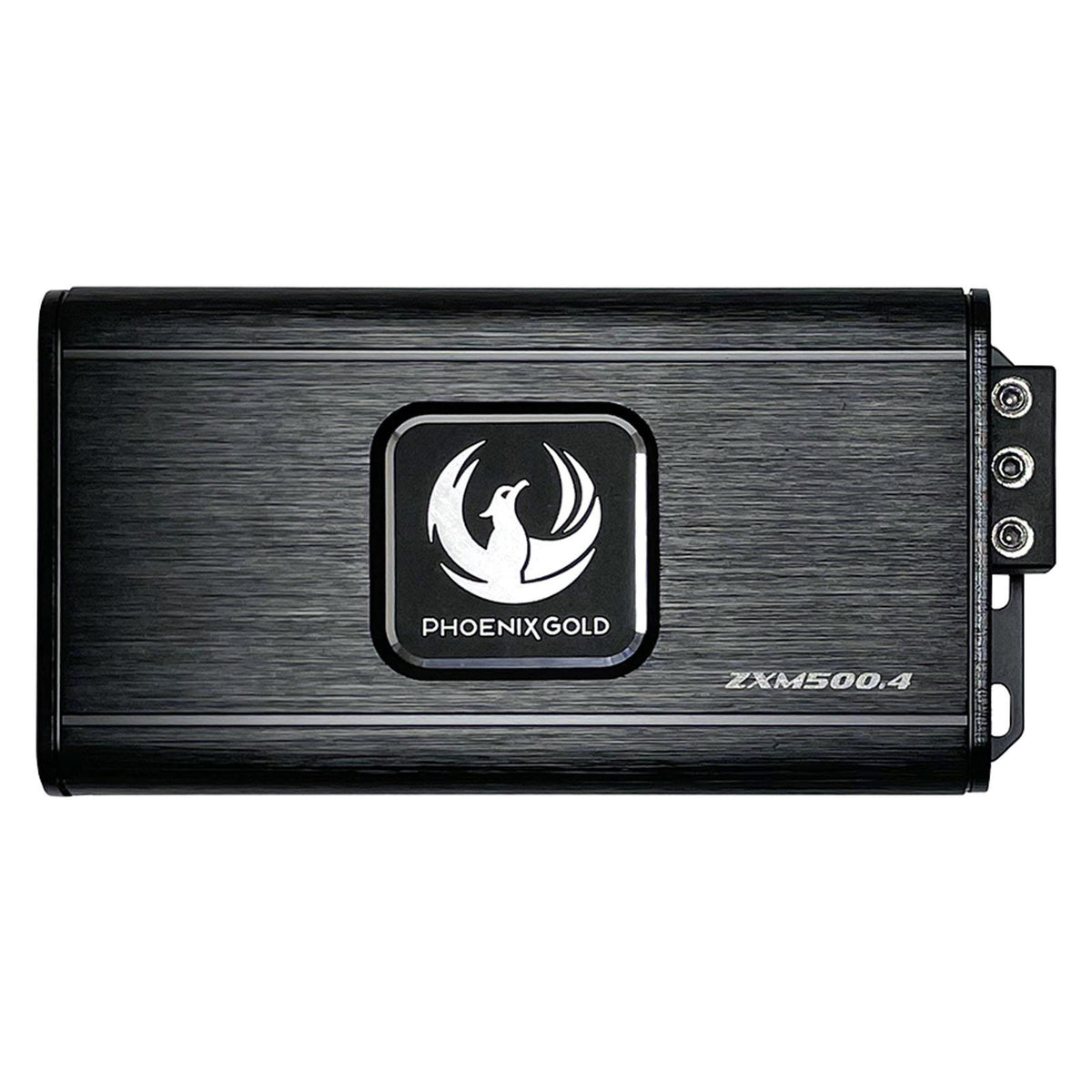

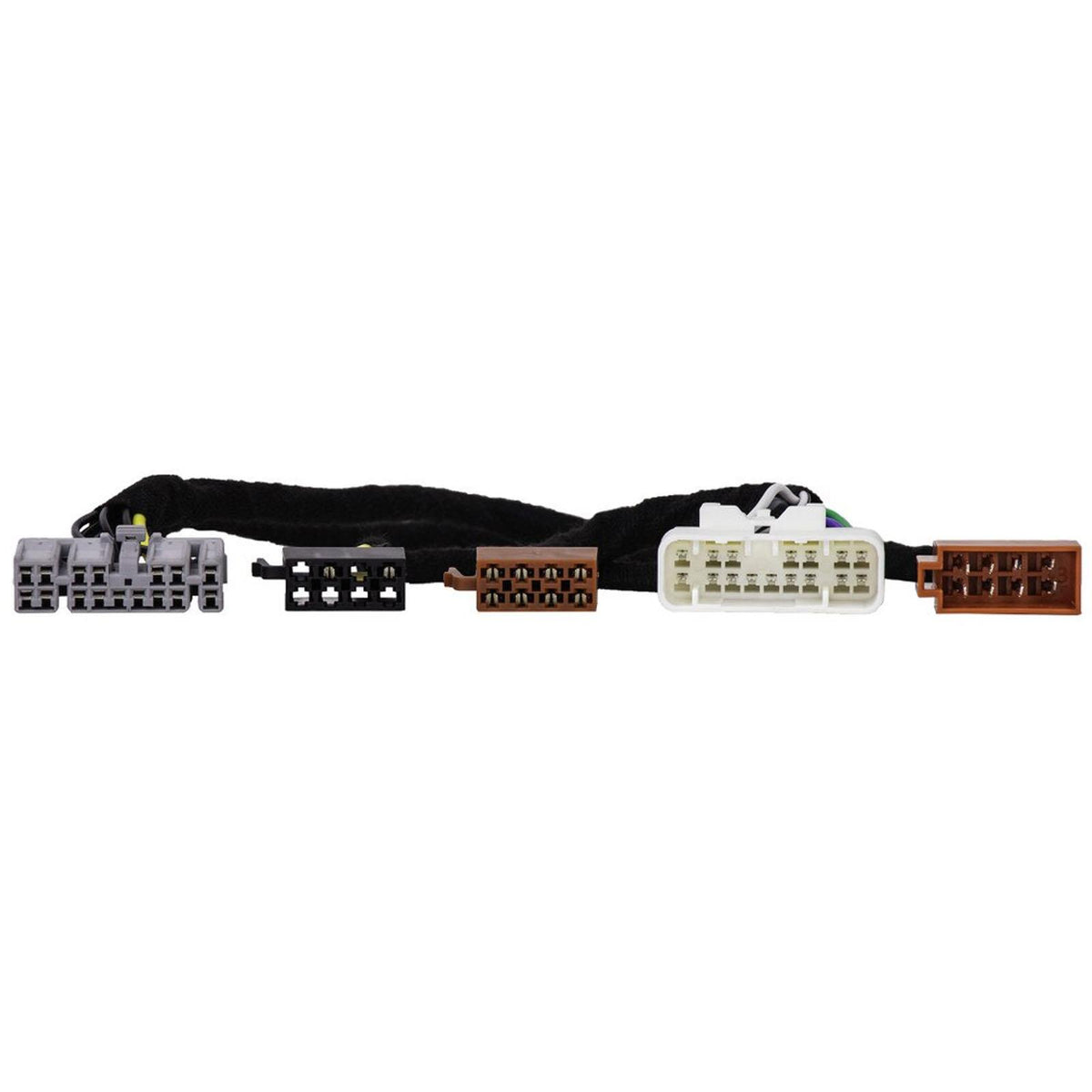

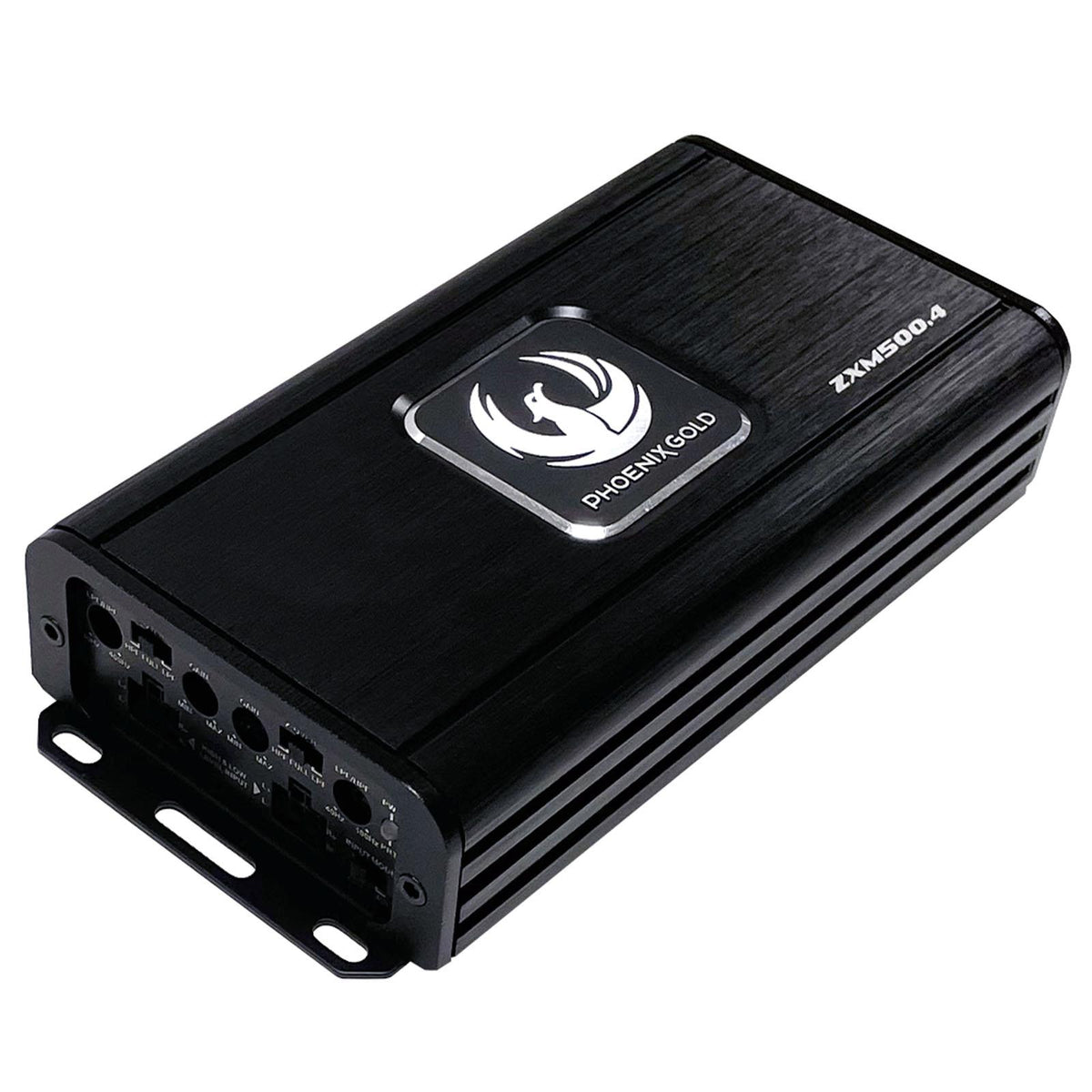

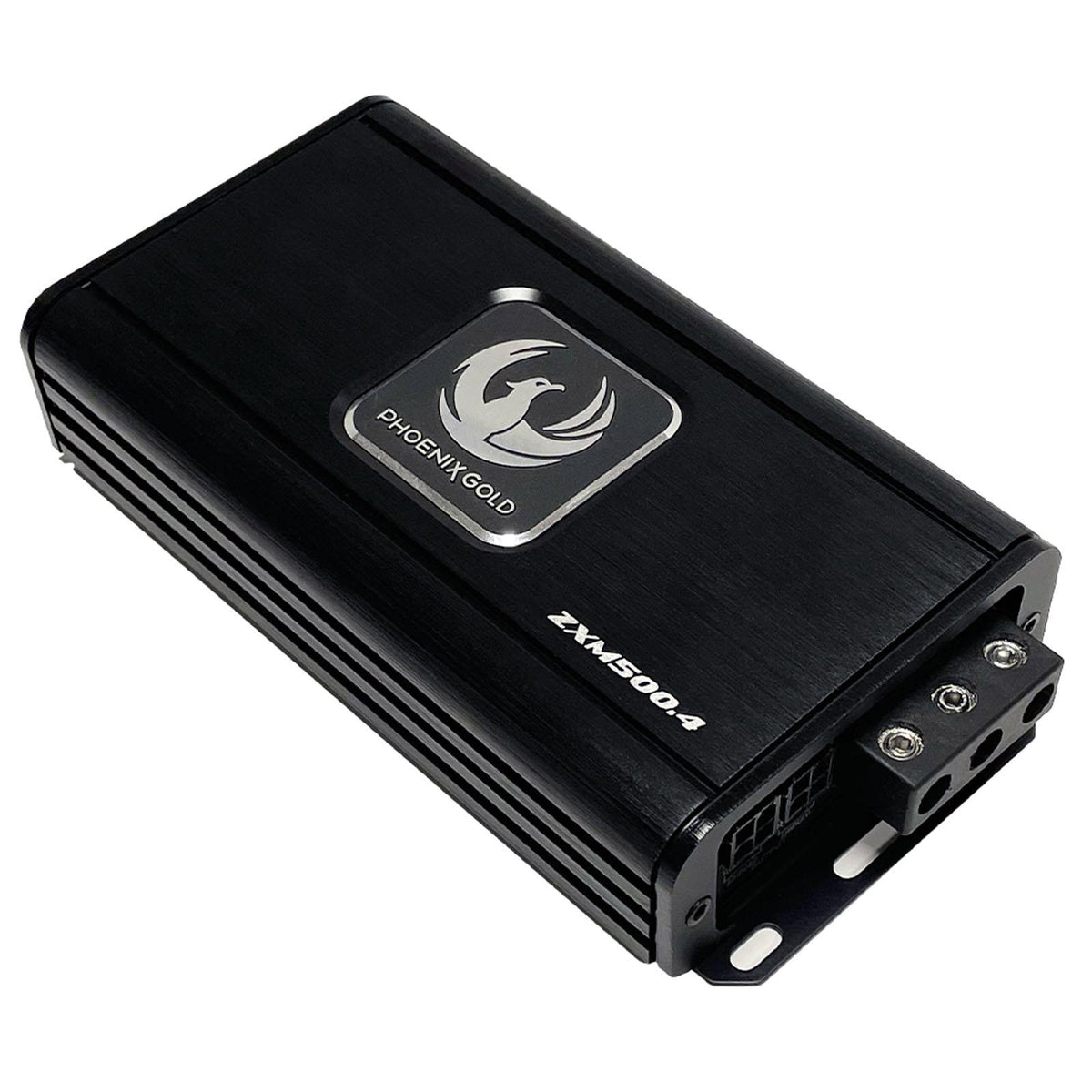

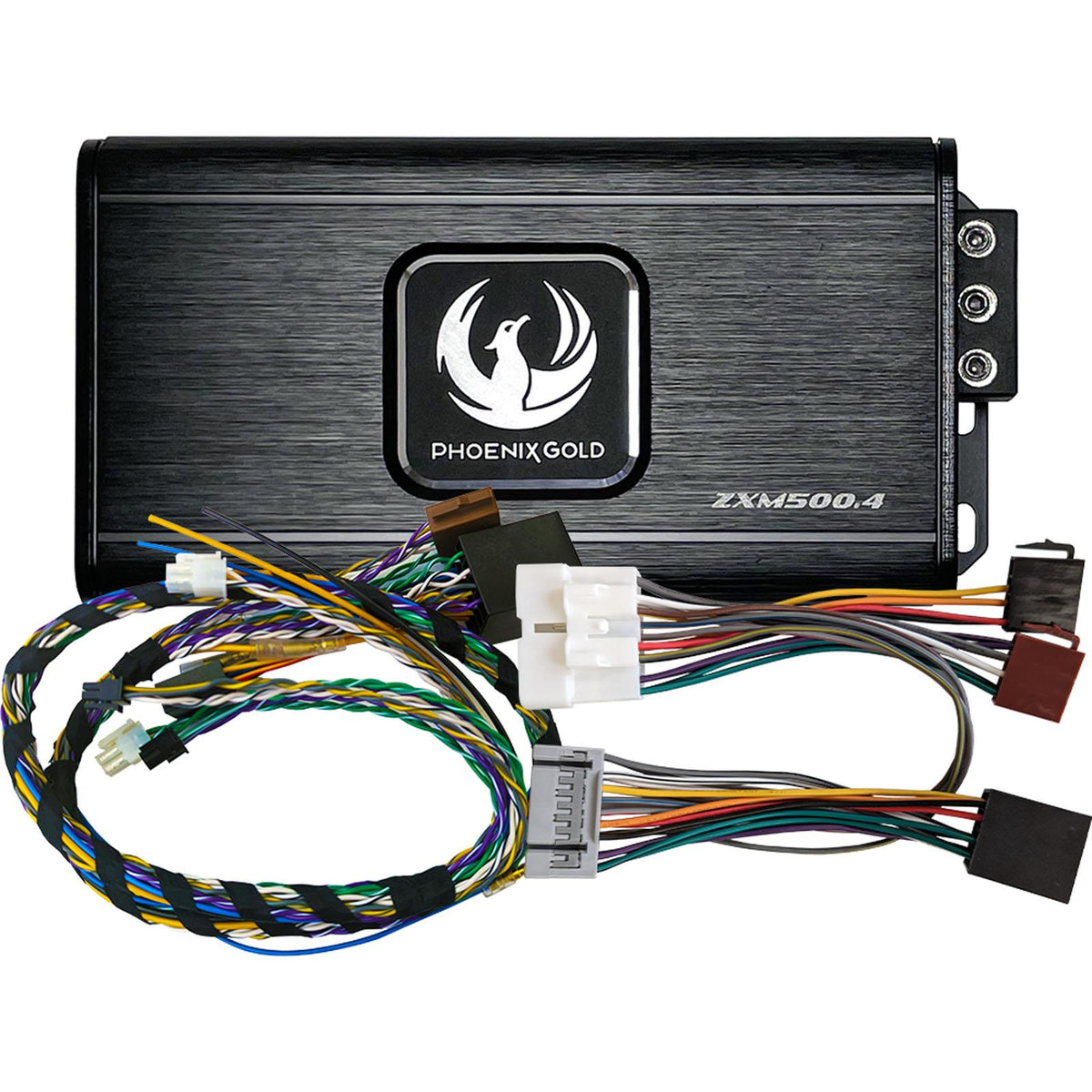

Upgrade your compatible vehicle’s basic sound system while retaining the original stereo. The Phoenix Gold ZXMPI1 package includes the compact ZXM500.4 amplifier, ZDC-ISOX2 2.2-metre ISO-T harness and a compatible vehicle-specific T-harness.
The four-channel Class-D amplifier provides additional power and headroom for improved speaker output, control and dynamics. The supplied harnesses connect it to the compatible factory audio wiring for a plug-and-play installation.
Key Features:
- Retains the compatible factory stereo
- Compact Class-D amplifier for discreet installation
- High-level and low-level inputs with selectable two-channel or four-channel input operation
- Automatic turn-on using the high-level input
- Adjustable high-pass and low-pass filters
- Short-circuit, thermal and high/low-voltage protection
- Protection status LED and surface-mount component technology
- Low-EMI design to help minimise electrical interference
Amplifier Specifications:
- Maximum power: 1000 Watts
- RMS output at 2 ohms: 4 x 125 Watts / 500 Watts combined
- RMS output at 4 ohms: 4 x 80 Watts / 320 Watts combined
- Bridged RMS output at 4 ohms: 2 x 250 Watts
- Frequency response: 20Hz–20kHz
- Signal-to-noise ratio: Greater than 90dB
- Total harmonic distortion: Less than 0.3%
- High-pass and low-pass filters: 40Hz–400Hz, 12dB/octave
- Dimensions (L x W x H): 165 x 83.1 x 34.8mm
Vehicle Compatibility – Basic Sound System Only:
- Honda Passport: 1996–2002
- Isuzu Amigo: 1998–2000
- Isuzu Coloradio: 2012 onwards
- Isuzu D-Max: 2006 onwards
- Isuzu MU-X: 2013 onwards
- Isuzu Panther: 2000–2020
- Isuzu Rodeo: 1993–2004
- Isuzu Trooper: 1993–2002
- Isuzu VehiCROSS: 1999–2001
Package Contents:
- 1 x Phoenix Gold ZXM500.4 four-channel amplifier
- 1 x Phoenix Gold ZDC-ISOX2 2.2-metre ISO-T harness
- 1 x Compatible vehicle-specific T-harness
Check the factory audio system and connectors before purchasing. Suitable for basic sound systems only. Open-ended years remain subject to compatibility. Professional installation is recommended.
