Phoenix Gold ZXMPH1 500 Watts 4 Channel Plug & Play Car Amplifier Kit for Honda

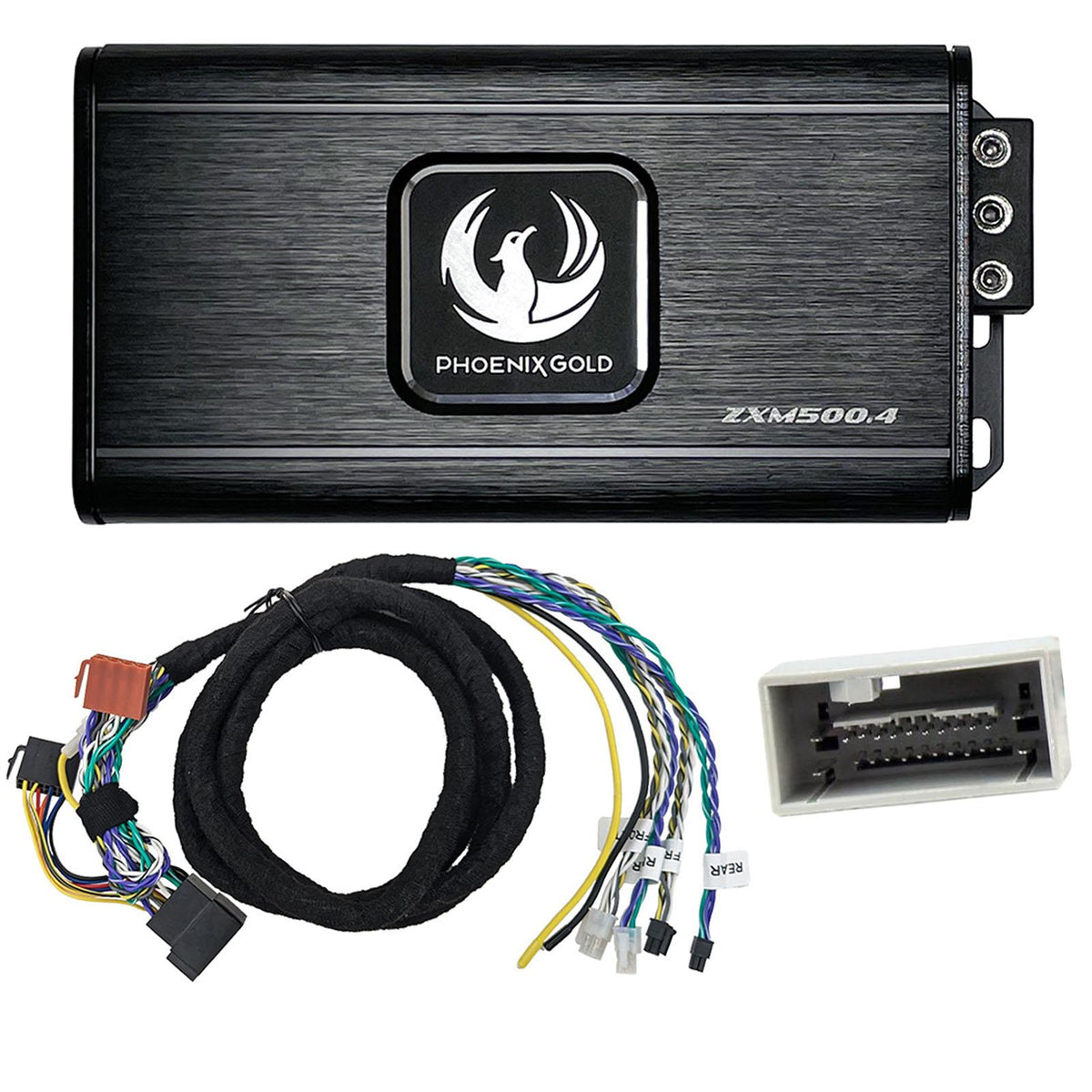

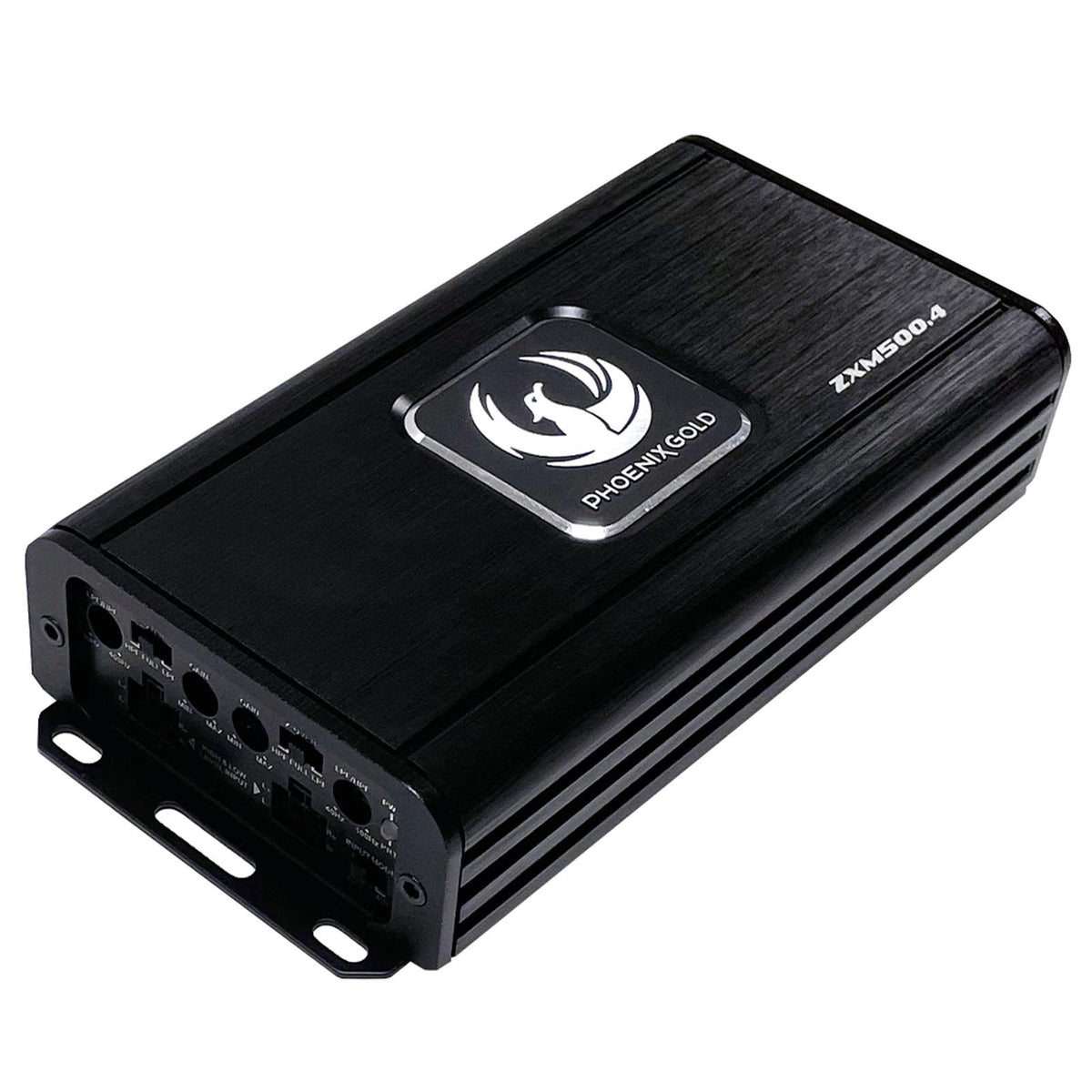

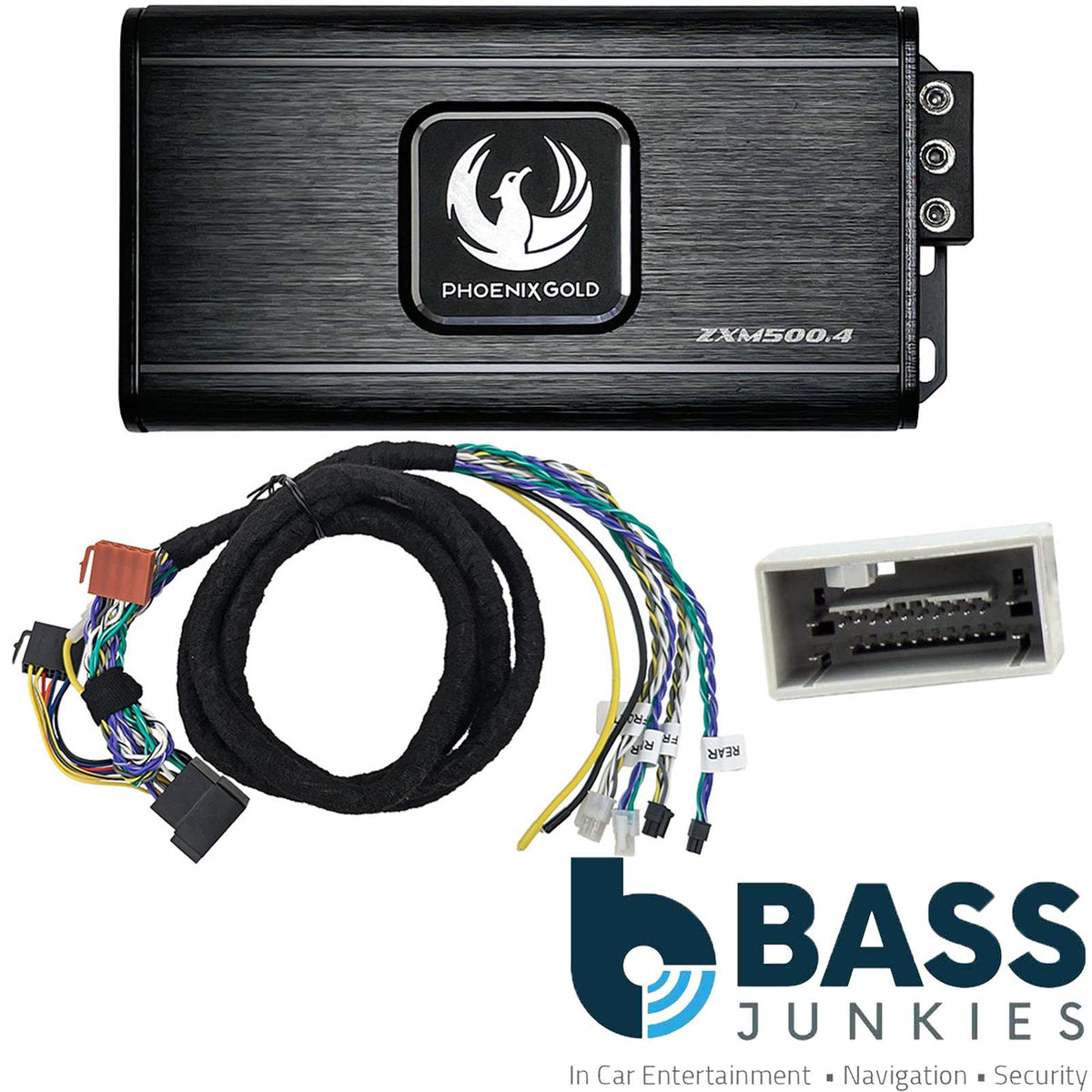

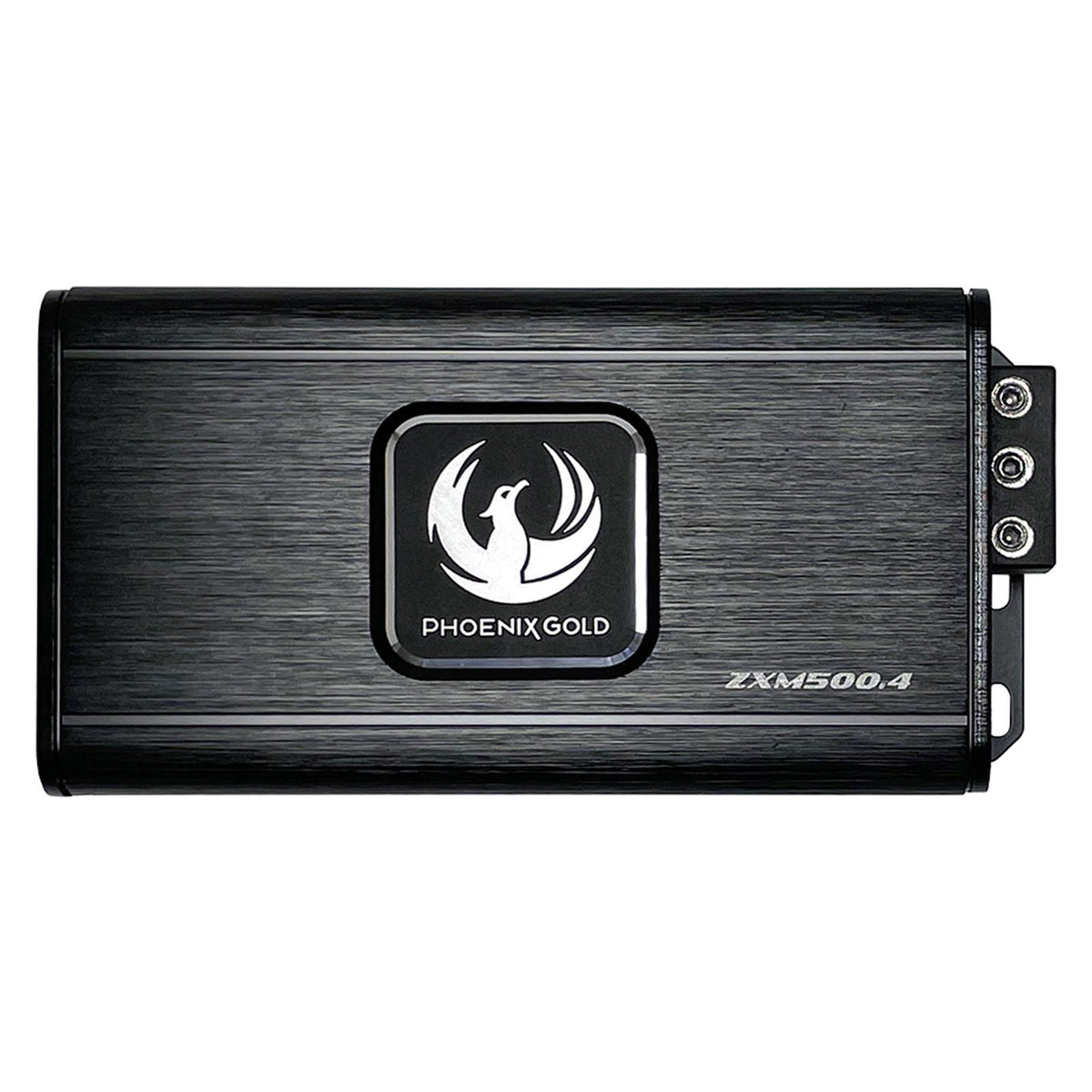

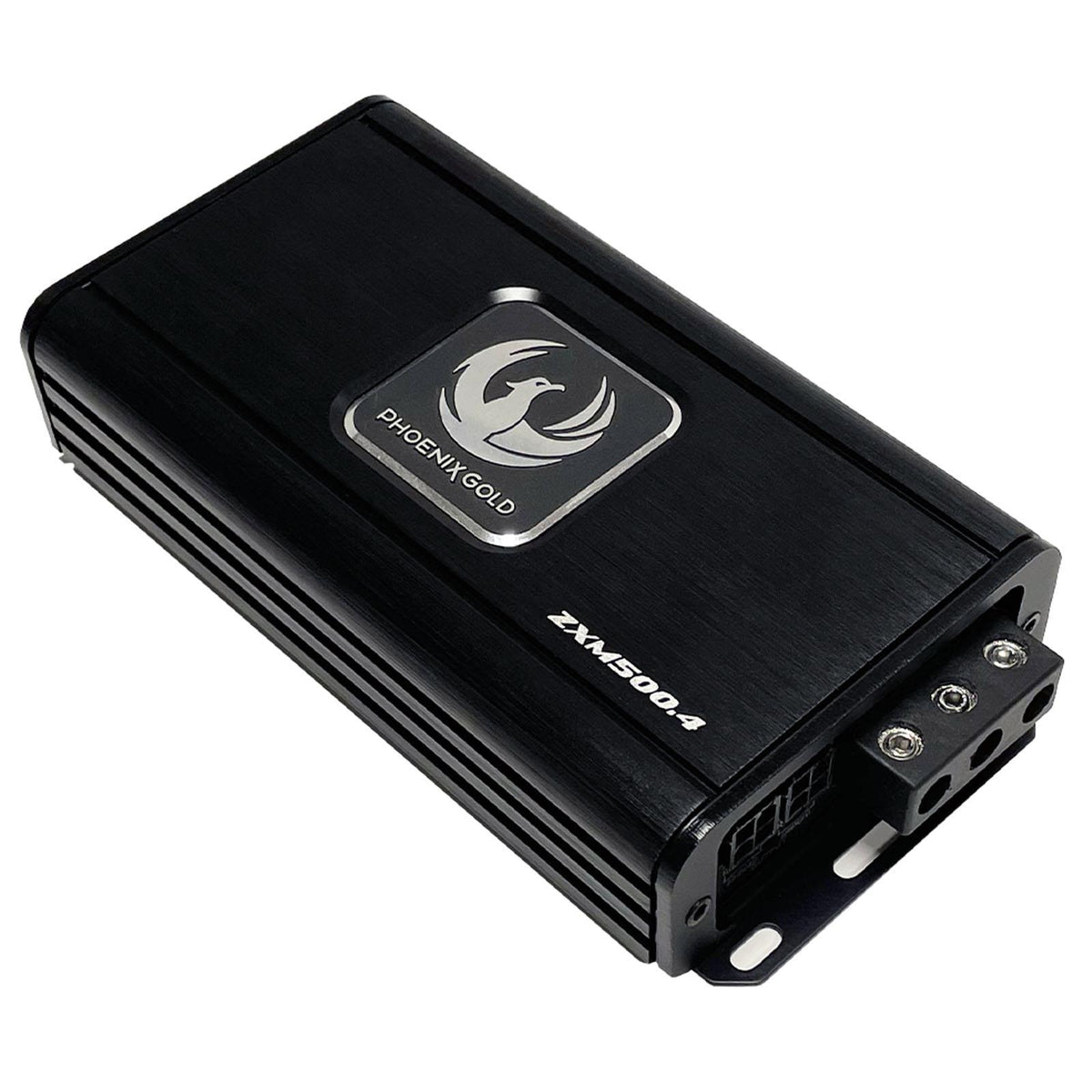

Upgrade your compatible Honda’s basic sound system while retaining the original stereo. This package includes the compact Phoenix Gold ZXM500.4 amplifier, ZDC-ISOX2 2.2-metre ISO-T harness and a compatible vehicle-specific T-harness.
The four-channel Class-D amplifier provides additional power and headroom for improved speaker output, control and dynamics. The supplied harnesses connect it to the compatible factory audio wiring for a plug-and-play installation.
Key Features:
- Retains the compatible factory stereo
- Compact Class-D amplifier for discreet installation
- High-level and low-level inputs with selectable two-channel or four-channel input operation
- Automatic turn-on using the high-level input
- Adjustable high-pass and low-pass filters
- Short-circuit, thermal and high/low-voltage protection
- Protection status LED and surface-mount component technology
- Low-EMI design to help minimise electrical interference
Amplifier Specifications:
- Maximum power: 1000 Watts
- RMS output at 2 ohms: 4 x 125 Watts / 500 Watts combined
- RMS output at 4 ohms: 4 x 80 Watts / 320 Watts combined
- Bridged RMS output at 4 ohms: 2 x 250 Watts
- Frequency response: 20Hz–20kHz
- Signal-to-noise ratio: Greater than 90dB
- Total harmonic distortion: Less than 0.3%
- High-pass and low-pass filters: 40Hz–400Hz, 12dB/octave
- Dimensions (L x W x H): 165 x 83.1 x 34.8mm
Vehicle Compatibility – Basic Sound System Only:
- Honda Accord: 2008–2017
- Honda Civic: 2011–2016
- Honda CR-V: 2013–2017
- Honda Fit: 2008–2015
- Honda Freed: 2008–2016
- Honda Insight: 2009–2015
- Honda Jazz: 2008–2015
- Honda Mobilio: 2014 onwards
- Honda Odyssey: 2008 onwards
- Honda Pilot: 2008–2015
- Honda Ridgeline: 2009–2014
Package Contents:
- 1 x Phoenix Gold ZXM500.4 four-channel amplifier

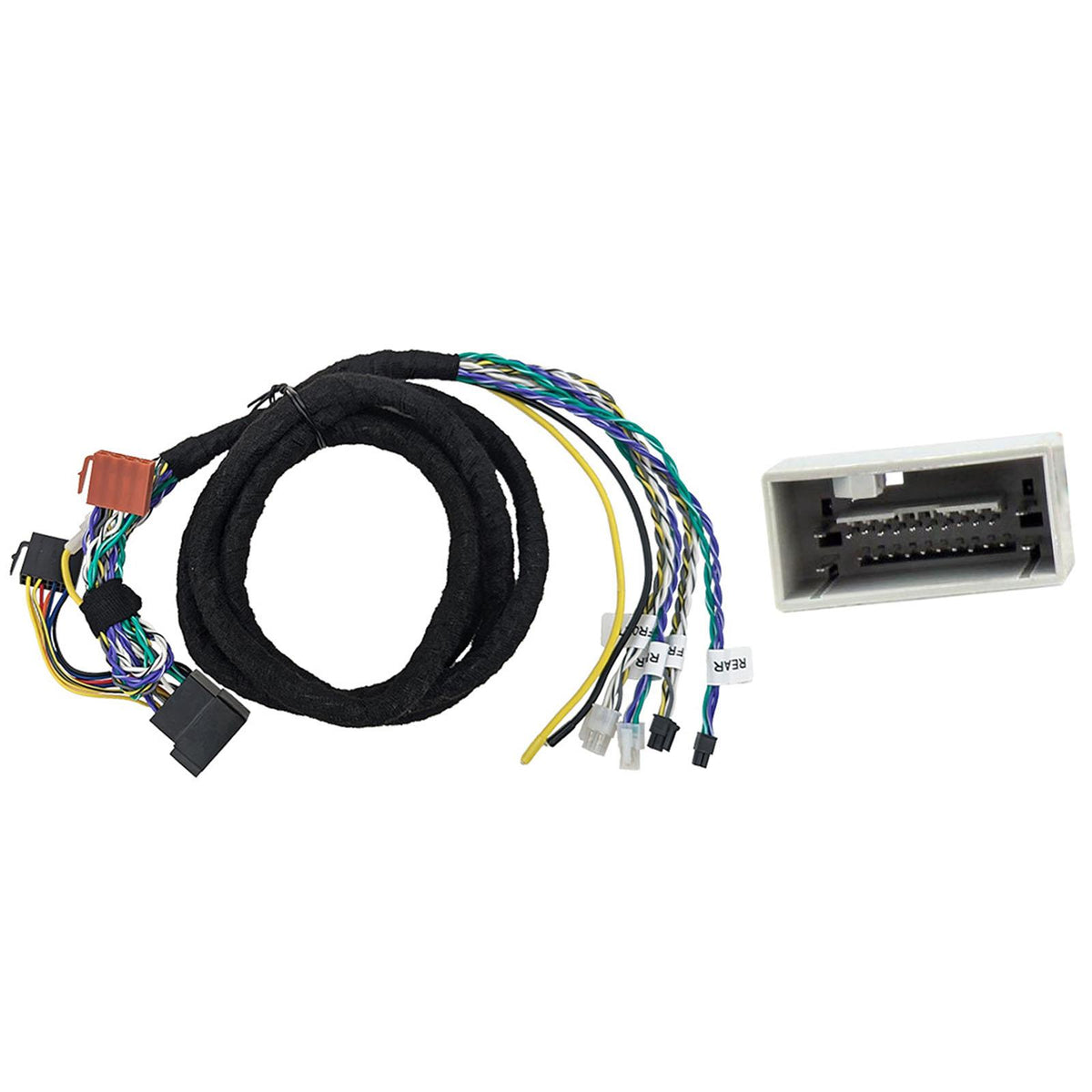

- 1 x Phoenix Gold ZDC-ISOX2 2.2-metre ISO-T harness
- 1 x Compatible vehicle-specific T-harness
Check the factory audio system and connectors before purchasing. Suitable for basic sound systems only. Open-ended years remain subject to compatibility. Professional installation is recommended.
