Phoenix Gold ZXMPMB1 500 Watts 4 Channel Plug & Play Car Amplifier Kit for Mercedes & Volkswagen
Upgrade your compatible vehicle’s basic sound system while retaining the original stereo. The Phoenix Gold ZXMPMB1 package includes the compact ZXM500.4 amplifier, ZDC-ISOX2 2.2-metre ISO-T harness and a compatible vehicle-specific T-harness.
The four-channel Class-D amplifier provides additional power and headroom for improved speaker output, control and dynamics. The supplied harnesses connect it to the compatible factory audio wiring for a plug-and-play installation.
Key Features:
- Retains the compatible factory stereo
- Compact Class-D amplifier for discreet installation
- High-level and low-level inputs with selectable two-channel or four-channel input operation
- Automatic turn-on using the high-level input
- Adjustable high-pass and low-pass filters
- Short-circuit, thermal and high/low-voltage protection
- Protection status LED and surface-mount component technology
- Low-EMI design to help minimise electrical interference
Amplifier Specifications:
- Maximum power: 1000 Watts
- RMS output at 2 ohms: 4 x 125 Watts / 500 Watts combined
- RMS output at 4 ohms: 4 x 80 Watts / 320 Watts combined
- Bridged RMS output at 4 ohms: 2 x 250 Watts
- Frequency response: 20Hz–20kHz
- Signal-to-noise ratio: Greater than 90dB
- Total harmonic distortion: Less than 0.3%
- High-pass and low-pass filters: 40Hz–400Hz, 12dB/octave
- Dimensions (L x W x H): 165 x 83.1 x 34.8mm
Vehicle Compatibility – Basic Sound System Only:
- Mercedes A-Class W168: 1997–2004
- Mercedes A-Class W169: 2004–2012
- Mercedes A-Class W176: 2012–2018
- Mercedes B-Class W245: 2005–2011
- Mercedes B-Class W246: 2012–2018
- Mercedes C-Class W203: 2000–2006
- Mercedes C-Class W204: 2007–2014
- Mercedes C-Class W205: 2014–2021
- Mercedes CL C215: 2000–2006
- Mercedes CL C216: 2006–2014
- Mercedes CLA C117: 2013–2019
- Mercedes CLK W209/C209: 2003–2010
- Mercedes CLS C219: 2004–2010
- Mercedes CLS C218: 2010–2018
- Mercedes E-Class W211: 2002–2009
- Mercedes E-Class W212: 2009–2016
- Mercedes E-Class W213: 2016–2020
- Mercedes G-Class W463: 2007–2018
- Mercedes GLA X156: 2013–2019
- Mercedes GLC X253/C253: 2015–2019
- Mercedes GLE W166 Facelift: 2015–2019
- Mercedes GLK X204: 2008–2015
- Mercedes ML W164: 2005–2011
- Mercedes ML W166: 2011–2015
- Mercedes R-Class W251: 2005–2017
- Mercedes S-Class W221: 2005–2013
- Mercedes S-Class W222/C217: 2014–2020
- Mercedes SL R230: 2001–2004
- Mercedes SL R231: 2012–2020
- Mercedes SLK R171: 2004–2010
- Mercedes SLK R172: 2011–2020
- Mercedes Sprinter W906: 2006–2018
- Mercedes Viano W639: 2003–2014
- Mercedes Vito W639: 2003–2014
- Mercedes Vito W447: 2014 onwards
- Mercedes X-Class W470: 2017–2020
- Volkswagen Crafter I: 2006–2016

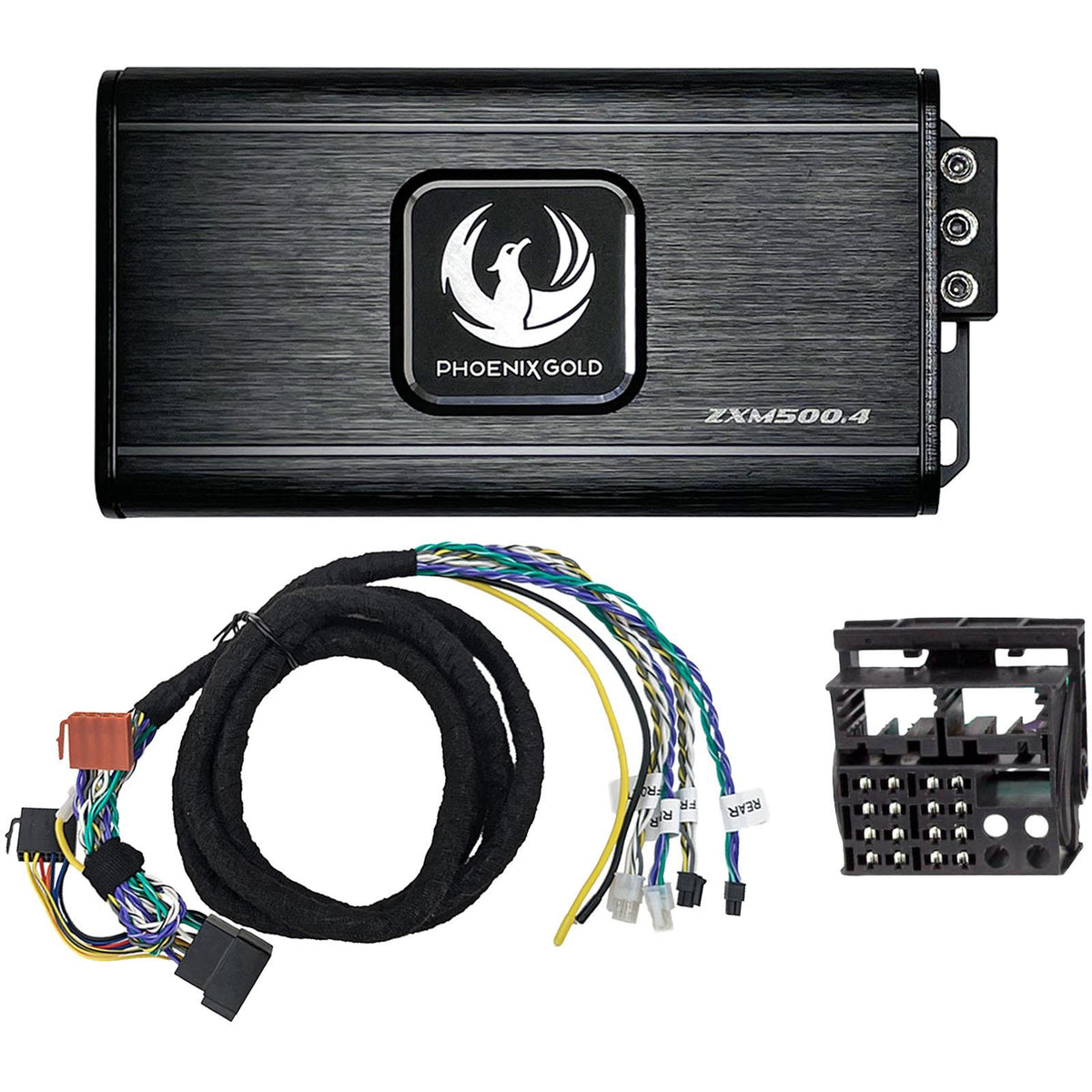

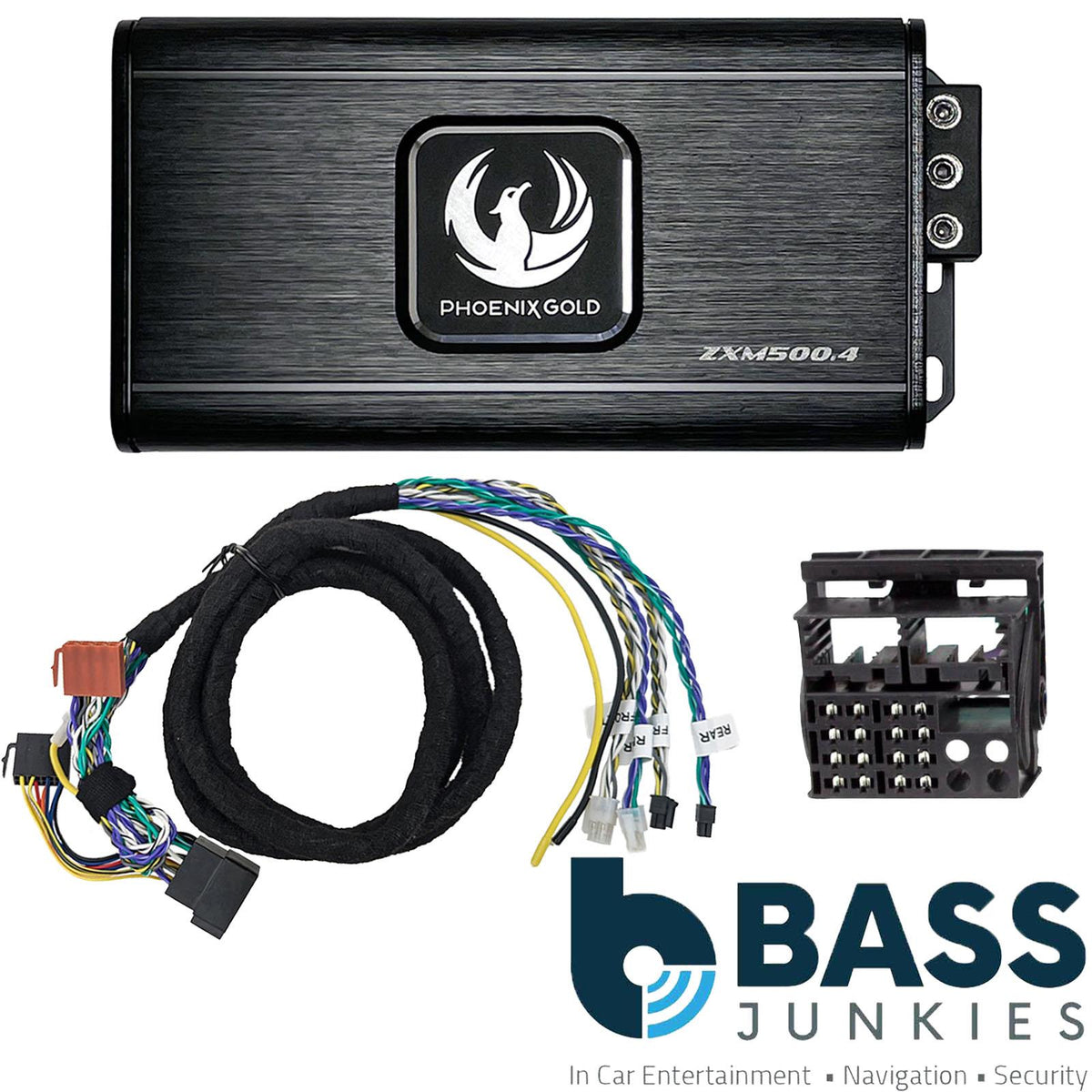

Package Contents:

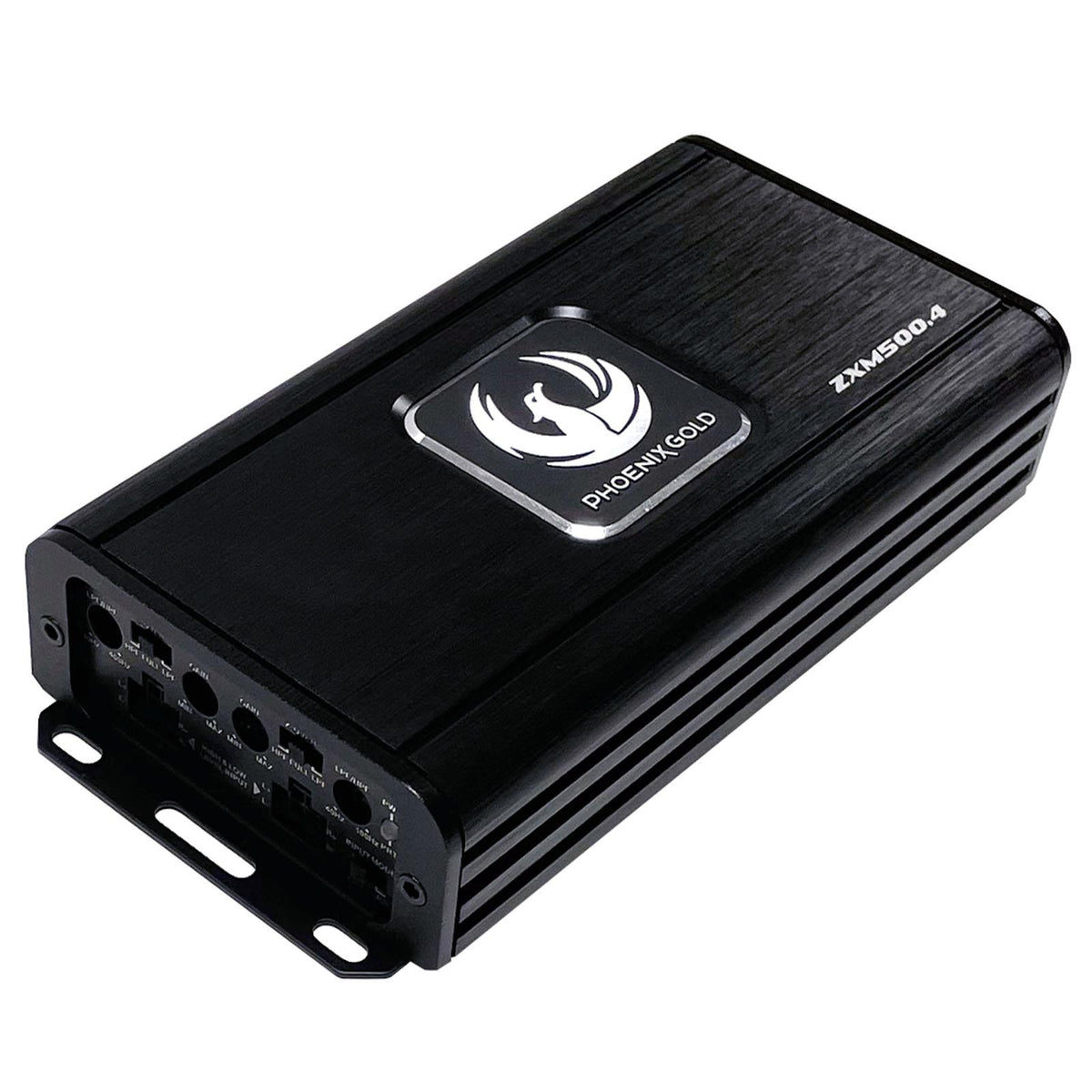

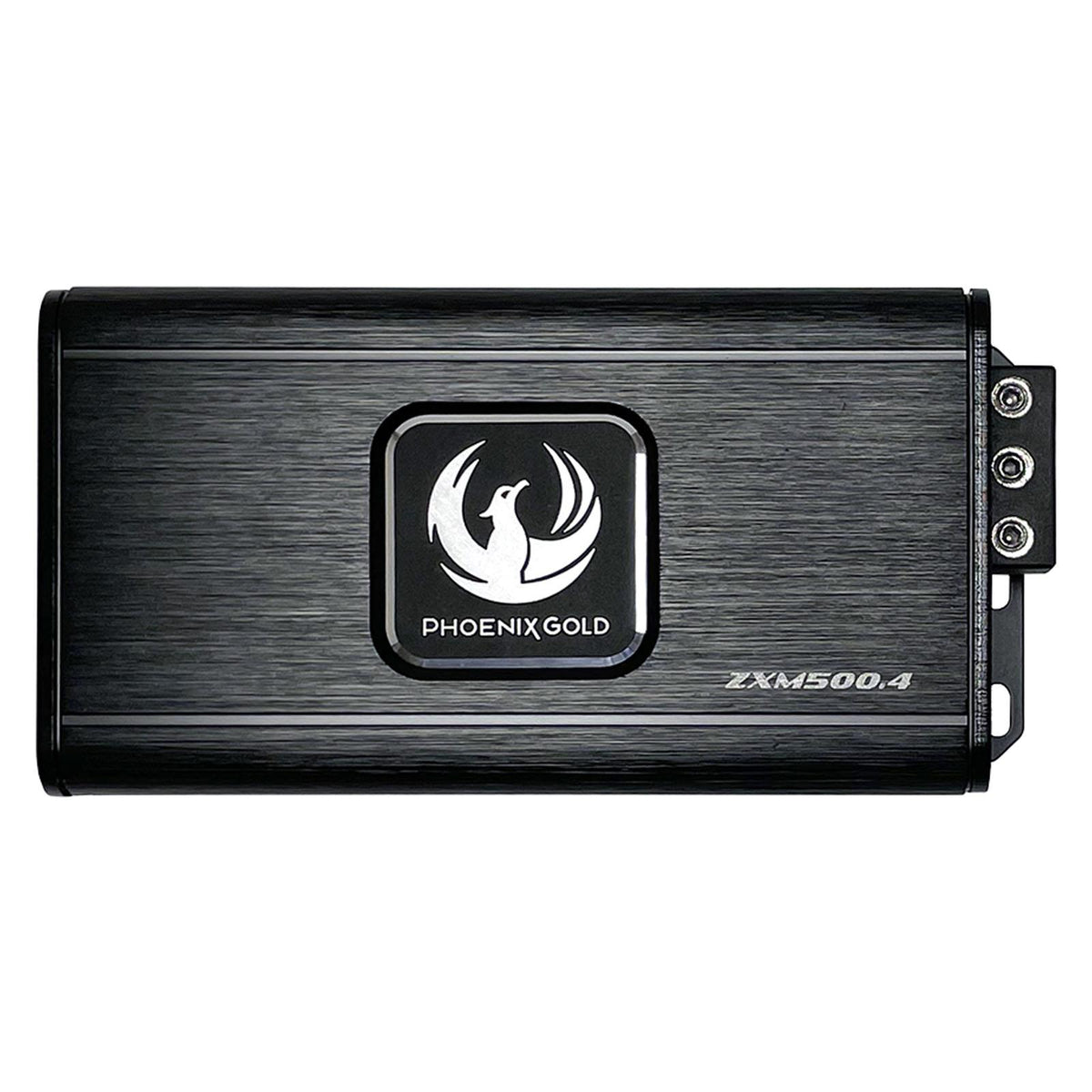

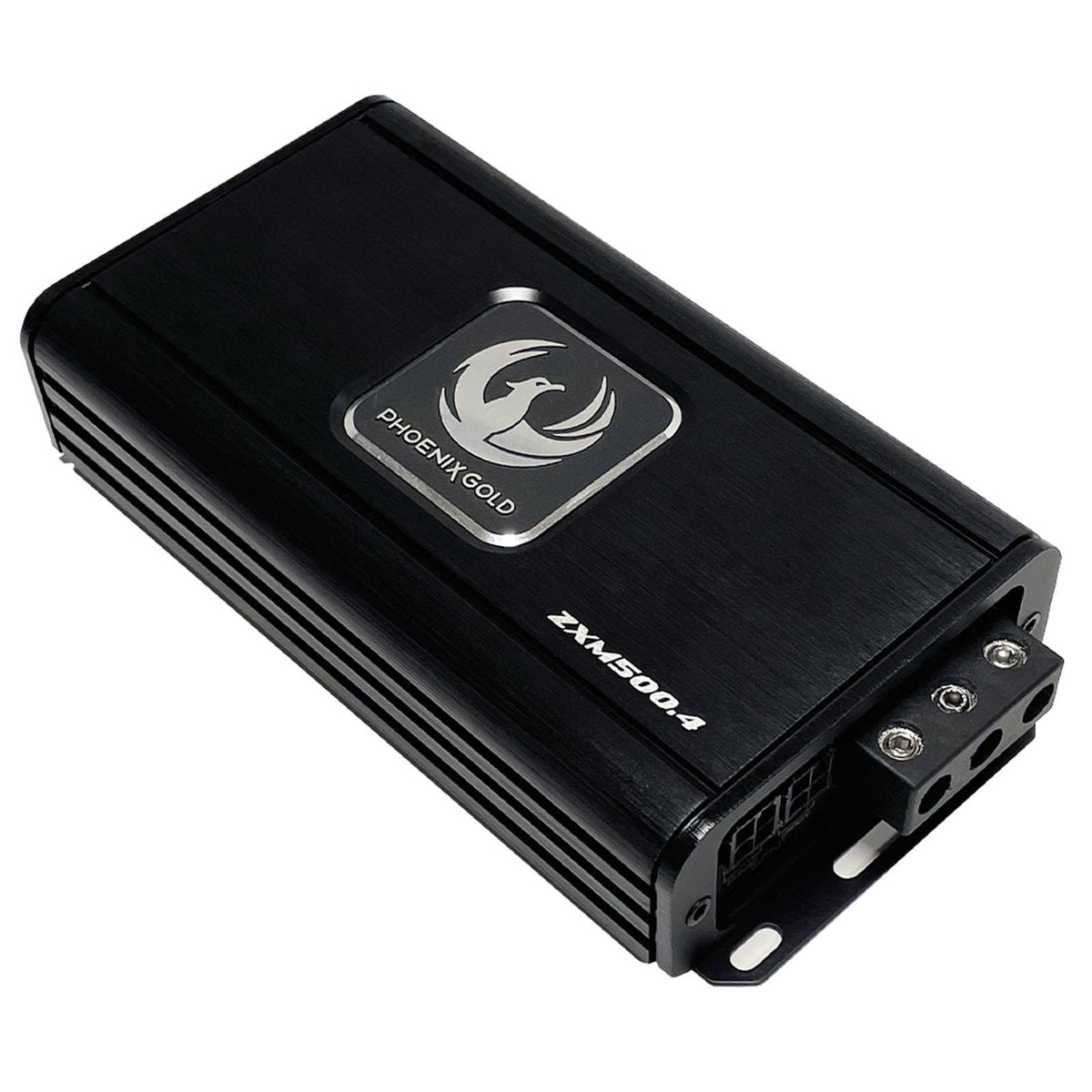

- 1 x Phoenix Gold ZXM500.4 four-channel amplifier

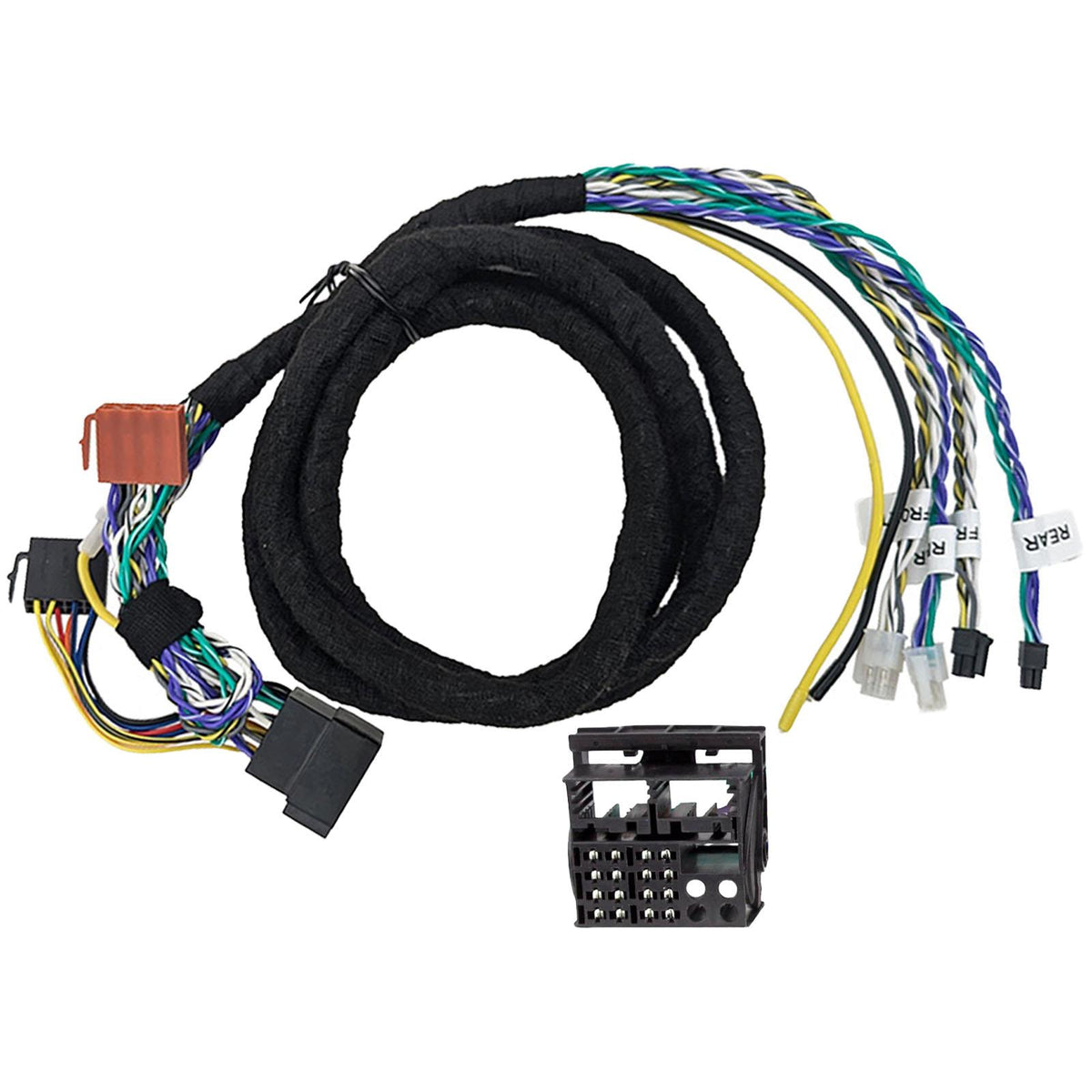

- 1 x Phoenix Gold ZDC-ISOX2 2.2-metre ISO-T harness

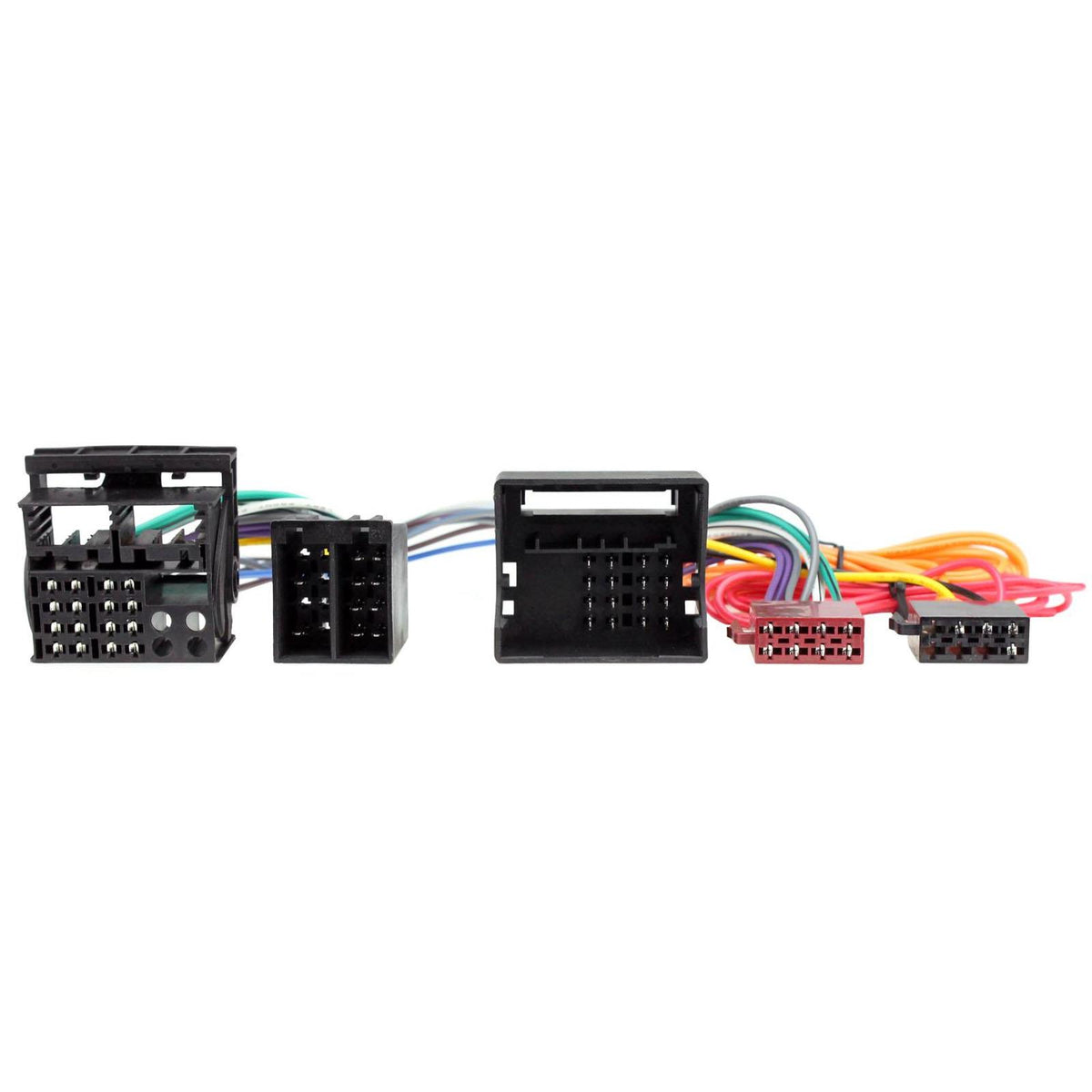

- 1 x Compatible vehicle-specific T-harness
Check the factory audio system and connectors before purchasing. Suitable for basic sound systems only. Open-ended years remain subject to compatibility. Professional installation is recommended.
