2x Phoenix Gold RX212D 12" Subwoofers, Z6001i Amplifier, Dual Sealed Box & Wiring Kit

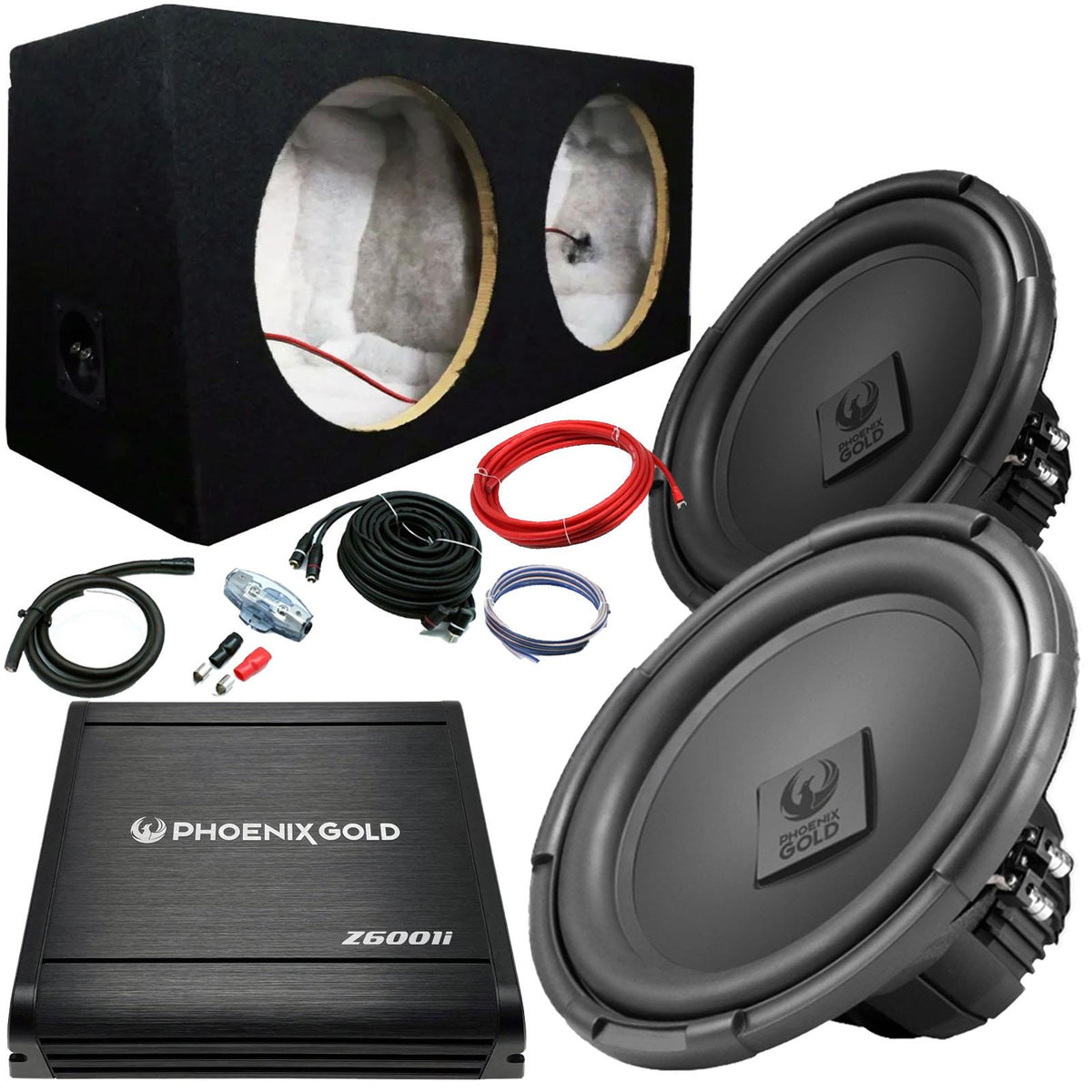

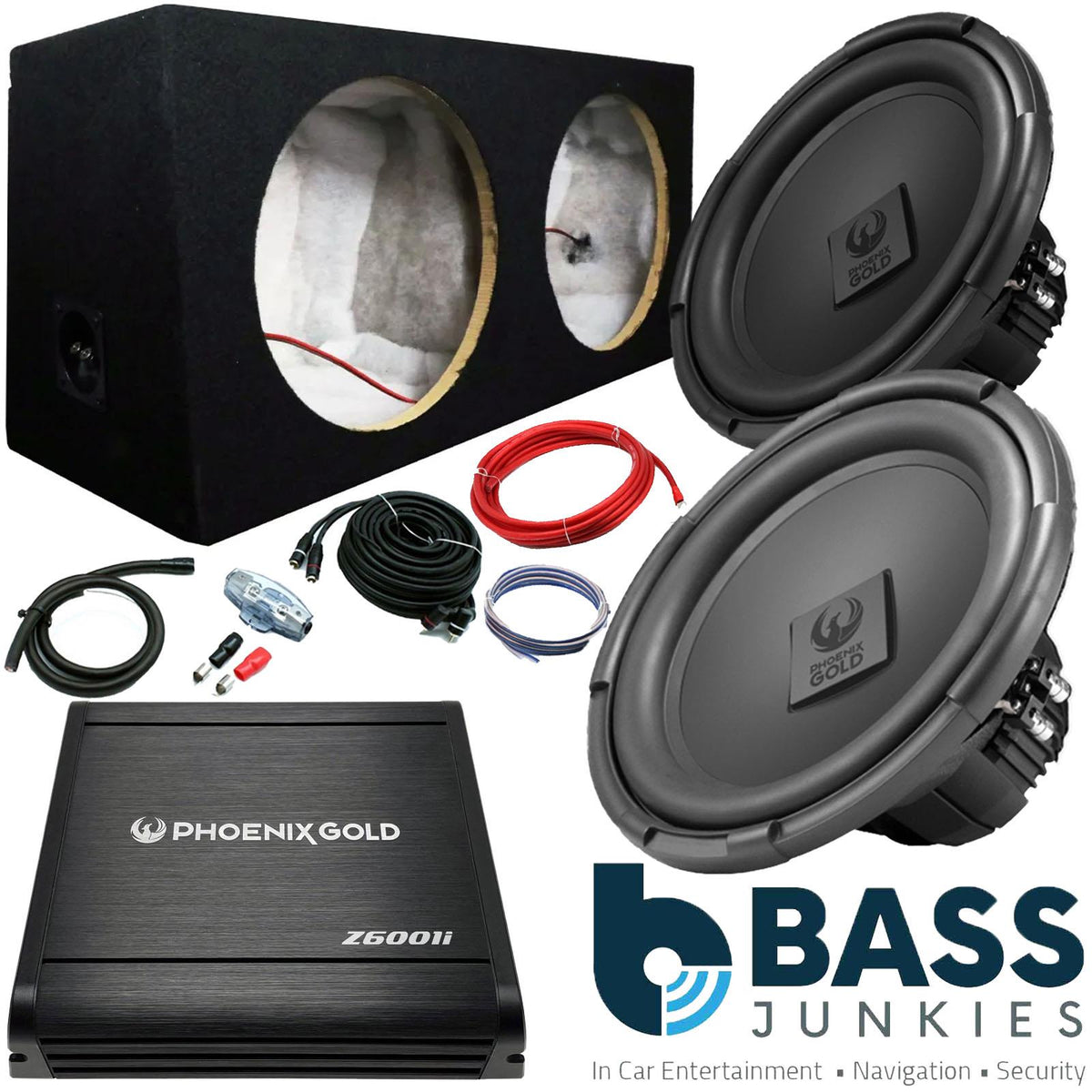

Build a powerful twin-subwoofer system with this complete Phoenix Gold bass package. The kit includes two RX212D 12-inch dual voice-coil subwoofers, a Phoenix Gold Z6001i Class-D monoblock amplifier, a dual 12-inch sealed MDF enclosure and a Connects2 PRO-FOUR 4AWG amplifier wiring kit.
Each RX212D has two 4-ohm voice coils. Wiring each subwoofer’s coils in parallel creates 2 ohms per subwoofer. Connecting both subwoofers in parallel produces a final 1-ohm load.
The Z6001i can produce up to 600 watts RMS at 1 ohm, while the two subwoofers handle 400 watts RMS combined. The amplifier gain must therefore be correctly limited to prevent the subwoofers from receiving excessive power.
Package Includes
- 2 x Phoenix Gold RX212D 12" dual 4-ohm subwoofers
- 1 x Phoenix Gold Z6001i Class-D monoblock amplifier
- 1 x 12SUBSDB dual 12" sealed MDF subwoofer enclosure
- 1 x Connects2 PRO-FOUR 4AWG amplifier wiring kit

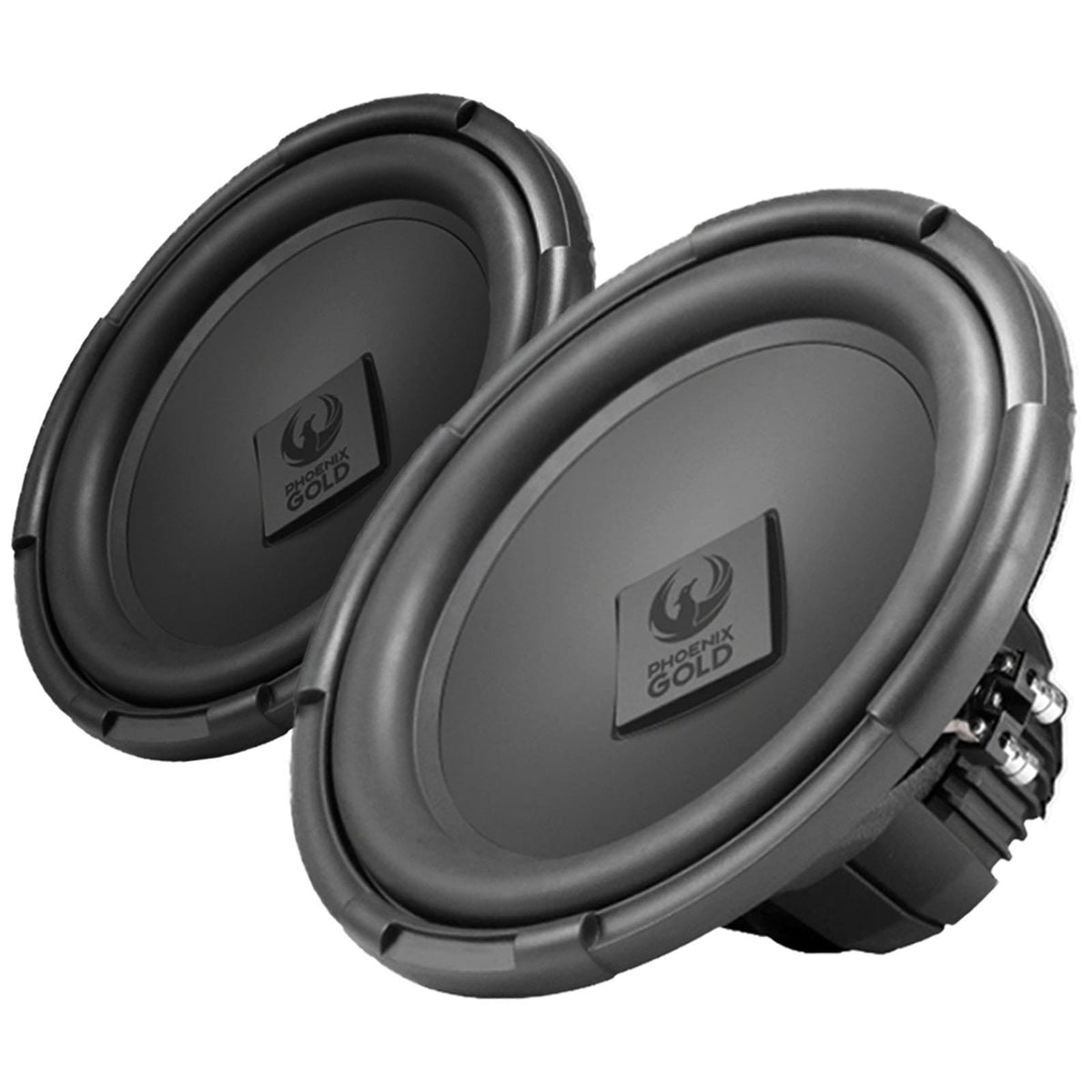

Phoenix Gold RX212D 12" Subwoofers
The Phoenix Gold RX212D is a 12-inch dual 4-ohm subwoofer designed to deliver deep, accurate bass at an affordable price. Its long-wound 2-inch voice coil and high-excursion suspension provide 25mm of peak-to-peak movement for strong low-frequency performance.
This package includes two RX212D subwoofers with a combined RMS power handling of 400 watts and a combined peak power handling of 800 watts.
- Quantity: Two subwoofers
- Subwoofer size: 12" / 30cm each
- Voice-coil configuration: Dual 4 ohm per subwoofer
- RMS power handling: 200 watts each / 400 watts combined
- Peak power handling: 400 watts each / 800 watts combined
- Sensitivity: 85.9dB
- Resonance frequency: 28Hz
- Peak-to-peak excursion: 25mm
- Voice-coil diameter: 2"
- Mounting diameter: 282mm
- Mounting depth: 145mm
- Driver displacement: 0.051 cubic feet each
- Suitable for sealed or vented enclosures
RX212D Subwoofer Features
- Dual 4-ohm voice coils provide flexible wiring options
- High-excursion CAE/CAD motor design
- Long-wound voice coil for improved cone movement
- KlaraForm vented Kapton former helps reduce heat and resistance
- UNICAP technology provides a rigid piston for improved output
- Phoeniroll surround technology promotes controlled linear movement
- Torriform voice-coil technology assists heat dissipation
- Nickel-plated 12-gauge speaker terminals
- Powder-coated anti-resonant steel basket

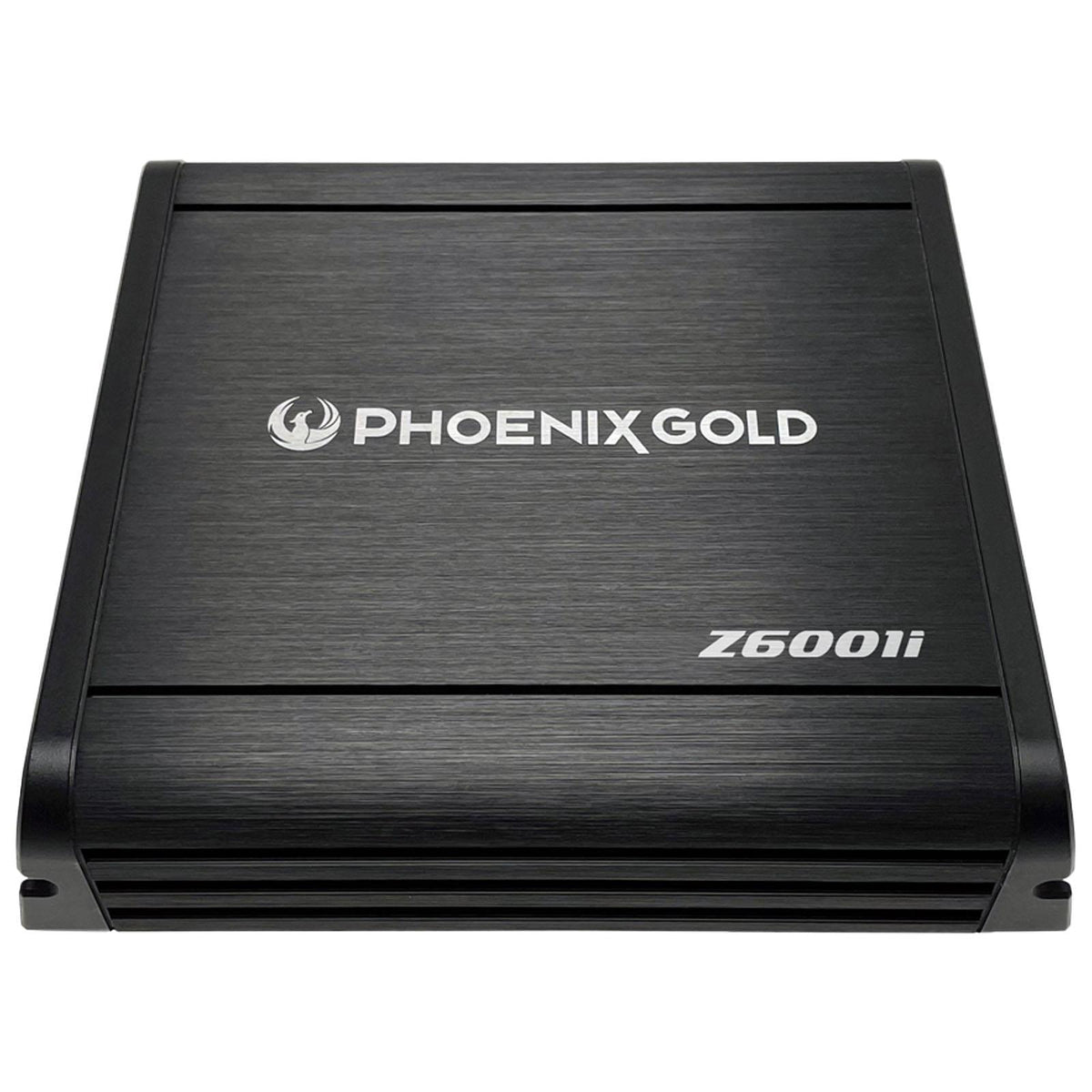

Phoenix Gold Z6001i Monoblock Amplifier
The Phoenix Gold Z6001i is a compact Class-D monoblock amplifier designed for powerful and efficient subwoofer amplification. It supports high-level and low-level inputs, allowing installation with compatible original factory radios or aftermarket head units.
- Amplifier type: Class-D monoblock
- Channels: 1
- Power output at 1 ohm: 600 watts RMS x 1
- Power output at 2 ohms: 400 watts RMS x 1
- Power output at 4 ohms: 250 watts RMS x 1
- Frequency response: 20Hz–400Hz
- Signal-to-noise ratio at full power: -84dB
- Total harmonic distortion: Less than 1%
- Low-pass filter: 50Hz–250Hz at 24dB per octave
- Subsonic filter: 10Hz–55Hz at 24dB per octave
- Bass boost at 45Hz: 0 to +18dB
- Input sensitivity: 0.25V–9.5V
- Adjustable phase control: 0–180 degrees
- High-level input through RCA connections
- Automatic signal-sensing turn-on
- Integrated cooling fan
- Remote bass controller included
- Four-way protection circuitry
- Two 30A amplifier fuses
- Maximum current draw: 57A
- Dimensions: 184 x 160 x 48mm
- Weight: 1.30kg

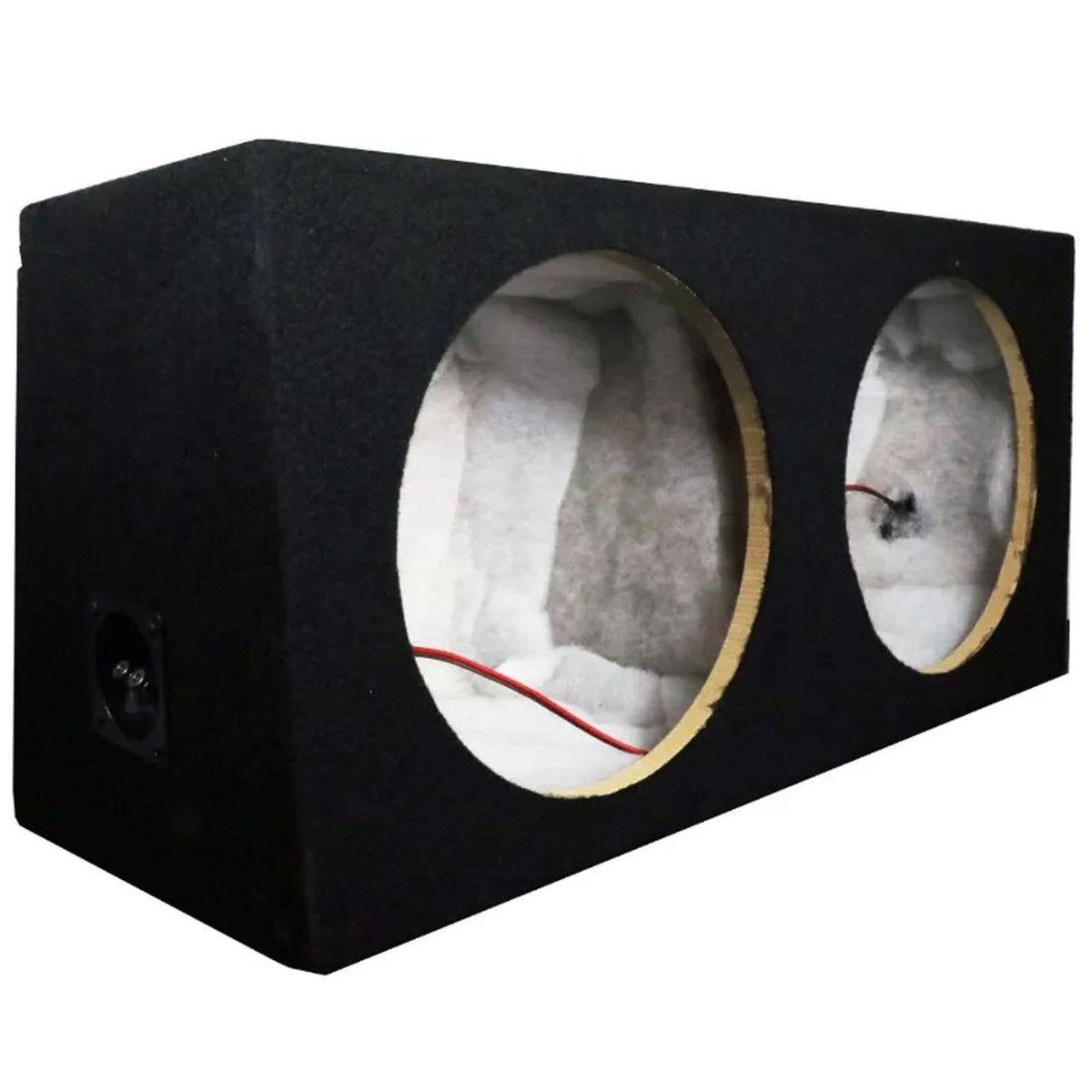

12SUBSDB Dual 12" Sealed Enclosure
The included dual enclosure is constructed from MDF and finished in black acoustic carpet. It provides two mounting positions for the included 12-inch subwoofers and uses a sealed design for controlled bass response.
This is a separate universal dual 12-inch enclosure supplied as part of the package. It has not been specifically manufactured or acoustically tuned exclusively for the RX212D subwoofers.
- Designed to accommodate two 12-inch subwoofers
- Dual sealed enclosure design
- Durable MDF construction
- Black acoustic carpet finish
- Integrated sound-absorbing foam
- Includes two 45cm lengths of 16AWG pure-copper speaker cable
- Product dimensions: 77 x 32 x 36cm
- Carton dimensions: 79 x 34 x 38cm

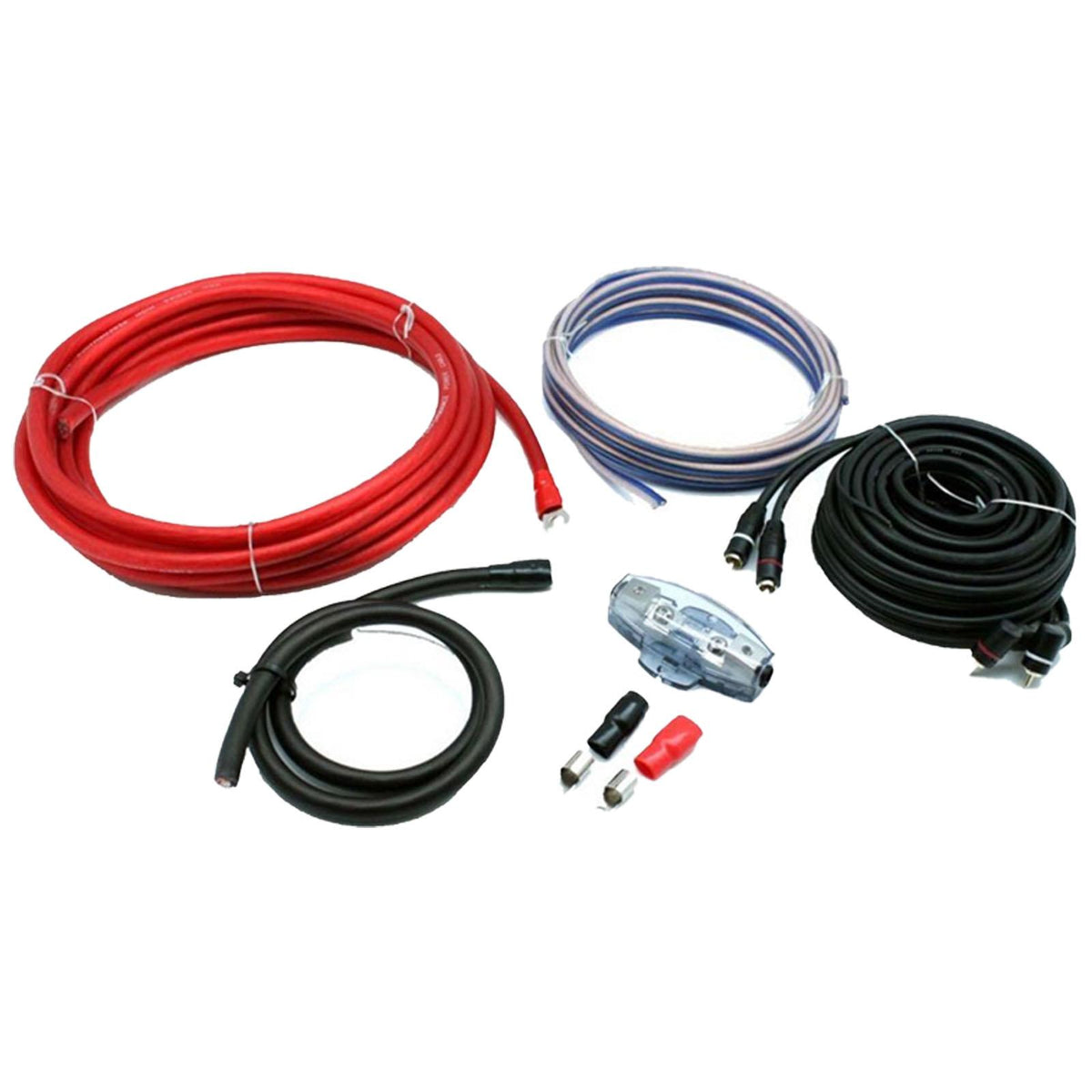

Connects2 PRO-FOUR 4AWG Amplifier Wiring Kit
The PRO-FOUR is a heavy-duty 4AWG installation kit containing the main power, ground, signal and speaker cables required to connect the amplifier and subwoofer system.
- 4AWG amplifier installation kit
- Rated up to 1000 watts
- 5.2m red power cable with fitted 10mm ring terminal
- 0.8m black ground cable with fitted 10mm ring terminal
- 5m blue and white 2.5mm speaker cable
- 5m RCA cable with integrated remote wire
- Gold-plated RCA connectors with straight and angled ends
- Waterproof nickel-plated Mini-ANL fuse holder
- 80A Mini-ANL fuse
- Two fork terminals with coloured covers
Recommended System Configuration
Wire the two 4-ohm voice coils on each RX212D in parallel to create a 2-ohm load per subwoofer. Connect both 2-ohm subwoofers in parallel to create a final 1-ohm load at the amplifier.
At 1 ohm, the Z6001i is capable of producing 600 watts RMS. The two RX212D subwoofers handle 400 watts RMS combined, so the amplifier output must be correctly restricted to no more than the combined power rating of the subwoofers.
Incorrect gain or bass-boost settings may damage the subwoofers. Professional installation and calibration are strongly recommended.
