Phoenix Gold MX12D2 12" Slim Subwoofer, ZXM500.1 Amplifier, Sealed Box & Wiring Kit Package
Upgrade your vehicle with this complete Phoenix Gold bass package. The kit combines the shallow-mount MX12D2 12-inch subwoofer with the compact Phoenix Gold ZXM500.1 Class-D monoblock amplifier, a single 12-inch sealed MDF enclosure and a Connects2 PRO-EIGHT 8AWG amplifier wiring kit.
The MX12D2 features dual 2-ohm voice coils. For this package, the voice coils should be wired in series to create a final 4-ohm load. The ZXM500.1 then supplies 230 watts RMS to the 300-watt RMS subwoofer.

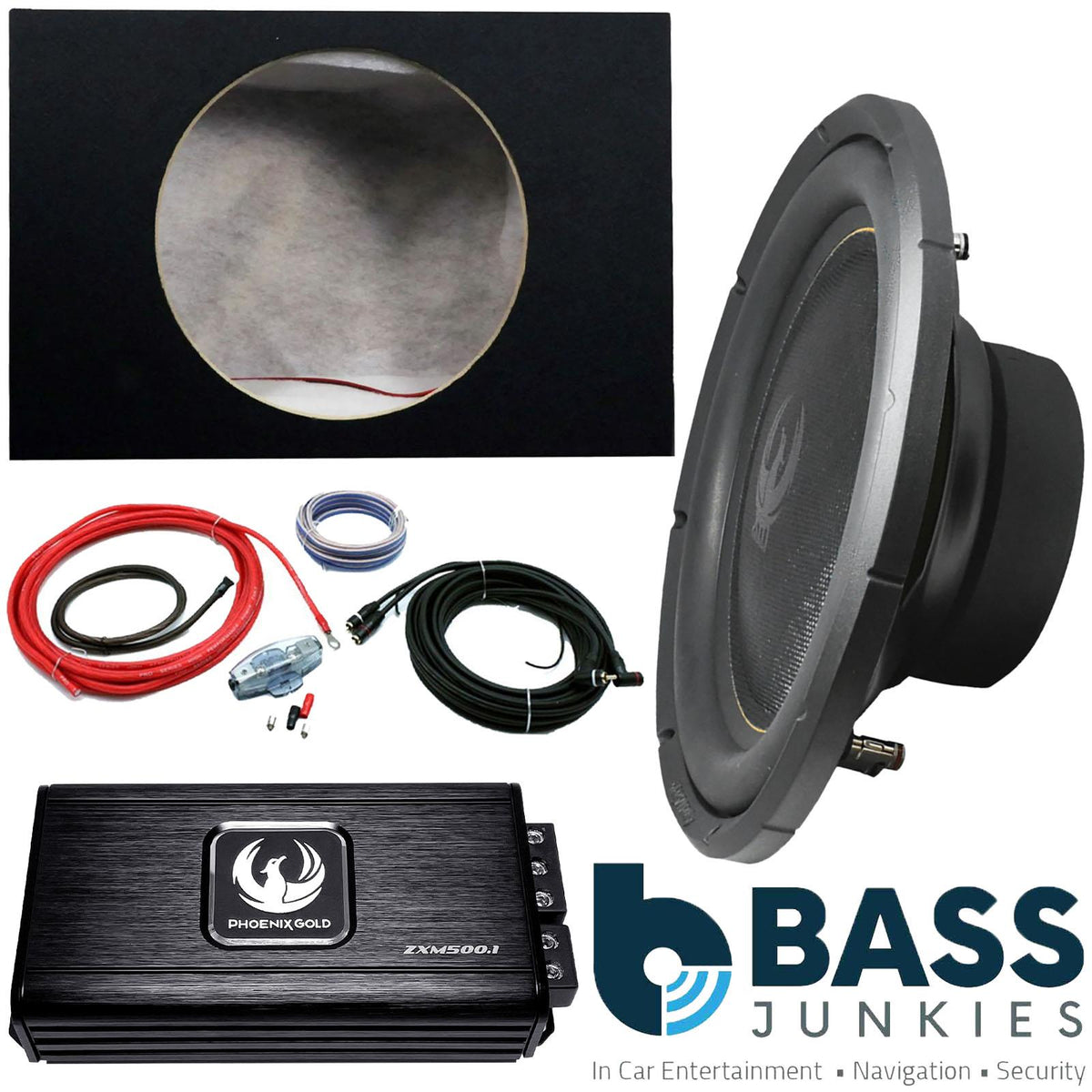

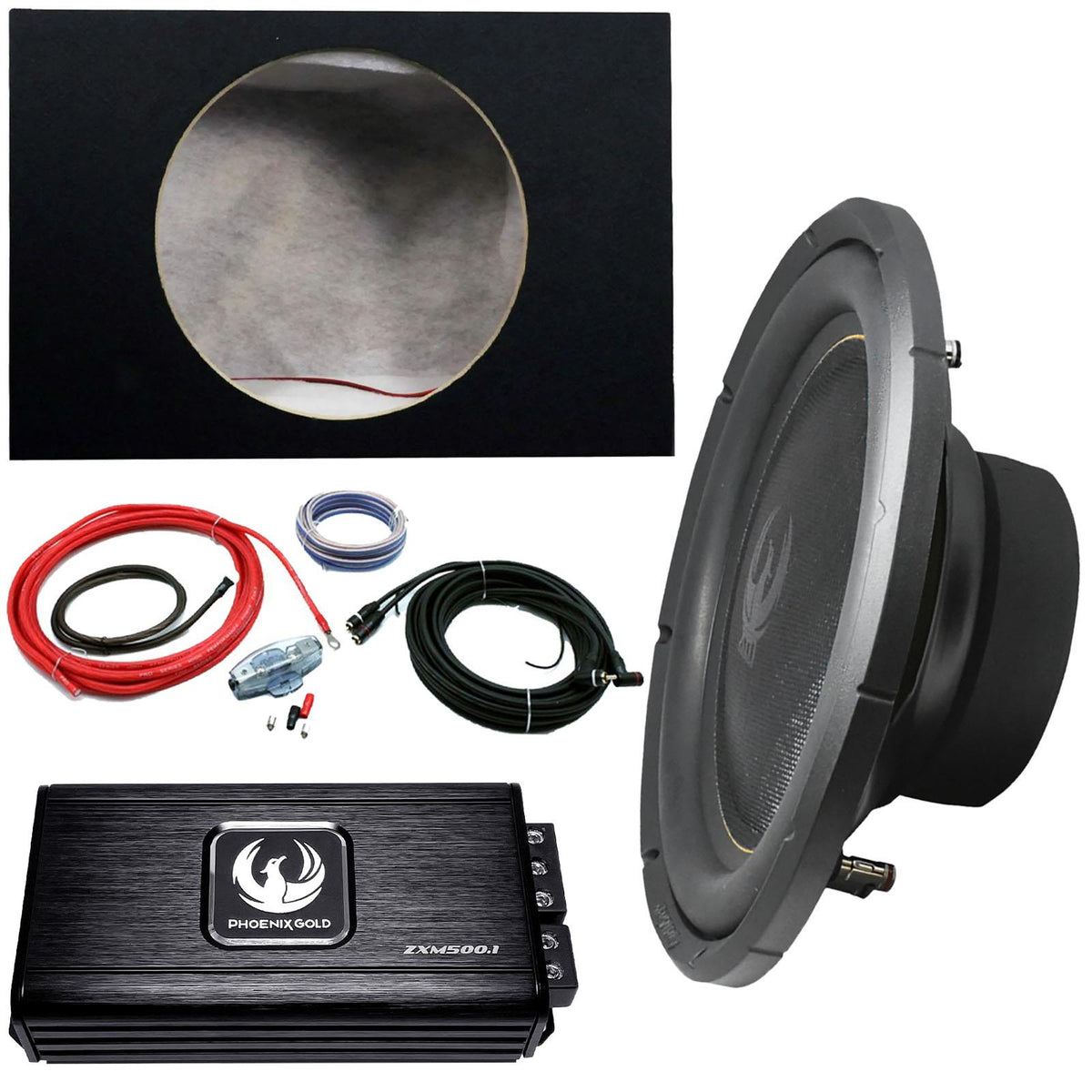

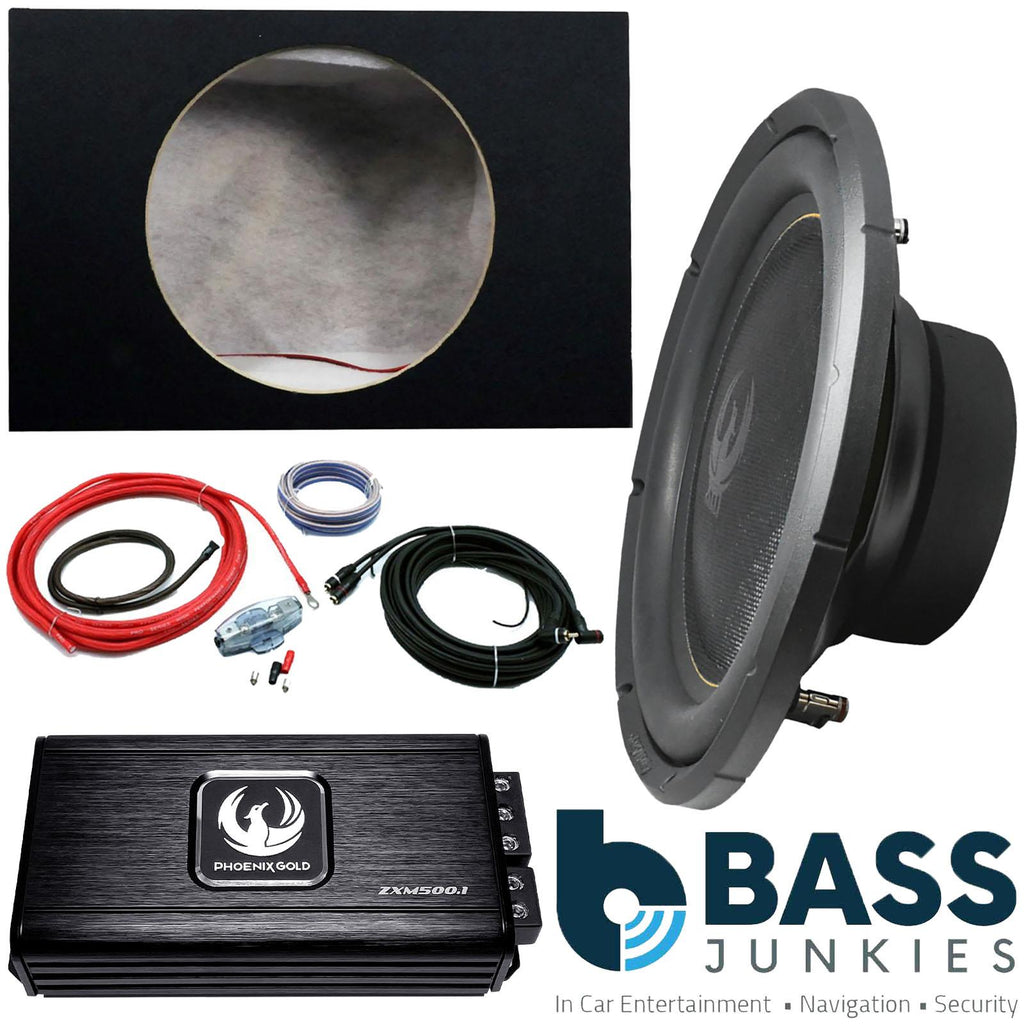

Package Includes
- 1 x Phoenix Gold MX12D2 12" dual 2-ohm slim subwoofer
- 1 x Phoenix Gold ZXM500.1 Class-D monoblock amplifier
- 1 x 12SUBSB single 12" sealed MDF subwoofer enclosure
- 1 x Connects2 PRO-EIGHT 8AWG amplifier wiring kit

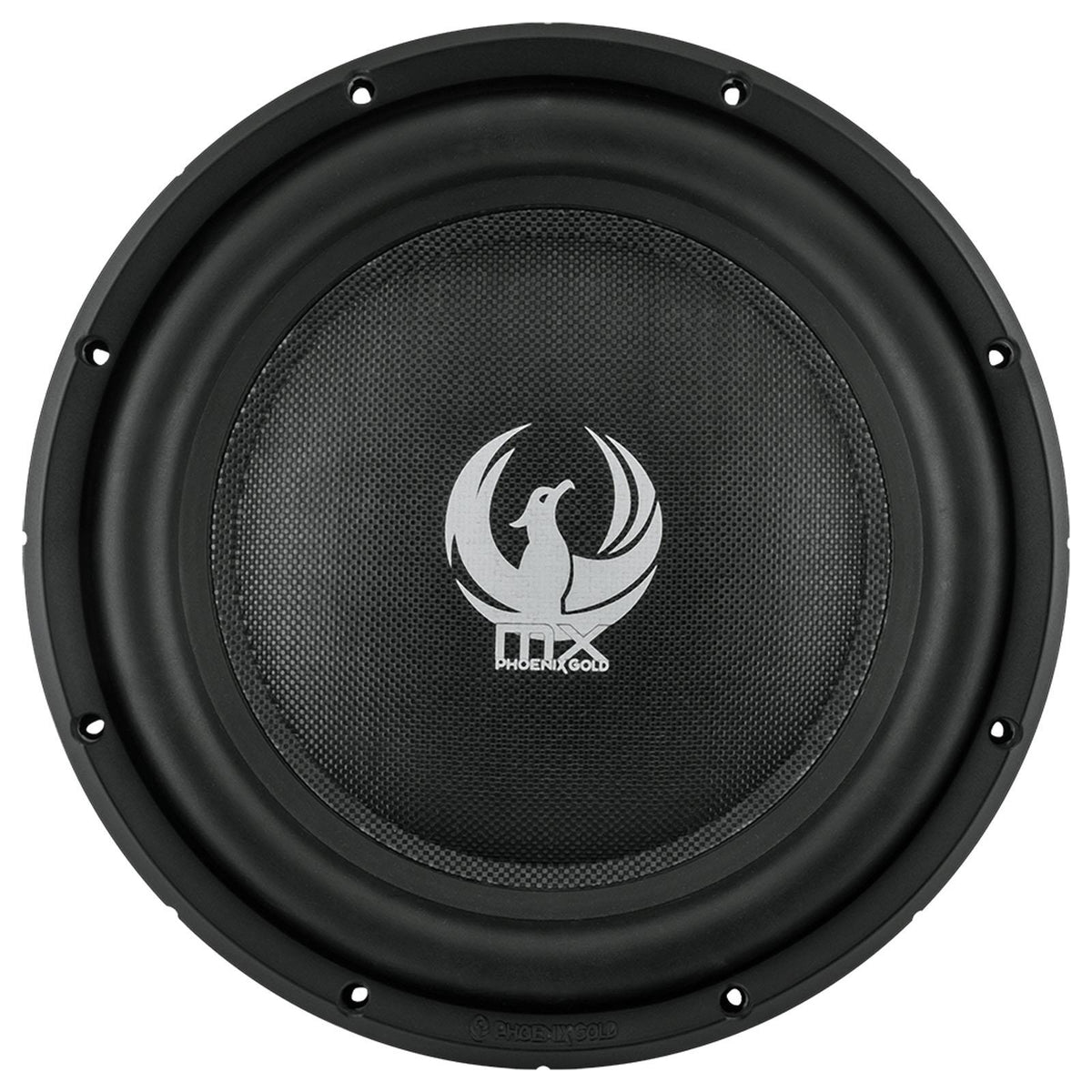

Phoenix Gold MX12D2 12" Slim Subwoofer
The Phoenix Gold MX12D2 is a shallow-mount 12-inch subwoofer developed for installations where mounting space is limited. Its glass-fibre reinforced cone, long-excursion surround and heat-resistant voice-coil construction deliver strong, controlled bass while maintaining a compact 104mm mounting depth.
- Subwoofer size: 12" / 30cm
- Voice-coil configuration: Dual 2 ohm
- RMS power handling: 300 watts
- Peak power handling: 600 watts
- Sensitivity: 85dB
- Resonance frequency: 38Hz
- Linear excursion: 11mm
- Voice-coil diameter: 2" / 50mm
- Overall diameter: 318mm
- Mounting diameter: 282mm
- Mounting depth: 104mm
- Driver displacement: 0.040 cubic feet
- Optimised for sealed enclosures
MX12D2 Subwoofer Features
- Shallow-mount construction for space-restricted installations
- Glass-fibre reinforced cone for improved rigidity and low-frequency output
- Phoeniroll surround technology supports accurate linear movement
- KlaraForm vented Kapton former helps reduce heat and resistance
- Torriform voice-coil technology assists heat dissipation
- High-excursion CAE/CAD motor design
- Nickel-plated 12-gauge speaker terminals
- Powder-coated anti-resonant steel basket

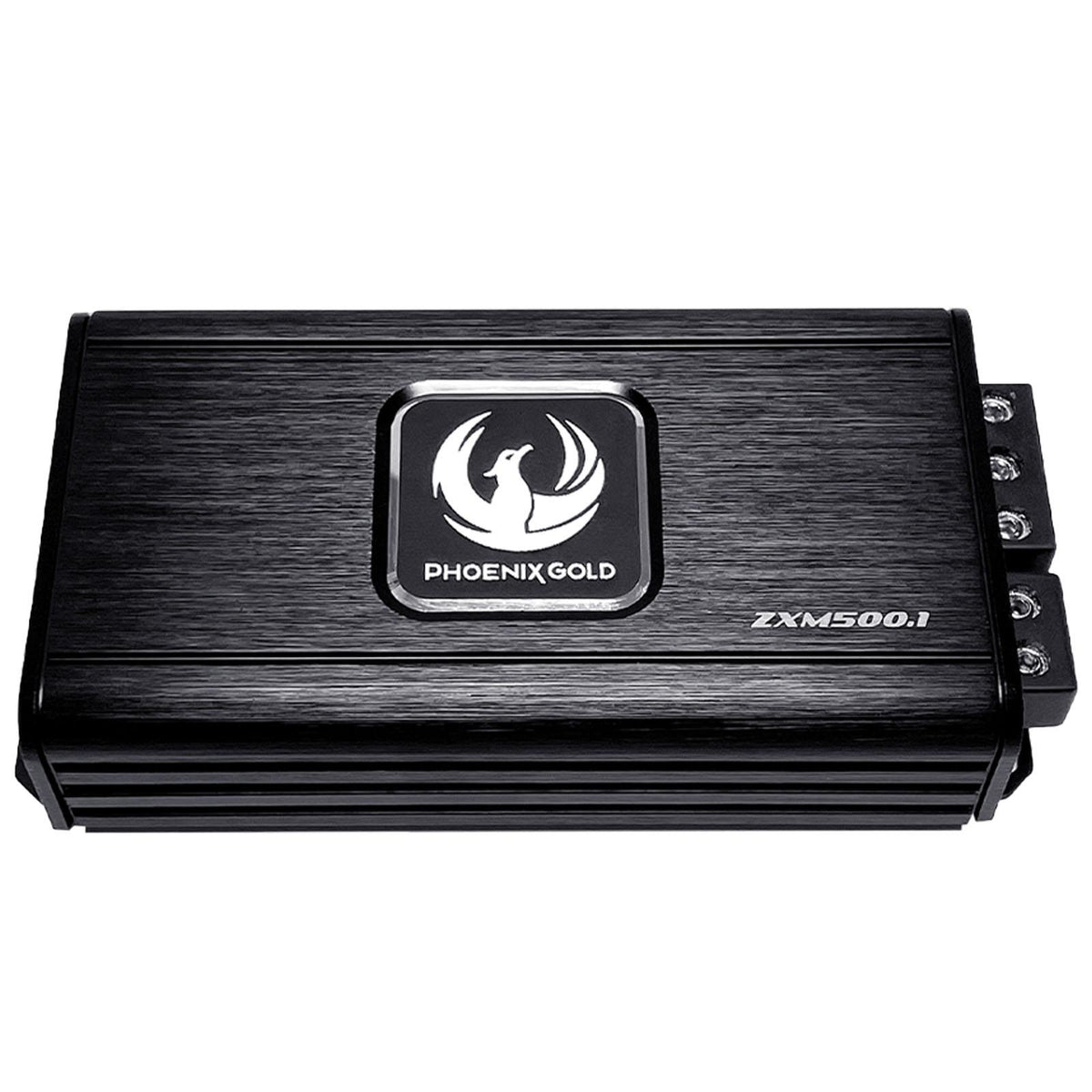

Phoenix Gold ZXM500.1 Monoblock Amplifier
The ZXM500.1 is an ultra-compact Class-D monoblock amplifier that provides powerful bass amplification without requiring a large installation area. It accepts RCA and high-level inputs, making it suitable for systems using either an aftermarket head unit or a compatible factory radio.
- Amplifier type: Class-D monoblock
- Channels: 1
- Maximum power rating: 1000 watts
- Power output at 1 ohm: 500 watts RMS x 1
- Power output at 2 ohms: 360 watts RMS x 1
- Power output at 4 ohms: 230 watts RMS x 1
- Stable load range: 1–4 ohms
- Signal-to-noise ratio: Greater than 90dB
- Total harmonic distortion: Less than 0.3%
- Low-pass filter: 40Hz–250Hz at 24dB per octave
- Subsonic filter: 10Hz–50Hz at 24dB per octave
- Bass boost: 0–18dB at 45Hz
- High-level input with automatic turn-on
- Short-circuit, thermal and voltage protection
- Remote bass-level controller included
- Dimensions: 165 x 83.1 x 34.8mm

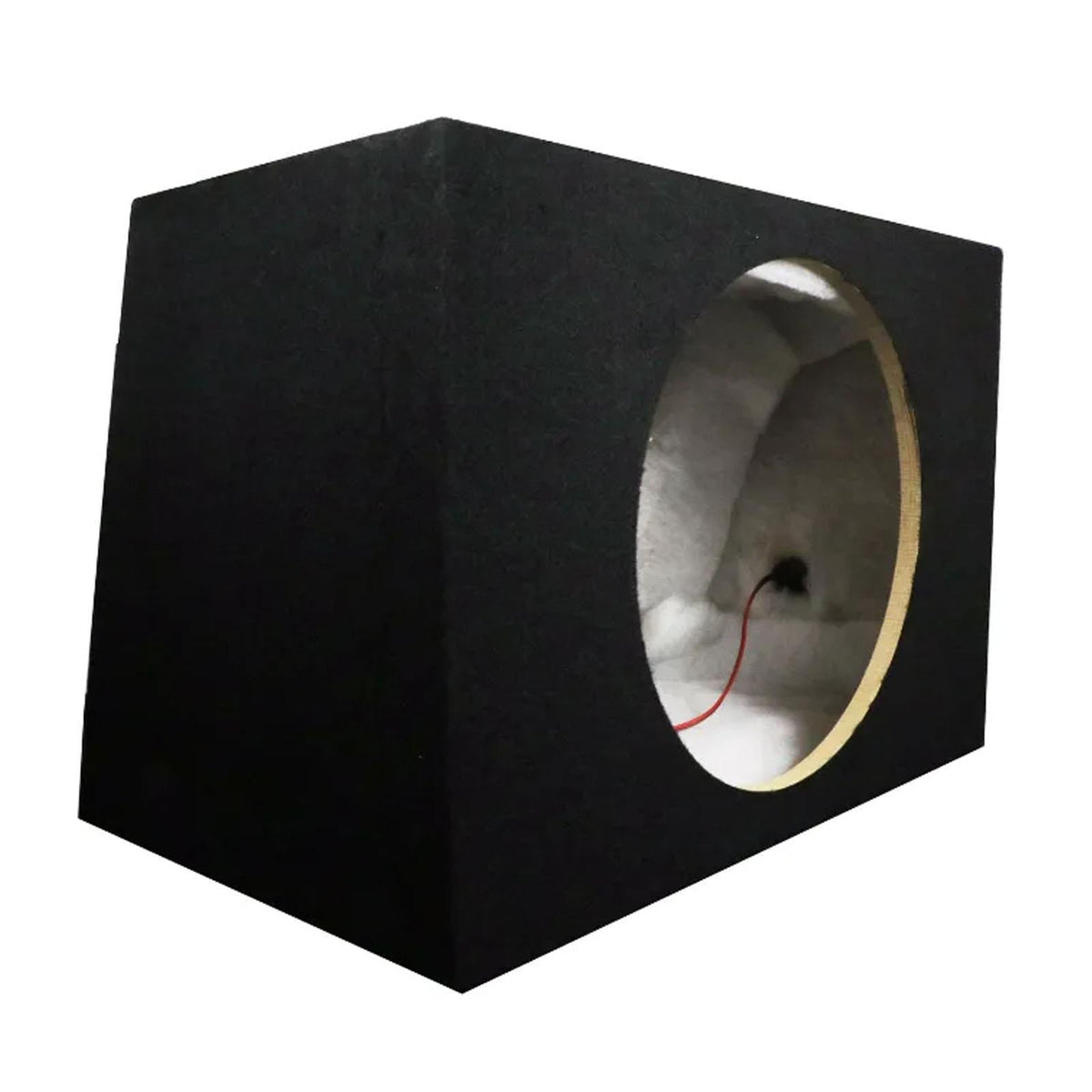

12SUBSB Single 12" Sealed Enclosure
The included enclosure is constructed from MDF and finished in black acoustic carpet. Its sealed design provides controlled bass response while securely housing and protecting the subwoofer.
This is a separate universal 12-inch enclosure supplied as part of the package. It has not been specifically manufactured or acoustically tuned exclusively for the MX12D2 subwoofer.
- Suitable for a single 12-inch subwoofer
- Sealed enclosure design
- Durable MDF construction
- Black acoustic carpet finish
- Integrated sound-absorbing foam
- Includes two 45cm lengths of 16AWG pure-copper speaker cable
- Product dimensions: 56 x 32 x 36cm
- Carton dimensions: 58 x 34 x 38cm

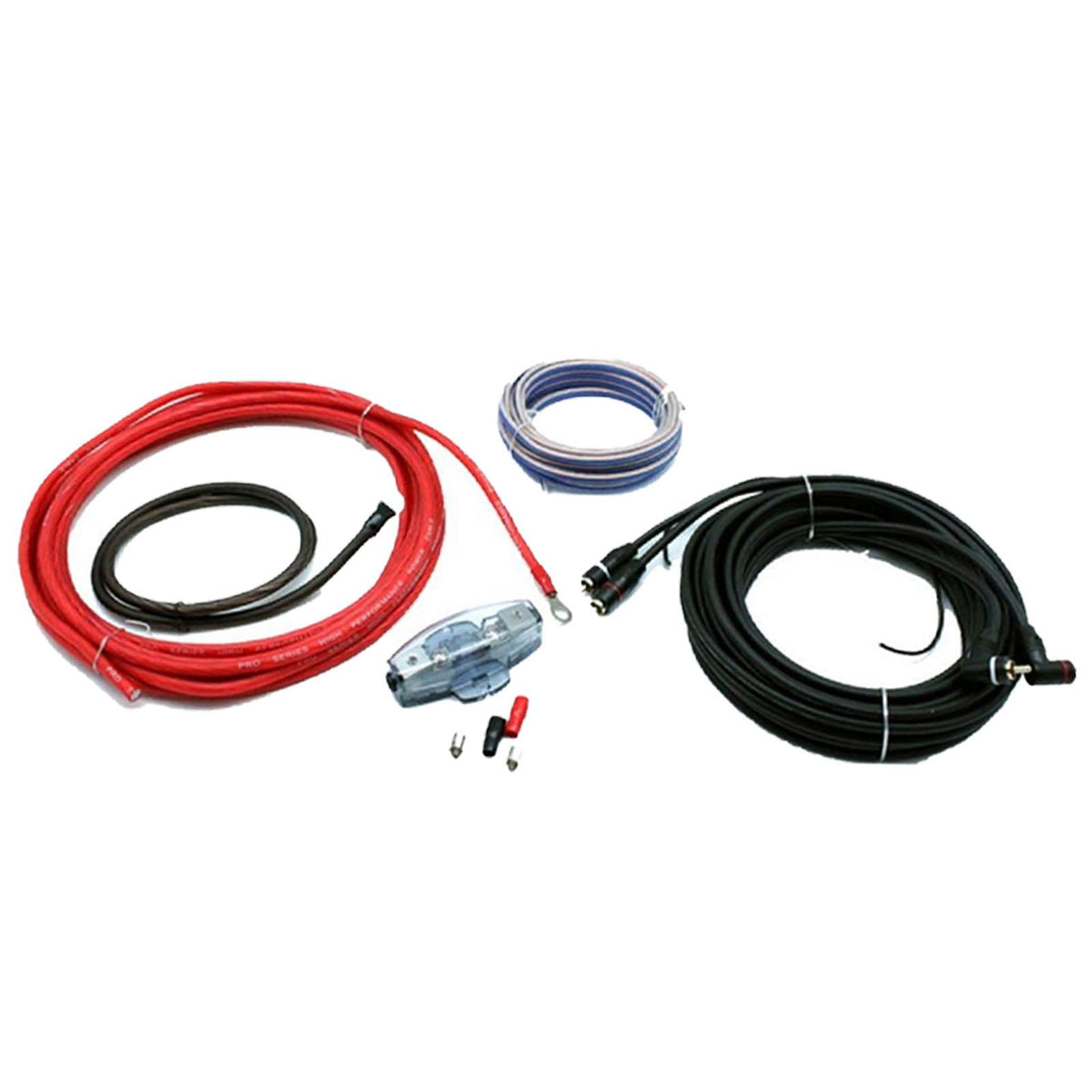

Connects2 PRO-EIGHT 8AWG Amplifier Wiring Kit
The PRO-EIGHT kit contains the main power, ground, signal and speaker cables required to connect the amplifier and subwoofer system inside the vehicle.
- 8AWG amplifier installation kit
- Rated up to 720 watts
- 5.2m red power cable with fitted ring terminal
- 0.8m black ground cable with fitted ring terminal
- 5m blue and white 1.5mm speaker cable
- 5m RCA cable with integrated remote wire
- Gold-plated RCA connectors with straight and angled ends
- Waterproof nickel-plated Mini-ANL fuse holder
- 60A Mini-ANL fuse
- Two fork terminals
Recommended System Configuration
The MX12D2 has two 2-ohm voice coils. For this package, connect the voice coils in series to produce a final 4-ohm load. At 4 ohms, the ZXM500.1 amplifier supplies 230 watts RMS to the subwoofer.
Do not connect the voice coils in parallel without correctly limiting and setting the amplifier output, as this creates a 1-ohm load capable of receiving up to 500 watts RMS from the amplifier.
Correct gain, crossover and subsonic-filter adjustment is essential. Professional installation is recommended.
