Phoenix Gold RX212S 12" Subwoofer, Z3001i Amplifier, Sealed Box & Wiring Kit Package
Add powerful bass to your vehicle with this complete Phoenix Gold package. The kit combines the RX212S 12-inch single voice-coil subwoofer with the Phoenix Gold Z3001i monoblock amplifier, a single 12-inch sealed MDF enclosure and a Connects2 PRO-EIGHT 8AWG amplifier wiring kit.
The RX212S has one 4-ohm voice coil and connects directly to the amplifier as a 4-ohm load. The Z3001i supplies 205 watts RMS at 4 ohms, closely matching the subwoofer’s 200-watt RMS power rating.

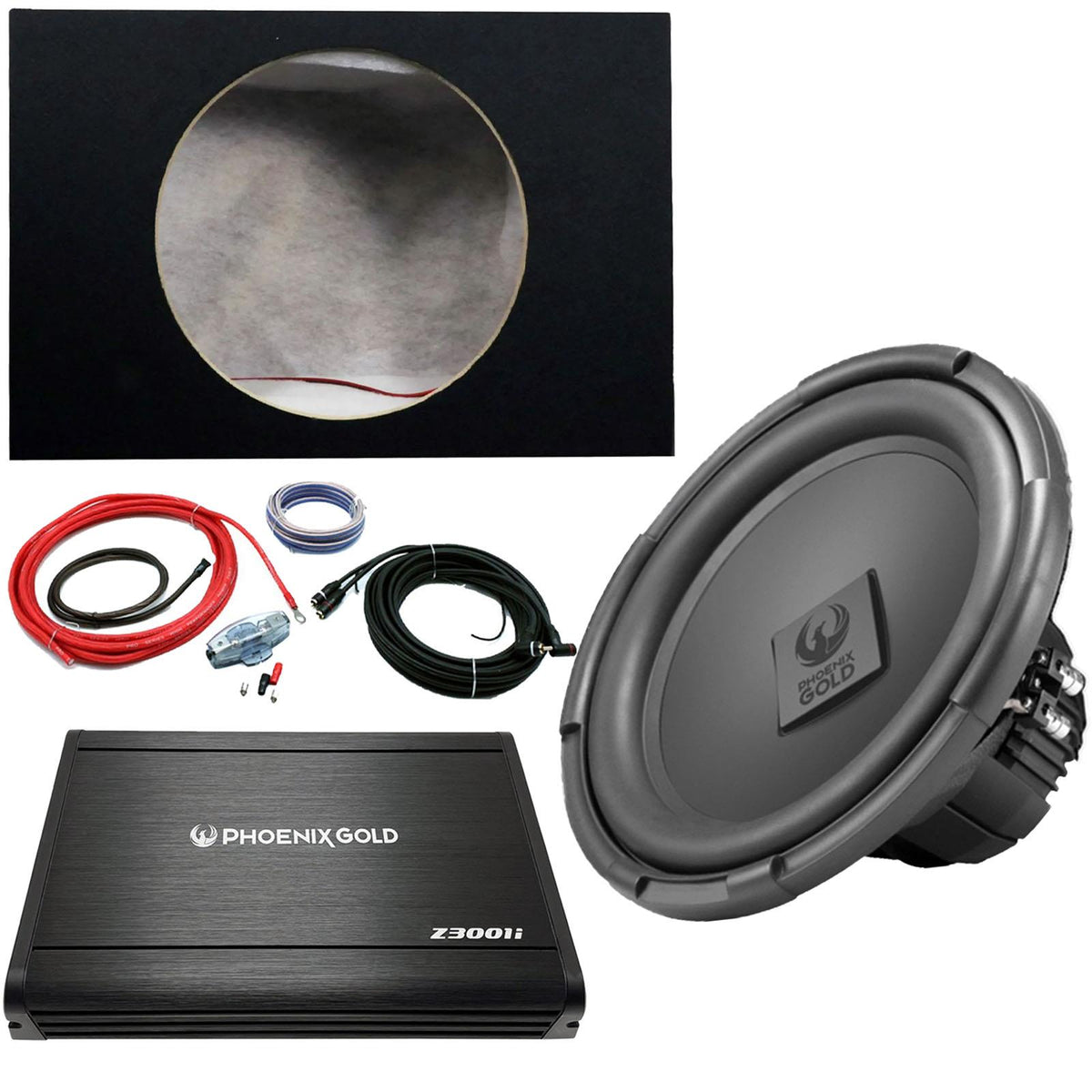

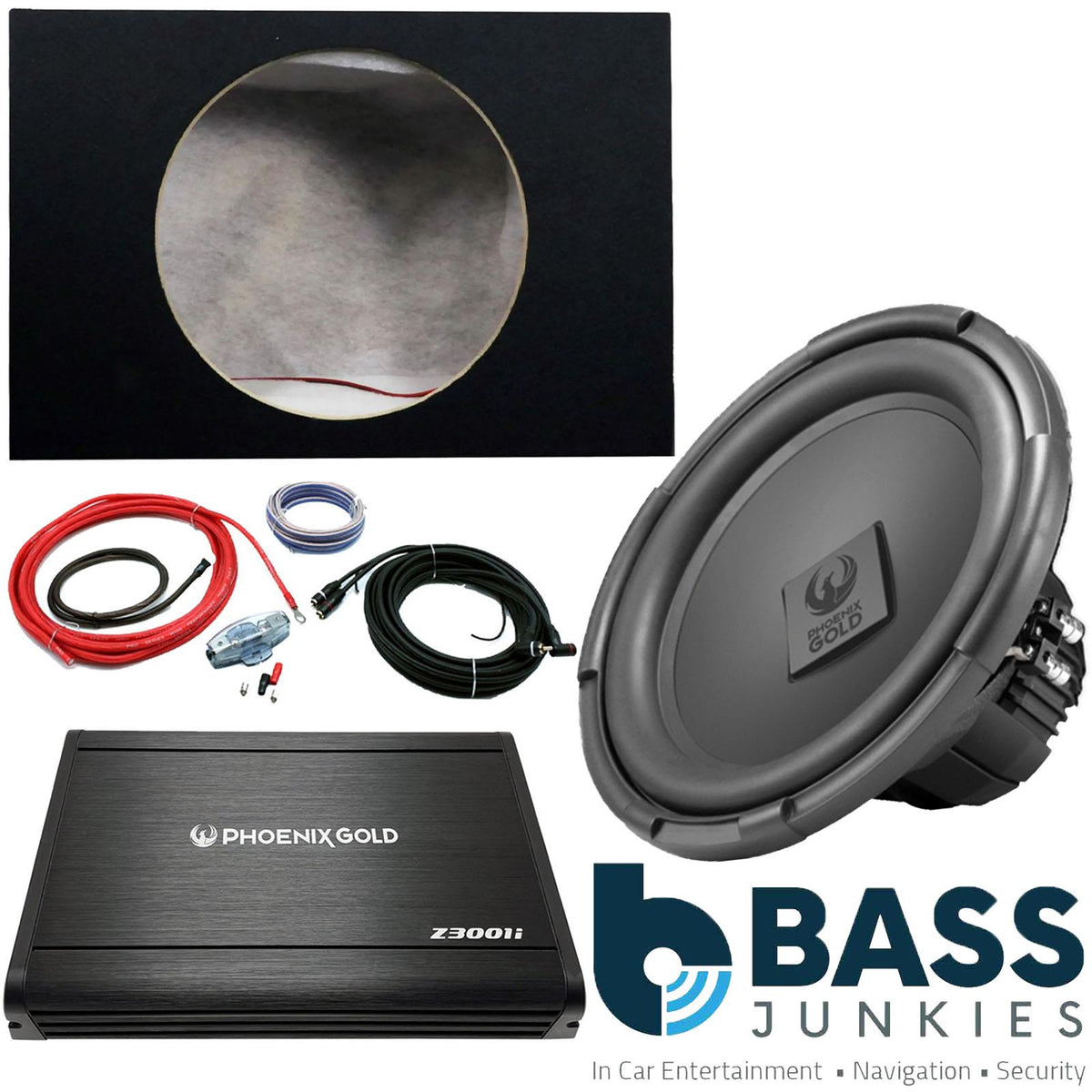

Package Includes
- 1 x Phoenix Gold RX212S 12" single 4-ohm subwoofer
- 1 x Phoenix Gold Z3001i monoblock amplifier
- 1 x 12SUBSB single 12" sealed MDF subwoofer enclosure
- 1 x Connects2 PRO-EIGHT 8AWG amplifier wiring kit
Phoenix Gold RX212S 12" Subwoofer
The Phoenix Gold RX212S is a 12-inch single 4-ohm subwoofer designed to deliver deep, accurate bass at an affordable price. Its long-wound 2-inch voice coil and high-excursion suspension provide 25mm of peak-to-peak movement for strong low-frequency performance.
- Subwoofer size: 12" / 30cm
- Voice-coil configuration: Single 4 ohm
- RMS power handling: 200 watts
- Peak power handling: 400 watts
- Sensitivity: 87.1dB
- Resonance frequency: 28Hz
- Peak-to-peak excursion: 25mm
- Voice-coil diameter: 2"
- Mounting diameter: 282mm
- Mounting depth: 145mm
- Driver displacement: 0.051 cubic feet
- Suitable for sealed or vented enclosures
RX212S Subwoofer Features
- Single 4-ohm voice coil for straightforward amplifier connection
- High-excursion CAE/CAD motor design
- Long-wound voice coil for improved cone movement
- KlaraForm vented Kapton former helps reduce heat and resistance
- UNICAP technology provides a rigid piston for improved output
- Phoeniroll surround technology promotes controlled linear movement
- Torriform voice-coil technology assists heat dissipation
- Nickel-plated 12-gauge speaker terminals
- Powder-coated anti-resonant steel basket
Phoenix Gold Z3001i Monoblock Amplifier
The Z3001i is a compact Class A/B monoblock amplifier developed for powering passive subwoofer systems. It supports high-level input and automatic signal sensing, allowing installation with compatible original factory radios as well as aftermarket head units.
- Amplifier type: Class A/B monoblock
- Channels: 1
- Power output at 2 ohms: 300 watts RMS x 1
- Power output at 4 ohms: 205 watts RMS x 1
- Minimum load impedance: 2 ohms
- Frequency response: 20Hz–250Hz
- Low-pass filter: 50Hz–250Hz at 12dB per octave
- Subsonic filter: 10Hz–55Hz at 12dB per octave
- Bass boost at 45Hz: 0 to +18dB
- Input sensitivity: 0.25V–9.5V
- High-level input through RCA connections
- Automatic signal-sensing turn-on
- Integrated temperature-controlled cooling fan
- Remote bass controller included
- 40A amplifier fuse
- Dimensions: 254 x 160 x 48mm
- Weight: 1.66kg

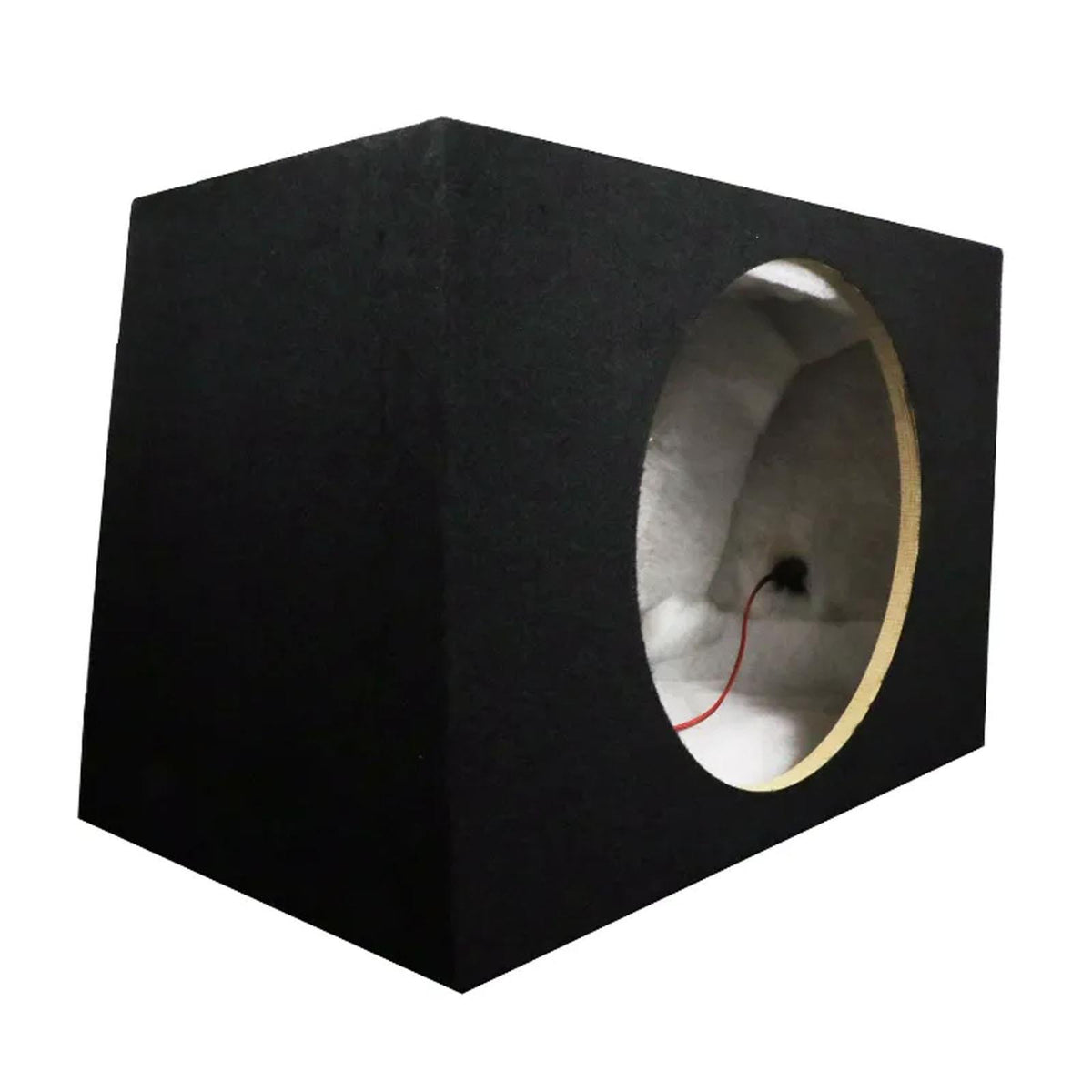

12SUBSB Single 12" Sealed Enclosure
The included enclosure is constructed from MDF and finished in black acoustic carpet. Its sealed design provides controlled bass response while securely housing and protecting the subwoofer.
This is a separate universal 12-inch enclosure supplied as part of the package. It has not been specifically manufactured or acoustically tuned exclusively for the RX212S subwoofer.
- Suitable for a single 12-inch subwoofer
- Sealed enclosure design
- Durable MDF construction
- Black acoustic carpet finish
- Integrated sound-absorbing foam
- Includes two 45cm lengths of 16AWG pure-copper speaker cable
- Product dimensions: 56 x 32 x 36cm
- Carton dimensions: 58 x 34 x 38cm

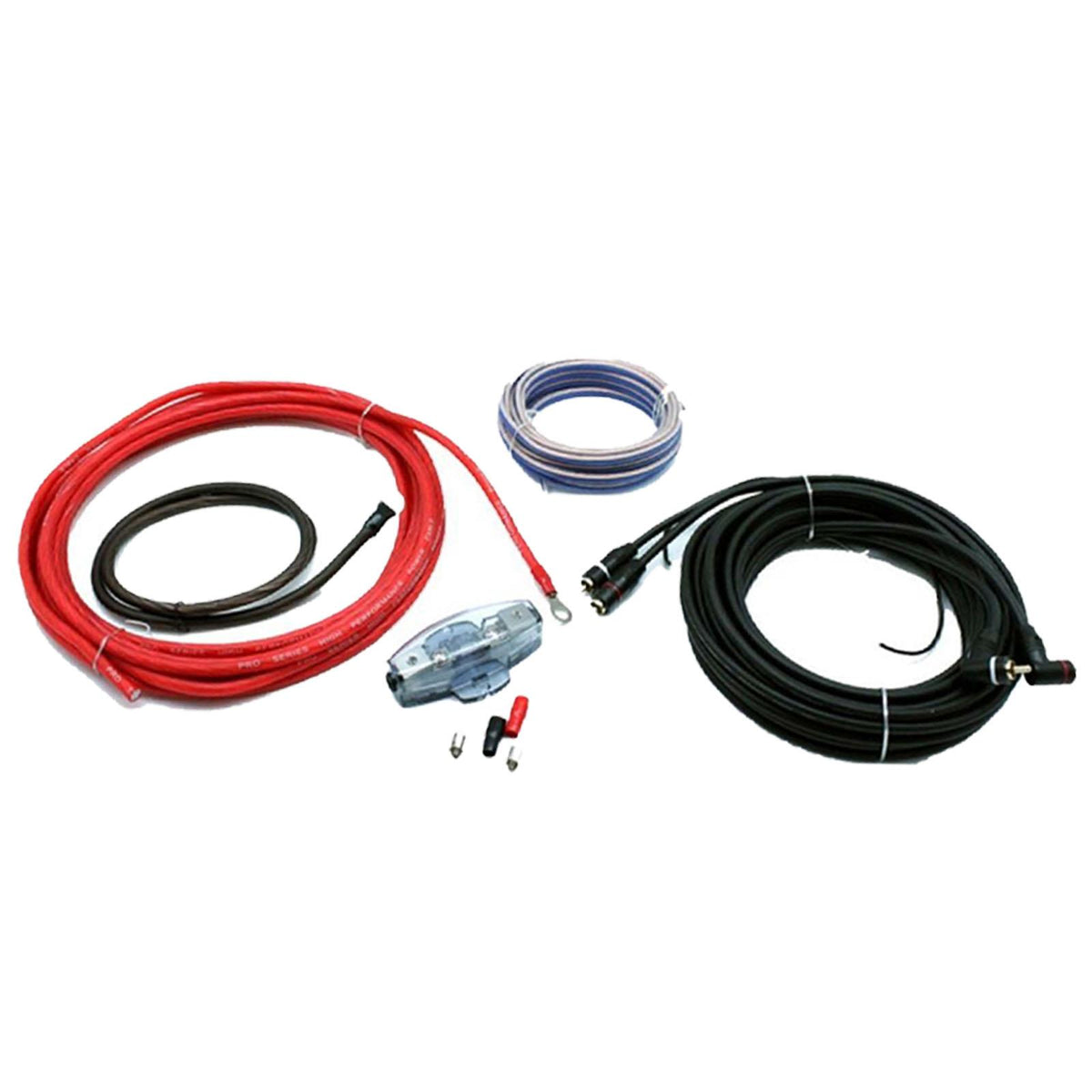

Connects2 PRO-EIGHT 8AWG Amplifier Wiring Kit
The PRO-EIGHT kit contains the main power, ground, signal and speaker cables required to connect the amplifier and subwoofer system inside the vehicle.
- 8AWG amplifier installation kit
- Rated up to 720 watts
- 5.2m red power cable with fitted ring terminal
- 0.8m black ground cable with fitted ring terminal
- 5m blue and white 1.5mm speaker cable
- 5m RCA cable with integrated remote wire
- Gold-plated RCA connectors with straight and angled ends
- Waterproof nickel-plated Mini-ANL fuse holder
- 60A Mini-ANL fuse
- Two fork terminals
System Configuration
The RX212S has one 4-ohm voice coil, so no series or parallel voice-coil wiring is required. Connect the subwoofer to the Z3001i as a 4-ohm load. At this impedance, the amplifier supplies 205 watts RMS to the 200-watt RMS subwoofer.
Correct amplifier gain, crossover and bass-boost adjustment is essential for reliable operation. Professional installation is recommended.
