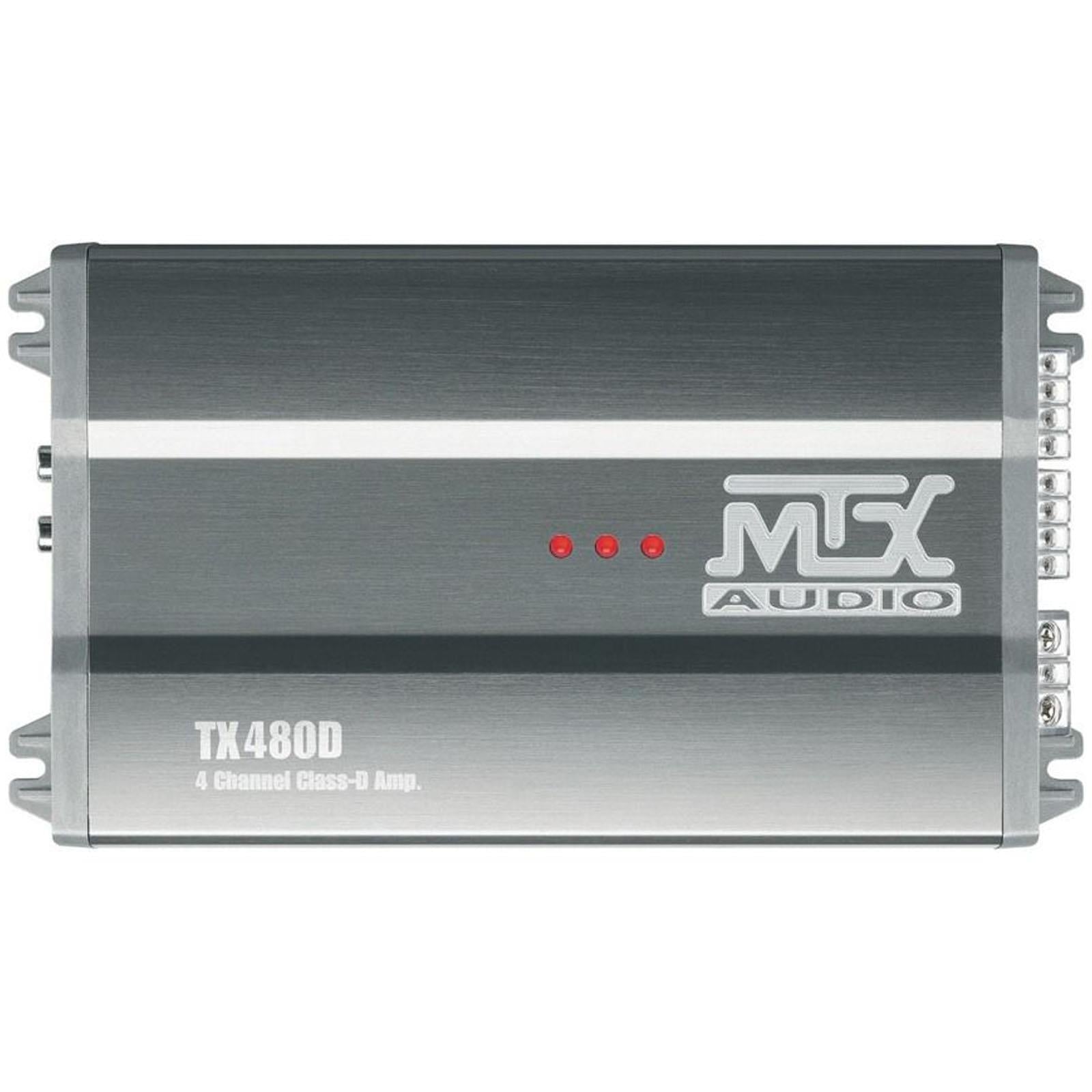

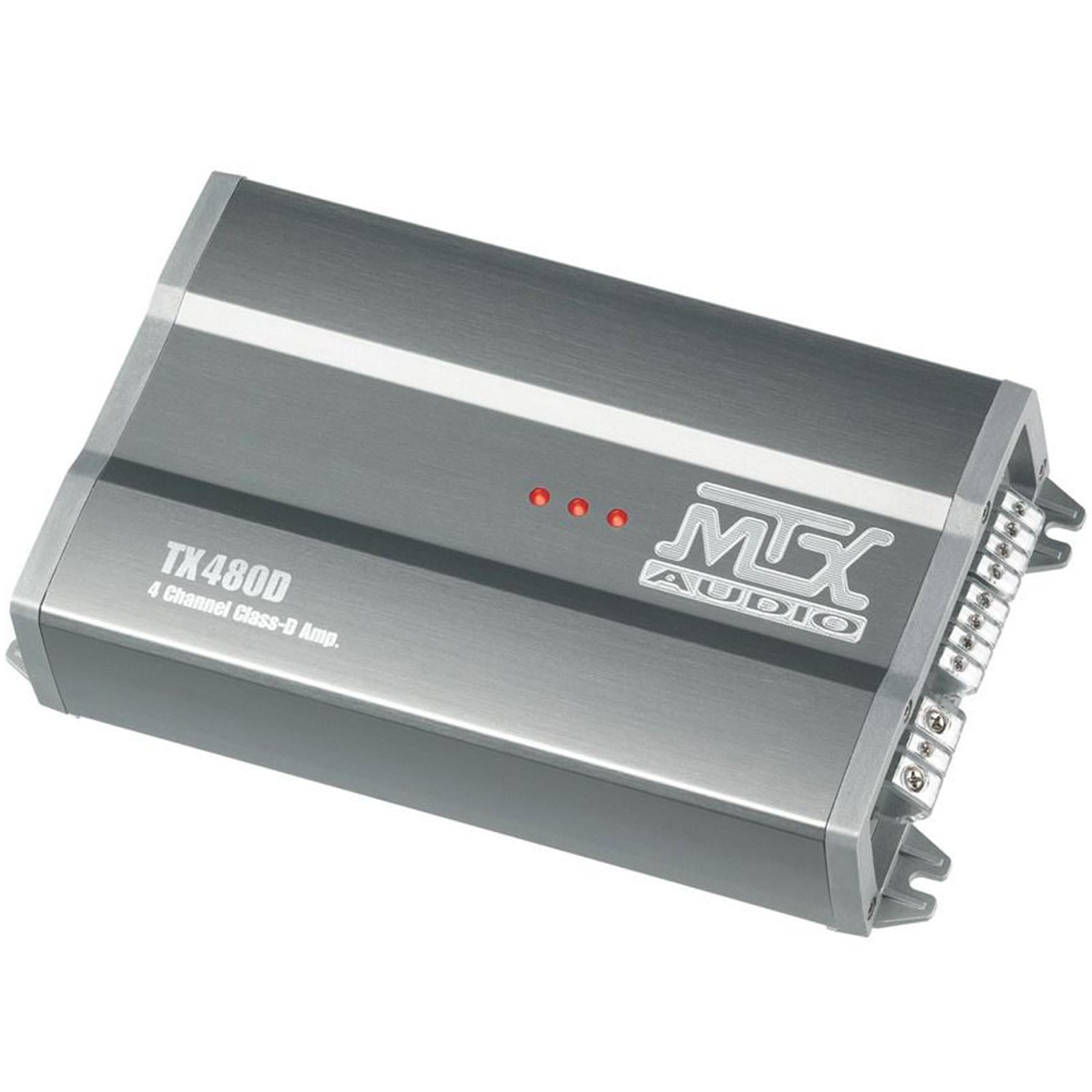

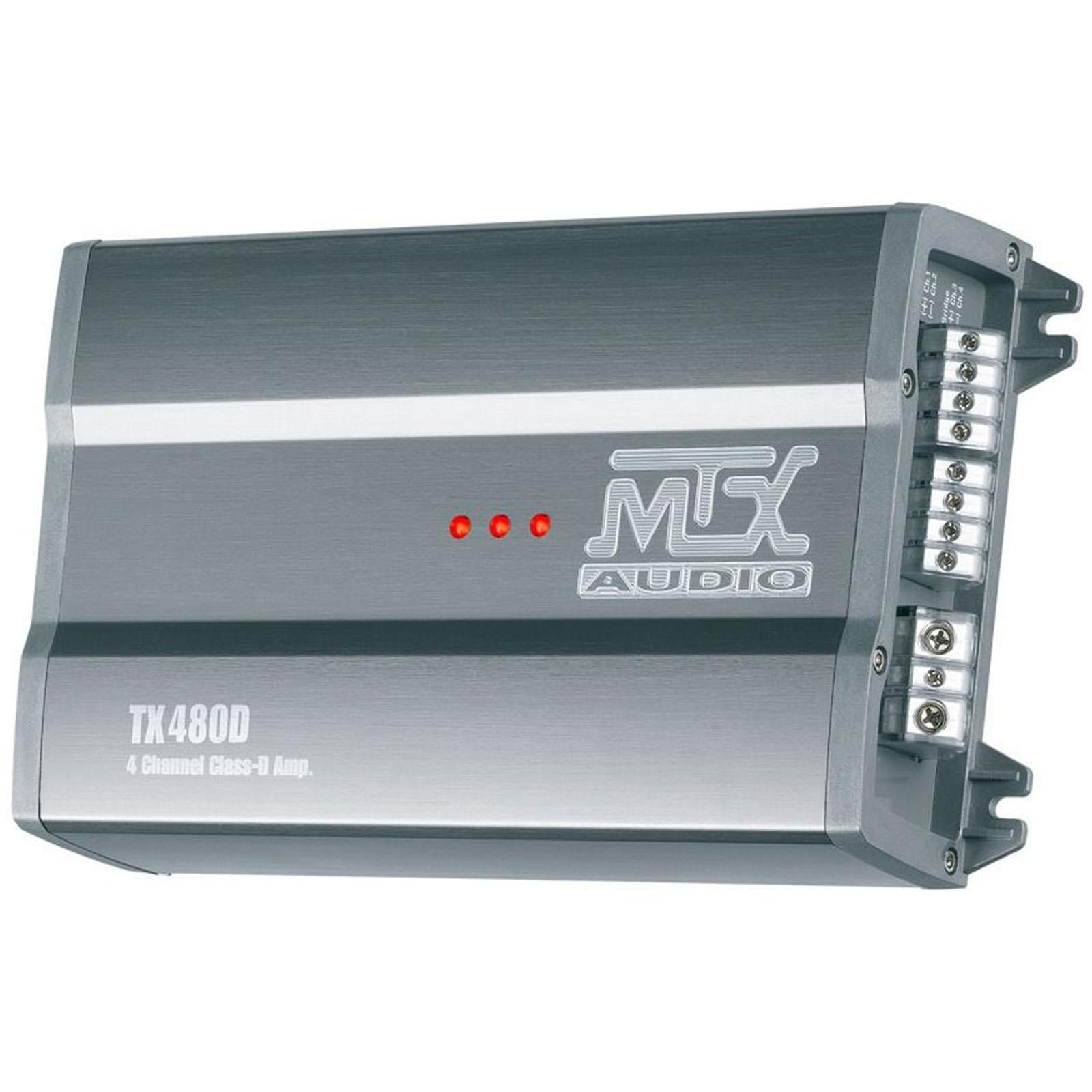

MTX TX480D 480W RMS 4 Channel Class D Full Range Car Amplifier
The MTX TX480D is a compact yet incredibly powerful 4 Channel Class D Full Range Amplifier, delivering an impressive 480W RMS Total Power while maintaining excellent efficiency and minimal current draw. Built using advanced Class D technology and premium internal components, the TX480D offers exceptional sound quality in a compact chassis that's easy to install in almost any vehicle.
Ideal for powering front and rear speakers or configured in a 3-channel setup with a dedicated subwoofer, the TX480D features fully adjustable High Pass and Low Pass crossovers, high and low level inputs, and premium Class D efficiency. Its robust all-aluminium construction ensures excellent heat dissipation and long-term reliability, making it the perfect amplifier for high-performance car audio systems.
Key Features
- ✔ Genuine MTX TX480D Amplifier
- ✔ 480W RMS Total Output
- ✔ 4 x 80W RMS @ 4Ω
- ✔ 4 x 120W RMS @ 2Ω
- ✔ 2 x 240W RMS Bridged @ 4Ω
- ✔ Efficient Class D Full Range Design
- ✔ 2Ω Stereo & 4Ω Bridged Stable

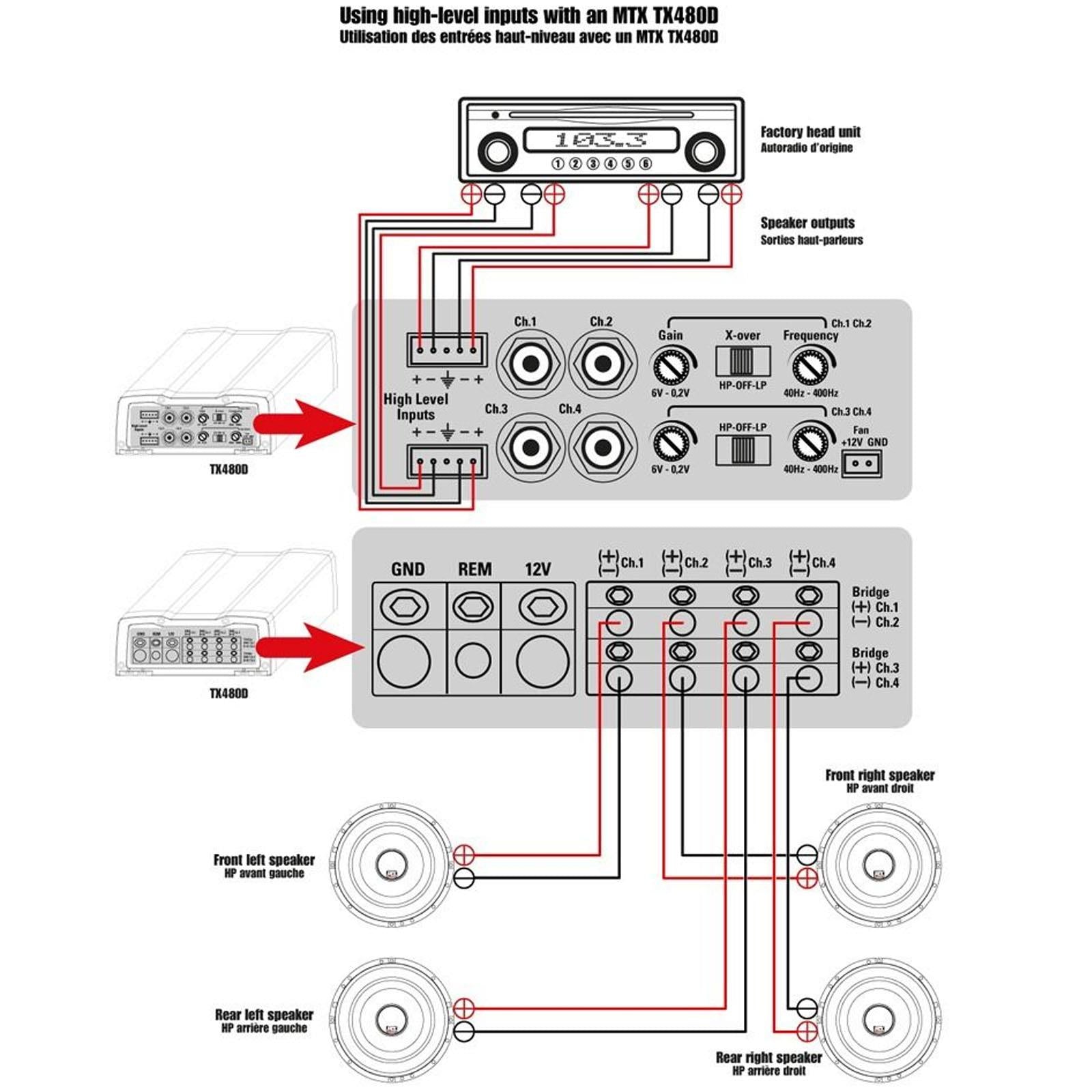

- ✔ High & Low Level Inputs

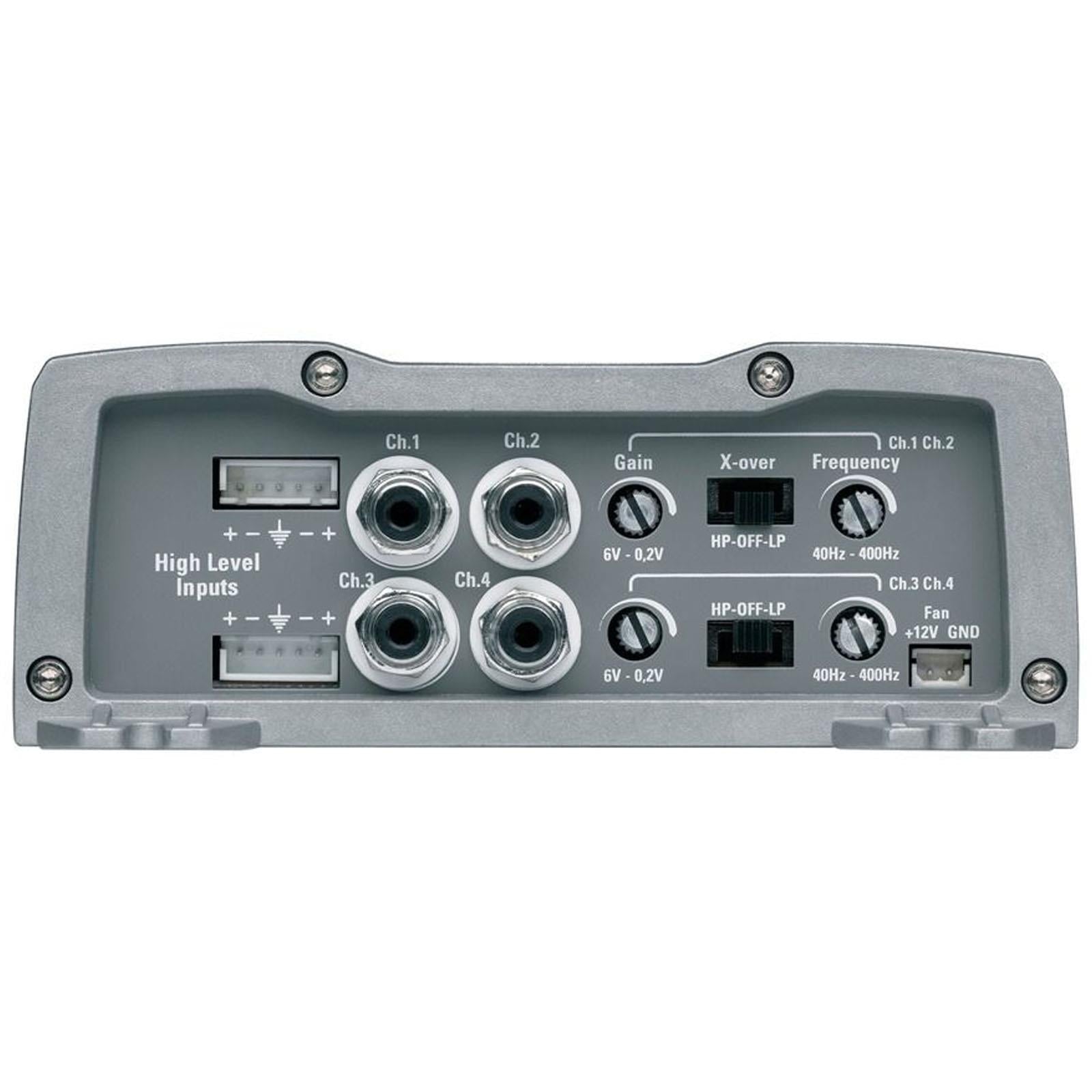

- ✔ Variable High Pass & Low Pass Crossovers
- ✔ Premium Internal Components
- ✔ All Aluminium Heat Sink Construction
- ✔ Thermo-Regulated External Cooling Fan Connector
Technical Specifications
- Amplifier Class: Class D
- Channels: 4
- Power Output: 80W RMS x4 @ 4Ω
- Power Output: 120W RMS x4 @ 2Ω
- Bridged Power: 240W RMS x2 @ 4Ω
- Frequency Response: 5Hz - 30kHz
- Signal-to-Noise Ratio: 80dB
- THD + Noise: ≤1%
- Input Sensitivity: 200mV - 6V
- Input Type: High & Low Level
- Variable High Pass Filter: 40Hz - 400Hz (12dB/Oct)
- Variable Low Pass Filter: 40Hz - 400Hz (12dB/Oct)
- Power Cable Size: 10 AWG
- Operating Voltage: 12V
- Dimensions: 215 x 125 x 50mm
- Colour: Grey
