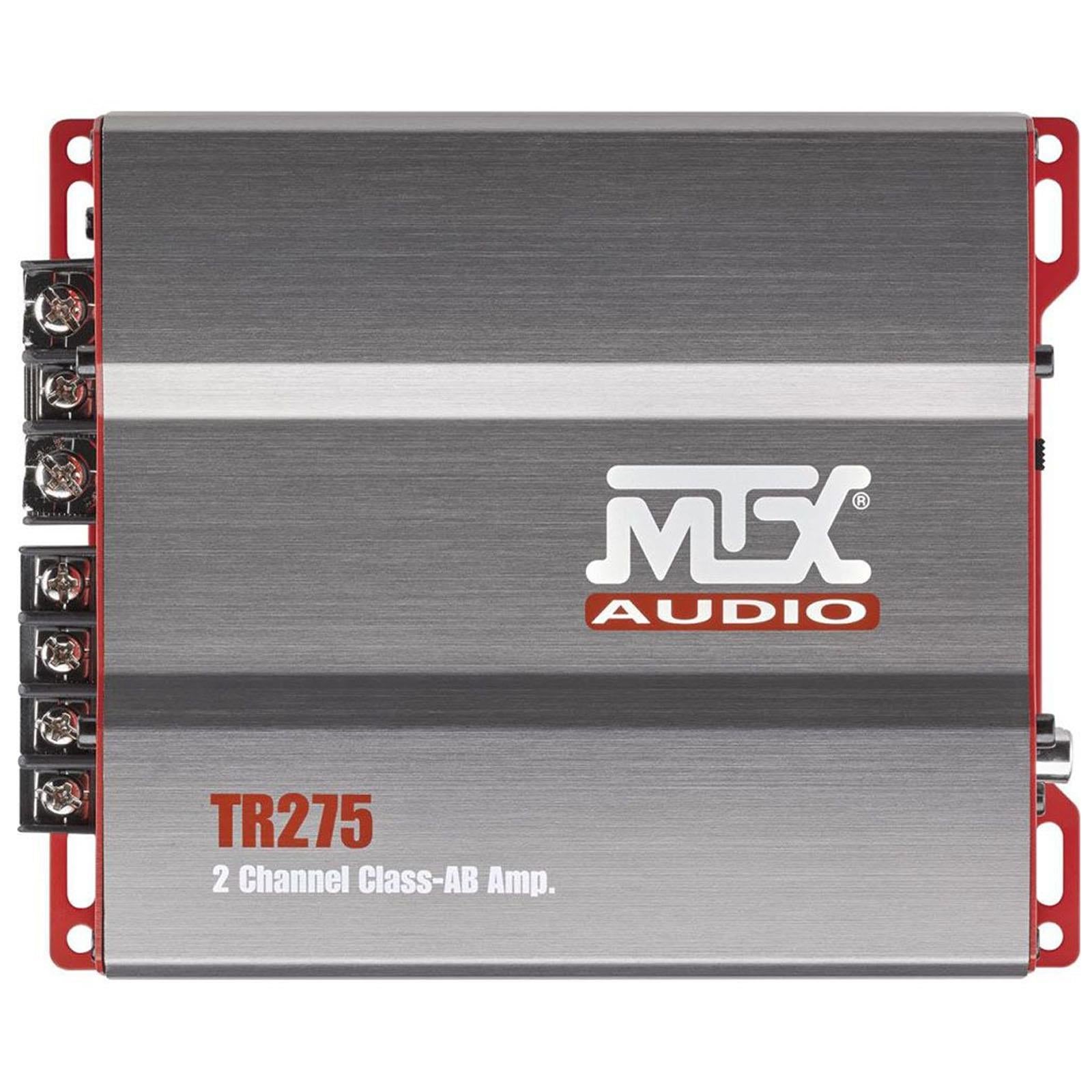

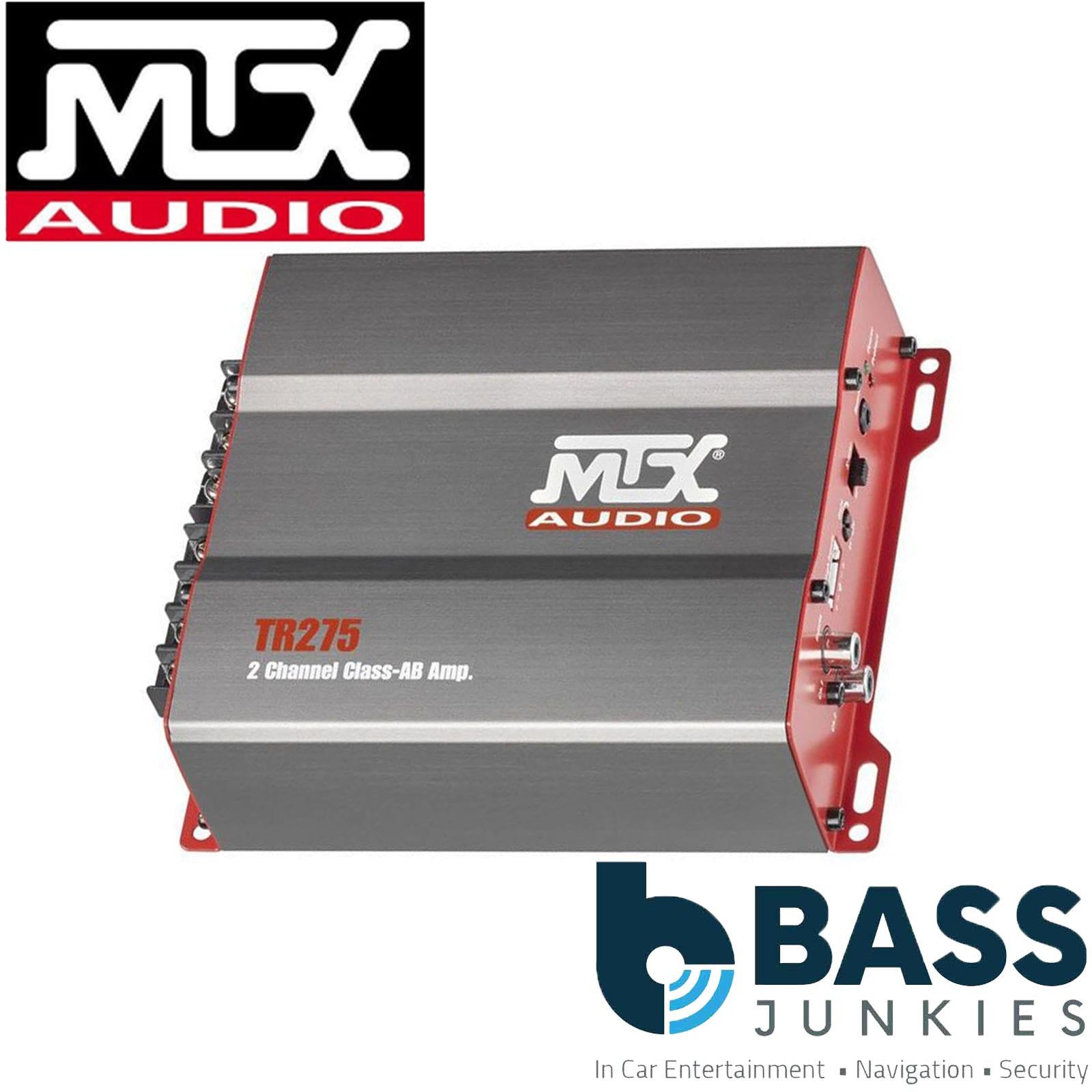

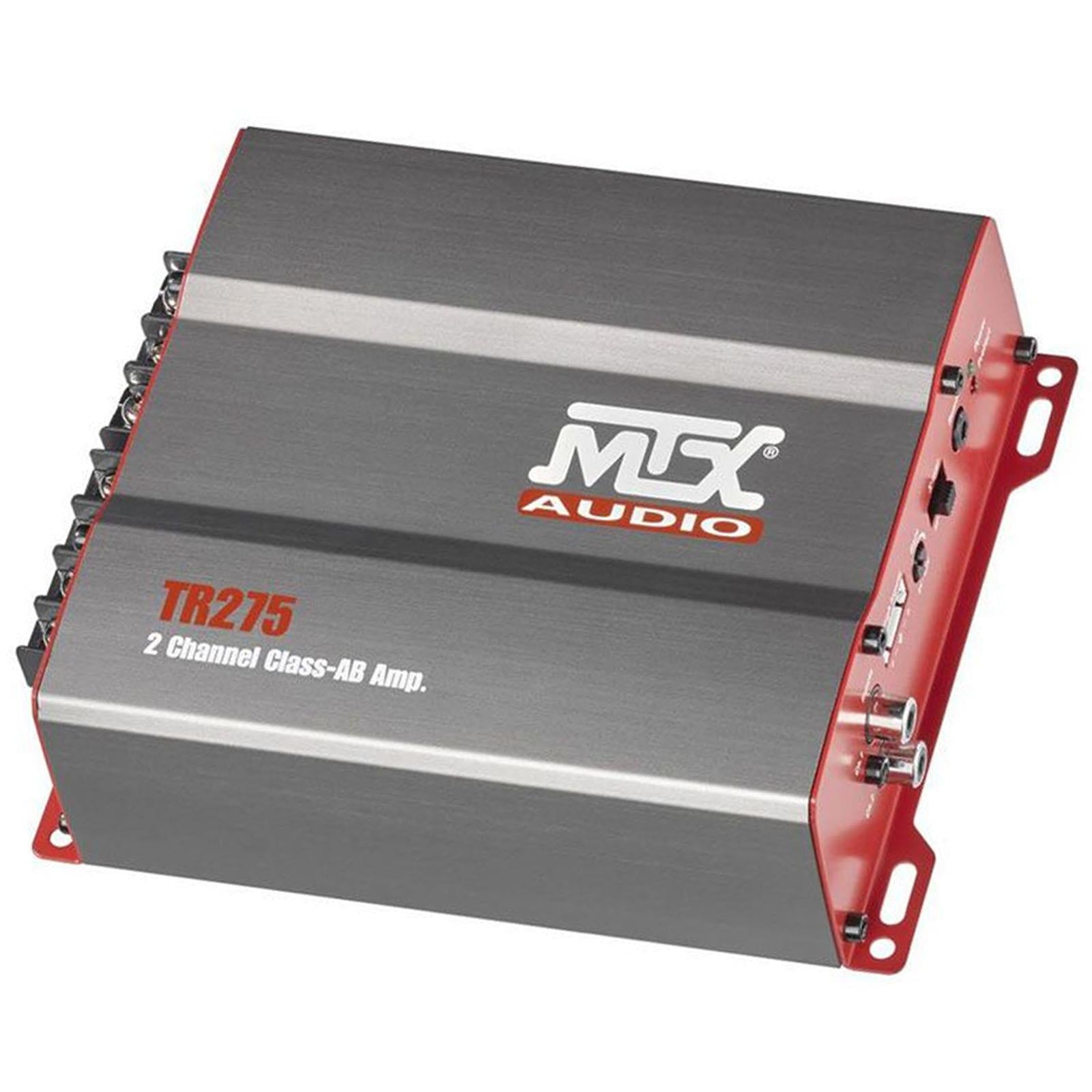

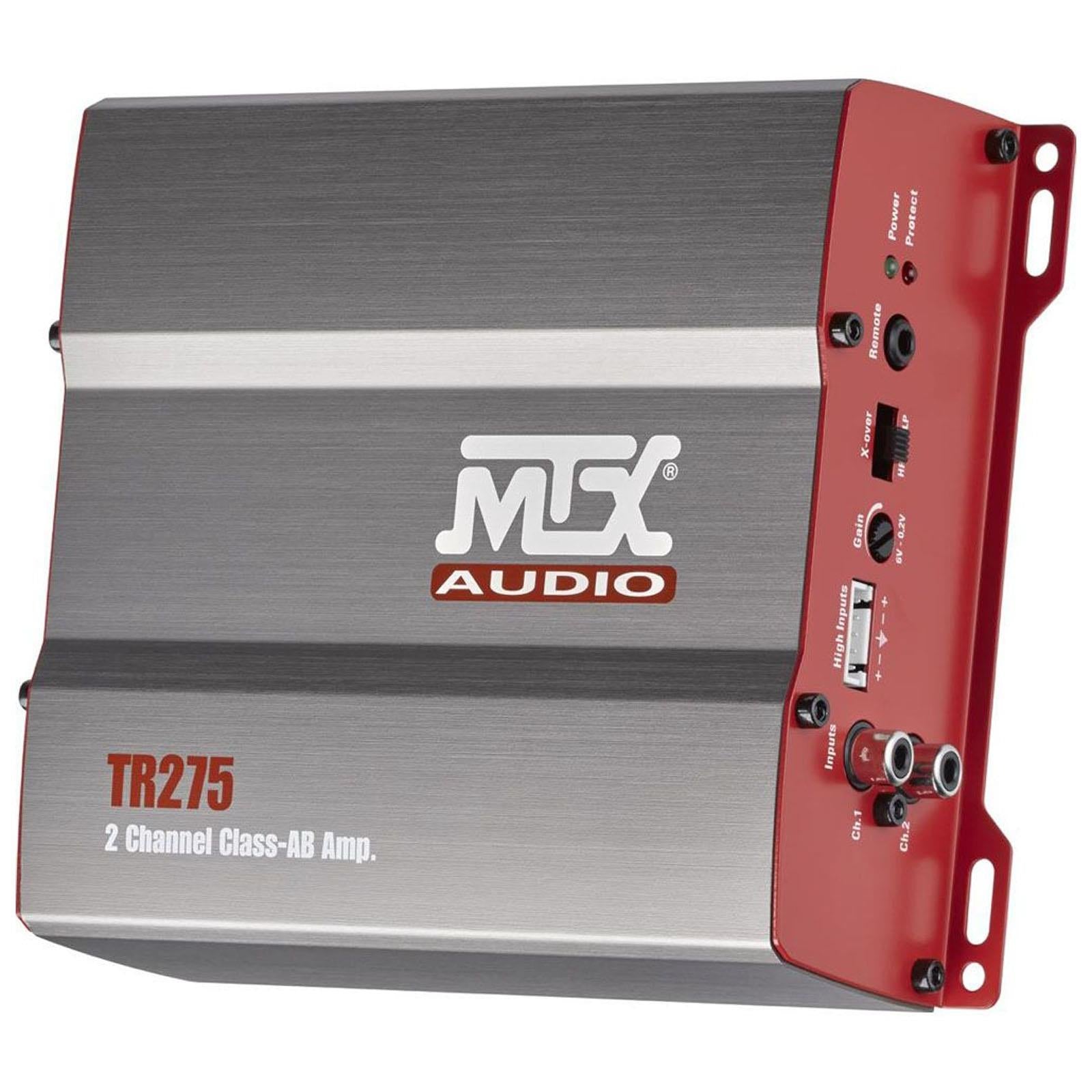

MTX Terminator TR275 220W RMS 2 Channel Class A/B Full Range Car Amplifier
Upgrade your vehicle's sound system with the MTX Terminator TR275, a compact yet powerful 2 Channel Class A/B Full Range Amplifier. Designed for exceptional sound quality and flexibility, the TR275 is ideal for powering a pair of aftermarket speakers or can be bridged to drive a single 4Ω subwoofer. Its ultra-compact chassis measures just 180 x 135 x 52mm, allowing installation in almost any vehicle where space is limited.
Featuring adjustable High Pass and Low Pass crossovers, balanced high-level inputs, and a rugged all-aluminium chassis, the TR275 delivers clean, reliable power while minimising unwanted noise and interference. Whether you're upgrading factory speakers or building a complete aftermarket audio system, this amplifier offers outstanding performance and value.
Key Features
- ✔ Genuine MTX Terminator TR275 Amplifier
- ✔ 220W RMS Bridged @ 4Ω
- ✔ 75W RMS x 2 @ 4Ω
- ✔ 110W RMS x 2 @ 2Ω
- ✔ 2 Channel Class A/B Full Range Design
- ✔ Bridgeable for Subwoofer Applications
- ✔ High Pass & Low Pass Active Filters
- ✔ High-Level Speaker Inputs
- ✔ Optional EBC-1 Remote Bass Controller Compatible (Sold Separately)
- ✔ Durable All Aluminium Construction
Technical Specifications
- Amplifier Class: Class A/B
- Channels: 2
- Power Output: 75W RMS x2 @ 4Ω
- Power Output: 110W RMS x2 @ 2Ω
- Bridged Power: 220W RMS x1 @ 4Ω
- Frequency Response: 10Hz - 60kHz
- Signal-to-Noise Ratio: 74dB
- Input Sensitivity (High Level): 200mV - 6V
- Input Type: High Level
- Filters: High Pass & Low Pass
- Power Cable Gauge: 10 AWG
- Remote Turn-On: 12V
- Dimensions: 180 x 135 x 52mm
- Colour: Grey
