KW-M875DBW
Digital Media Receiver featuring 6.8" Clear Resistive Touch Monitor / Wifi built-in / Wireless Apple CarPlay, Android Auto & Android Mirroring / DAB+ tuner / Hi-Res Audio / Bluetooth® / 13-band EQ / 4-Cam Input / Shallow Chassis.
DAB AERIAL INCLUDED
Features
- 6.8" WVGA Clear Resistive touch panel with sharp, high-contrast images, vivid colors and wide viewing angles.
- Wi-Fi built-in for convenient wireless connection with a compatible smartphone.
- Supports Android Auto & Apple Car Play wirelessly and with a USB cable.
- Bluetooth(R) Wireless Technology (*Available functions depend on cell phone).
- Use your smartphone as a wireless remote control with the ‘JVC Remote S’ app
- Rear High Speed USB type-C port. Up to 3.0A Max Charge
- MP3 / WMA / AAC / WAV / FLAC music file playback.
- MPEG1 / MPEG2 / MPEG4 / H.264 / MKV video file playback
- Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
- 3 RCA line outs (5.0V) to upgrade your system with power amplifiers to create a more immersive audio experience.
- DAB/DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound.
- Supports Wireless Mirroring for Android including 2-way touch control capability.
- 1x AV input / 1x Video output / 3x Camera input.
- Short body (85mm) for easy installation
- Steering wheel remote control adapter input (Optional, car specific, interface required).
- Wireless IR remote controller ready
Monitor
- Screen Size 6.8 inches (diagonal) wide
- Touch Control
- Panel Type Clear Resistive
- Number of Pixels 1,152,000 (800 x 480 x RGB)
- Key Illumination Colour Blue
- Dimmer Manual/Sync (Auto/On/Off)
- Customizable GUI
- Multilingual Display
- Live Wallpaper
Radio Tuner
- DAB+ Tuner
- DAB+ Frequency Band III 174928MHz to 239200MHz
- DAB-DAB / DAB-FM Auto Switch
- Seamless DAB-FM Blending
-
FM Tuner
- Radio Data System (RDS)
- FM Frequency Range 87.5-108.0MHz
- FM Usable Sensitivity 16,2 dBf
- FM Stereo Separation 35 dB (1 kHz)
-
AM Tuner
- AM Frequency Range (MW)531-1,611kHz
- AM Sensitivity (MW) 25uV, (LW) 45uV)
- Preset Stations 30 (6ch x 5band)
- Automatic Preset / SSM
- Digital Processing Tuner
Media Playback
- MP3 Compatible with Tag USB
- WMA Compatible with Tag USB
- WAV Compatible with Tag USB
- AAC Compatible with Tag USB
- FLAC Compatible with Tag USB
- MPEG-1 / MPEG-2 Compatible USB
- MPEG-4 Compatible USB
- H.264 Compatible USB
- AVI/MKV Compatible USB
- JPEG File Playback USB
- BMP File Playback USB
- PNG File Playback USB
USB
- USB Port(s) x 1
- Location Rear
- USB Standard Type C
- 3.0A Max. Power Supply Current
Bluetooth®
- Built-In Bluetooth
- Bluetooth® Version 4.2
- Voice Dialing
- Hands Free Call (HFP) (HFP1.7 Wideband Speech)
- Advanced Audio Distribution Profile (A2DP)
- Phone Book Access Profile (PBAP)
- Alphabetical Search for Phone Book
- 2 Phones Full-Time Connection
- JVC Streaming DJ (Streaming DJ)
- Auto Pairing
- Wired Microphone included
Wi-Fi Control
- Built-in Wi-Fi
- IEEE Standard 802.11 a/b/g/n/ac
- Frequency Range Dual Band (2.4GHz/5GHz)
Android Control

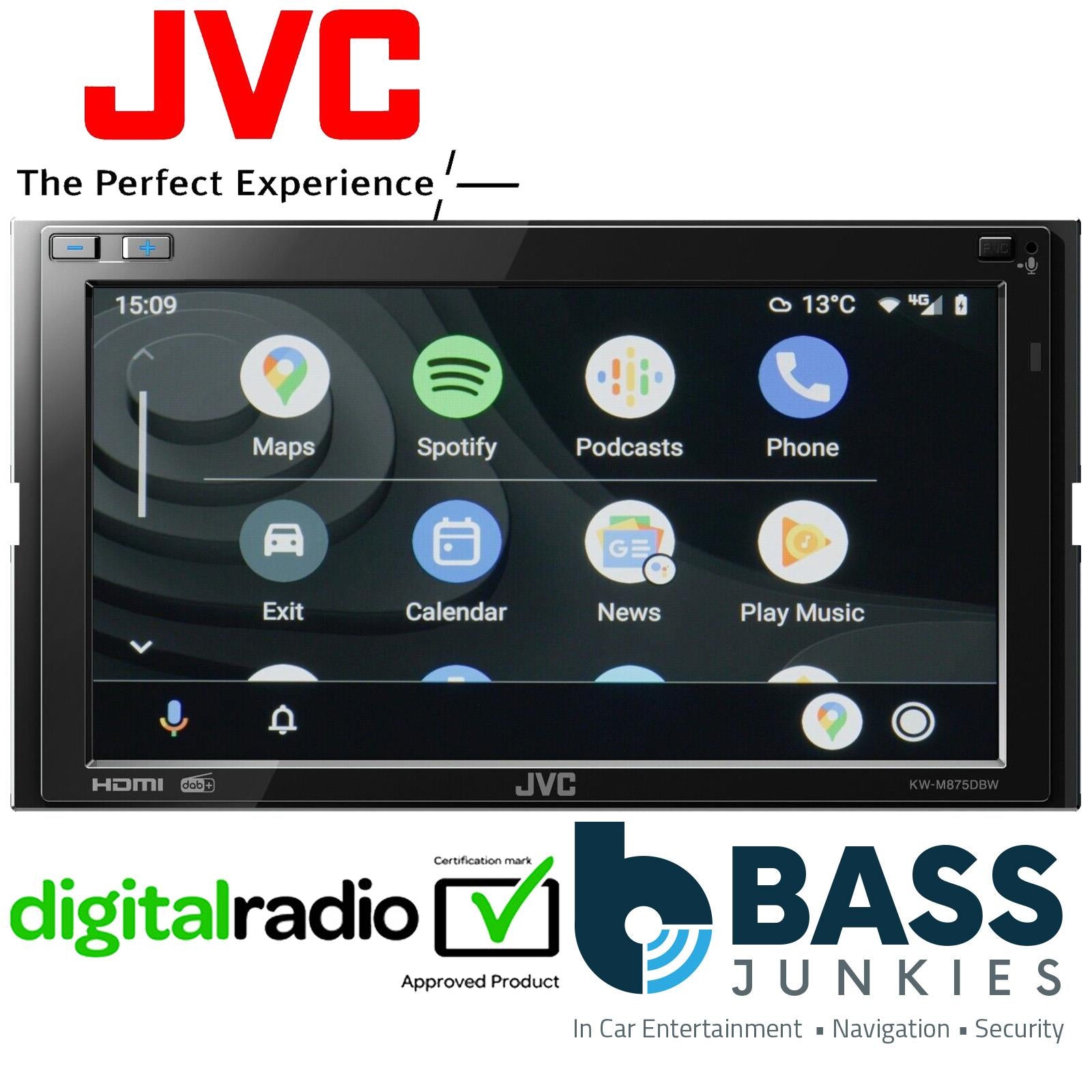

- Android Auto
- *Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. The service may not be available in certain countries.
- Android Auto wired (via USB)
- Android Auto wireless
- Mirroring for Android
- Wireless mirroring
- Spotify Control (Android Auto / Mirroring)
- Android Music Playback (via Bluetooth(R))
iPod/iPhone Control

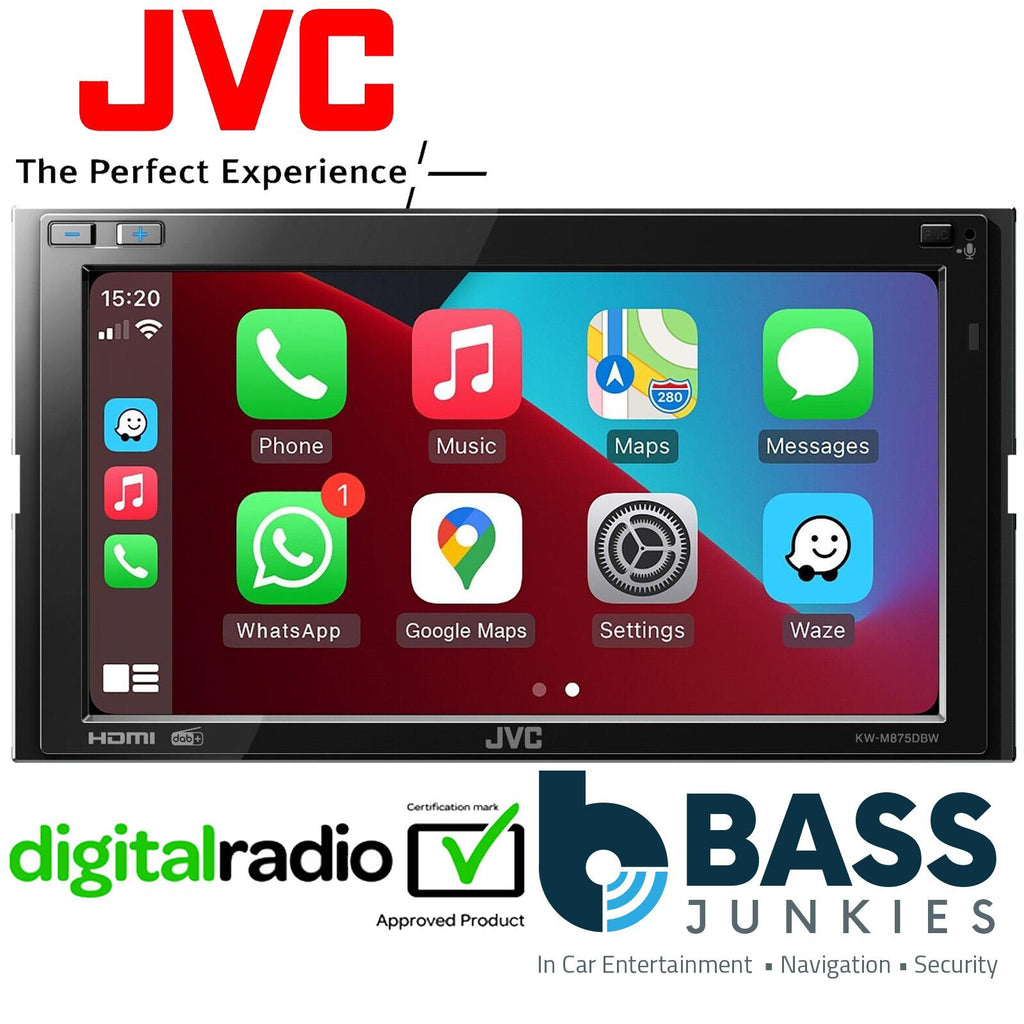

- CarPlay
- CarPlay wired
- CarPlay wireless
- iPod/iPhone Music Playback (via USB or Bluetooth(R))
- iPod/iPhone Mode (2-Way Control Mode)
App(s)
- JVC Portal APP
- App Store (Apple) https://apps.apple.com/us/app/jvc-portal-app/id1491902065
- Google Play (Android) https://play.google.com/store/apps/details?id=com.jvckenwood.car_multimedia_app.jvc
- JVC Remote Control App
- App Store (Apple) https://apps.apple.com/nl/app/jvc-remote/id1154864875
- Google Play (Android) https://play.google.com/store/apps/details?id=com.jvckenwood.jkts.jvcremoteapp.openlink
- Spotify Smooth Control (via CarPlay)
Audio
- Maximum Power Output (Front & Rear) 45Wx4
- Full Bandwidth Power (at less than 1%THD) 16W x 4
- Speaker Load Impedance 4 ohms (4 - 8 ohms allowable)
- Output Frequency Band 20 - 20,000Hz
- High-Resolution Audio
- Equalizer Built-in
- 13-Band Graphic EQ
- Preset EQ (7Preset + 3user)
- Easy EQ Setting
- Volume Link EQ
- 3-Way X'over
- High-Pass Filter/Low-Pass Filter
- Time Alignment
- Space Enhancement
- Sound Response
- Sound Lift
- Bass Boost (Hyper Bass System)

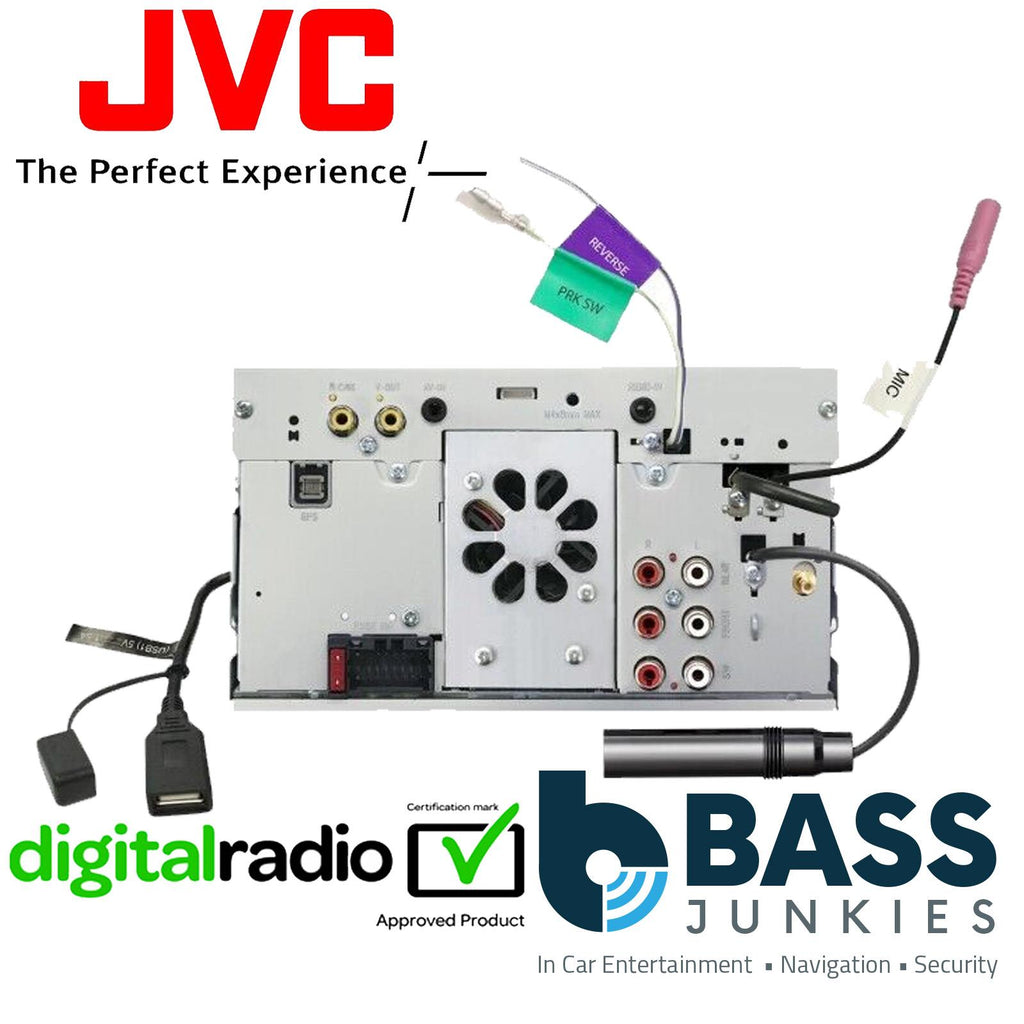

Inputs and Outputs
- Auxiliary Input Level/Impedance 1.5V / 25k ohms
- Auxiliary (AUX) Max input level (mini jack) 1.0Vp-p / 75 ohms
- Pre-Out Terminals 3 Pairs (Front + Rear + Subwoofer)
- Pre-Output Level 5.0V / 10k ohms
- Pre-Out Level/Impedance 5.0V / 10k ohms
- Subwoofer Output with Level/Frequency Control
- Video Input Level/Impedance 1.0Vp-p/75 ohms
- AV Input RCA x 1
- Video Out RCA
- Colour System NTSC/PAL
- Video Output Level/Impedance 1.0Vp-p / 75 ohms
- HDMI Terminal (Rear)
- Rear view camera Input
- Front view camera Input
- 3rd Camera Input
- Convert AV-input to camera input
General
- Back Up Memory
- Installer Memory
- Speedpuls input
- GPS Antenna Input
- DAB Antenna Input
- Wireless Remote Control Ready (RM-RK258 required)
- Wired Steering Remote Control Ready
- Learning Direct OEM Remote
- ISO Connector Cable
- Short Chassis
- Operation Voltage 12 VDC
- Installation Size (W x H x D) 178 x 100 x 85 mm
- Weight, inlcuding sleeve and escutcheon 1.5kg
