JVC JVC KW-M785DBW - 6.8" Wireless Android Auto & Apple CarPlay DAB+ USB Bluetooth Car Screen
Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Wireless Apple CarPlay, Android Auto & Android Mirroring / DAB+ tuner / Hi-Res Audio / Bluetooth® / 13-band EQ / Rear Cam Input / Short Chassis.
DAB aerial not included. Please purchase the following item CT27UV62
Features
- 6.8" WVGA capacitive touch panel with sharp, high-contrast images, vivid colors and wide viewing angles.
- Wi-Fi built-in for convenient wireless connection with a compatible smartphone.

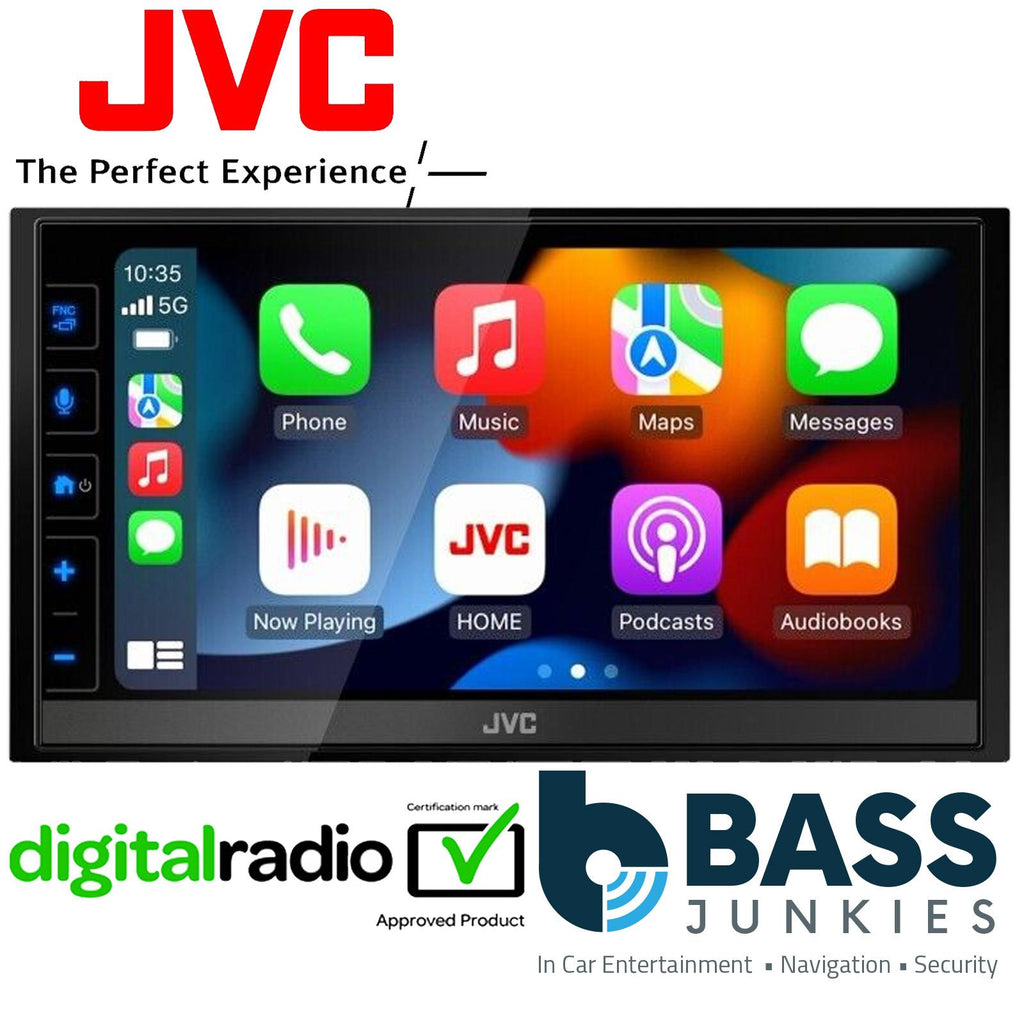

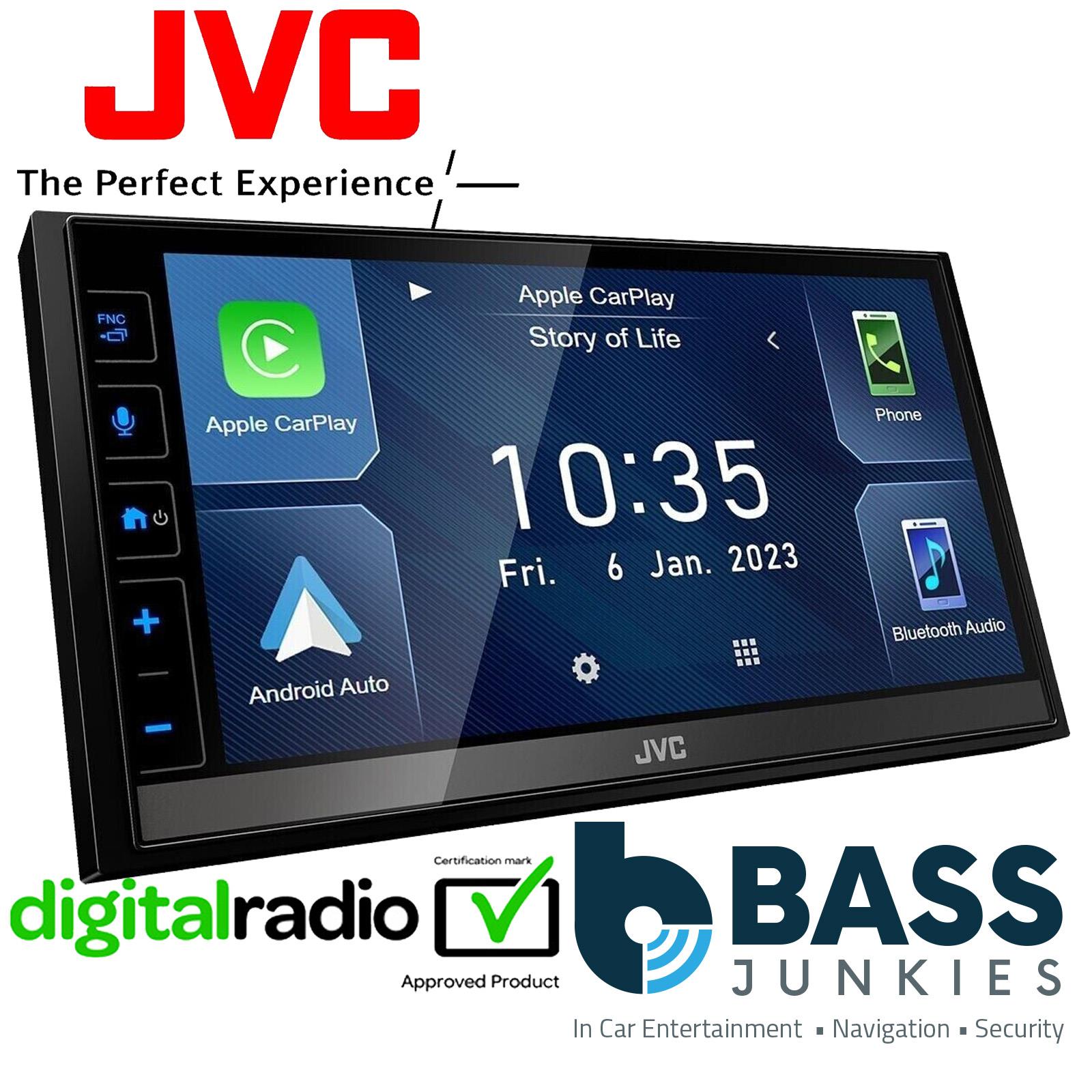

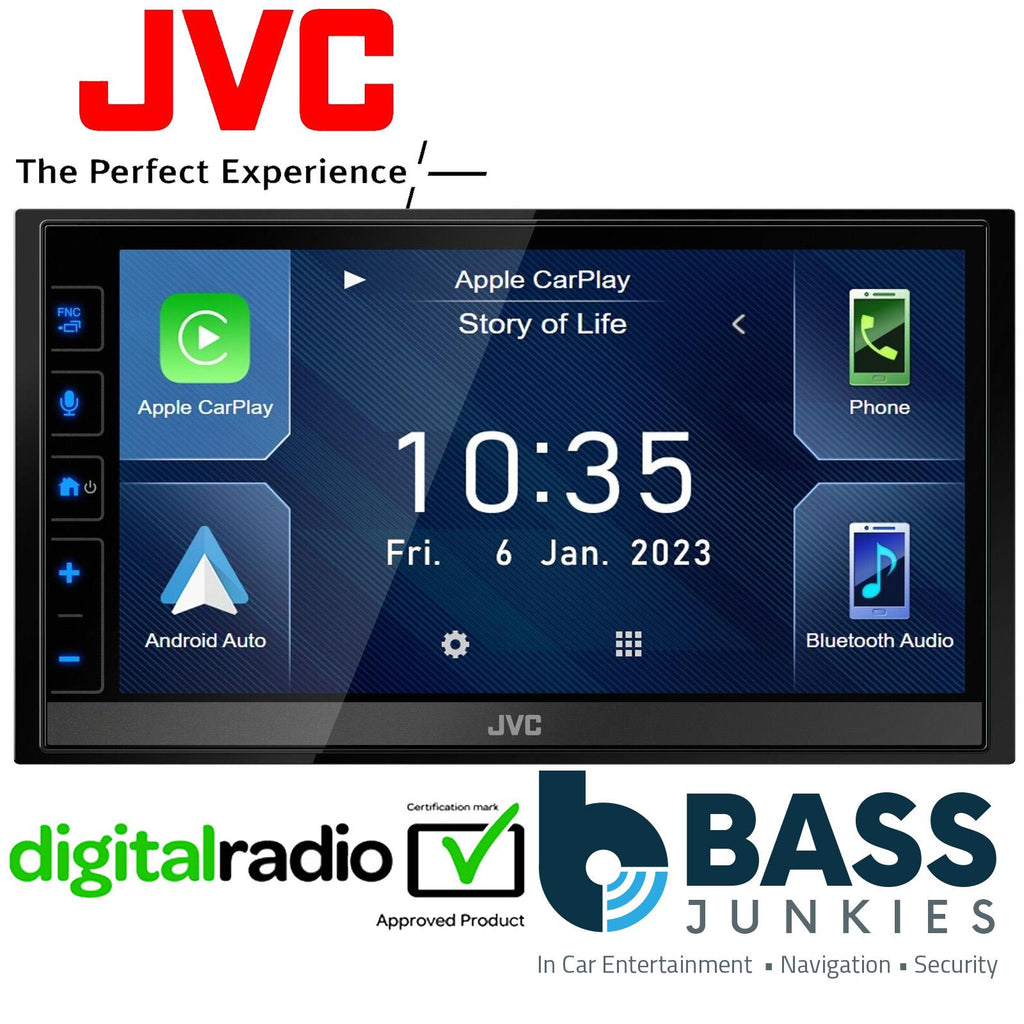

- Supports Android Auto & Apple Car Play wirelessly and with a USB cable.
- Bluetooth(R) Wireless Technology (*Available functions depend on cell phone).
- Rear High Speed USB port. Up to 1.5A Max Charge.

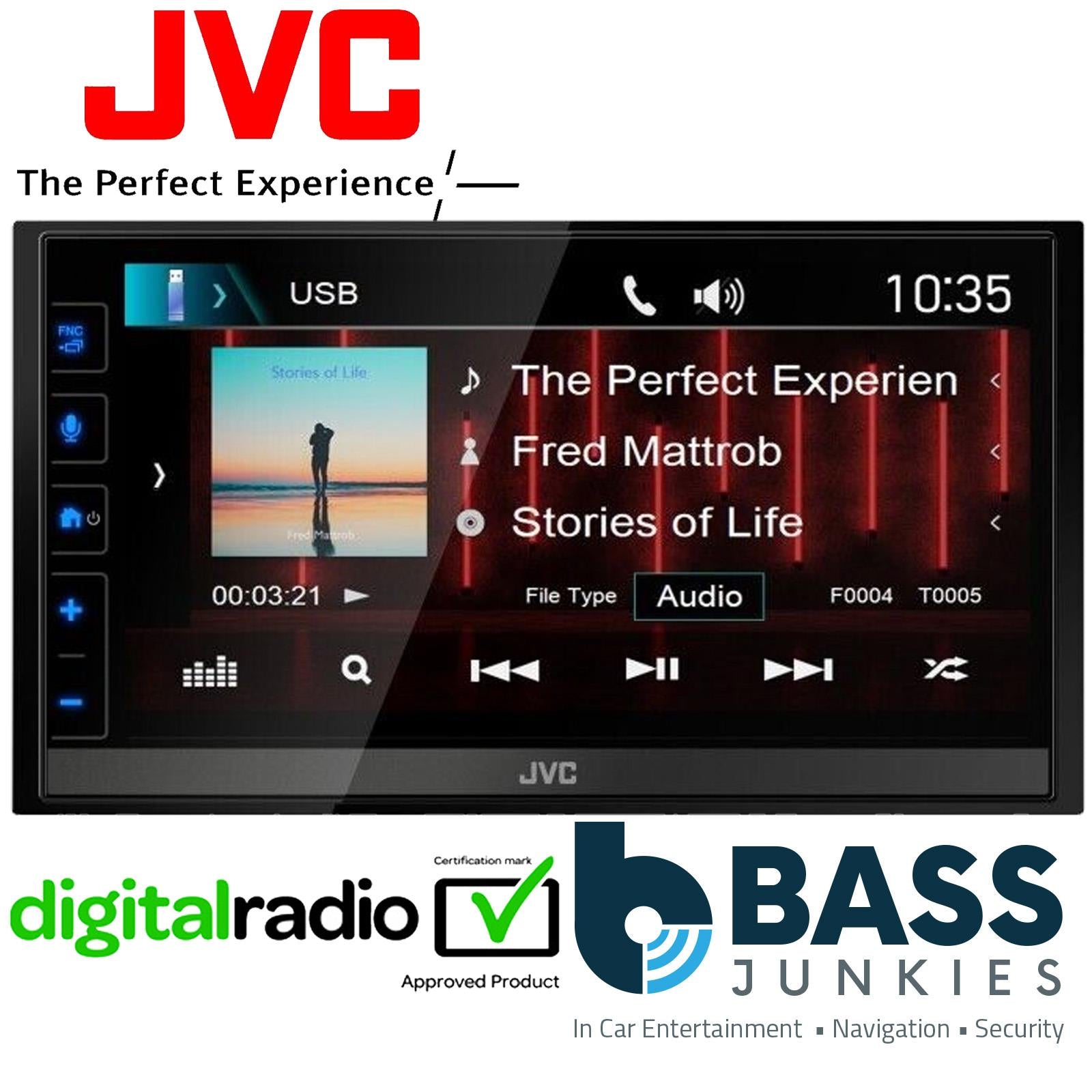

- MP3 / WMA / AAC / WAV / FLAC - music file playback.
- MPEG1 / MPEG2 / MPEG4 / H.264 / MKV / WMV - video file playback.
- Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
- 3 RCA line outs (2.5V) to upgrade your system with power amplifiers to create a more immersive audio experience.
- 1x AV input / 1x Video output / 1x Rear View Camera input.
- DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound.
- Supports USB Mirroring for Android with Mirroring OA for JVC App.
- Short chassis (75mm) for easy installation.
- Steering wheel remote control adapter input (Optional, car specific interface required).
- Wireless IR remote controller ready
Monitor
- Screen Size 6.8 inches (diagonal) wide
- Touch Control
- Panel Type WVGA Capacitive
- Display System TN LCD panel
- Drive System TFT active matrix system
- Number of Pixels 1,152,000 (800 x 480 x RGB)
- Effective Pixels 99.99 %
- Pixel Arrangement RGB striped arrangment
- Back Lighting LED
- Key Illumination Colour RGB
- Variable Colour Illumination
- Dimmer Manual/Sync (Auto/On/Off)
- Customizable GUI
- Multilingual Display 14 languages: English(UK/US) / Spanish / French / German / Italian / Dutch / Russian / Portuguese / Hebrew / Greek / Polish / Czech / Hungarian.
- Viewing Angle Adjustment (0 - 20 degree, default : 0 degree) 4steps
Radio Tuner
- DAB+ Tuner
- DAB+ Frequency Band III 174.928MHz to 239.2MHz
- DAB-DAB / DAB-FM Auto Switch
- Seamless DAB-FM Blending
-
FM Tuner
- Radio Data System (RDS) (with Radio Text Plus)
- FM Stereo/Mono Switch
- FM Frequency Range 87.5 ~ 108.0MHz (50kHz step)
- FM Usable Sensitivity 6.2dBf (0.56μV/75 ohms)
- FM Quieting Sensitivity (46dB) 15.2dBf (1.58μV /75 ohms)
- FM Stereo Separation 40 dB (1kHz)
-
AM Tuner
- AM Frequency Range 531kHz ~ 1,611kHz (9kHz Frequency Step)
- AM Sensitivity 28.5 μV
- Preset Stations 20 (FM:15ch, AM:5ch)
- Tuner Preset Memory
- Automatic Preset / SSM
Media Playback
-
Audio Decoder
- MP3 Compatible with Tag
- WMA Compatible with Tag
- WAV Compatible with Tag
- AAC Compatible with Tag
- FLAC Compatible with Tag
-
Video Decoder
- MPEG-1 / MPEG-2 Compatible
- MPEG-4 Compatible
- WMV Compatible
- H.264 Compatible
- MKV Compatible
- JPEG File Playback For user background only
- BMP File Playback For user background only
- PNG File Playback For user background only
USB
- USB Port(s) x 1
- Location Rear
- USB Standard x1 (High Speed)
- File System FAT16 / FAT32 / exFAT
- USB Mass Storage Class
- Drive Change Mode for Mass Storage Class
- Tag Information Display
- Album Art Display
- List Access
- Alphabet Search
- Category search
- Link Search
- Random / Repeat Play
- Skip
- Time Code Display
- Last Position Memory / Resume
- Digital / Analog Converter (DAC) 24 bit
- Frequency Response 20 Hz ~ 20kHz
- Total Harmonic Distortion (THD) 0.01 % (1 kHz)
- Signal-to-Noise Ratio (S/N) 98.5 dB
- Dynamic Range 89 dB
- 1.5A Max. Power Supply Current
Bluetooth®
- Built-In Bluetooth (Version 5.0)
- Voice Dialing
- Supported profiles Multi profile
- Hands Free Call (HFP) HFP1.8 Wideband Speech
- Advanced Audio Distribution Profile (A2DP) V1.3.2
- Audio/Video Remote Control Profile (AVRCP) V1.6.2
- Phone Book Access Profile (PBAP)
- Alphabetical Search for Phone Book
- Serial Port Profile (SPP)
- 2 Phones Full-Time Connection
- Audio Codec AAC / SBC
- JVC Streaming DJ with up to 5 Bluetooth devices
- Auto Pairing
- Noise Canceller
- Echo Canceller
- Wired Microphone included
Wi-Fi Control
- Built-in Wi-Fi
- IEEE Standard 802.11 a/b/g/n/ac
- Frequency Range Dual Band (2.4GHz/5GHz)
Android Control

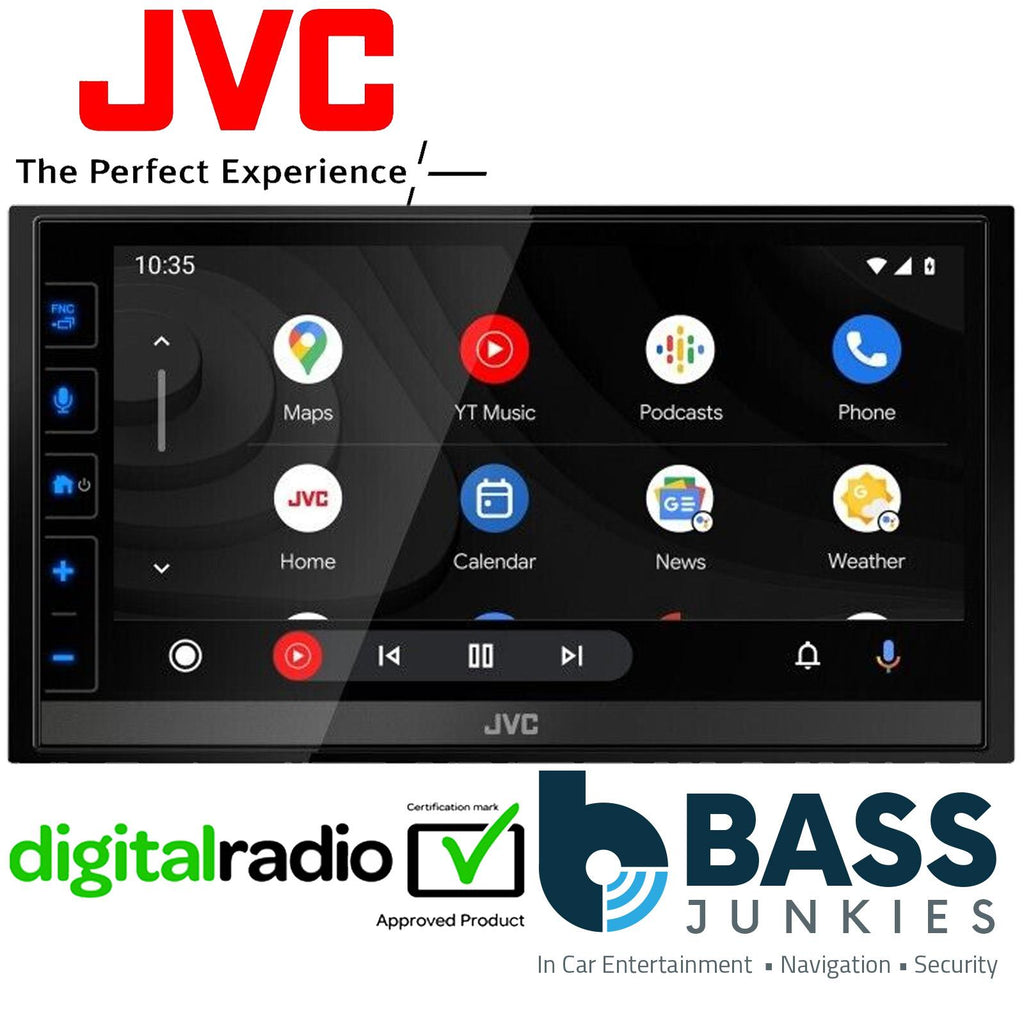

- Android Auto
- Android Auto wired (via USB)
- Android Auto wireless (WiFi)
- Wired mirroring (via USB / mirroring app needed)
iPod/iPhone Control
- CarPlay
- CarPlay wired (via USB)
- CarPlay wireless (WiFi)
App(s)
- Mirroring OA for JVC
- Google Play (Android) https://play.google.com/store/apps/details?id=com.jvckenwood.mirroringOAjvc&hl=en&gl=US
Audio
- Maximum Power Output (Front & Rear) 50W x 4
- Full Bandwidth Power (at less than 1%THD) 22W x 4 (Front & Rear)
- Speaker Load Impedance 4 Ω ~ 8 Ω
- Output Frequency Band 20 Hz ~ 88.000Hz
- Equalizer
- 13-Band Graphic EQ
- Preset EQ Preset x8 + User x4 / Source
- Volume Link EQ
- 3-Way X'over
- High-Pass Filter/Low-Pass Filter
- Digital Sound Processor (DSP)
- Time Alignment
- Time Alignment
- Sound Enhancement
- Space Enhancement
- Sound Response
- Sound Lift
- Loudness Control
- Bass Boost (Hyper Bass System)

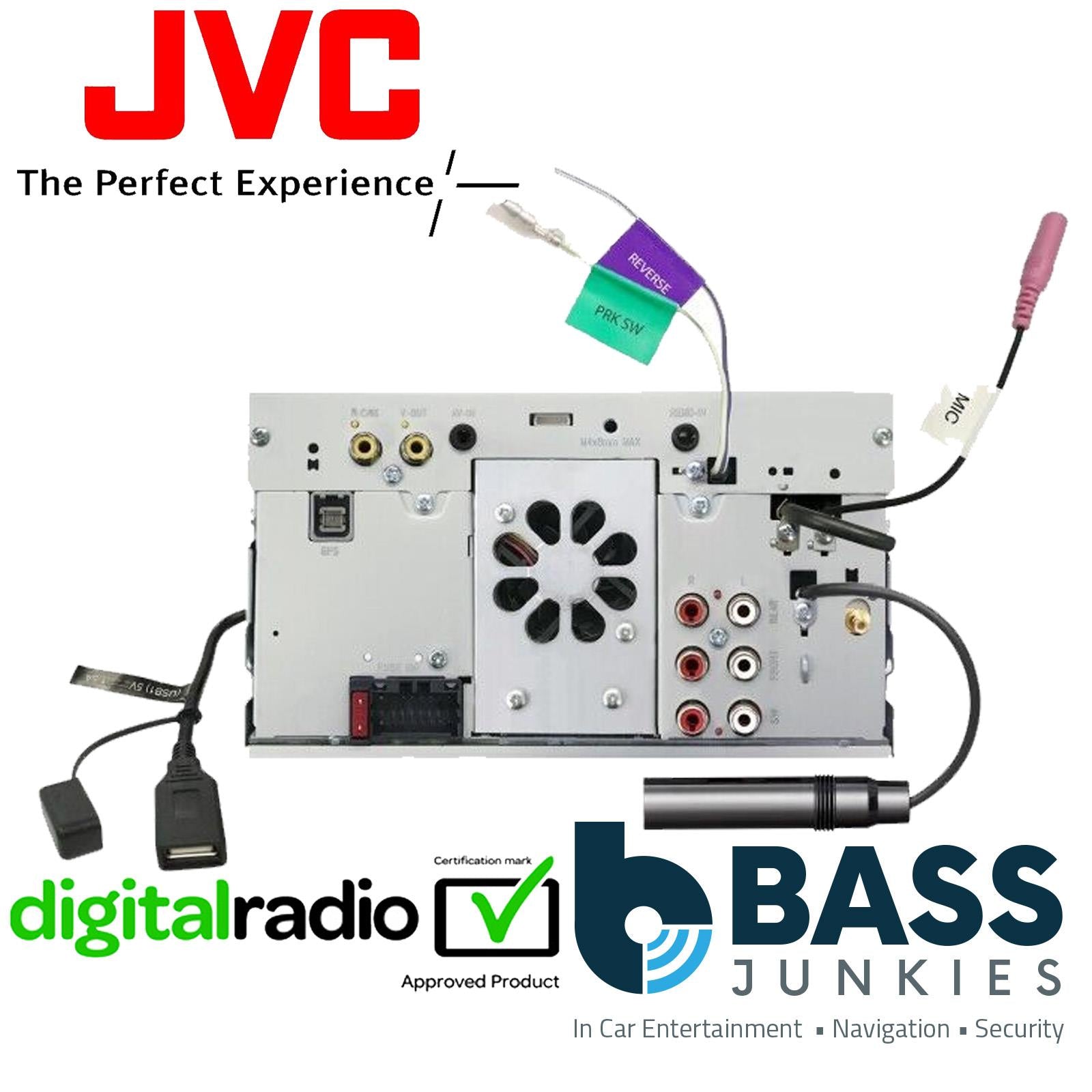

Inputs and Outputs
-
Audio Inputs and Outputs
- Pre-Out Terminals 3 Pairs (Front + Rear + Subwoofer)
- Pre-Out Impedance Less than 600 ohms
- Pre-Out Level/Impedance 2.5V/10k ohms
- Audio Output level (mini jacks) 2V / 25k ohms
- Subwoofer Output with Level/Frequency Control
-
Video Inputs and Outputs
- Video Input Level/Impedance 1.0Vp-p / 75 ohms
- AV Input mini jack (AV-IN or Camera switchable)
- Video Out RCA
- Colour System NTSC/PAL
- Video Output Level/Impedance 1.0Vp-p / 75 ohms
-
Camera inputs
- Rear view camera Input
- Convert AV-input to camera input
General
- Back Up Memory
- Installer Memory
- GPS Antenna Input
- DAB Antenna Input
- Wireless Remote Control Ready (RM-RK258 required)
- Wired Steering Remote Control Ready
- Learning Direct OEM Remote
- ISO Connector 16pin Mitsumi to ISO Wiring harness
- Short Chassis
- Operation Voltage 12 VDC
- Dimensions (W x H x D) 180mm x 100mm x 75mm
- Installation Size (W x H x D) 182mm x 111mm x 75mm
- Weight, inlcuding sleeve and escutcheon 1.2kg
