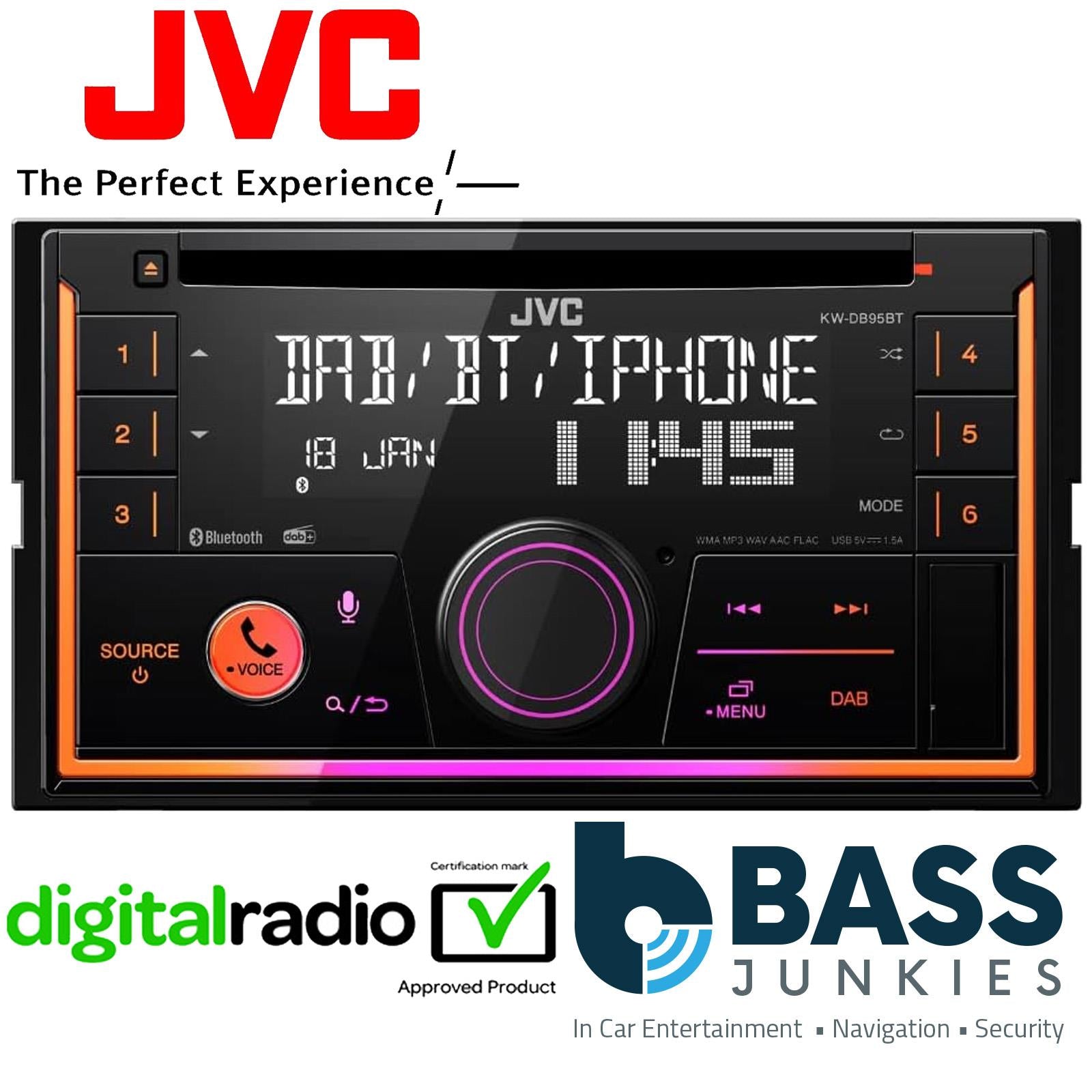

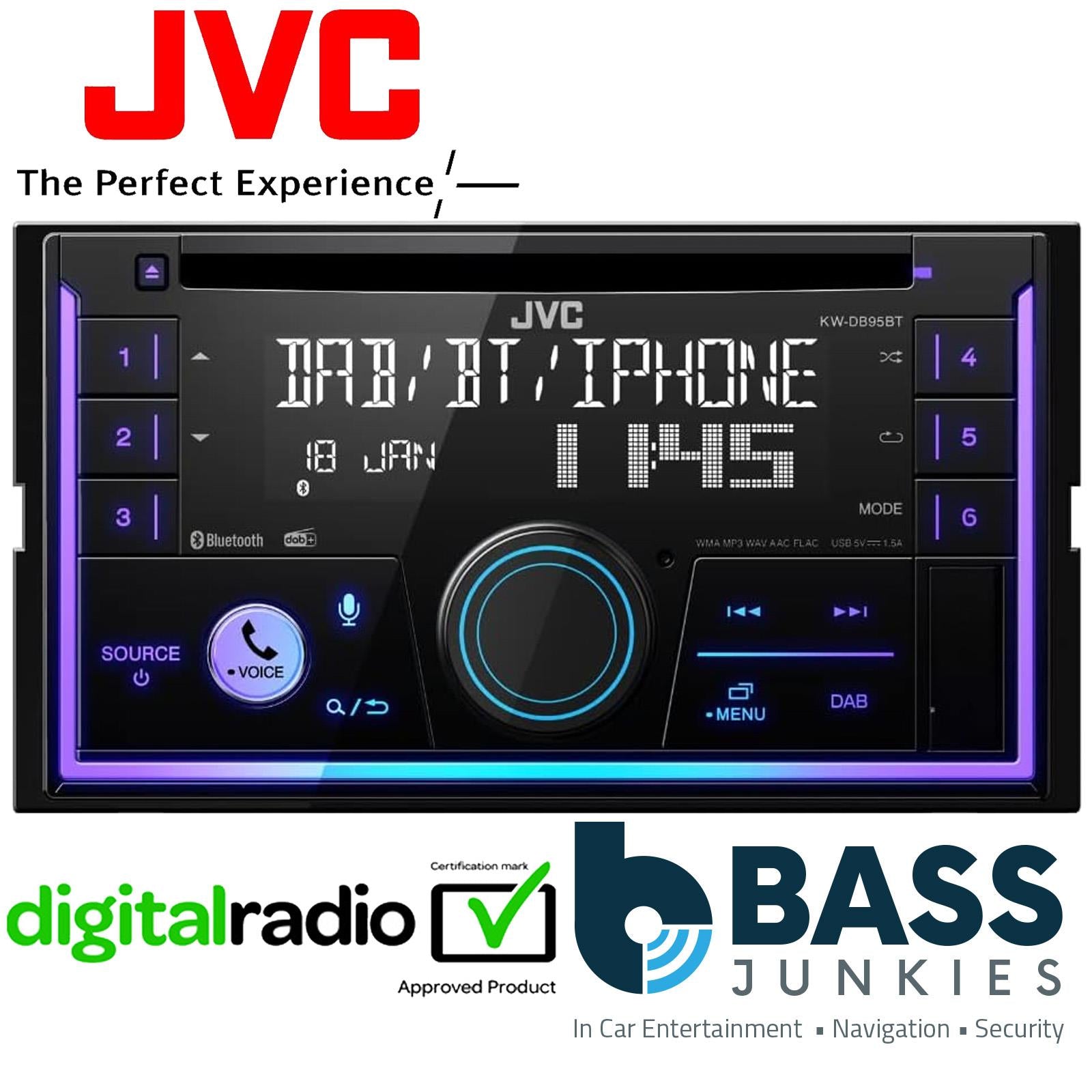

JVC KW-DB95BT - Double Din DAB Bluetooth CD USB MP3 iPhone Car Stereo Radio Player (Varible illumination)
Please Note - To receive DAB broadcasts you will require a DAB antenna which is NOT included in the price and can be purchased from our store. See part number CT27UV62
The JVC KW-DB95BT features a classy design which will look at home in any dashboard. Offering CD Playback, DAB Radio, MP3 connection to your iPhone and Android devices and bluetooth support.
Media Playback
- MP3/WMA Compatible with ID3 Tag/WMA Tag CD / USB
- WAV Compatible with Tag USB
- FLAC Compatible with Tag USB
CD Player
- CD-R/RW Compatible Yes
- CD Text Yes
- Random/Repeat Play Yes
- Frequency Response 20 - 20,000Hz (+/-1dB)
- Dynamic Range 90dB
- Signal-to-Noise Ratio 105dB (1kHz)
- Channel Separation 85dB
- Wow & Flutter Below measureable limit
Bluetooth Control
- Bluetooth Control Yes (Built-in, Wired-Mic included)
- 2 Phones Full-Time Connection Yes
- Hands Free Call (HFP) Yes (HFP 1.6 wideband speech)
- Audio Streaming & Control (A2DP, AVRCP) Yes
- Voice Recognition Dialing (compatible mobile phone required) Yes
- Siri Eyes Free Mode for iPod/iPhone Yes
- Phone Book Access Profile (PBAP) Yes
- iPhone & Android Automatic Pairing Yes
Android Control
- Android Music Playback (AUDIO MODE and AUTO MODE) Yes (AUDIO MODE & AUTO MODE)
- JVC Smart Music Control Yes (via Bluetooth(R))
- Battery Charge Yes (USB: 1.5A Max.)
- iPod/iPhone Control
- iPod/iPhone Music Playback Yes
- Random/Repeat Play Yes
- Text Yes
- Battery Charge Yes (USB: 1.5A Max.)
USB
- Position Front
- Random/Repeat Play Yes
- USB Mass Storage Class (for music files) Yes
- Drive Change Mode for Mass Storage Class Yes
Tuner
- Digital Processing Tuner Yes
- Preset Stations 18FM + 6AM
- Strong Station Memory (for FM) Yes
- Tuner Preset Memory (for power disconnection) Yes
DAB+
- Frequency Range Band lll: 174.928 - 239.200MHz, L-Band: 1,452.960 - 1,490.624MHz
FM
- Frequency Range 87.5 - 108.0MHz
- Usable Sensitivity 8.2dBf (0.71uV/75 ohms)
- Quieting Sensitivity (46dB) 17.2dBf (2.0uV/75 ohms)
- Stereo Separation 40dB
AM
- Frequency Range (MW) 531 - 1,611kHz (9kHz), (LW) 153 - 279kHz (9kHz)
- Sensitivity (MW) 28.2uV, (LW) 50uV
Audio
- Maximum Power Output 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
- Typical Power Output 22W x 4 (Full Bandwidth Power, at less than 1% THD)
- MOS-FET Amplifier Yes
- Sub woofer Direct Connection (Mono Lch) Yes
- Audio DAC Yes
EQ
- 13-Band Graphic EQ Yes
- Easy EQ Setting Yes
- Preset EQ Yes (8-preset)
- Source Link EQ Yes
- High-Pass Filter/Low-Pass Filter Yes/Yes
- K2 Technology Yes
- Space Enhancement Yes
- Sound Response Yes
- Sound Lift Yes
- Volume Link EQ Yes
- Load Impedance 4 ohms (4 - 8 ohms)
- Pre-Output Level 4.0V
- Line Output Impedance Less than 600 ohms
- Subwoofer Output Level 4.0V

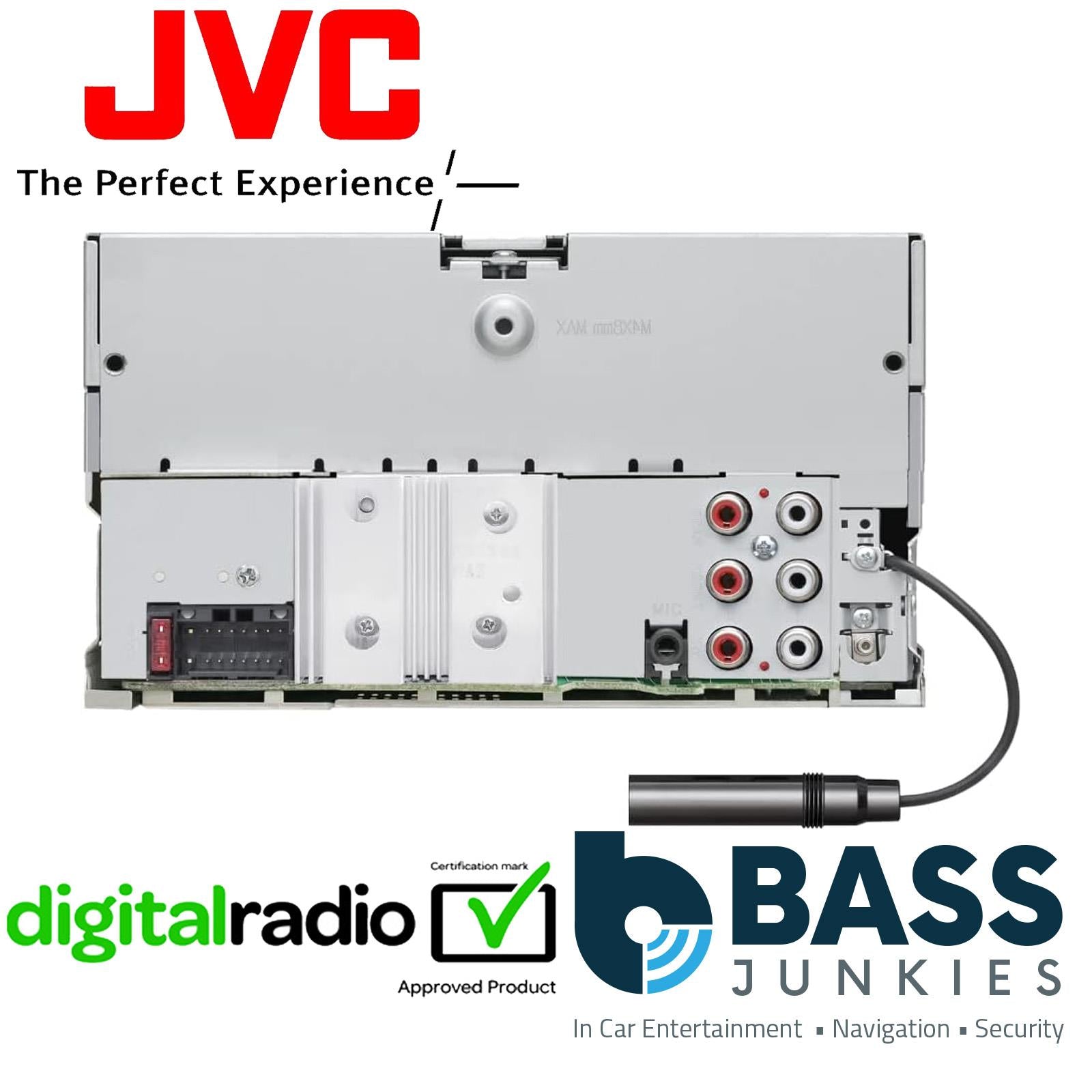

- Inputs and Outputs
- AUX Input 1 (Front)
- Line Output Terminals (Pair) 3 Pairs (Front + Rear + Subwoofer)
- Subwoofer Output with Level/Frequency Control Yes (Level -50 - +10)

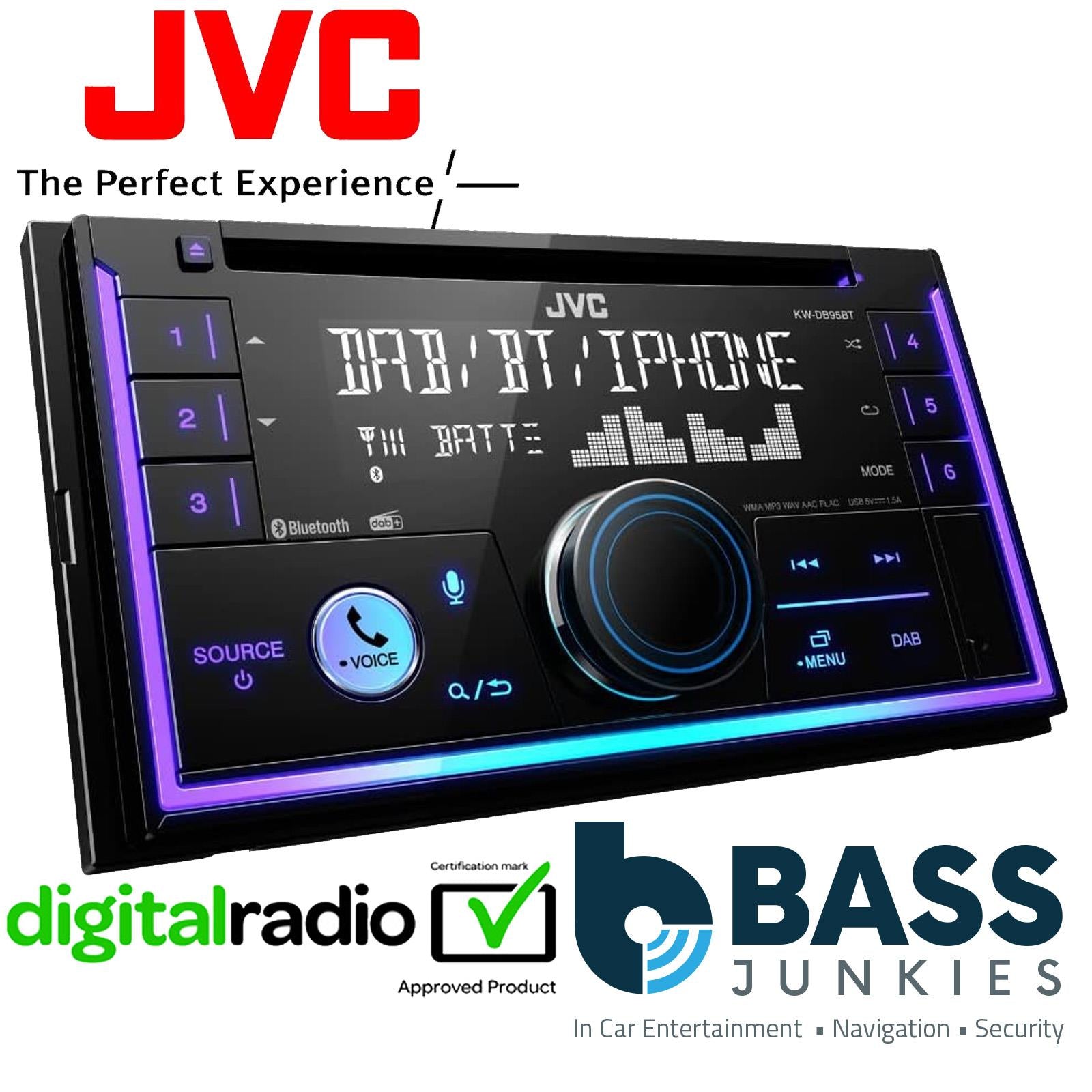

Display
- Display Type - Variable Colour Yes (3-Zone)
- Illumination Colour Variable (3-Zone)
- Spanish Text Display Compatible Yes
- Auto Dimmer Yes
- Brightness Control Yes
General
- Steering Remote Control Ready Yes
- ISO Connector Cable
- Dimensions (W x H x D)
- Installation Size 178 x 112 x 158mm
- Weight 1.6kg
