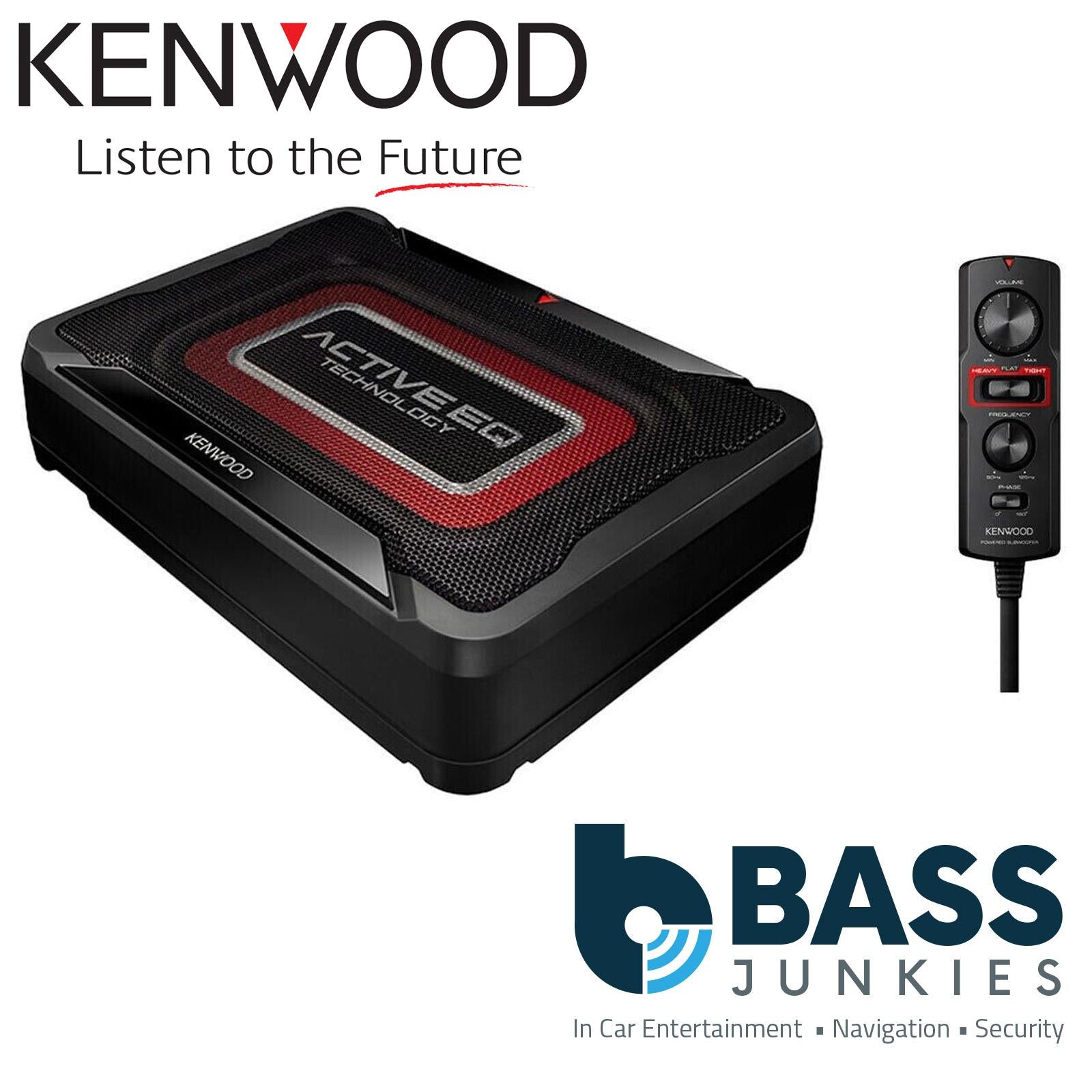

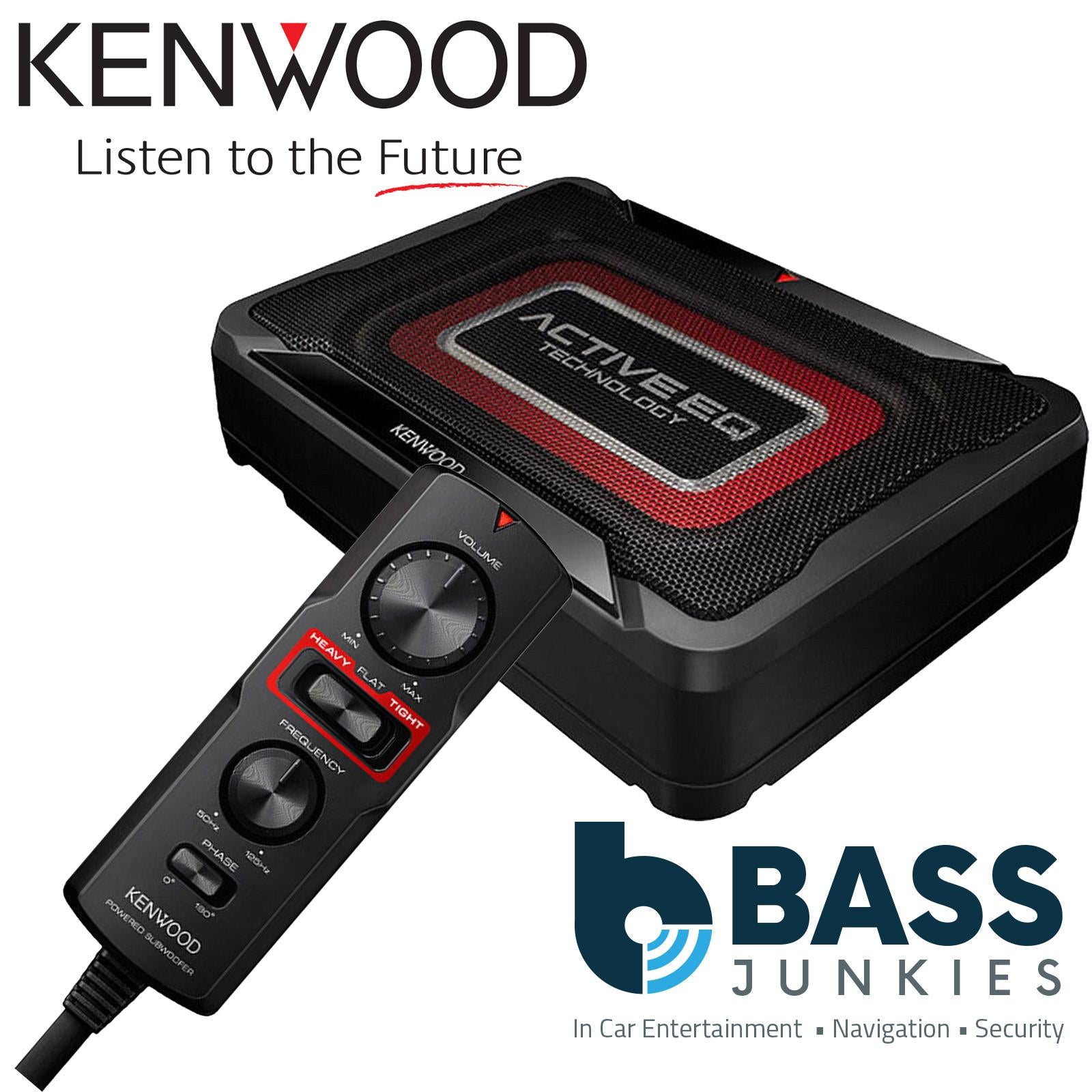

Kenwood KSC-PSW7EQ - 160 Watts Active Amplified Underseat Car Subwoofer

Kenwood KSC-PSW7EQ - 160 Watts Active Amplified Underseat Car Subwoofer

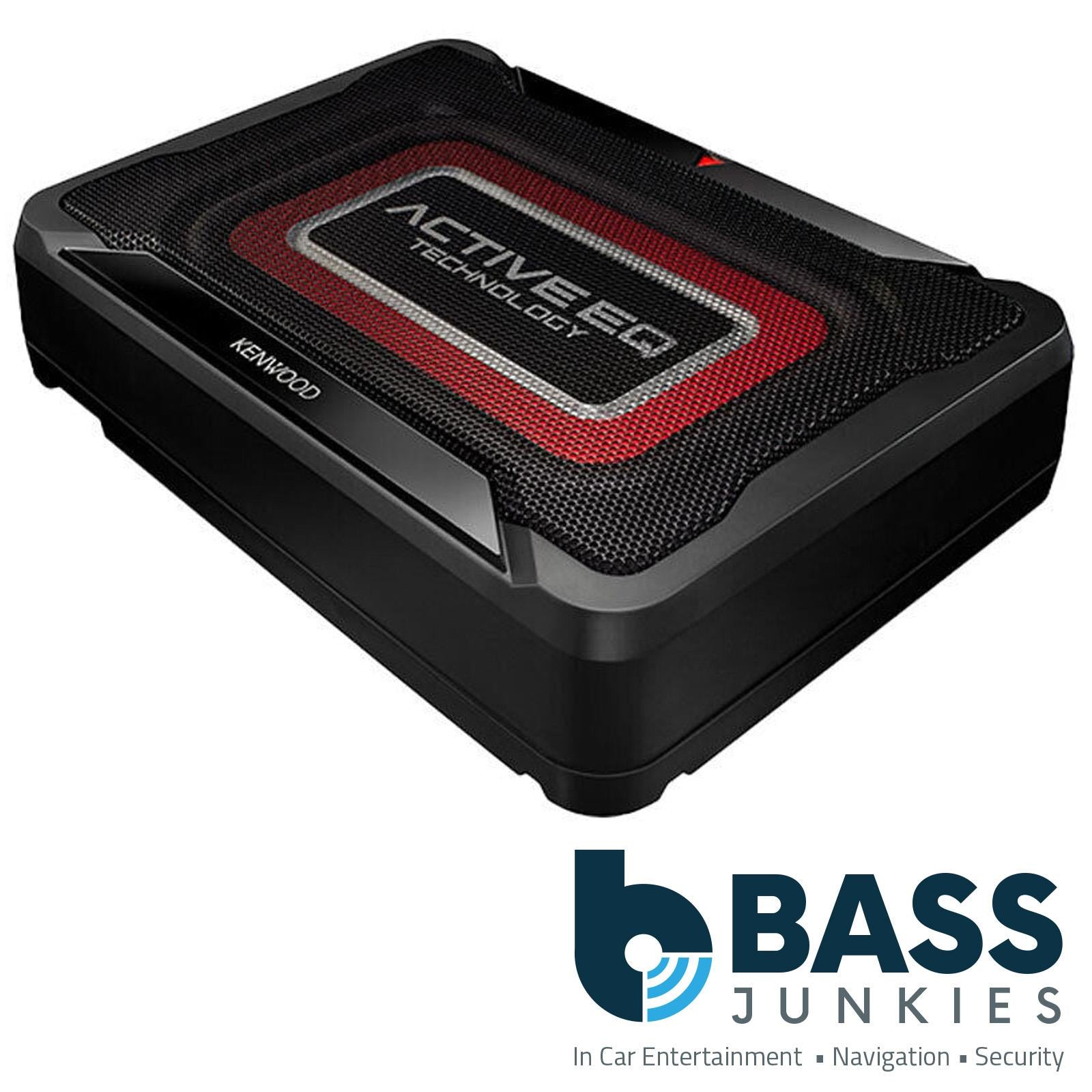

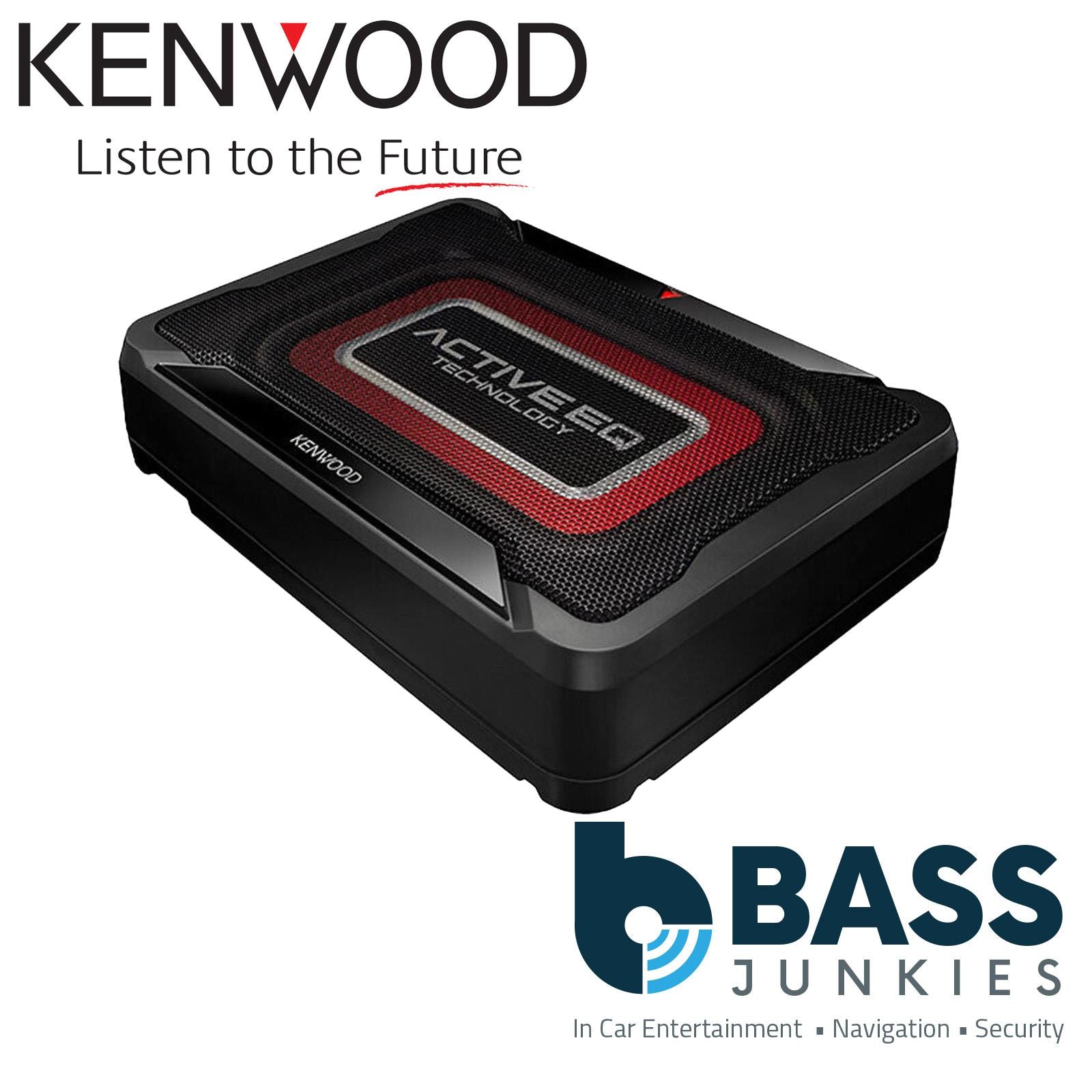

KSC-PSW7EQ Compact Powered Subwoofer

• Max Power 160W
• Wired Remote Controller
• Active EQ Technology Switch
• Class D Amplifier
• (W)280mm x (H)70mm x (D)200mm

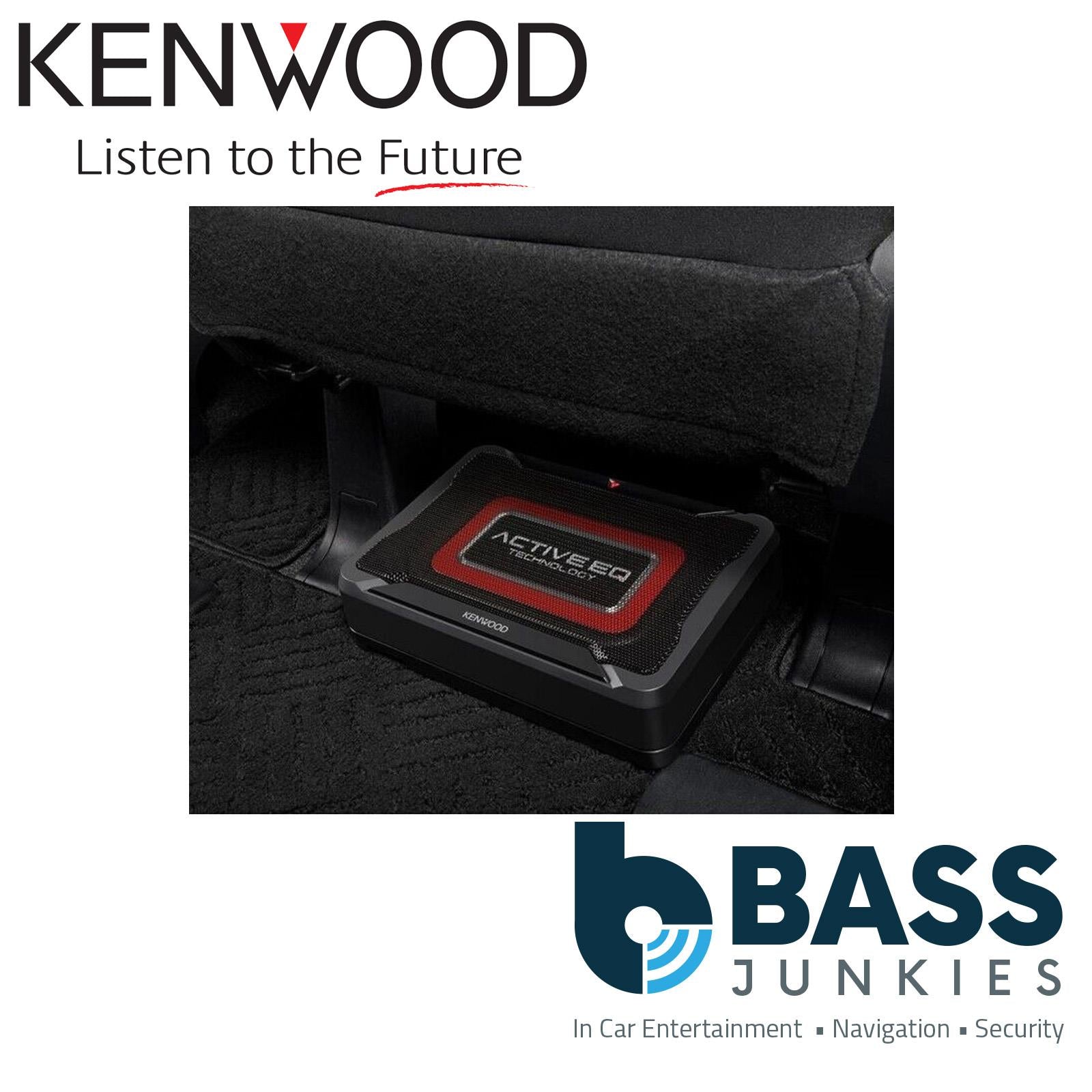

Compact Design

Allows for installation almost anywhere, including tight spaces such as under a seat or panel.

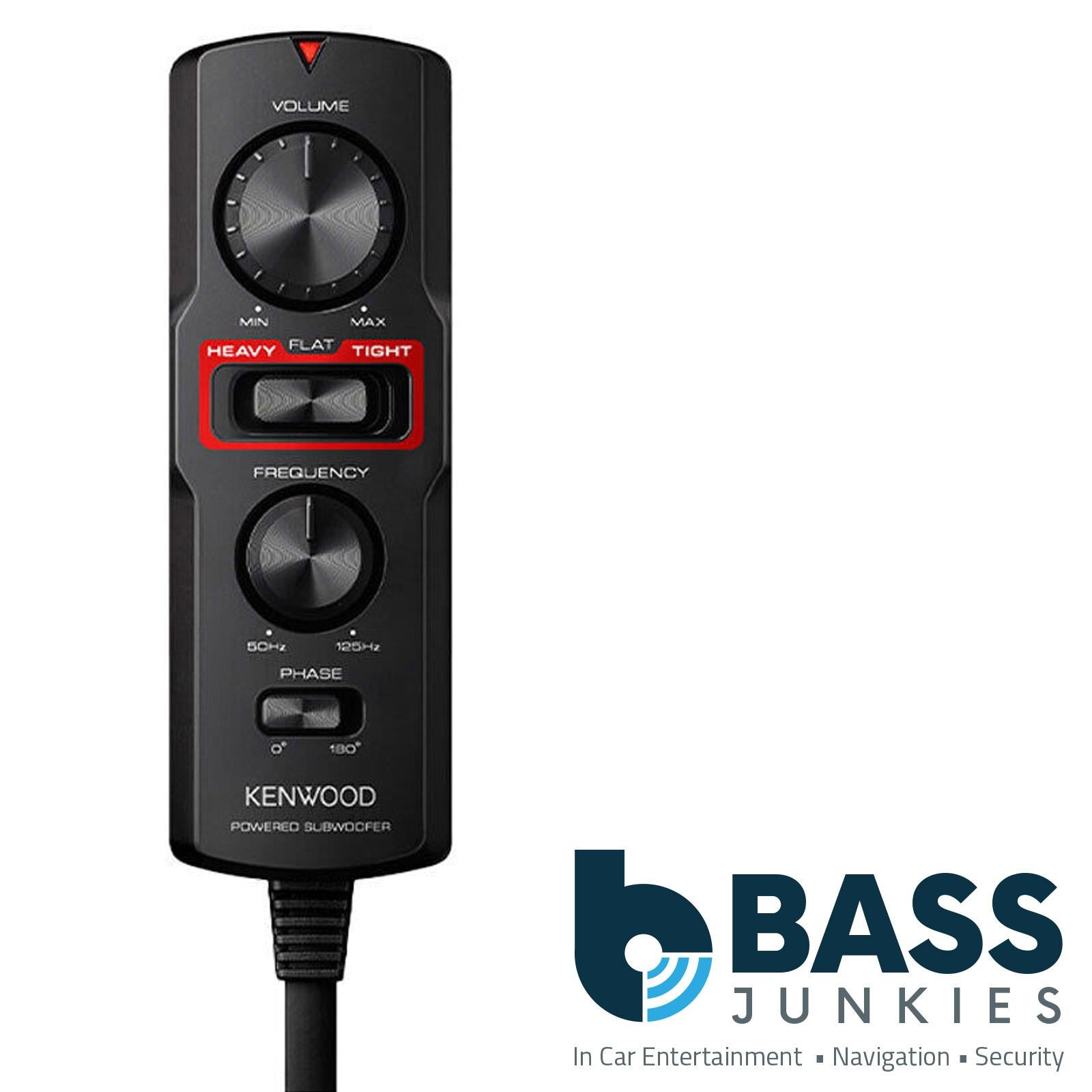

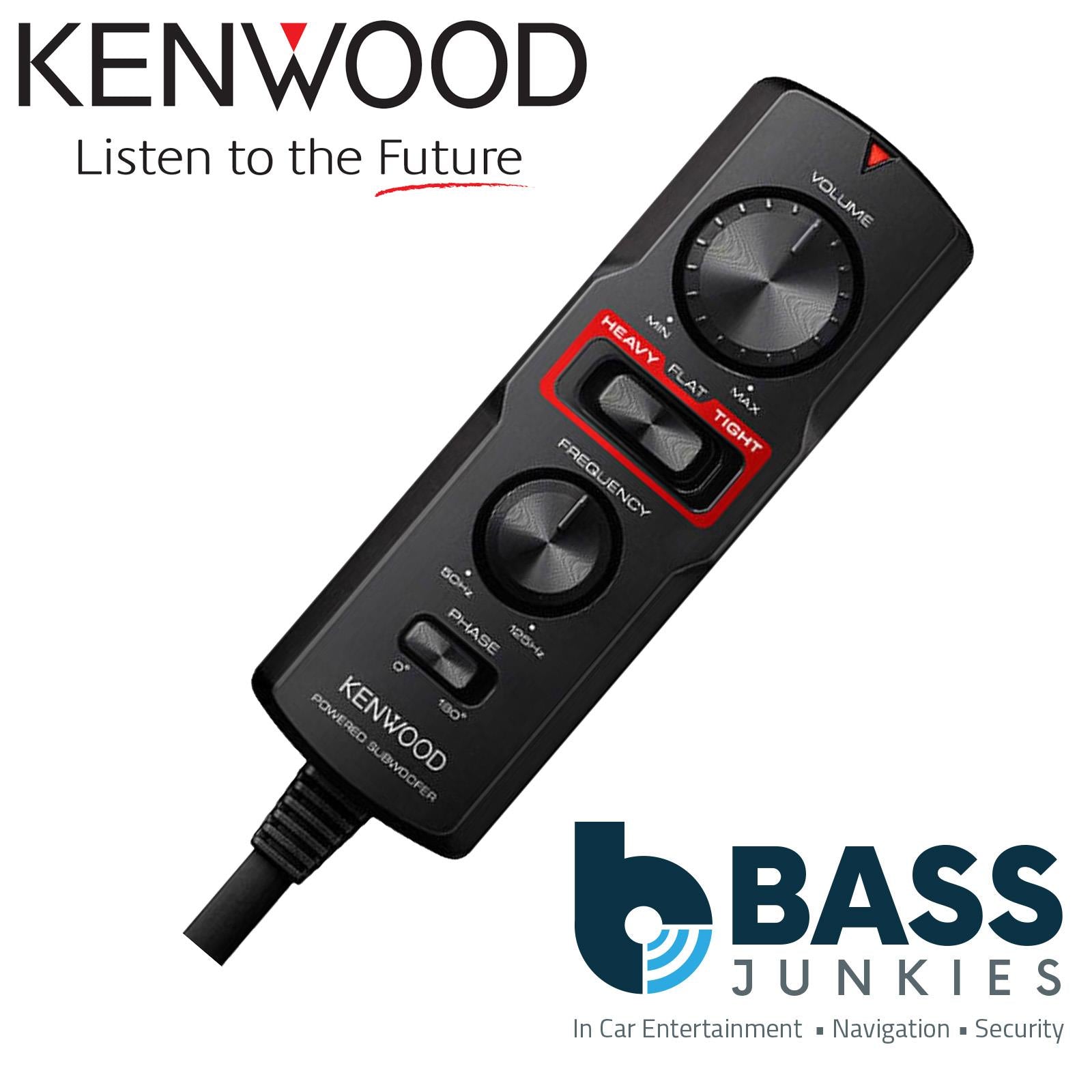

Remote Control Sound Adjustment

• Volume : Input sensitivity control knob
• ACTIVE EQ : Equalizer selector switch
• Frequency : Cut-off freqeuncy control knob
• Phase : Phase select switch

Three types of bass to match the music of various genres equipped with ACTIVE EQ TECHNOLOGY.

New Diaphragm Speaker

The KSC-PSW7EQ is equipped with a micro-step shape on the long edge of the diaphragm surrounding the diaphragm.
This suppresses the unwanted movement of the diaphragm, which vibrates like a seesaw in the longitudinal direction during operation, thereby supporting accurate vibration and reproducing accurate bass sound to the music.

Flexible Connectivity and Installation

Supports speaker level input to connect OEM receiver without RCA outputs.
Power turns on from either speaker level or RCA signal.

Specifications

• Woofer Size 200mm x 130mm
• Max Power (W) 160W
• Current Consumption 5.9A
• Sensitivity (dB at 1m) 89dB
• Frequency Response (Hz) 40Hz - 200Hz (-15dB)
• Speaker Level Input (Speaker Level Input)
• Signal Sensing Turn-on (Speaker Level or RCA)
• Dimension (W x H x D) 280mm x 70mm x 200mm
• Weight 2.6kg
• Remote Control Cable Length 5m
