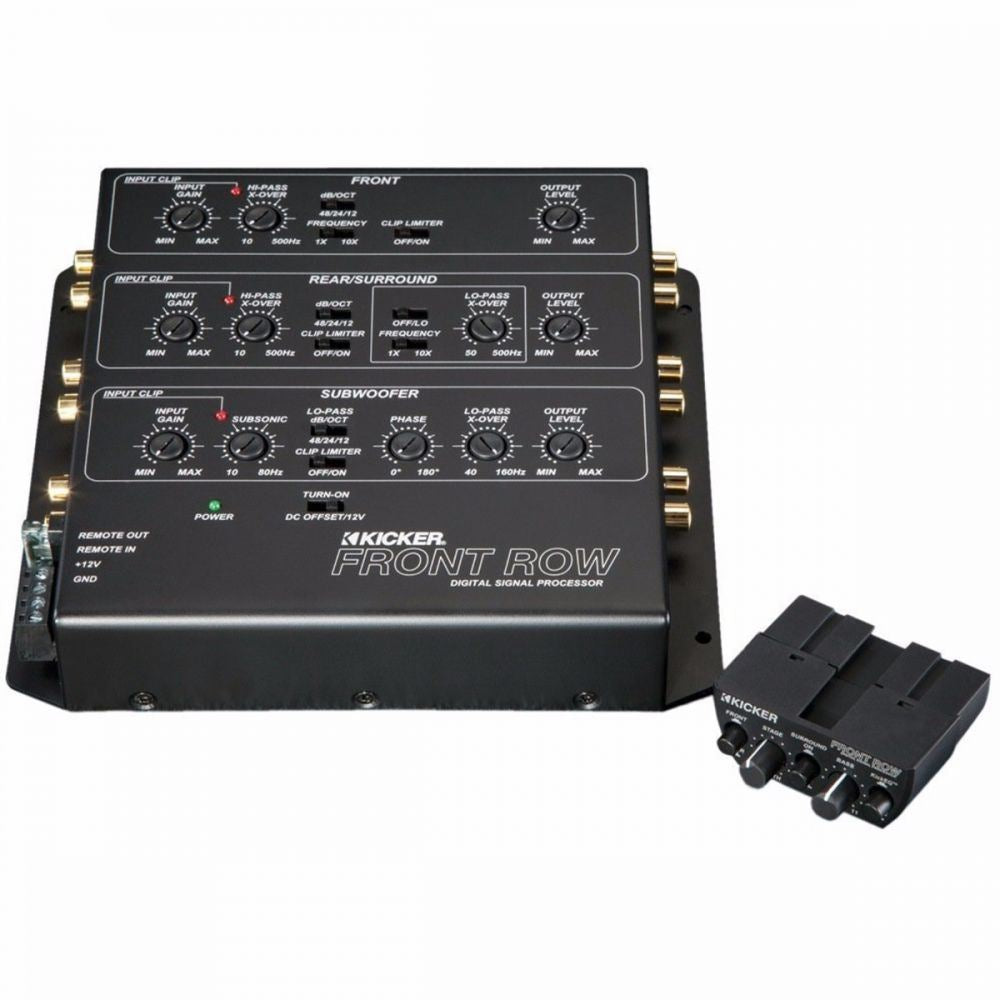

Kicker ZXDSP1 - Front Row Digital Signal Processor
The Front Row™ is a 6-channel digital signal processor that allows you to engineer music the way you’ve always wanted to hear it.
The Front Row utilizes an included remote control, with a simple series of analog knobs; but underneath the dials lay a powerful micro-processor with all the signal processing done in the digital domain (28-/56-bit, double-precision DSP with 24-bit AD/DA converters). Tune your sound to experience staging, imaging and bass with a sense of realism you have never heard before. All with the twist of a knob!
Key Features:
- Digital Signal Processor
- SHOCwave bass restoration circuit for deep bass and full frequency response
- 6-Channels (3 stereo pairs)
- Total sound stage control with speaker time alignment
- Clip Limiter eliminates distortion for loudest and clearest sound
- All the crossovers needed for greater accuracy and control
- Remote level control included
- Simulated 5.1 surround sound mimics tone of live performance and is ideal for movies
- 28-/56-bit, double-precision DSP with 24-bit AD/DA converters
- 50 MHz CPU / 28-/56-bit double-precision DSP / 24-bit AD/DA converters
- Frequency Response (Hz): 10-22k, +/-0.2dB
- Signal-to-Noise Ratio: 110dB
- THD: 0.004%
- 32-step variable crossovers with 12, 24 or 48dB/octave slopes
- Front: high-pass 0-500Hz or 0-5kHz (10x switch)
- Rear: high-pass 0-500Hz
- Rear: low-pass 50-500Hz or 500-5kHz (10x switch)
- Sub: subsonic filter 0-80Hz, fixed at 48dB/octave
- Sub: low-pass 40-160Hz
- Subwoofer Phase: variable 0-180 degrees
- KickEQ: variable 0-+15dB at 45Hz, Q=3
- SHOCwave: variable bass restoration
