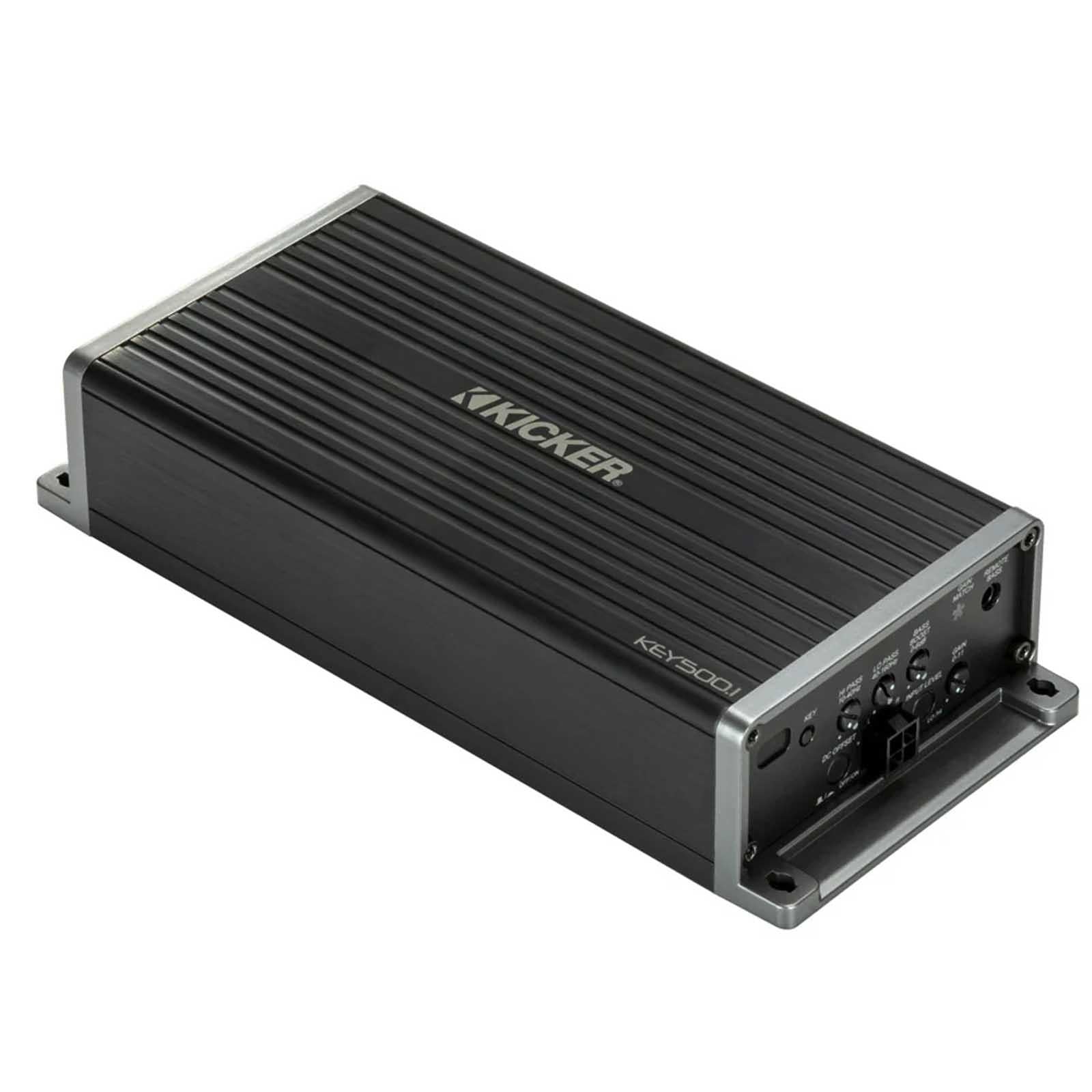

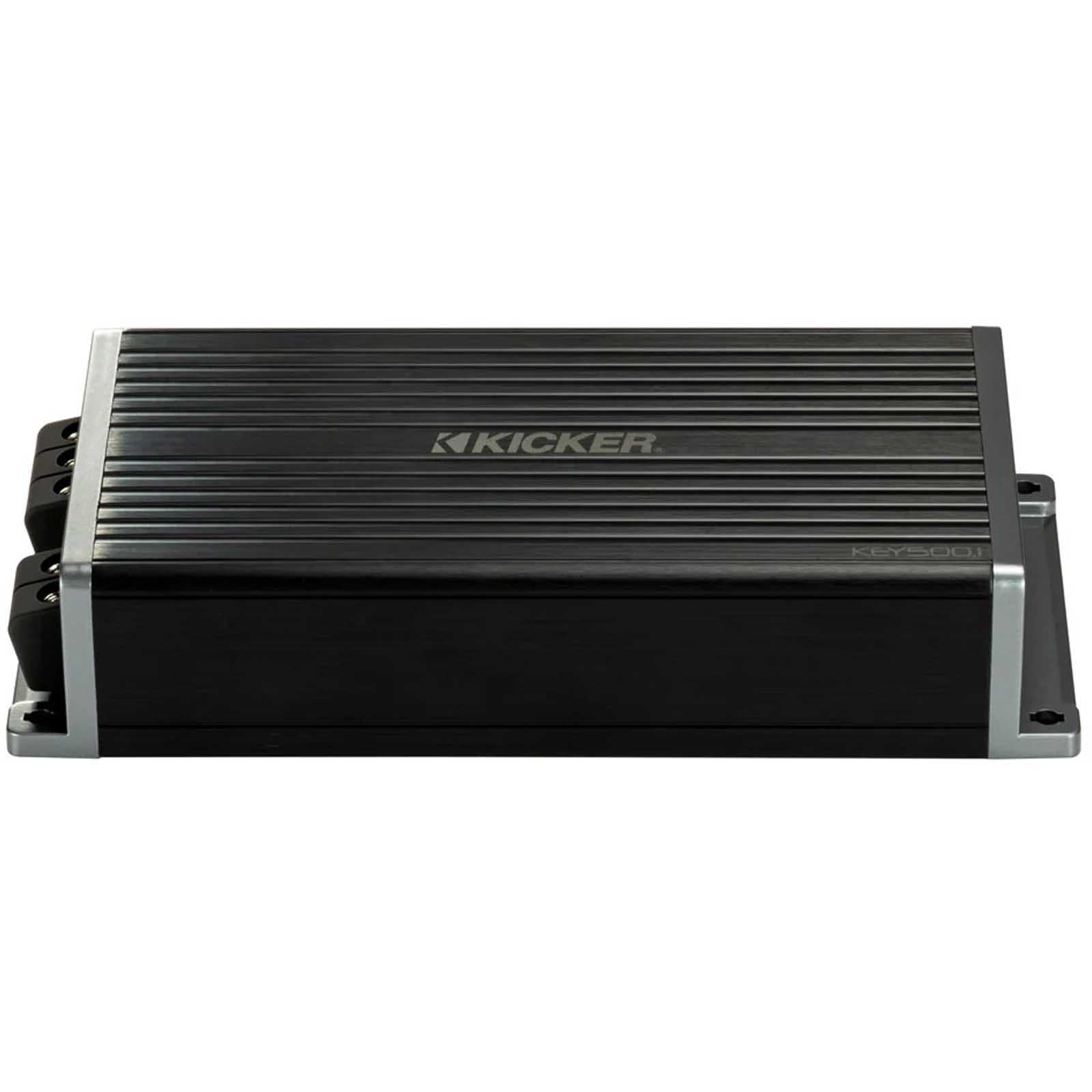

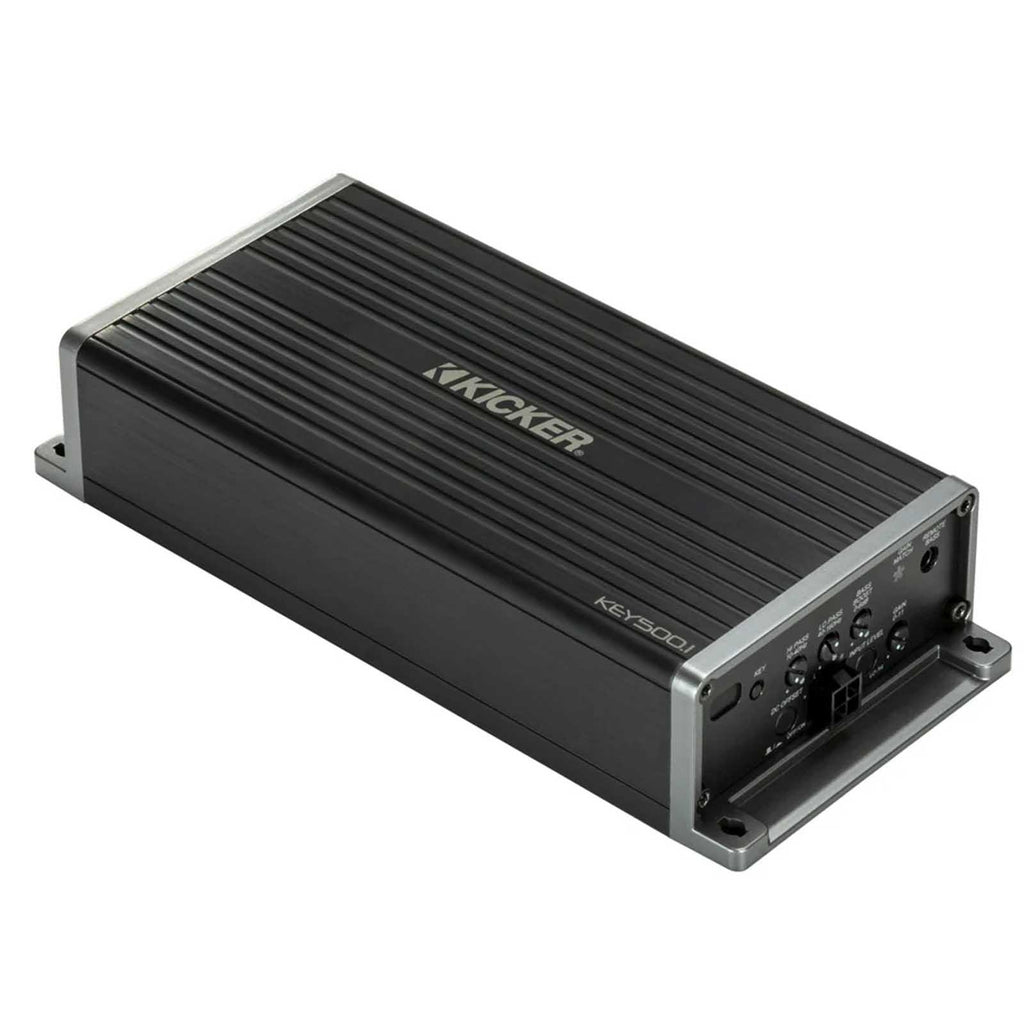

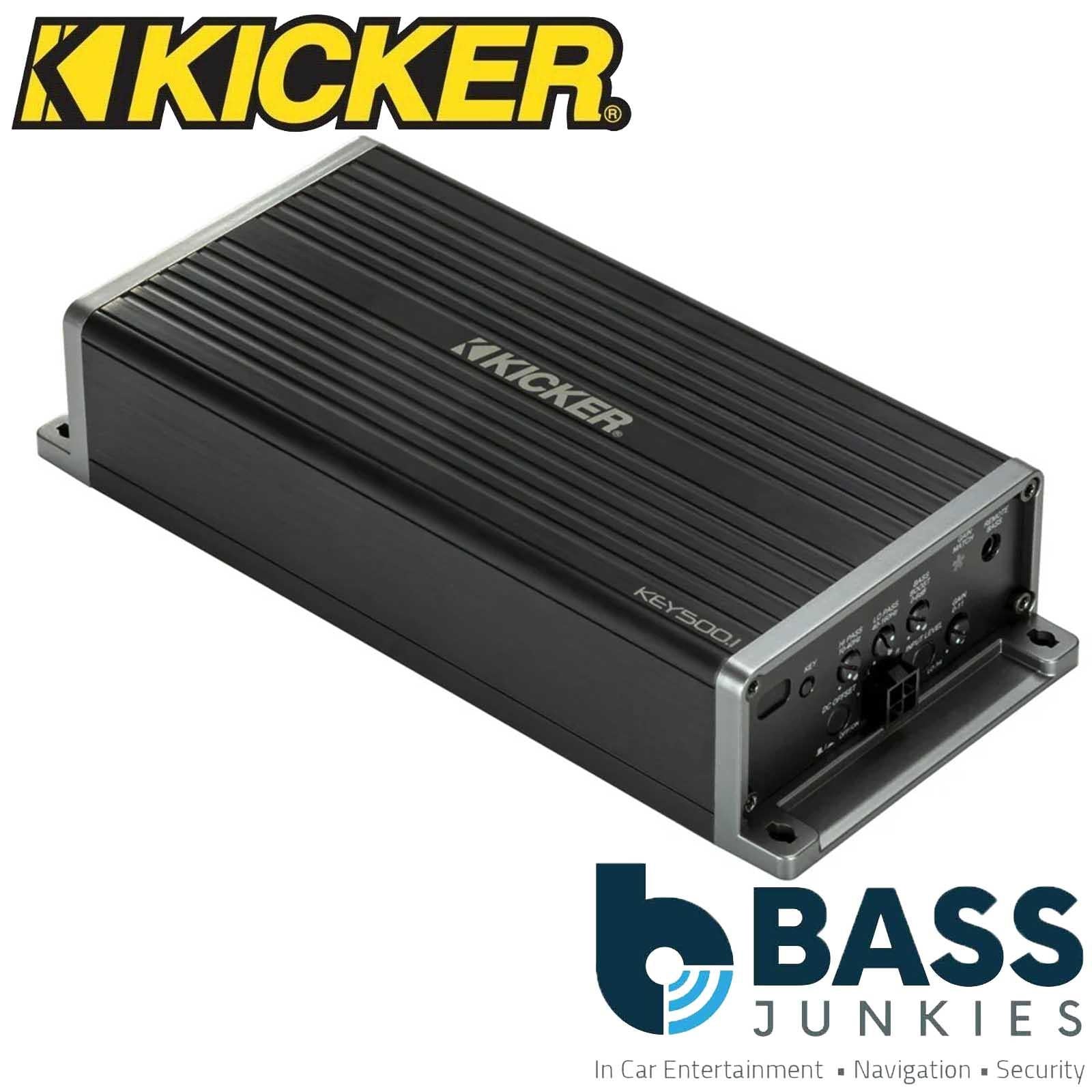

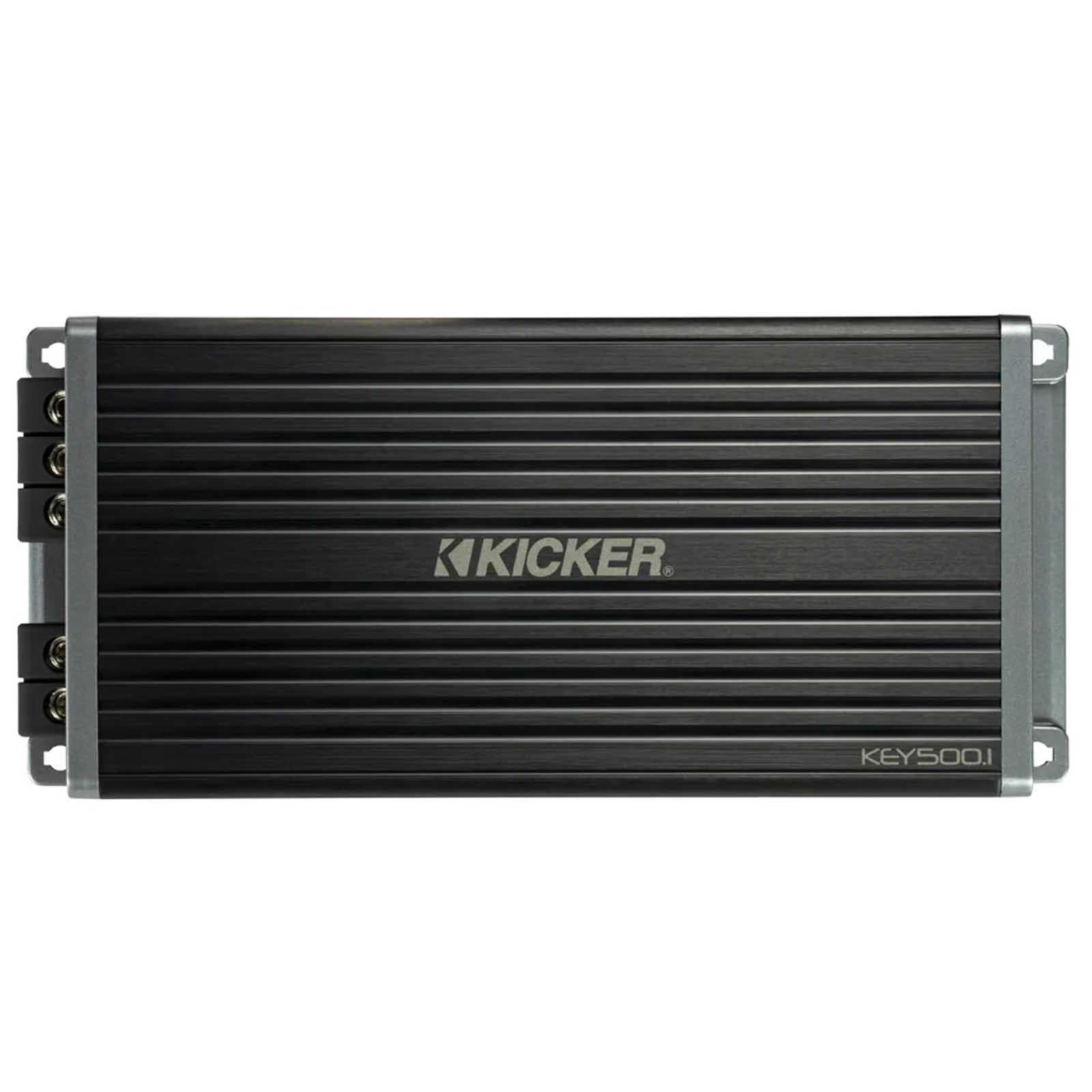

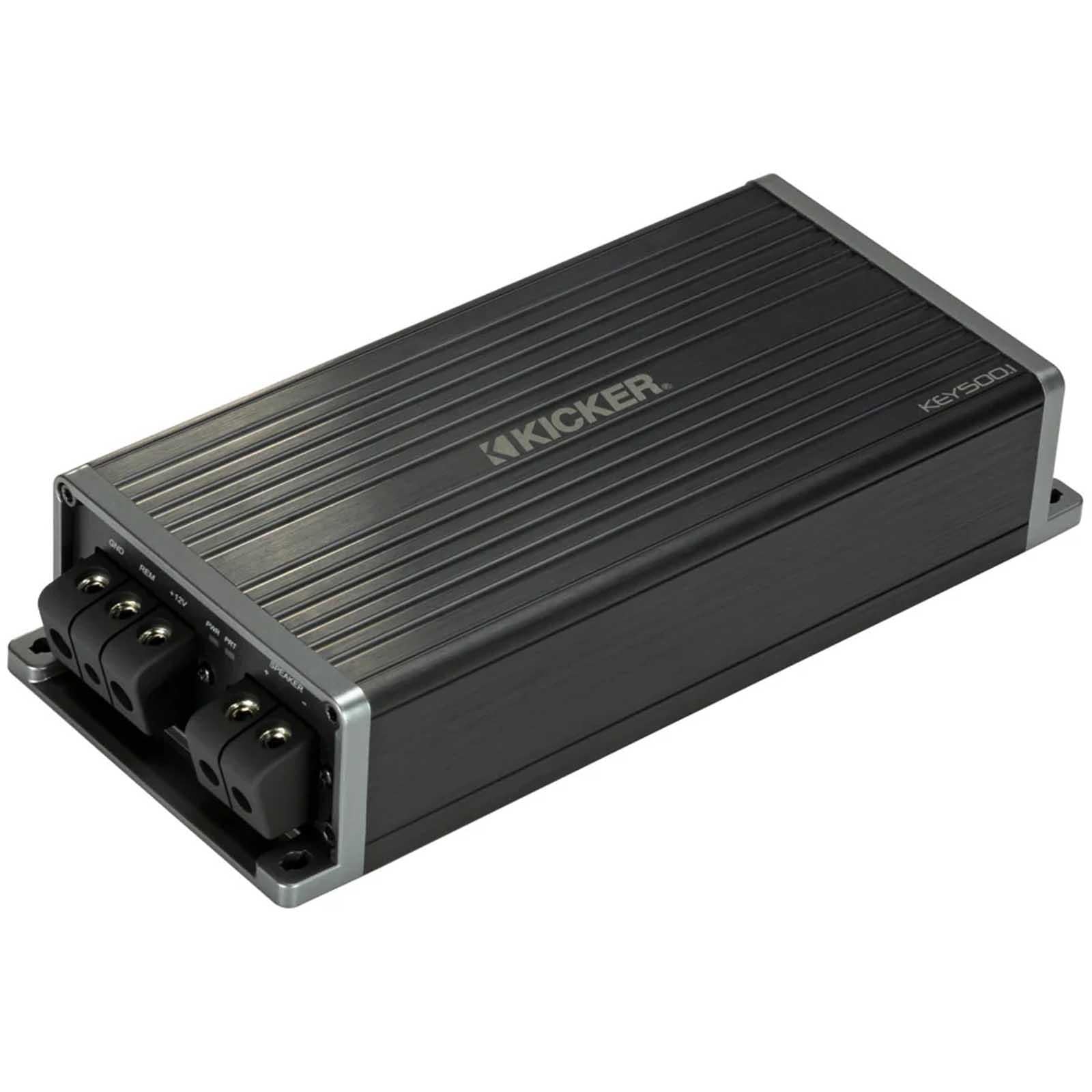

Kicker 47KEY500.1 500 Watts Monoblock Smart DSP Subwoofer Amplifier
The Kicker 47KEY500.1 combines a powerful monoblock subwoofer amplifier with advanced AI-driven DSP technology to deliver cleaner, deeper and more accurate bass performance. Designed for both factory and aftermarket audio systems, the KEY500.1 automatically analyses and corrects incoming audio signals, restoring missing low frequencies and eliminating unwanted peaks.
Using KICKER's intelligent Auto EQ technology, setup takes only minutes. Simply run the supplied test tones and the amplifier automatically optimises your bass response for exceptional low-frequency performance.
Compact enough to install under seats, behind dashboards or in tight spaces, the KEY500.1 is the perfect solution for upgrading factory bass systems without sacrificing valuable space.
Features:
- 500 Watts RMS Monoblock Amplifier
- Integrated Smart DSP Processor
- AI Driven Auto EQ Technology
- Automatic Bass Restoration
- FIT2+™ OEM Integration Technology
- Start/Stop Vehicle Compatible
- Compact Installation Design
- Compatible with CXARC Remote Bass Controller

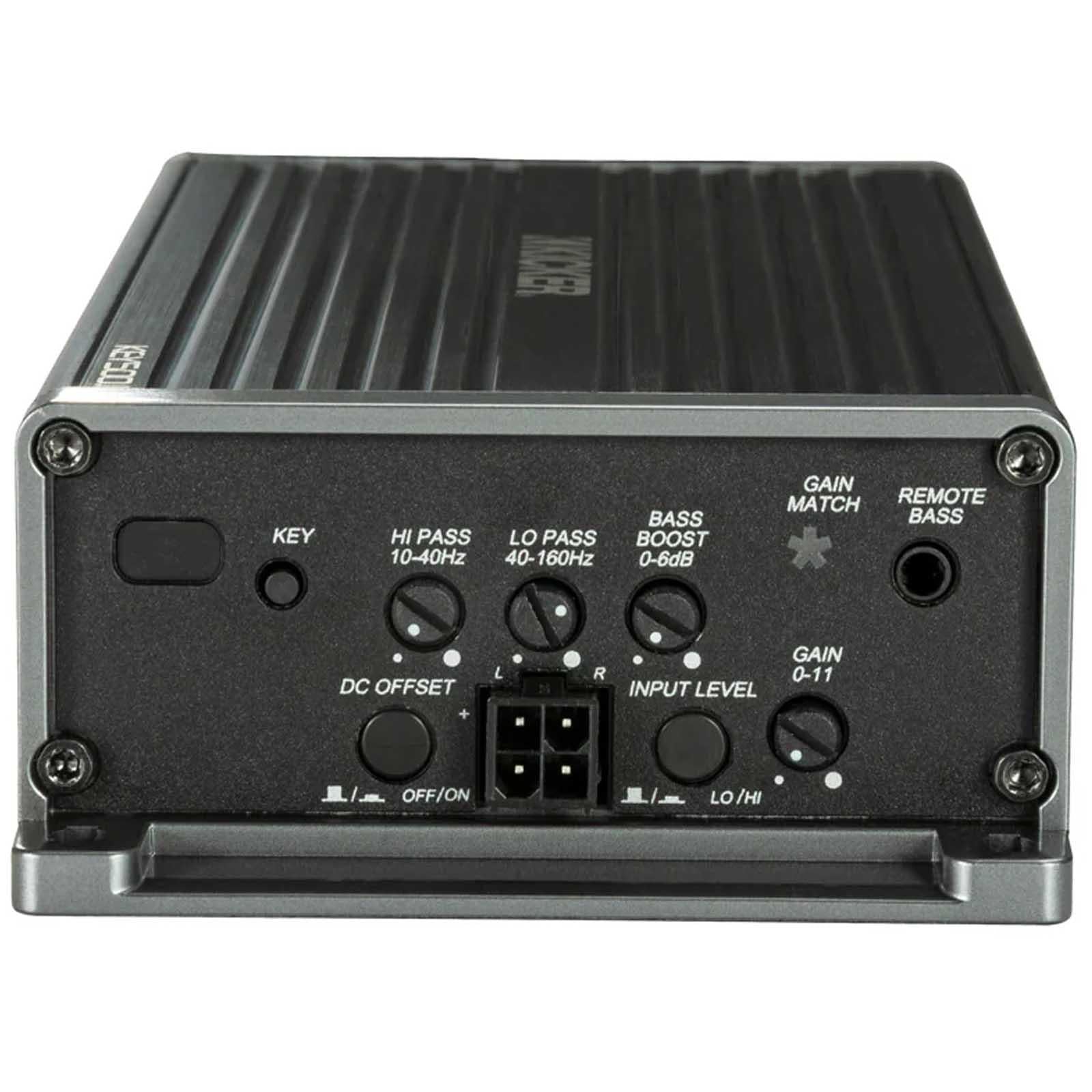

- Variable Low Pass & Subsonic Filters
- Works with Factory and Aftermarket Head Units
Power Output:
- 500W RMS x 1 @ 1 Ohm
- 300W RMS x 1 @ 2 Ohms
- 150W RMS x 1 @ 4 Ohms
DSP Features:
- Automatic Signal Analysis
- Bass Restoration Technology
- Automatic Frequency Correction
- Variable Low Pass Filter: 40Hz - 160Hz
- Variable Subsonic Filter: 10Hz - 40Hz
Specifications:
- Amplifier Type: Monoblock
- Frequency Response: 10Hz - 160Hz
- Signal To Noise Ratio: >90dB
- High Level Input Sensitivity: 1V - 40V
- Low Level Input Sensitivity: 125mV - 5V
Dimensions:
- Length: 207mm
- Width: 92mm
- Height: 43mm
Recommended Subwoofer Pairings:
- Kicker CompRT Loaded Enclosures
- Kicker L7T Thin Subwoofers
- Kicker L7R Loaded Enclosures
- Factory Audio Bass Upgrades
Package Includes:
- Kicker 47KEY500.1 Smart DSP Amplifier
- Installation Hardware
- Setup Documentation
